Whether your EZ17 runs the early 3TNV76 engine or the later Tier IV 3TNV80F, this 252-page Wacker Neuson EZ17, PowerTilt PTS4.5 service manual PDF (OEM ID 1000294837) covers both builds of the track excavator, along with a full teardown of the PTS4.5 tilting coupler. Factory hydraulic and wiring diagrams near the back map the load-sensing circuit from variable displacement pump to main valve block, backed by a legend for the main wiring harness. Repair procedures fill roughly a fifth of the book, walking you through pressure checks at each measuring port, injection timing, and swivel unit seal replacement. Torque the cylinder-head bolts to 59 to 63 Nm, and in acidic air, swap the air filter every 50 hours. PowerTilt seals fight you without the factory removal tool; drawings for making one are included. Bookmarks and a live text layer land you on the right section in seconds.
What's Inside This Wacker Neuson EZ17 Manual
| System | Pages | Key Topics |
|---|---|---|
| Operation | 11-38 | Notices on This Service Manual, Identification of Warnings and Dangers, Explanation of Symbols and Abbreviations (Conversion Table) |
| Engine | 127-168 | Overview of Engine 3TNV76-Nns, Fuel System, Cooling System, Checking and Adjusting Valve Clearance |
| Hydraulic System | 169-194 | How the Load-Sensing System Works, Overview of Components (Hydraulic Tank Components) |
| Electrical System | 195-208 | Ohm’s Law; Power, Measuring Equipment, Measuring Methods, Relays (Use, Mode of Function), Electrical Components (Fuses, Relays, Bulbs, Alternator, Starter, Socket, Rotating Beacon) |
| Diagrams | 209-216 | Hydraulics Diagram, Wiring Diagram, Hydraulics Diagram Options, Wiring Diagram Legend |
| Options | 217-232 | Counterweight (Specifications), Long Stick (Specifications), Safe Load Indicator (Setting the Pressure Switch), Electro-Proportional Controls |
| PowerTilt PTS4.5 | 233-252 | Tools (Making a Tool for Removing the Seals), Separating the Bucket or Equipment From the PowerTilt Swivel Device, Separating the PowerTilt Swivel Device From the Machine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder-head bolt | 59 – 63 Nm | p. 48 |
| Connecting rod bearing screw | 22.6 – 27.5 Nm | p. 48 |
| Starter | 12 V 1.1 kW | p. 46 |
| Alternator | 12 V 55 A | p. 46 |
| Air filter replacement interval (acidic air) | 50 s/h | p. 92 |
| Air filter replacement interval (standard) | 1000 s/h | p. 92 |
| Hydraulic oil filter replacement interval | 1000 s/h | p. 109 |
| Valve clearance | 0.15 – 0.25 mm (0.0059 – 0.0098") | p. 132 |
| Engine Oil Capacity | 3.5L | p. 57 |
| Hydraulic Oil Tank Capacity | 11L | p. 57 |
| Fuel Tank Capacity | 22L | p. 57 |
| Engine Output (3TNV76-SNSE12) | 13.4 kW | p. 40 |
Wacker Neuson EZ17 Common Problems This Manual Covers
Wacker Neuson EZ17 engine overheats under load, coolant temperature light and buzzer come on mid-shift

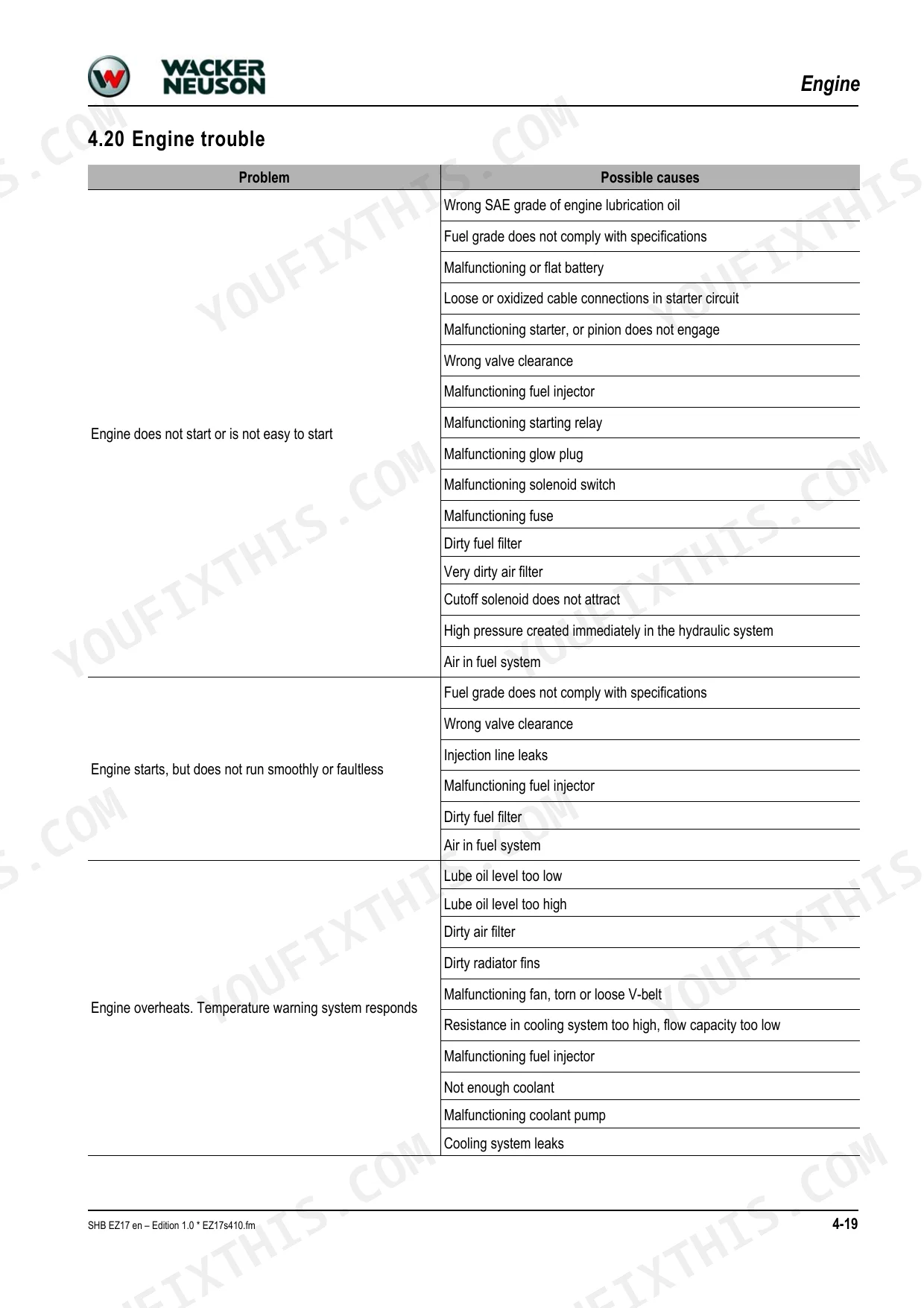

Check coolant level in the expansion tank and top up before anything else. Inspect the radiator core and blow out fines with compressed air; these machines pack dust fast on demolition sites. Measure V-belt deflection, 6-8 mm on a new belt per page 94, and work the overheat chart on page 145 if the alarm returns.
Manual Section: Engine trouble p. 145Oil pressure warning light stays on after startup, buzzer sounds at idle
Shut the engine down immediately. Check the dipstick; the sump holds 3.5 L, so refill with the correct grade if low. Verify the pressure switch connector and harness against the wiring diagram on page 214. If level and wiring check out, follow the oil pressure procedure on page 145 before restarting.
Manual Section: Engine trouble p. 145Starter cranks strongly in cold weather but engine never fires, no smoke from the exhaust
Verify fuel supply first; the tank holds 22 L and running low on a slope can starve the pickup. Replace the fuel filter and bleed the system to the injection pump. Test battery voltage under crank; the 12 V 1.1 kW starter drags a marginal battery down fast. Work the no-start chart on page 145.
Manual Section: Engine trouble p. 145Hydraulic functions slow and weak once oil warms up, boom and bucket stall under load
Check hydraulic oil level; the tank holds 11 L, and a low tank pulls air into the pump. Replace the return filter if it is past the 1000 service hour interval listed on page 109. Bleed the system after the change, then run the flow and pressure checks in the hydraulic section starting on page 169.
Manual Section: Hydraulic System p. 169Tilt coupler rotates slowly in one direction and drifts back under side load
Check for internal bypass first; the actuator is rated for 930 Nm of drive torque, and sluggish one-way rotation usually means worn seals letting oil past the piston. Inspect the shaft seals and supply hoses for leakage, then work the position and turning-direction checks in the PowerTilt section starting on page 233.
Manual Section: PowerTilt PTS4.5 p. 233Frequently Asked Questions
How do I bleed the hydraulic system on a Wacker Neuson EZ17?
To bleed the hydraulic system, slacken the bleed screw on the hydraulic pump with a suitable tool. Tighten the bleed screw as soon as hydraulic oil flows out slightly. Ensure you use a suitable container to collect any escaping fluids. p. 175

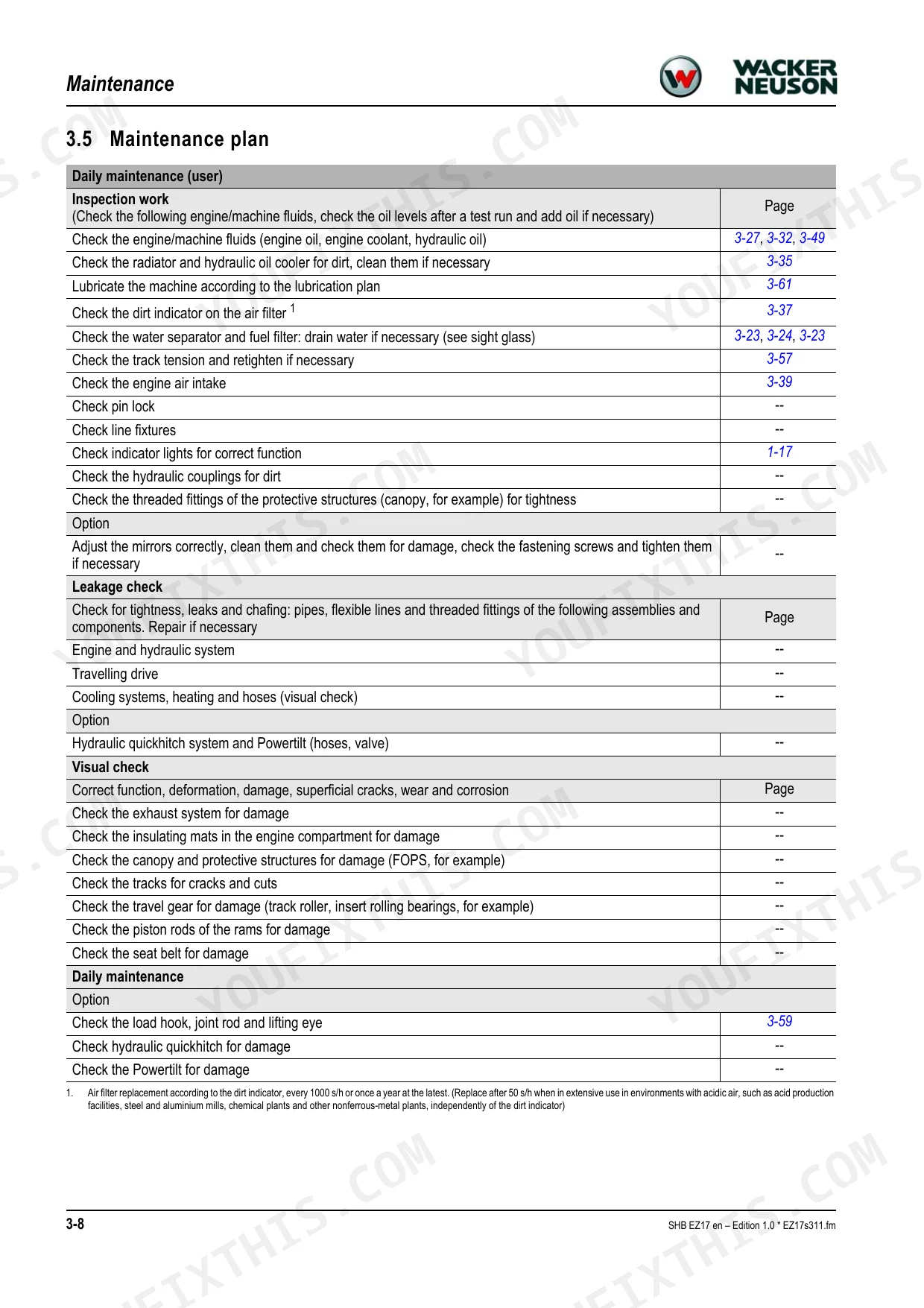

What are the replacement specifications for the air filter element?
The air filter elements should be replaced according to the dirt indicator, every 1000 service hours, or once a year at the latest. In environments with acidic air, such as steel mills or chemical plants, replace the elements after 50 service hours. p. 92
What is the torque specification for the cylinder-head bolts on the EZ17 engine?
The cylinder-head bolts for the EZ17 engine must be tightened in two stages. The first position is 29.5 – 31.5 Nm (21.5 – 23 ft.lbs.), and the second position is 59 – 63 Nm (43.5 – 46.5 ft.lbs.). p. 154

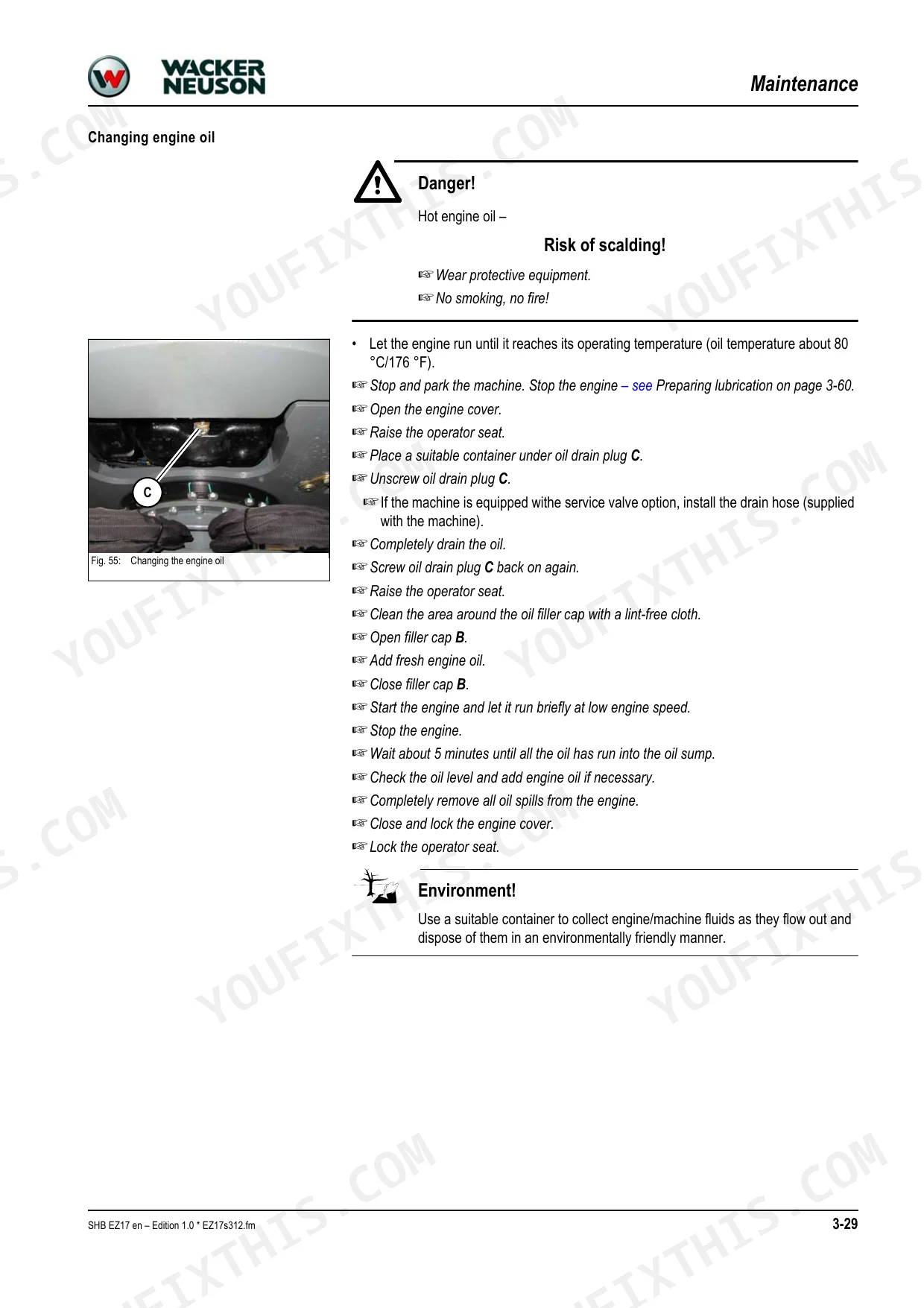

What is the engine oil capacity for the Wacker Neuson EZ17?
The engine oil capacity for the EZ17 diesel engine is approximately 3.5 liters (0.9 gallons). p. 57
What is the correct valve clearance for the EZ17 engine?
The valve clearance for both intake and exhaust valves on the EZ17 engine should be set to 0.15 – 0.25 mm (0.006 – 0.01 in) when the engine is cold. p. 152
How quickly can I access this Wacker Neuson EZ17 manual after buying?
Instant PDF download. You get the full 252-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Wacker Neuson EZ17 Service Manual printable?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
