Wacker Neuson issued document 5100005462 / 02 to its own repair shops: a 150-page factory book for the IREN and IRFU lines of internal vibrators, eight variants in four head sizes. If you searched for a Wacker Neuson IREN, IRFU repair manual PDF, this is the real one. Electrical safety testing anchors the book; grounded conductor, insulation, and high voltage checks run before disassembly and again after repair, with pass values for each. Teardown and rebuild of the vibrator head, IRFU inverter, and IREN switch box fill the middle chapters, and LED troubleshooting charts decode Bodyguard and inverter fault signals. Fill an IREN 38 head with 8 cm3 of oil, and leave the stranded conductors protruding 500 mm at both ends before you clamp the protective hose. A guessed insulation figure here is a shock hazard. The bookmarked, text-searchable file rides along wherever your vibrator ends up, bench or pour.
What's Inside This Wacker Neuson IREN, IRFU Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Preface | 5 | |
| Introduction | 6-8 | Symbols Used, Wacker Neuson Contact Partner, Described Equipment Types, Marking of the Equipment |
| Security | 9-16 | Policy, Protection Equipment, Safe Operation and Test Run, Safety When Operating Electrical Equipment, Maintenance / Service / Repair, Safety and Information Labels |
| Iren Technical Data | 17-21 | Iren 38, Iren 45, Iren 57, Iren 65 |
| Technical Data | 22-25 | Irfu 38, Irfu 45, Irfu 57, Irfu 65 |
| Special Tools | 26 | Fixing Device, Extractor, Sirometer |
| Support Materials | 27 | Sealing Compound, Grease, Adhesive |
| Input Tests | 28-41 | Description, Irfu Device Description, Iren Device Description, Visual Inspection, Grounded Conductor Test, Insulation Test, High Voltage Test, Functional Check |
| Disassembly | 42-72 | Description, Irfu Inverter, Iren Switch Box, Vibrator Head, Stranded Conductors in the Protective Hose, Bodyguard |
| Final Inspections | 73-85 | Description, Irfu Device Description, Iren Device Description, Visual Inspection of Repair Work, Grounded Conductor Test, Insulation Test, High Voltage Test, Functional Check |
| Repairs - Assembly | 86-126 | Cable Core Lines in the Protective Hose, Vibrator Head, Irfu Inverter, Iren Switch Box, Bodyguard, Iren Plug Connector |
| Variants | 127-131 | Protective Hose Length, Voltage Supply Ranges, Protection Class, Design of the Vibrator Head, Design of the Bearings and Disc Springs, Iren Switch |
| Irfu Troubleshooting | 132-143 | Troubleshooting Using the Led on the Bodyguard, Troubleshooting Using the Led in the Inverter, Testing the Inverter in the Workshop |
| Troubleshooting for Iren 42 Volts | 144-147 | General Search, Test Panel, Stator Windings, Thermal Overload Protection, Cable Break |
| Glossary | 148-150 | Definitions, Torque Table |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| IREN 38 | ||
| Oil quantity | 8 cm3 | p. 15 |
| Oil quantity (Iren 38) | 8 cm3 | p. 17 |
| All Models | ||
| Allowed clamping range per side | 20 mm | p. 56 |
| Stranded cables length relative to protective hose | 1 meter longer | p. 67 |
| Minimum protrusion of stranded conductors on both sides | 500 mm | p. 84 |
| IRFU | ||
| Insulation protrusion inside inverter housing | 5 mm | p. 105 |
| Measured resistance value | 1 ohm | p. 130 |
| IREN 57 | ||
| Oil quantity (Iren 57) | 12 cm3 | p. 19 |
| IREN 65 | ||
| Oil quantity (Iren 65) | 12 cm3 | p. 21 |
| IRFU 38 | ||
| Oil quantity (Irfu 38) | 8 cm3 | p. 22 |
| IRFU 45 | ||
| Oil quantity (Irfu 45) | 8 cm3 | p. 23 |
| IRFU 57 | ||
| Oil quantity (Irfu 57) | 12 cm3 | p. 24 |
Wacker Neuson IREN, IRFU Common Problems This Manual Covers
Wacker Neuson IRFU internal vibrator shuts off after 20 minutes, Bodyguard LED flashing fault

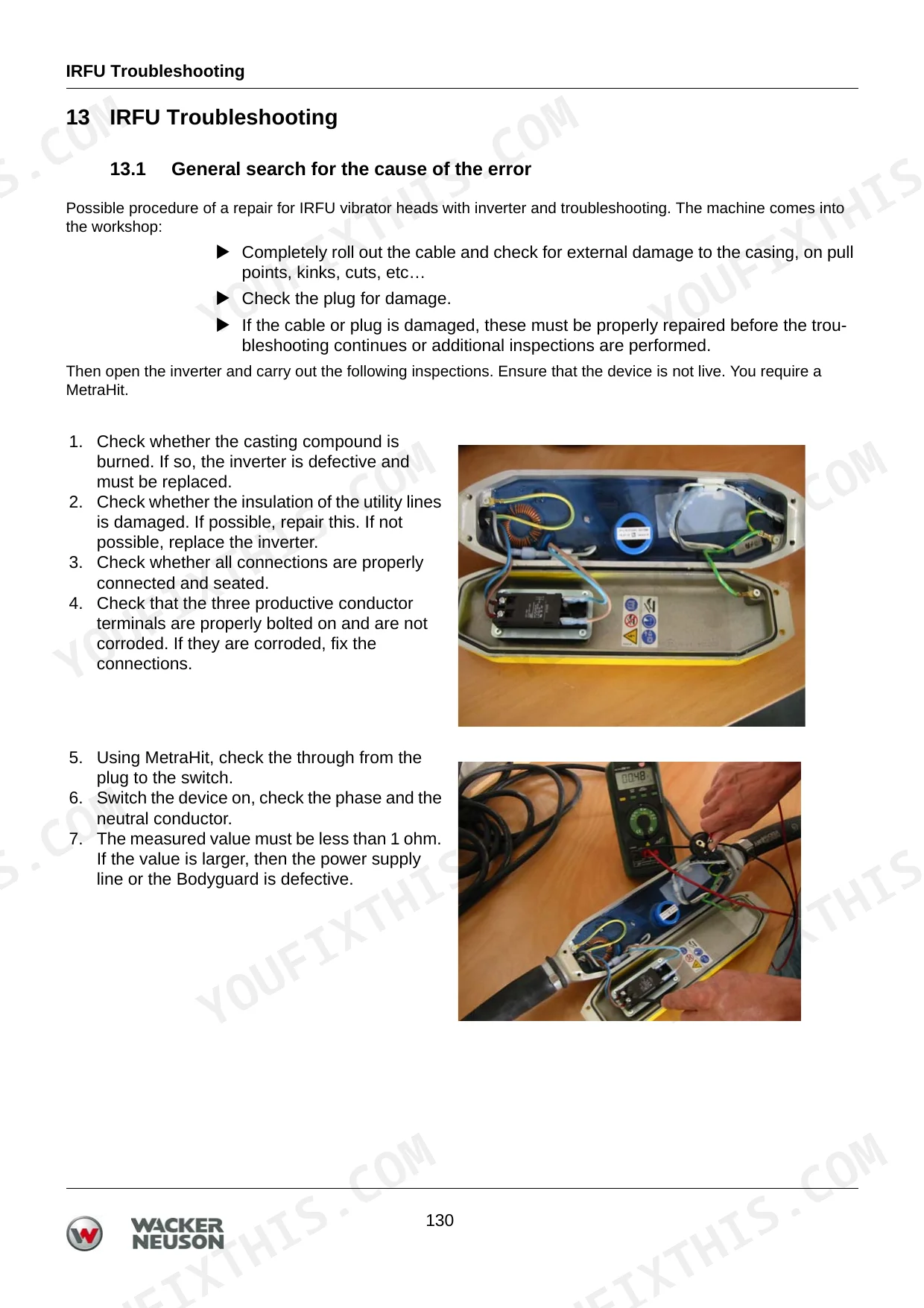

Check the Bodyguard LED and inverter LED against the diagnostic chart starting on page 132 before condemning parts. Let the unit cool and restart; running too long in air trips thermal protection. Test the connecting cable for breaks; measured resistance must stay below 1 ohm, per the check on page 130.
Manual Section: Irfu Troubleshooting p. 13242 volt unit won't start, no vibration even with line voltage present at the plug
Test the switch, plug, and stator windings for phase interruption, following the general error search that starts on page 144. Flex the cable along its length while measuring continuity to find hidden breaks. After repair, run the high voltage test at 1000 V AC, covered in the input tests on page 38, before returning the unit to service.
Manual Section: Troubleshooting for Iren 42 Volts p. 144Head vibrates weakly or only near the coupling, then quits after a few minutes
Measure vibration frequency with a sirometer during the functional check; a healthy head turns 11,500 min-1, the spec listed on page 41. Low frequency points to worn bearings or a failing coupling. Disassemble the vibrator head following the procedure that starts on page 42 and fit the head repair kit rather than chasing individual parts.
Manual Section: Disassembly p. 42Protective hose chafed through near the head, unit trips out whenever the hose flexes
Replace the protective hose and stranded conductors; never tape over a chafed section. Cut the new stranded cables roughly 1 meter longer than the hose, as shown on page 67. Verify the conductors protrude at least 500 mm on both sides, with the grounded conductor 200 mm longer than the rest, per the inspection on page 84.
Manual Section: Repairs - Assembly p. 86Motor overheats and shuts down when the poker runs in air between pours
Verify the head has cooled fully before restarting; the thermal overload protection resets on its own. Keep the poker in concrete while running, since air gives no cooling. Confirm conditions stay inside the -20 to +60 °C bearing temperature range on page 22, and regrease the bearings at head service using the grease listed on page 27.
Manual Section: Technical Data p. 22Frequently Asked Questions
How do I fix a Wacker Neuson internal vibrator that is not working?
First, perform a visual inspection for external damage to the cable and plug. If the unit does not start, check the LED on the Bodyguard or in the inverter for error codes, and ensure the power supply is correct as described in the troubleshooting sections on pages 132-143. p. 132
What are the torque specifications for fasteners used on Wacker Neuson equipment?
Torque specifications vary by bolt size and grade. For example, an M10 bolt with an 8.8 grade requires 36 ft-lb (49 Nm), while an M10 bolt with a 12.9 grade requires 83 ft-lb (113 Nm). p. 149
What is the oil specification and quantity for the IREN 38 vibrator head?
The IREN 38 vibrator head requires 8 cm³ of SAE 0W-30 oil (API SF or better). p. 17
How do I reset the IRFU after an overload error?
If the LED in the inverter flashes red, it may indicate a defective vibrator head or thermal overload. Let the vibrator head cool down, check for free movement of the stator and rotor, and ensure the power cable is not damaged before attempting to restart. p. 140
What is the required insulation resistance for protection class I units with a grounded conductor?
For protection class I units with a grounded conductor, the minimum insulation resistance is 1.0 MW for all tangible metal parts connected to the grounded conductor. p. 36
How is this Wacker Neuson Iren Repair Manual delivered?
Delivery is instant: a 150-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print this Wacker Neuson Iren manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
