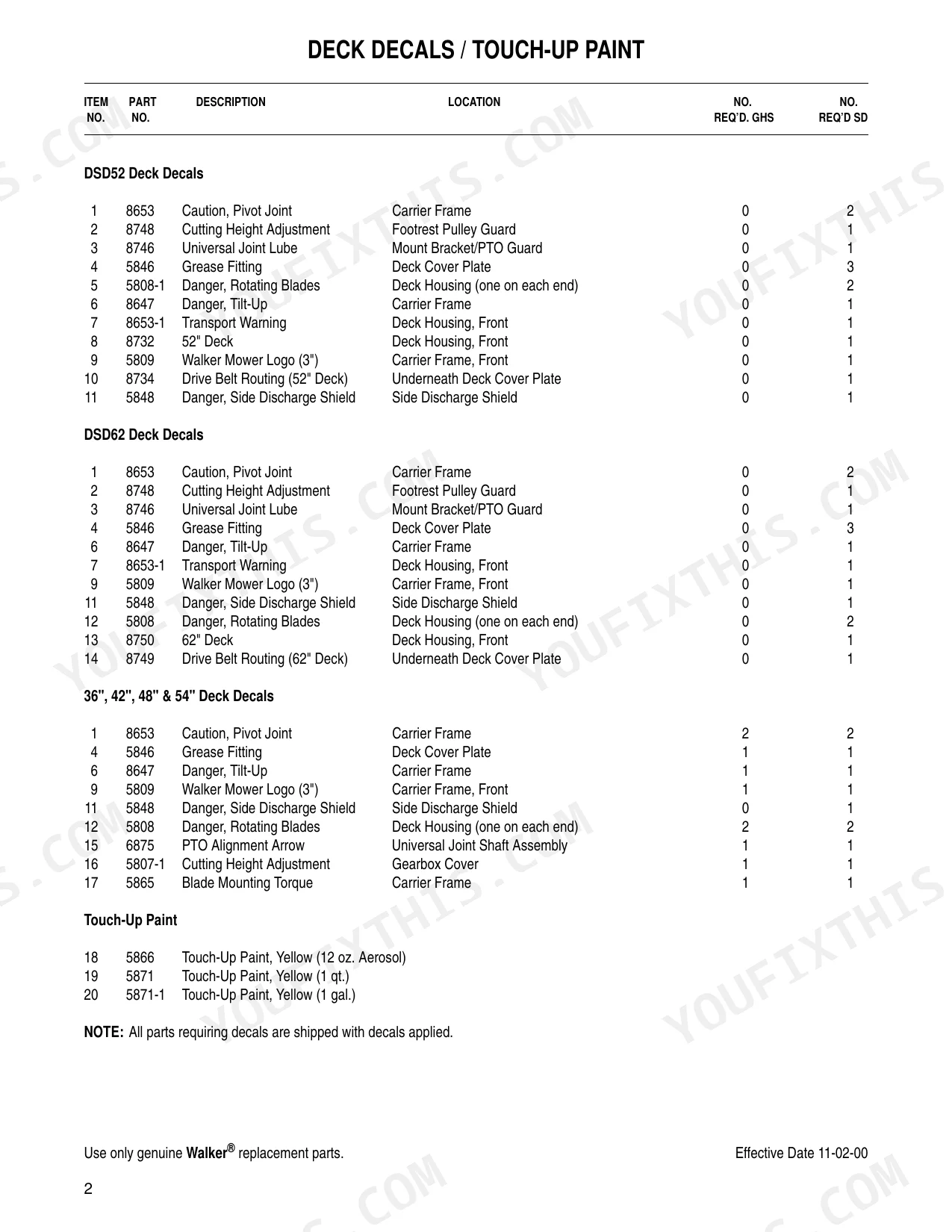

This is the Walker Illustrated Parts Manual, P/N 5000-8, for Deck and Carrier Frame Assemblies covering 36, 42, 48, 52, 54, and 62 inch decks on Walker rider lawnmowers, serial numbers DX-46813 thru DX-68358. It runs 48 pages of exploded diagrams and part numbers.Each deck size has its own carrier frame and deck assembly drawings, with DGHS, DSD, and DML variants, and every component is keyed to a Walker part number so you can identify and order the exact piece you need.The catalog also includes deck decals and touch-up paint, lubrication points and intervals, fastener Loctite and torque instructions, a deck-to-tractor compatibility chart, and the limited warranty. For anyone rebuilding a deck or ordering blades, spindles, gearboxes, belts, or caster parts, this PDF is the reference for the correct Walker part numbers.
What's Inside This Walker 36–62 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

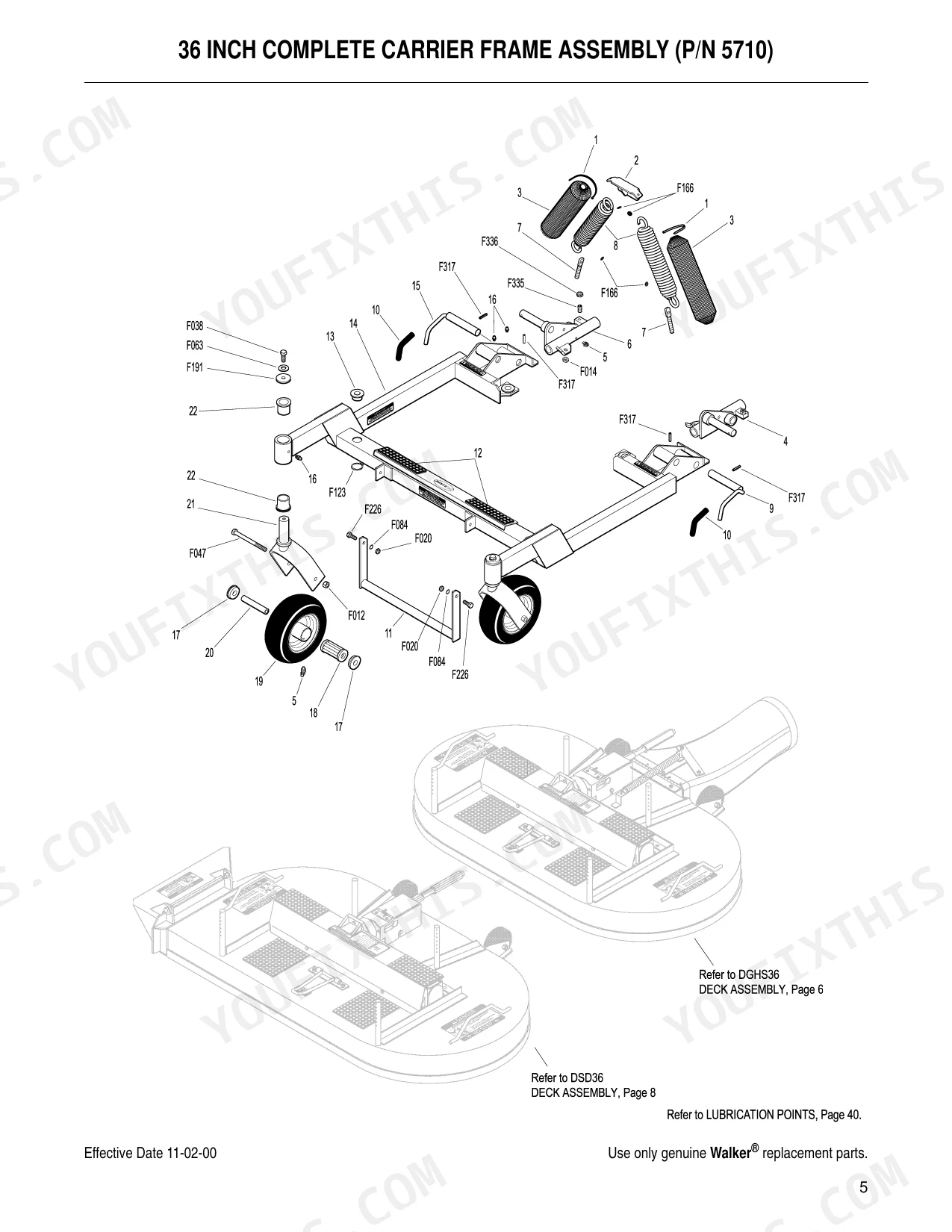

| Inch Complete Carrier Frame Assembly (P/N 5710) | 6-7 | Refer to DSD36 Deck Assembly, Refer to DGHS36 Deck Assembly, Refer to Lubrication Points (DGHS36 Deck Assembly) |

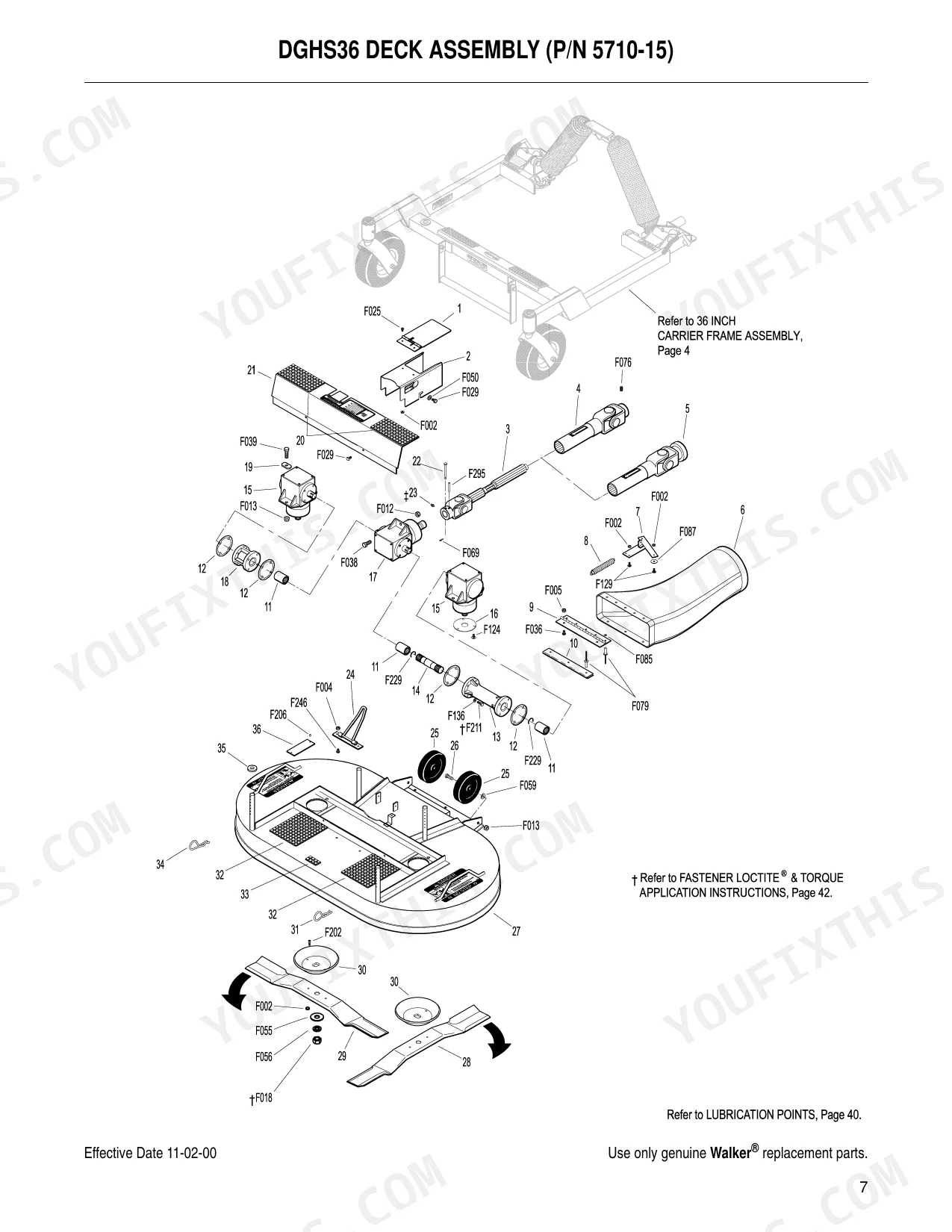

| Dghs36 Deck Assembly (P/N 5710-15) | 8-9 | Refer to 36 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (DSD36 Deck Assembly) |
| Dsd36 Deck Assembly (P/N 5710-17) | 10-11 | Refer to 36 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (Inch Complete Carrier Frame Assembly) |
| Inch Complete Carrier Frame Assembly (P/N 5700-10) | 12-13 | Refer to DSD42 Deck Assembly, Refer to DGHS42 Deck Assembly, Refer to DML42 Deck Assembly, Refer to Lubrication Points (DGHS42 Deck Assembly) |
| Dghs42 Deck Assembly (P/N 5705) | 14-15 | Refer to 42 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (DSD42 Deck Assembly) |
| Dsd42 Deck Assembly (P/N 5707-10) | 16-17 | Refer to 42 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (DML42 Deck Assembly) |
| Dml42 Deck Assembly (P/N 5707-11) | 18-19 | Refer to 42 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (Inch Complete Carrier Frame Assembly) |
| Inch Complete Carrier Frame Assembly (P/N 7700-1) | 20-21 | Refer to DSD48 Deck Assembly, Refer to DGHS48 Deck Assembly, Refer to Lubrication Points (DGHS48 Deck Assembly) |
| Dghs48 Deck Assembly (P/N 7702-1) | 22-23 | Refer to 48 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (DSD48 Deck Assembly) |
| Dsd48 Deck Assembly (P/N 7701-17) | 24-25 | Refer to 48 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (Inch Complete Carrier Frame Assembly) |
| Inch Complete Carrier Frame Assembly (P/N 8811) | 26-27 | Spring and Pivot Mount Components, Carrier Frame Components, Caster Wheel Components, Fasteners, Refer to DSD52 Deck Assembly, Refer to Lubrication Points (DSD52 Deck Assembly) |
| Dsd52 Deck Assembly (P/N 8810) | 28-29 | Refer to 52 Inch Carrier Frame Assembly, Secure to Vehicle According to 8653-1 Transport Warning Decal, Refer to Fastener Loctite® & Torque Application Instructions |
| Mulching Kit (for Dsd52 Deck Assembly) | 30-31 | Components, Fasteners, Refer to DSD52 Deck Assembly (Inch Complete Carrier Frame Assembly) |
| Inch Complete Carrier Frame Assembly (P/N 6700-2) | 32-33 | Spring and Pivot Mount Components, Carrier Frame Components, Caster Wheel Components, Fasteners, Refer to DSD54 Deck Assembly, Refer to Lubrication Points (DSD54 Deck Assembly) |
| Dsd54 Deck Assembly (P/N 6701) | 34-35 | Refer to 54 Inch Carrier Frame Assembly, Refer to Fastener Loctite® & Torque Application Instructions, Refer to Lubrication Points (Inch Complete Carrier Frame Assembly) |
| Inch Complete Carrier Frame Assembly (P/N 8911) | 36-37 | Spring and Pivot Mount Components, Carrier Frame Components, Caster Wheel Components, Fasteners, Refer to DSD62 Deck Assembly, Refer to Lubrication Points (DSD62 Deck Assembly) |
| Dsd62 Deck Assembly (P/N 8910 | 38 | Refer to 62 Inch Carrier Frame Assembly, Secure to Vehicle According to 8653-1 Transport Warning Decal, Refer to Fastener Loctite® & Torque Application Instructions |
| Dsd62 Deck Assembly (P/N 8910) | 39 | Refer to 62 Inch Carrier Frame Assembly, Secure to Vehicle According to 8653-1 Transport Warning Decal, Refer to Fastener Loctite® & Torque Application Instructions |
| Deck Weldment Replacement Parts | 40-41 | DSD36, DSD42 & DML42 Deck & Carrier Frame Assemblies, DSD52 & DSD62 Deck & Carrier Frame Assemblies, DSD54 Deck & Carrier Frame Assembly, DGHS36 |

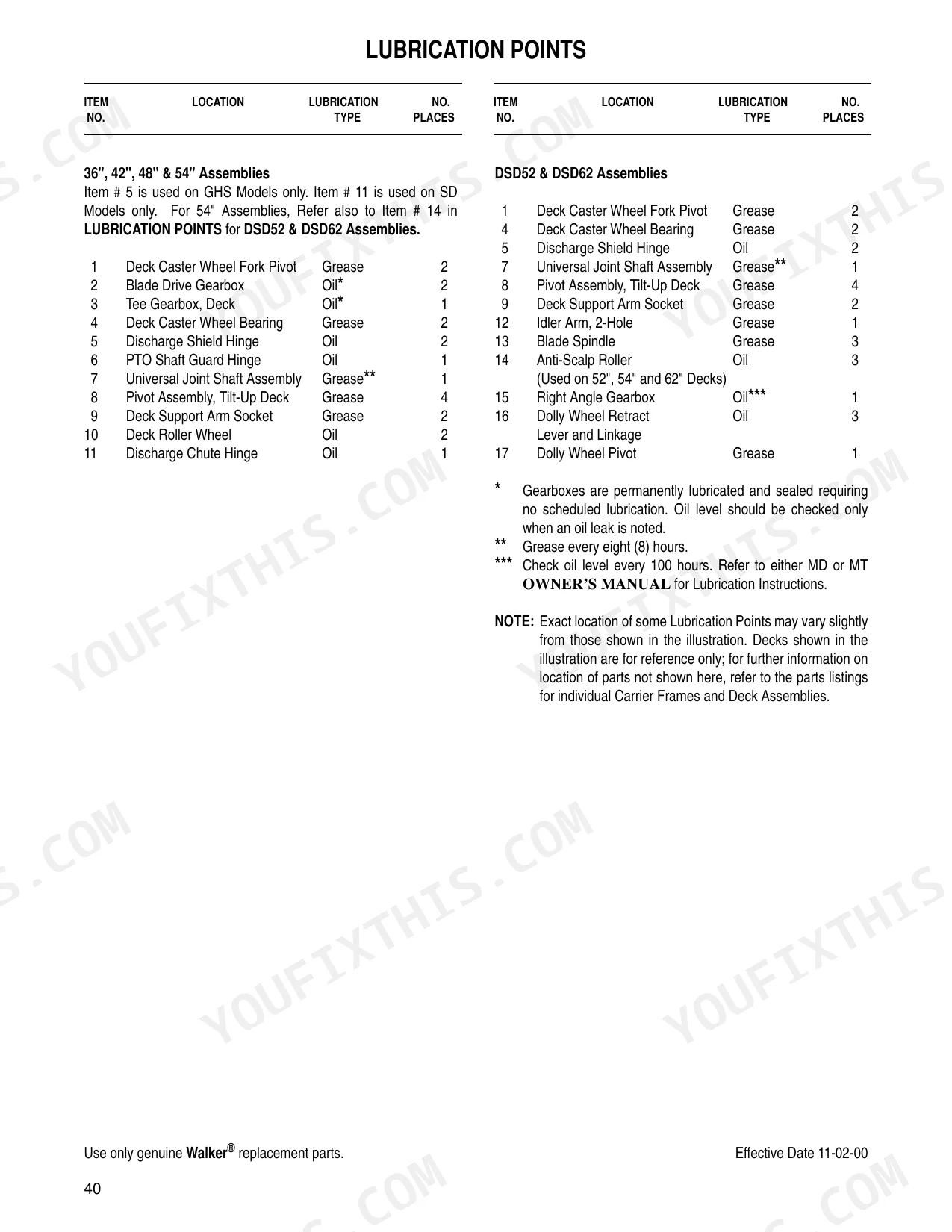

| Lubrication Points | 42-43 | 36", 42", 48", And 54" Assemblies, DSD52 and DSD62 Assemblies, Effective Date, Use Only Genuine Walker® Replacement Parts (Fastener Loctite® Application & Torque Instructions) |

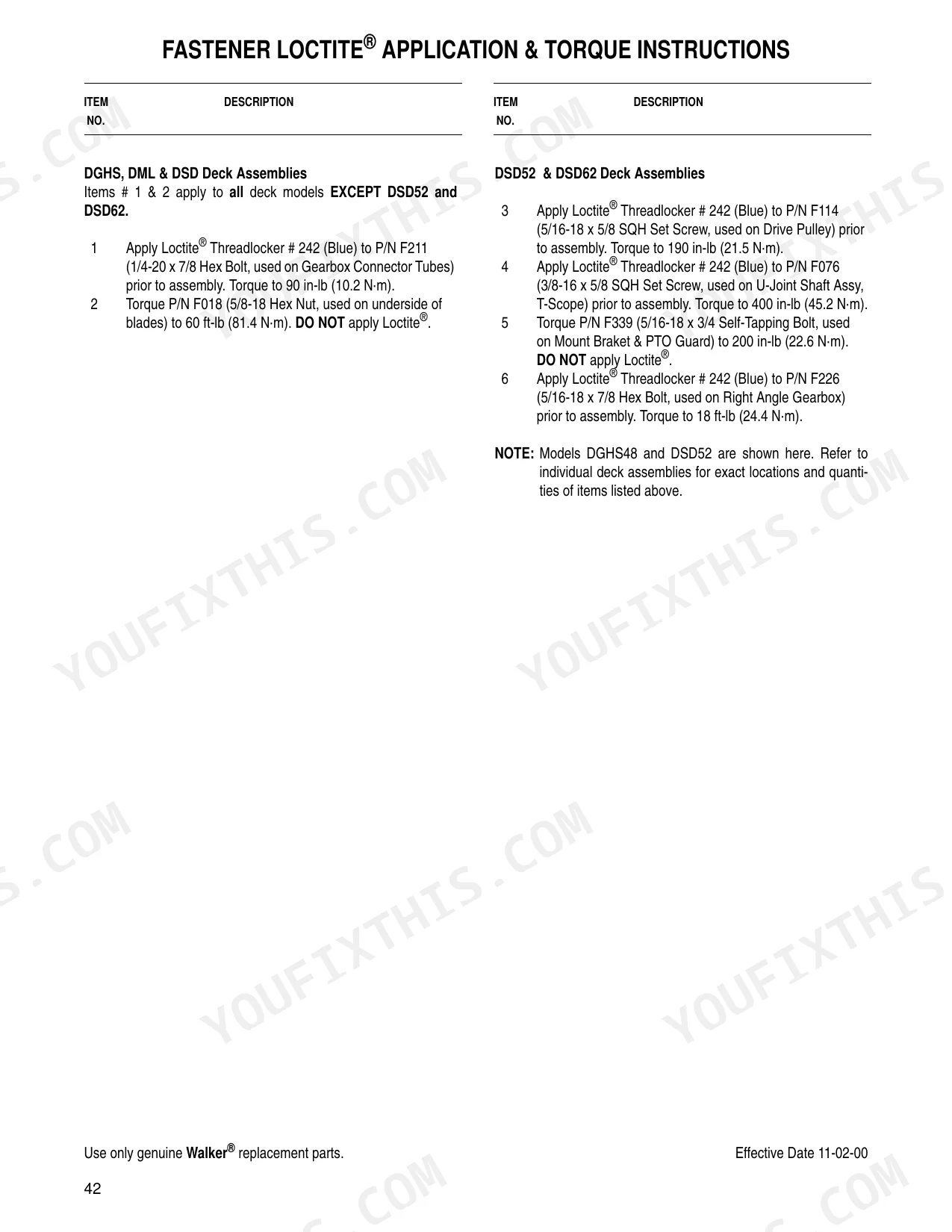

| Fastener Loctite® Application & Torque Instructions | 44 | Dghs, Dsd & Dml Deck Assemblies, DSD52 & DSD62 Deck Assemblies, Effective Date |
| Maintenance and Service Record Sheet | 45 | Date, Service Item, Engine Hours |
| Deck / Tractor Compatibility Chart | 46 | Ms-Sd, Ms-Ghs, Mc-Sd, Mc-Ghs, Mt-Sd, Mt-Ghs, Md-Sd, Md-Ghs |
| Limited Warranty | 47-48 | What This Warranty Covers, And for How Long |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 36", 42", 48", 54" Deck Assemblies | ||
| Torque for Gearbox Connector Tubes (P/N F211) | 90 in-lb (10.2 N·m) | p. 44 |
| Blade Drive Gearbox lubrication | Permanently lubricated and sealed, check oil level only when an oil leak is noted | p. 42 |
| Tee Gearbox lubrication | Permanently lubricated and sealed, check oil level only when an oil leak is noted | p. 42 |
| DSD52 & DSD62 Deck Assemblies | ||
| Torque for Right Angle Gearbox (P/N F226) | 18 ft-lb (24.4 N·m) | p. 44 |
| Torque for Drive Pulley (P/N F114) | 190 in-lb (21.5 N·m) | p. 44 |
| All Models | ||
| Blade mounting torque (P/N F018 Hex Nut) | 60 ft-lb (81.4 N·m) | p. 44 |
| Deck Caster Wheel Bearing lubrication interval | Grease every eight (8) hours | p. 42 |
| Deck Caster Wheel Fork Pivot lubrication interval | Grease every eight (8) hours | p. 42 |
| Grease Lubrication Interval | 8 hours | p. 42 |
| Gearbox Oil Check Interval | 100 hours | p. 42 |
| 36, 42, 48, 54 | ||
| Torque for F211 (1/4-20 x 7/8 Hex Bolt) | 90 in-lb (10.2 N·m) | p. 44 |
| Torque for F018 (5/8-18 Hex Nut) | 60 ft-lb (81.4 N·m) | p. 44 |
Walker 36–62 Common Problems This Manual Covers
Deck gearbox oil loss or failure
Owners repeatedly find that gearbox oil levels must be checked and topped off or the gearboxes can fail. The lubrication points section gives the gearbox oil check interval and the parts to order if a gearbox is worn.
Manual Section: Lubrication Points p. 42Oil-soaked or worn deck belts
Belts get oil-soaked, ride deep in the pulley groove, and need replacement to restore proper drive. The DSD52 deck assembly drawing identifies the belt, pulley, and routing parts by number.
Manual Section: Dsd52 Deck Assembly (P/N 8810) p. 28Worn caster wheel bearings
Front-end play, a wandering cut, or vibration often traces to worn caster wheel bearings and pivot parts. The 52 inch carrier frame assembly lists the caster wheel components you can order.
Manual Section: 52 Inch Complete Carrier Frame Assembly (P/N 8811) p. 26Blade or spindle bolts loosening
Deck fasteners back off over time and cause vibration or blade problems. The fastener section gives the Loctite and torque values, such as a 60 ft-lb (81.4 N·m) blade nut, so parts go back on correctly.
Manual Section: Fastener Loctite® Application & Torque Instructions p. 44Wrong deck fitted to the tractor
Fitting the wrong deck or carrier frame to a Walker tractor causes clearance and drive problems. The deck to tractor compatibility chart shows which assemblies match each machine.
Manual Section: Deck / Tractor Compatibility Chart p. 46Damaged deck weldment or housing
A cracked or bent deck housing needs the correct weldment replacement rather than a repair. The deck weldment replacement parts section lists the housings by deck model.
Manual Section: Deck Weldment Replacement Parts p. 40Frequently Asked Questions
Which mowers and serial numbers does this parts catalog cover?
It covers Walker deck and carrier frame assemblies for 36, 42, 48, 52, 54, and 62 inch decks, serial numbers DX-46813 thru DX-68358, under P/N 5000-8.
Does it include torque values for deck fasteners?
Yes. The fastener Loctite application and torque instructions section lists deck fastener values, such as a 60 ft-lb (81.4 N·m) blade nut and gearbox connector tube torques. p. 44
How do I know which deck fits my tractor?
The deck to tractor compatibility chart matches each Walker deck and carrier frame assembly to the machines it fits. p. 46
How do I get the file?
You receive an instant download link at checkout, so you can save the parts catalog and use it right away.
Is this Walker 36 & variants Parts Catalog a digital download?
Yes, it downloads instantly. The full 48-page searchable Parts Catalog is yours right after payment, ready to open on a laptop, tablet, or phone out in the shop.
Is this Walker 36 & variants Parts Catalog printable?
None at all. The PDF is DRM-free, so print whatever sections you want to carry into the shop. Standard letter or A4 paper works fine.
