Covering 22 Xinchai diesel engine variants across the 3D20, 4D25, 4D27, 4D30, 4D32 and 4D35 families, this 90-page Xinchai 4D27G31 operator manual PDF opens with model types and serial numbers so you can confirm your engine fits. Flash codes for both the Nanjing Jinning and Shandong Longkou electronic control systems get their own chapter, set beside common electronic unit pump failures and troubleshooting for an engine that fails to start or shows abnormal oil pressure. Before that, performance curves, overall dimensions and fuel and cooling system sketch maps lead into maintenance periods, winter maintenance and engine storage. Fill the oil sump to 6 L. Cylinder head bolts take 117.6-137.2 N·m. Running in a new engine is covered too, from preparation onward. Bought once, the bookmarked, text-searchable file stays yours for this engine, with main bearing bolt torque (137.2-156.8 N·m) on hand whenever you check it.
What's Inside This Xinchai 3D20, 4D25, 4D27, 4D30, 4D32, 4D35 Operator Manual

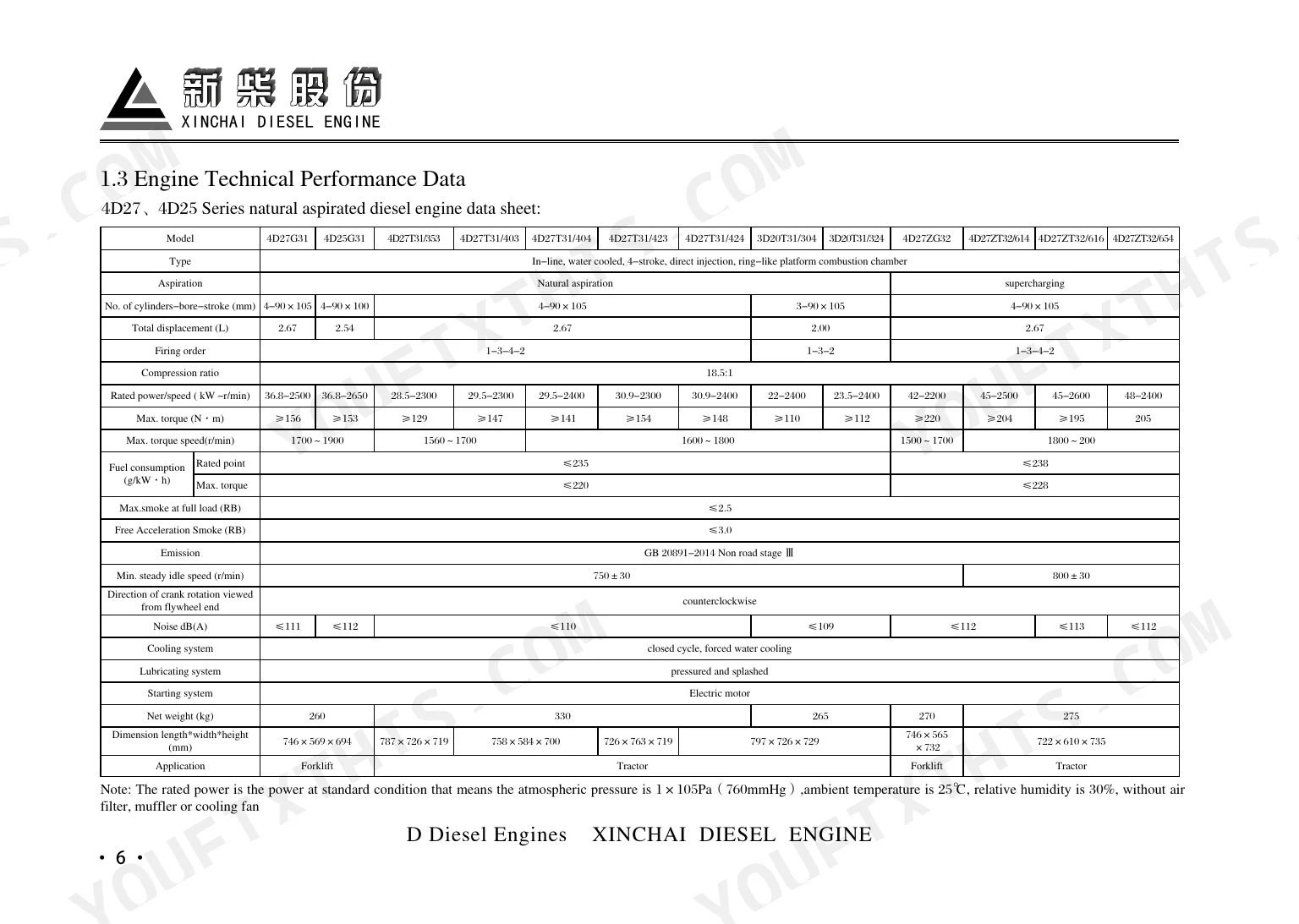

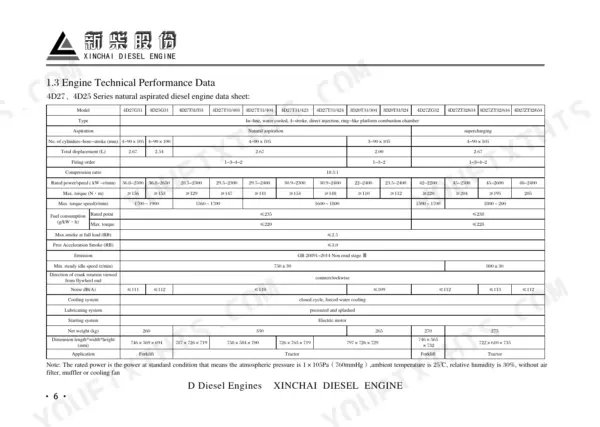

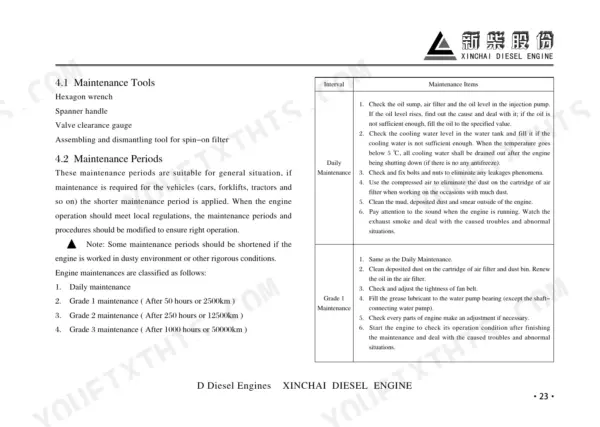

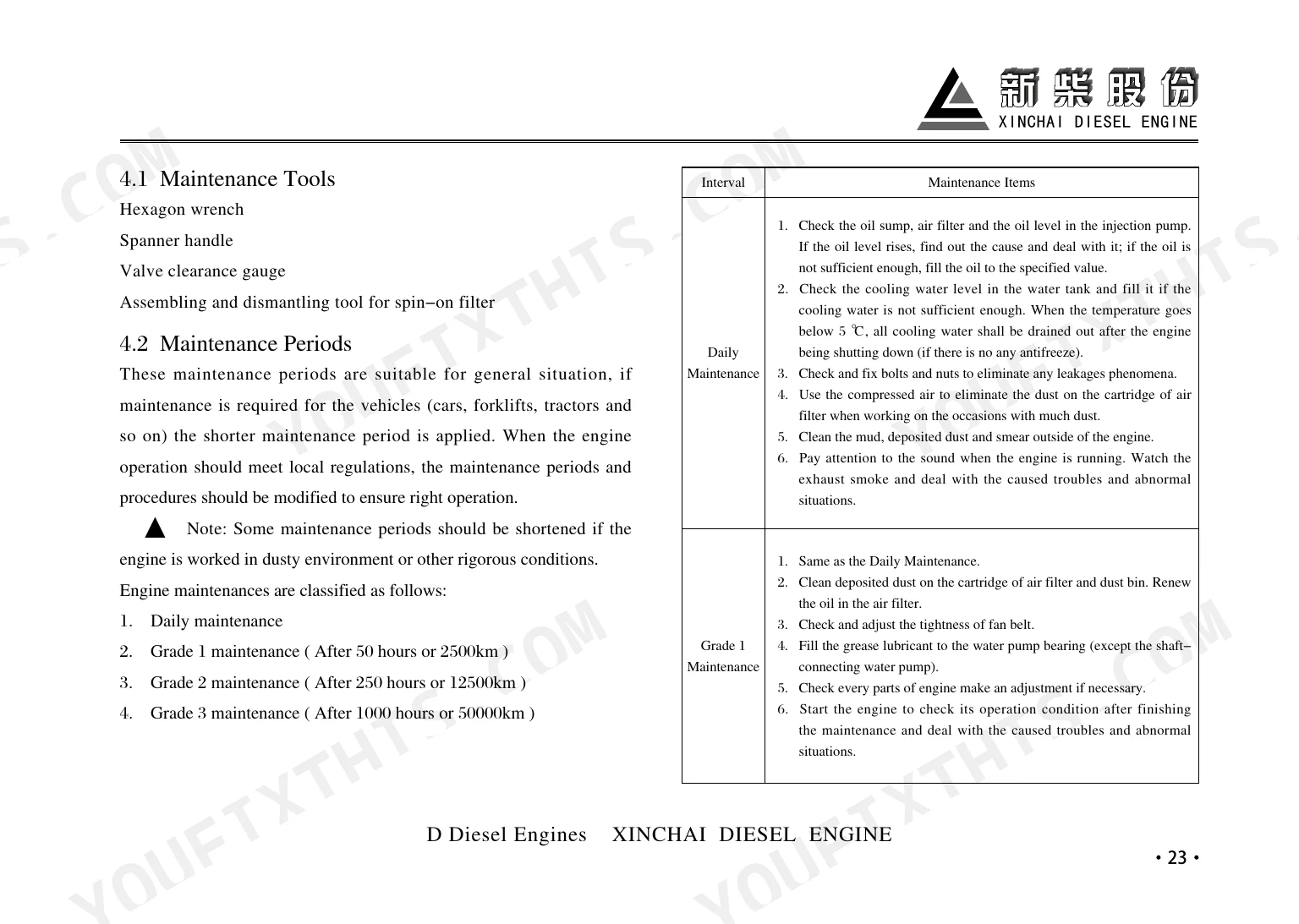

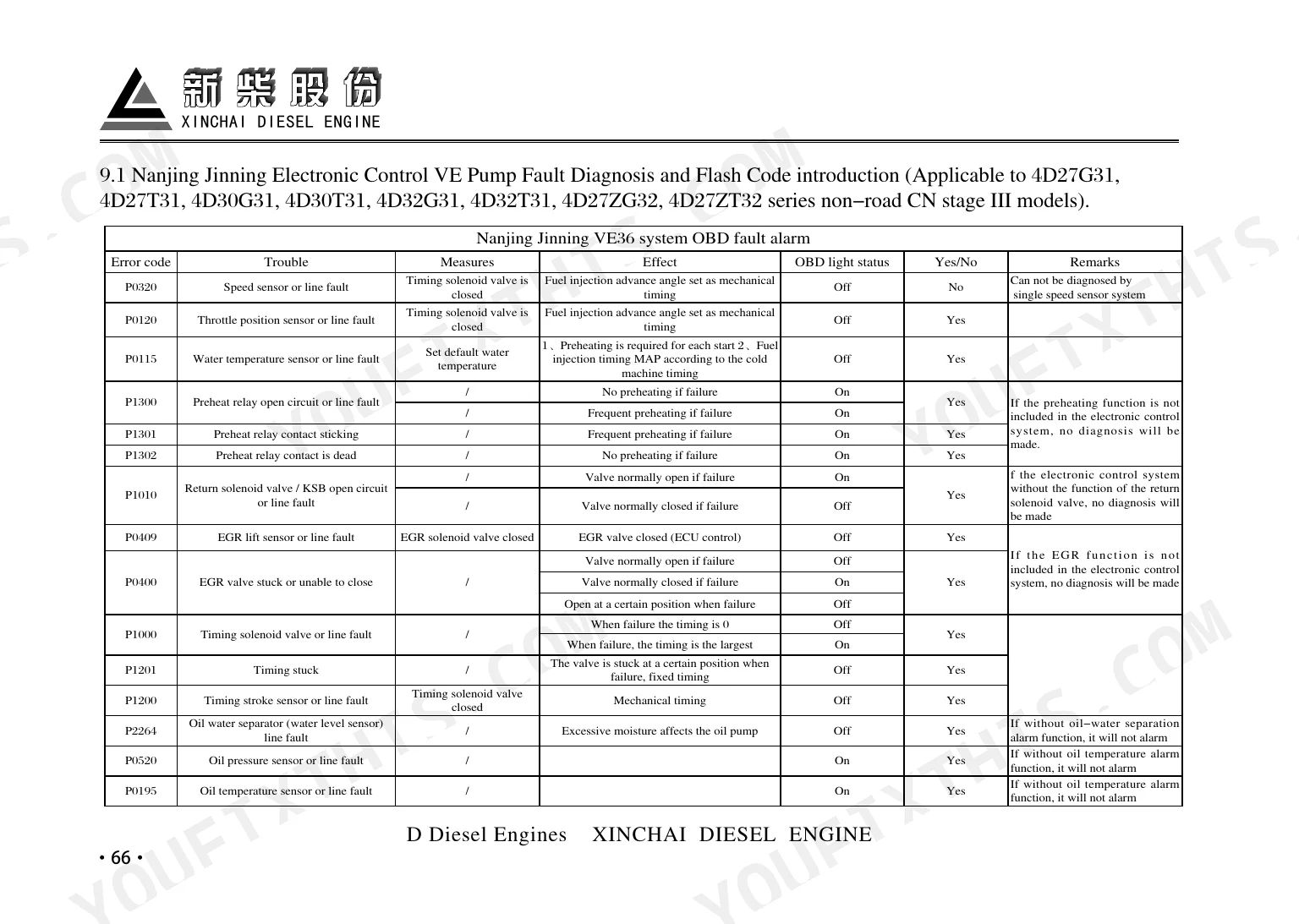

| System | Pages | Key Topics |
|---|---|---|
| General Description of Diesel Engine | 8-21 | Engine Model Types and Serial Numbers, Engine Performance Curves, Engine Technical Performance Data, Main Characteristic Data, Overall Dimensions of Diesel Engine |
| Operation of Diesel Engine | 22-26 | Preparation for the First Operation, Starting of the Diesel Engine, Working Media |
| Run-In of the Diesel Engine | 27-28 | Preparation Before Running-In |
| Technical Maintenance of the Diesel Engine | 29-32 | Maintenance Periods, Technical Maintenance in Winter, Storage for the Engine |
| Adjustment of the Diesel Engine | 33-39 | Tightening Sequence of Cylinder Head Bolts, Adjustment of Starting Motor, Expelling Air From Fuel System |
| Diesel Engine Structure | 40-45 | Cylinder Head, Crank-Link Mechanism, Fuel System |
| Sketch Maps for Five Main Systems of the Diesel Engine | 46-49 | Fuel System Sketch, Cooling System Sketch |
| Engine Trouble Shooting | 50-64 | Engine Fails to Start, Abnormal Oil Pressure |
| Electronic Control System Fault Diagnosis and Flash Codes Explain | 65-88 | Electronic Unit Pump Common Failures, Nanjing Jinning System Flash Code, Shandong Longkou System Flash Code |
| Diesel Engine Wearing Parts List | 89 | Valve Outer Spring, Valve Inner Spring, Intake/Exhaust Valve, Valve Lock Clip, Upper/Lower Main Bearing, Cylinder Head Gasket |
| Packing Accessories List | 90 | Diesel Engine, Technical Documents, Valve Clearance Gauge |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Oil capacity in the oil sump | 6L | p. 20 |
| Cylinder head bolt tightening torque | 117.6-137.2 N·m | p. 20 |
| Main bearing bolt tightening torque | 137.2-156.8 N·m | p. 20 |
| Connecting rod bolt tightening torque | 98.1-117.6 N·m | p. 20 |
| Flywheel bolt tightening torque | 98.1-117.6 N·m | p. 20 |
| Starting claw tightening torque | 127.4-147 N·m | p. 20 |
| Cold valve clearance (Intake) | 0.35mm | p. 20 |
| Cold valve clearance (Exhaust) | 0.45mm | p. 20 |
| Oil pressure at the main oil gallery | 0.2-0.44 Mpa | p. 20 |
| Cooling water temperature | 357-368k (85-95°C) | p. 20 |
Xinchai 3D20, 4D25, 4D27, 4D30, 4D32, 4D35 Common Problems This Manual Covers
Xinchai 4D27G31 diesel engine cranks over but fails to start, even after several attempts

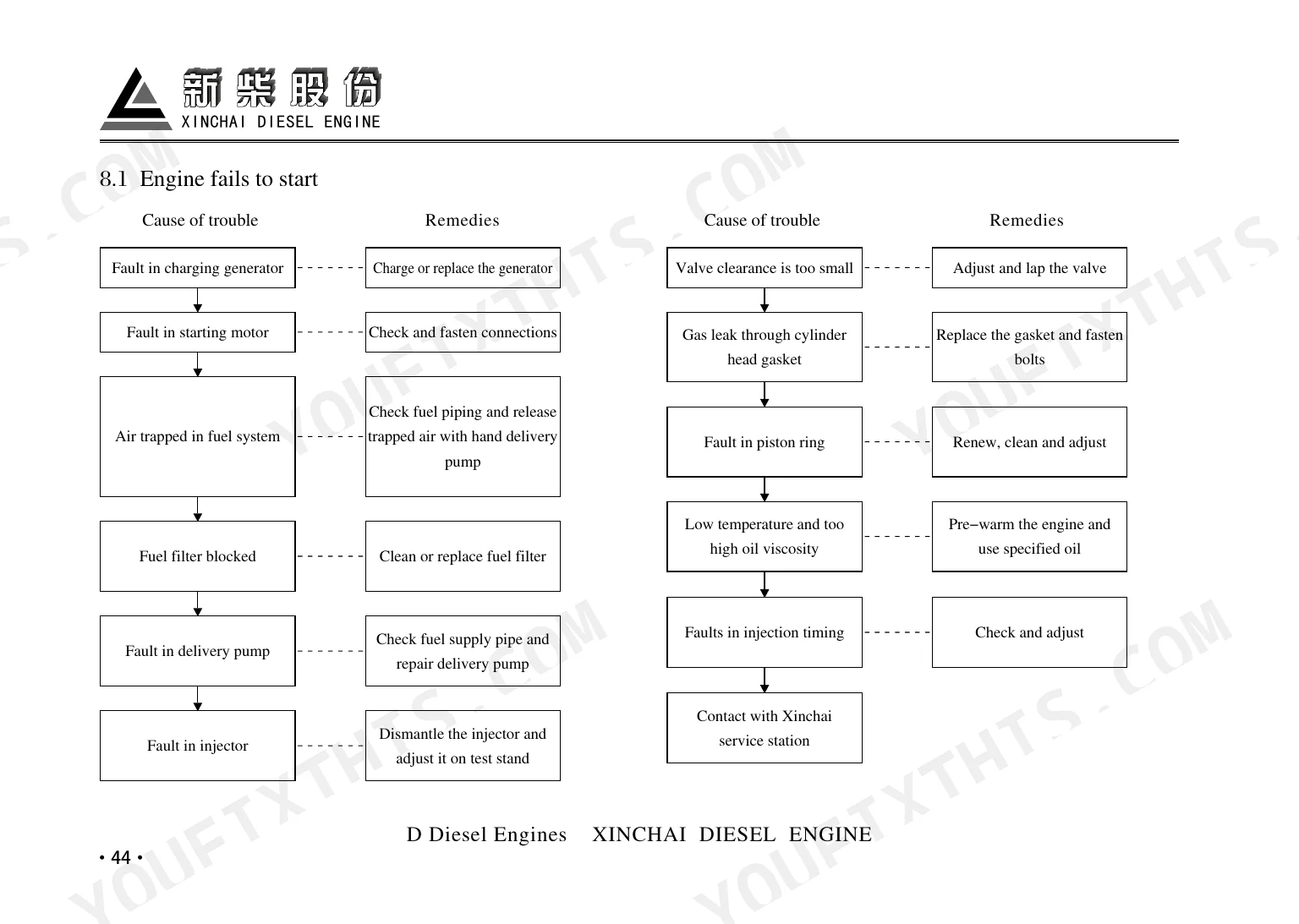

Check the fuel filter and clean or replace it if blocked, then inspect the fuel piping and release trapped air with the hand delivery pump, following page 51. In cold weather, pre-warm the engine and use the specified oil. Stop cranking after several failed attempts; page 35 says not to try again until the trouble is cleared. Contact a Xinchai service station for injection timing faults.
Manual Section: Engine Trouble Shooting p. 51Engine oil pressure gauge showing low or abnormal reading at the main oil gallery
Check the oil level and fill or replace the oil. The sump holds 6L per page 20, and page 26 calls for CF grade oil. Compare the gauge against 0.2-0.44 MPa at the main oil gallery. Inspect the oil pipeline and pipe connections for leaks and check for a damaged gauge, following page 52. Excessive bearing clearance or a faulty pressure regulating valve needs checking and repair.
Manual Section: Engine Trouble Shooting p. 52Engine overheating with coolant temperature climbing above the normal operating range
Verify coolant temperature against the 85-95°C range on page 20. Let the engine cool before opening the filler cap; page 26 warns of burns when water temperature is still high. Inspect the water pump, thermostat and fan, and check for heavy scale in the water jacket or radiator, following page 56. Keep away from the fan while the engine runs (page 5). Bring the load back within range.
Manual Section: Engine Trouble Shooting p. 56Engine blowing blue exhaust smoke with oil entering the combustion chamber
Check the engine oil level first and drain out excess oil if it is too high; the sump holds 6L per page 20. If the level is correct, worn or stuck piston rings are the likely cause. Page 53 lists cleaning or changing the rings, with the side marked "up" facing upward, so contact a Xinchai service station for that work.
Manual Section: Engine Trouble Shooting p. 53Engine producing high white exhaust smoke, especially before coolant reaches normal operating temperature
Check coolant temperature and bring it up toward 85-95°C (page 20) before taking load. Release water from the oil water separator in time and replace the separator if it has failed; replace fuel that has water mixed in, following page 62. If smoke persists, check the cylinder head gasket for water entering the combustion chamber, which page 53 refers to a Xinchai service station.
Manual Section: Engine Trouble Shooting p. 62Starter does not work or rotates with insufficient power during cranking
Check the fuse and replace it if blown, then clean and tighten loose wire connectors and check and charge the battery, following page 59. Keep battery electrolyte away from skin and eyes (page 5). If the generator is not charging, adjust belt tension and check connectors for ground corrosion. Never use a screwdriver or other metal tool to check generator condition, as page 2 warns.
Manual Section: Engine Trouble Shooting p. 59Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on the Xinchai D Series engine?

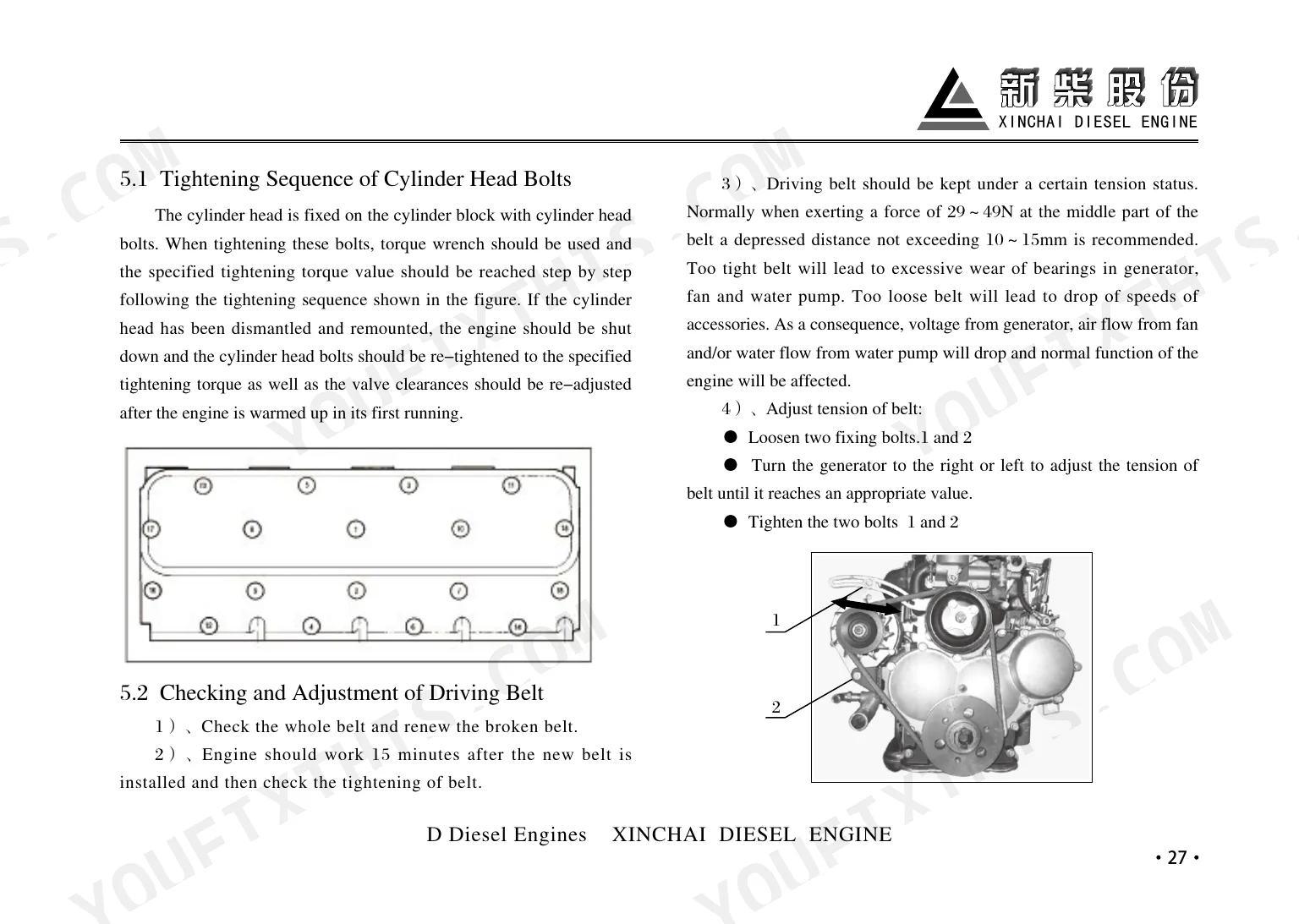

The cylinder head bolts must be tightened in three steps in the order from the middle towards the two sides to a final torque of 117.6 to 137.2 N·m. p. 41
How do you bleed air from the fuel system on a Xinchai D Series engine?
For an electrically controlled distribution pump engine, open the fuel injection pipe and operate the hand delivery pump until no air remains in the fuel flowing out. For the vent plug method, open the vent plug on the fuel filter and operate the hand delivery pump until air is expelled, then tighten the plug. p. 36
What is the correct cold valve clearance for intake and exhaust valves on Xinchai 4D27G31 and 4D32G31 engines?
The cold valve clearance for the intake valve is 0.35mm, and the cold valve clearance for the exhaust valve is 0.45mm. p. 20
What is the oil capacity for the oil sump on the Xinchai D Series engine?
The oil capacity in the oil sump is approximately 6 liters. p. 20
What is the recommended tension for the driving belt?
When exerting a force of 29 to 49N at the middle part of the belt, a depressed distance not exceeding 10 to 15mm is recommended. p. 34
What format is this Xinchai 4D27G31 manual in?
A 90-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print a copy of this Xinchai 4D27G31 Operator Manual for the shop?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
