Hunting down parts for your Yanmar 3TNV88-GGE, 3TNV88-DSA, 3TNV88-DSA2, or 3TNV88-DSA3 engine? This 29-page parts catalog covers the 3TNV88-GGE, 3TNV88-DSA, DSA2, and DSA3 diesel engines with exploded-view diagrams and OEM part numbers for every assembly. Inside, you get complete breakdowns for the cylinder block, crankshaft and piston, gear housing with separate layouts for DSA and GGE variants, cylinder head, camshaft, lubrication system, and cooling water circuit. The fuel section covers the injection pump, injection valve, and fuel line; electrical parts include starting motor assemblies for both DSA and GGE configurations plus the generator; an Optional Kit section rounds it out with the air cleaner, radiator, oil cooler, and silencer. Confirm your oil filter at 80x80L mm, or verify the crankshaft key at 7x14 mm before you order. No more guessing at part numbers. Bookmarked and searchable, jump straight to any assembly and pull the exact OEM number in seconds.
What's Inside This Yanmar Yanmar 3TNV82A-3TNV88 Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Section | 2 | Title Page for Engine Section |

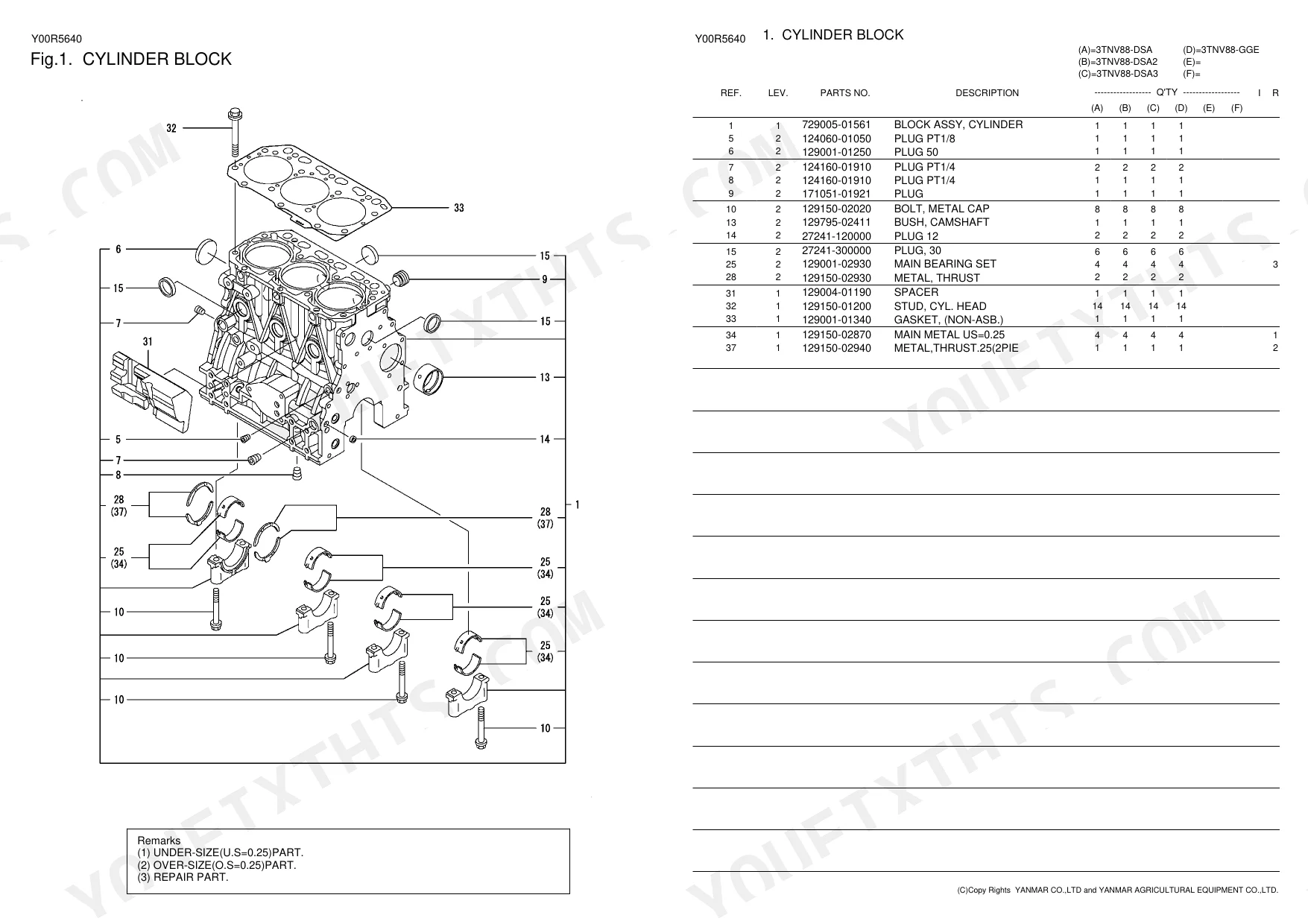

| Cylinder Block | 3 | Cylinder Block Exploded View and Parts List |
| Gear Housing (3TNV88-Dsa, DSA2, DSA3) | 4 | Gear Housing Variants Dsa, DSA2, DSA3 |
| Gear Housing (3TNV88-Gge) | 5 | Gear Housing Gge Variant |
| Flywheel Housing and Oil Sump | 6 | Flywheel Housing, Oil Sump, Parallel Pin 8x16mm |
| Cylinder Head and Bonnet | 7 | Cylinder Head, Bonnet, Gaskets |
| Suction Manifold | 8 | Suction Manifold Parts |

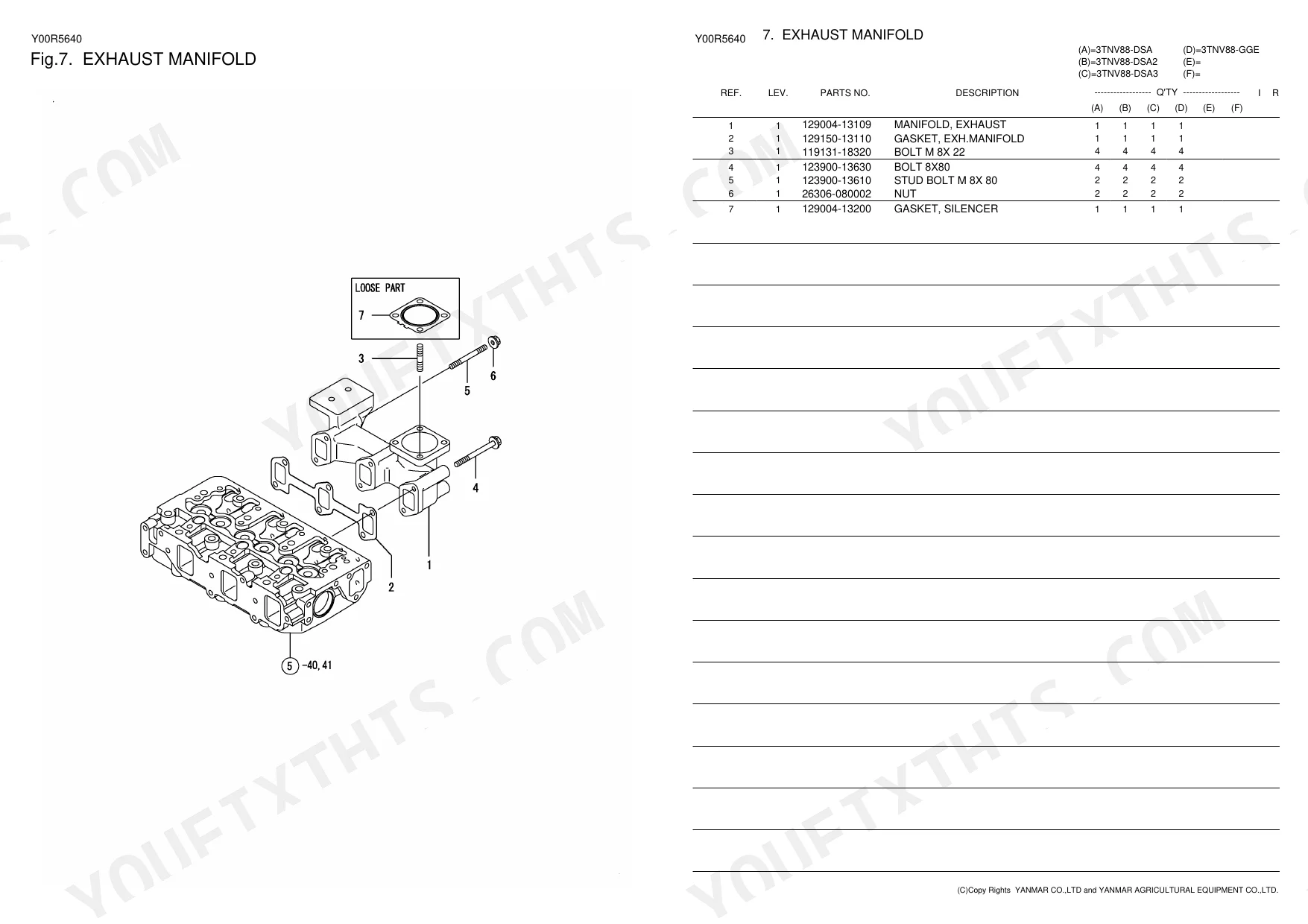

| Exhaust Manifold | 9 | Exhaust Manifold Parts |
| Camshaft and Driving Gear | 10 | Camshaft, Driving Gear Assembly |
| Crankshaft and Piston | 11 | Crankshaft, Piston, Crankshaft Key 7x14mm |
| Lubrication System | 12 | Lub.Oil System, Oil Filter 80x80L Mm |

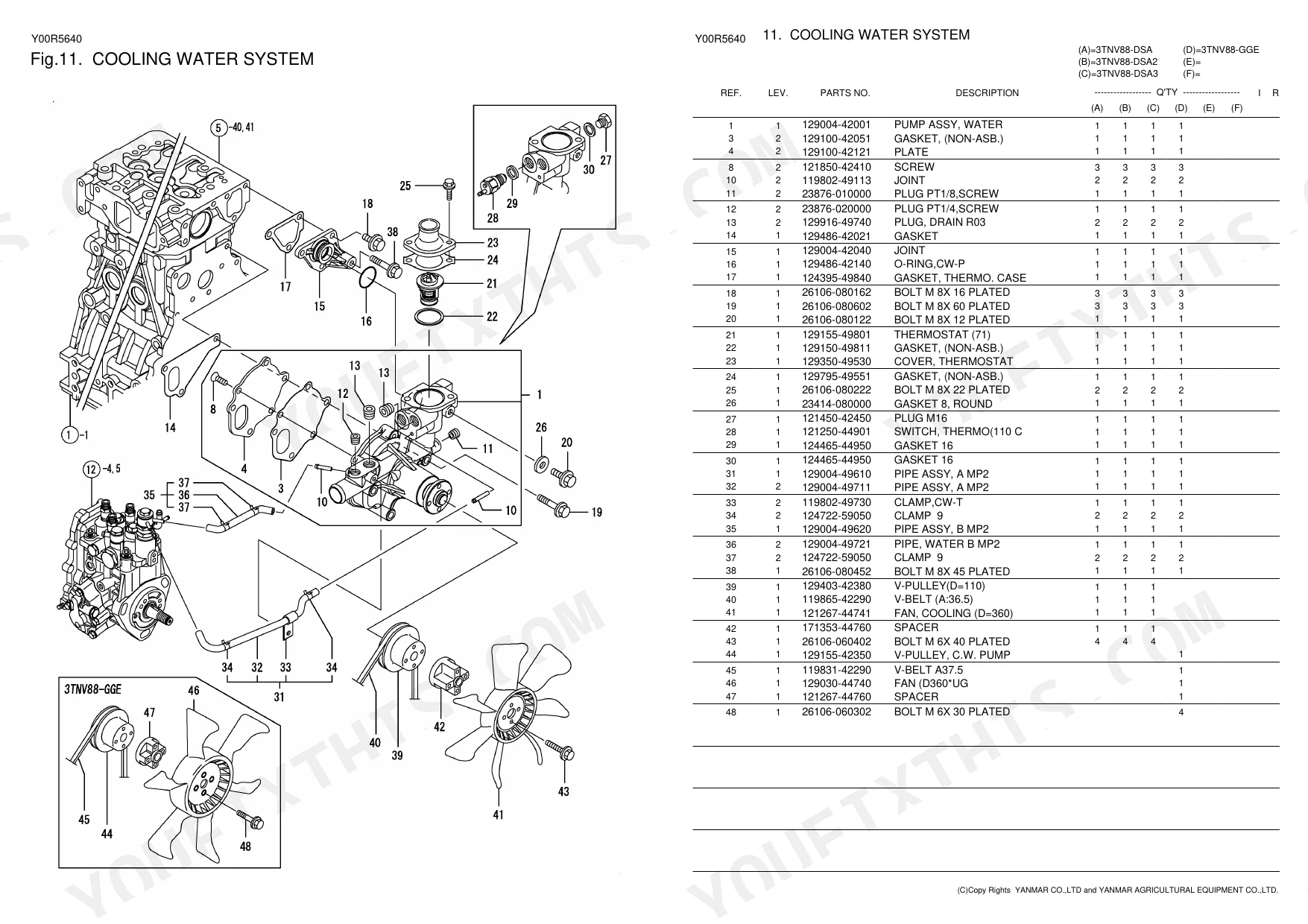

| Cooling Water System | 13 | Cooling Water, Thermostat 71C, Thermo Switch 110C |
| Fuel Injection Pump | 14 | Fuel Injection Pump Parts |

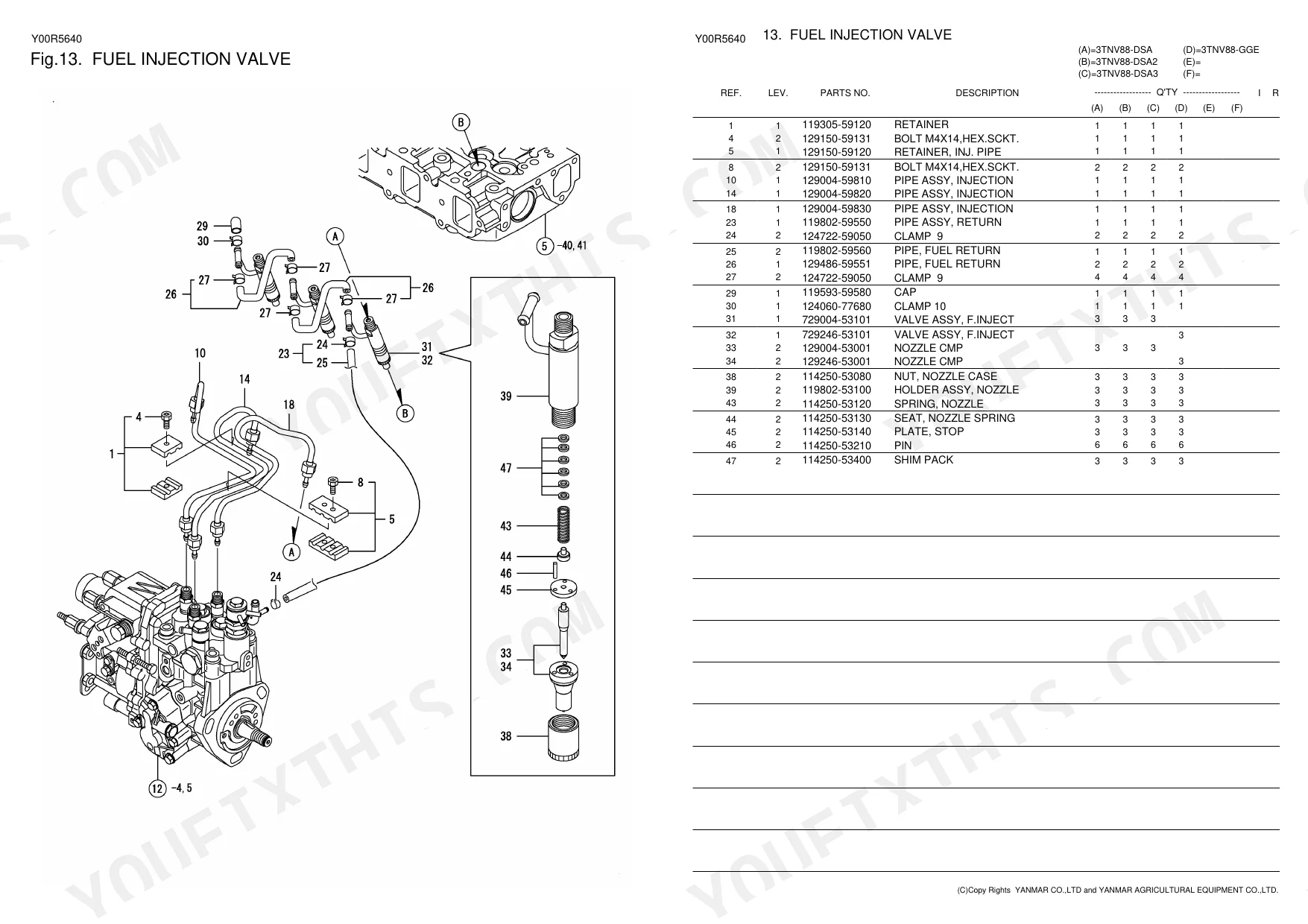

| Fuel Injection Valve | 15 | Fuel Injection Valve Parts |
| Fuel Line | 16 | Fuel Line Assembly |
| Starting Motor (3TNV88-Dsa, DSA2, DSA3) | 17 | Starting Motor Dsa Variants |
| Starting Motor (3TNV88-Gge) | 18 | Starting Motor Gge Variant |

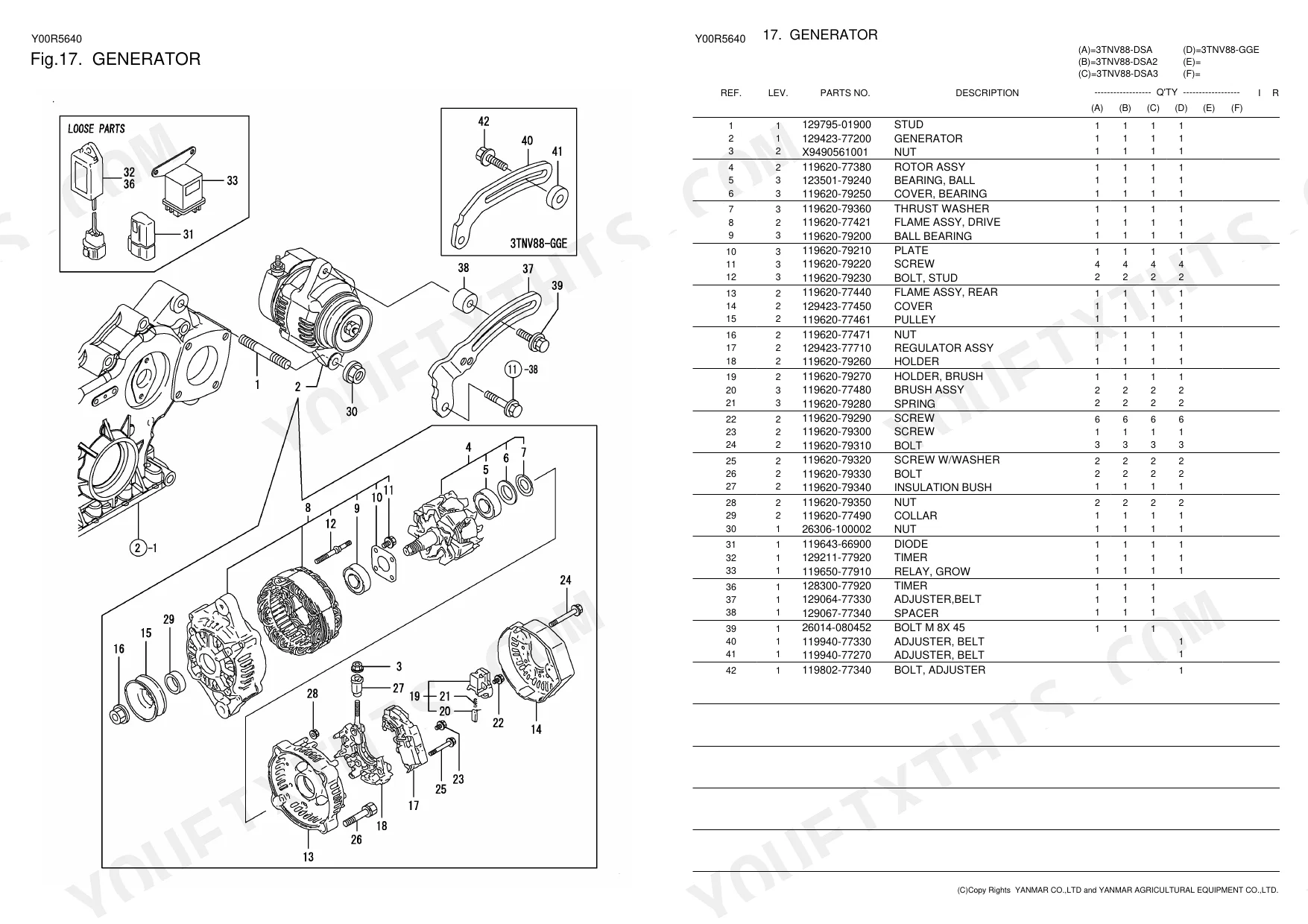

| Generator | 19 | Generator Parts |
| Gasket Set | 20 | Gasket Set Parts List |
| Optional Kit | 21 | Optional Kit Title Page |
| Engine Foot | 22 | Engine Foot Mounting Parts |
| Air Cleaner | 23 | Air Cleaner Assembly |
| Exhaust Manifold (Optional Kit) | 24 | Exhaust Manifold Optional Variant |
| Silencer and Tail Pipe | 25 | Silencer, Tail Pipe Assembly |
| Hydraulic Pump Driving | 26 | Ho-P Driving, Hydraulic Pump Drive Parts |
| Oil Cooler | 27 | Oil Cooler Assembly, Ball Bearings 13/32 Inch |
| Radiator | 28 | Radiator Assembly |
| Electric Parts | 29 | Electric Parts List |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3TNV88-DSA, 3TNV88-DSA2, 3TNV88-DSA3, 3TNV88-GGE | ||
| THERMOSTAT operating temperature | 71 | p. 13 |
| THERMO SWITCH activation temperature | 110 C | p. 13 |
| Parallel Pin Dimension | 8X16 mm | p. 6 |
| Crankshaft Key Dimension | 7X14 mm | p. 11 |
| Oil Filter Dimension | 80X80L mm | p. 12 |
| 3TNV82A-GGE, 3TNV82A-DSA, 3TNV84T-GGE, 3TNV84T-KSA, 3TNV88-GGE, 3TNV88-DSA | ||
| Ball Bearing Dimension | 13/32 inch | p. 27 |
