This 25-page Yanmar 4TNV88-XMS Parts Catalog PDF (OEM #0CV10-G94800) is the factory parts reference for the four-cylinder diesel engine powering GEHL equipment. Every engine system is mapped with exploded views and official OEM part numbers: cylinder block, gear housing, flywheel and oil sump, cylinder head, intake and exhaust manifolds, camshaft and driving gear, crankshaft and piston assembly, lubrication and cooling circuits, fuel injection pump, injector valve and fuel line, starting motor, generator, and complete gasket set. Open to any assembly and you get a detailed diagram with each sub-component called out by its factory number, including line items like piston ring sets, main bearing sets, and camshaft sub-assemblies. Each number traces directly to a factory reference you can hand straight to your dealer. Hunting down the wrong part number wastes your morning. Bookmarked by system; jump to any assembly in one tap and order with confidence.
What's Inside This Yanmar 4TNV88-XMS (GEHL) Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Preface. | 2-3 | - |
| Content. | 4 | - |
| Cylinder Block | 5 | Cylinder Block Assy, Camshaft Bush, Main Bearing Set, Thrust Metal, Cylinder Head Gasket, Spacer, Main Metal |
| Gear Housing | 6 | Gear Housing Assy, Oil Seal, Pump Cover Assy, Lub. Oil Pump Cover, Relief Valve, Spring, Gear Case Frange, Filler Cover |
| Flywheel Housing & Oil Sump | 7 | Flywheel Housing, Flywheel Cover Cap, Oil Sump Spacer, Lub. Oil Sump Assy, Oil Seal Case Assy, Oil Seal, Liquid Gasket |
| Cylinder Head & Bonnet | 8 | Cylinder Hed Assy, Valve Guide, Intake Valve, Exhaust Valve, Valve Spring, Spring Retainer, Valve Stem Seal, Valve Cap |
| Suction Manifold | 9 | Breather Pipe, Int Manifold, Int.manofold Gasket, Air Heater, Air Heater Gasket, Gasket, Bend |
| Exhaust Manifold | 10 | Exhaust Manifold Gasket, Silencer Gasket, Bolt |
| Camshaft & Driving Gear | 11 | Tappet, Push Rod, Camshaft Assy, Thrust Metal, Camshaft Gear, Idle Gear Shaft, Idle Gear Assy, Idle Gear Bush |
| Crankshaft & Piston | 12 | Crankshaft Assy, Crankshaft Gear, Crankshaft V-pulley, Flywheel Assy, Ring Gear, Piston Assy, Piston Ring Set, Connecting Rod Assy |
| Lub.Oil System | 13 | Lub. Oil Dipstick, Dipstick Guide, Gasket, Oil Inlet Pipe Assy, Lub. Oil Switch, Lub. Oil Pipe Assy, Joint Bolt Assy, Oil Cooler Assy |
| Cooling Water System | 14 | Water Pump Assy, Gasket, Plate, Joint, Thermo. Case Gasket, Cooling Water Pump V-pulley, V-belt A37, Cock Assy |
| Fuel Injection Pump | 15 | Fip Support, Injection Pump Assy, Bolt |
| Fuel Injection Valve | 16 | Fuel Injector, Nozzle Assy, Nozzle Holder Assy, Nozzle Spring, Nozzle Spring Seat, Stop Plate, Injection Pipe Retainer, Retainer |
| Fuel Line | 17 | Filter Bracket, Fuel Filter, Fuel Pipe, Tube, Fuel Oil Pipe, Fo-t Cmp, Fuel Pipe Protector, Fuel Feed Pump Assy |
| Starting Motor | 18 | Starter, Pinion Shaft, Armature Assy, Field Coil Assy, Brush, Rear Cover, Brash Holder Assy, Brush Spring |
| Generator | 19 | Belt Adjuster, Rotor Assy, Bearing Cover, Drive Flame Assy, Plate, Rear Flame Assy, Cover |
| Gasket Set | 20 | Cylinder Head Gasket, Valve Stem Seal, Nozzle Protector, Nozzle Seat, Cover Gasket, Exhaust Manifold Gasket, Thermo. Case Gasket |
| Short Block | 21 | Short Block Assy, Cylinder Block Assy, Oil Seal Case Assy, Tappet, Camshaft Assy, Crankshaft Assy, Piston Assy, Connecting Rod Assy |
Yanmar 4TNV88-XMS (GEHL) Common Problems This Manual Covers
Yanmar 4TNV88-XMS fuel injection valve part number needed when one cylinder stops contributing to power p. 16
Check the fuel injection valve exploded view on page 16. Each of the 4 cylinders has its own injector listed separately. Verify your serial number range before ordering, as the standard 4TNV88-XMS and 4TNV88-XMS (GEHL) variants may carry different part numbers. Also pull page 17 for return-line fittings to complete the order.
Manual Section: Fuel Injection ValveCylinder head gasket part numbers confusing, multiple listings in catalog for same engine top-end p. 20
Turn to page 20, Gasket Set, which lists both the standard and NON-ASB (non-asbestos) cylinder head gasket variants. Order the non-asbestos version unless your application specifically requires otherwise. Cross-reference the cylinder head diagram on page 8 to identify all 4 individual sealing surfaces and confirm you have every gasket needed for a complete top-end job.
Manual Section: Gasket SetStarter motor part number hard to pin down, need complete assembly versus sub-component breakdown p. 18

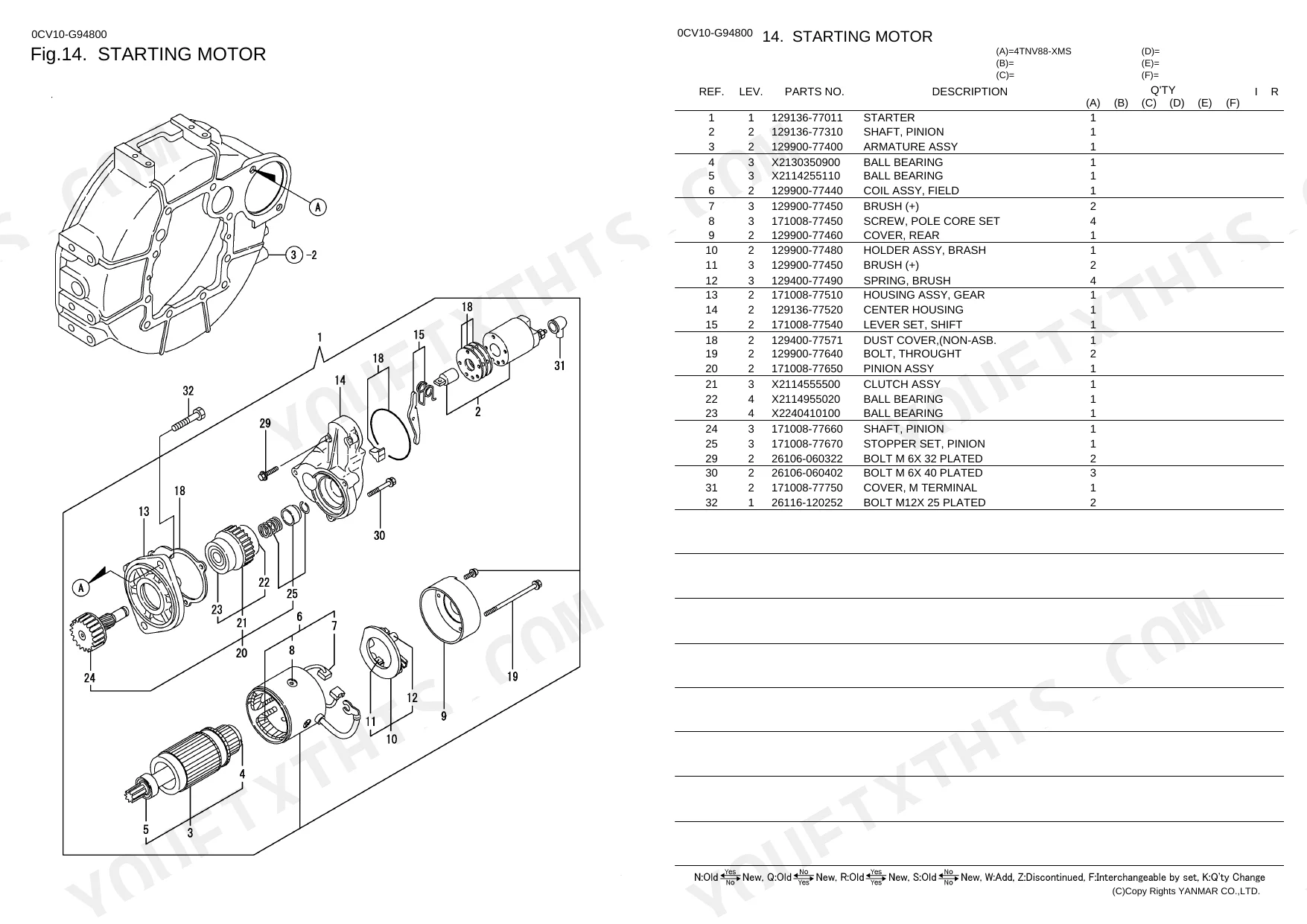

Find the starting motor section on page 18, which covers both the full assembly part number and individual internal components. Determine whether you need a complete replacement unit or just a specific sub-part. For a 4-cylinder engine like this one, there is a single starter; verify the correct part number against your serial number before ordering.
Manual Section: Starting MotorValve guide seal part numbers scattered across head listings, intake and exhaust variants hard to separate p. 8

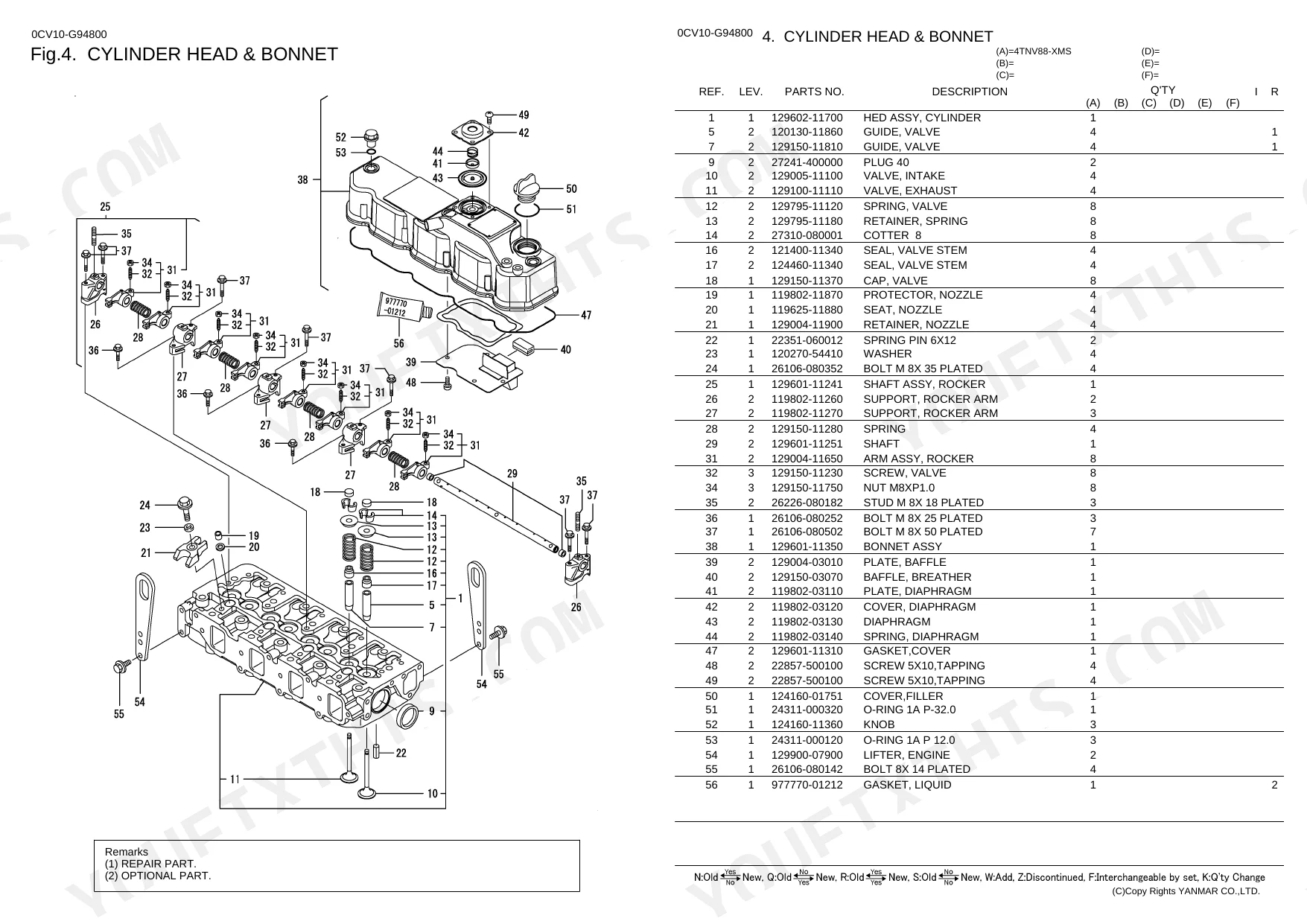

Open page 8, Cylinder Head and Bonnet, which lists valve guides and valve stem seals for both intake and exhaust valves. The 4-cylinder engine uses separate part numbers for intake and exhaust valve guides; identify which position needs replacement before ordering. Also check page 20, Gasket Set, for the valve stem seal listed there as a separate line item.
Manual Section: Cylinder Head & BonnetIntake heater part number for cold-start preheat system missing from main fuel components list p. 9
Locate the heater on page 9, Suction Manifold, listed alongside the intake manifold assembly. It is a single unit serving all 4 cylinders and is a distinct line item separate from the manifold gasket and clamps. Cross-reference under 'Heater' to confirm the part number, then add the manifold gasket from page 9 to the same order.
Manual Section: Suction ManifoldFuel injection pump parts list unclear when ordering rebuild components, pump versus sub-assembly distinction needed p. 15

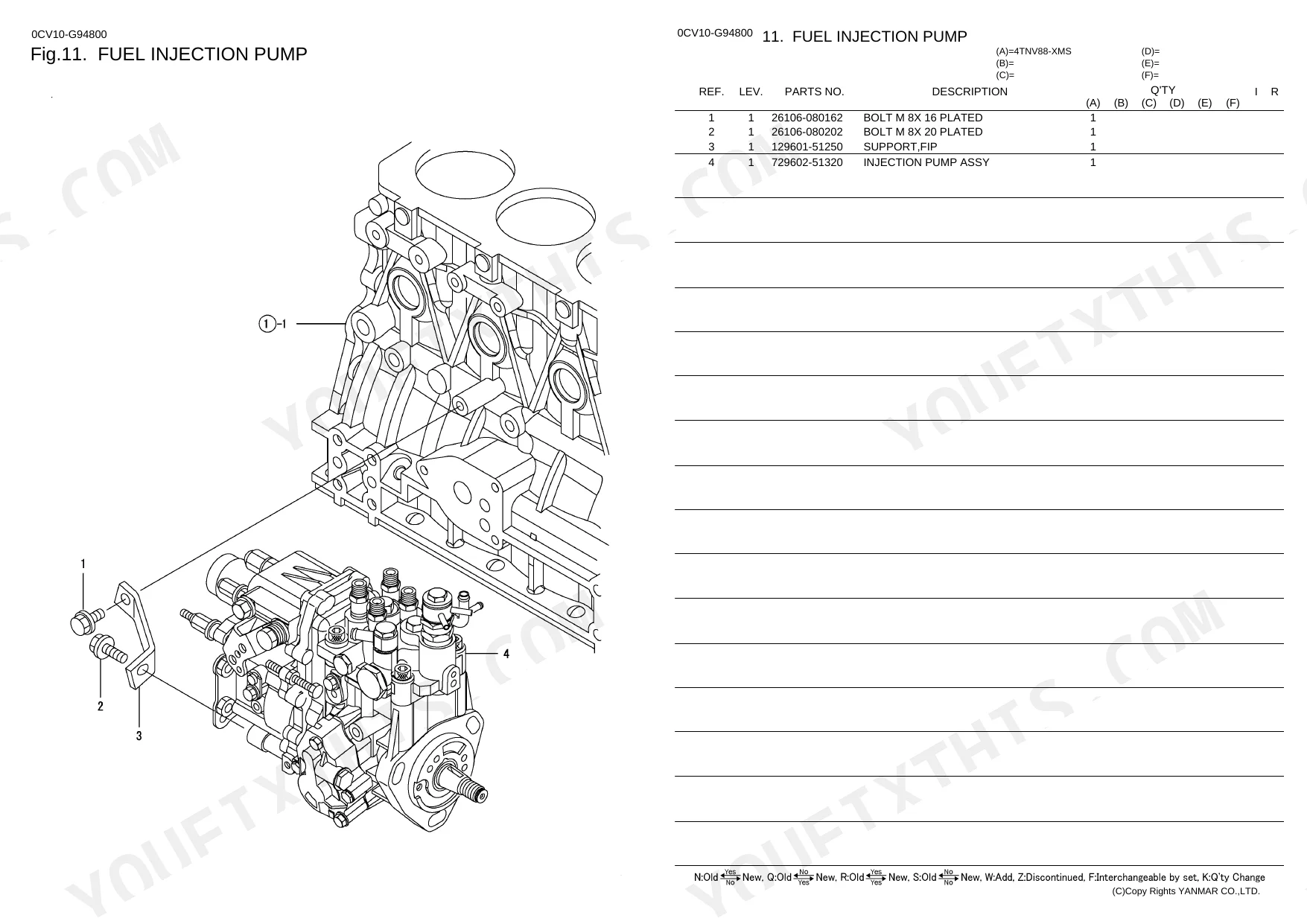

Check page 15, Fuel Injection Pump, for the complete assembly part number and individual internal sub-components. Decide whether you need the full pump assembly or specific internal parts before calling a supplier. Also verify on page 17, Fuel Line, that you have all high-pressure line fittings; this 4-cylinder pump feeds all 4 injectors from a single assembly.
Manual Section: Fuel Injection PumpFrequently Asked Questions
What are the replacement specifications for injectors?
For replacement, the Fuel Injector (WBG) has a part number of 729645-53100, and four units are required. Individual components like the Nozzle Assy (129602-53001) and Holder Assy, Nozzle (119802-53100) are also listed for replacement.
What are the replacement specifications for gasket cylinder head?

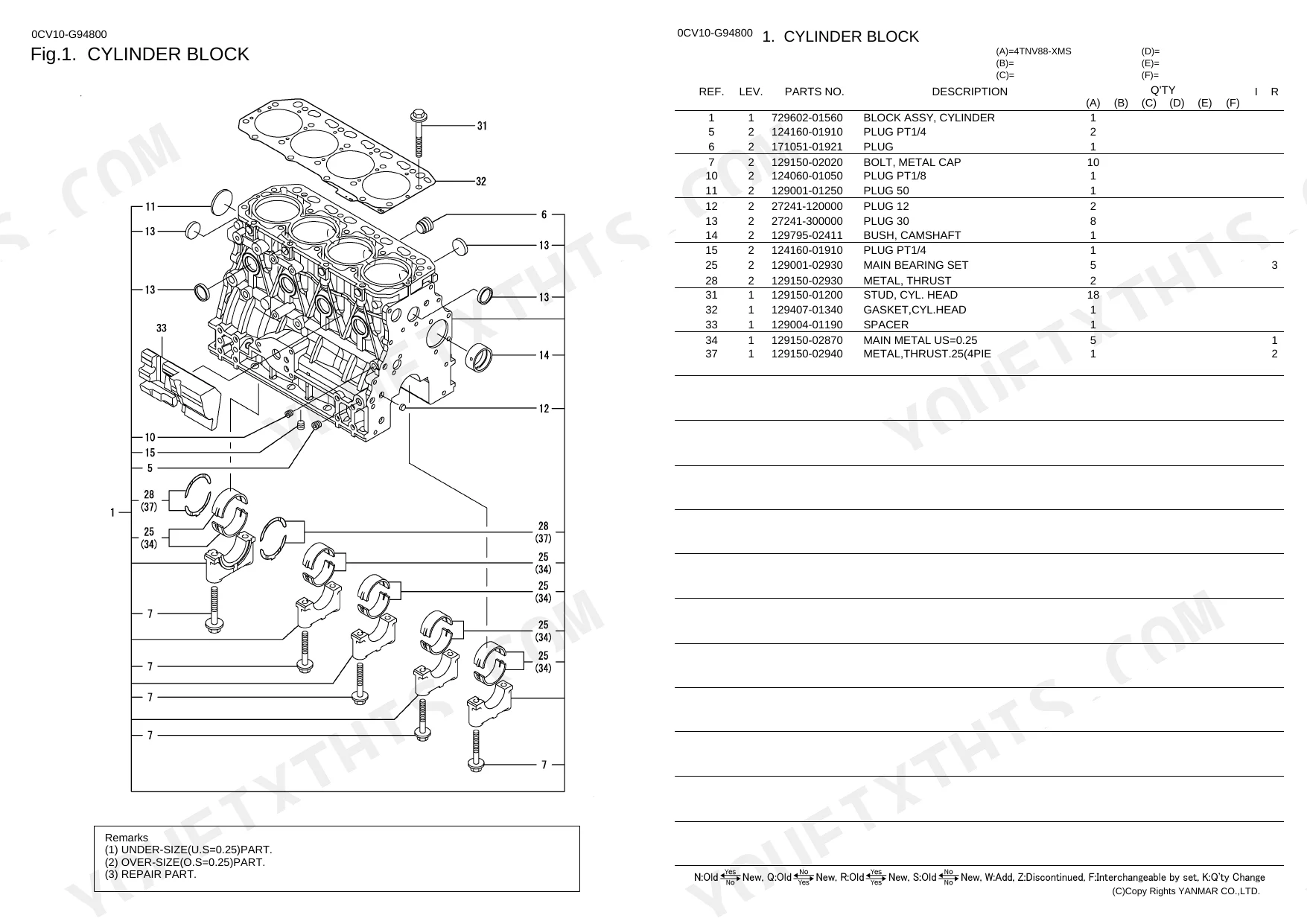

The replacement part number for the Gasket, Cylinder Head is 129407-01340, and one unit is required. This part is listed in both the Cylinder Block section and the Gasket Set section of the catalog.
How do you fix yanmar 4TNV88-XMS fuel injection valve part number needed when one cylinder stops contributing to power?
Check the fuel injection valve exploded view on page 16. Each of the 4 cylinders has its own injector listed separately. Verify your serial number range before ordering, as the standard 4TNV88-XMS and 4TNV88-XMS (GEHL) variants may carry different part numbers. Also pull page 17 for return-line fittings to complete the order.
How do you fix cylinder head gasket part numbers confusing, multiple listings in catalog for same engine top-end?
Turn to page 20, Gasket Set, which lists both the standard and NON-ASB (non-asbestos) cylinder head gasket variants. Order the non-asbestos version unless your application specifically requires otherwise. Cross-reference the cylinder head diagram on page 8 to identify all 4 individual sealing surfaces and confirm you have every gasket needed for a complete top-end job.
How quickly can I access this manual?
You get a 25-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Yanmar 4TNV88-XMS, 4TNV88-XMS (GEHL)?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
