Looking for the right part numbers for your EP BARRUS equipment? This 15-page Yanmar L48N6CF1F7AA, vibrating machine parts catalog PDF (OEM #0CW10-G65900) maps out the entire engine and chassis assembly so you know exactly what to order. You get detailed exploded views covering the cylinder block, fuel injection pump, crankshaft, and cooling system to identify exact replacements fast. Open the file to find clear component lists that provide factory interchangeability marks and effective machine numbers, ensuring you purchase the correct components the first time. Verify your hardware with exact factory dimensions, like the M6x25 mm bolts or the 25x41.2x8 mm seals, before ever placing a call to the supplier. Ordering the wrong parts keeps your bay tied up. Download this bookmarked file right to your phone, search the assembly you are rebuilding, and get your parts list sorted today.
What's Inside This Yanmar L48N6CF1F7AA, VIBRATING MACHINE Parts Manual
| System | Pages | Key Topics |
|---|---|---|

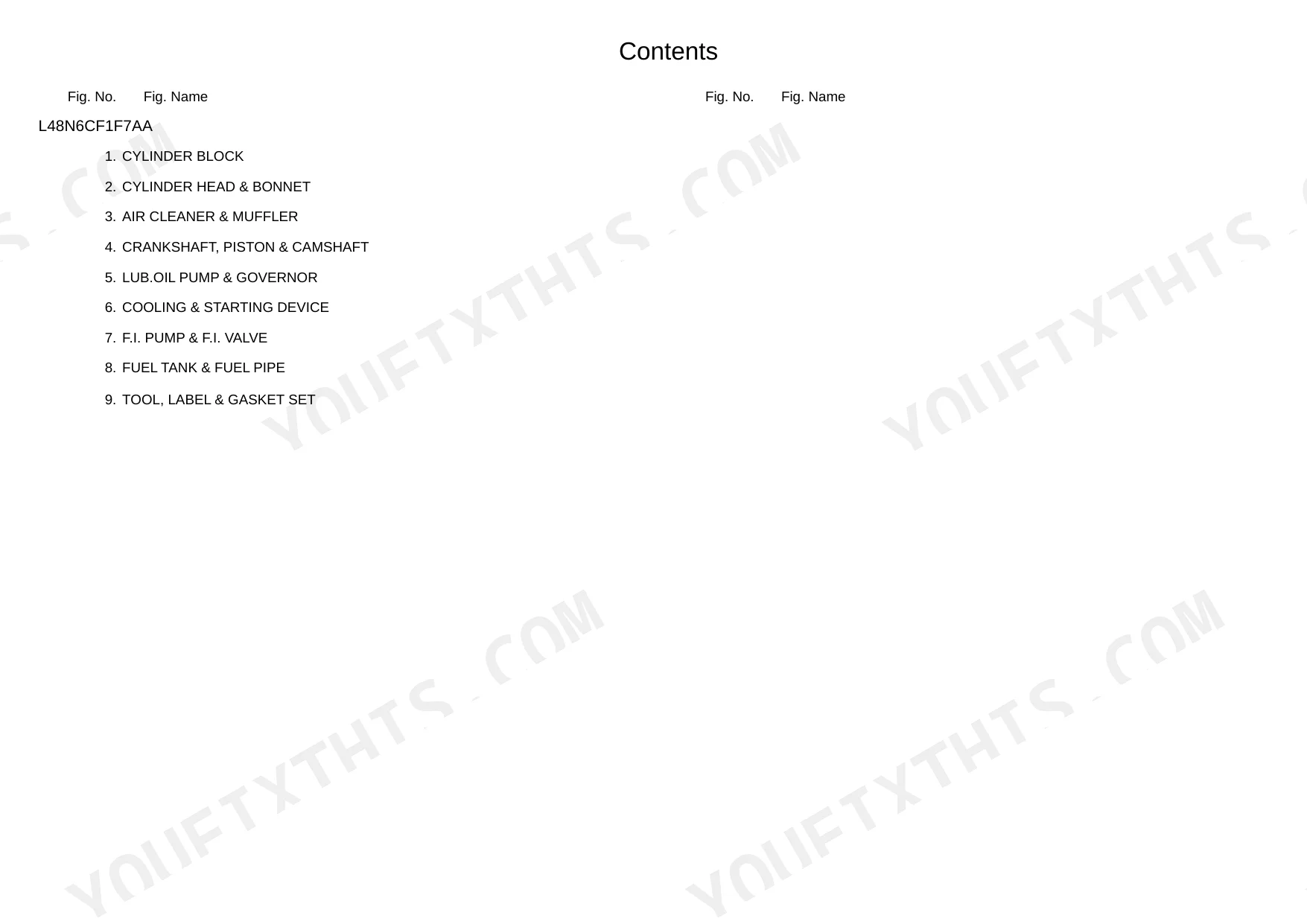

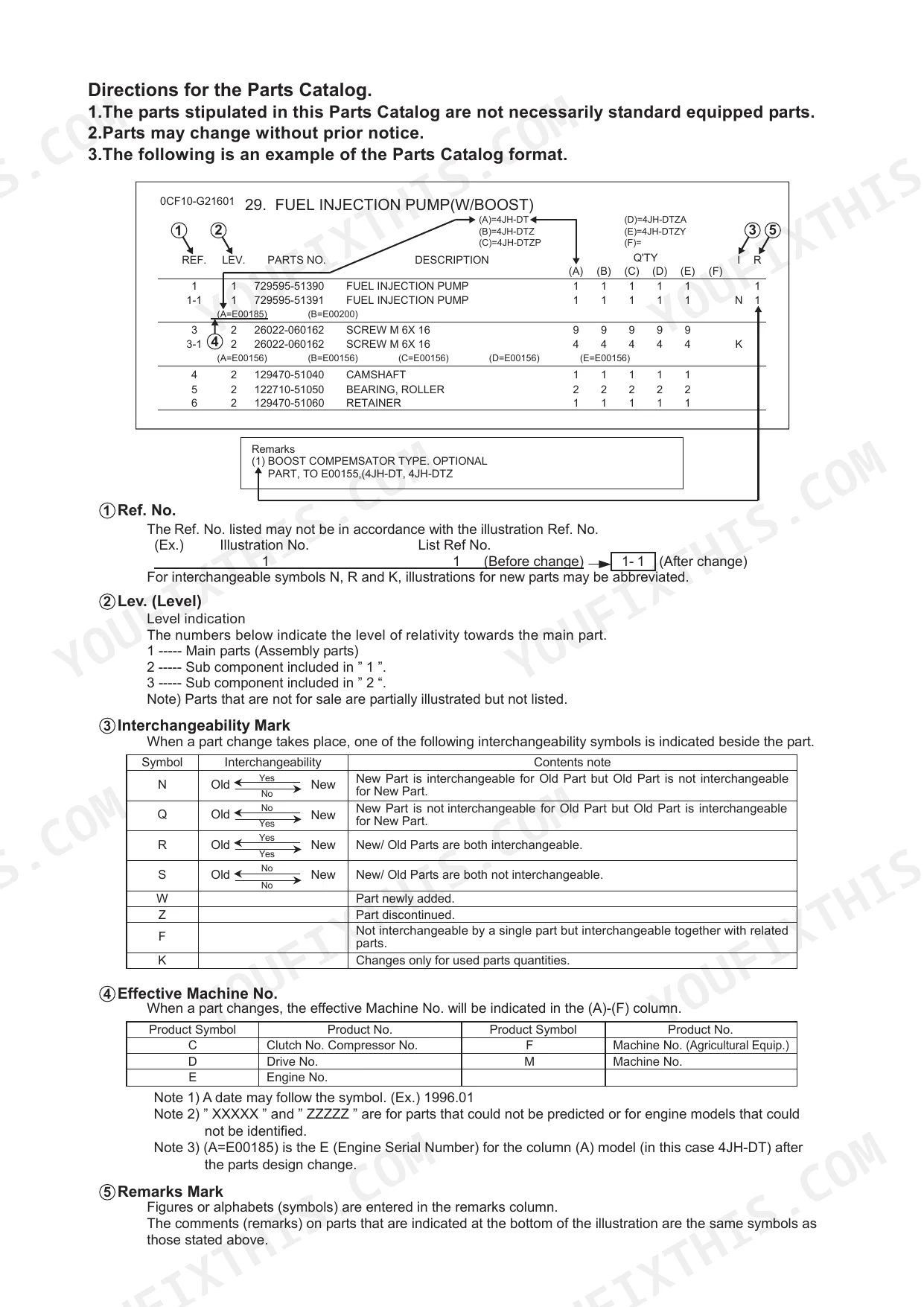

| Reference Materials | 2-3 | Ref. No., Lev. (Level), Interchangeability Mark, Effective Machine No., Remarks Mark |

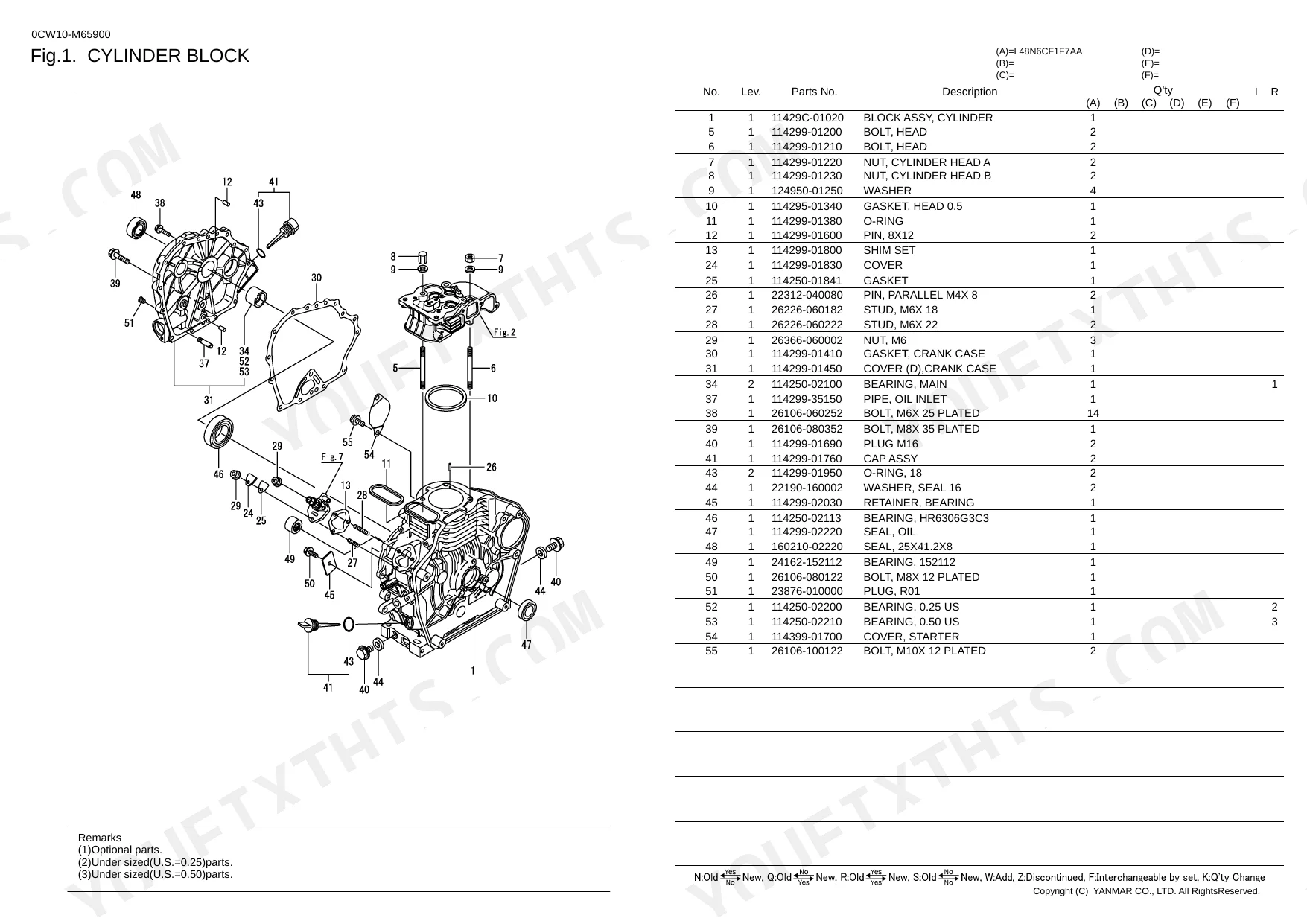

| Cylinder Block | 5 | Main Bearings, Lower Block Seal, Crankcase Components |
| Cylinder Head & Bonnet | 6 | Cylinder Head, Bonnet, Spring Pins, Head Gasket, Valve Components |

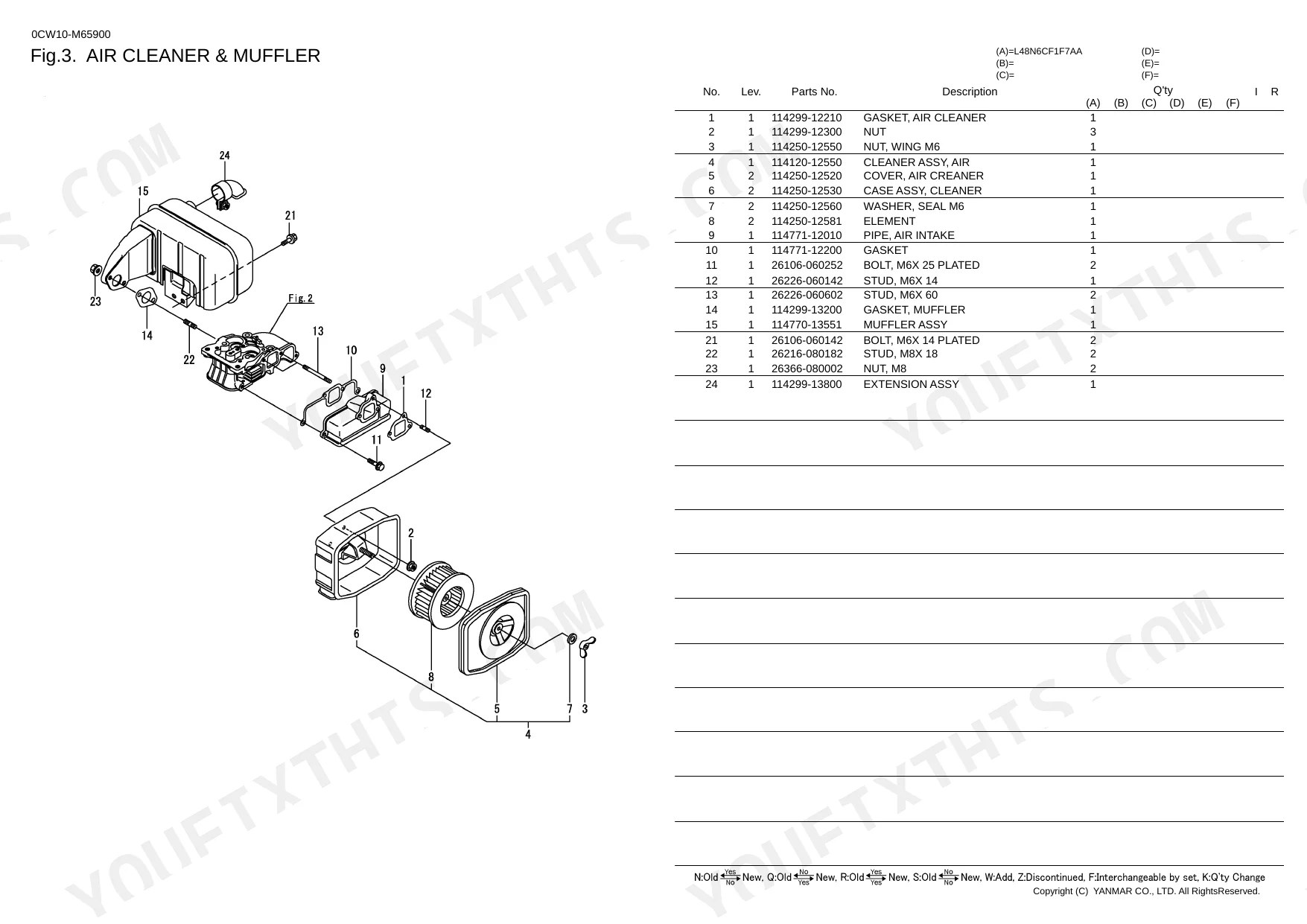

| Air Cleaner & Muffler | 7 | Air Cleaner Assembly, Muffler, Exhaust Components, Intake Filter |

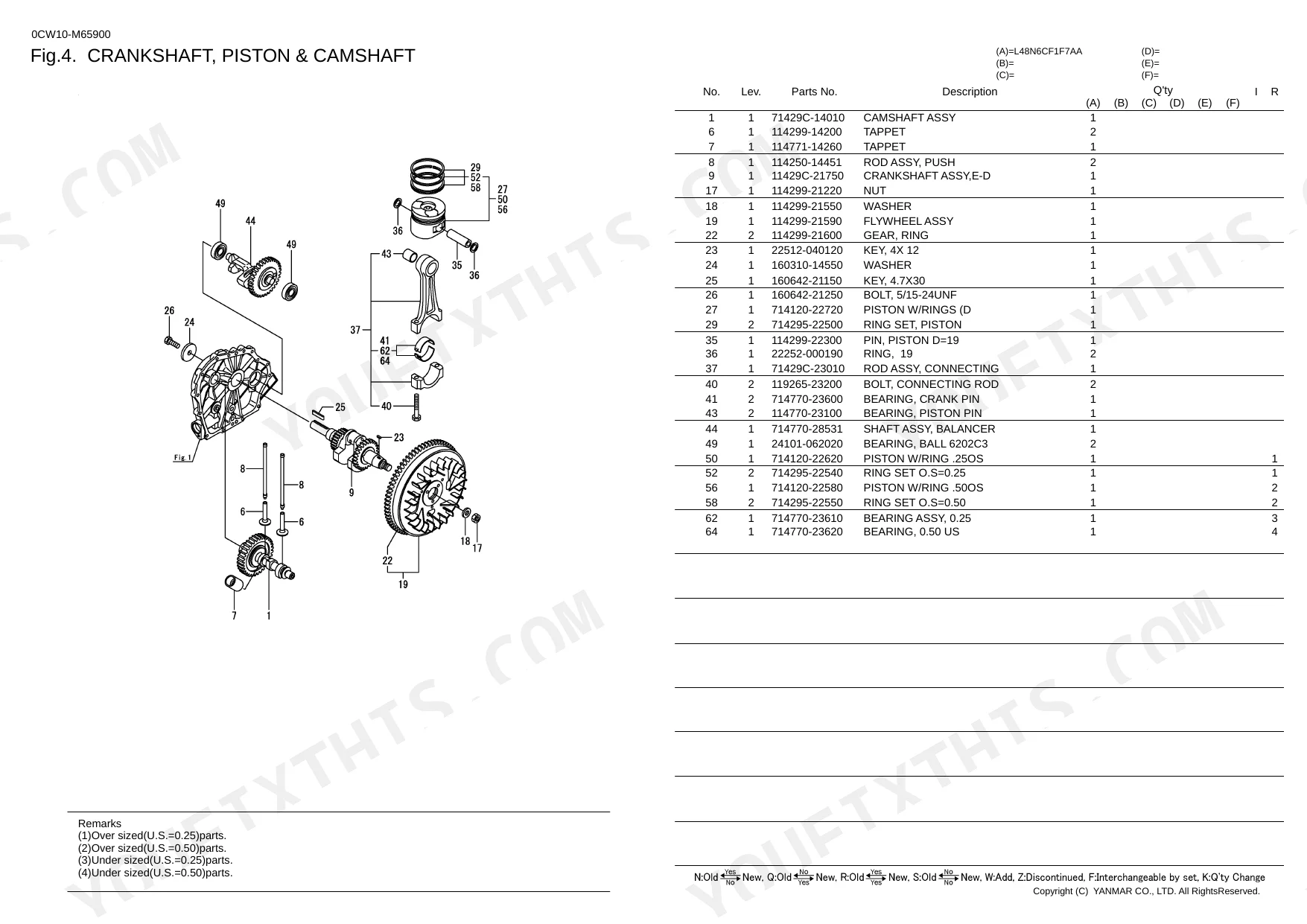

| Crankshaft, Piston & Camshaft | 8 | Crankshaft, Crankshaft Key, Pistons, Camshaft, Connecting Rod |
| Lub.Oil Pump & Governor | 9 | Lubrication Oil Pump, Governor Assembly, Speed Control Components |
| Cooling & Starting Device | 10 | Cooling System, Recoil Starter, Starting Device Components |
| F.I. Pump & F.I. Valve | 11 | Fuel Injection Pump, Fuel Injection Valve, Nozzle Components |
| Fuel Tank & Fuel Pipe | 12 | Fuel Tank, Fuel Pipes, Fuel Fittings, Fuel System Components |
| Tool, Label & Gasket Set | 13 | Special Tools, Gasket Set, Labels, Maintenance Kit Components |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pin Dimensions | 8x12 mm | p. 5 |
| Pin, Parallel Dimensions | M4x8 mm | p. 5 |
| Stud Dimensions | M6x18 mm | p. 5 |
| Bolt Dimensions | M6x25 mm | p. 5 |
| Seal Dimensions | 25x41.2x8 mm | p. 5 |
| Bearing Undersize | 0.25 US | p. 5 |
| Pin, Spring Dimensions | 4.0x8 mm | p. 6 |
| Key Dimensions | 4x12 mm | p. 8 |
Yanmar L48N6CF1F7AA, VIBRATING MACHINE Common Problems This Manual Covers
Can't find correct undersize crankshaft bearing part numbers to fix Yanmar L48N6CF1F7AA severe vibration at idle p. 5
Check the cylinder block parts list on page 5. Locate the main bearings and verify if your machined shaft requires the 0.25 US or 0.50 US undersize bearing part numbers. Cross-reference the exact engine serial number block to ensure correct fitment before ordering the replacements.
Manual Section: 1.Cylinder BlockUnable to identify the exact main seal replacement part number to fix persistent lower block oil leaks p. 5
Inspect the cylinder block exploded view on page 5. Find the lower block assembly and identify the exact 25x41.2x8 mm seal part number for your machine. Match the reference number in the diagram to the parts index to order the correct replacement components.
Manual Section: 1.Cylinder BlockNeed the correct crankshaft key part number to resolve shaft alignment issues causing heavy shaking p. 8
Review the engine parts diagram on page 8. Locate the crankshaft assembly and find the exact part number for the 4x12 mm key. Confirm the required quantity in the parts list and check for any superseded part numbers before submitting your parts order.
Manual Section: 4.Crankshaft, Piston & CamshaftMissing the correct spring pin hardware part numbers required to finish the cylinder head and bonnet rebuild p. 6
Search the cylinder head exploded view on page 6. Locate the specific part number for the 4.0x8 mm spring pin required for your bonnet assembly. Verify the quantity needed in the adjacent parts list.
Manual Section: 2.Cylinder Head & BonnetFrequently Asked Questions
How do you fix can't find correct undersize crankshaft bearing part numbers to fix Yanmar L48N6CF1F7AA severe vibration at idle?
Check the cylinder block parts list on page 5. Locate the main bearings and verify if your machined shaft requires the 0.25 US or 0.50 US undersize bearing part numbers. Cross-reference the exact engine serial number block to ensure correct fitment before ordering the replacements.
How do you fix unable to identify the exact main seal replacement part number to fix persistent lower block oil leaks?
Inspect the cylinder block exploded view on page 5. Find the lower block assembly and identify the exact 25x41.2x8 mm seal part number for your machine. Match the reference number in the diagram to the parts index to order the correct replacement components.
How do you fix need the correct crankshaft key part number to resolve shaft alignment issues causing heavy shaking?
Review the engine parts diagram on page 8. Locate the crankshaft assembly and find the exact part number for the 4x12 mm key. Confirm the required quantity in the parts list and check for any superseded part numbers before submitting your parts order.
How do you fix missing the correct spring pin hardware part numbers required to finish the cylinder head and bonnet rebuild?
Search the cylinder head exploded view on page 6. Locate the specific part number for the 4.0x8 mm spring pin required for your bonnet assembly. Verify the quantity needed in the adjacent parts list.
What format is this manual in?
Instant PDF download. You get the full 15-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Yanmar L48N6CF1F7AA, Vibrating?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer has been applied, allowing you to search and copy text from all pages. The text quality is consistently crisp and easy to read throughout the catalog. All diagrams and illustrations are clear raster images, with labels that remain readable even if you zoom in. The pages are clean, free from scan artifacts, stains, or skewed content.
