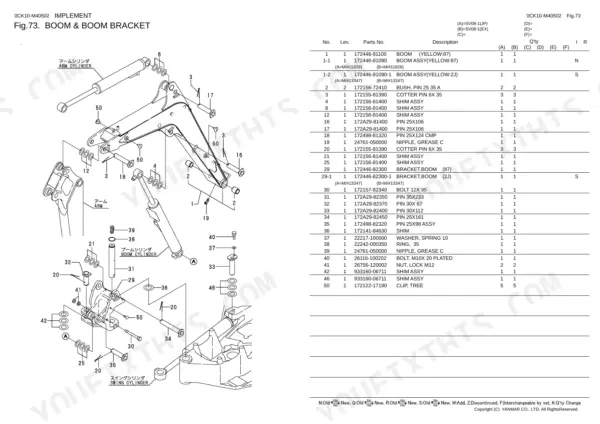

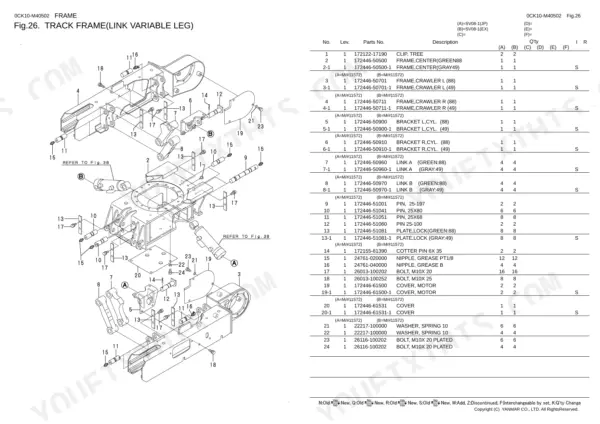

All 114 pages of this Yanmar SV08-1 (JP), SV08-1 (EX), 2TE67L-BV parts catalog pdf (OEM #0CK10-M40502EN) focus on giving you the exact part numbers needed to rebuild your 2004-2015 crawler back-hoe. Inside, you get highly detailed exploded views of the complete track frame, boom cylinder, and hydraulic control valves. Packed with component breakdowns and factory cross-references, this catalog ensures you order the right hardware for every swivel joint and variable leg assembly on the first try. Look up the exact replacement for the fuel filter (PN 129052-55630) or confirm the factory air cleaner element is part number 119515-12520 before calling the dealer. Wrong parts mean lost weekend hours and heavy equipment downtime. Grab this bookmarked download, pull it up on your phone at the parts counter, and get your machine back in the dirt.
What's Inside This Yanmar SV08-1 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-8 | Fuel Injection Pump, Fuel Injection Pump N, Camshaft, Roller Bearing, Retainer |

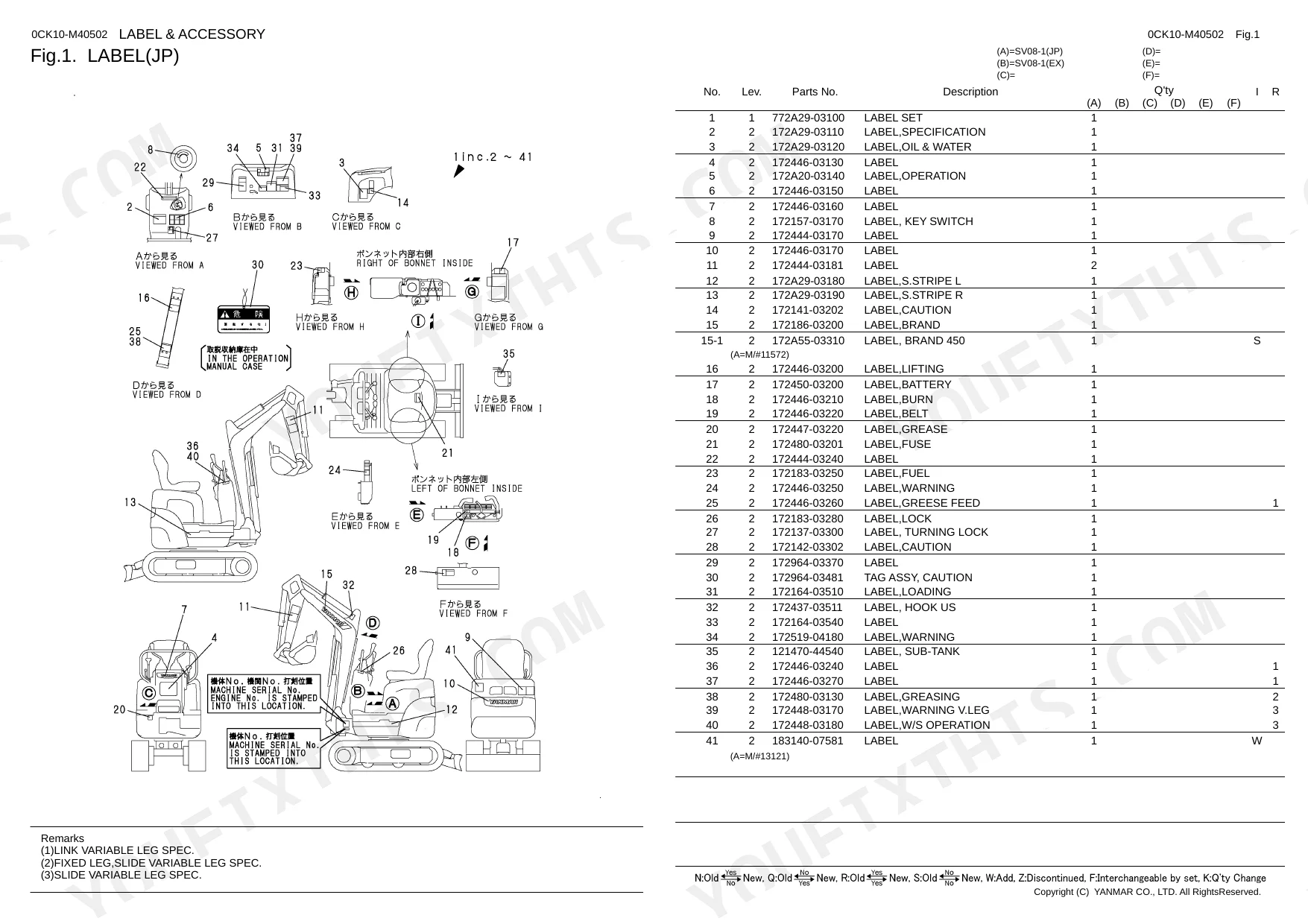

| Label(Jp) | 12 | Label, Caution Label, Brand Label, Lifting Label, Battery Label, Burn Label, Belt Label, Grease Label |
| Label(Ex) | 13-14 | Label, Brand Label, Caution Tag Assy, Caution N Tag Assy, Lock Label, Hydraulic Oil Us Label, Turning Lock Label, Slope Us Label |
| Safety Label(Jp) | 15 | Label, Caution Label, Lifting Label, Battery Label, Burn Label, Belt Label, Warning Label, Caution Tag Assy |
| Saefty Label(Ex) | 16 | Caution Tag Assy, Caution N Tag Assy, Slope Us Label, Slope Us N Label, Hydraulic Oil Tank Label, Transport Us Label, Transport Us S Label, Battery Us Label |
| Accessory | 17 | - |

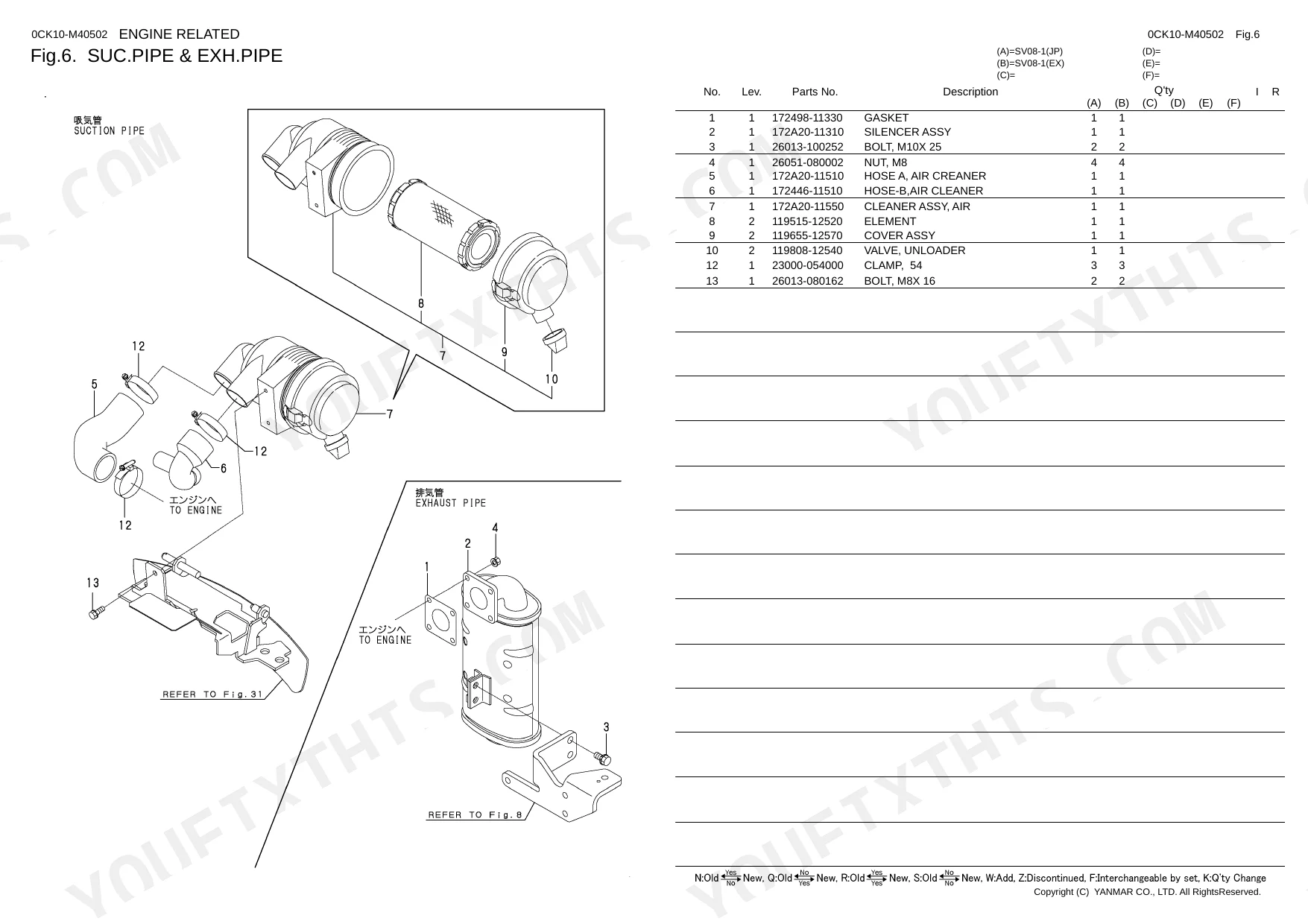

| Suc.Pipe & Exh.Pipe | 18 | Gasket, Air Cleaner Hose-B, Element, Cover Assy, Unloader Valve |
| Accelerator | 19 | Accel Lever, Arm Assy, Accelerator Grip, Collar, Spring |
| Engine Mount | 20 | Rubber, Shock 290K Absober, Washer, Bolt |
| Radiator & Mount | 21 | Radiator Seal, Shock Absober, Pressure Cap, Shroud Assy, Rubber Hose, Clip, Seal, Radiator Hose a |
| Fuel Tank | 22 | Fuel Strainer, Strainer Gasket, Tank Cap Assy, Vent Valve, Hose, Float, Rubber Plate, Drain Block |
| Fuel Pipe | 23 | Pipe Fuel, Fuel Filter, Hose Clip, Band |
| Battery | 24 | Battery Cord, Battery S Cord Assy, Rod |

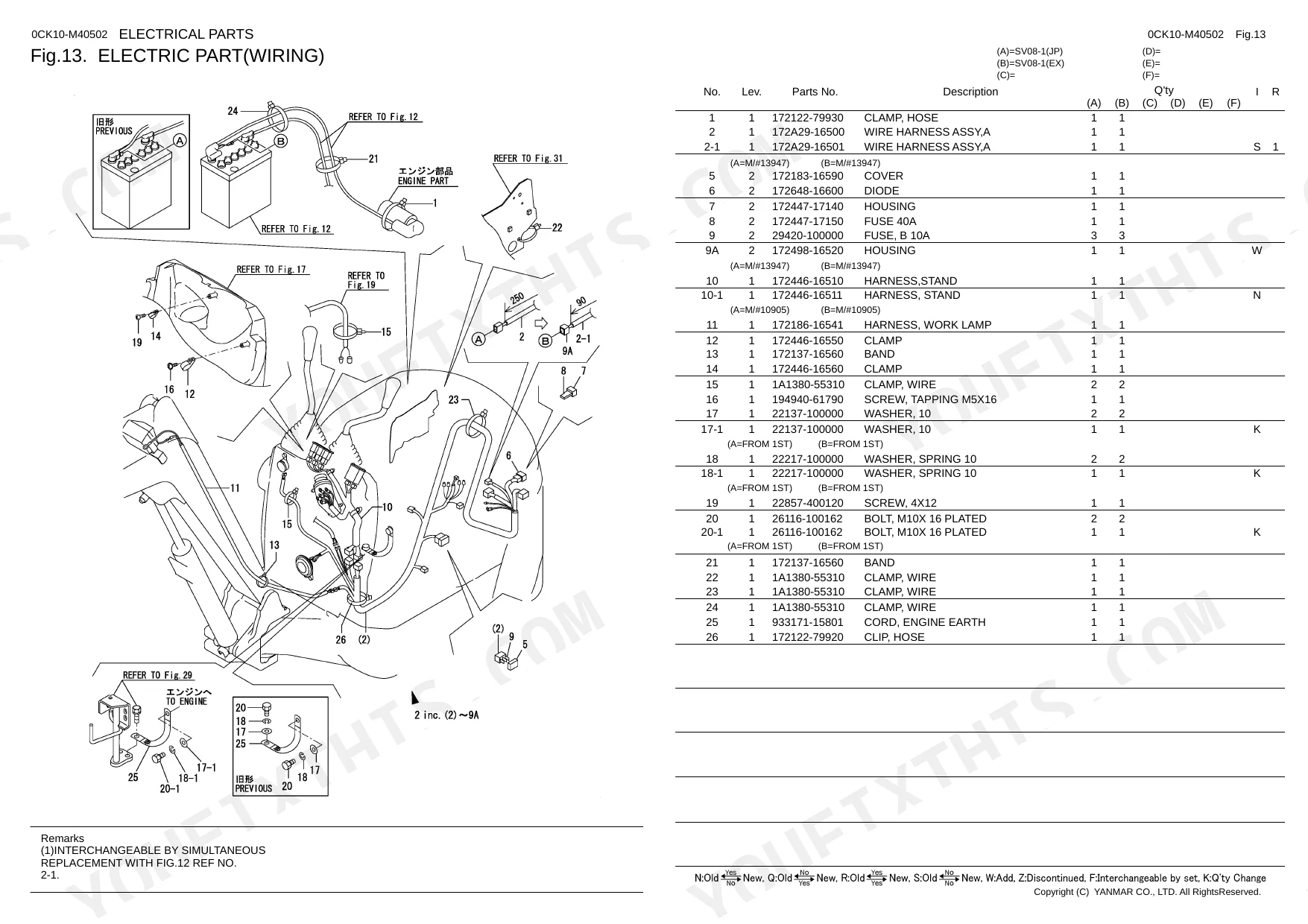

| Electric Part(Wiring) | 25 | Cover, Diode, Housing, Fuse 40A, B 10A Fuse, Housing W, Stand Harness, Stand N Harness |
| Electric Part(Equipment) | 26 | Fuse Bracket, Starter Switch Assy, Lamp, 12V .4W Bulb, Buzzer, Work Lamp, Lamp Stay, Lamp S Stay |
| Sprocket & Roller | 27 | Sprocket, Track Roller, Track Roller N, Roller Shaft, TW254716 Seal, Ring |
| Crawler,Idler & Adjust | 28 | Idler Assy, Idler Shaft, Idler S Shaft, QLN30X62X13 Seal, Ring, Rubber Crawler |
| Control Equipment(Link Stand) | 29 | Grommet, Bush, Seal, Stand Cover Assy, Swivel Seal, Assist Bar, Assist S Bar, Stand Cover Seal |
| Control Equipment(Stopper) | 30 | Lever Knob, Lock Lever, Lock Link, Lock Pipe, Spring |
| Control Equipment(Boom & Bracket) | 31 | Lever Boot P, Knob Assy, Lever, Lever S, Nc- Joint, Base Assy, Arm, Spring |
| Control Equipment(Arm & Turning) | 32 | Lever Boot P, Knob Assy, Lever, Lever S, Link L, Nc- Joint, Rod, Elbow |
| Control Equipment(Travel & Blade) | 33 | Track Lever L, Track S Lever L, Bush, Brade Lever, Drive Grip, Blade Grip, Grease PT1 Nipple, Spool Rod a |
| Control Equipment(Swing) | 34 | Swing Shaft Assy, Swing Pedal, Spring, Spool Rod |
| Control Equipment(P.T.O. & Low-High Pedal) | 35 | PTO Shaft Assy, PTO Pedal, Spring, Spool Rod, PTO Lock |
| Control Equipment(Variable Leg Operate) | 36 | Lever, Bush, Lever Knob, Grease C Nipple, Link |
| Track Frame(Fixed Leg) | 37 | Lower Frame, Cover, Motor Cover, Washer |

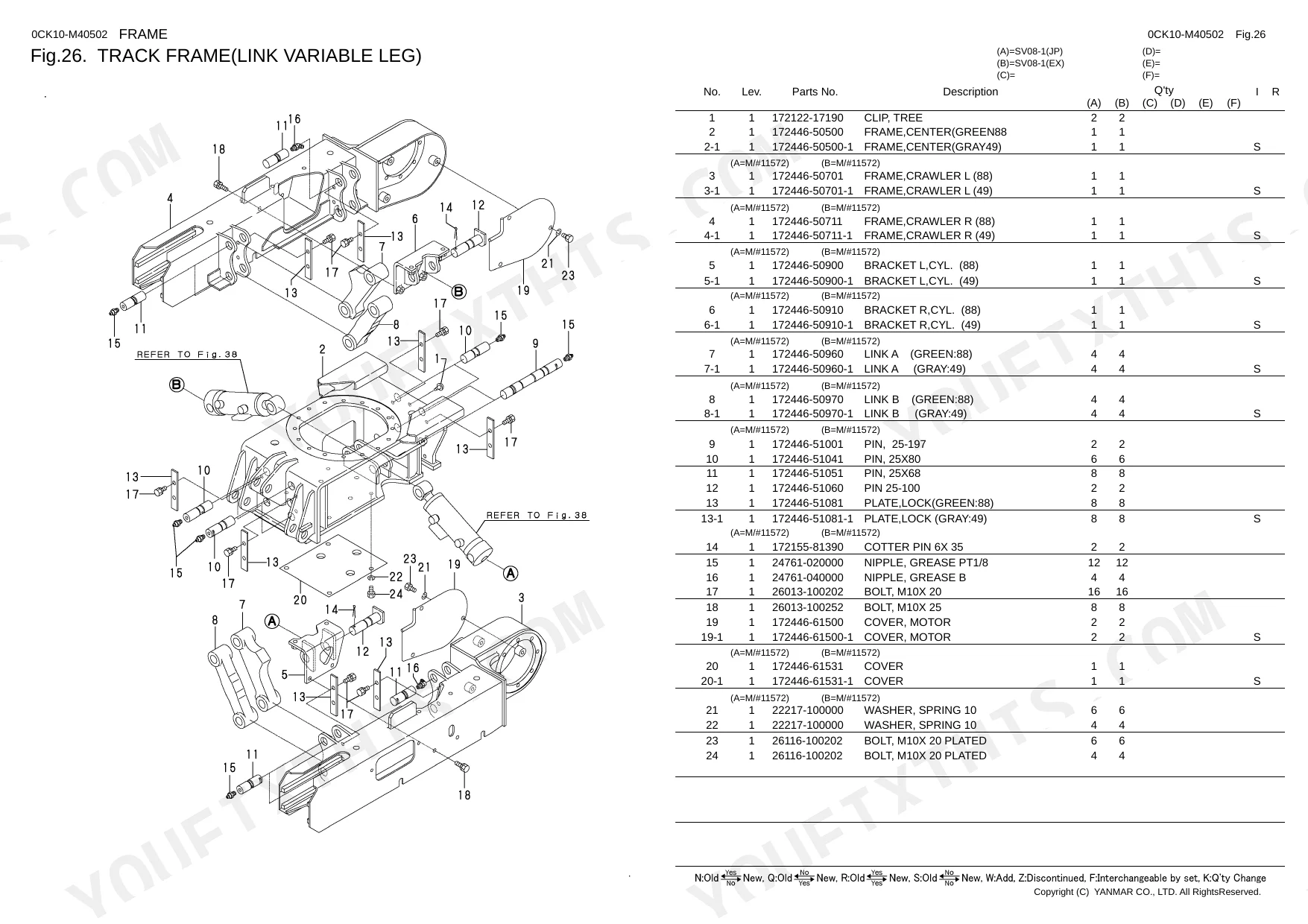

| Track Frame(Link Variable Leg) | 38 | Tree Clip, Center Frame, Crawler L Frame, Crawler R Frame, Crawler R S Frame, Cylinder Bracket L, Cylinder Bracket R, Link a |
| Track Frame(Slide Variable Leg) | 39 | Stopper Bolt Assy, Stopper Nut Assy, Plate, Motor S Cover, Tree W Clip |
| Turning Frame | 40 | Turning S Frame, Bush 35X45, Radiator Seal, Turning Bearing, Turning S Bearing, Seal Set, PTO S Cover |
| Step & Turning Lock | 41 | 5X18X35 Knob, Step Seal, Insulator, Pin |

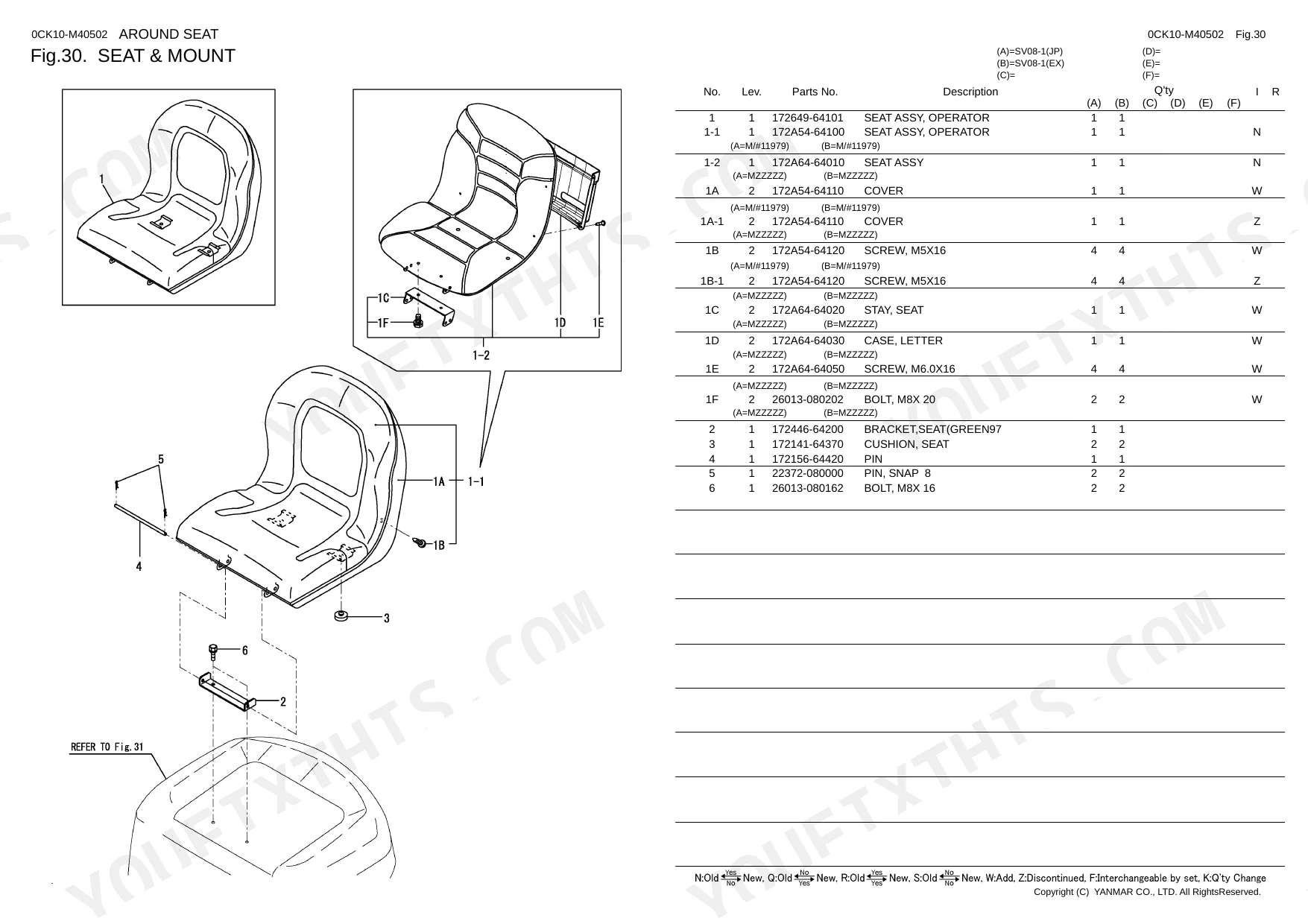

| Seat & Mount | 42 | Operator Seat Assy, Seat Bracket, Seat Cushion, Bolt |
| Bonnet | 43 | Rubber, Trim, Sponge, Insulator, Lever Knob, Bonnet Arm Assy, Lever Assy |
| Hyd.Oil Pump & Joint | 44 | Pump, Pump R, Seal Set, Bolt |
| Boom Cylinder | 45 | Boom Cylinder Assy, Head -, 25X25 Bush, Boom Tube, Boom N Tube, Boom Rod Assy, Boom N Rod Assy, RGU50 Gasket Assy |
| Arm Cylinder | 46 | RGU50 Gasket Assy, Arm Tube, Arm N Tube, Arm Rod, Arm N Rod Assy, Piston 18X28, Head B W/ Bush |
| Bucket Cylinder | 47 | Cylinder Assy, Bucket Tube, Bucket N Tube, Head, 25X25 Bush, Bucket Rod, Bucket N Rod Assy, Piston |
| Swing Cylinder | 48 | Swing Cylinder Assy, Head Seal Set, RGU55 Gasket Assy, Head Cmp, 30X30 Bush, Piston, Swing Tube Assy, Swing N Tube Assy |
| Blade Cylinder | 49 | Blade Cylinder Assy, RGU50 Gasket Assy, Piston 18X28, Head B W/ Bush, 25X25 Bush, Blade Tube, Blade S Tube, Blade N Tube |
| Link Variable Leg Cylinder | 50 | Cover Assy, Variable Cylinder, RGU50 Gasket Assy, Piston 18X28, Head B W/ Bush, 25X25 Bush, Head 50B Seal Set, Variable Tube |
| Slide Variable Leg Cylinder | 51 | Head 50B Seal Set, RGU50 Gasket Assy, Variable Tube Assy, Variable S Tube Assy, Piston 18X28, Head B W/ Bush, 25X25 Bush |
| Travel Motor | 52-53 | Travel Motor Cmp, Base Plate Assy, Ring, Spring, Needle, Snap Ring, Cover, Gear |
| Turning Motor(Previous) | 54 | Bearing Retainer, Pinion 13T, Needle Bearing, Ring, Inner Ring, Turning Motor Cmp, Geroller, Drive |
| Turning Motor(From M11977) | 55 | O-Ring, Bolt |
| Swivel Joint(Fixed Leg)(Y Spec.) | 56 | Swivel Assy, Swivel Assy R, Swivel Assy N, Swivel Assy Z, Swivel Hub, Swivel Shaft, Swivel N Shaft, Swivel Flange |
| 81.(43A)Swivel Joint(Fixed Leg)(N Spec.) | 57 | Ring, Duct Cover, O-Ring, Washer |
| Swivel Joint(Link Variable Leg)(Y Spec.) | 58 | Swivel Assy, Swivel Assy N, Swivel Assy Z, Swivel Hub, Swivel Shaft, Swivel N Shaft, Swivel Flange, Swivel Spacer |
| 83.(44A)Swivel Joint(Link Variabl Leg)(N Spec.) | 59 | Duct Cover, Ring, O-Ring, Washer |
| Swivel Joint(Slide Variable Leg)(Y Spec.) | 60 | Swivel Assy, Swivel Assy N, Swivel Assy Z, Swivel Seal Set, Seal R, Buck Up Ring, Swivel Hub, Swivel Shaft |
| 82.(45A)Swivel Joint(Slide Variable Leg)(N Spec.) | 61 | Ring, Duct Cover, O-Ring, Washer |

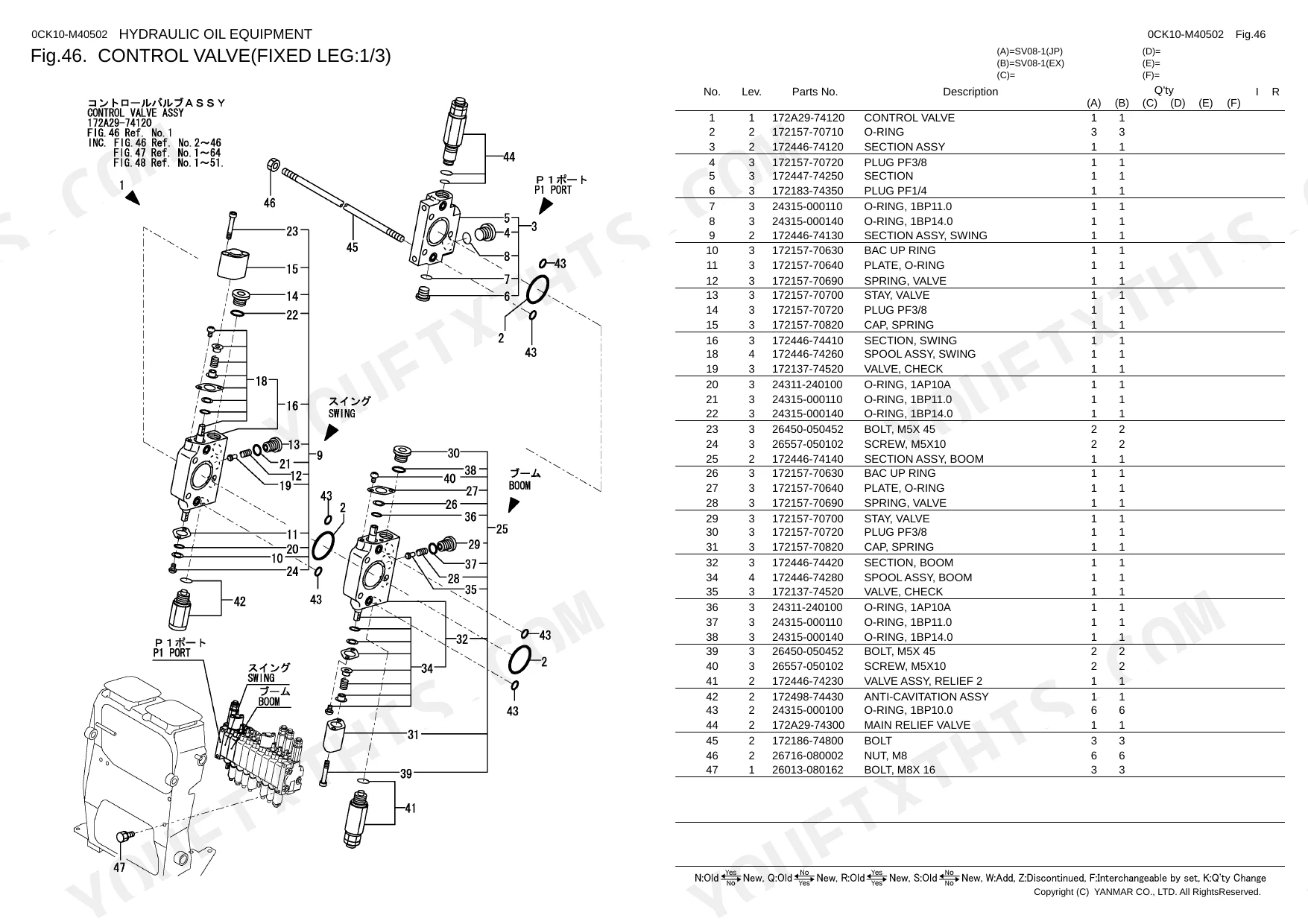

| Control Valve(Fixed Leg:1/3) | 62 | Section Assy, Swing Section Assy, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Swing Spool Assy, Check Valve |
| Control Valve(Fixed Leg:2/3) | 63-64 | Bucket Section Assy, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Check Valve, Bucket Spool Assy, Travel Section Assy |
| Control Valve(Fixed Leg:3/3) | 65 | Arm Section Assy, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Arm Spool Assy, Check Valve, Section Assy |
| Control Valve(Link Variable Leg:1/3) | 66-67 | Section Assy, Option Section Assy, Bac Up Ring, Valve Stay, Spring Cap, Option Spool Assy, Swing Section Assy, Valve Spring |
| Control Valve(Link Variable Leg:2/3) | 68-69 | Bucket Section Assy, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Check Valve, Bucket Spool Assy, Travel Section Assy |
| Control Valve(Link Variable Leg:3/3) | 70 | Arm Section Assy, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Arm Spool Assy, Check Valve, Section Assy |
| Control Valve(Slide Variable Leg:1/3) | 71-72 | Section, Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Check Valve, Swing Section, Swing Spool Assy |
| Control Valve(Slide Variable Leg:2/3) | 73-74 | Valve Spring, Valve Stay, Check Valve, Bac Up Ring, Spring Cap, Bucket Section, Bucket Spool Assy, Travel Section Assy |
| Control Valve(Slide Variable Leg:3/3) | 75 | Bac Up Ring, Valve Spring, Valve Stay, Spring Cap, Arm Section, Arm Spool Assy, Check Valve, Section Assy |
| Check Valve(Variable Leg) | 76 | Check Valve, Piston, O-Ring, Bolt |
| Hyd.Oil Tank | 77 | Return Strainer, Filter Element, Suction Filter, Reserver Cap, Gauge Assy |
| Hyd.Oil Piping(Tank-Pump-Valve) | 78 | PF3 Connector, Joint Assy, Adapter, Hose G206BV080K |
| Hyd.Oil Piping(Valve-Turning Motor,Swing)(Fixed Leg) | 79 | Elbow, Adapter, PF1/2X1 Connector, Rgi- Joint, Band, K Band, Hose P204BC078, Hose P204BB067 |
| Hyd.Oil Piping(Valve-Turning Motor,Swing)(Variable Leg) | 80 | Elbow, Adapter, PF1/2X1 Connector, Rgi- Joint, Band, K Band, Hose P204BC078, Hose P204BB067 |
| Hyd.Oil Piping(Valve-Swivel)(Fixed Leg) | 81 | Elbow, Adapter, Rgi- Joint, Pipe P204BC072, Hose P204BC059, Hose P204BB063, Hose P204BD060, Band |
| Hyd.Oil Piping(Valve-Swivel)(Link Variable Leg) | 82 | Elbow, Adapter, Rgi- Joint, Band |
| Hyd.Oil Piping(Valve-Swivel)(Slide Variable Leg) | 83 | Elbow, Adapter, Rgi- Joint, Band |
| Hyd.Oil Piping(Return)(Fixed Leg) | 84 | PF1 Elbow Pt, Elbow Z, Nipple, 8X1 Connector, PT1/ Z Joint, Hose G206BD063, Hose P202AB048 Z, Hose G604DY064 |
| Hyd.Oil Piping(Return)(Variable Leg) | 85 | PF1 Elbow Pt, Elbow Z, Elbow Nipple, - Nipple, 8X1 Connector, PT1/ Z Joint, Hose G206BD063, Hose P202AB048 Z |
| Hyd.Oil Piping(P.T.O.Frame End) | 86 | Joint, PF1/4PF3 Connector, PTO Bracket, Elbow, Hose G206BV077K, Hose G608BB047K |
| Hyd.Oil Piping(Track Frame)(Fixed Leg) | 87 | Connector, G1/ -G1 Joint, 3X1 Connector, Joint, Rgi- Joint, Hose P204BB052W, Hose P204BD047W, Hose P204BC043W |
| Hyd.Oil Piping(Track Frame)(Link Variable Leg) | 88 | Connector, G1/ -G1 Joint, Pt PF1/ Z Nipple, 3X1 Connector, Z Joint, Rgi- Joint, Hose P204BD082W, Hose P204BC070W |
| Hyd.Oil Piping(Track Frame)(Slide Variable Leg) | 89 | Connector, G1/ -G1 Joint, 3X1 Connector, Rgi- Joint, Joint |
| Hyd.Oil Piping(Boom)(Fixed Leg) | 90-91 | Elbow, Adapter, Rgi- Joint, Hose P204BC135, Hose P204BB128, Hose P204BC246W, Hose P204BC246W N, Hose P204BB250W |
| Hyd.Oil Piping(Boom)(Variable Leg) | 92-93 | Elbow, Adapter, Rgi- Joint, Hose P204BC135, Hose P204BB128, Hose P204BC246W, Hose P204BC246W N, Hose P204BB250W |
| Hyd.Oil Piping(P.T.O.Boom End) | 94 | Joint, Adapter, Elbow, 90RGI- Joint, Swivel Joint Elbow, Boom Pipe Retainer a, Boom Pipe S Retainer a, PTO Tube |
| Greasing | 95 | Hose P602YY043, Hose P602YY043 K, Grease Joint, PT1 Connector, Grease PT1 Nipple, Hose P602YY055 W |

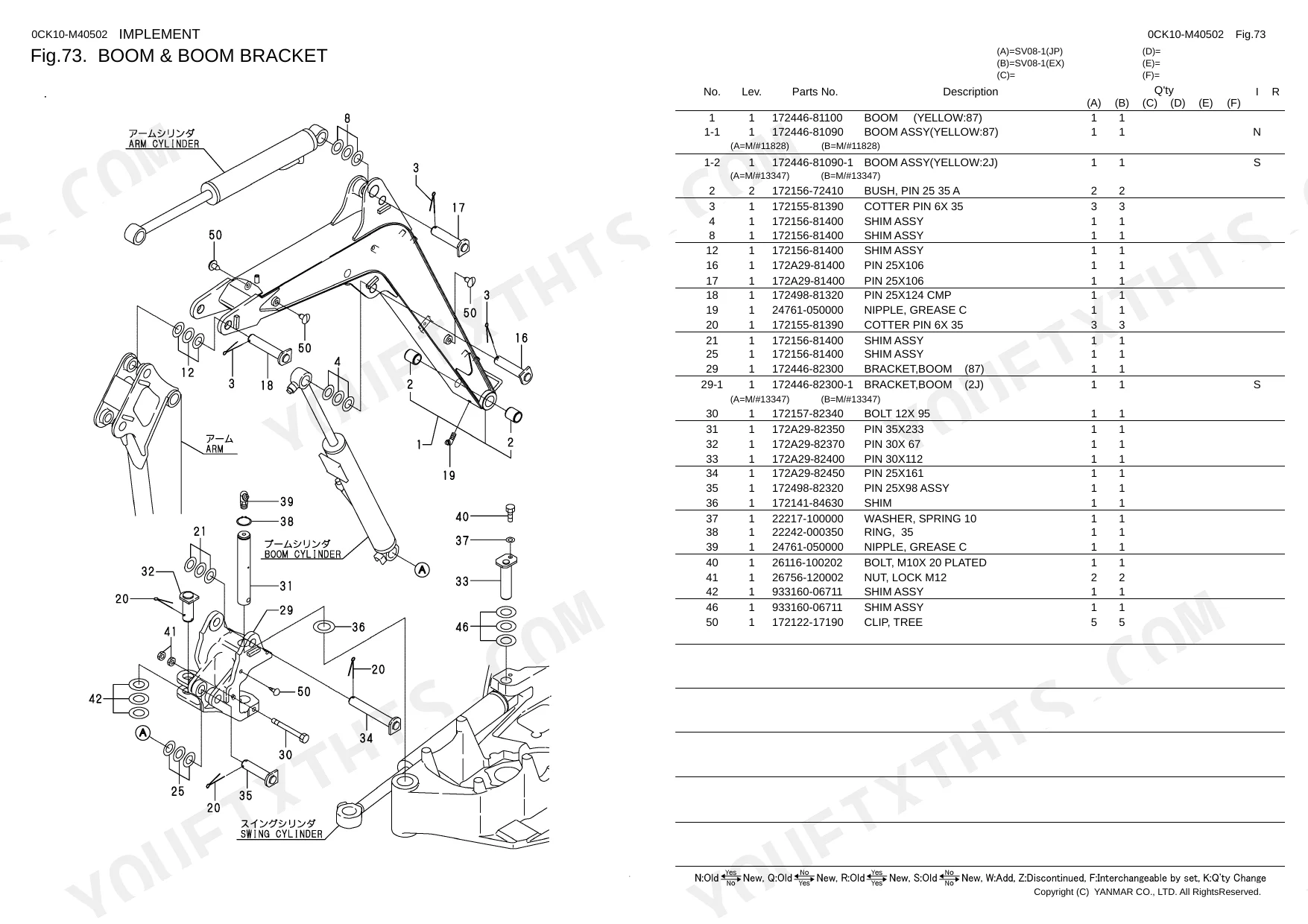

| Boom & Boom Bracket | 96 | Boom, Boom Assy N, Grease C Nipple, Boom Bracket, Boom S Bracket, Ring, Tree Clip |
| Arm | 97 | Arm Assy, N Arm Assy, Grease C Nipple, Pin |
| Long Arm | 98 | Arm Assy, Arm Assy S, N Arm Assy, Grease C Nipple |
| Bucket Arm & Link | 99 | Bucket Link, Bucket Arm, Bucket S Arm, Grease PT1 Nipple |
| Bucket | 100 | Grease PT1 Nipple, Bucket Assy, S Bucket Assy, Point Tooth Kit, Adapter, Side Cutter, Tooth Assy, Teeth Assy |
| Blade | 101 | Blade S, Grease PT1 Nipple, Grease B Nipple, Blade L, Blade R |
| P.T.O.Kit(Optional) | 102 | PTO Kit, Boom End, Frame End, Boom Only |
| Long Arm Kit(Optional) | 103 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery part number | 172446-16100 | p. 24 |
| Battery quantity | 1 | p. 24 |
| Air cleaner assembly part number | 172A20-11550 | p. 18 |
| Air cleaner element part number | 119515-12520 | p. 18 |
| Fuel filter part number | 129052-55630 | p. 23 |
| Hydraulic filter element part number | 172156-73710 | p. 77 |
| Hydraulic suction filter part number | 172480-73700 | p. 77 |
| Track adjust bolt part number | 172446-37710 | p. 28 |
| Hose A, Air Cleaner part number | 172A20-11510 | p. 18 |
| Hose B, Air Cleaner part number | 172446-11510 | p. 18 |
| Nipple, Grease PT1/8 part number | 24761-020000 | p. 95 |
| FUSE | 40A | p. 25 |
