This is the factory Operator Manual for the Yard Works lawn tractors 60-1827-4 and 60-1832-0, an 80-page PDF covering the 2005 model year. It is written for owners and independent mechanics who set up, run, and maintain these riding mowers themselves.The manual walks through tractor assembly, controls, and safe operation, then moves into the jobs you actually repeat each season: leveling the cutting deck, adjusting the steering and parking brake, changing engine oil, servicing the air cleaner and spark plug, and sharpening or replacing blades. A dedicated Service section covers the battery, tires, fuses, and the deck and PTO belt changes.You also get off-season storage steps, an attachments and accessories guide, a troubleshooting chart for common running problems, warranty details, and an illustrated parts list for ordering exact replacements.
What's Inside This Yard Works 60-1827-4, 60-1832-0 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Customer Support | - | Finding Your Model Number, Engine Information, Calling Customer Support |
| Important Safe Operation Practices | - | General Operation, Slope Operation, Children, Safe Handling of Gasoline, General Service |
| Slope Gauge | - | 15-degree slope warning, Riding mower operation, Walk-behind mower operation |

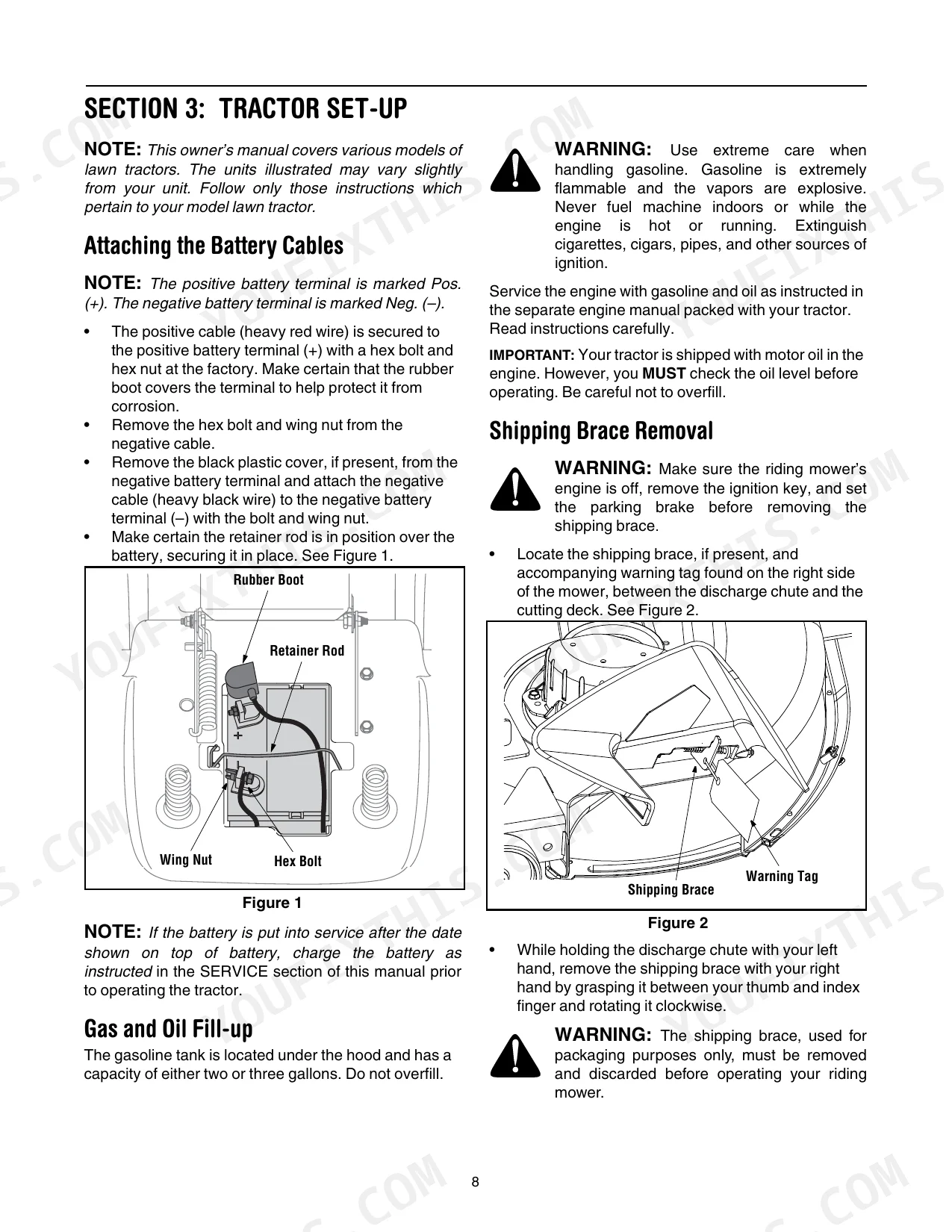

| Tractor Set-Up | - | Attaching Battery Cables, Shipping Brace Removal, Gas and Oil Fill-up, Attaching Steering Wheel, Attaching the Seat |

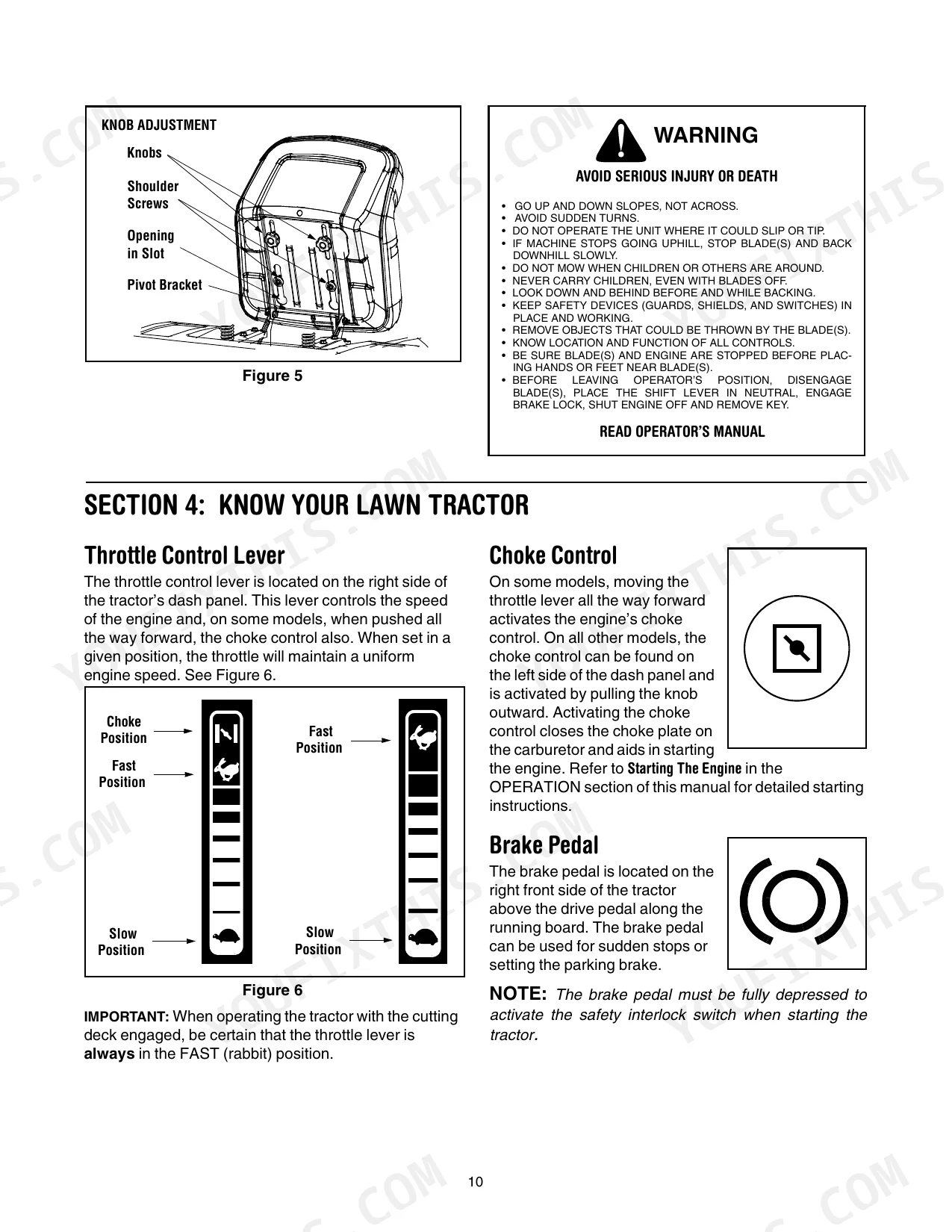

| Know Your Lawn Tractor | - | Throttle Control Lever, Choke Control, Brake Pedal, Ignition Switch Module, Systems Indicator Monitor, Drive Pedal, PTO (Blade Engage) Knob/Lever, Parking Brake Button |

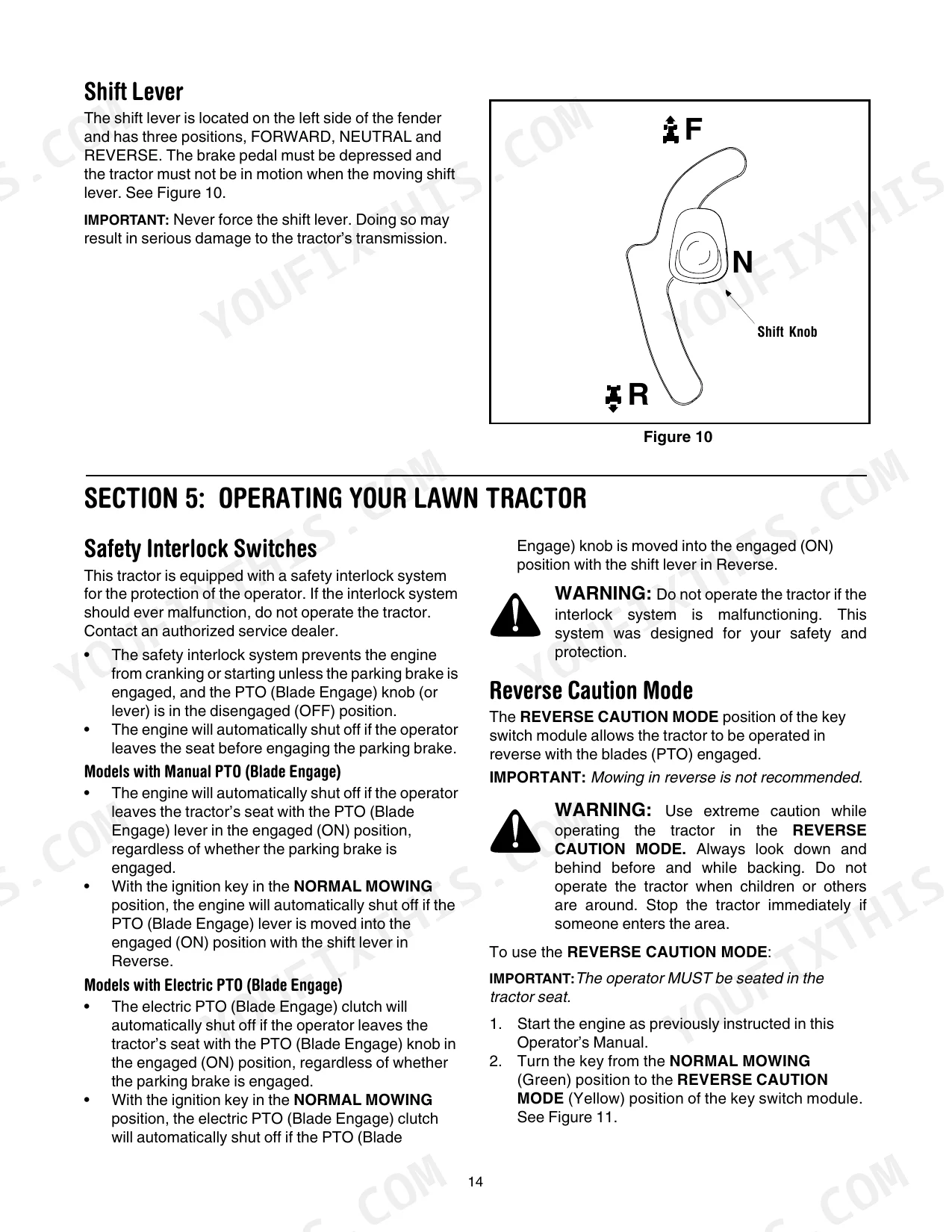

| Operating Your Lawn Mower | - | Safety Interlock Switches, Reverse Caution Mode, Engaging Parking Brake, Setting Cutting Height, Starting the Engine, Driving the Tractor, Driving On Slopes |
| Making Adjustments | - | Leveling the Deck (Front to Rear), Leveling the Deck (Side to Side), Parking Brake Adjustment, Steering Adjustment, Seat Adjustment |

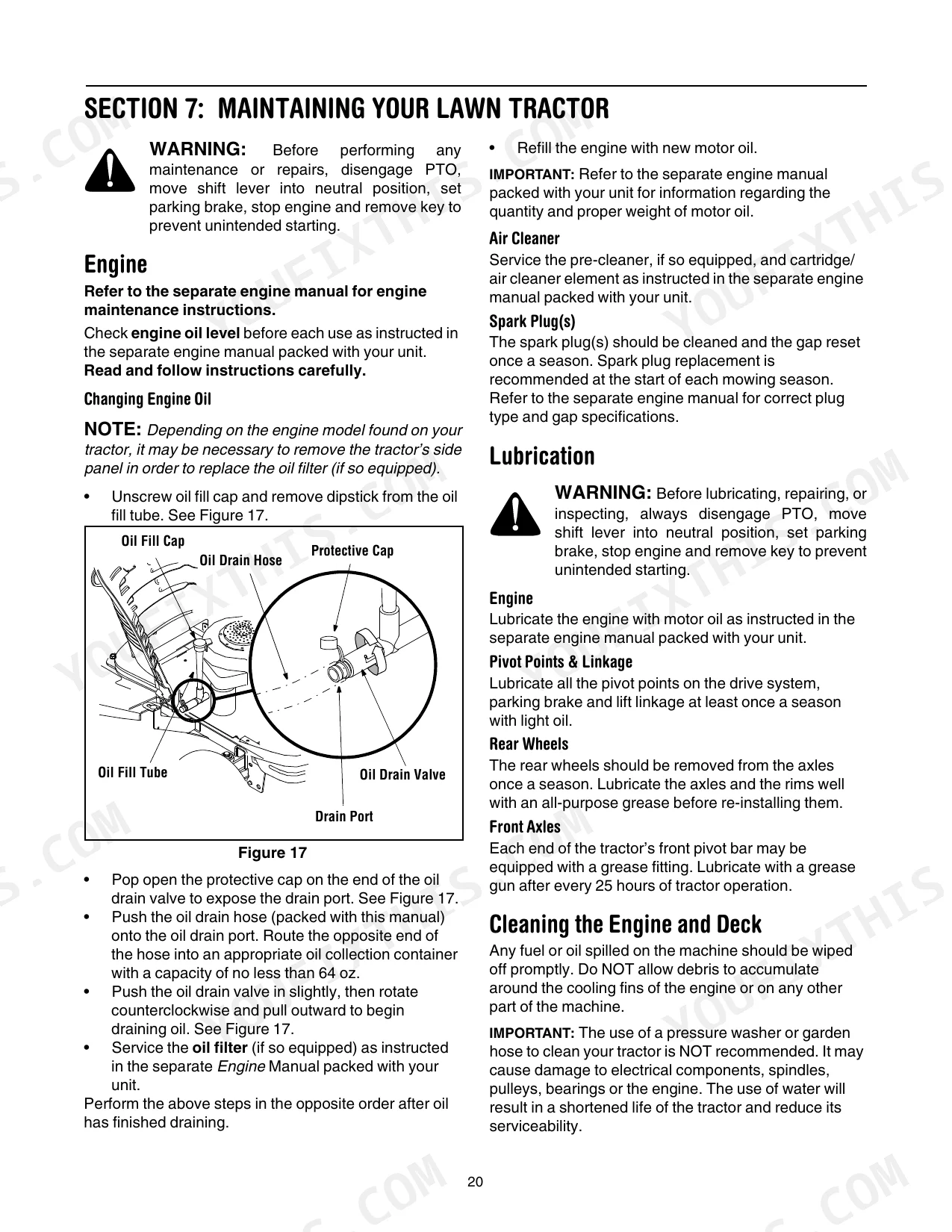

| Maintaining Your Lawn Tractor | - | Changing Engine Oil, Air Cleaner, Spark Plug(s), Lubrication (Engine, Pivot Points & Linkage, Rear Wheels, Front Axles), Cleaning the Engine and Deck |
| Service | - | Deck Wash System, Cutting Deck Removal, Tires, Battery (Charging, Jump Starting, Failures), Cutting Blades (Sharpening, Replacement), Fuses, Changing the Deck Belt & PTO Belt |
| Off-Season Storage | - | Cleaning and Lubrication, Engine Care, Fuel Draining, Storage Location Warnings |
| Attachments & Accessories | - | Mulch Kits, Bagger Grass Collectors, Rear Wheel Weights, Grille Guard, Sunshade, Snow Cab, Snow Thrower, Front Dozer Blade |
| Troubleshooting | - | Engine fails to start, Engine runs erratic, Engine overheats, Engine hesitates at high RPM, Idles poorly, Excessive vibration, Mower will not mulch grass, Uneven cut |
| Warranty | - | 4 Year Limited Warranty, Battery Warranty, Normal Wear Parts Warranty, How to Obtain Service, Transportation Charges, Engine Warranty |

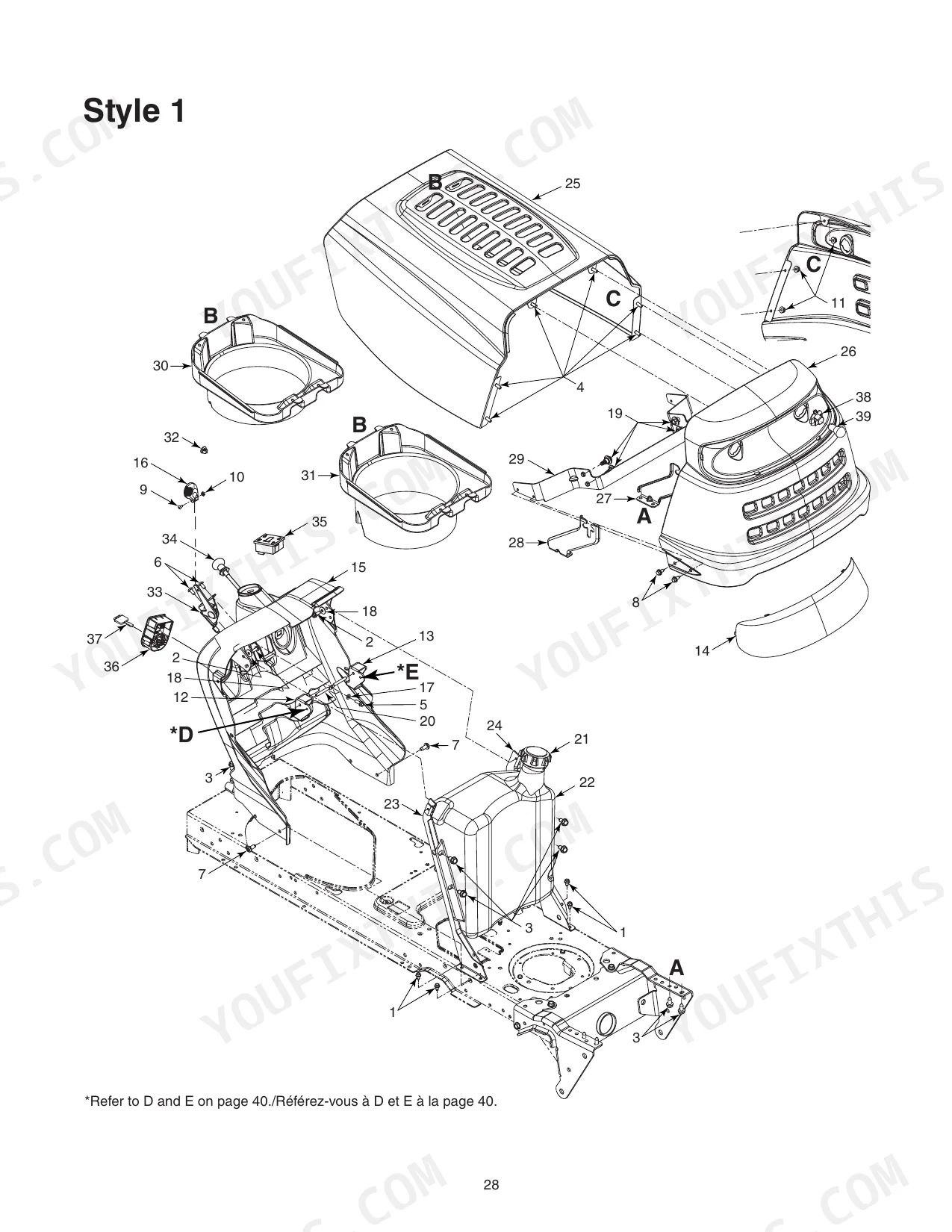

| Parts List | - | Style 1 Exploded View, Model Number Parts List, Wheel Chart, Lower Frame Assembly, Transaxle Assembly, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Gasoline tank capacity | two or three gallons | p. 8 |
| Engine oil capacity | Refer to separate engine manual | p. 2 |
| Maximum Slope | 15 degrees | p. 7 |
| Battery Charging Rate | 6 amps for one hour | p. 22 |
| Blade Stop Time | 5 seconds | p. 5 |
| Blade Sharpening Angle | 25° to 30° | p. 22 |
| Blade Spindle Hex Flange Nut Torque | 70-90 foot-pounds | p. 23 |
| Front Deck Lowering (Front to Rear) | 1/4-inch to 3/8-inch lower than rear | p. 18 |
| Brake Disc to Brake Puck Gap | .011" | p. 19 |
| Front Tire Toe-in | 1/16" to 5/16" | p. 19 |
| Rear Tire Pressure | 10 psi | p. 21 |
| Front Tire Pressure | 14 psi | p. 21 |
Yard Works 60-1827-4, 60-1832-0 Common Problems This Manual Covers
Engine will not start
A rider that cranks but will not fire is often a safety interlock that has not been satisfied, stale fuel, or a weak battery. The troubleshooting chart lists the start-related symptoms and their likely causes in order.
Manual Section: Troubleshooting p. 26Uneven or scalped cut
If one side of the deck cuts lower than the other or the mower scalps on flat ground, the deck is out of level. The adjustment procedures cover both front-to-rear and side-to-side leveling.
Manual Section: Making Adjustments p. 18Battery goes dead
A battery that will not hold a charge between mows may need charging, jump starting, or replacement. The service section explains the charging routine and how to jump start the tractor safely.
Manual Section: Service p. 21Excessive deck vibration
Heavy vibration under the deck usually traces to bent, dull, or unbalanced blades, or loose spindle hardware. Blade sharpening, balancing, and replacement steps are in the service section.
Manual Section: Service p. 21Mower will not mulch grass
Poor mulching and clumping is a common complaint on riding mowers, especially in tall or damp grass. The troubleshooting chart points to blade condition, ground speed, and deck cleaning as the usual fixes.
Manual Section: Troubleshooting p. 26Hard starting after winter
Tractors stored with fuel left in the tank often start hard the next season because of stale, gummy gasoline. The off-season storage steps cover fuel draining and engine care before layup.
Manual Section: Off-Season Storage p. 25Frequently Asked Questions
Which machines does this manual cover?
It is the operator manual for the Yard Works lawn tractors 60-1827-4 and 60-1832-0, covering the 2005 model year. It handles setup, operation, adjustments, maintenance, service, and troubleshooting for these riding mowers.
What is the maximum safe slope for these tractors?
The manual sets a maximum operating slope of 15 degrees and includes a slope gauge you can use to check the ground before mowing. p. 7
What is the blade spindle nut torque?
The blade spindle hex flange nut is torqued to 70 to 90 foot-pounds. The service section covers blade sharpening, balancing, and replacement. p. 23
How do I get the manual after I buy it?
It is a digital download available immediately after purchase, so there is no wait for shipping and nothing physical to receive.
What format is this Yard Works 60-1827-4, 60-1832-0 manual in?
Instant PDF download. You get the full 80-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Yard Works 60-1827-4, 60-1832-0 manual?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.
