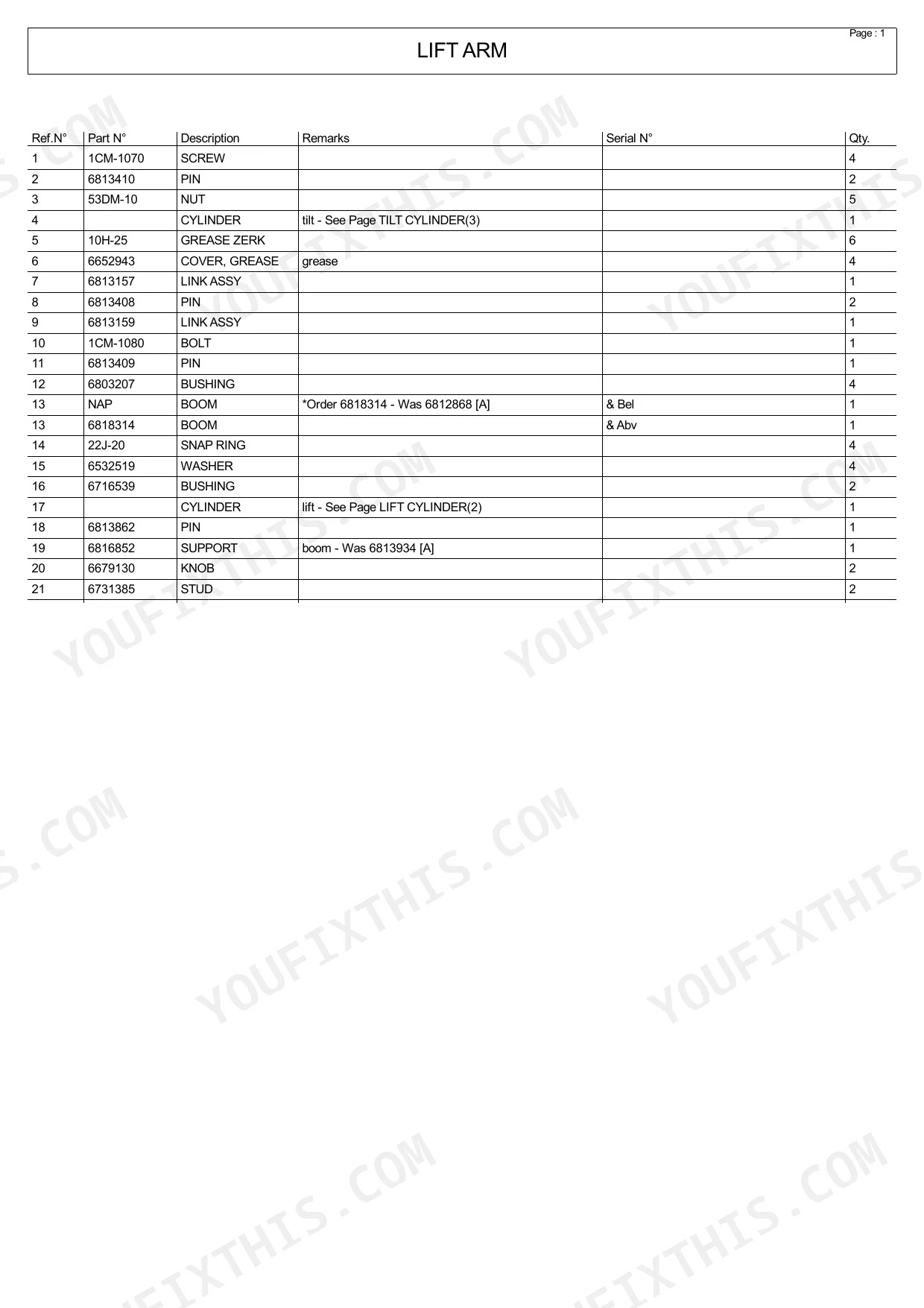

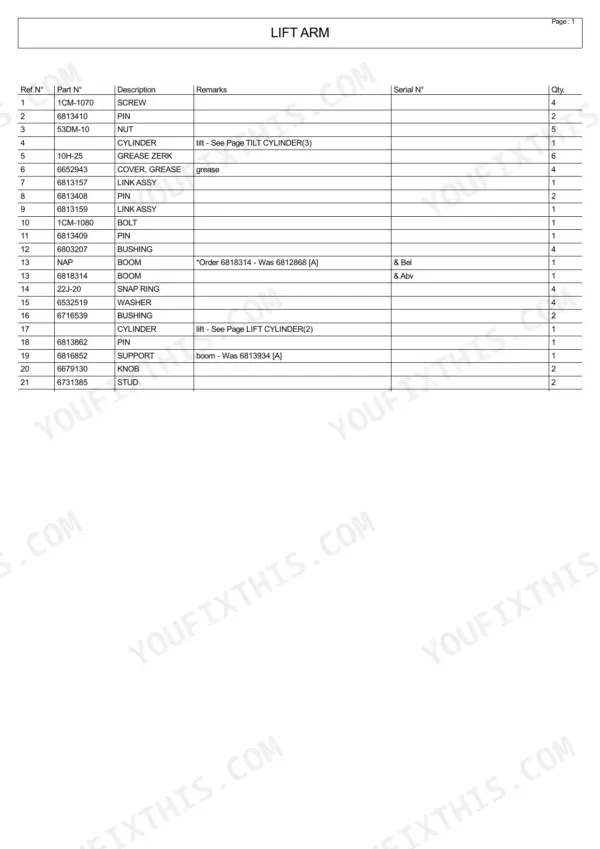

Finding the exact component for your Toolcat Utility Work Machine is straightforward with this Bobcat 5600 Parts Manual PDF (OEM #6902180). Across 307 pages, exploded-view diagrams cover every major system, from the hydrostatic pump and triple gear pump assembly to the Bob-Tach, lift arm, and cab electrical circuitry. The document features dedicated sections for hydraulic system parts, drivetrain axle assemblies, and engine internals down to the crankcase and injection pump. A 37-page numerical index allows fast cross-referencing by part number. The parts list also calls out key reference data, confirming your 5600 runs a 10-micron hydraulic filter and holds 5 gallons of hydraulic fluid. Because downtime costs money, this searchable file lets you bookmark directly to any section, search by keyword, and identify the right OEM call-out in seconds.
What's Inside This Bobcat 5600 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-10 | Abbreviations & Symbols, Sales, Nss, Nap, Disposition Code Definition, Explications En Francais, Erklärungen Auf Deutsch |

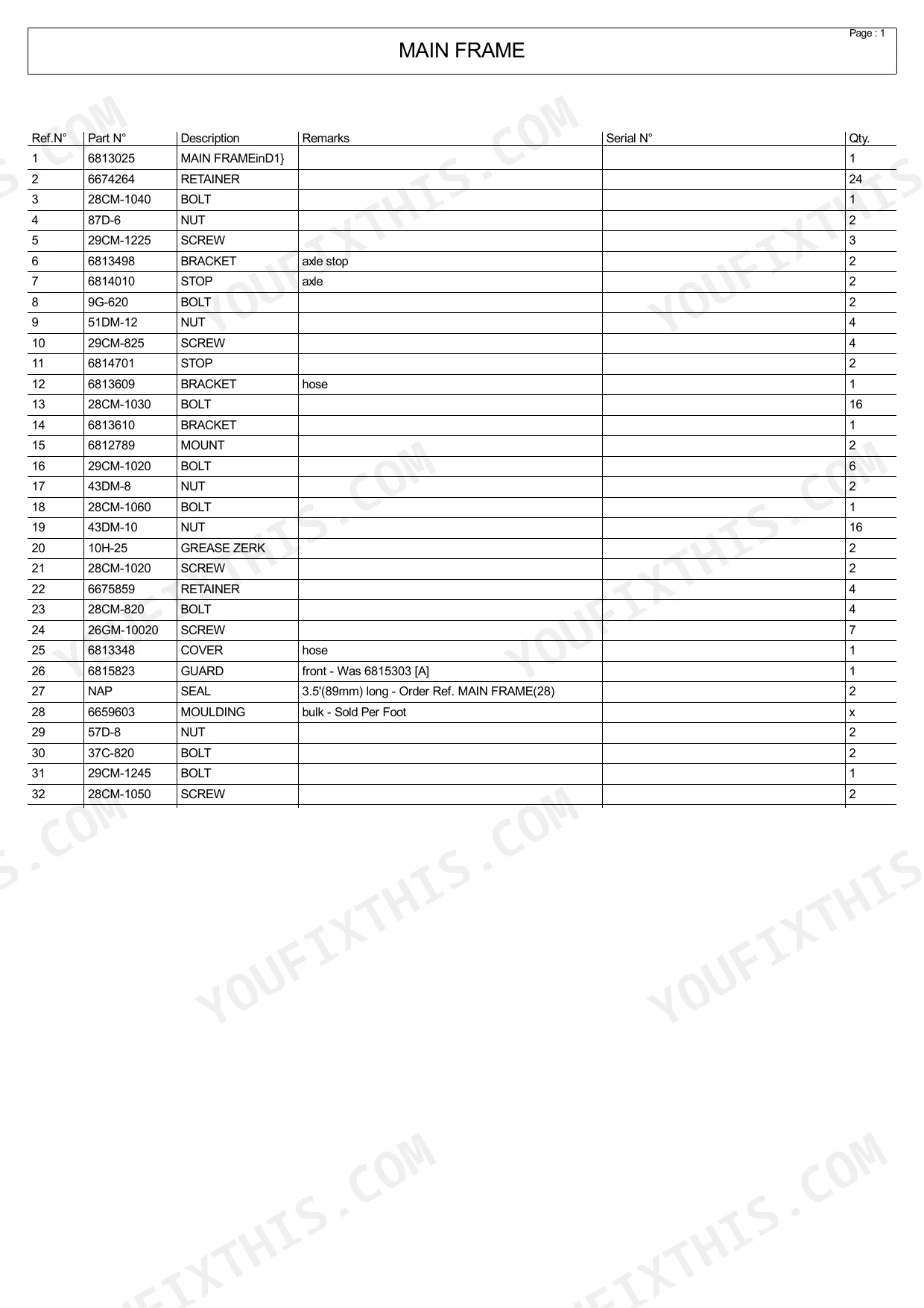

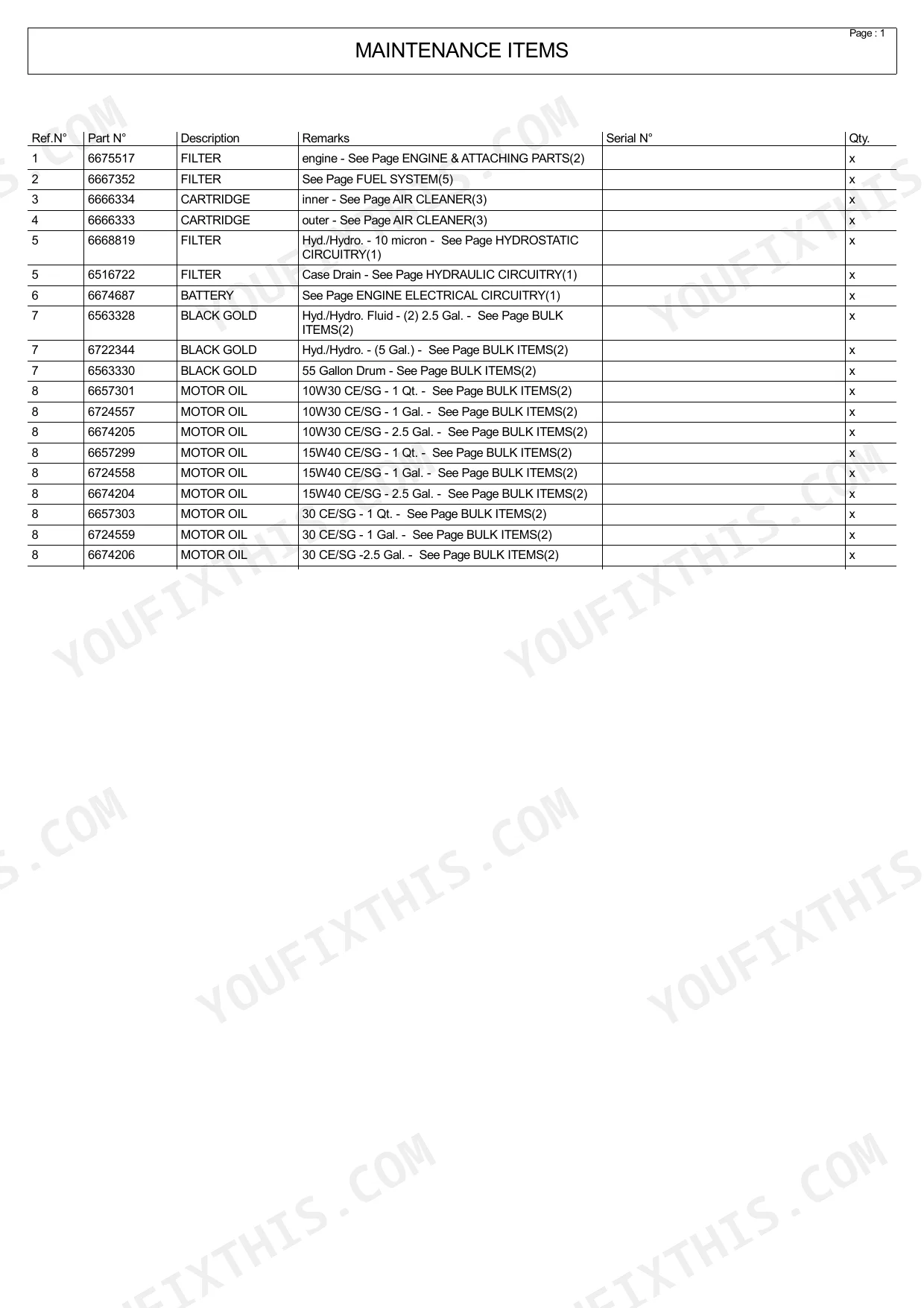

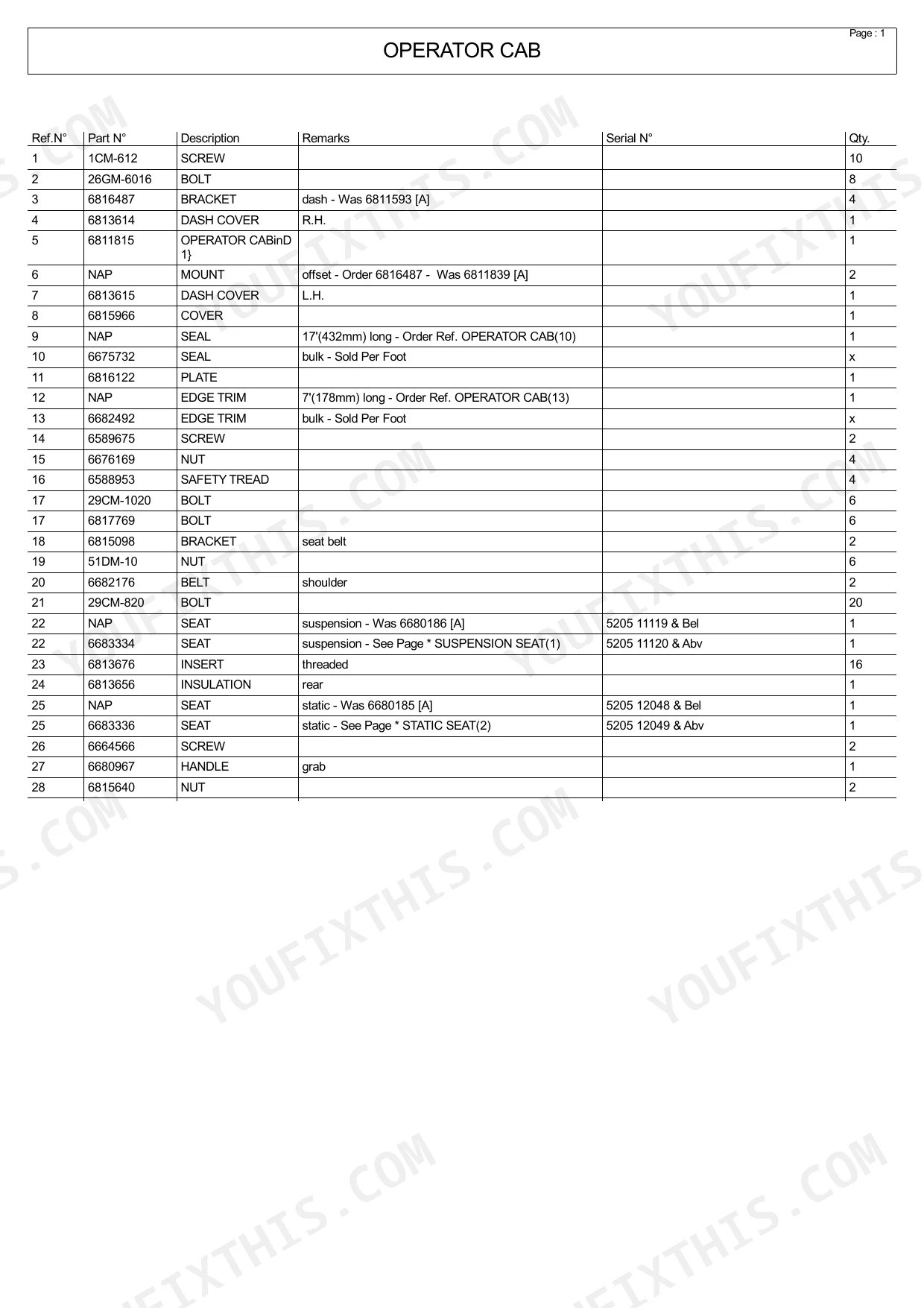

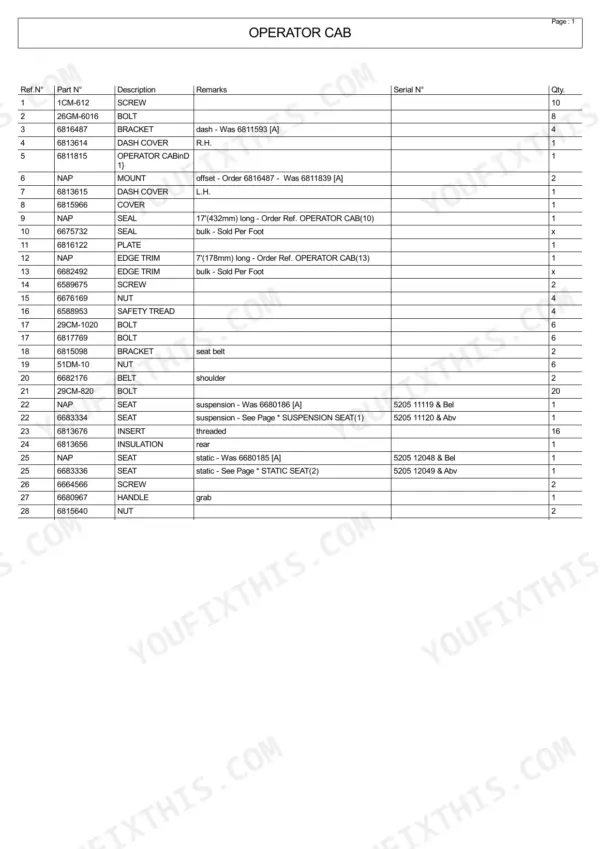

| Main Frame | 11-38 | Maintenance Items, Fenders, Operator Cab, Suspension Seat, Static Seat, Wiper Assembly, Box Assembly |

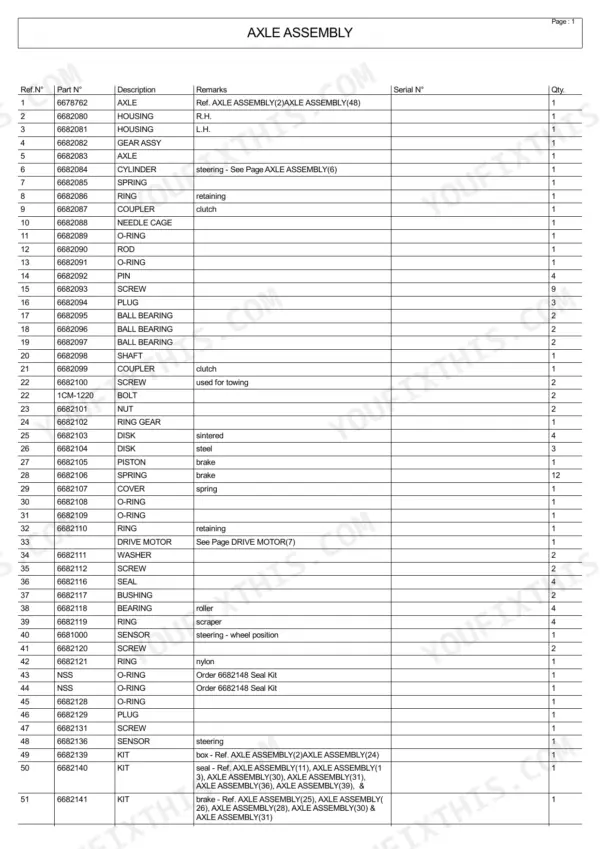

| Drive Train | 39-66 | Suspension, Axle, Axle Assembly, Drive Motor |

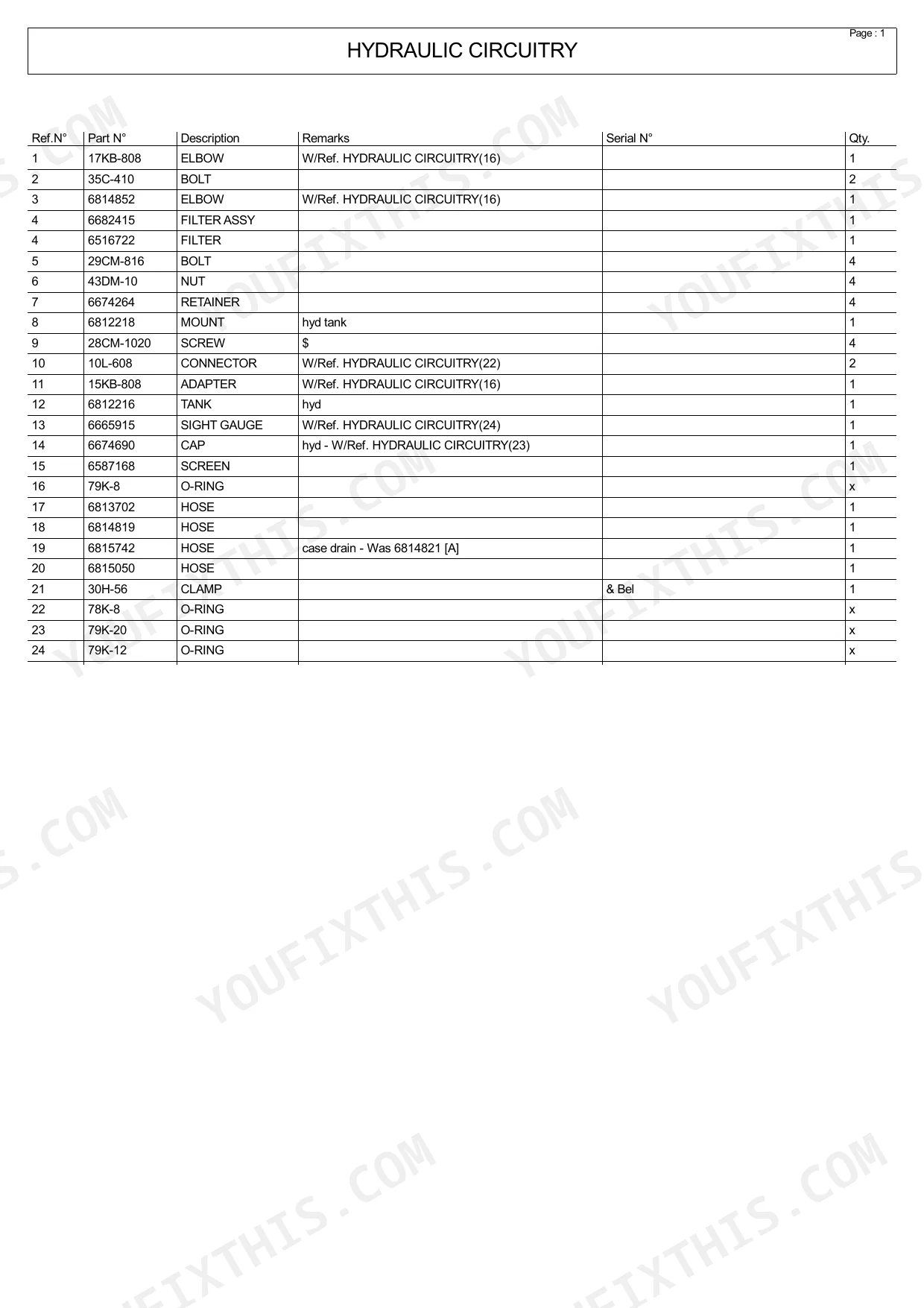

| Hydraulic System | 67-96 | Hydraulic Circuitry, Auxiliary Hydraulics, Lift Cylinder, Tilt Cylinder, Box Cylinder, Auxiliary Hydraulic Valve, Pilot Valve, Work Valve |
| Hydrostatic System | 97-144 | Hydrostatic Circuitry, Steering Controls, Hydrostatic Pump, Triple Gear Pump, Hydraulic Fan Motor, Power Steering Pump, Steering & Box Valve |
| Electrical System | 145-158 | Cab Electrical Circuitry, Engine Electrical Circuitry, Controls Electrical, Starter, Alternator |

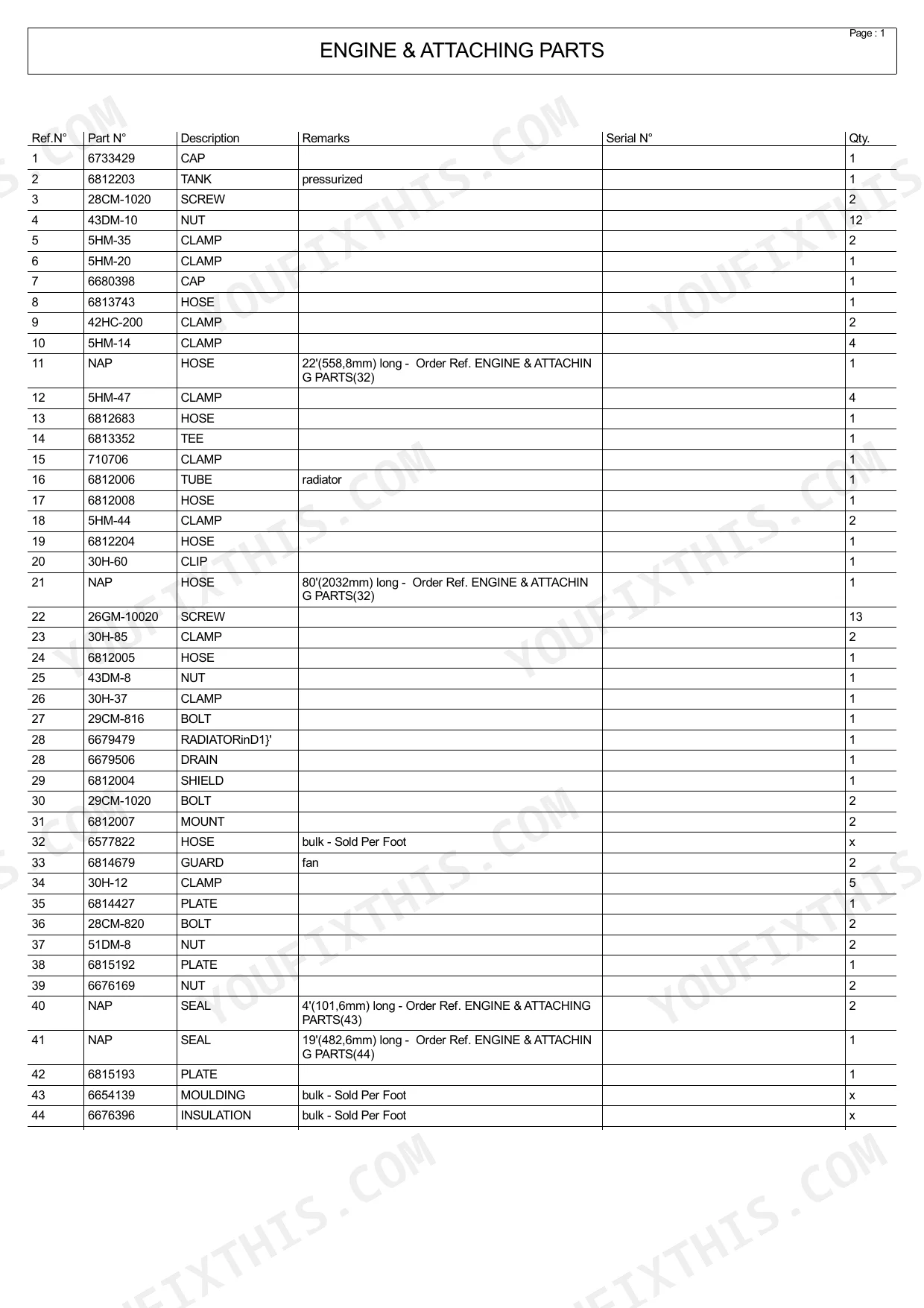

| Engine & Attaching Parts | 159-208 | Engine & Gasket Kits, Gearcase, Crankcase, Rocker Arm Cover, Valve Rocker Arm, Cylinder Head, Oil Pan |
| Accessories & Options | 209-270 | Attachment Control Kit, Back-Up Alarm, Beacon Light Kit, Block Heater, Cab Doors, Cold Weather Start, Decals, Fire Extinguisher Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Filter Micron Rating | 10 micron | p. 13 |
| Hydraulic Fluid Capacity (Large) | 5 Gal. | p. 13 |
| Motor Oil Capacity (Small) | 1 Qt. | p. 13 |
| Alternator Output | 90 amp | p. 158 |
| Piston Clearance | 0.5 mm | p. 182 |
| Thermostat Opening Temperature | 203 F | p. 190 |
| Injection Pump Shim Thickness | 0.15 mm | p. 200 |
| Tire Size and Ply Rating | 27 x 10.5 x 15 - 6 Ply Rating | p. 268 |
| Cab Fuse Rating | 20 amp | p. 145 |
| Engine Hose Length | 32' (812.8 mm) | p. 162 |
Bobcat 5600 Common Problems This Manual Covers
Drive belt and belt tensioner part numbers needed when the machine won't drive p. 163
Head to the Engine & Attaching Parts section on page 163 to locate the drive belt (page 164) and alternator belt (page 166) with their part numbers. Cross-reference the parts list on those pages. Confirm axle fitment while ordering by checking the 27 x 10.5 x 15 - 6 Ply tire specification on page 268 to match the correct drivetrain variant.
Manual Section: Engine & Attaching PartsCorrect starter motor and start circuit electrical panel part numbers for no-start condition p. 155
Access the Electrical System section on page 145 to find the starter and controls components in the parts list on page 151. Verify the start circuit fuse rating matches the specified 20 amp cab fuse before ordering replacement panel or solenoid components. The exploded view for the starter is on page 155, detailing each component in the start circuit.
Manual Section: Electrical SystemCorrect wheel speed sensor part number to identify, engine runs but machine won't move p. 45

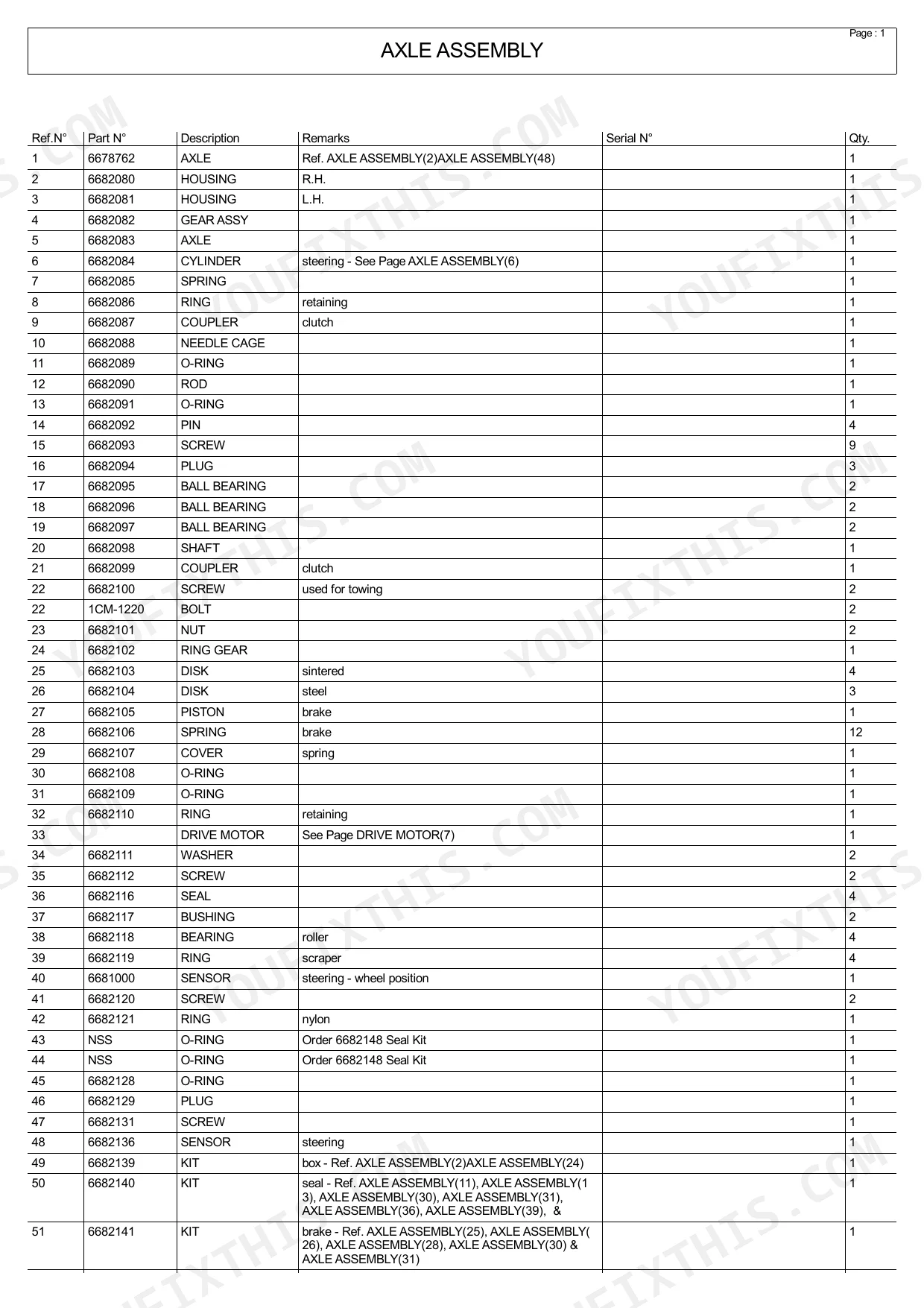

Find wheel speed sensors in the Drive Train section on page 45 (Ref.N° 6) or page 47 (Ref.N° 40), where axle components are cataloged. Cross-reference the drivetrain diagram on page 47 to match sensor mounting positions. Confirm axle configuration by noting the 27 x 10.5 x 15 - 6 Ply wheel spec on page 268 before placing an order.
Manual Section: Drive TrainHydraulic filter part number and system capacity specs after high hydraulic temperature warning p. 68
Turn to the Hydraulic System section on page 67 and reference the hydraulic parts diagram on page 68 for the filter assembly callout number. The parts number list on page 13 confirms the replacement filter must be rated at 10 micron, and the system capacity is 5 Gal. Order the correct filter before draining.
Manual Section: Hydraulic SystemFrequently Asked Questions
What part numbers do I need for the starter motor and start system on a Bobcat 5600?
Access the Electrical System section on page 145 to find the starter and control panel part numbers. The start system electrical panel components are catalogued on page 155 — use those part numbers to order the exact replacement and avoid substitution errors.
How do I find the correct wheel speed sensor part number for a Bobcat 5600 that won't move?
Find wheel speed sensors in the Drive Train section on page 45 (Ref. N° 6). Confirm the part number there before ordering — multiple sensor part numbers are listed and the correct one depends on your build configuration.
What are the hydraulic filter part number and system capacity specs for the Bobcat 5600?
Turn to the Hydraulic System section on page 67 for the hydraulic filter part number. The system uses a 10-micron filter (page 13); hydraulic fluid capacity is 5 gallons for the large system and 1 quart for the small motor oil system.
What are the replacement specifications for Drive belt?
The manual lists the drive belt as Part N° 6672445 and the alternator belt as Part N° 6675837. The drive belt and tensioner assembly are covered on page 163.
How quickly can I access this manual after buying?
A 307-page Parts Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone.
Is this Bobcat 5600 Parts Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works fine.
Document Quality
This document is a mixed digital and scanned PDF. You can search and copy the full text, as it includes an OCR layer. All text is crisp and easy to read, with no blurry or faded sections. Diagrams and illustrations are raster images, which show some pixelation when zoomed, but labels within them remain readable. Pages are clean, free from scan artifacts, stains, marks, or skewed content, and there are no notable blank or filler pages.
