This 19-page Bolens 5117H Parts Catalog (OEM #176-0237) maps every assembly on the 1700 series 17 HP tractor, from body work and trim to the hydrostatic drive and transaxle. If you're hunting a Bolens 5117H, 1700, or 17 HP parts catalog PDF with real factory part numbers, this is the one restorers keep on the bench. You get exploded views of the frame and steering, engine, PTO clutch, and a full Eaton transmission breakdown, each keyed to a numbered parts list with common hardware called out. A factory wiring diagram rounds it out, complete with component legend, color code, and switch views for chasing electrical gremlins. Serial number references tell you exactly which part fits your build date. Swap meet vendors won't wait while you guess. Opens on any device; prop your tablet next to the tractor and match parts straight off the exploded view.
What's Inside This Bolens 5117H, 1700, Bolens 17 HP Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Tractor Model 5117H Parts List | 1 | Model Identification, Serial Number Range, Form Information |

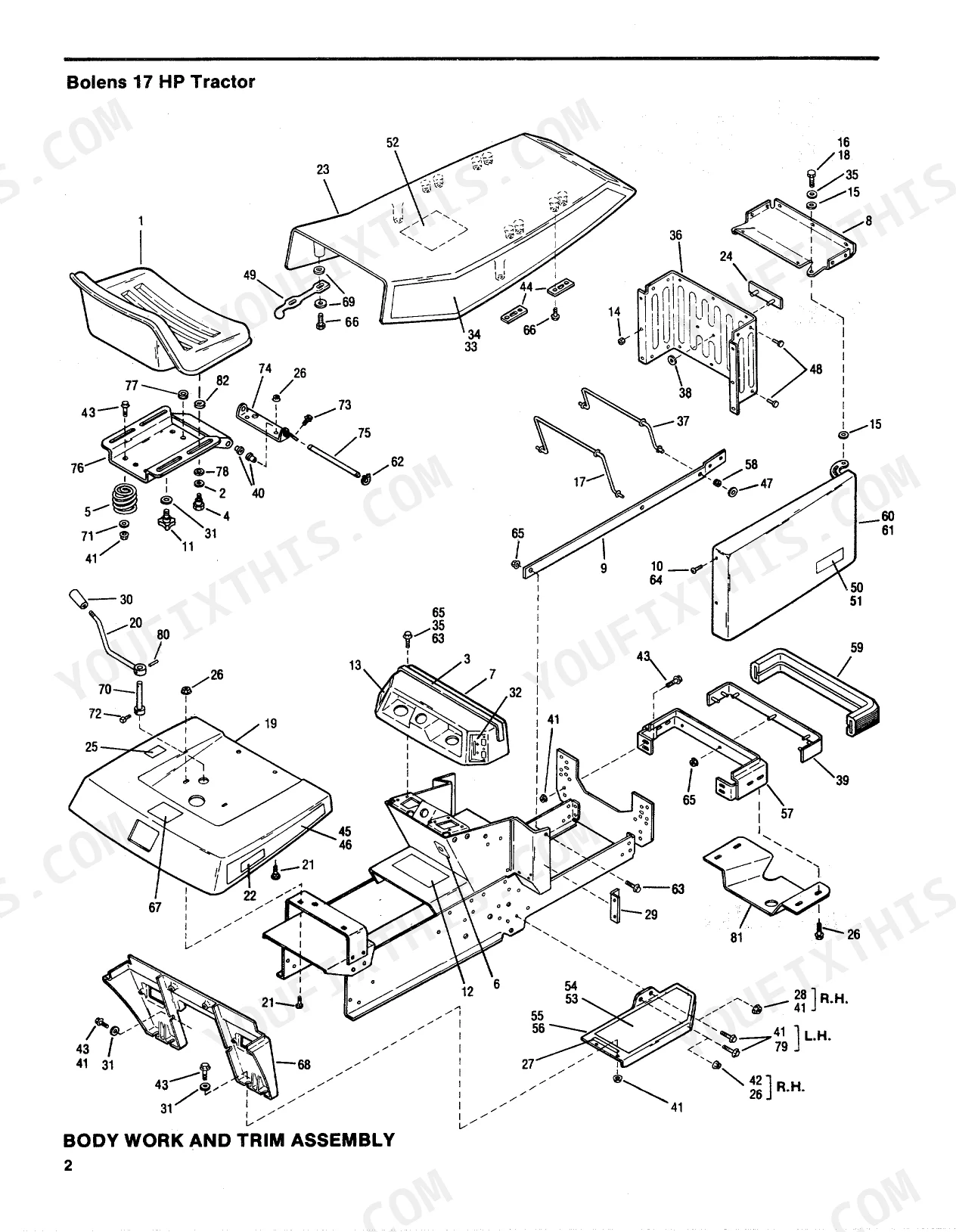

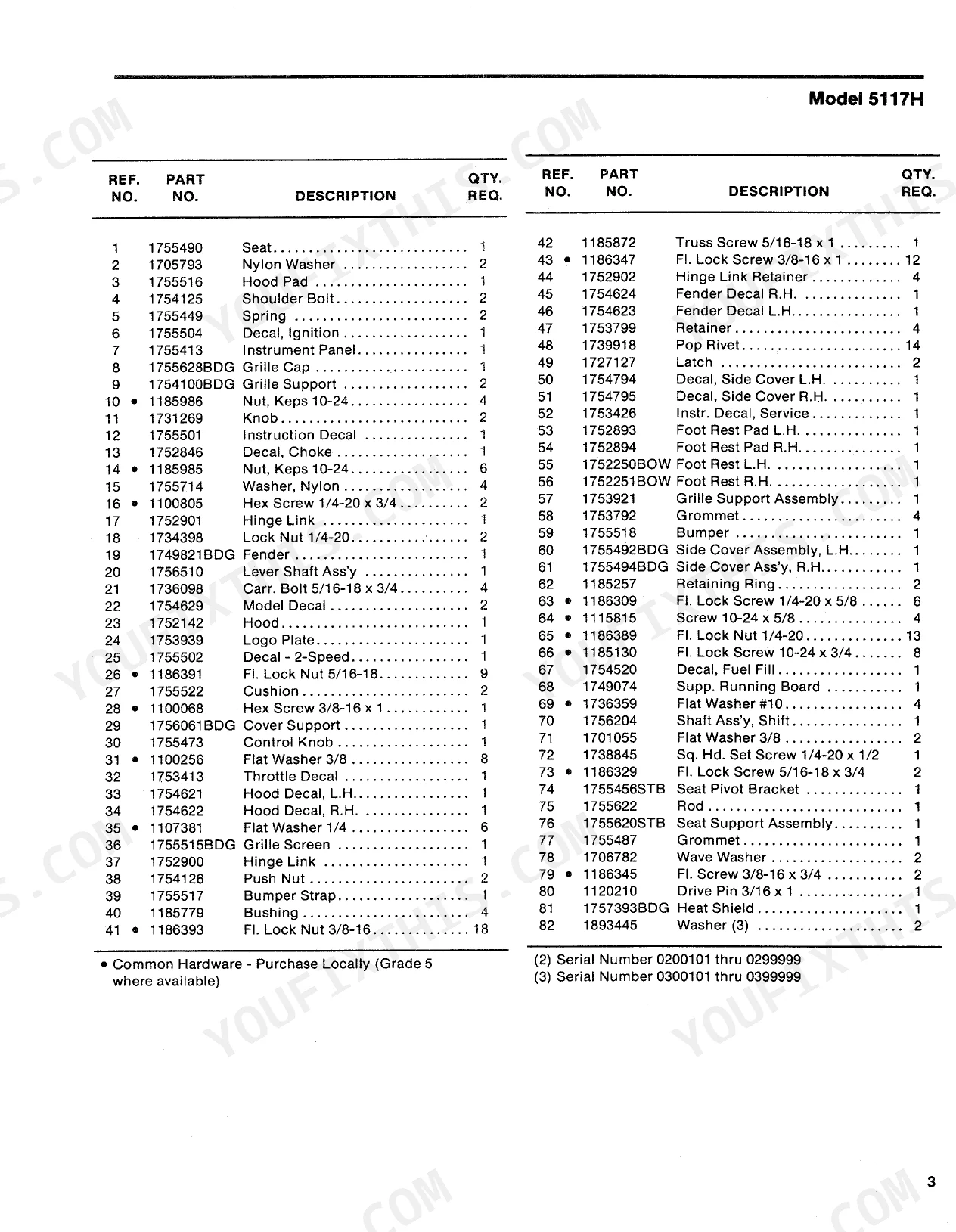

| Body Work and Trim Assembly | 2-3 | Hood Decal, Fender Decal, Hinge Links, Foot Rest Pad, Side Covers |
| Frame and Steering Assembly | 4-5 | Frame Assembly, Front Axle, Spindle Assembly, Woodruff Key, Wheels |
| Hydrostatic and Brake Linkage Assembly | 6-7 | Brake Disc Assembly, Arm Assembly, Swivel, Springs, Pivot Block |

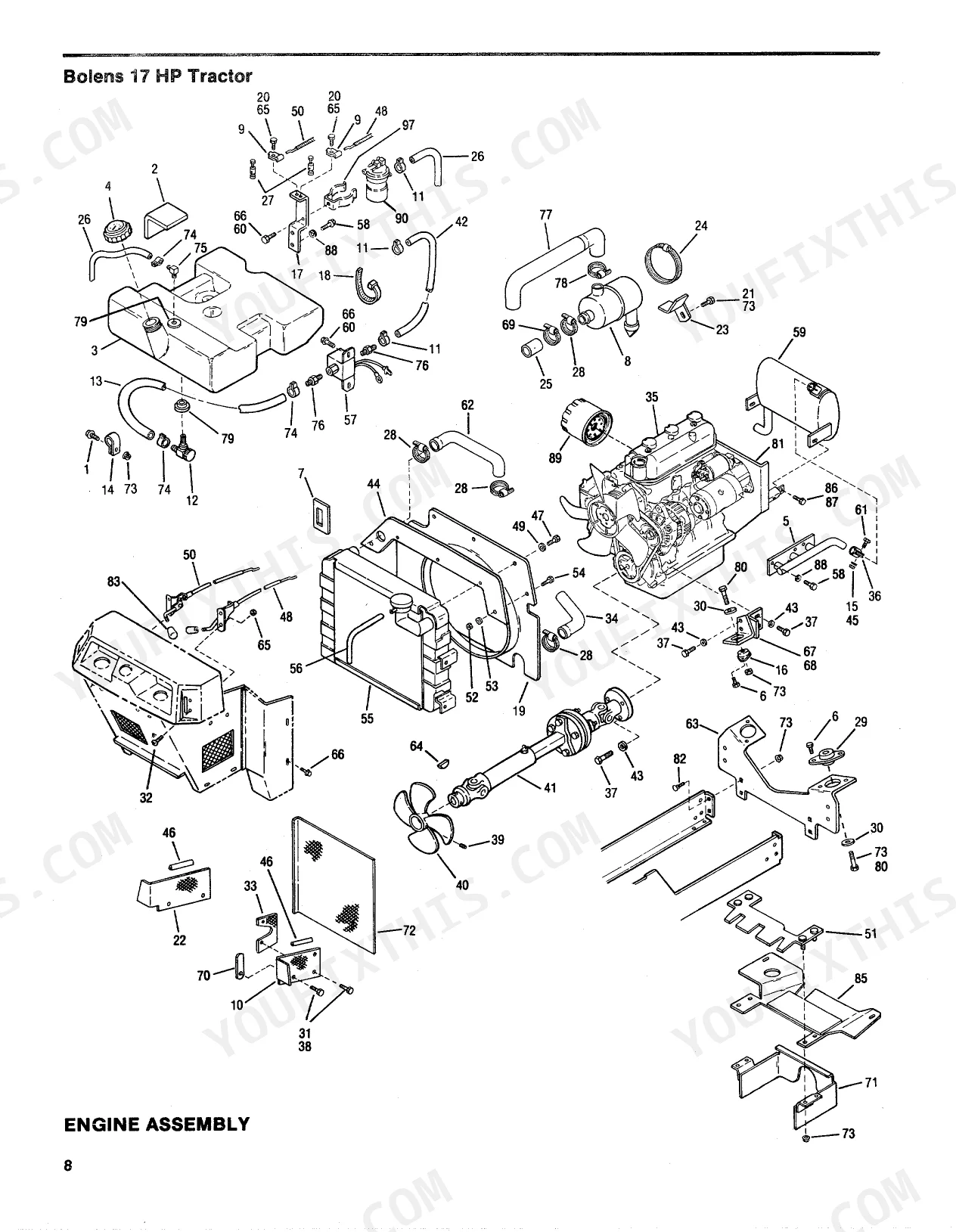

| Engine Assembly | 8-9 | Fuel Tank, Fuel Line, Hose Clamps, Rear Engine Mount |
| Hydrostatic and Lift Assembly | 10-13 | PTO Clutch Assembly, Eaton Transmission Breakdown, Drive Pin, Retaining Ring, Ball Bearing |

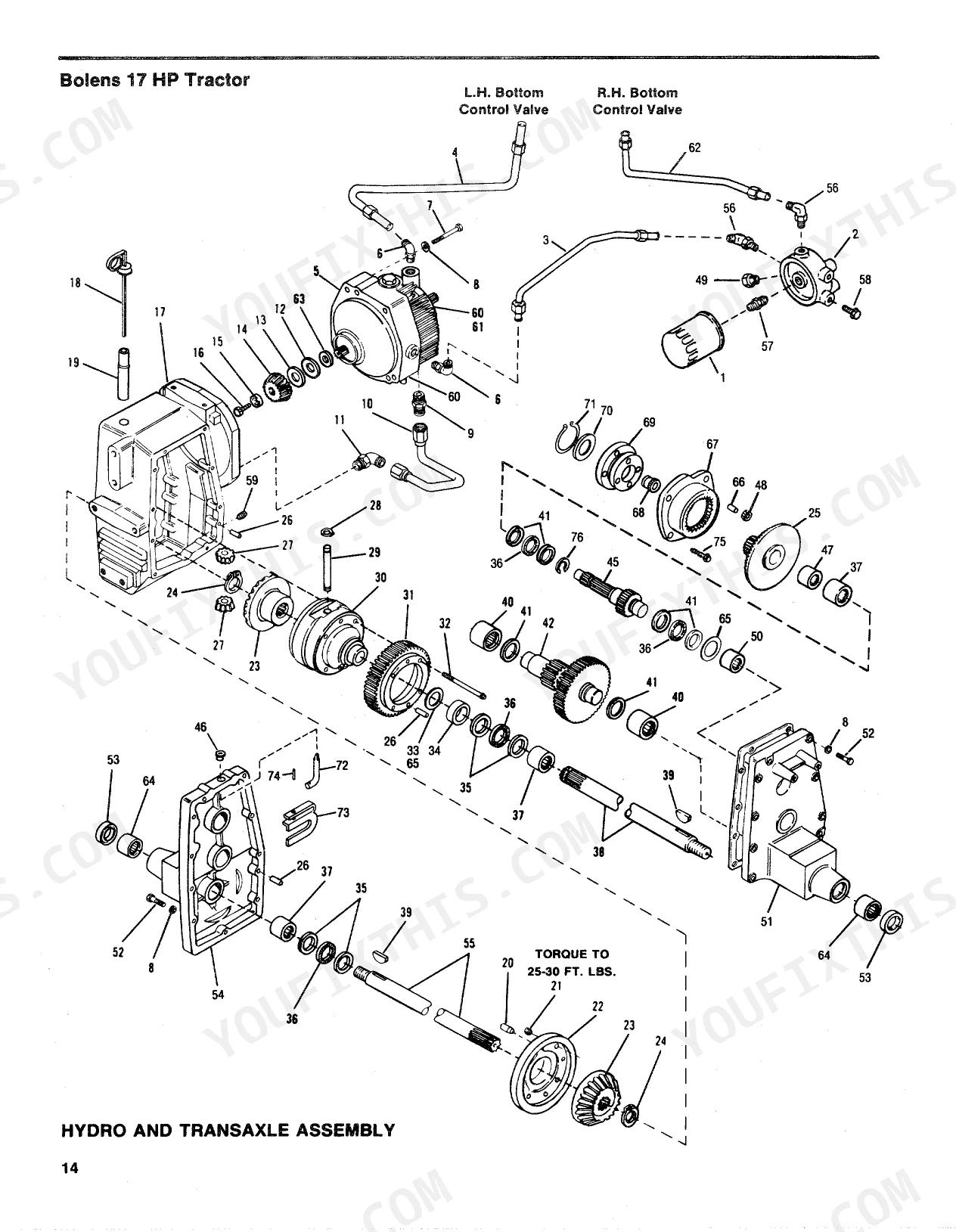

| Hydro and Transaxle Assembly | 14-15 | Control Valve, Bearings, Elbow, Cover |

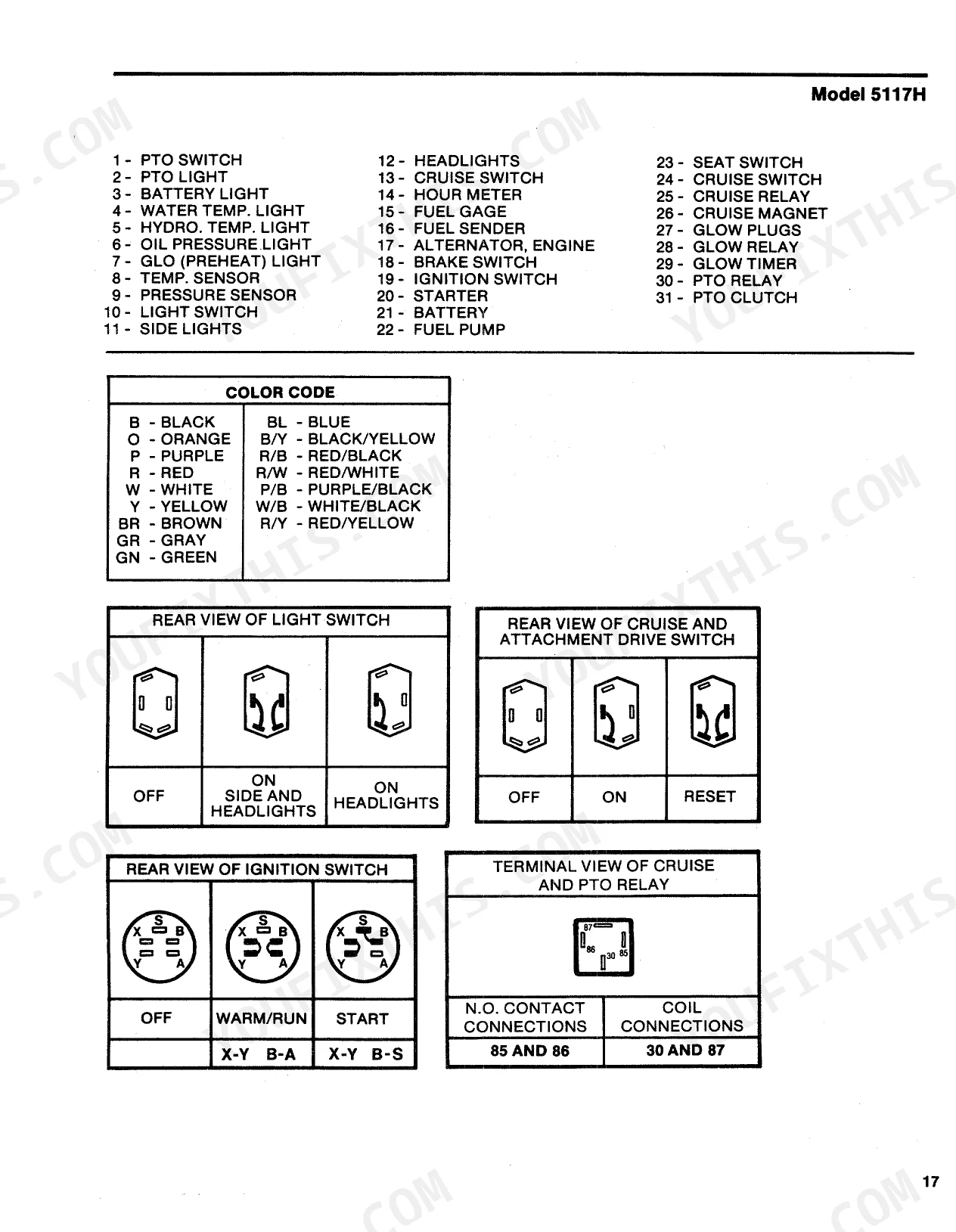

| Wiring Diagram | 16-17 | Component Legend, Color Code, Switch Views |
| Electrical Assembly | 18-19 | Battery Cable, Switches, Light Assembly, Lenses, Retainer |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydrostatic and brake linkage torque (item 50) | 24 ft. lbs. | p. 6 |
| Hydro and transaxle assembly torque | 25-30 ft. lbs. | p. 14 |
Bolens 5117H, 1700, Bolens 17 HP Common Problems This Manual Covers
Bolens 5117H hydrostatic drive belt and idler pulley part numbers, old belt shredded
Check the Hydrostatic and Brake Linkage exploded view on page 6 and match your shredded belt to its numbered callout in the parts list. Note the idler pulley and spring items on the same diagram; ordering all three saves a second hunt for NOS stock. Torque the linkage hardware flagged on page 6 to 24 ft. lbs. during reassembly.
Manual Section: Hydrostatic and Brake Linkage Assembly p. 6Need differential gear and axle part numbers, transaxle whines and jumps out of drive
Pull the Hydro and Transaxle Assembly diagram on page 14 and identify the differential gears, axle shafts, and housing parts by callout number before splitting the case. Order gaskets along with the worn gears from the same list, then torque the housing fasteners called out on page 14 to 25-30 ft. lbs. on reassembly.
Manual Section: Hydro and Transaxle Assembly p. 14Can't identify hydraulic lift cylinder and valve parts, lift drops or won't raise
Match the hydraulic cylinder, lift levers, and hydraulic valves to their callouts on the Hydrostatic and Lift Assembly breakdown starting on page 10; the PTO clutch assembly and Eaton transmission breakdown sit in the same section. Write down every item number in the lift circuit, then verify each against your serial number range before ordering.
Manual Section: Hydrostatic and Lift Assembly p. 10Fuel tank, fuel line, and air cleaner part numbers needed, engine surges and stalls
Trace the fuel tank, fuel line, and air cleaner on the Engine Assembly diagram on page 8 and record each callout number; stale-fuel surging usually takes the filter, line, and element in one order. Verify the tank fittings against the same exploded view, since engines varied by year and this list covers the tractor-side parts.
Manual Section: Engine Assembly p. 8Ignition switch and wiring harness parts unknown, tractor cranks but has no spark
Compare your harness against the wiring diagram on page 16 to confirm the color codes and switch terminal views match your ignition switch, then locate the switch, battery, and harness callouts in the Electrical Assembly list on pages 18-19. Order by item number from that list; swap-meet switches with the wrong terminal layout are a common dead end.
Manual Section: Electrical Assembly p. 18Frequently Asked Questions
What is the torque specification for the hydrostatic and brake linkage assembly?
The hydrostatic and brake linkage assembly requires a torque of 24 ft. lbs. for the specified connection. p. 6
What is the torque specification for the hydro and transaxle assembly?
The hydro and transaxle assembly requires a torque of 25-30 ft. lbs. for the specified connection. p. 14
What is the part number for the fuel filter?
The replacement fuel filter for the Bolens 5117H is part number 1850128. p. 9
What is the part number for the drive belt?
The V-belt set (set of 2) for the Bolens 5117H is part number 1752751. p. 12
What is the part number for the fuse?
The replacement fuse for the electrical system is part number 1743516 (30A). p. 19
How quickly can I access this Bolens 5117H manual after buying?
Delivery is instant: a 19-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print this Bolens 5117H manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
