Hunting part numbers for your Bolens 5118HS or 5120H garden tractor? This 22-page Bolens 5118HS, 5120H parts catalog PDF gives you the exploded views and factory part numbers for every assembly on both machines. You get the full wiring diagram with color codes and a rear view of the switches, separate hydraulic system diagrams for each model, and a complete Eaton Model II hydro breakdown. Every section pairs its exploded diagram with a parts list keyed to serial numbers, so you order the right piece the first time. Need the 1/2-13 hex nut on the brake linkage? That's part 1110110, and the list even flags it for 24 ft. lbs. Swap-meet guessing gets old fast. Bookmarked and searchable; jump straight to any assembly or type a part number and find it in seconds.
What's Inside This Bolens 5118HS, 5120H Parts Manual
| System | Pages | Key Topics |
|---|---|---|

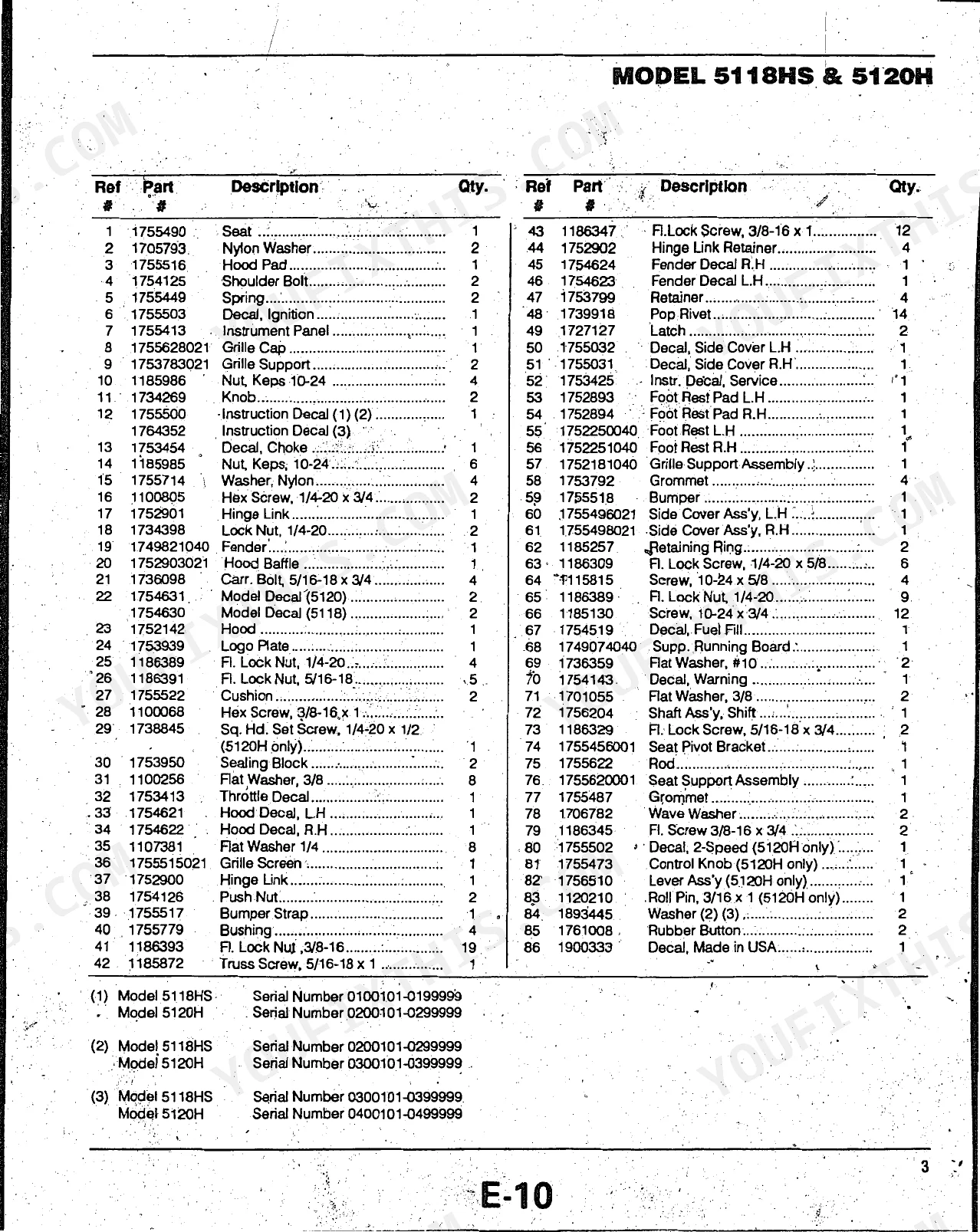

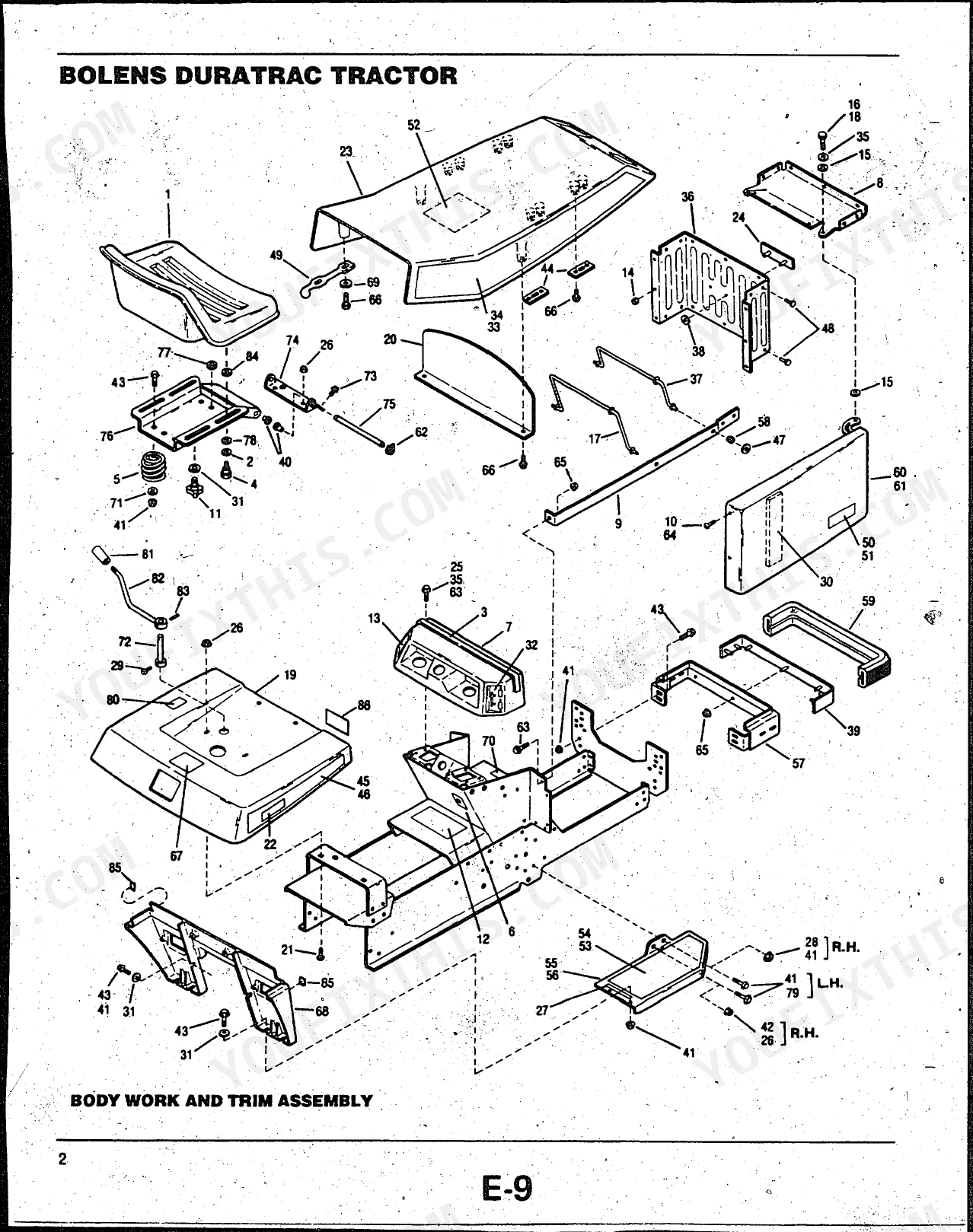

| Body Work and Trim Assembly | 1-2 | Hood Decal, Instruction Decal, Hinge Links, Foot Rest Pad, Side Covers |
| Frame and Steering Assembly | 3-4 | Frame Assembly, Steering Support, Ball Joint, Woodruff Key, Bearings |
| Hydrostatic and Brake Linkage Assembly | 5-6 | Brake Disc Assembly, Wheel Hub, Swivel, Springs, Pivot Block |
| Engine Assembly | 7-8 | Fuel Tank, Fuel Line, Heat Shield, Idler Pulley |
| Cylinder Assembly | 9-10 | Tube Assembly, Tube Clamp, Retaining Ring, Replacement Seal Kit |
| Hydrostatic and Lift Assembly | 11-12 | Lift Cylinder, Tube Assembly, Elbow, Connector |

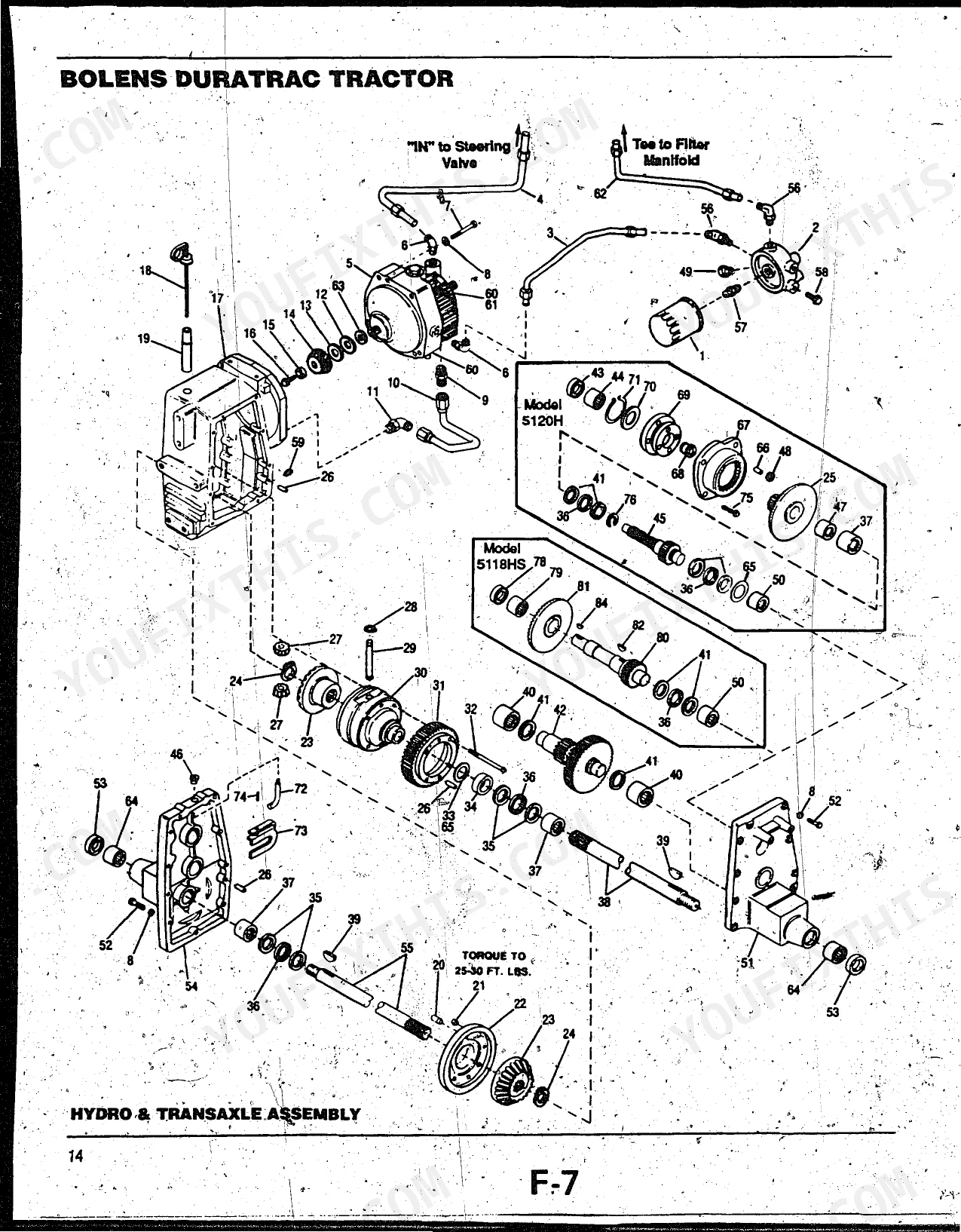

| Hydro and Transaxle Assembly | 13-14 | Pinion Shaft, Gear Assembly, Oil Seal, Bearings, Cover |
| Wiring Diagram | 15-16 | Color Code, Rear View of Switches |
| Electrical Components | 17-18 | Battery Cable, Switches, Light Assembly, Lenses, Retainer |
| Eaton Model Ii Breakdown | 19-20 | Charge Pump Kit, Drive Pin, Oil Seal, Socket Head Screws |
| 5118HS Hydraulic System | 21 | Lift Cylinder, Steering Cylinder, Steering Valve, Tube and Hose Assemblies |
| 5120H Hydraulic System | 22 | Eaton Hydro, Lift Cylinder, Tube and Hose Assemblies |
Every system also includes a diagram and a parts list.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydrostatic and brake linkage torque (item 50) | 24 ft. lbs. | p. 5 |
Bolens 5118HS, 5120H Common Problems This Manual Covers
Bolens 5118HS hydraulic lift cylinder leaking and can't find the right seal or cylinder part numbers
Check the Cylinder Assembly exploded view on page 9, which covers 5118HS serial numbers only. Match your cylinder against the numbered callouts, write down each part number for the seals and end hardware, and verify your serial number range before ordering. NOS cylinder seals rarely come back once a seller opens the package, so order once, correctly.
Manual Section: Cylinder Assembly p. 9Eaton hydrostatic transmission whines and slips, need internal part numbers for a rebuild
Check the Eaton Model II breakdown on page 19 before pulling the unit apart. Match each worn piece against the exploded view callouts and record the part numbers as you go. Note your serial number too, since the breakdown covers both 5118HS and 5120H ranges and swap-meet sellers will ask for it.
Manual Section: Eaton Model Ii Breakdown p. 19Tractor won't crank, need to identify the correct interlock switch and wiring harness parts

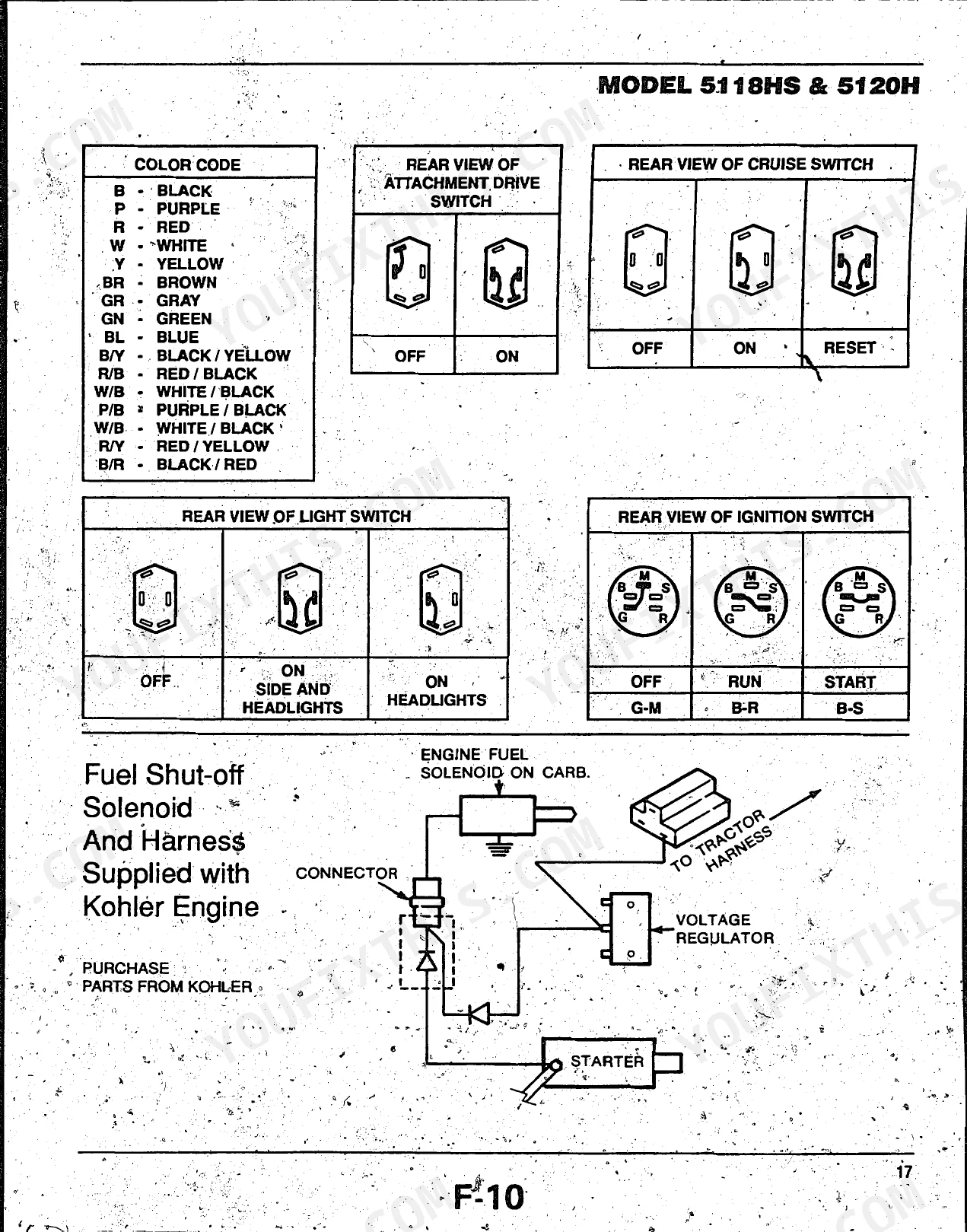

Check the wiring diagram on page 15 first; it shows the color codes and a rear view of the switches so you can identify which interlock or starter switch you actually have. Then match that switch and its harness connectors against the Electrical Components list on page 17 before ordering anything.
Manual Section: Wiring Diagram p. 15Brake pedal feels sloppy, can't match the worn linkage hardware to part numbers

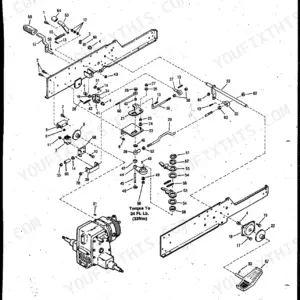

Check the Hydrostatic and Brake Linkage exploded view on page 5 and match your worn pins and rods by callout number. Note the 1/2-13 hex nut, part 1110110, listed on page 6 with a torque spec of 24 Ft. Lbs.; mark that for reassembly so the pedal stays tight.
Manual Section: Hydrostatic and Brake Linkage Assembly p. 5Hydraulic lines and valve fittings look different between models, unsure which parts diagram applies
Verify your model number on the frame before ordering any hydraulic lines or valve connections. Check the 5118HS hydraulic schematic on page 21 for that tractor, or the 5120H hydraulic system layout on page 22. The two models route their lines differently, so never mix part numbers between those pages.
Manual Section: 5118HS Hydraulic System p. 21Frequently Asked Questions
What is the torque specification for the hydrostatic and brake linkage assembly?
The hydrostatic and brake linkage assembly requires a torque of 24 ft-lbs for the specified connection. p. 5
What is the torque specification for the hydro and transaxle assembly?
The hydro and transaxle assembly components must be torqued to 25-30 ft-lbs. p. 13
What is the part number for the fuel filter on the Bolens Duratrac tractor?
The replacement fuel filter for the tractor is part number 1727491. p. 8
What is the part number for the air cleaner hose?
The part number for the air cleaner hose is 1752468. p. 8
What is the part number for the 30A fuse?
The replacement 30A fuse is part number 1743516. p. 18
How quickly can I access this Bolens 5118HS manual after buying?
Delivery is instant: a 22-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Are there any print restrictions on this Bolens 5118HS manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
