Issued directly from the factory under OEM ID 0222413, this 164-page Bomag 213 operations / instruction / parts pdf is the authentic reference covering the 113, 213, 313, and 413 tow-type pavers. The document breaks down the main hydraulic pumps and cylinders with clear schematics, alongside full electrical wiring diagrams for the operator station. You also get complete setup procedures for screed depth controls, augers, and the tow hitch arms before laying the mat. The maintenance sections lay out exact figures, detailing the 13.6 N-m engine drain plug torque and the specific 1.59 US qt oil capacity required when replacing the filter. Guessing on screed adjustments or hydraulic routing burns time and ruins expensive components while the whole paving train stands still. This bookmarked scan gets you straight to the right part number the first time, so your machine gets back in the pass.
What's Inside This Bomag 113, 213, 313, 413 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | Machine Identification (Model / Engine / Serial Numbers), Optional Equipment |
| General Safety Instructions | 5-7 | Operator's Platform, Tow Hitch Arms, Hydraulic Fluid, Propane Valves, Screed Heaters |
| Assembly Units | 8-9 | Triple Gear Pump, Hopper Assembly, Screed Assembly, Undercarriage, Hitch Arms |
| Paver Set Up and Operation | 10-12 | Screed Depth Controls, Tow Hitch Arms, Tailgate Hook, Screed Heaters, Augers, Screed Strike Off Shoes |
| Cleaning / Wash Down | 13 | Diesel Fuel Precautions, Wash-Down Hose and Toggle Switch, Material Handling Areas and Augers |
| ProPaver General Maintenance | 14 | Fasteners and Fluid Levels, Asphalt Residue and Paint Chips, Decals |

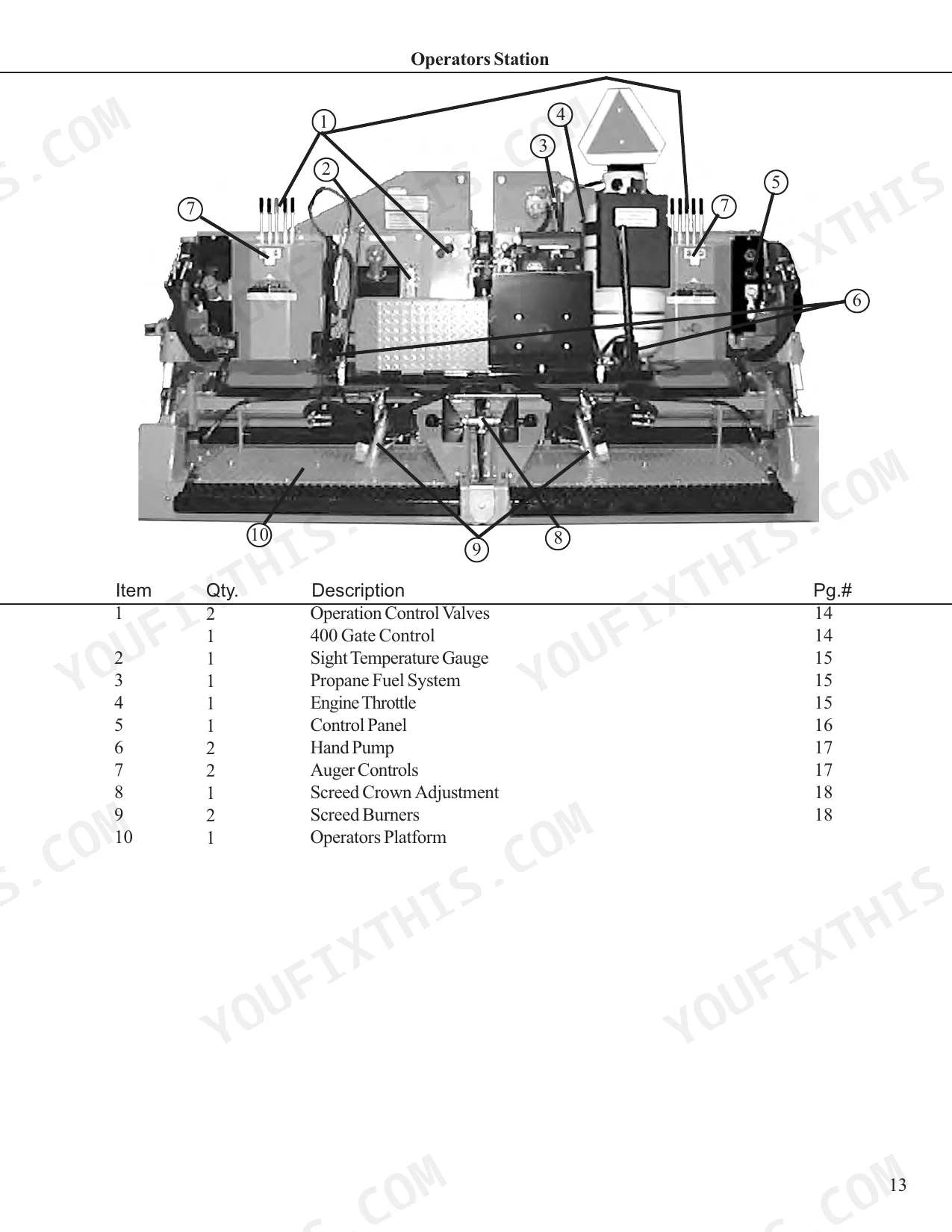

| Operators Station | 15-20 | Operation Control Valves, Gate Control, Engine Throttle, Control Panel, Hand Pump, Auger Controls |
| Power Unit | 21-25 | Triple Gear Pump, Flow Divider, Auger Manifold, Propane Fuel System, Engine |
| Pullbox Hopper Assembly | 26-41 | Bumper Roller, Boggie Wheel, Towarm Assembly, Screed Lift Bracket, Tailgate Hook, Hopper Wing Assembly |
| Screed Assembly | 42-50 | Screed Weldment, Wear Plates, Screed Back Assembly, Screed Crown Adjustment, Screed Burner Assembly, Blade Assembly |
| Electrical | 51-52 | Key Switch, Fuse Holder, Hourmeter, Ignition Switch, Toggle Switch, Ammeter |
| Hydraulic System | 53-55 | Main Hydraulic Pumps, Electric Pump, Hand Pumps, Hydraulic Reservoir, Valve Package, Cylinders |
| Blank Page | 56 | - |
| Kohler Engine Manual | 57-72 | Safety Precautions, Maintenance Instructions |
| Honda Engine Manual | 73-128 | Engine Safety, Controls and Features, Servicing Your Honda Engine |
| Robin Engine Manual | 129-160 | Safety Precautions, Pre-Operation Checks |
| Warranty Statement | 161-164 | Warranty Registration Form, Material Defects, Workmanship, Repair, Exchange, Liability |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Drain plug torque | 13.6 N·m (10 ft. lb.) | p. 63 |
| Oil filter capacity | 0.24 L (1/2 pint) | p. 63 |
| Battery rating | 12V-30AH | p. 146 |
| Kohler Engine Oil Capacity | 2.1 quarts | p. 70 |
| Robin Engine Lubricant Capacity | 52.48 oz | p. 159 |
| Spark Plug Gap (Honda) | 0.028-0.031 in | p. 106 |
Bomag 113, 213, 313, 413 Common Problems This Manual Covers
Bomag 113 paver Honda engine shows low oil pressure and shuts down unexpectedly during a pull
Drain the crankcase and replace the filter. Fill with new oil to the upper limit mark, adding exactly 1.59 US qt (1.50 L) for a system with a filter replacement. Torque the new oil filter to 16 ft-lb (22 N·m, 2.2 kg-m) as noted on page 100.
Manual Section: Honda Engine Manual p. 100Kohler engine runs rough with low oil warnings after sitting idle in cold weather
Empty the old fluid and reinstall the plug. Tighten the drain plug to 13.6 N·m (10 ft. lb.) torque as shown on page 63. Fill the crankcase to the full mark, keeping in mind the total 2.1 quarts capacity.
Manual Section: Kohler Engine Manual p. 63Robin engine will not start or turns over too slowly to fire up the machine
Inspect the battery terminals for corrosion and verify the voltage. Replace the unit with a battery rated 12V-30AH or larger as specified on page 146. Check the wiring diagram on page 51 to confirm the ignition switch and fuse holder connections are secure.
Manual Section: Robin Engine Manual p. 146Gas engine lacks power under load and hesitates when engaging the screed heaters or augers
Remove the spark plug and check for heavy carbon buildup. Measure the electrode gap with a wire gauge and adjust it to exactly 0.028-0.031 in as detailed on page 106. Replace the plug entirely if the insulator is cracked or chipped.
Manual Section: Honda Engine Manual p. 106Frequently Asked Questions
What are the engine oil and filter replacement specifications for the Kohler engine in the Bomag 113, 213, 313, 413?

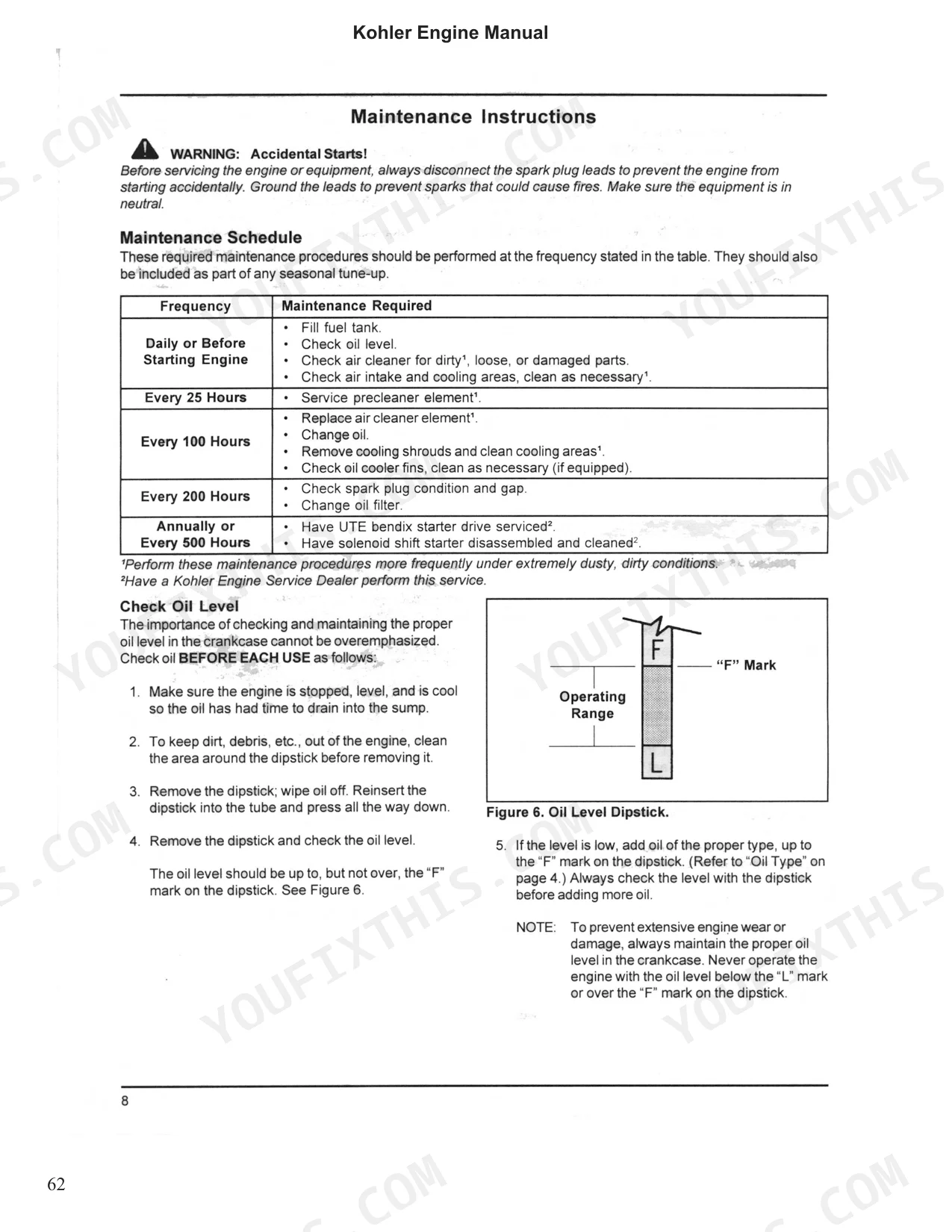

For the Kohler engine, change the oil after the first 5 hours of operation, and thereafter every 100 hours. Replace the oil filter at least every other oil change (every 200 hours of operation). Use high-quality detergent oil of API service class SG or SH, and tighten the drain plug to 13.6 N·m (10 ft. lb.) torque. p. 65
What is the recommended engine oil capacity for the Honda GX610/GX620 engine?
The engine oil capacity for the Honda engine without oil filter replacement is 1.27 US qt (1.20 L). With oil filter replacement, the capacity is 1.59 US qt (1.50 L). p. 100
What is the correct spark plug gap for the Honda engine on the Bomag 113, 213, 313, 413 Tow-Type Paver?
The spark plug electrode gap for the Honda engine should be between 0.028 and 0.031 inches (0.70 to 0.80 mm). p. 106
What is the required maintenance interval for cleaning the spark arrester on the Bomag 113, 213, 313, 413 Honda engine?
Honda's spark arrester needs servicing every 100 hours of operation to keep it functioning as designed. p. 108
What is the engine oil capacity for the Robin EH63D, EH64D, and EH65D engines?
The engine oil capacity for these Robin engine models is 52.48 oz. (1.55 liters). p. 144
Is this Bomag 113 manual a PDF I download?
A 164-page Operations / Instruction / Parts in scanned PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this Bomag 113 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
