This 236-page John Deere 313, 315, CT315 Technical Manual (TM10608) puts every wrench turn on the Skid Steer Loader and Compact Track Loader chassis in front of you, from the hydrostatic drive train down to the track roller bolts. You get full disassemble-and-assemble procedures for the hydrostatic pump and motor, control valve teardown steps, boom cylinder R&I, and a dedicated torque values section covering everything from engine bolts to track roller hardware. Set hydraulic hose replacement on a strict once-a-year interval, and confirm every fastener against Group 0003 before you close the machine back up. Your hydrostatic system won't forgive a guessed torque spec, and neither will your customer when the machine comes back. Bookmarked by group number, so you jump straight from Section 03 hydraulics to Section 31 loader work without flipping through 200 pages of General Information first.
What's Inside This John Deere 313, 315 & CT315 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-32 | Safety and Operator Convenience Features, Recognize Safety Information, Follow Safety Instructions, Operate Only If Qualified, Wear Protective Equipment |

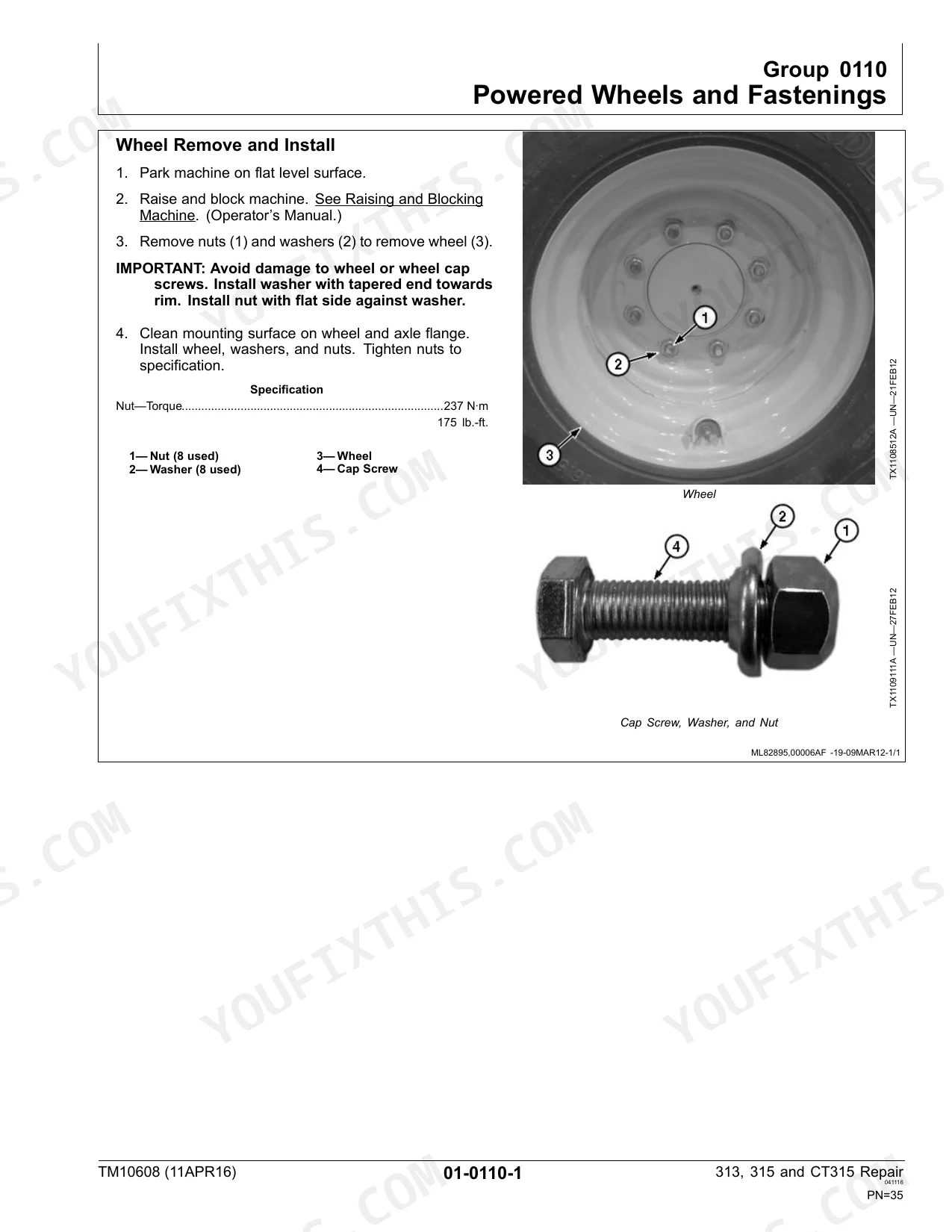

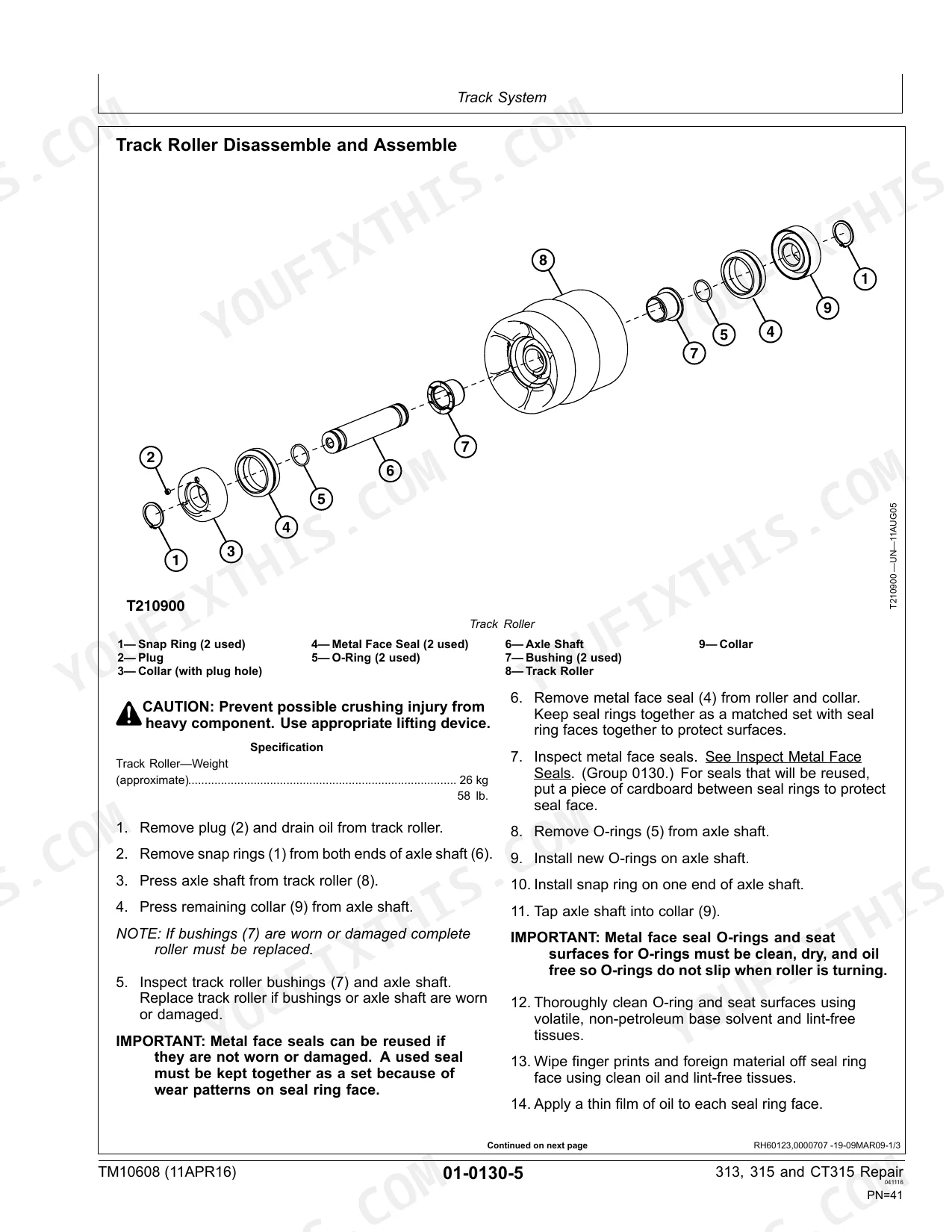

| Wheels or Tracks | 33-54 | Wheel Remove and Install, Track Wear Measurement, Rubber Track Remove and Install, Track Roller Remove and Install, Track Roller Disassemble and Assemble |
| Axles and Suspension Systems | 55-62 | Axle Housing Remove and Install, Axle Housing Disassemble and Assemble, Chain Case Access Plate Remove and Install, Drive Chain and Sprocket Remove and Install |
| Transmission | 63-116 | Controls Linkage, Flywheel Coupler, Hydraulic System, Hydrostatic Motor, Hydrostatic Pump, Park Brake Solenoid Valve Manifold |
| Engine | 117-124 | Powertech 2.4 L & 3.0 L John Deere Engines, Engine Remove and Install, Alternator Remove and Install |
| Engine Auxiliary Systems | 125-136 | Cooling System, Radiator, Fan, Fan Belt, Speed Control Linkage, External Fuel Supply System |
| Frame or Supporting Structure | 137-140 | Welding on Machine, Welding Repair of Major Structure |
| Operator's Station | 141-154 | Cab Remove and Install, Cab Door Remove and Install, Seat Remove and Install, Seat Belt Remove and Install, Heater Remove and Install |
| Sheet Metal and Styling | 155-158 | Rear Door Remove and Install |
| Loader | 159-216 | Attachment Coupler, Electric Quik-Tatch Cylinder, Control Linkage, Boom, Hydraulic Pump, Control Valve |
| Dealer Fabricated Tools | 217-236 | DFT1063 Lift Bracket, DFT1087 Track Recoil Spring Disassembly and Assembly Guard Tool, DFT1101 Cab and ROPS Lift Bracket, DFT1245 Engine Lifting Bracket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CT315 Compact Track Loader Operation and Test | TM10605 | p. 1 |
| Torque Values | Group 0003 | p. 5 |
| Hydraulic System | Group 0360 | p. 5 |
| Track System | Group 0130 | p. 5 |
| Hydraulic hoses replacement interval | at least once per year | p. 12 |

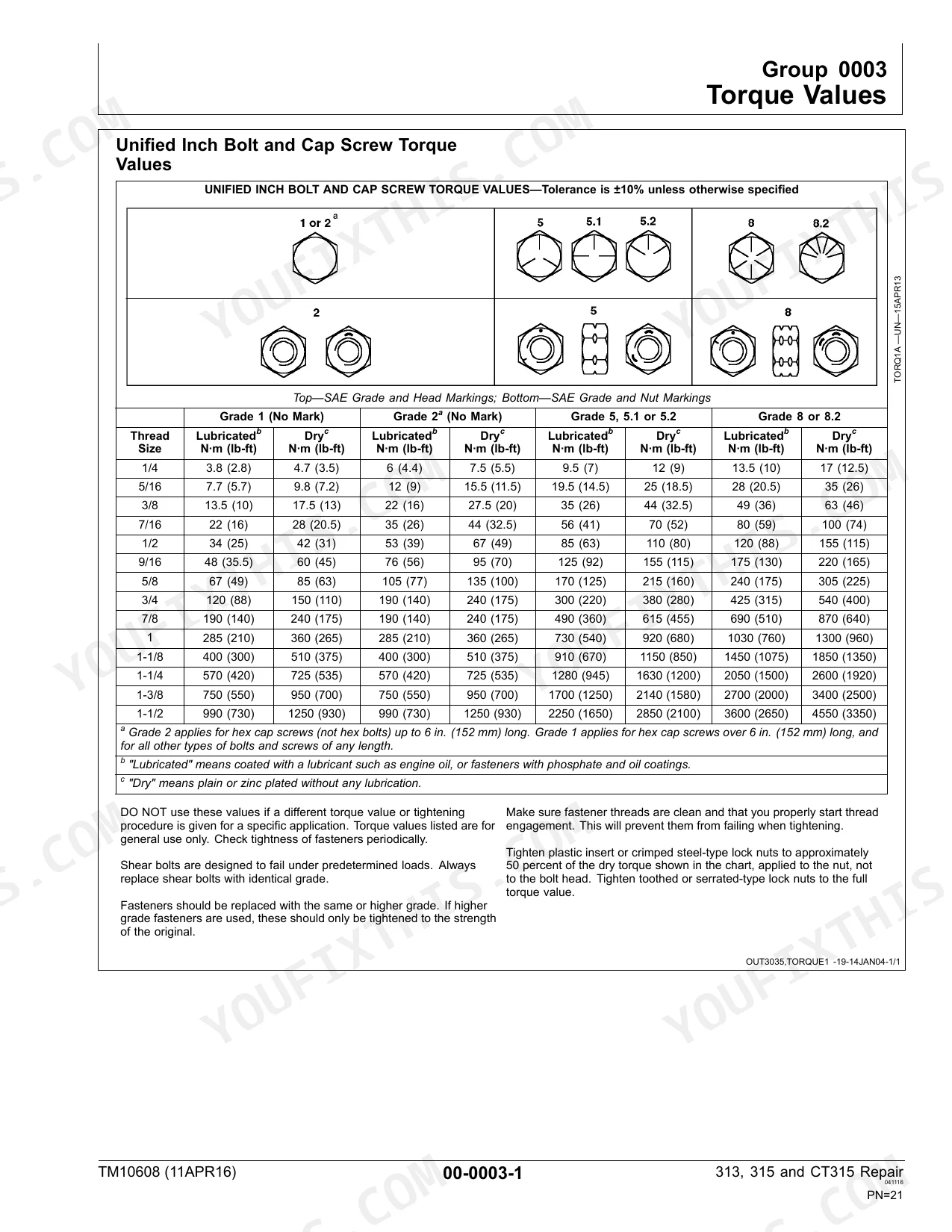

| Torque tolerance | ±10% | p. 21 |
| Track Roller-to-Frame Cap Screw-Torque | 650 N·m 479 lb-ft | p. 40 |
| Plug-Torque | 24 N·m 17 lb-ft | p. 42 |
| Flushing Valve Plug-Torque | 30 N·m 22 lb-ft | p. 32 |
| Shuttle Valve Plug-Torque | 40 N·m 30 lb-ft | p. 23 |
| Belt tension | See Checking Belt Tensioner Spring Tension and Belt Wear (Automatic Tensioner) | p. 129 |
| Hydraulic Pump Cap Screw-Torque | 35 N-m 26 lb-ft | p. 174 |
John Deere 313, 315 & CT315 Common Problems This Manual Covers
John Deere 315 skid steer engine misses, fires irregularly, and dies under heavy load.
Replace the fuel filters and inspect the hydrostatic pump assembly. Torque the mounting bracket cap screws to 76 N-m (56 lb-ft) as shown on page 103. Inspect the hydraulic system for loose fittings that create pulsing during cranking or operation.
Manual Section: Section 03 p. 103Noticeable hydraulic system performance decrease and visible fluid leaks near the main pump.
Replace hydraulic hoses at least once per year as specified on page 12. Inspect the hydraulic pump gear shaft for wear, ensuring the diameter measures exactly 19.00 mm on page 176. Check control valve seals for damage and replace if necessary.
Manual Section: Section 31 p. 176Compact track loader gains little tractive effort and slips in muddy conditions.
Measure the rubber track lug height and replace the tracks if they wear below the 5.0 mm minimum on page 37. Inspect the track rollers for leaks and verify they are filled to the 225 mL gear oil capacity on page 42.
Manual Section: Section 01 p. 37Complete loss of steering or loader control during normal operation and bucket functions.
Inspect the hydrostatic motor and park brake assembly for broken actuator wires or loose connections. Torque the motor end cover cap screws to 43 N·m (32 lb-ft) as detailed on page 101. Verify the flushing valve plug is tightened to 30 N·m (22 lb-ft) on page 32.
Manual Section: Section 03 p. 101Frequently Asked Questions
What are the torque specifications for John Deere 315 engine bolts?
The torque specification for the Engine Mount Cap Screw is 320 N·m (235 lb-ft). Additionally, the Alternator Ground Cap Screw requires a torque of 4.3 N·m (38 lb-in.). p. 123
What are the torque specifications for John Deere CT315 track roller bolts?
The Track Roller-to-Frame Cap Screw on a John Deere CT315 requires a torque of 650 N·m (479 lb-ft). This specification is found in the Track Roller Remove and Install procedure. p. 40
What is the specified torque for the Hydraulic Pump Cap Screws on a John Deere 313 model?

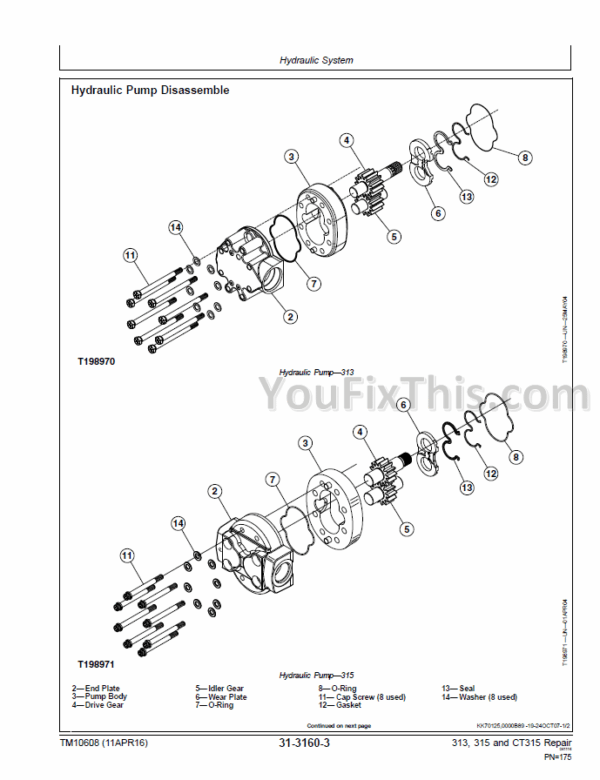

For the John Deere 313 model, the Hydraulic Pump Cap Screw torque is specified as 35 N·m (26 lb-ft). This is part of the hydraulic pump installation procedure. p. 174
What is the gear oil capacity for the track roller?

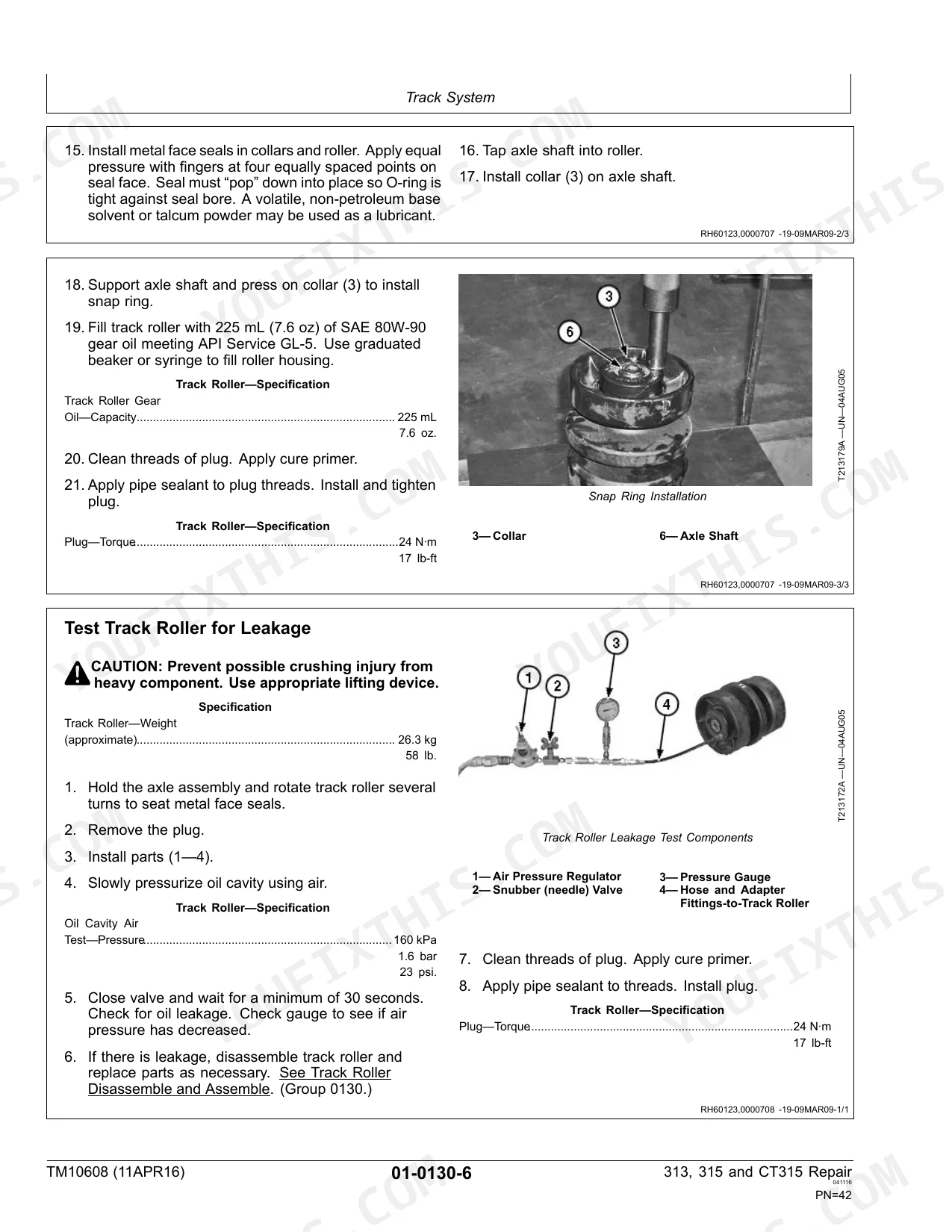

The track roller requires a gear oil capacity of 225 mL (7.6 oz). This is specified for filling the roller housing during assembly. p. 42
What is the oil capacity for the axle housing?
The axle housing has an oil capacity of 237 mL (8 oz). This is specified for filling the axle housing with oil during installation. p. 57
Is this John Deere 313, 315, CT315 Technical Manual a digital download?
A 236-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this John Deere 313, 315, CT315 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
