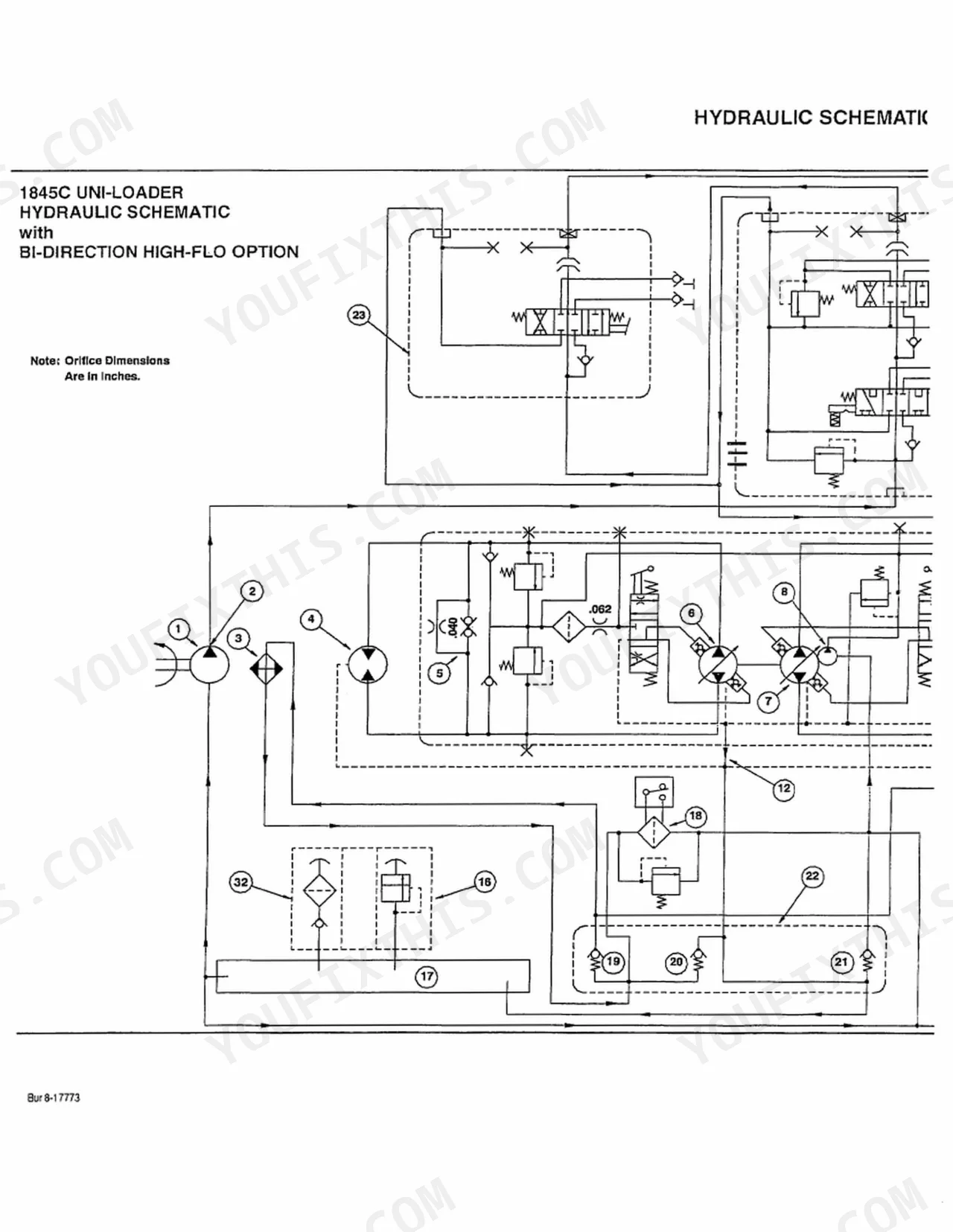

Need the factory book for your Case 1845C skid steer service manual pdf? This 764-page manual (OEM #8-42913) covers the 1845C hydrostatic drive systems end to end, from engine teardown to loader linkage. Inside you get wiring diagrams for the full electrical system, hydraulic schematics covering the pump and control valves, and a troubleshooting section built around the hydrostatic drive that walks you through diagnosing pressure and flow faults before you start pulling components apart. Set the hydrostatic drive circuit relief pressure between 317 and 337 bar (4600 to 4900 psi), and torque the lift and bucket cylinder glands to 100-400 lb-ft (135-542 N-m). No more guessing chain tension or bearing wear limits off forum posts. Bookmarked by section, so you jump straight from cover to hydraulics or power train without hunting. Download it, open it on your phone at the machine, and get back to turning wrenches.
What's Inside This Case 1845C, 1840 Manual

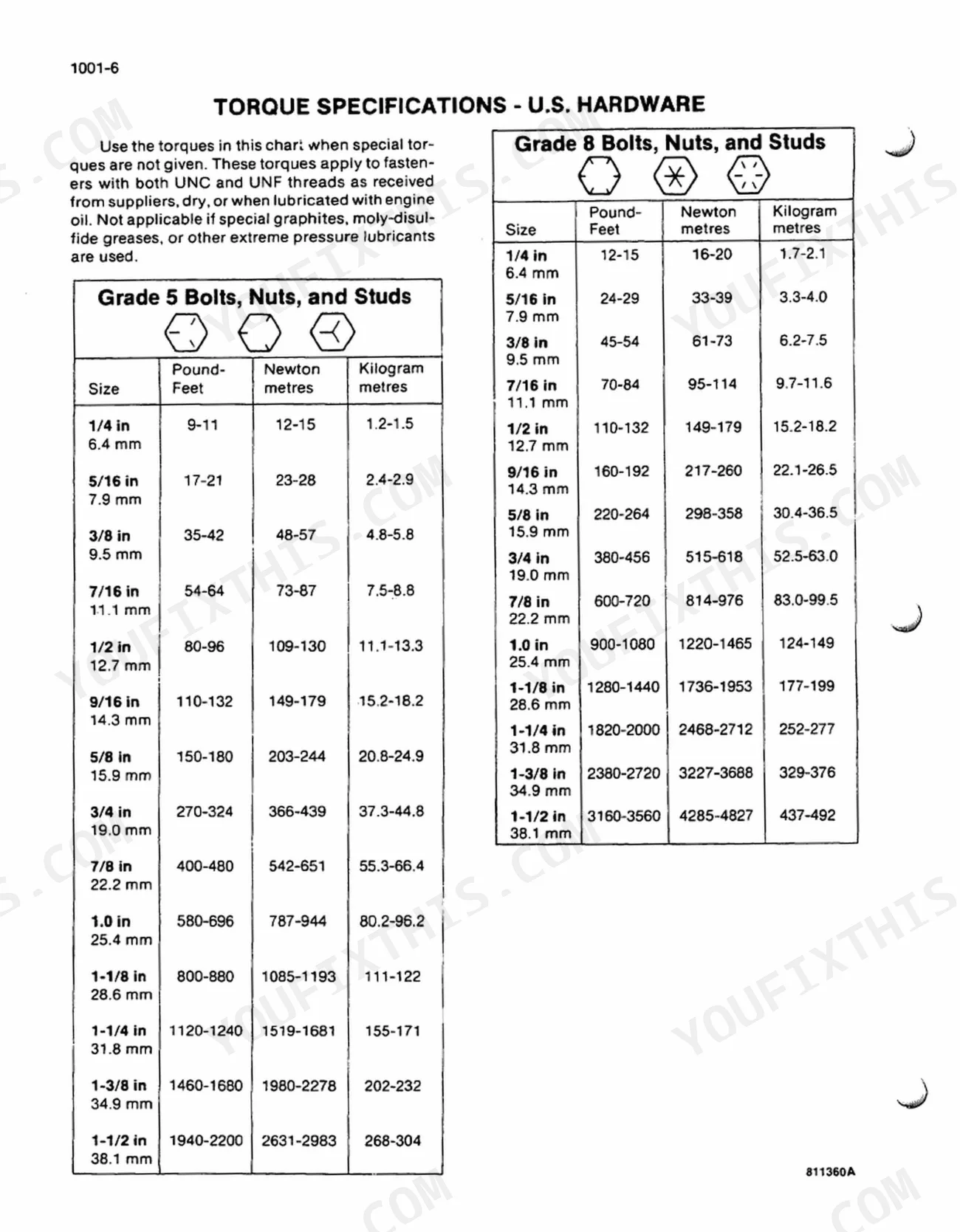

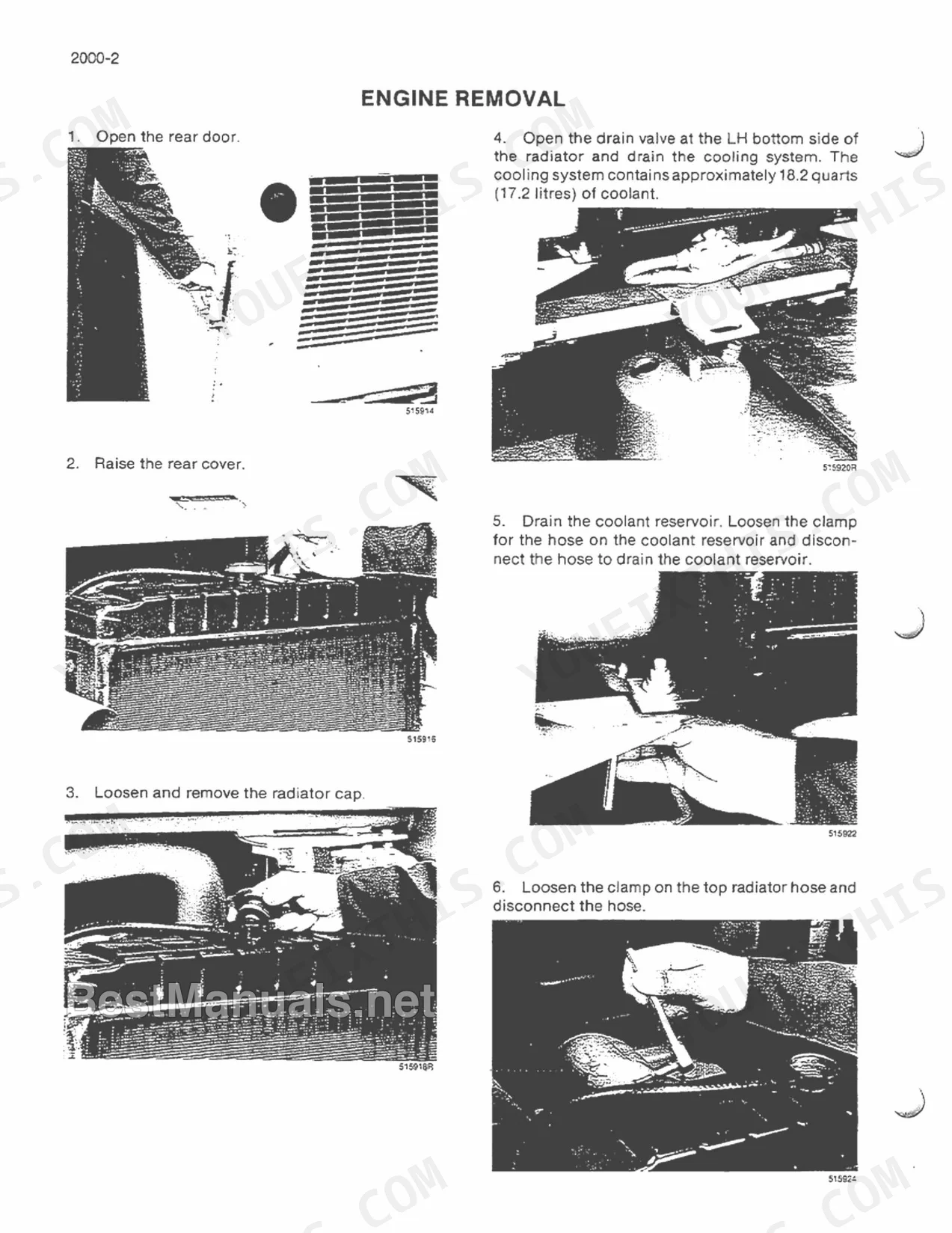

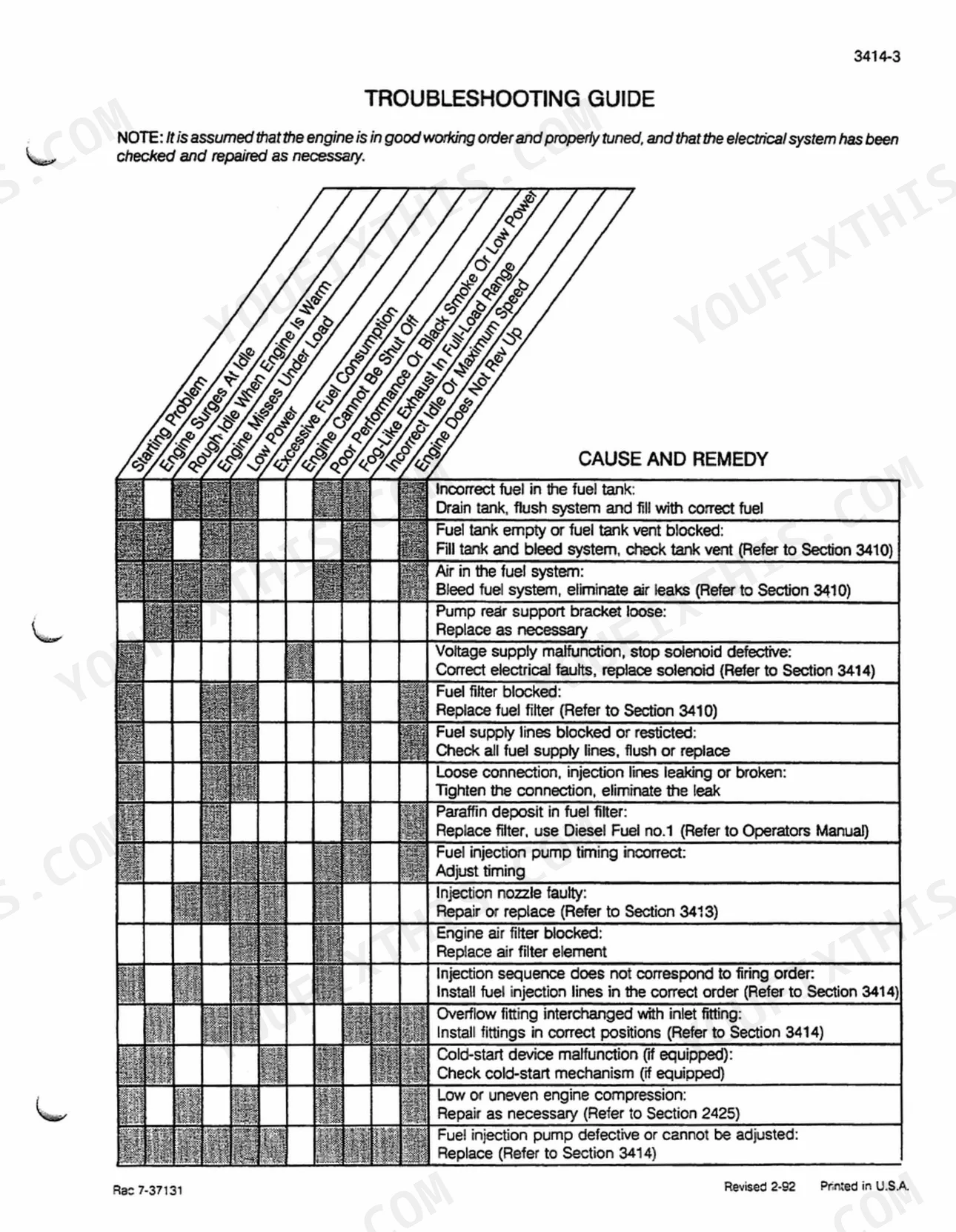

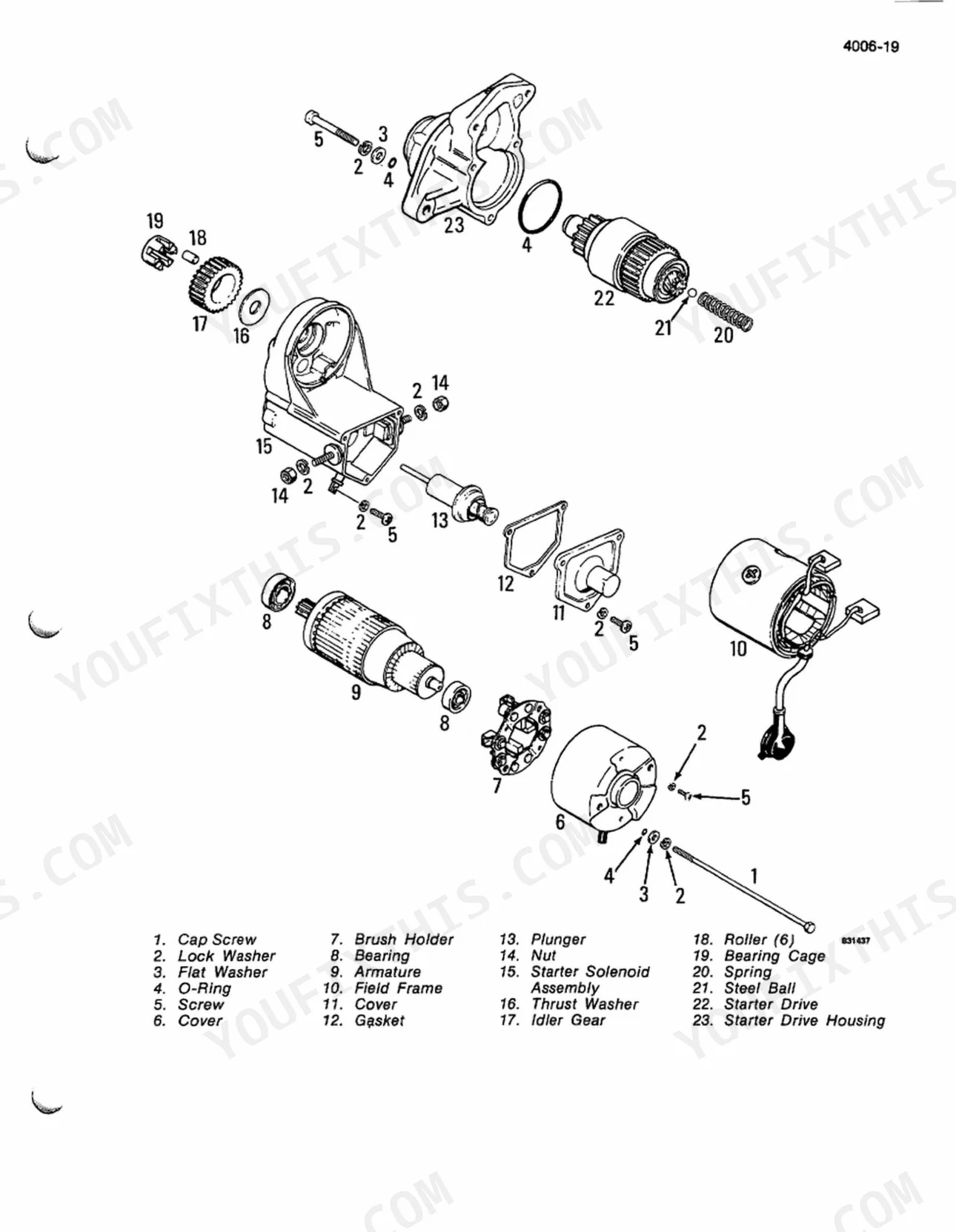

| System | Pages | Key Topics |
|---|---|---|
| General | 3-22 | Safety Rules |
| Engines | 23-214 | 2000- Engine & Radiator Removal & Installation, 2001- Engine Accessories, 2402- Specification Details, 2415- Cylinder Head & Valve Train, 2425- Cylinder Block - Crankshaft, Pistons |
| Fuel System | 215-252 | 3410- Fuel System & Filters, 3413- Fuel Injectors, 3414- Cav Fuel Injection Pump - Pump Drive Gear, Fuel Shutoff, Primer Pump & Pum |
| Electrical | 253-370 | 4000- Electrical- How It Works, 4001- Removal & Installation of Starter & Alternator, 4002- Electrical Specifications, Troubleshooting & Schematics, 4005- Battery |
| Power Train | 371-520 | Hydrostatic System- How It Works, 6001- Removal and Installation of Piston Pumps, Motor, Planetary & Drive Couplin, 6002- Hydrostatic Drive System Troubleshooting |
| Hydraulics | 521-666 | 8000- Hydraulic System- How It Works, 8001- Removal and Installation of Hydraulic Components, 8002- Hydraulic Schematics, Specifications & Troubleshooting |
| Mounted Equipment | 667-764 | 9000- Control Linkages, Pedals, Levers - How It Works, 9001- Control Linkages, Levers & Chains, 9001- Loader, 9003- ROPS Canopy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Circuit Relief Pressure (Hydrostatic Drive System) | 317 to 337 bar (4600 to 4900 psi) (358 bar, 5200 psi Maximum) | p. 390 |
| Gland torque (Lift and Bucket Cylinders) | 100 to 400 pound-feet (135 to 542 N m, 14 to 55 kg/m) | p. 662 |
| Gasket replacement (Chain compartment cover) | Install new gaskets as necessary | p. 460 |
| Axle housing bearings replacement | Replace if flat areas, pitting, scoring, or other damage are found | p. 492 |
| Drive Chain Tension (Total Deflection) | 10 to 13 mm (3/8 to 1/2 inch) | p. 673 |
| Rated output (Alternator A187873) | 14 volts at 65 amperes | p. 340 |
| Torque for nut for pulley (Alternator A187873) | 60 to 70 Nm (44 to 55 pound-feet) | p. 340 |
| Oil Filter Housing Retaining Bolts torque | 21 to 27 Nm | p. 193 |
| Fuel Level Sender resistance (Full) | 86 to 94 ohms | p. 270 |
| Fuel Level Sender resistance (Empty) | 0 to 3 ohms | p. 270 |
| Lift cylinder packing leakage diagnostic | If there is constant flow from a cylinder port, the packing in that lift cylinder is damaged and repair is necessary. | p. 556 |
| Engine Oil Capacity with filter change | 10.4 litres | p. 12 |
Case 1845C, 1840 Common Problems This Manual Covers
Case 1845C park brake won't engage or release when parked on an incline, machine creeps
Check the hydrostatic charge pressure first; it should read 26 bar per the Power Train specs on page 390. Low charge pressure keeps the spring-applied brake from releasing cleanly or lets it drag. Inspect the brake release piston and lines for external leakage, then bleed the circuit and retest before condemning the brake pack itself.
Manual Section: Power Train p. 390Tilt or lift cylinder drips fluid at the rod and loses lift pressure under load
Cycle the boom and watch the cylinder ports; constant flow from a port means the packing is damaged and the cylinder needs teardown, per the diagnostic note on page 556. Pull the gland, inspect the rod for scoring, and replace the seal kit. Torque the gland nut to 100 to 400 pound-feet (135 to 542 Nm) as specified on page 662, then bleed air before returning to service.
Manual Section: Hydraulics p. 662Milky, foamy chain oil found in the side chain boxes after wet operation
Drain both side chain compartments and check the oil for a milkshake consistency, which confirms water intrusion past the cover gaskets. Remove the chain box covers, scrape the old gasket material, and install new gaskets as called out on page 460. Refill with fresh chain oil and re-torque the cover bolts evenly to seat the new gasket before pressure-washing near the machine again.
Manual Section: Mounted Equipment p. 460Drive chain rattles or slaps under acceleration and load
Measure total chain deflection at the midpoint of the run; spec calls for 10 to 13 mm (3/8 to 1/2 inch) of total travel per page 673. If deflection exceeds that, loosen the axle housing bolts and shift the housing to re-tension the chain, then re-torque and recheck. Inspect for stretched links or flat sprocket teeth while the cover is off, since a worn chain won't hold tension long after adjustment.
Manual Section: Mounted Equipment p. 673Alternator light stays on or battery won't hold a charge at idle
Load-test the alternator on the bench or with a clamp meter; rated output should be 65 amperes as specified on page 262. Check belt tension and the drive pulley for slip before condemning the unit. If output falls well short of 65 amps under load, replace the brushes or the alternator assembly and verify the charge light clears once RPM comes up.
Manual Section: Electrical p. 262Fuel gauge reads empty or pins full regardless of actual tank level
Disconnect the sender and check resistance across the terminals; a full tank should read 86 to 94 ohms per page 270, dropping toward 0 to 3 ohms near empty. If resistance stays fixed at either end regardless of float position, the sender's rheostat has failed and needs replacement. Confirm the gauge itself with a test resistor before pulling the tank, since the cluster occasionally fails instead of the sender.
Manual Section: Electrical p. 270Frequently Asked Questions
How do I reset the hydrostatic drive on a Case 1845C skid steer?
To reset the hydrostatic drive, perform the Hydrostatic System Start-Up Procedure. This involves slowly moving the control arm for the rear piston pump all the way forward and rearward until the left drive system works correctly, then repeating for the front piston pump until the right drive system works correctly, as detailed on page 388. p. 388
What are the torque specifications for the Ferry head screws that hold the drive pumps together on a Case 1845C?
The torque specification for the Ferry head screws and nut that hold the pumps together is 67 to 82 pound-feet (91 to 111 Nm). This is specified in the Piston Pump section under 'Special torques' on page 401. p. 401
How do I diagnose error code E01 on a Case 1845C skid loader?
The manual does not provide information on diagnosing a specific error code E01. The troubleshooting sections focus on electrical component checks and hydraulic system issues rather than specific error codes. p. 260
How do I address hydrostatic drive slippage on a Case 1845C skid loader?
The manual does not explicitly mention 'resetting slippage' but provides troubleshooting for 'Machine Does Not Have Enough Power,' which could be related to slippage. It suggests checking full throttle rated engine speeds and charge pressure, and if necessary, disassembling and inspecting the charging pump, as detailed on pages 392-393. p. 392
How will I receive this Case 1845C Skid Steer Service Manual?
This is a 764-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Case 1845C Skid Steer manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Case 1845C Skid Steer manual?

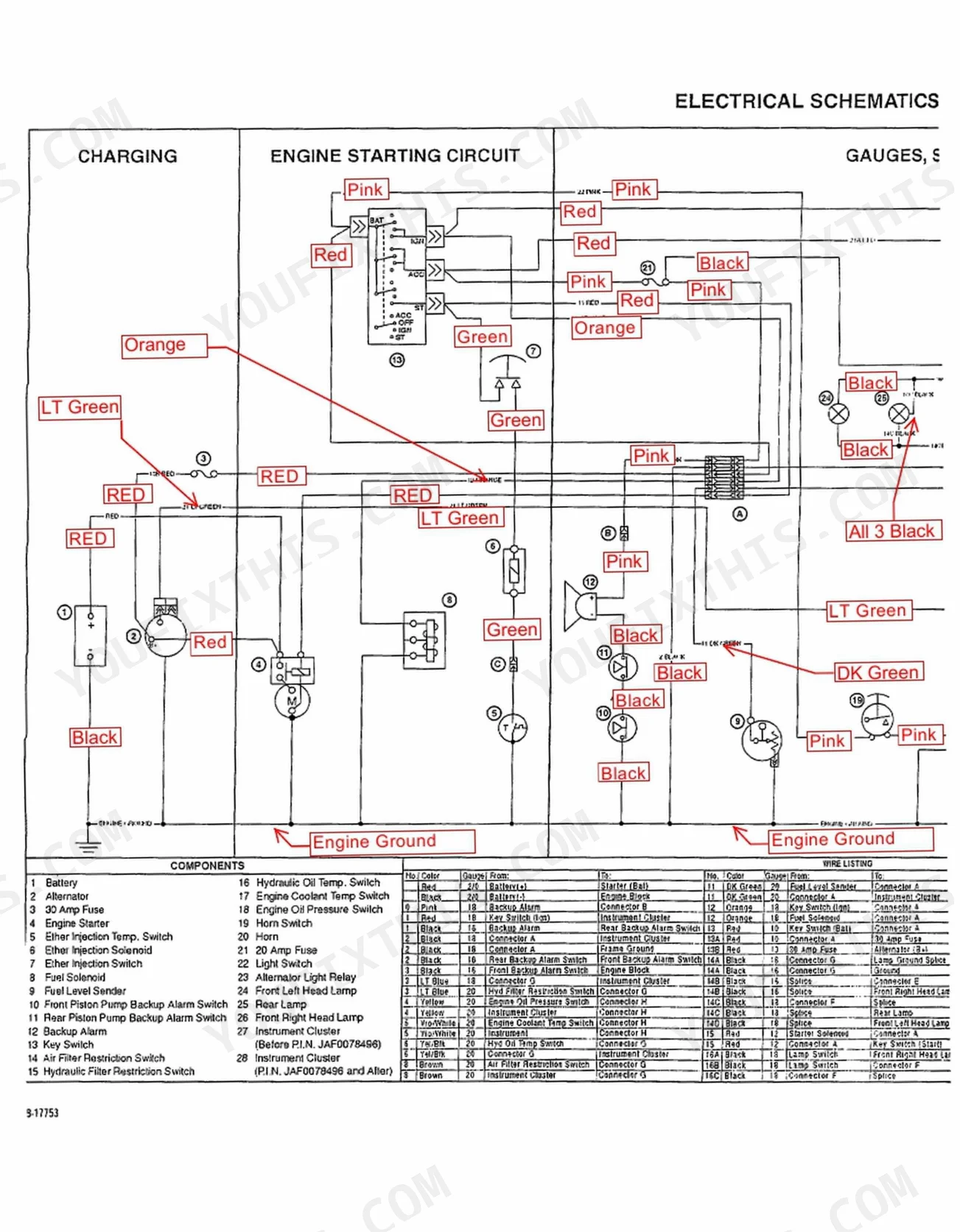

Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Case 1845C Skid Steer.
