Part of the Case Repair Manuals.
Need the factory specs for your vintage tractor? This 78-page Case 400, 700B, 800B Shop Manual PDF breaks down the complete Case-O-Matic system, diesel fuel injection, and hydraulic lift assemblies. Open to a full section of step-by-step engine rebuild procedures, backed by clear exploded views for the final drive and transmission. You get detailed troubleshooting charts for the power steering gear, along with extensive torque tables covering both diesel and non-diesel cylinder heads. Set the intake valve tappet gap to 0.012C and ensure the power steering system filter element gets renewed every 1,000 hours. Stop wasting time on internet guesses when your equipment is torn apart. Grab this bookmarked file on your tablet, walk out to the shop floor, and get back to work.
What's Inside This Case 800–815 Manual
| System | Pages | Key Topics |
|---|---|---|
| Covered Diesel & Non-Diesel Models | - | - |

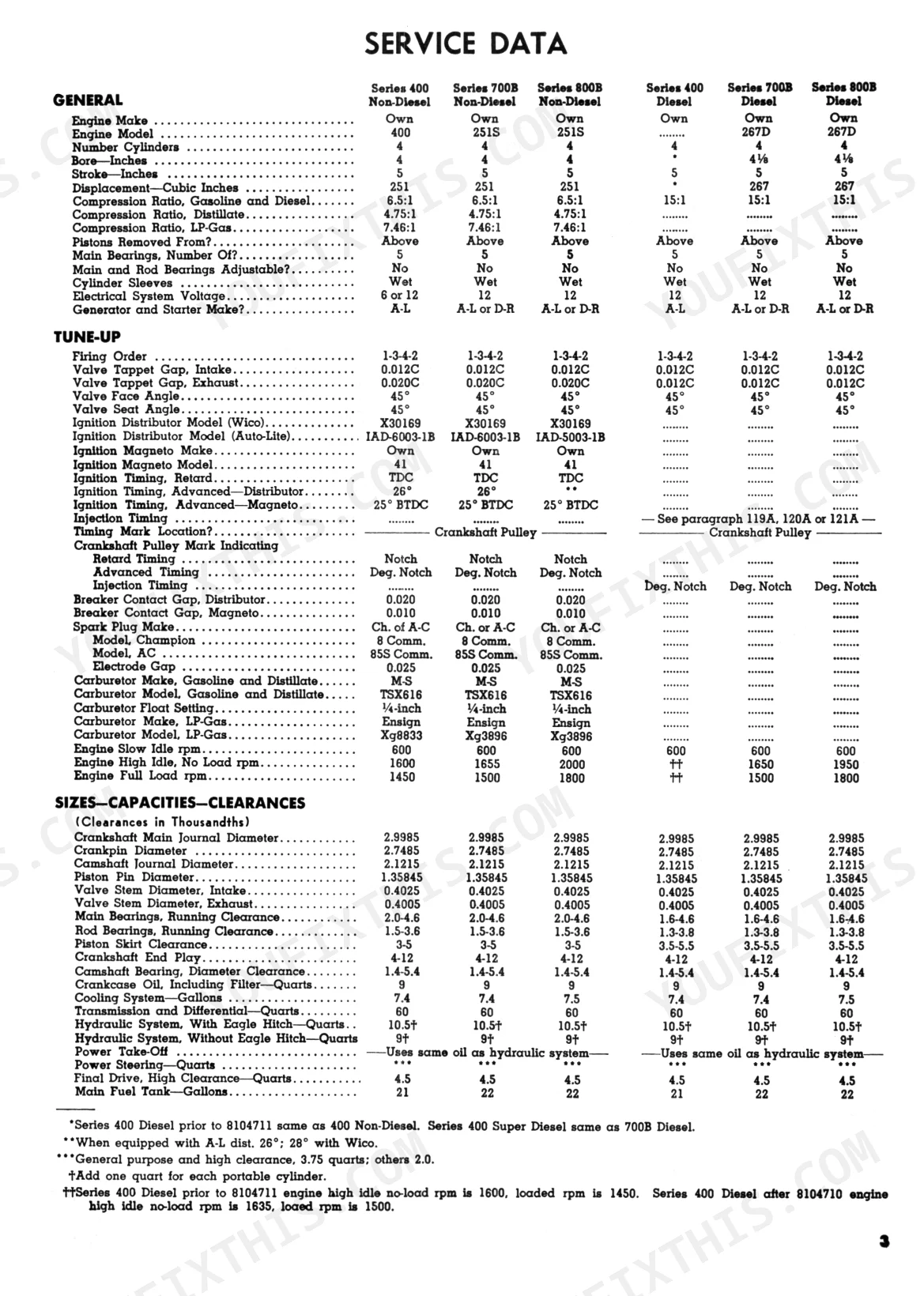

| Service Data | - | General, Tune-Up, Sizes-Capacities-Clearances |
| Belt Pulley | 25-26 | Series 400-700B, Series 800B |
| Brakes | 24 | - |
| Carburetor | 25 | - |
| "Case-O-Matic" System | - | Control Valve, Main Powr Clutch, Tests and Adjustments, Torque Convertor, Trouble-Shooting, Working Fluid, Breather and Filter |
| Clutch | 43-46 | Adjustment, Clutch Shaft and Seals, Overhaul |
| Cooling System | 20 | Radiator, Thermostat, Water Pump |
| Diesel Fuel System | 28-35 | Bleeding the System, Fuel Filters, Fuel Tank, Tank Filter, Screens and Relief Valve, Injection Pump, Injectors (Nozzles) |
| Differential | 60-62 | Overhaul, Remove and Reinstall |
| Engine | 17-23 | Cam Followers, Camshaft and Bearings, Connecting Rods and Bearings, Crankshaft and Bearings, Cylinder Head, Cylinder Sleeves, Diesel System, Flywheel |
| Final Drive | 22-24 | Axle Shaft, Bull Gears, Bull Pinions, Main Axle, Offset Axle |

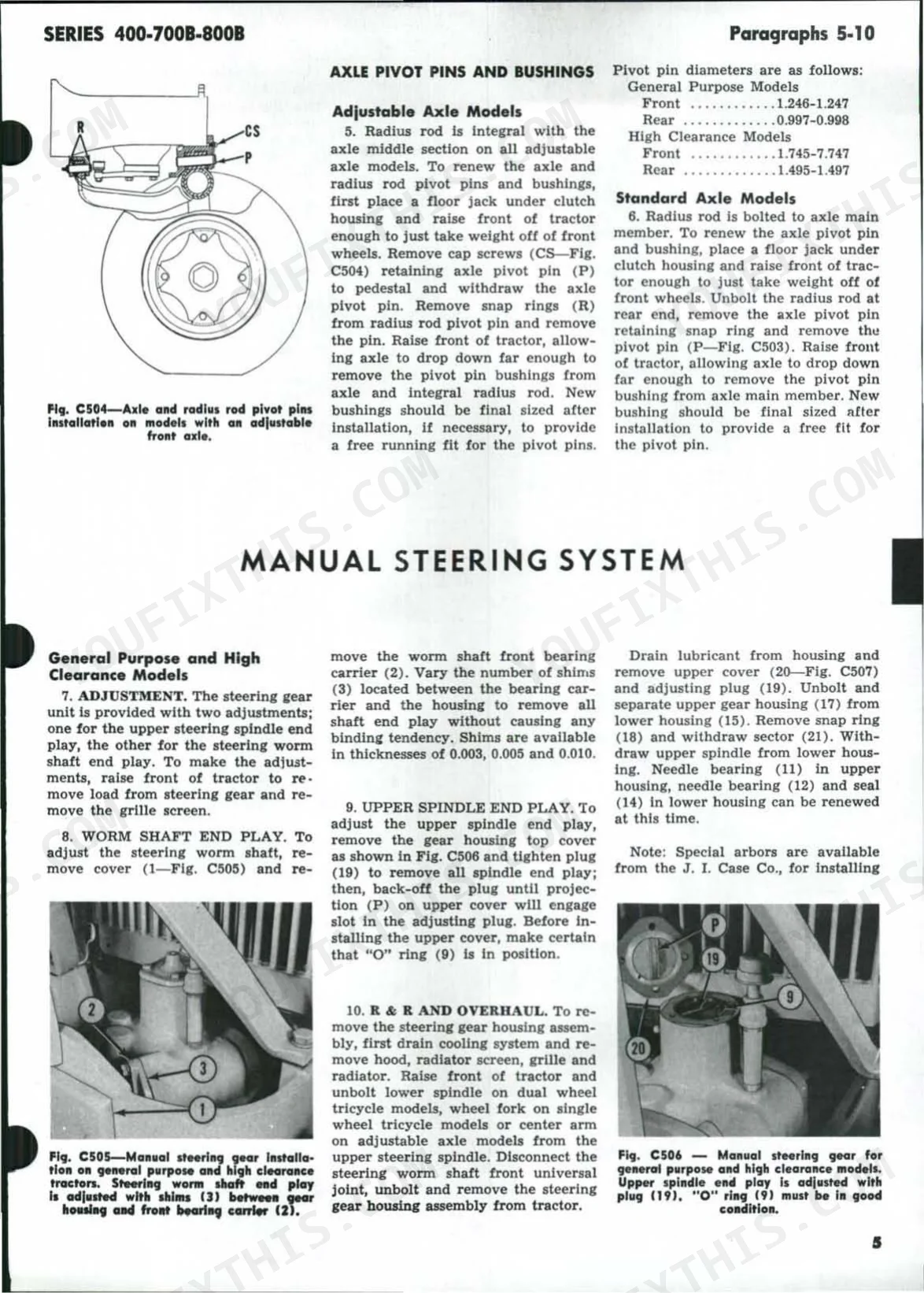

| Front System | 3-4 | Axle Pivot Pins and Bushings, Dual Wheel Tricycle, Single Wheel Tricycle, Steering Knuckles, Tie Rods and Drag Link |
| Governor | 36-39 | System Inspection, Adjusting Engine Speed, Low Idle Speed, High Idle No-Load Speed, Linkage, Overhaul |
| Hydraulic Lift System | 29-39 | Fluid and Filter, Operating Pressure, Pump, Remove and Reinstall, Overhaul, Rockshaft, Trouble Shooting |
| Ignition & Electrical System | 20-21 | Distributor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Power steering system filter element renewal interval | every 1,000 hours; or more often in severe dust conditions | p. 6 |
| Intake Valve Tappet Gap | 0.012C | p. 2 |
| Crankcase Oil Capacity (Including Filter) | 9 quarts | p. 2 |
| Transmission and Differential Capacity | 60 quarts | p. 2 |
| Hydraulic System Fluid Capacity (With Eagle Hitch) | 10.5+ quarts | p. 2 |
| Hydraulic System Fluid Capacity (Without Eagle Hitch) | 9+ quarts | p. 2 |
| General Purpose and High Clearance Models | ||
| Manual steering gear upper/lower needle bearing renewal | can be renewed | p. 4 |
| Non-Diesel Models | ||
| Exhaust Valve Tappet Gap | 0.020C | p. 2 |
| Models with 800 psi relief valve | ||
| Power Steering System Operating Pressure (800 psi relief valve) | 725-825 psi | p. 8 |
| Series 400-700B | ||
| Clutch Pedal Free Travel | 1-inch | p. 43 |
Case 800–815 Common Problems This Manual Covers
J.I. Case tractor engine won't crank after sitting all winter, battery seems dead
Pull both battery cables and check terminals for white or green corrosion buildup before you condemn the battery itself. Clean posts and clamps to bare metal, coat with dielectric grease, and torque clamps down snug so vibration can't loosen them again. Check electrolyte for freeze damage (cracked case, bulged sides) and replace if found. Test open circuit voltage before returning to service.
Manual Section: Ignition & Electrical SystemHydraulic lift arms won't raise the implement or action is sluggish under load
Check the troubleshooting procedures for unit-not-lifting and sluggish-action conditions before tearing into the pump. Verify fluid level meets capacity (9 quarts without Eagle Hitch, 10.5+ quarts with it) and isn't foaming or contaminated. Inspect the filter housing and suction line connections for loose fittings weeping fluid, retorque and reseal with fresh O-rings as needed.

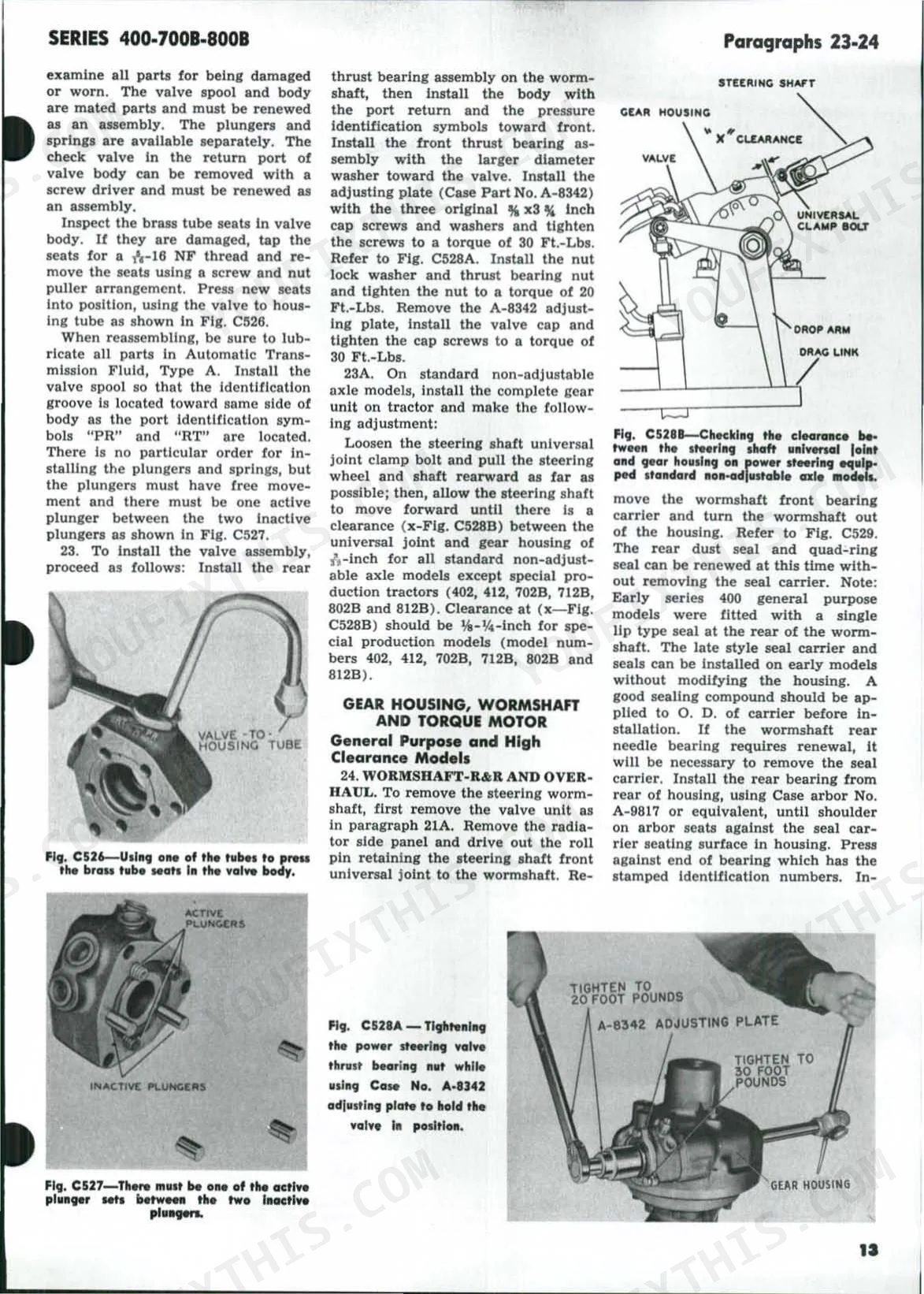

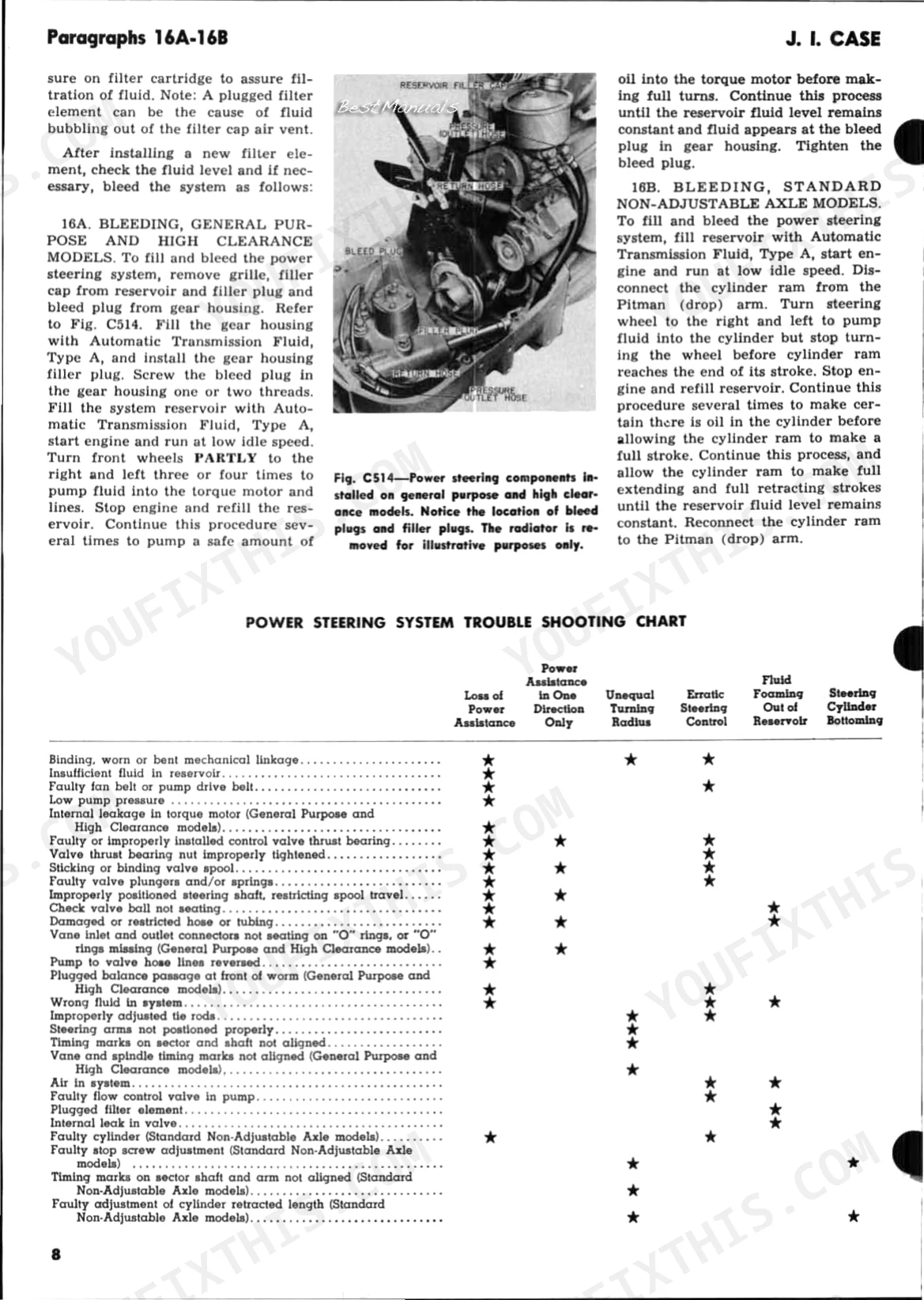

Manual Section: Hydraulic Lift System TroubleshootingPower steering wheel is hard to turn or has a rough, gritty feel at low speed

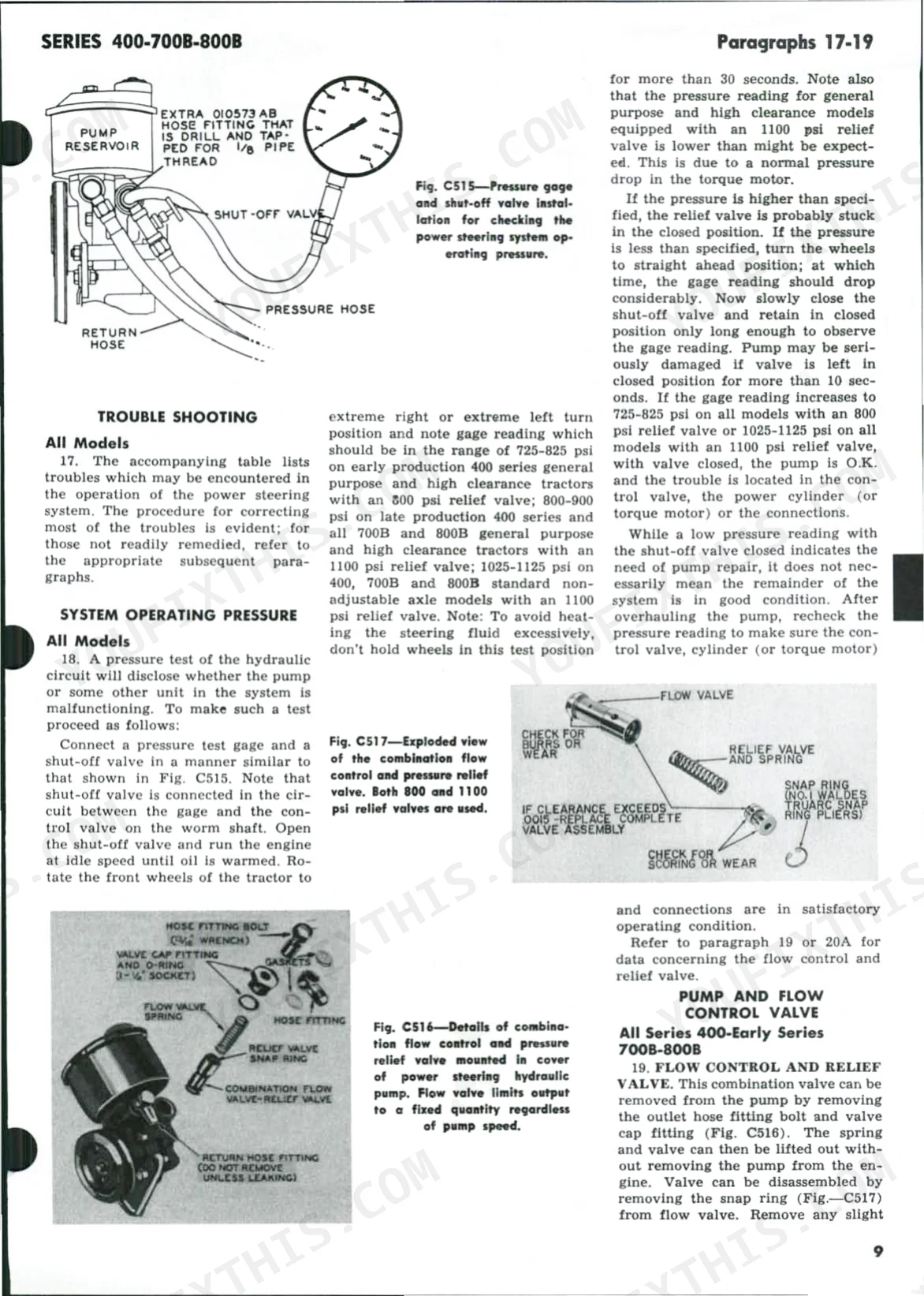

Run the operating pressure check before assuming the pump is shot. On models with the 800 psi relief valve you should read 725 to 825 psi at the gauge; anything well below that points to a worn pump or a leaking relief valve rather than the steering gear. Drain and inspect the filter element per the page 6 service interval (every 1,000 hours, sooner in heavy dust) since a loaded element will starve the pump and mimic low pressure.

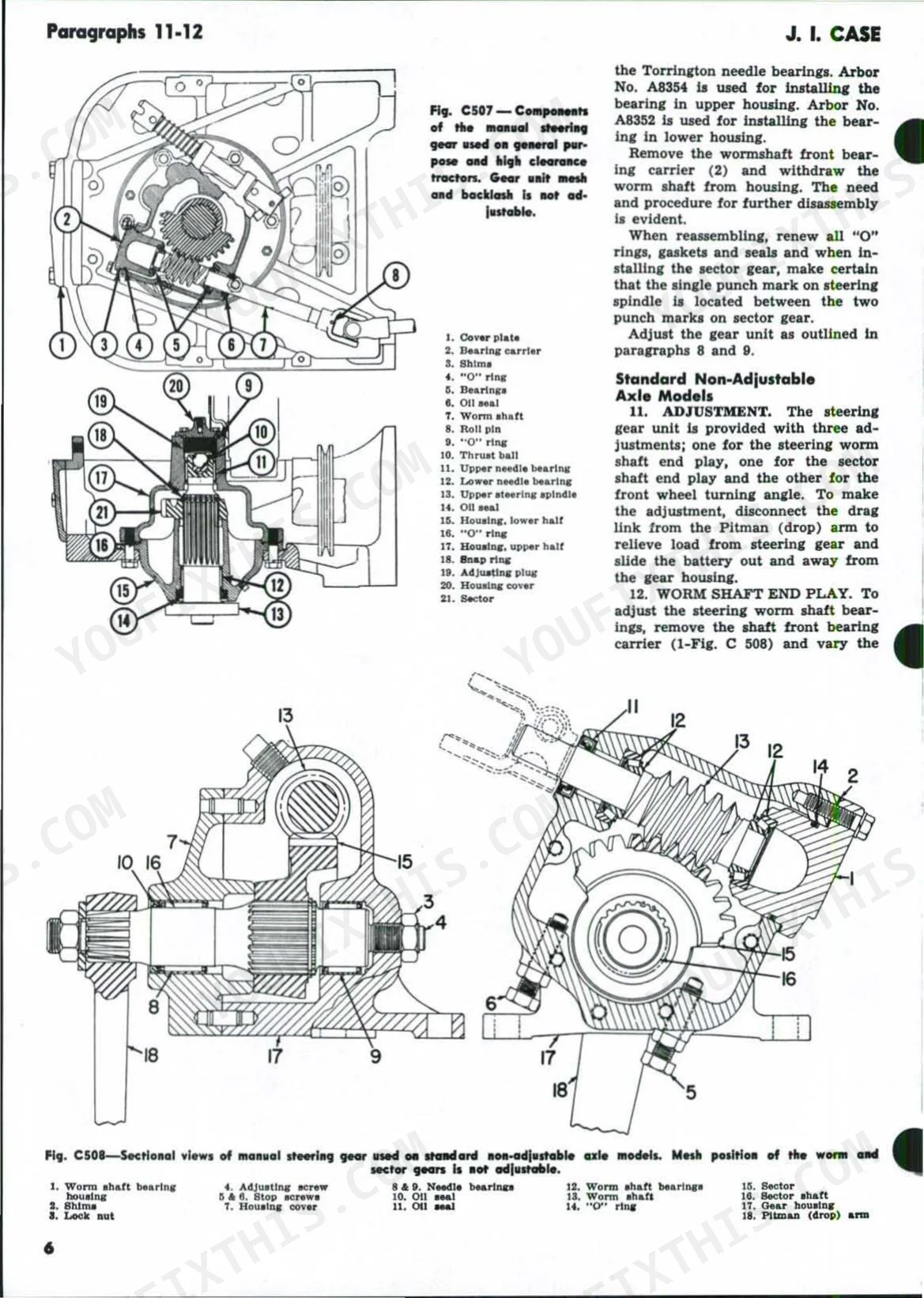

Manual Section: Power Steering System TroubleshootingSteering shaft binds or sticks partway through a turn, especially after wet storage
Disconnect the shaft at the coupling and work it by hand to isolate whether the bind is in the shaft itself or downstream in the gear. Rust behind the nylon bushings is the usual culprit on machines left outside; pull the shaft, inspect the bushing bores for surface rust, and renew the upper and lower needle bearings per the service procedures on page 4 rather than just greasing over corrosion. Pack the renewed bushings with fresh grease before reassembly.
Manual Section: Manual Steering Gear Adjustment & Overhaul p. 4Clutch pedal feels wrong, either slipping under load or dragging when disengaged
Check free travel at the pedal before adjusting the linkage blind. On Series 400-700B tractors you're looking for 1 inch of free play measured at the pedal pad; less than that means the clutch is riding and will burn up fast, more means it may not fully engage. Adjust the linkage rod to bring travel back into spec, then recheck with the engine off and pedal cold.
Manual Section: Clutch Adjustment & Overhaul p. 43Frequently Asked Questions
How to adjust the gear selector on J.I. Case Series 400-700B-800B tractors?
The manual describes the reassembly and adjustment of the shifter shafts and shifters. When reassembling, ensure the notch in the range shaft is toward the bottom as shown in Fig. C635. After installing the shifter assembly, make certain the transmission is in belt pulley neutral, then center the range shifter sliding sleeve between the two range gears and tighten the fork set screw (B). p. 55
How to adjust the engine oil pressure on J.I. Case Series 400-700B-800B tractors?
To adjust the engine oil pressure, which is regulated by the relief valve, turn the adjusting screw. On late series 400 and all 700B and 800B models, the normal setting is when the distance from the underside of the adjusting screw head to the pump body is 1/2-inch. One complete turn of the adjusting screw will change the oil pressure by approximately 1% psi, with normal oil pressure being 35-40 psi when warm. p. 24
What are the replacement specifications for hydraulic filters in J.I. Case Series 400-700B-800B tractors?
For the power steering system, the filter element in the fluid reservoir should be renewed every 1,000 hours, or more often in severe dust conditions. For the "Case-O-Matic" system, the oil filter should be serviced every 500 hours of operation and renewed every 1000 hours, or if visible damage is present. p. 6
What is the engine oil capacity, including the filter, for all J.I. Case Series 400-700B-800B models?
The crankcase oil capacity, including the filter, for all Non-Diesel and Diesel models of the J.I. Case Series 400-700B-800B tractors is 9 quarts. p. 2
What is the cooling system capacity for the J.I. Case Series 400, 700B, and 800B tractors?
The cooling system capacity is 7.4 gallons for Series 400 and 700B models, and 7.5 gallons for Series 800B models. This capacity is consistent across both Non-Diesel and Diesel versions of these tractors. p. 2
Is this Case 400 & variants Shop Manual a digital download?
You get a 78-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Case 400 & variants Shop Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
