Four tractors, one factory reference: this 262-page Case-steyr Operator Manual (OEM Sva 6-22381) covers the CS 78, 78a, 86a, and 94a with every operating procedure, safety rule, and maintenance schedule you need to run them right. Inside you get a full controls walkthrough covering the instrument panel, driver's seat adjustments, PTO shaft engagement, rear three-point linkage setup, and auxiliary control units. Packed with a structured lubrication and maintenance plan, fluid fill levels, tyre and ballast tables, and a technical data section with factory specs. Set intake and exhaust valve clearance at 0.35 mm cold, and confirm fuel pump static delivery starts at 15+1° before TDC. Your machine won't wait for guesswork. Bookmarked by section and keyword-searchable, pull it up on your tablet before you touch a wrench.
What's Inside This Case-steyr CS78, CS78a, CS86a, CS94a Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Case Multi-Trac Tractor CS94a | 6 | Engine, Transmission, Hydraulic System, Electrical System, Brake System, Steering Axles |
| To the User | 7-9 | With 4-Wheel Drive, How to Use This Manual, Keeping Your Manual Safe, Declaration of Conformity, Type Approval |
| Aggregate/Serial Numbers | 10-11 | Product Identification and Serial Number, Safety, Correct Usage |
| Safety/Safety Plates | 12-22 | Carriage of Passengers, Leaving the Tractor, Attachments, PTO Shaft Operation, Maintenance and Other Work, Dangerous Chemicals, Basic Rules, Safety Labels |
| Instruments/Operating Controls | 23-65 | Climbing Onto the Tractor, Driver's Seat, Instrument Panel, Operating Controls, Before Starting the Engine |
| Driving | 66-108 | Battery Master Switch, Safety Switch, Indicator Lamps and Combination Instrument for Operating Status, Standard Starting Procedure, Operating the Tractor at Low Temperatures |

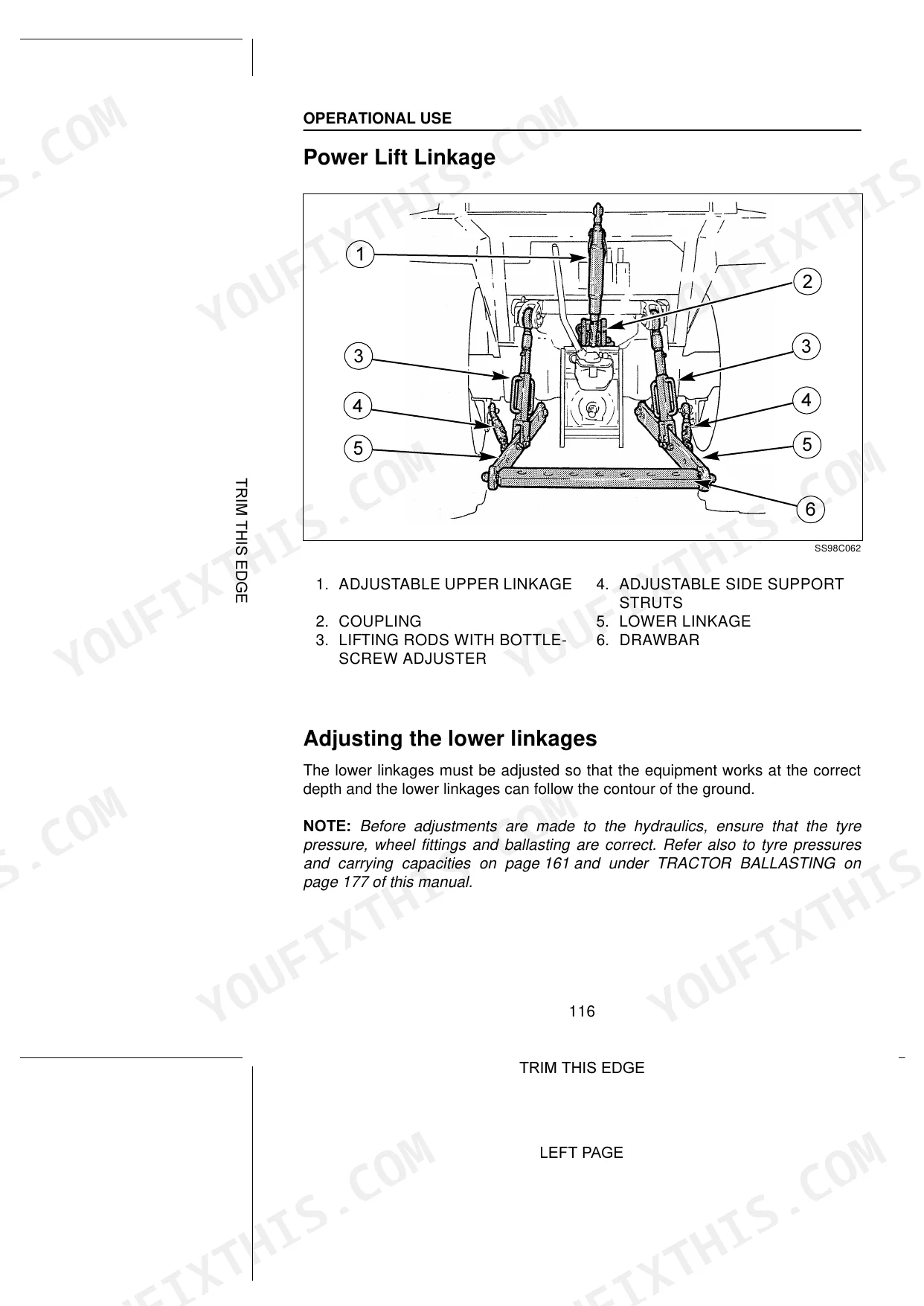

| Operational Use | 109-166 | Rear Power Take Off Shaft, Operating the Steyr Front PTO, Preparing the Rear Three-Point Linkage, Operating the Lifting Gear, Steyr Front End Lifting Gear, Auxiliary Control Units |
| Tyres/Wheels/Track Widths/Ballast | 167-184 | Front Axle and the Front Axle Track, Front Axle Track, Rear Axle Track Width, 4-Wheel Drive – Tyre Combinations, Front Wheel Mudguard – 4-Wheel Drive Tractor, Tractor Ballast |

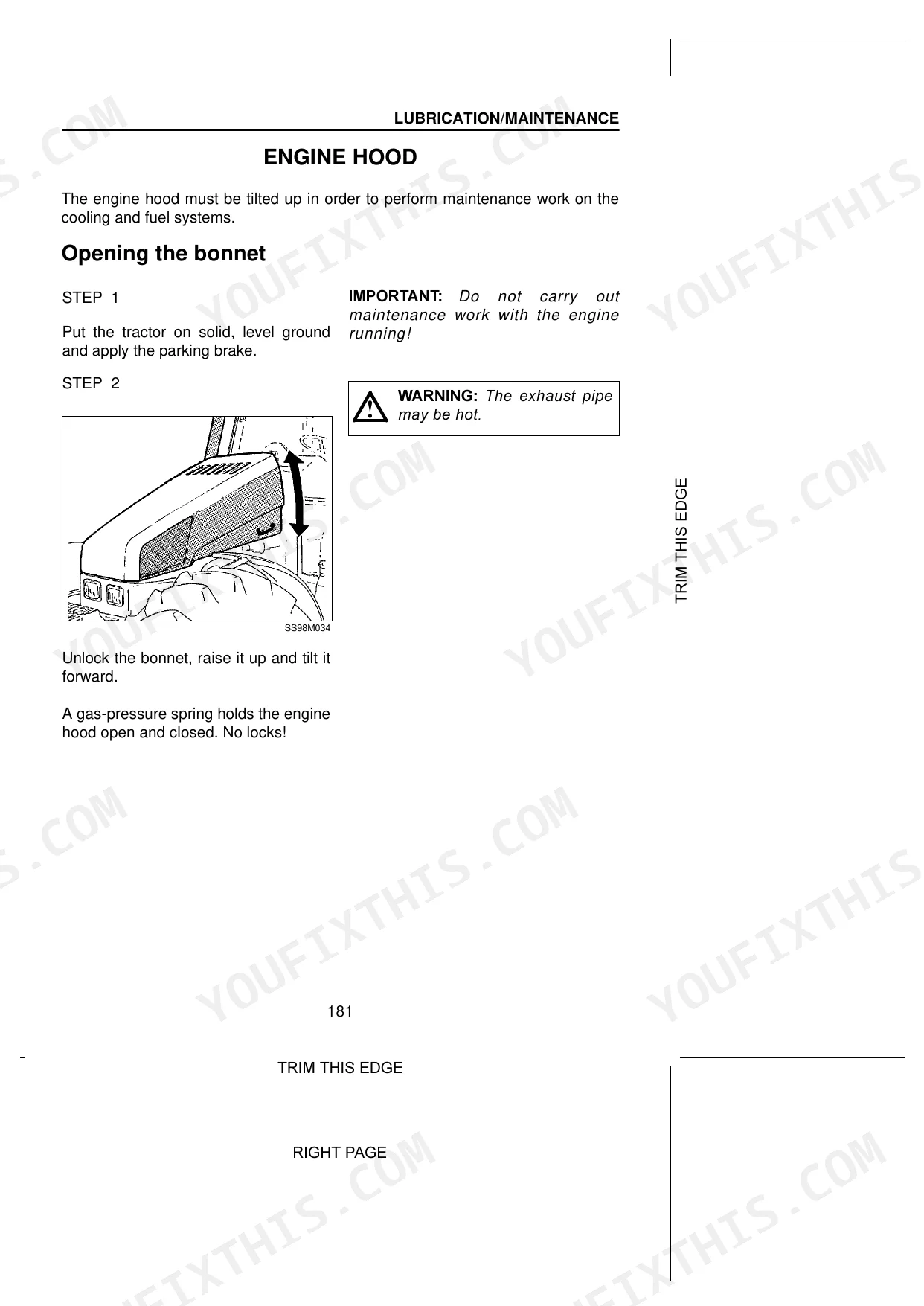

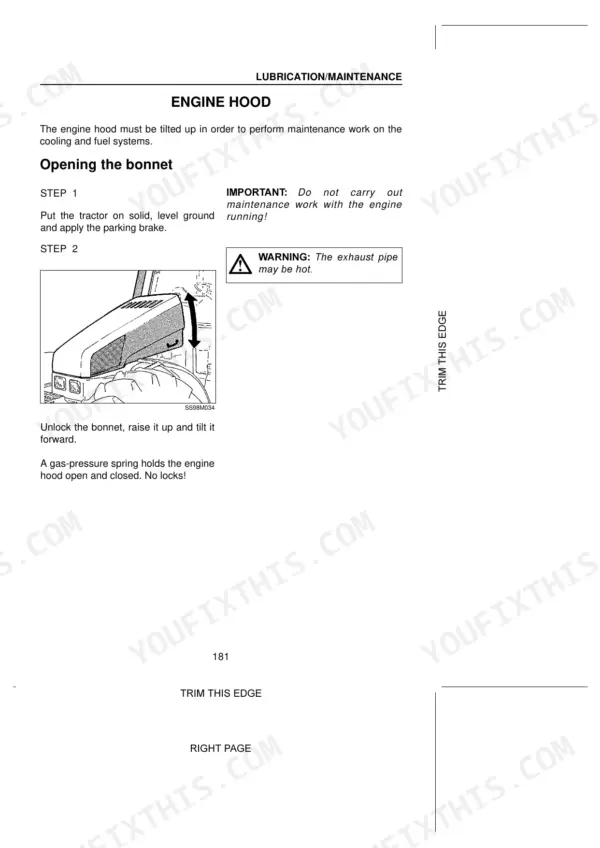

| Lubrication/Maintenance | 185-223 | Environment, Plastic and Fibre-Glass Re-Inforced Parts, Tool Box, Operating Hours Counter, Engine Hood, Lubrication and Filling Levels, Lubrication/Maintenance Plan |

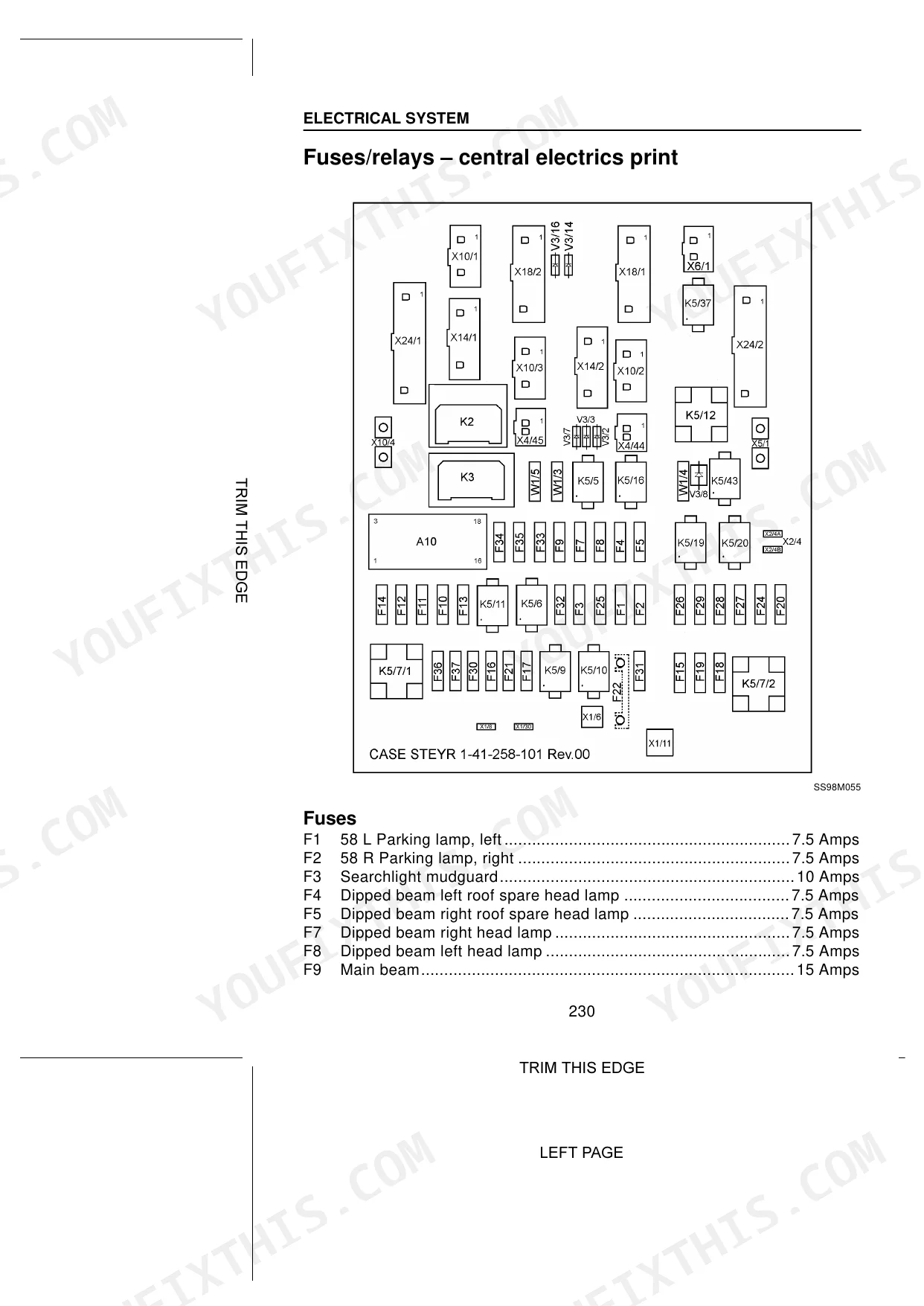

| Electrical System | 224-241 | Fitting and Removing Battery, Working on the Battery Installation, Replacing Bulbs and Lamps, Fuses |
| Technical Data | 242-258 | Driving Speeds |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Static delivery start of the fuel pump | 15+1° before top dead centre (TDC) | p. 243 |
| Valve play, cold (Exhaust) | 0.35 mm | p. 242 |
| Valve play, cold (Intake) | 0.35 mm | p. 242 |
| Thermostat function begins to open | approx. 80 °C | p. 243 |
| Thermostat function fully opened | 95 °C | p. 243 |
| Engine Working Volume | 4400 cm3 | p. 242 |
| Fuel Tank Capacity | 100 litres | p. 243 |
| Hydraulic System Operating Pressure | 175 bar | p. 246 |
| Battery Capacity | 12 Volt, 100 Ah, 420 A | p. 244 |
| Maximum Lifting Capacity (Rear Linkage) | 4810 kp | p. 246 |
| Maximum PTO Shaft Output | 59 kW | p. 242 |
Case-steyr CS78, CS78a, CS86a, CS94a Common Problems This Manual Covers
Case-Steyr CS78 engine cranks but will not fire on first or second attempt p. 66

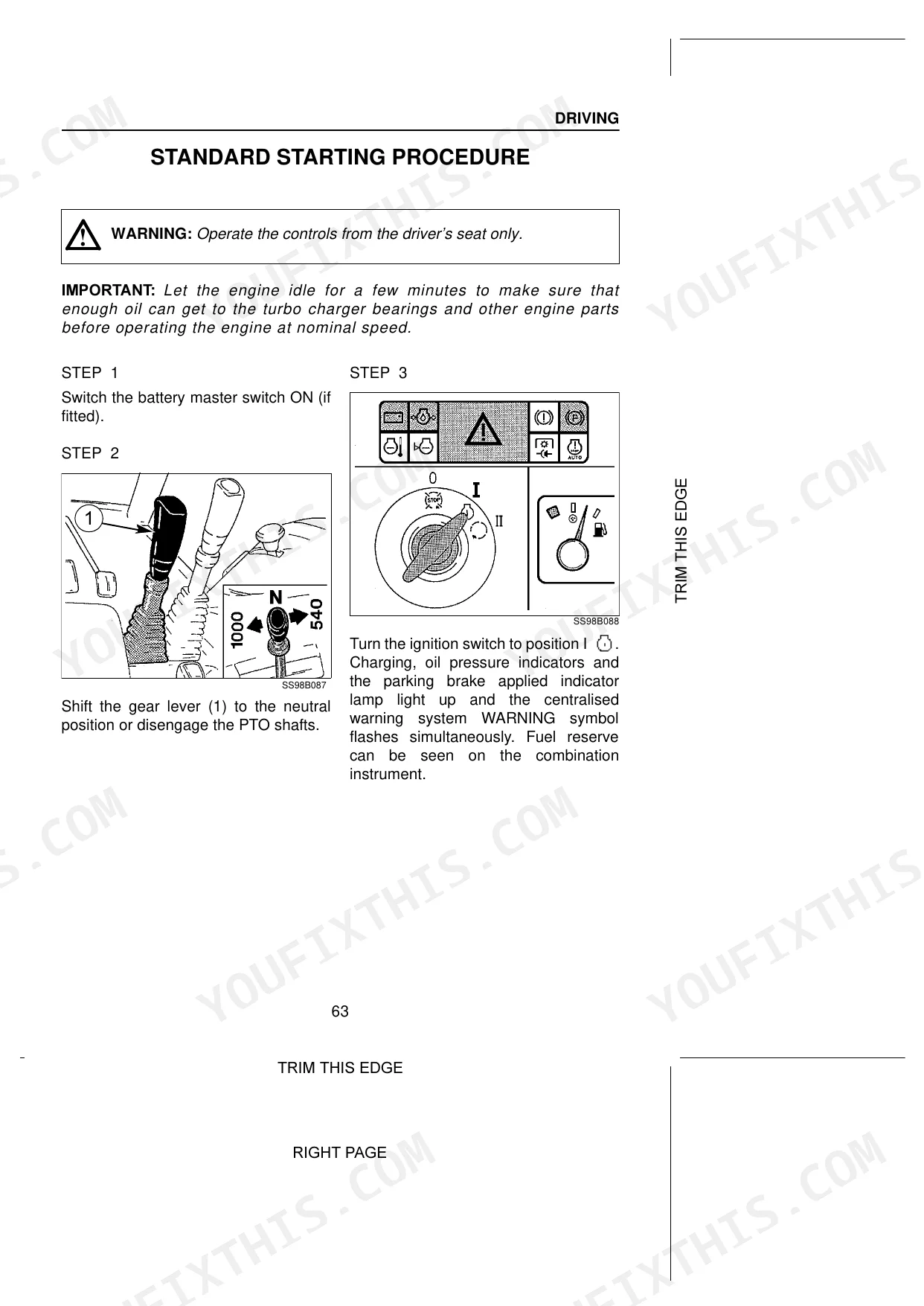

Check the fuel shutoff valve is open and the tank has fuel (100-litre capacity, page 243). Verify battery connections are clean and tight; the standard specification is 12V, 100 Ah (page 244). Follow the standard starting procedure on page 66 exactly, including preheat glow time. If the engine still will not fire, drain the fuel filter bowl for water contamination.
Manual Section: DrivingHydraulic implements lose lifting power or move erratically after 30 minutes of operation p. 187
Stop work and let the hydraulic system cool for 10 minutes. Check hydraulic fluid level at the sight glass against MIN/MAX marks per the maintenance schedule on page 187. Normal system operating pressure is 175 bar (page 246); a clogged filter is the first thing to inspect before assuming a pump fault. Replace the filter at the next service interval.
Manual Section: Hydraulic System MaintenanceBlue smoke from exhaust during operation and oil level drops between service intervals p. 185
Check engine oil on the dipstick before each startup; top up to the MAX mark using the grade in the lubrication plan on page 185. The engine displaces 4400 cm3 (page 242), making low oil level especially damaging during high-load work. If topping up more than once between scheduled service visits, arrange dealer inspection before continuing operation.
Manual Section: Lubrication/MaintenanceTemperature warning light or gauge enters red zone during heavy load operation p. 243
Reduce load immediately and idle the engine for 2-3 minutes. Check coolant level in the expansion tank; the thermostat begins opening at 80°C and is fully open at 95°C (page 243). Clean the radiator fins of debris and chaff per the maintenance schedule on page 187. Never remove the radiator cap while the engine is running or still hot.
Manual Section: Engine MaintenanceEngine turns over slowly or fails to crank on cold mornings before work p. 244
Check battery terminals for corrosion and ensure connections are tight before attempting a cold start. The battery specification is 12V, 100 Ah with 420 A cold-cranking capacity (page 244). Engage the battery master switch per page 66 and follow the low-temperature starting procedure in the Driving section. If the battery is over 3 years old, test it under load.
Manual Section: Electrical SystemWarning indicator lamp stays lit on the instrument panel after engine startup p. 66

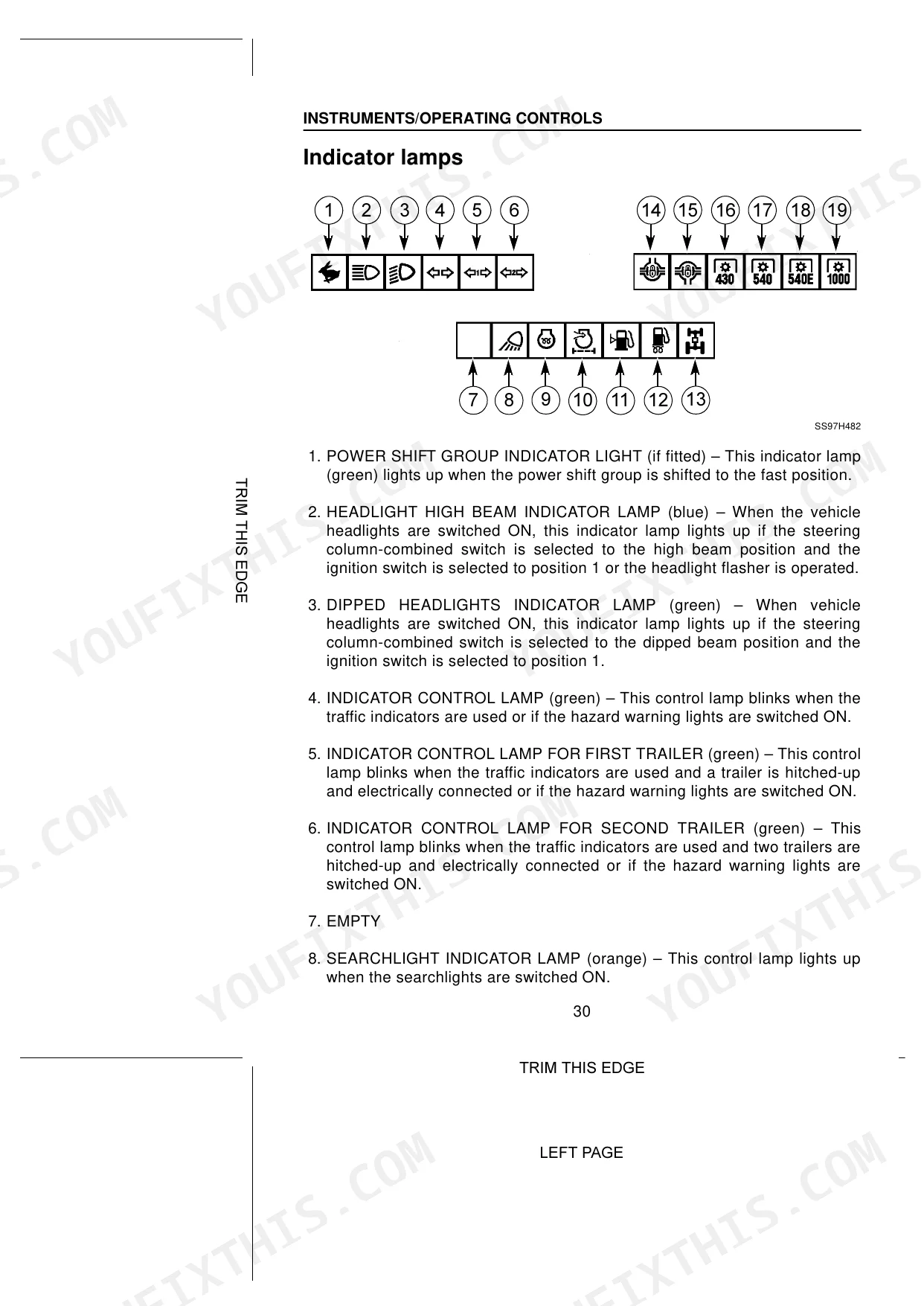

Identify the lamp's meaning using the indicator guide in the Driving section on page 66 before continuing work. Check engine oil, coolant, and hydraulic fluid levels against their MIN/MAX marks per page 187. If a hydraulic warning is lit, note that normal system pressure is 175 bar (page 246). Shut down and call your dealer if the warning stays on.
Manual Section: Instruments/Operating ControlsFrequently Asked Questions
How do you fix case-Steyr CS78 engine cranks but will not fire on first or second attempt?
Check the fuel shutoff valve is open and the tank has fuel (100-litre capacity, page 243). Verify battery connections are clean and tight; the standard specification is 12V, 100 Ah (page 244). Follow the standard starting procedure on page 66 exactly, including preheat glow time. If the engine still will not fire, drain the fuel filter bowl for water contamination.
How do you fix hydraulic implements lose lifting power or move erratically after 30 minutes of operation?
Stop work and let the hydraulic system cool for 10 minutes. Check hydraulic fluid level at the sight glass against MIN/MAX marks per the maintenance schedule on page 187. Normal system operating pressure is 175 bar (page 246); a clogged filter is the first thing to inspect before assuming a pump fault. Replace the filter at the next service interval.
How do you fix blue smoke from exhaust during operation and oil level drops between service intervals?
Check engine oil on the dipstick before each startup; top up to the MAX mark using the grade in the lubrication plan on page 185. The engine displaces 4400 cm3 (page 242), making low oil level especially damaging during high-load work. If topping up more than once between scheduled service visits, arrange dealer inspection before continuing operation.
How do you fix temperature warning light or gauge enters red zone during heavy load operation?
Reduce load immediately and idle the engine for 2-3 minutes. Check coolant level in the expansion tank; the thermostat begins opening at 80°C and is fully open at 95°C (page 243). Clean the radiator fins of debris and chaff per the maintenance schedule on page 187. Never remove the radiator cap while the engine is running or still hot.
What format is this manual in?
A 262-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
