Running an Arion right starts with the 324-page Claas Arion 510–540, 610–640 operator manual PDF, OEM 00 11 169 710, written for the whole eight-model Arion series from the 510 through the 640. It walks you through the driving position controls, the transmission and PTO, differential lock, front axle engagement, and the rear linkage with its auxiliary spool valves and Power Beyond circuit. Front loader work gets its own chapter, from Electropilot and Flexpilot handling to unhitching the frame and the tool, and the maintenance chapter opens on page 275 and carries the frequency summary table and a logbook to record what you did. Maximum linkage capacity is listed at 6 500 kg; the cab supply socket is rated 12 V at 25 A before ignition. It is late, the field is wet, and there is nobody to ask. Search it, bookmark it, own it for as long as you own the tractor.
What's Inside This Claas Arion 510–540, 610–640 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Identification - Certification - Safety | 13-34 | Tractor Plate, Engine Plate, Frontal Loader, Safety Cabs, Air Conditioning System, PTO, Accumulator |
| Driving Position | 35-70 | Operating and Working Environment (Instruments and Controls, Stowage and Accessories), Lighting |
| Electrical System | 71-86 | Trailer/Implement Light Socket (Description), Electric Cabinet Supply Socket (Description), Event Counter Socket (Description), Iso Socket (Description) |
| Engine | 87-102 | Characteristics, Displays (Description), Safety (Safety: Mechanical Protection), Engine Control (Starting the Engine, Accelerator Controls, Stopping the Engine) |
| Transmission | 103-156 | Transmission Specifications (Gearbox, Road Speed, Rear Axle, PTO), Displays (Transmission Display, Instrument Panel) |
| Front Axle | 157-166 | Characteristics, Mechanical Protection (Operation, Instrument Panel), Front Axle Engagement (Operation, Automatic Mode, Permanent Mode) |
| Hydraulics - Rear Linkage and Hitch | 167-202 | Characteristics (Hydraulic Systems, Linkage, Hitch), Hydraulic Systems (Auxiliary Spool Valves, Power Beyond) |
| Front Power Takeoff, Linkage and Front Coupling | 203-218 | Front Loader (Characteristics, Electropilot, Flexpilot) |
| On-Board Computer | 219-230 | Claas Information System (Description, Operation) |
| Wheels and Tyres | 231-266 | Tyres (Recommendations, Inflation Pressure, Twin Wheels), Track Widths (Characteristics: Setting the Track, Front Track, Rear Track, Tyre Combinations) |
| Dimensions, Weights, Capacities and Ballast | 267-274 | Engine, Fuel Tank, Transmission, Linkage, Cooling System, Rigid Front Axle, Suspended Front Axle, Braking System |

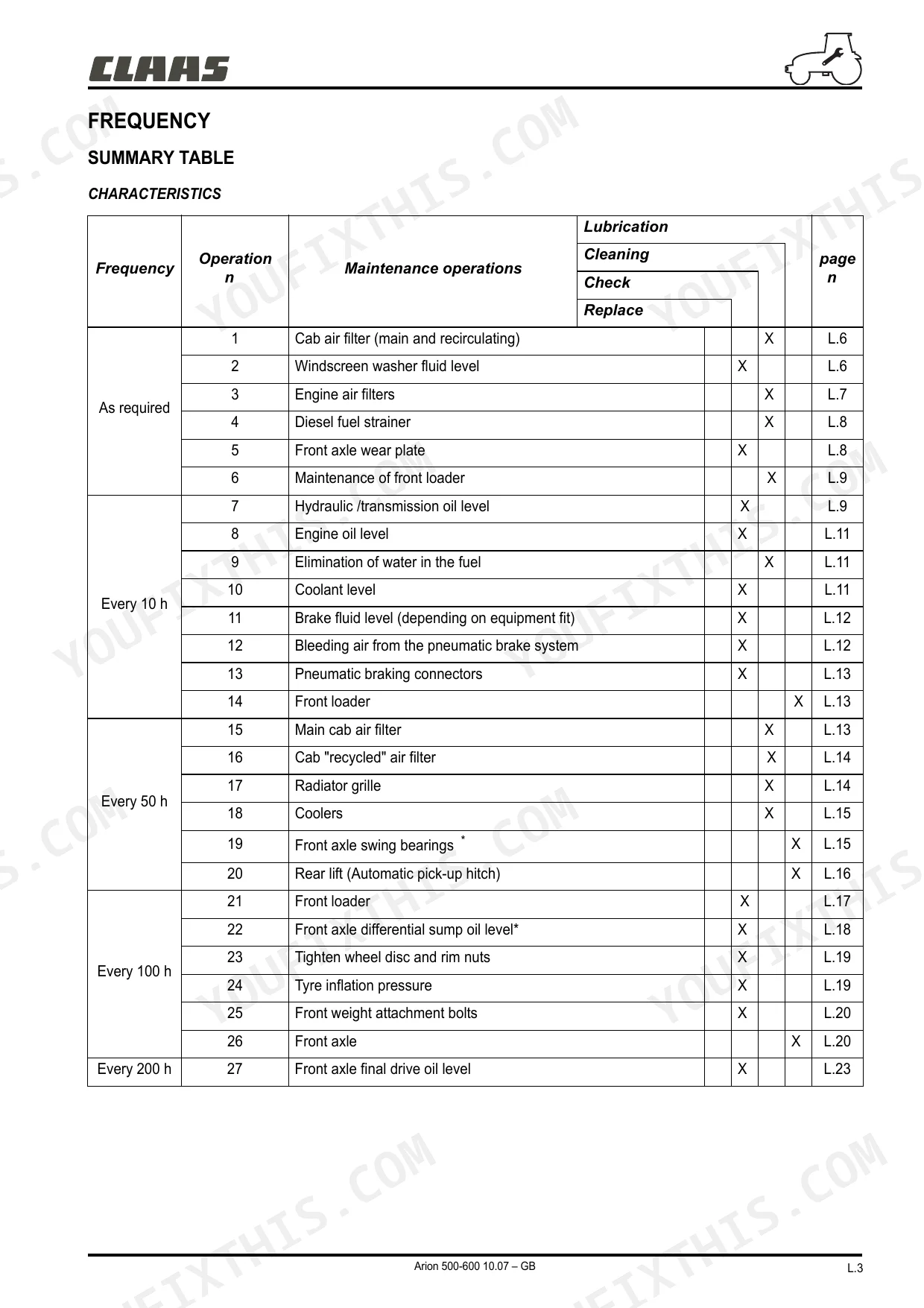

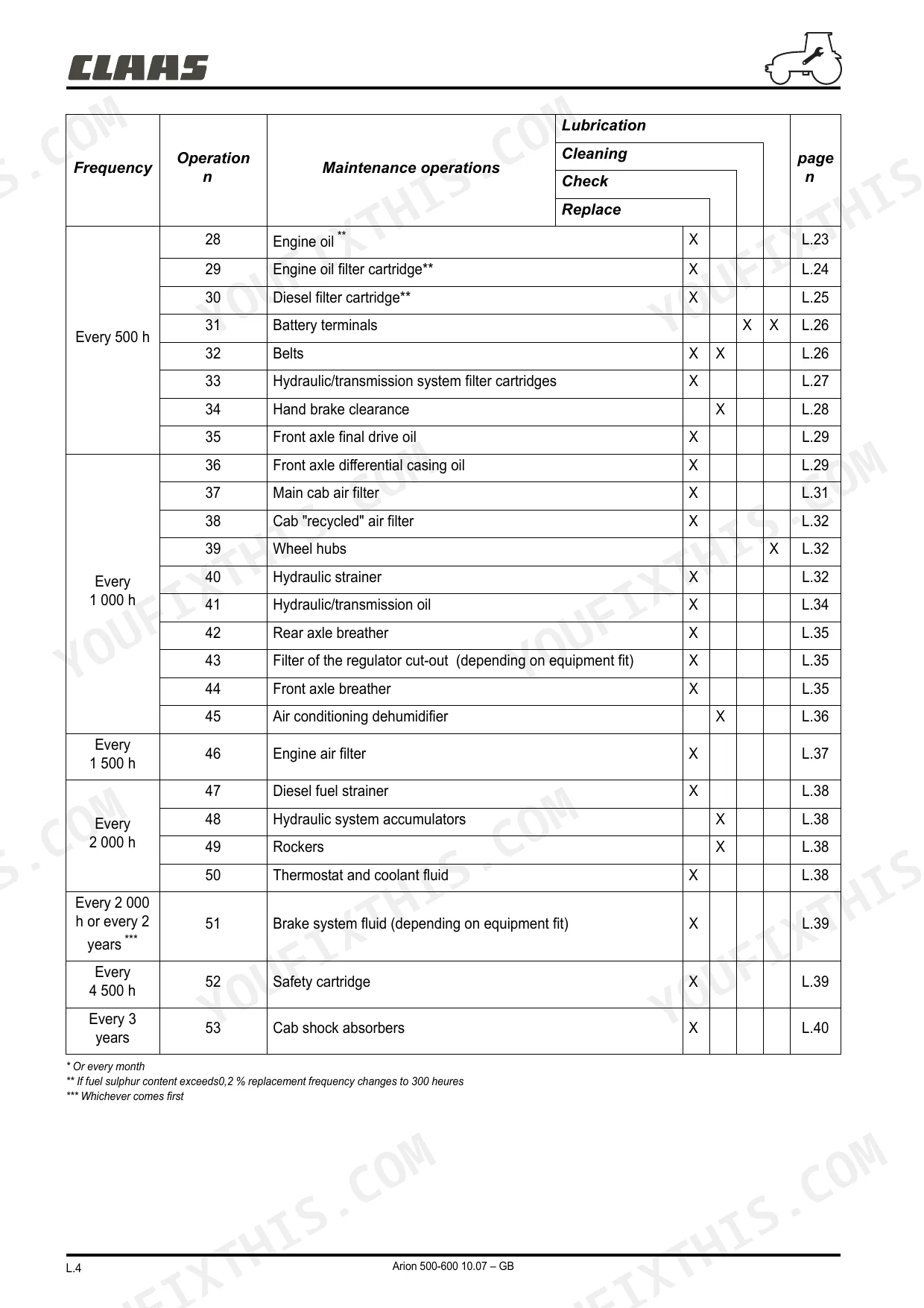

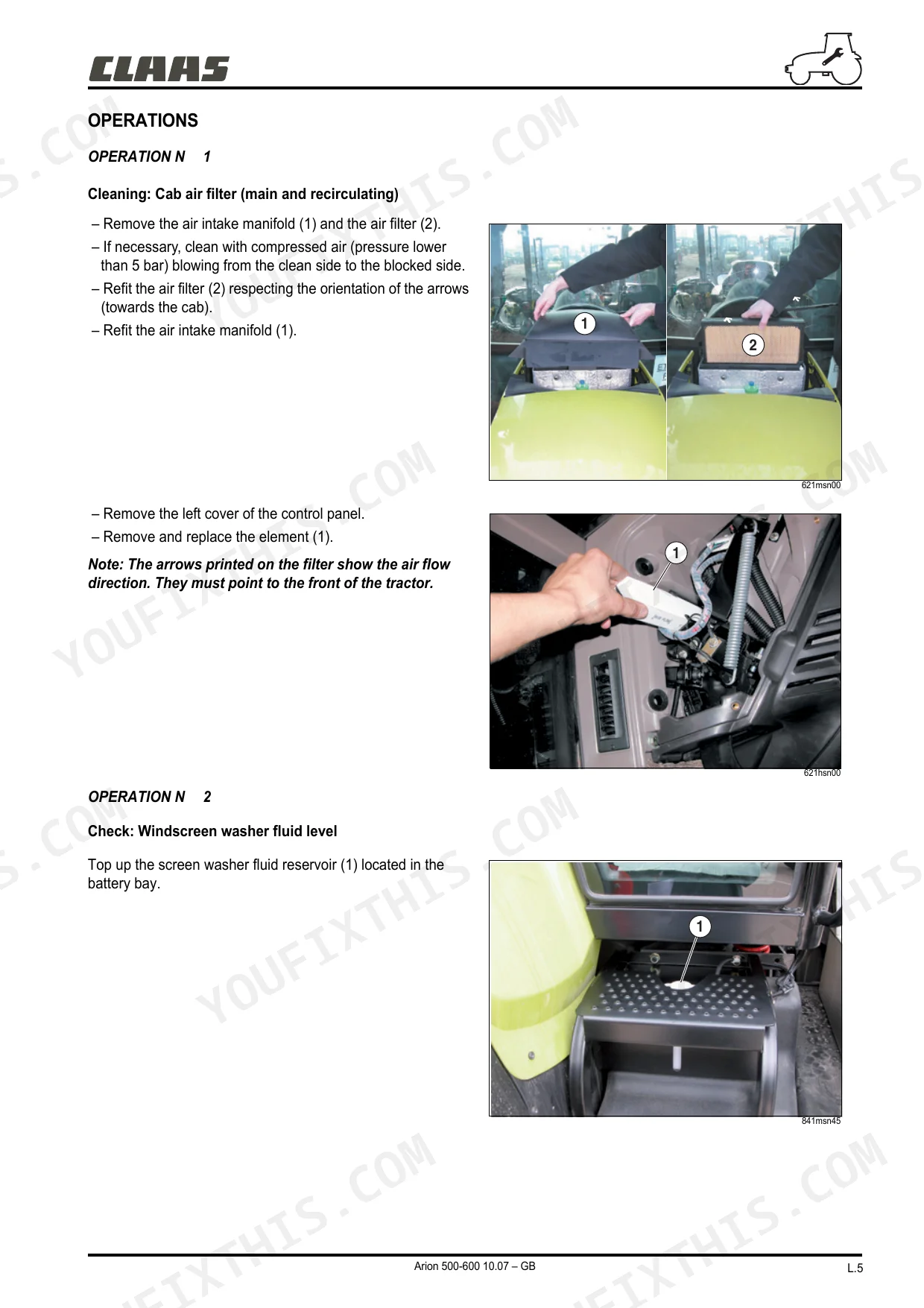

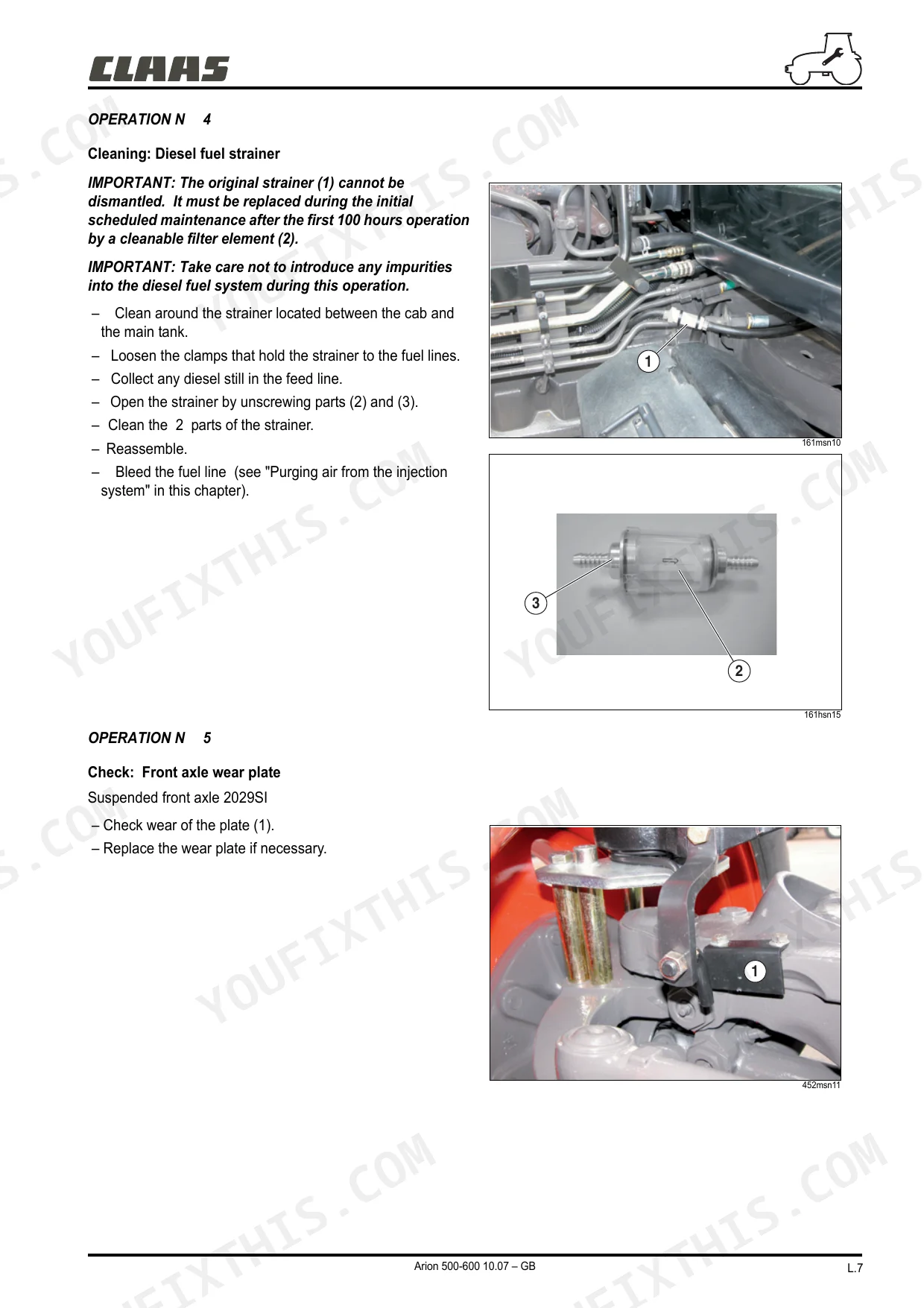

| Maintenance | 275-316 | General (Recommendations), Frequency (Summary Table, Operations), Bleeding Air From the Injection System (Description), Maintenance Logbook (Recommendations) |
| Operations That Are Mandatory Under the Guarantee | 317-324 | Operations Mandatory Under the Terms of the Contractual Guarantee (Pre-Delivery Inspection - Handing Over to the Customer, Mandatory Routine Maintenance, Mandatory Inspections) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Headlights (dipped/main beam) power | 55 W | p. 42 |
| Direction indicators power | 21 W | p. 42 |
| Electric cabinet supply socket voltage and current | 12 V - 25 A maximum before ignition and 5 A maximum after ignition | p. 73 |
| Cooler cleaning compressed air maximum pressure | 5 bar | p. 288 |
| Engine Idle Speed | 850 ± 10 rpm | p. 88 |
| Arion 510, 520, 530, 540, 610, 620 | ||
| Maximum linkage capacity | 6 500 kg | p. 169 |
| Arion 510 | ||
| Linkage lift capability at the swivel joints | 6 350 kg | p. 169 |
| Arion 510, 520, 530, 540 | ||
| Engine Sump Capacity (4 cylinders) | 10 L - 12.5 L | p. 271 |
| Arion 610, 620, 630, 640 | ||
| Engine Sump Capacity (6 cylinders) | 15.5 L - 18.5 L | p. 271 |
| Arion 500 | ||
| Fuel Tank Capacity (Principal) | 210 L | p. 271 |
| Cooling System Capacity | 17.5 L | p. 271 |
| Arion 600 | ||
| Fuel Tank Capacity (Principal) | 280 L | p. 271 |
Claas Arion 510–540, 610–640 Common Problems This Manual Covers
Claas Arion 630 throws warning triangle and error codes on the display, tractor stops until restarted
Note the code before you cut power. Check the engine mechanical protection tables on page 91 to see whether the tractor has dropped into degraded mode, then confirm the transmission is in neutral using the fault information. Verify battery and cab wiring terminals are clean and dry, and check that anything plugged into the cabinet supply socket stays under the 25 A limit listed on page 73.
Manual Section: Mechanical Protection (Engine) p. 91Red stop lamp and alarm on the instrument panel during fieldwork
Shut the engine down before anything else. Check the primary alarm descriptions on page 56 to identify which circuit tripped: engine oil pressure, brake fluid level, hydraulic pressure, or transmission oil temperature. Top up engine oil to the sump capacity on page 271 (10 L to 12.5 L on a four cylinder) and let the transmission cool before restarting.
Manual Section: Primary Alarms (Instrument Panel) p. 56Coolant level keeps dropping and the engine runs hot pulling a loaded baler
Let it cool, then check the radiator, coolant pump, and hose clamps for wet residue. Refill to the capacity listed on page 271: 17.5 L on a 500 series, 21.5 L on a 600 series. Blow chaff out of the cooler pack with compressed air, keeping the pressure at or below the 5 bar limit on page 288.
Manual Section: Mechanical Protection (Engine) p. 91Remote hydraulics and rear linkage respond erratically or quit working mid pass
Check the secondary alarm list on page 58 for the hydraulic circuit clogging indicator, which usually points at a restricted filter. Inspect each spool valve solenoid connector for moisture and green corrosion on the pins. Confirm the implement weight stays inside the 6 500 kg maximum linkage capacity on page 169 before blaming the valve block.

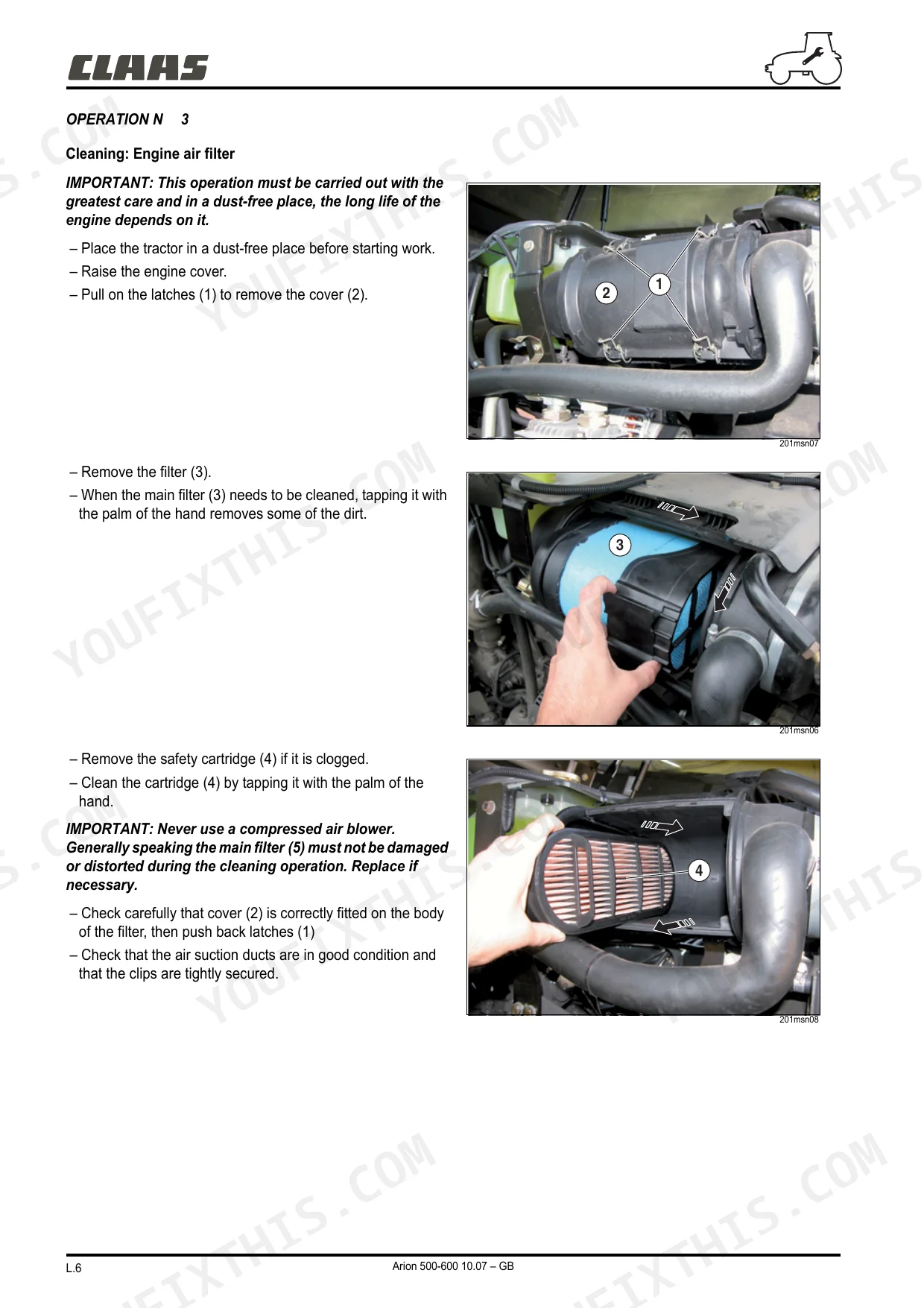

Manual Section: Secondary Alarms (Instrument Panel) p. 58Engine loses power and enters derate, or air filter warning appears on the panel
Check the secondary alarm description on page 58 to confirm the air filter clogging indicator. Remove and inspect the element, then clean the cooler and intake screens with compressed air at 5 bar maximum as stated on page 288. Verify idle settles at 850 plus or minus 10 rpm per page 88 before you go back to the field.
Manual Section: Mechanical Protection (Engine) p. 91Work lights, beacon, or horn dead even though fuses and the switch test good
Check the lighting information on page 42 and confirm the bulb rating matches: 55 W for working lights and beacon, 21 W for indicators, 5 W for sidelights. Verify accessories drawing from the cabinet socket stay under the 5 A after ignition limit on page 73.
Manual Section: Driving Position p. 42Frequently Asked Questions
How do I reset the maintenance counter for 500 hours?
To reset the 500-hour maintenance counter, navigate to the Maintenance menu on the on-board computer. Select the maintenance counter resetting 500 h option (6) and hold the button for 2 seconds to validate the reset. p. 228
What is the engine oil capacity for the 4-cylinder ARION 500 series?
The engine oil capacity for the 4-cylinder engine models is between 10 L (minimum) and 12.5 L (maximum). p. 271
What is the tightening torque for M 14 bolts on the front loader of a Claas Arion 510-640?
The tightening torque for M 14 bolts on the front loader depends on the hardware class. For class 8.8, it is 114 N.m; for class 10.9, it is 160 N.m; and for class 12.9, it is 193 N.m. p. 290
How do I bleed air from the fuel injection system?
To bleed the injection system, loosen the bleed screw (1) on the final filter head and activate the feed pump priming lever (2) until all air is eliminated, then retighten the screw. p. 314
What is the recommended coolant for the ARION 500 and 600 series?
The recommended coolant for both the ARION 500 and 600 series is CLAAS RX-Cool type D, which provides protection down to -37°C. p. 271
Is this Claas Arion 510 Operator Manual a digital download?
Straight to your device: 324 pages of searchable Operator Manual, downloadable the moment payment goes through.
Can I print just the pages I need from this Claas Arion 510 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
