Rebuilding a worn transmission or rear axle without hauling the tractor to the dealer is what the 232 pages of this Cub Cadet 7530, 7532 service manual PDF (publication SVC7500C) buy you. Transmission and rear axle work fills the largest share, from the power train and differential lock to the brakes, and the front axle chapter covers steering and toe-in adjustment. Hydraulic schematics trace the control valve and lift case circuits behind your three-point hitch, and wiring diagrams follow the start switch, relays, combination switch, and fuel gauge. Fill the manual transmission with 29 L (7.7 gal) of oil, or 32 L (8.5 gal) on HST units, and bring M20 4T bolts to 147 to 167 N·m. One missing number can stall a half-built axle for days. Bookmarked, searchable, and printable, the pages can go to the bench, take the grease, and keep you headed for the field.
What's Inside This Cub Cadet 7530, 7532 Manual

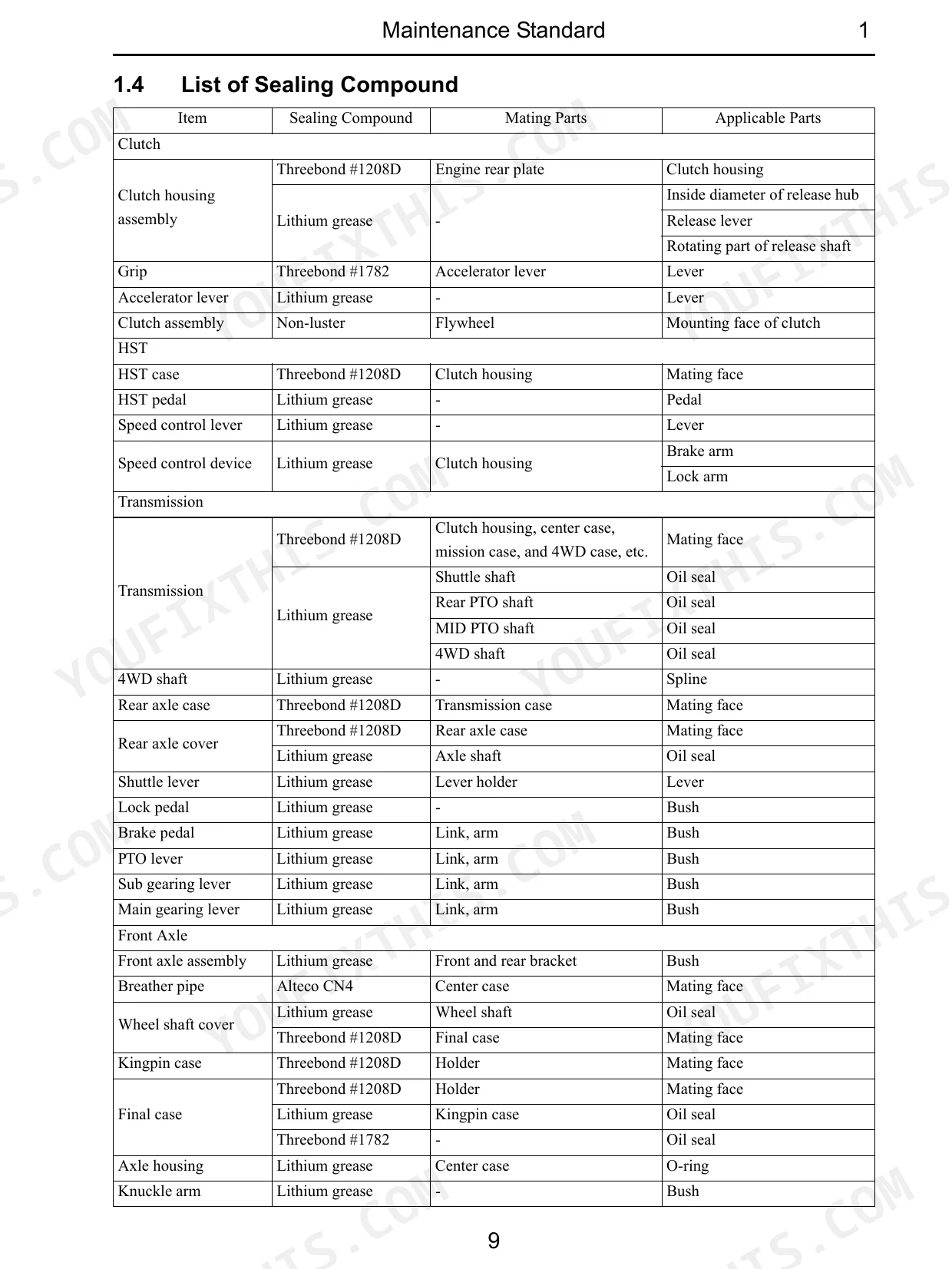

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-19 | Cautionary Items for Safety, Meanings of Warning, Caution, And Reference, Spare Parts, Usage of This Manual, Cautions for Safety and Sanitation, Standard Maintenance |
| Cautionary Items at Operation | 20-23 | Disassembly, Removal, Reassembly, Installation, Electrical Equipment, Electrical Wiring |
| Tetrahedral Sketch Drawing | 24 | Vehicle Frame Dimension, Full Length, Full Width |
| Dimension | 25-26 | Mounting Dimension, Farm Working Machine, Axle Mounting Dimension, Three-Point Link, Lift Rod, Top Link |
| Name of Each Part | 27-29 | Engine Control Lever, Steering Wheel, Meter Panel, Brake Pedal, HST Pedal, PTO Lever |

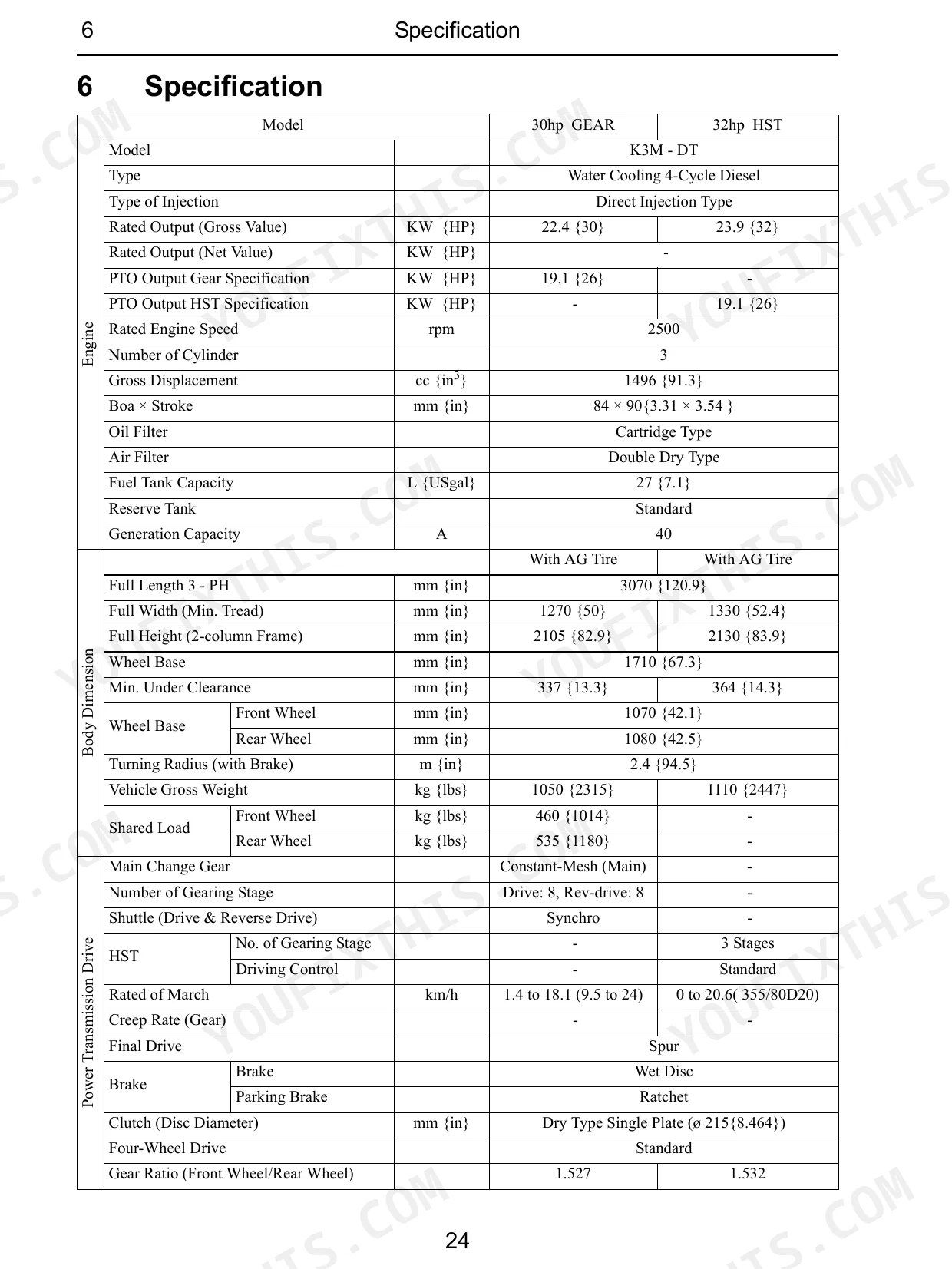

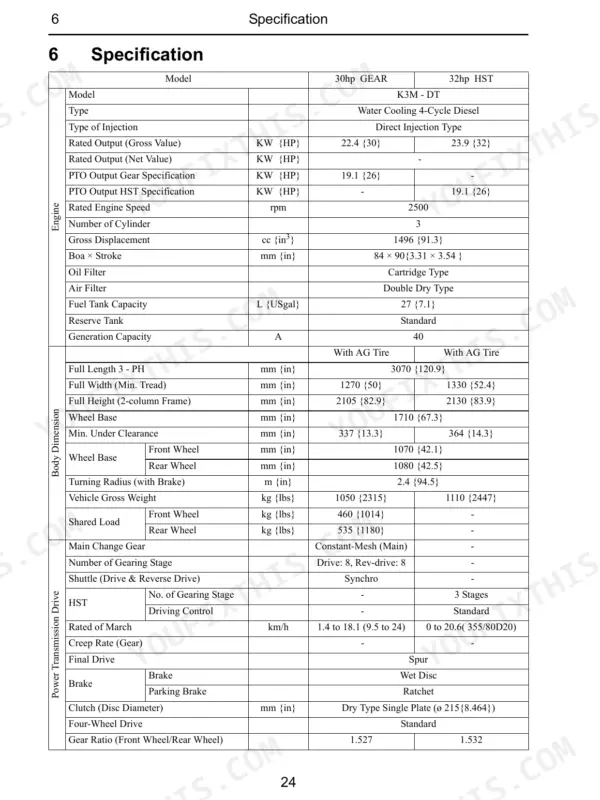

| Specification | 30-32 | Engine Model, Rated Output, Gross Displacement, Body Dimension, Power Transmission Drive, Hydraulic System |
| Outline | 33 | Engine Model, Engine Serial Number, Chassis Serial Number |

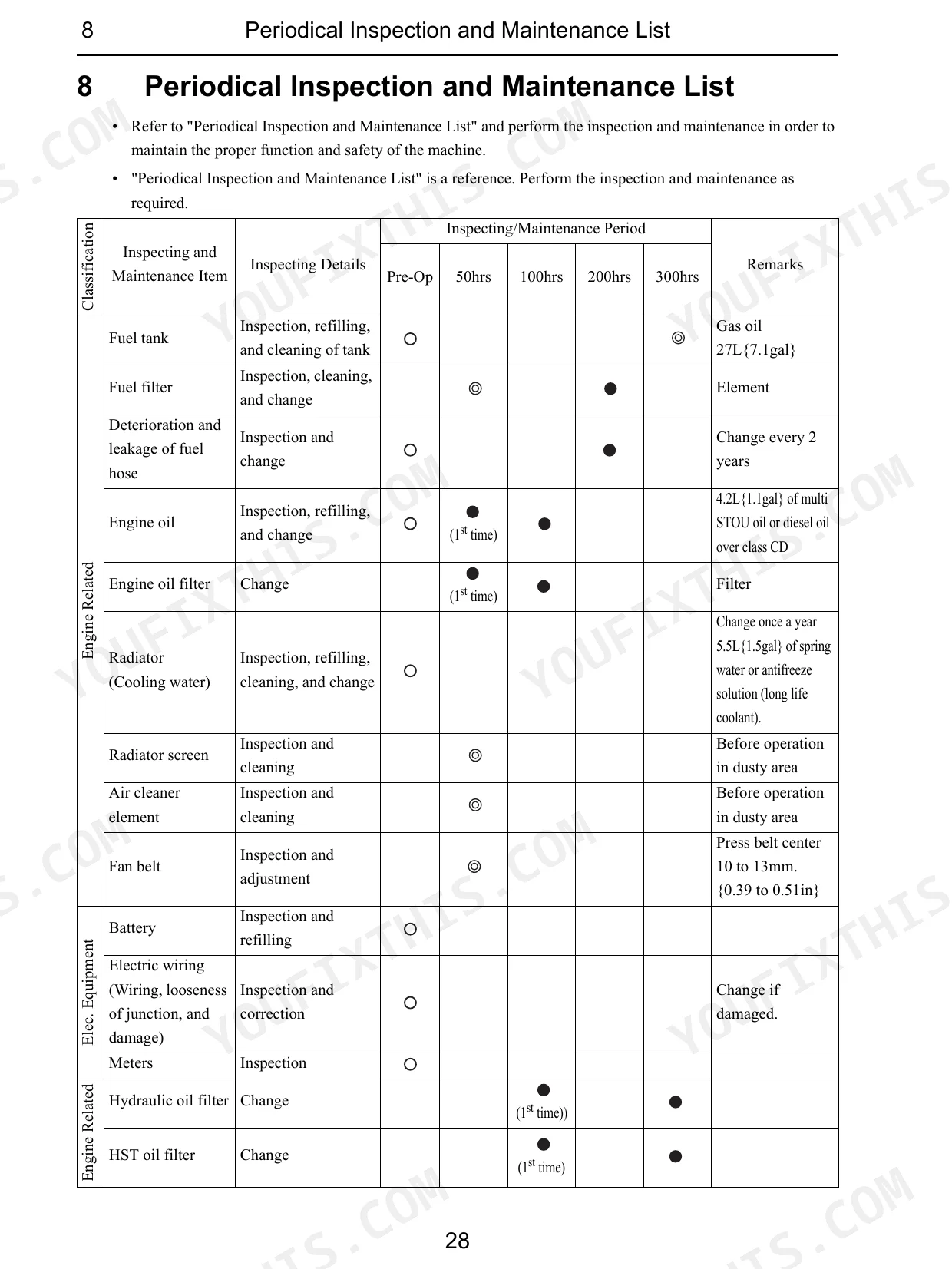

| Periodical Inspection and Maintenance List | 34-35 | Fuel Tank, Fuel Filter, Engine Oil, Radiator, Air Cleaner, Battery, Transmission Oil |
| Refueling, Lubrication, and Water/Oil Supply List | 36 | Lubrication Points |

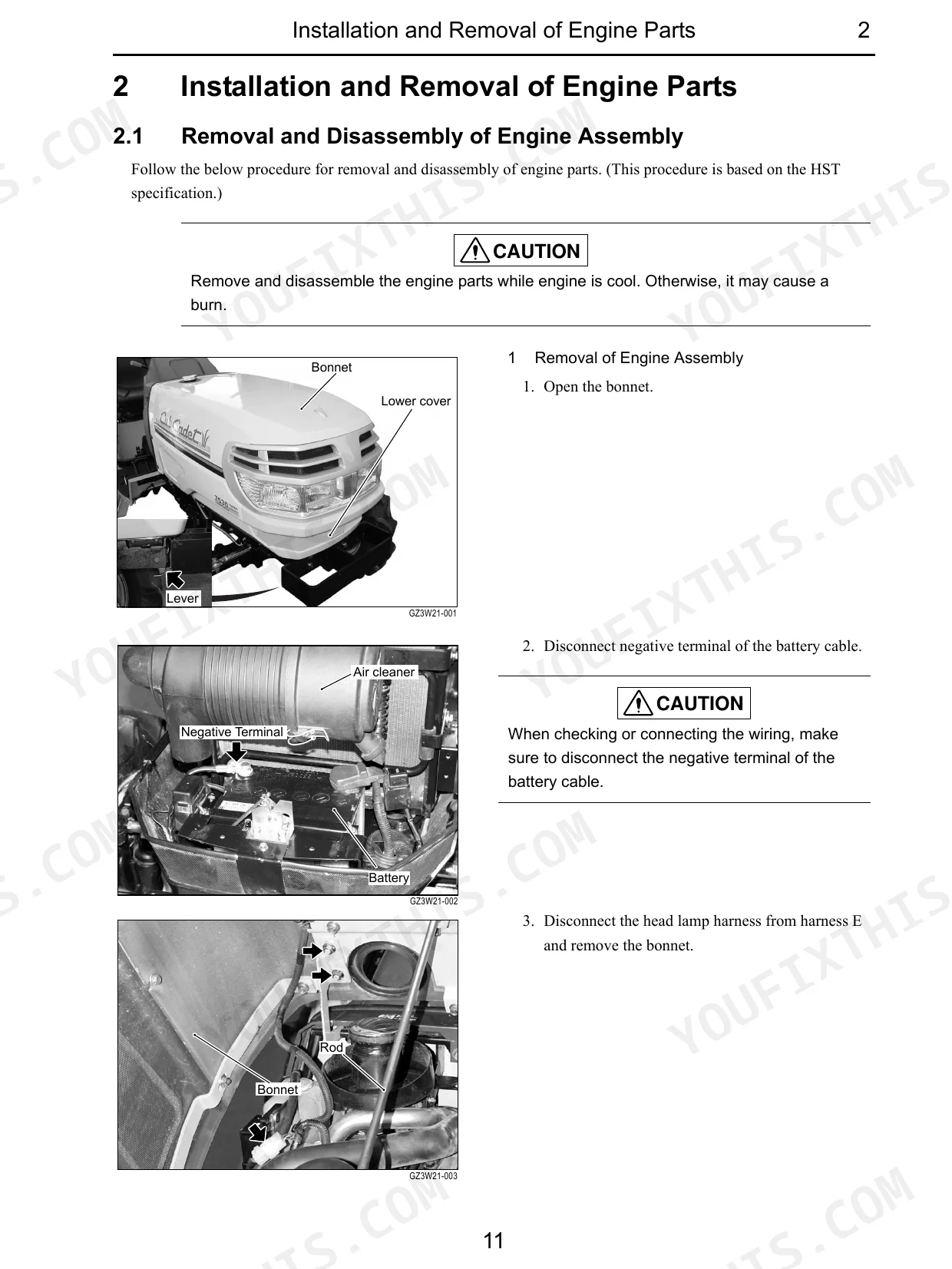

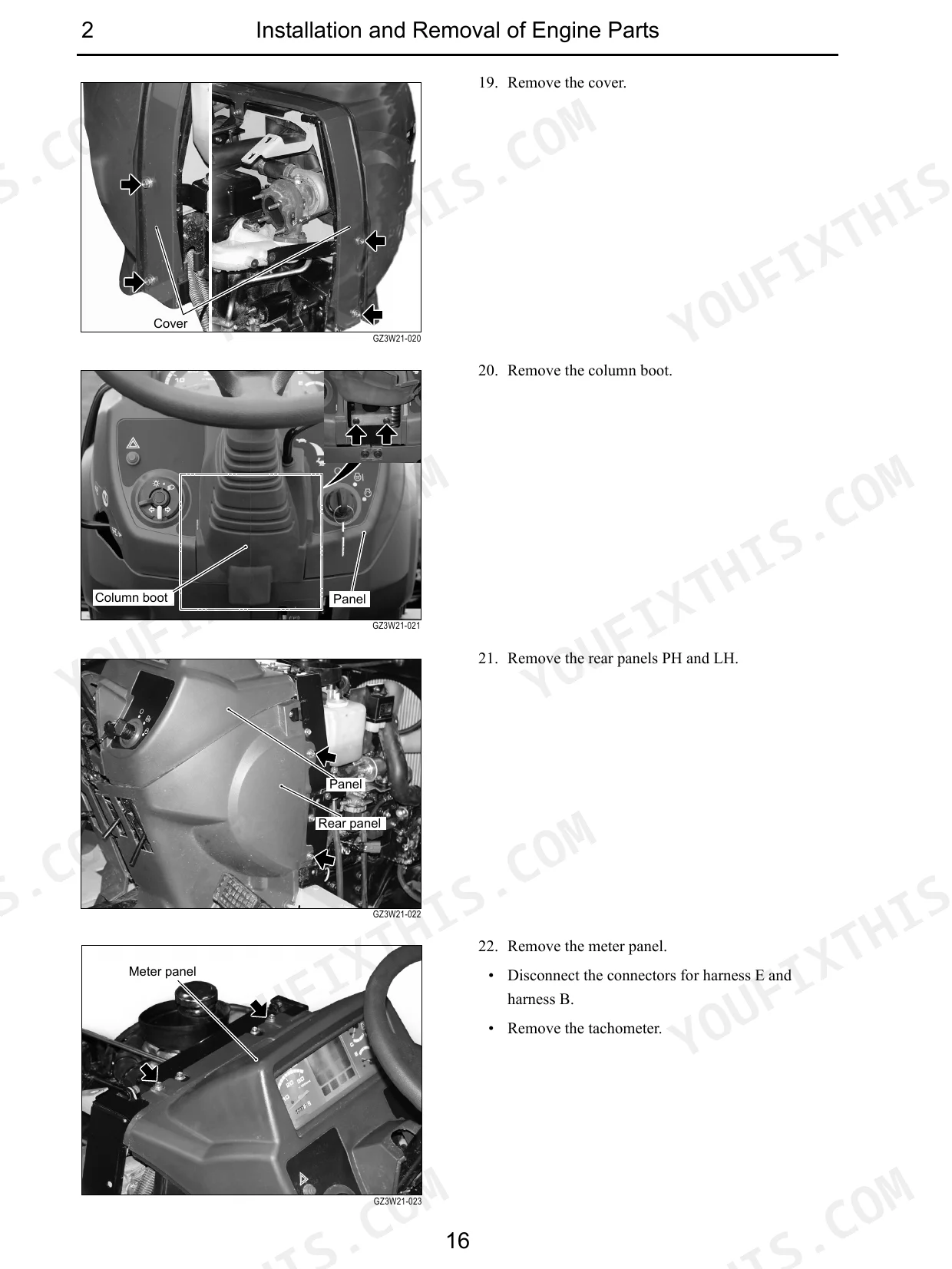

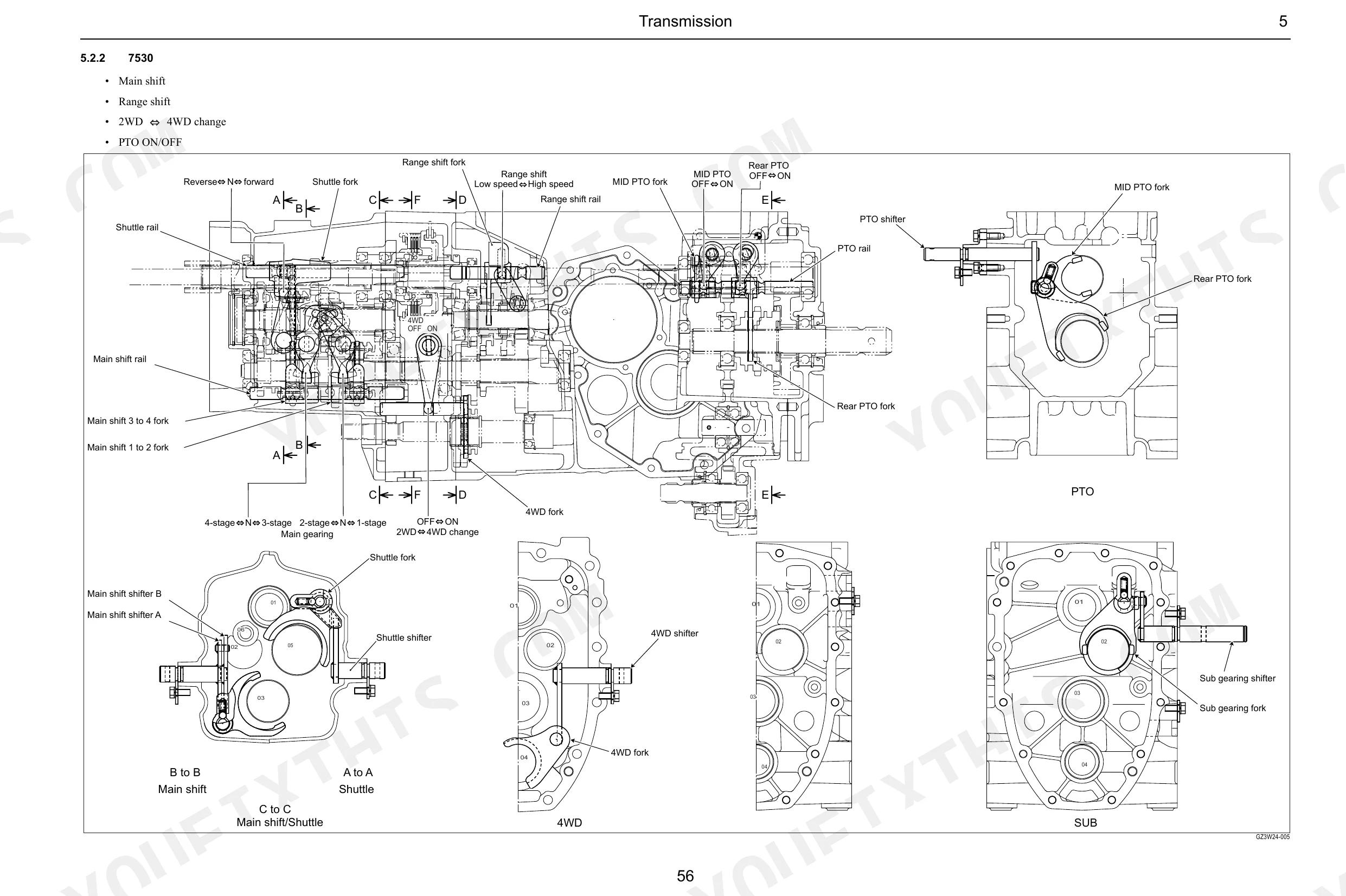

| Chassis Maintenance and Engine Parts | 37-67 | Maintenance Standards, Engine Assembly Removal, Clutch Structure, HST Control |
| Transmission and Rear Axle Systems | 68-136 | Transmission Power Train, Rear Axle Structure, Differential Lock, Brake System |
| Front Axle and Steering Systems | 137-164 | Front Axle Structure, Steering Unit, Hydraulic Cylinder, Toe-In Adjustment |
| Troubleshooting and Hydraulic System | 165-206 | Running Operation Troubleshooting, Hydraulic Components, Control Valve, Hydraulic Lift Case |
| Electrical Equipment and Final Adjustments | 207-232 | Wiring Diagrams, Start Switch, Combination Switch, Fuel Gauge, Relay |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

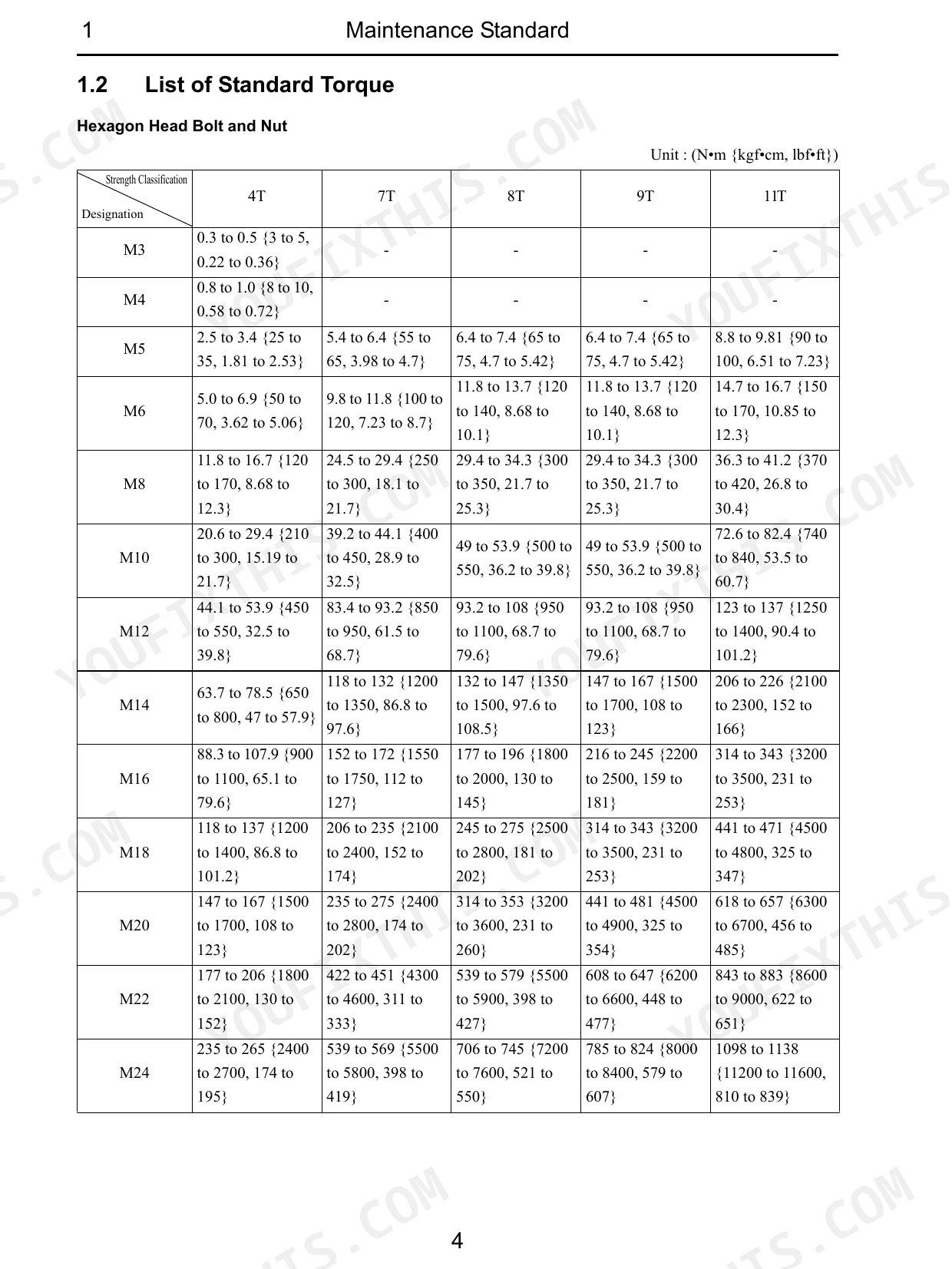

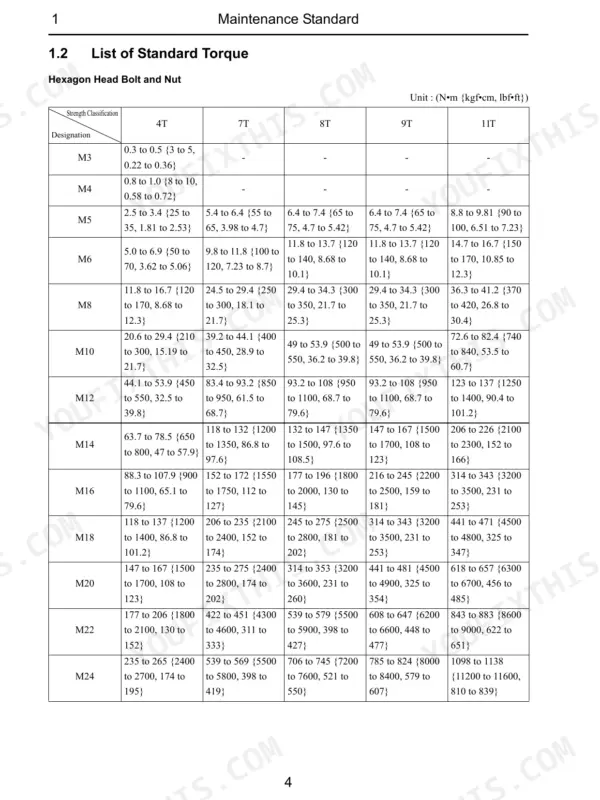

| Hexagon Head Bolt and Nut M20 (4T) | 147 to 167 N·m | p. 44 |
| Hexagon Head Bolt and Nut M22 (4T) | 177 to 206 N·m | p. 44 |
| Transmission oil capacity (Manual transmission) | 29 L {7.7 gal} | p. 55 |
| Transmission oil capacity (HST) | 32 L {8.5 gal} | p. 55 |
| Spring length in neutral | 92 mm {3.62 in} | p. 90 |
| Speed control rod length | 418 mm {16.46 in} | p. 90 |
| Engine Oil Capacity | 4.2L | p. 31 |
| Front Axle Oil Capacity | 4.0L | p. 31 |
| Fuel Tank Capacity | 27L | p. 30 |
| Low Idle Speed | 1030 ± 25rpm | p. 61 |
| 7530 | ||
| Transmission Oil Capacity (Gear) | 29L | p. 31 |
| 7532 | ||
| Transmission Oil Capacity (HST) | 32L | p. 31 |
Cub Cadet 7530, 7532 Common Problems This Manual Covers
Cub Cadet 7530 and 7532 tractor clutch slips under load with the clutch pedal fully released
Measure clutch pedal free play first and set it to 20 to 30mm using the spec on page 41. If it still slips with free play in spec, work through the clutch slippage checks in the running operation troubleshooting chart on page 165 before the weather window closes.
Manual Section: Running Operation Troubleshooting p. 165Clutch will not fully disengage when the clutch pedal is pushed all the way down
Check clutch pedal free play first against the 20 to 30mm spec on page 41 and adjust it into range. If the clutch still will not release with free play correct, follow the clutch disengagement checks in the running operation troubleshooting chart on page 165 before you hook back up to the implement.
Manual Section: Running Operation Troubleshooting p. 165Brakes weak when stopping and the brake pedal does not return fully after release
Measure brake pedal free play and set it to 35 to 45mm using the spec on page 42. Check that the pedal returns fully when released. If braking is still weak or the pedal hangs, work through the brake deficiency and pedal return checks in the running operation troubleshooting chart on page 165 before roading between fields.
Manual Section: Running Operation Troubleshooting p. 165Power steering heavy to turn and tractor drifts off line with the steering wheel held steady
Test steering pump pressure with a gauge and compare it to the 10.3MPa maximum discharge pressure listed on page 31. Low pressure sends you to the pressure issues branch of the power steering troubleshooting chart on page 165. For heavy steering or drift, follow the checks there in order instead of swapping parts on a guess.
Manual Section: Power Steering Troubleshooting p. 165Three-point hitch lift arms will not raise and the hydraulic lift fails to build pressure
Put a gauge on the circuit and check relief pressure against the 15.2MPa spec on page 31. If pressure comes up short, work through the lift pressure failure and lift arm failure checks in the hydraulic system troubleshooting chart. Inspect lines and fittings for oil leakage while the lift cycles, and fix it before the next field pass.
Manual Section: Hydraulic System TroubleshootingHydraulic system making unusual noise, relief valve noisy when lifting with the three-point hitch
Check relief pressure with a gauge against the 15.2MPa spec on page 31 before touching the valve. With the engine running, listen for where the noise comes from as the lift cycles. Then follow the unusual noise and relief valve noise checks in the hydraulic system troubleshooting chart so the tractor is ready when the field dries out.
Manual Section: Hydraulic System TroubleshootingFrequently Asked Questions
What is the torque specification for M10 8T bolts on the Cub Cadet 7530, 7532 tractor?
The torque specification for an M10 bolt with an 8T strength classification is 49 to 53.9 N•m (500 to 550 kgf•cm, 36.2 to 39.8 lbf•ft). p. 44
What is the engine oil capacity for the 7530/7532 tractor?
The engine oil capacity for the 7530/7532 tractor is 4.2 liters (1.1 gallons). p. 31
What is the correct low idle speed for the 7530/7532 engine?
The correct low idle speed for the 7530/7532 engine is 1030 ± 25 rpm. p. 61
What is the specified clutch pedal free play on the Cub Cadet 7530, 7532 tractor?
The specified free play for the clutch pedal is 20 to 30 mm (0.79 to 1.18 in). p. 41
What torque should I use to tighten the hydraulic filter when installing it on a Cub Cadet 7530, 7532 tractor?
When installing the hydraulic filter, tighten it with a torque of 14.7 to 19.6 N•m (150 to 200 kgf•cm, 10.85 to 14.5 lbf•ft). p. 85
What exactly do I receive with this Cub Cadet 7530 Service Manual?
Straight to your device: 232 pages of searchable Service Manual, downloadable the moment payment goes through.
Can I print just the pages I need from this Cub Cadet 7530 manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
