Eighteen compact tractors in the Cub Cadet 7000 series, from the 7192 through the 7305, share this one factory book: the Cub Cadet 7305 service manual PDF, 324 pages under OEM number 772-4207. Both engine families get their own full sections, the 19 through 30 hp block and the 20 and 26 hp block, with removal, cylinder head, and timing gear work written out for each. The power line chapter runs nearly a third of the book, tearing single and dual clutches and the PTO down to bare parts, with hydraulic lift procedures and wiring schematics closing out the rear. Set PTO clutch adjusting bolt clearance to 0.9 to 1.00 mm, and torque the starter solenoid locknut to 40 to 50 Nm. Guess a clutch spec wrong and you split the tractor twice. Bookmarked, text-searchable, and yours for good after one download; the weather sets your deadline, this book keeps it.
What's Inside This Cub Cadet 7192–7305 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 1-15 | Safety, General Information, Standard Bolt Torques |

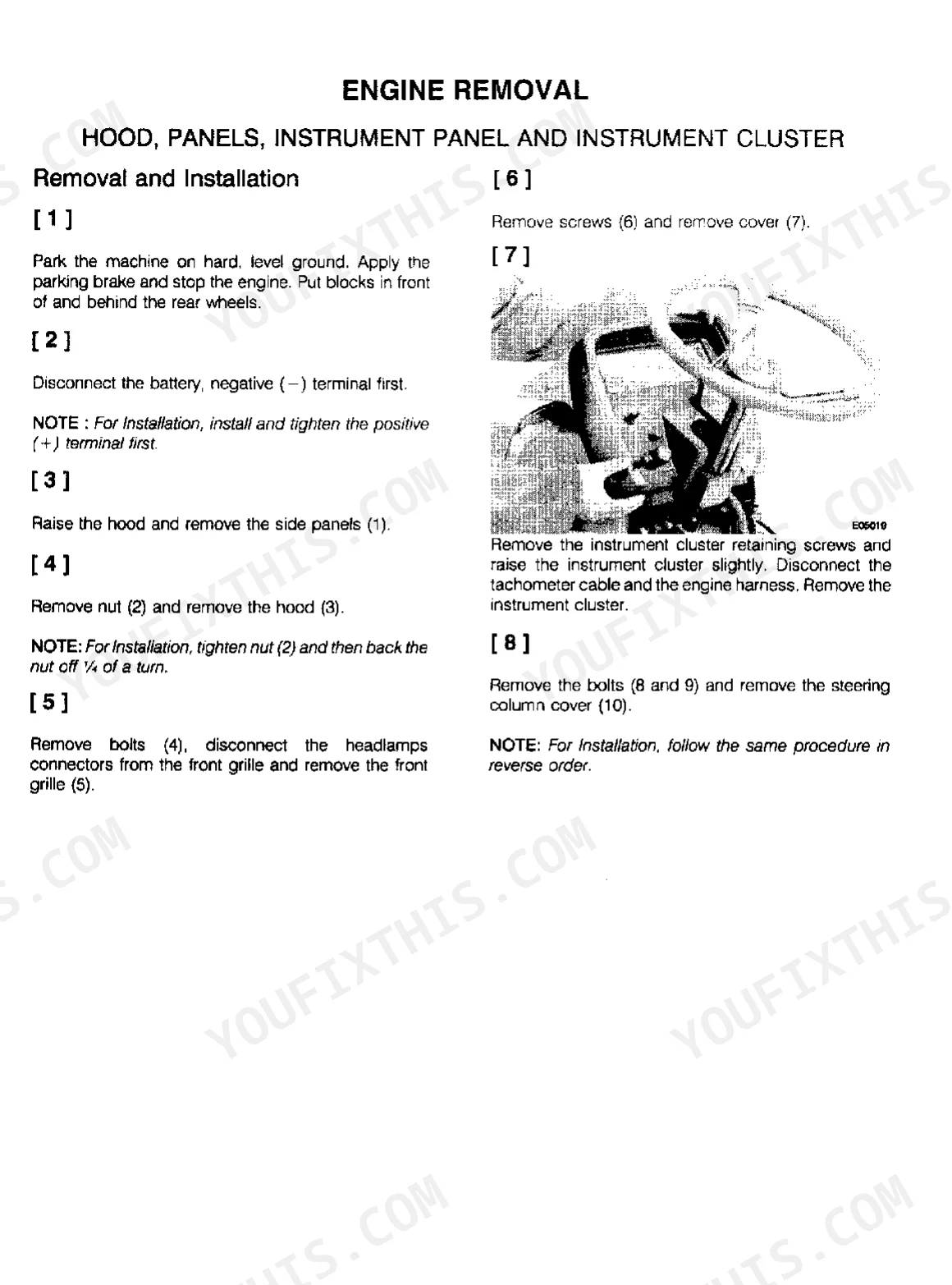

| Engine 19, 23, 27, 30 HP | 16-68 | General Engine Specifications, Engine Removal, Cylinder Head |
| Engine 20, 26 HP | 69-137 | General Engine Specifications, Cylinder Head and Valve Mechanism, Timing Gears and Flywheel |
| Power Line | 138-232 | Clutch Specifications, Single Clutch, Dual Clutch |
| Hydraulics | 233-257 | Hydraulic Lift Specifications, Hydraulic Lift Housing, Hitch Control Valve |
| Front Axle and Steering | 258-268 | Steering Specifications, Front Axle Removal, Steering Hand Pump |
| Electronics | 269-289 | Electrical Specifications, Battery Maintenance, Starter Motor |
| Sheet Metals, Fuel Tank & ROPS | 290-297 | Hood and Instrument Cluster, Fender and Platform, Fuel Tank |
| Adjustments | 298-307 | Clutch Pedal Adjustment, Brake Pedal Adjustment, Hand and Foot Throttle |
| Schematics | 308-324 | Hydraulic System Specifications, Hydraulic Component Locations, Wiring Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Single clutch plate diameter | 200 mm (7.87 inch) | p. 8 |
| Dual clutch plate diameter | 215 mm (8.46 inch) | p. 8 |
| Solenoid Locknut | 40 to 50 Nm | p. 14 |
| PTO Clutch Adjusting Bolt Clearance | 0.9 to 1.00 mm (0.035 to 0.039 inch) | p. 139 |
| swivel housing drain plug torque | 12 to 17 Nm (9 to 12.5 lb ft) | p. 211 |
| front wheel bolt torque | 83 to 93 Nm (61 to 69 lb ft) | p. 212 |
| Starter Motor Mounting Bolts | 49 to 59 Nm (35 to 44 lb ft) | p. 270 |
| Starter motor retaining bolts torque | 49 to 59 Nm (36 to 44 lb ft) | p. 277 |
| Distance (A) Rear P.T.O. Lever | 36 mm (1.41 inch) | p. 308 |
| 719* | ||
| Engine oil capacity with filter change (719*) | 3.5 litres | p. 7 |
| 723* | ||
| Engine oil capacity with filter change (723*) | 3.5 litres | p. 7 |
| 727* | ||
| Engine oil capacity with filter change (727*) | 4.7 litres | p. 7 |
Cub Cadet 7192–7305 Common Problems This Manual Covers
Cub Cadet 7305 three-point hitch won't lift until the front loader control is bumped or cycled
Check main hydraulic pump flow and relief pressure before pulling the hitch apart. Verify the main relief valve holds 147.1 bar, the setting listed on page 309. Inspect the loader valve's power-beyond and return plumbing for a blocked or reversed line starving the hitch control valve, and bleed trapped air after any hose swap.
Manual Section: Hydraulics p. 233Clutch slips under load in high range, engine revs up but ground speed falls off
Adjust clutch pedal free play first, then split the tractor if slip continues. Measure friction plate wear and replace plates at the 0.3 mm (0.012 inch) wear limit shown on page 143. Check plates for warp and heat bluing, inspect the throwout bearing, and torque the clutch cover retaining bolts to 25 to 29 Nm on reassembly.
Manual Section: Power Line p. 138Rear PTO clutch wears out early or drags, shaft keeps turning with the lever disengaged
Adjust before you condemn the clutch. Set the PTO clutch adjusting bolt clearance to 0.9 to 1.00 mm (0.035 to 0.039 inch) per page 139, then check the rear PTO linkage: lever distance should measure 36 mm and the rod 279 mm, shown on page 308. Replace the clutch pack only if drag continues after adjustment.
Manual Section: Power Line p. 139Engine cranks slowly or the starter just clicks once, worse on cold mornings before chores
Clean and tighten the battery cables and the ground strap at the frame first; most no-crank complaints live there. Test the starter solenoid with a jumper wire and load-test the battery before buying parts. If you pull the starter, torque the mounting bolts to 49 to 59 Nm on reinstall, page 270, and trace the circuit on the wiring diagram, page 323.
Manual Section: Electronics p. 269Front tire keeps losing air, rim bent or rusted at the bead seat under loader work
Inspect the bead seat for dents and rust before blaming the tire; wire-brush light corrosion, but replace a bent rim rather than hammering it back. Check front wheel bolt torque at every service. The special torques table on page 14 lists 118 to 132 Nm; the front axle procedure on page 212 calls for 83 to 93 Nm (61 to 69 lb ft), so match the figure to the axle your tractor carries. Add rear ballast so heavy loader cycles stop pounding the front axle between now and harvest.
Manual Section: Front Axle and Steering p. 258Frequently Asked Questions
What are the torque specifications for the connecting rod nuts on the Cub Cadet 7192 tractor?
For the Cub Cadet 7192 tractor, the connecting rod nuts should be tightened to a torque of 31 to 34 Nm (23 to 25 lb ft). p. 14
What are the replacement specifications for the PTO clutch on a Cub Cadet 7192-7305 compact tractor?
The PTO clutch adjusting bolt clearance should be 0.9 to 1.00 mm (0.035 to 0.039 inch). The clutch release finger height is 97.8 to 99.2 mm (3.85 to 3.9 inch), and the clutch friction plate thickness should be 1.3 to 1.9 mm (0.05 to 0.07 inch). p. 139
What is the engine oil capacity for the Cub Cadet 719 tractor?
The engine oil capacity for the 719 model with a filter change is 3.5 litres (3.7 US Quarts). p. 7
What is the correct valve clearance for the engine in a Cub Cadet 7192–7305 compact tractor?
The valve clearance for the engine when cold is 0.25 mm (0.0098 inch). p. 17
What is the torque spec for the M12 cylinder head retaining bolts on the Cub Cadet 7192-7305 compact tractor?
The cylinder head retaining bolts (M12) for the 719 model should be tightened to a torque of 98 to 108 Nm (72 to 80 lb ft). p. 14
How quickly can I access this Cub Cadet 7192 manual after buying?
One searchable PDF covering 324 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Are there any print restrictions on this Cub Cadet 7192 manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
