Need the official factory reference for your 880 Implematic? This David Brown 880 Implematic operator manual PDF (OEM #TP609, 82 pages) covers the Livedrive and Non-Livedrive variants: 880 Implematic Livedrive, VAD 2E, VAD 2F, and the 3-cylinder Diesel Engine tractor. Inside: a complete Implematic system section guiding you through hitch controls, draft settings, and linkage adjustment, plus engine startup sequences, differential lock operation, and correct tyre pressures for field and road. You also get a full maintenance schedule with greasing chart, recommended lubricants, and fluid capacities for the transmission, hydraulic system, rear axle, and steering box. Clutch free-play must not drop below 0.5 in. (12 mm), and the power lift hydraulic system tops out at 2000 lb/in² (140 kg/cm²). No more chasing specs through old forum threads. Bookmarked by section; pull it up on your phone right at the tractor and get moving.
What's Inside This David Brown 880 Implematic Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Precautions with a New Tractor | 4-6 | Break-In Period Requirements, Initial Running-In Procedures, First Service Interval, Engine Run-In Precautions |

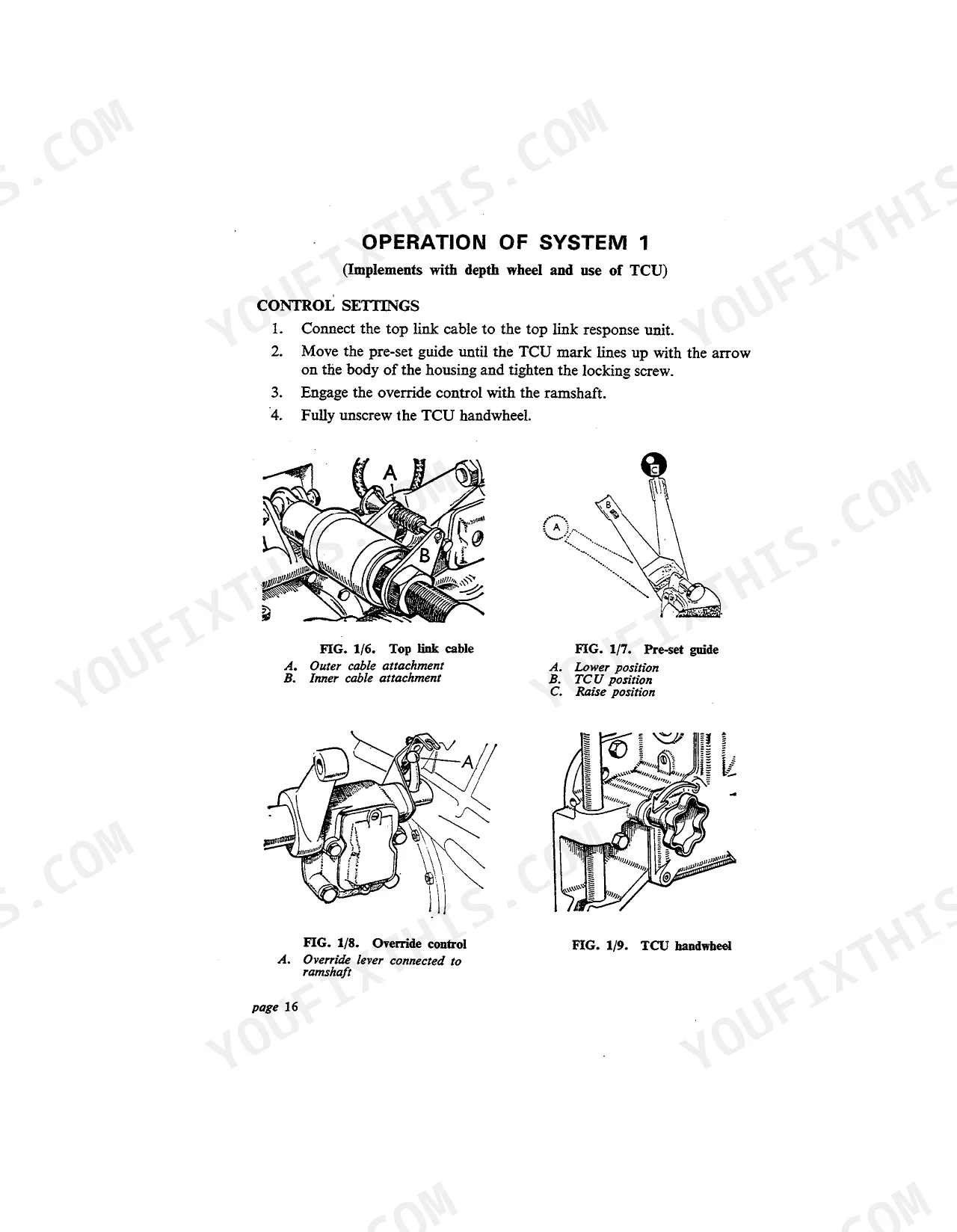

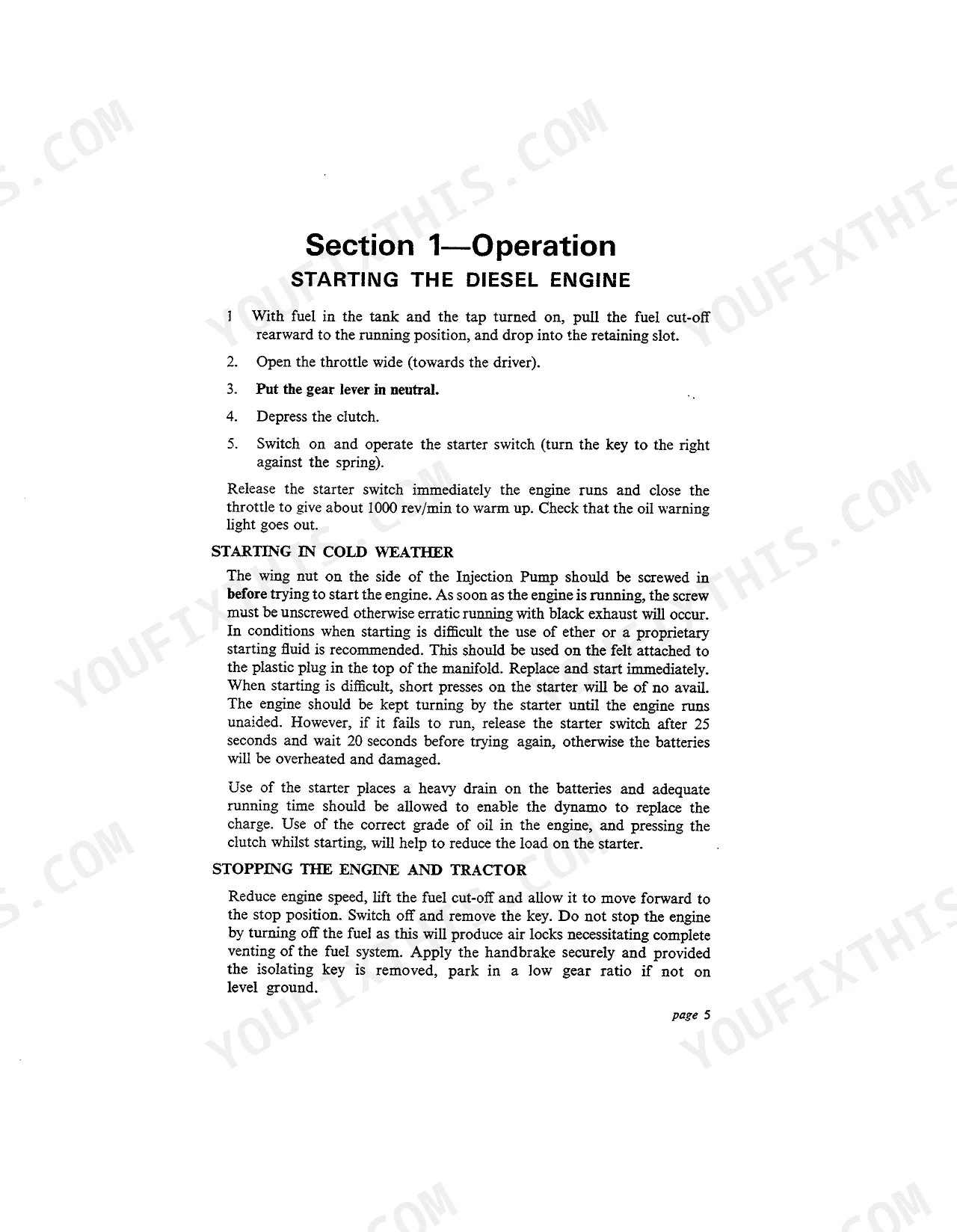

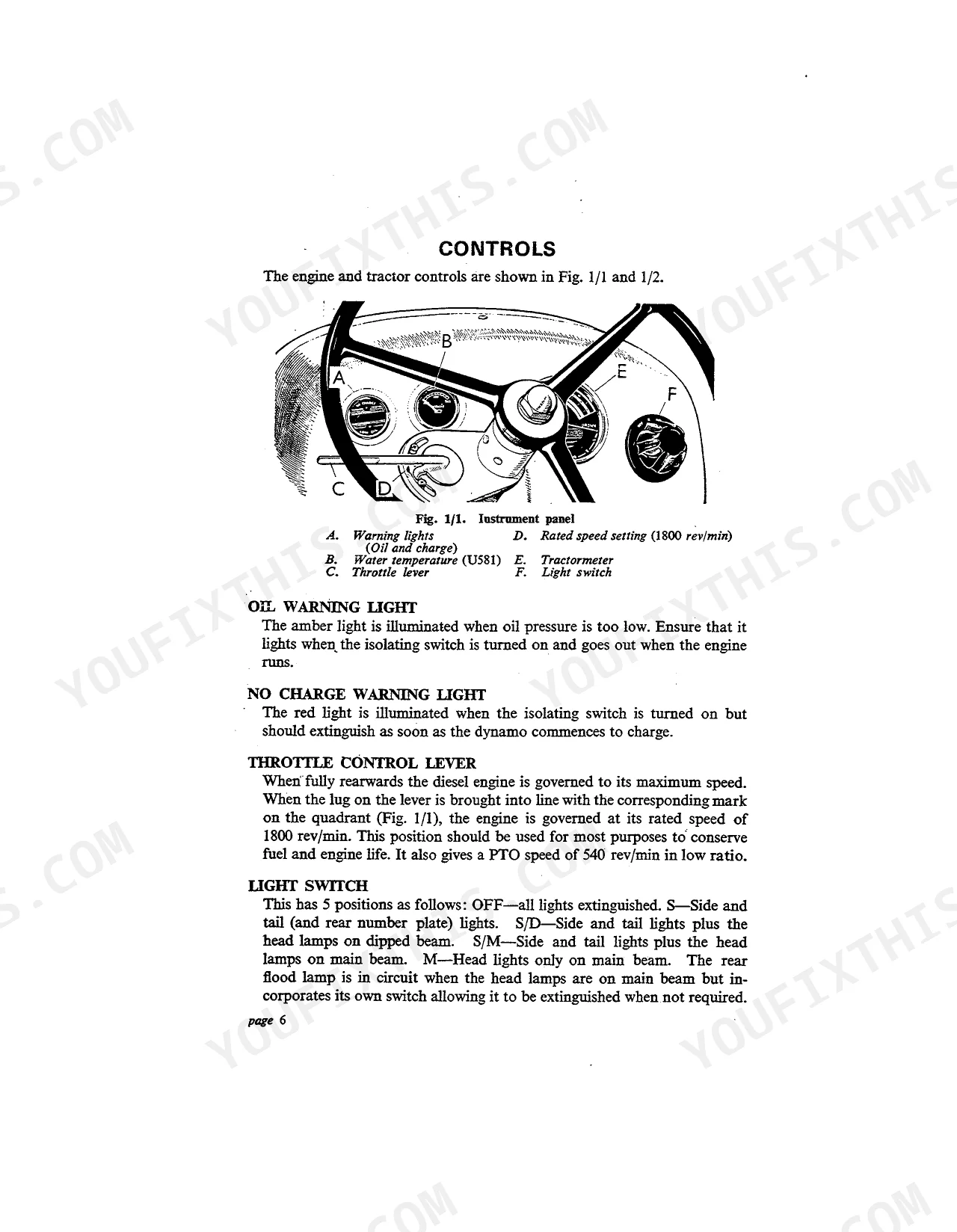

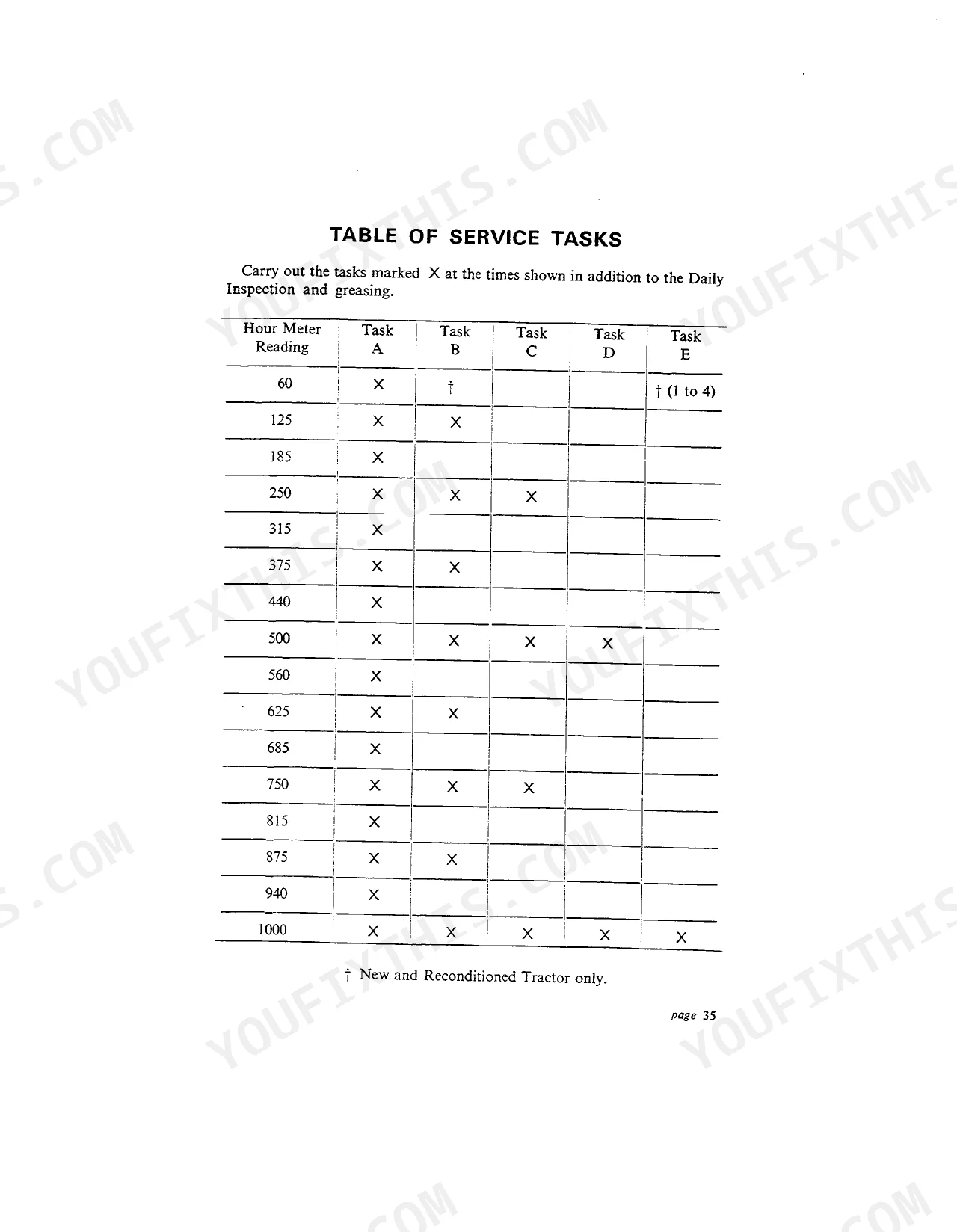

| Operation | 7-35 | Starting the Engine, Controls, Implematic Controls, Operation of the Implematic System, Differential Lock, Track Settings, Tyre Pressures, Linkage Settings |
| Regular Maintenance | 36-45 | Greasing Chart, Recommended Lubricants |
| Service Information | 46-65 | Oil, Fuel, Brakes, Clutch, Transmission, Wiring |

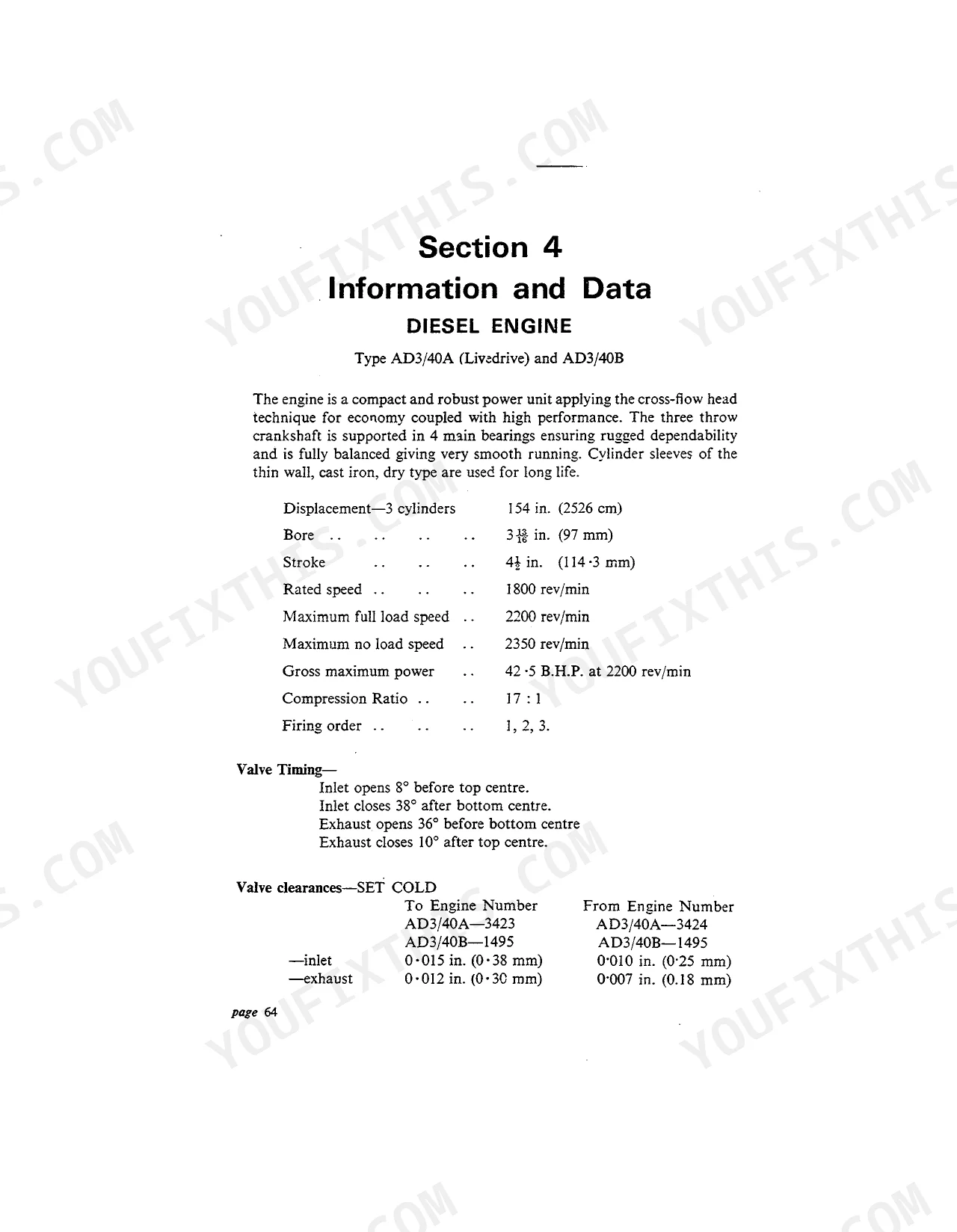

| Information and Data | 66-82 | Capacities, Optional Equipment and Accessories, Allied Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Recommended hydraulic oil type (British Isles) | Energol Tractor Gear Oil 50 | p. 44 |
| Power lift hydraulic system maximum pressure | 2000 lb/in² (140 kg/cm²) | p. 70 |
| Clutch free-play (minimum) | 0.5 in. (12 mm) | p. 49 |
| Clutch pedal free movement (bolt A adjustment) | 1 in. to 1.25 in. (2.5 to 3.2 cm) | p. 49 |
| Hydraulic pump delivery | 5 gal/min (22.7 litres/min) | p. 70 |
| Hydraulic pump maximum pressure | 2000 lb/in² (140 kg/cm²) | p. 70 |
| Maximum lift at end of links | 1800 lb (816 kg) | p. 70 |

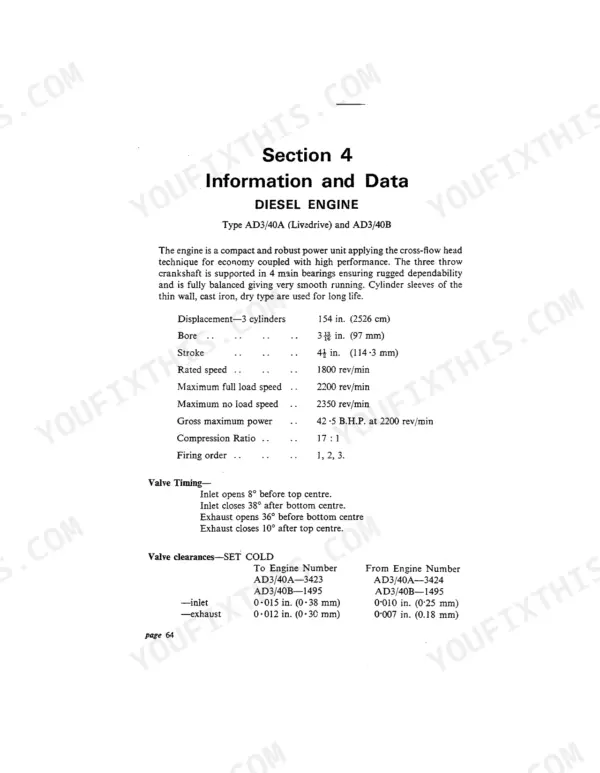

| Engine Displacement | 154 in.³ (2526 cm³) | p. 66 |
| Engine Lubricating Oil Capacity | 11 pints (6.25 litres) | p. 69 |
| Maximum Lift (links) | 1800 lb (816 kg) | p. 70 |
| Injector Pressure Setting | 175 atmospheres (180 kg/cm²) | p. 67 |
David Brown 880 Implematic Common Problems This Manual Covers
David Brown 880 Implematic tractor lifts weakly or fails to lift hydraulic implements
Drain the contaminated fluid and refill with Energol Tractor Gear Oil 50 as listed on page 44. Inspect the gear lever gators for tears allowing water ingress. Verify the maximum lift capacity at the end of the links reaches 1800 lb (816 kg) on page 70.
Manual Section: Regular Maintenance p. 44Tractor drives in some gears but not others or selects gears without driving
Check the clutch free-play regularly to ensure it does not fall below 0.5 in. (12 mm). Adjust bolt A on page 49 to give 1 in. to 1.25 in. (2.5 to 3.2 cm) of free movement on the clutch pedal to restore proper gear engagement.
Manual Section: Clutch Issues (P.T.O./Belt Pulley Disengagement) p. 49Hydraulic pump in transmission not pumping fluid or supplying adequate system pressure
Test the hydraulic pump output to confirm it delivers 5 gal/min (22.7 litres/min) at 1800 rev/min engine speed. Verify the system reaches a maximum pressure of 2000 lb/in² (140 kg/cm²) according to page 70. Flush the system to remove dirt specks sticking the valves.
Manual Section: Information and Data p. 70Engine runs erratically and delivers poor power during cold weather starting and operation
Inspect and clean the fuel injectors if you experience erratic running. Set the injector pressure to 175 atmospheres (180 kg/cm²) as specified on page 67. Verify the engine lubricating oil is filled to the 11 pints (6.25 litres) capacity shown on page 69.
Manual Section: Injector Cleaning and Reconditioning p. 67Frequently Asked Questions
What are torque specs for David Brown 880 Implematic head gasket?
The torque specification for tightening the cylinder head is 90 lb ft (12.5 kg m). After tightening, the valve clearances should be checked. The sequence for tightening the cylinder head is shown in Fig. 3/8 on page 50. p. 50
How quickly can I access this David Brown 880 Implematic, 880 Implematic?
You get a 82-page searchable PDF (3 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this David Brown 880 Implematic, 880 Implematic Livedrive, 880 Implematic?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this David Brown 880 Implematic?
A wiring diagram for the David Brown 880 Implematic, 880 Implematic Livedrive, 880 Implematic Tractor (3-cylinder), VAD 2E Livedrive, VAD 2F Non-Livedrive, 3-cylinder Diesel Engine electrical system is included.
