Common rail work is the hardest part of any TCD 2012 2V engine rebuild, and it fills the largest share of this 387-page Deutz TCD 2012 2V workshop manual PDF (OEM 0312 1977 en): supply pump, control block, high-pressure pump, rail and injectors, plus the oil cooler. From there the job cards widen to the cylinder head and valve guides, crankshaft, con rods, pistons, piston cooling nozzles, gearcase, camshaft, governor and turbocharger, each cross-referenced alphabetically and numerically so you land on the right card. Testing and setting data, tightening specifications, and the special tools this service manual calls for (dial gauge, rotation angle disc, turning gear) round it out. With the injector seated tension-free, its clamping shoe takes 16 +5 Nm; rocker arm brackets go down at 30 Nm. Nothing stalls reassembly like a head half torqued and one figure missing. The bookmarked PDF prints cleanly, so your clearance and torque pages can sit on the bench beside the engine and take the oil.
What's Inside This Deutz TCD 2012 2V Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 7-9 | Engine Description, Maintenance, Care, Operating Faults, Spare Parts |
| Technical Data | 16-37 | Testing and Setting Data, Tightening Specifications |
| Job Card Overview | 38-56 | Sorted Alphabetically, Sorted Numerically, Job Card References |

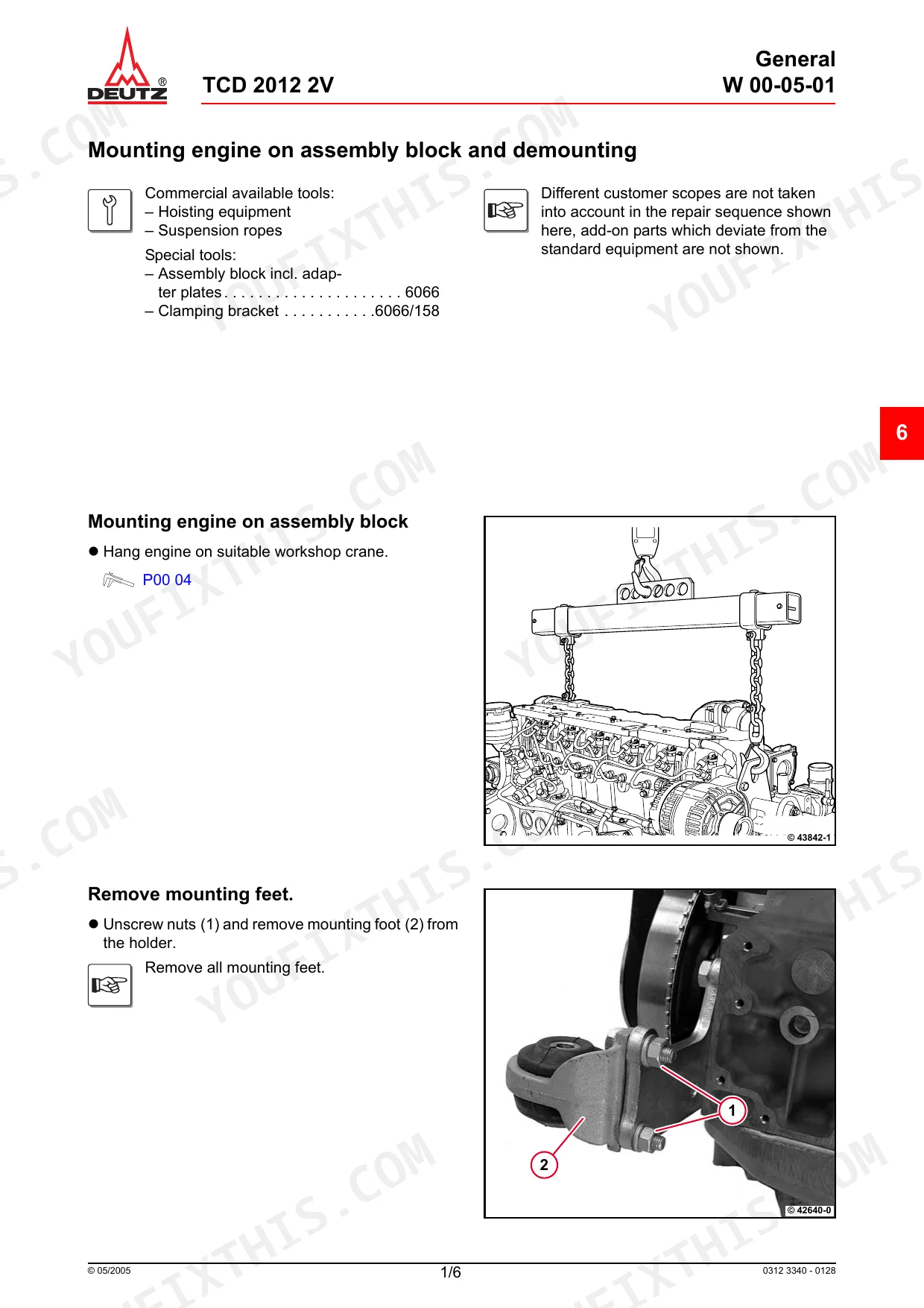

| General Job Cards | 57-68 | Compression Pressure, Engine Mounting |
| Cylinder Head Job Cards | 69-126 | Valve Clearance, Rocker Arm, Cylinder Head Removal, Valve Guide, Valve Lag |
| Drive System Job Cards | 127-178 | Crankshaft, Con Rod, Piston, Piston Cooling Nozzles |
| Crankcase Job Cards | 179-198 | Crankcase Bleeding, Cylinder Checking, Front Cover, Connection Housing |
| Engine Control Job Cards | 199-216 | Gearcase, Camshaft |
| Speed Control Job Cards | 217-222 | Speed Governor, Impulse Transmitter |
| Exhaust System and Charging Job Cards | 223-244 | Exhaust Manifold, Turbocharger, Charge Air Line, Exhaust Return Module |
| Fuel and Lube Oil System Job Cards | 245-368 | Fuel Filter, Fuel Supply Pump, Control Block, High-Pressure Pump, Rail, Injector, Oil Suction Pipe, Oil Cooler |
| Commercial Tools | 369-375 | Pressure Pump, Compression Pressure Tester, Assembly Pliers, Socket Wrench Insert, V-Belt Tension Meter, Rotation Angle Disc |
| Special Tools | 376-387 | Connection Piece, Turning Gear, Dial Gauge, Digital Gauge, Measuring Apparatus, Assembly Case |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rocker arm bracket on cylinder head | 30 Nm | p. 30 |
| Inlet valve clearance adjustment | 75° | p. 72 |
| Outlet valve clearance adjustment | 120° | p. 74 |
| Clamping shoe injector on cylinder head | 16 +5 Nm | p. 17 |
| Fuel line on fuel filter | 39 Nm | p. 32 |
| Fuel supply pump on holder | 22 +2/-2 Nm | p. 17 |
| Holder fuel supply pump on holder | 30 Nm | p. 32 |

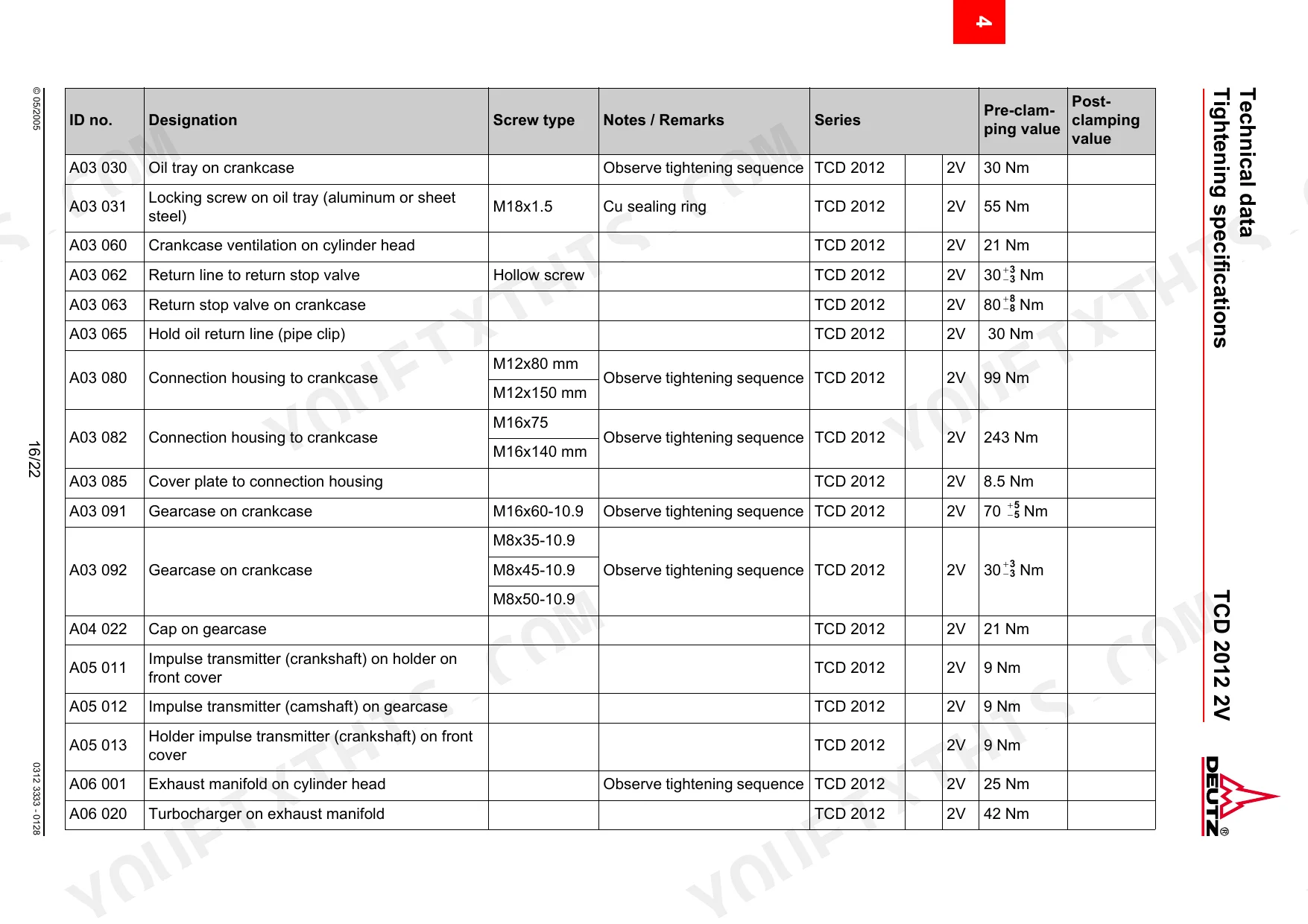

| Impulse transmitter (crankshaft) on holder on front cover | 9 Nm | p. 31 |
| Pipe clip, fastening wiring harness | 30 Nm | p. 35 |
| Lube oil line on turbocharger/crankcase | 39 Nm | p. 33 |
| Pipe union (oil return) on turbocharger | 20 Nm | p. 33 |
| Starter on gearcase cover | 70 Nm | p. 35 |
Deutz TCD 2012 2V Common Problems This Manual Covers
Deutz TCD 2012 2V compression test showing cylinder pressure below the 30 to 38 bar range

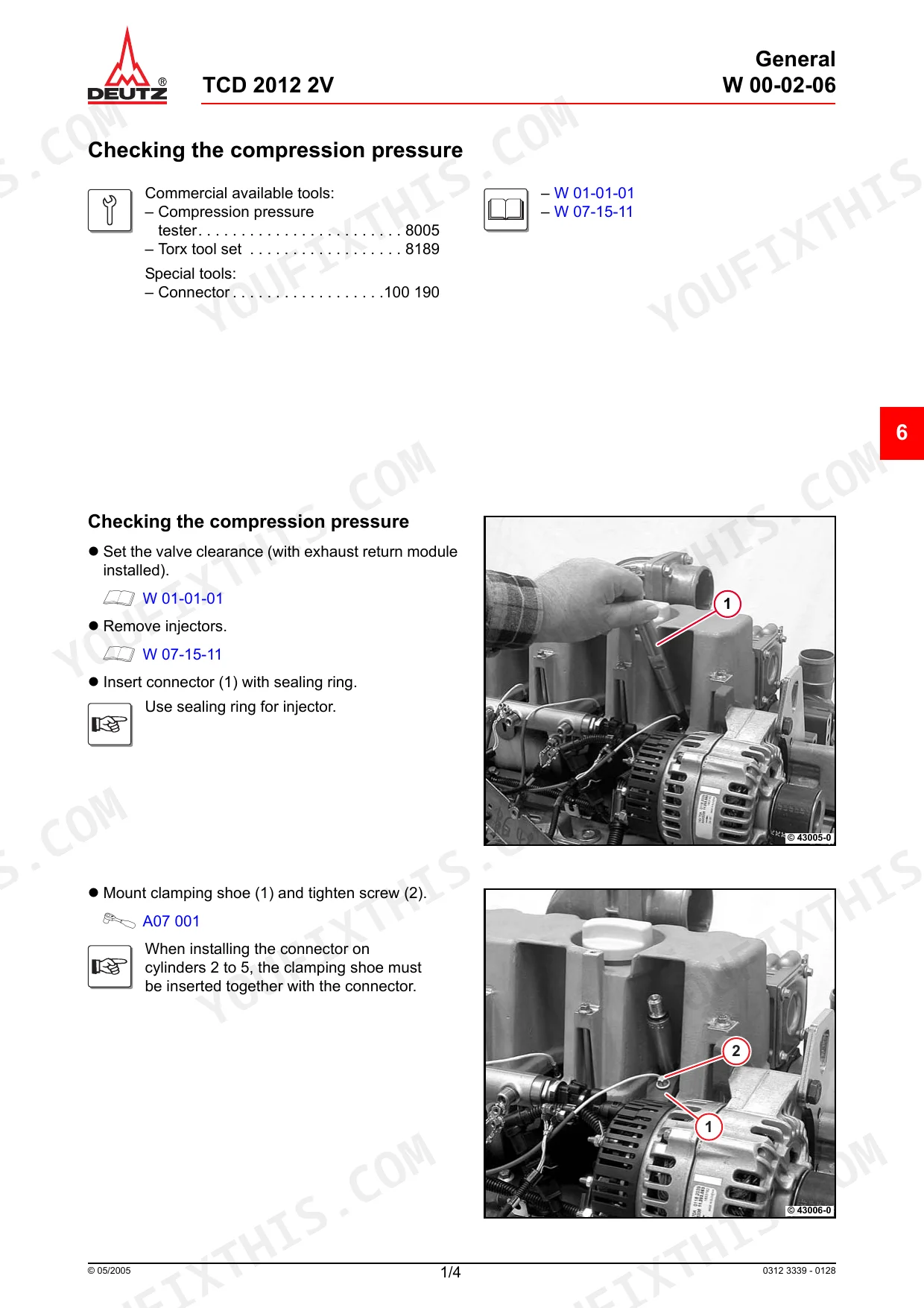

Measure compression pressure on each cylinder with the compression pressure tester following the job card on page 59. Compare every reading against the 30 to 38 bar spec on page 18. If a cylinder reads low, recheck valve clearance on that cylinder before you commit to pulling the cylinder head.
Manual Section: Checking the compression pressure p. 59After rocker arm bracket removal and installation, inlet and outlet valve lash out of adjustment
Verify the rocker arm sits symmetrical to the valve center axles and torque the bracket to 30 Nm per page 30. Set lash: on inlet valves turn the setting screw back in by 75° (page 72); on outlet valves turn it back 120° (page 74). Page 76 lists 144° for the outlet, so confirm which step applies before locking it.
Manual Section: Setting the valve clearance p. 69Turbocharger lube oil line and oil return pipe union leaking at the turbocharger connections
Torque the lube oil line hollow screw on the turbocharger and crankcase to 39 Nm per page 33. Torque the oil return pipe union on the turbocharger to 20 Nm, then the pipe clips and the oil return retainer clip on the crankcase to 20 Nm as well. Inspect both lines at every clip point before you refit them.
Manual Section: Technical Data p. 33Injector clamping shoe loose or injector seated under tension in the cylinder head

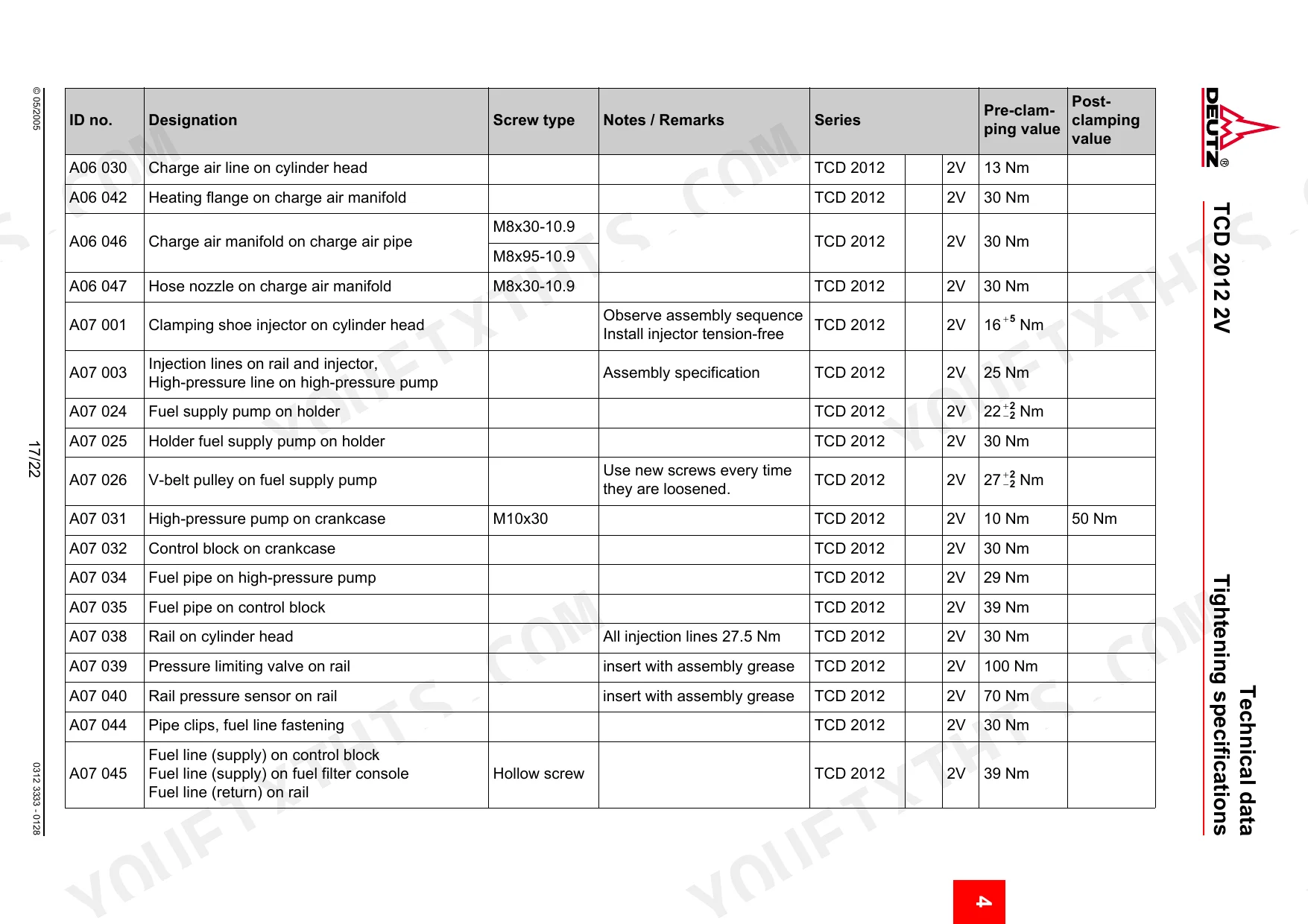

Check the clamping shoe torque against 16 +5 Nm on page 17, and install the injector tension-free following the assembly sequence noted there. When refitting fuel lines, torque the hollow screws at the control block, fuel filter console and rail return to 39 Nm per page 32.
Manual Section: Technical Data p. 17After cylinder head removal and installation, head screws torqued without the final 90° angle step

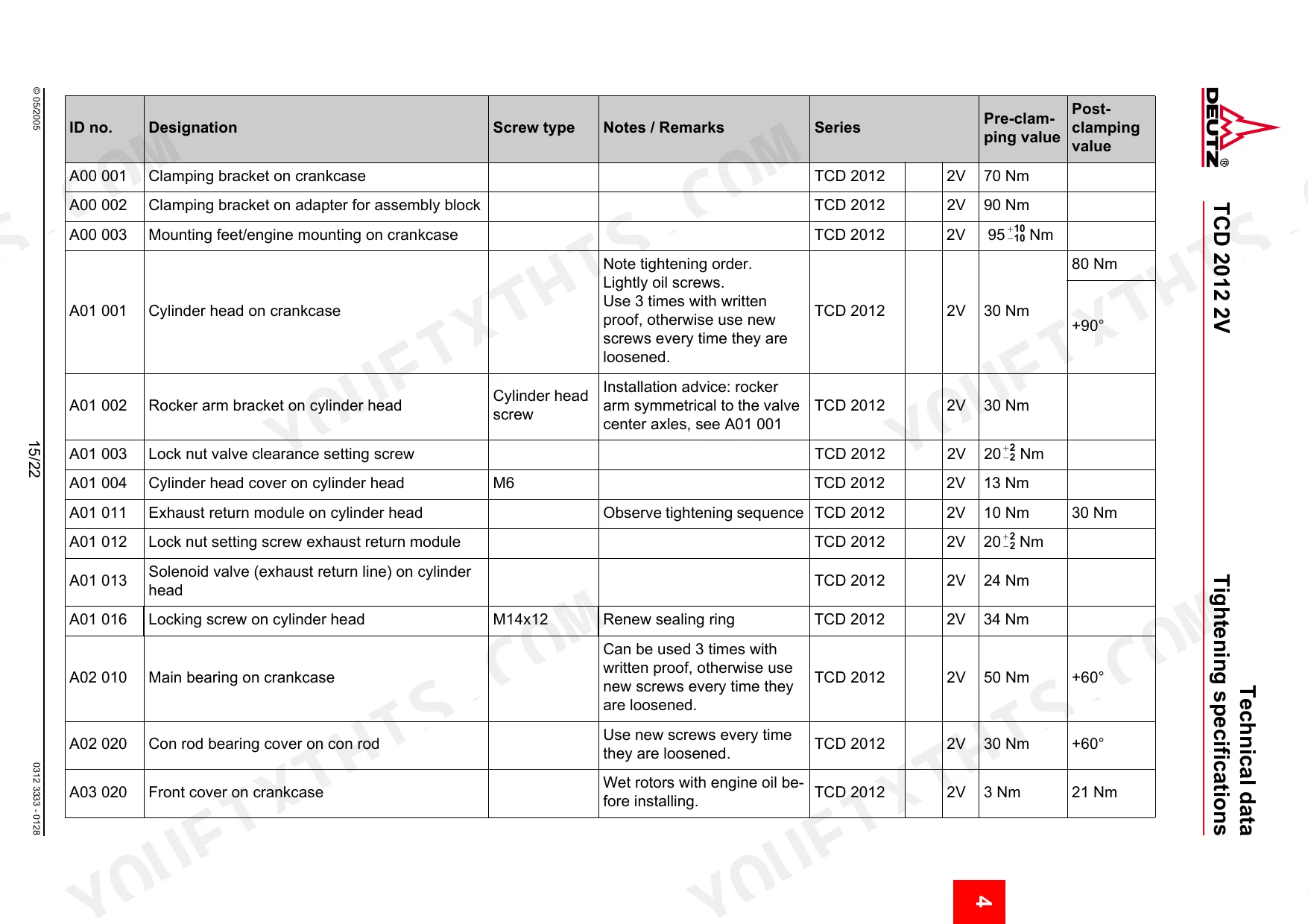

Torque the cylinder head to the crankcase in three stages per page 30: 30 Nm, then 80 Nm, then a further 90°. Use the rotation angle disc for the angle step instead of judging it by eye. Before refitting, measure cylinder head height against 90 mm on page 19. Follow the cylinder head job cards from page 69 for sequence.
Manual Section: Technical Data p. 30During crankshaft hardness and diameter inspection, main bearing pins measuring under nominal diameter
Measure each main bearing pin against the 84 mm diameter on page 20, and check hardness following the crankshaft checking job card in the drive system section from page 127. When the crankshaft goes back in, torque the main bearings to the crankcase at 50 Nm plus 60° per page 30, using the rotation angle disc.
Manual Section: Checking the crankshaft p. 127Frequently Asked Questions
What are the torque specifications for the rocker arm bracket bolts on the Deutz TCD 2012 2V?
The rocker arm bracket on the cylinder head requires a pre-clamping torque of 30 Nm. p. 30
How do I adjust the valve clearance on a Deutz TCD 2012 2V engine?
Valve clearance is set on a cold engine (oil temperature < 80 °C) after at least 0.5 hours of cooling. The inlet valve clearance is 75° and the outlet valve clearance is 120°, set according to the valve overlap as per setting diagram T01 63. p. 20
What are the replacement specifications for the fuel injectors on the Deutz TCD 2012 2V engine?
The nozzle type for the injector is DLLA 146 PV3 / 7-hole. When replacing, ensure the clamping shoe is installed tension-free with a pre-clamping torque of 16 Nm. p. 25
What is the tightening torque for the cylinder head bolts on the TCD 2012 2V?
The cylinder head bolts require a pre-clamping torque of 30 Nm, followed by a post-clamping torque of 80 Nm plus an additional 90° turn. p. 30
What is the compression pressure specification for the TCD 2012 2V engine?

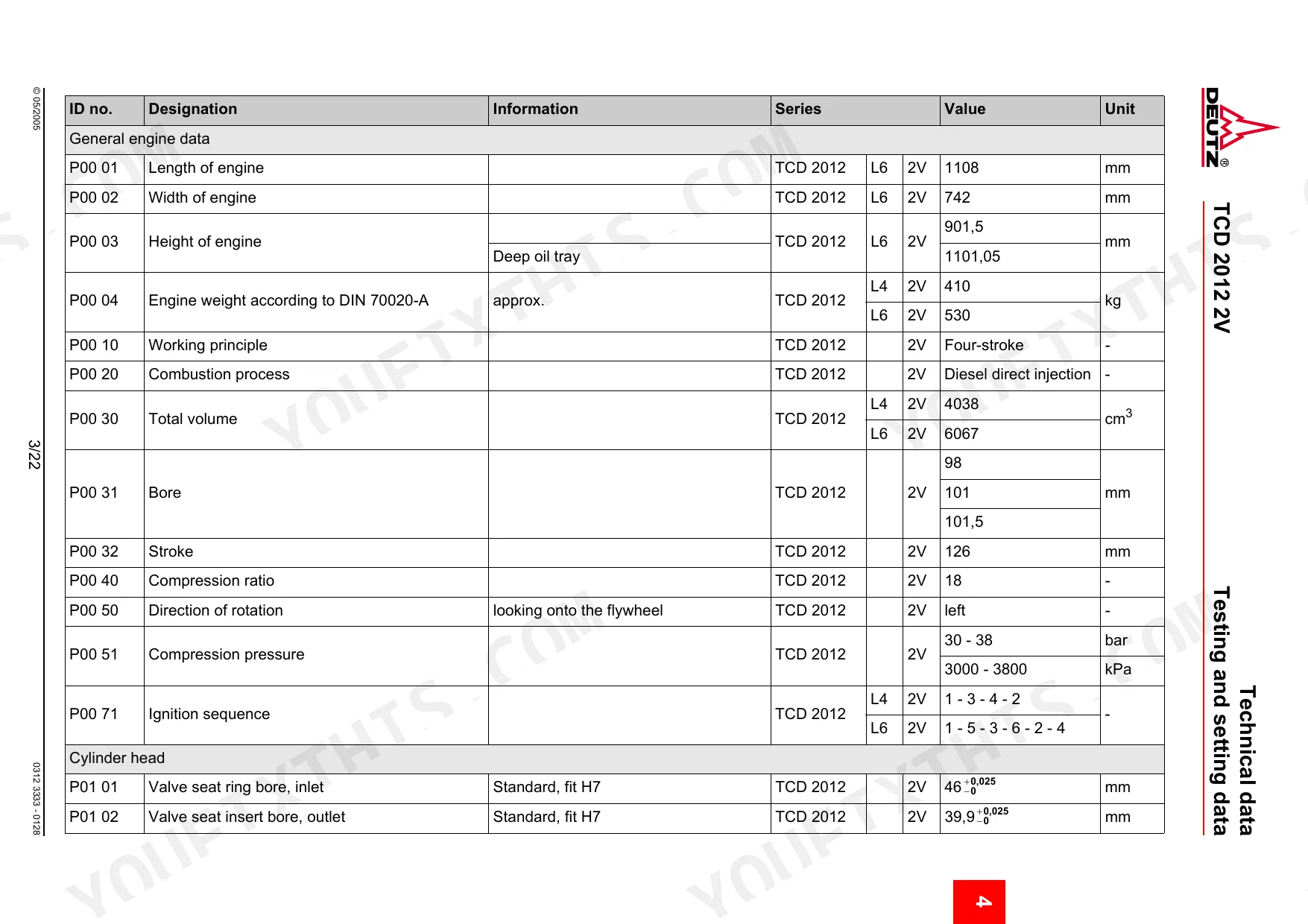

The compression pressure for the TCD 2012 2V engine is between 30 and 38 bar (3000 - 3800 kPa). p. 18
How will I receive this Deutz TCD 2012 2V Workshop Manual?
Immediate download of the complete 387-page searchable Workshop Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I free to print this Deutz TCD 2012 2V Workshop Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
