The Fiat 160-90 Turbo, 180-90 Turbo operator manual PDF puts factory operating and maintenance instructions for these 90-series tractors in your hands: 105 pages under OEM ID 06910111, covering the DT four-wheel drive versions along with the twenty-four speed, reverser, and cab variants. Wiring diagrams map the heater, wiper motor, working light relay, and terminal box circuits, and a full guide to lift operation walks through hydraulic lift settings and implement attachment on the three-point hitch. Servicing charts lay out every interval you'll hit, from the fuel filter to the brake fluid reservoir. Fill the cooling system to 28.5 liters, set inlet valve clearance to 0.30 mm, and change engine oil every 200 hours. Guessing at lift control settings mid-planting wastes daylight. The bookmarked, text-searchable file downloads in minutes, and the identification data section shows which frame and engine numbers to quote so the right parts arrive the first time; get it and get back in the field.
Complete the set for your 160-90 Turbo, 180-90 Turbo
- Repair Manual: Fiat 115-90 to 180-90 Turbo Tractor Workshop Manual
What's Inside This Fiat 160-90 Turbo, 180-90 Turbo Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 4-6 | Authorized Shops, Repair Work, Overhaul Work, Skilled Servicemen |
| Tractor Identification Data | 7 | Frame Number, Engine Type, Engine Number |
| Safety Precautions | 8-14 | General Safety, Tractor Starting |

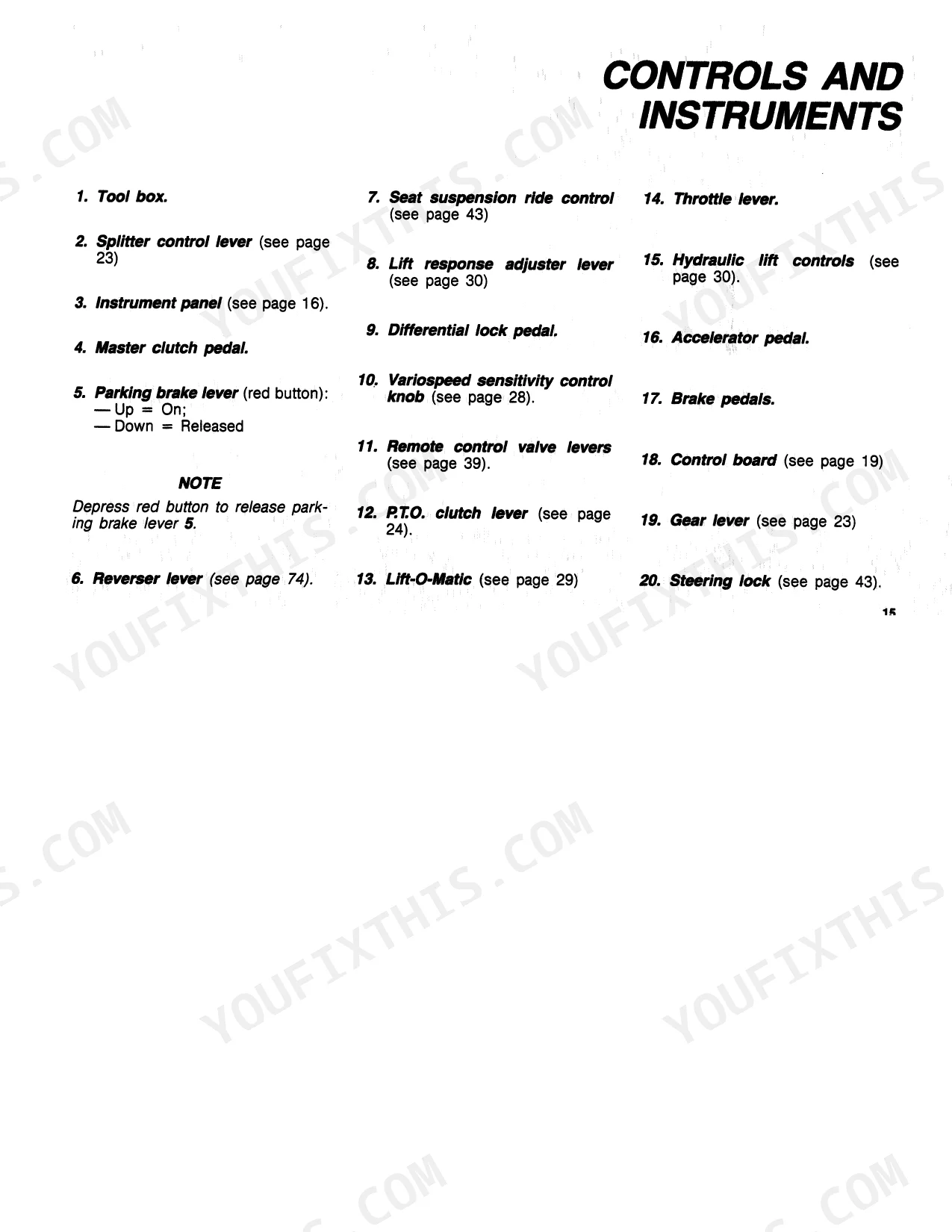

| Controls and Instruments | 15-19 | Instrument Panel, Control Board |

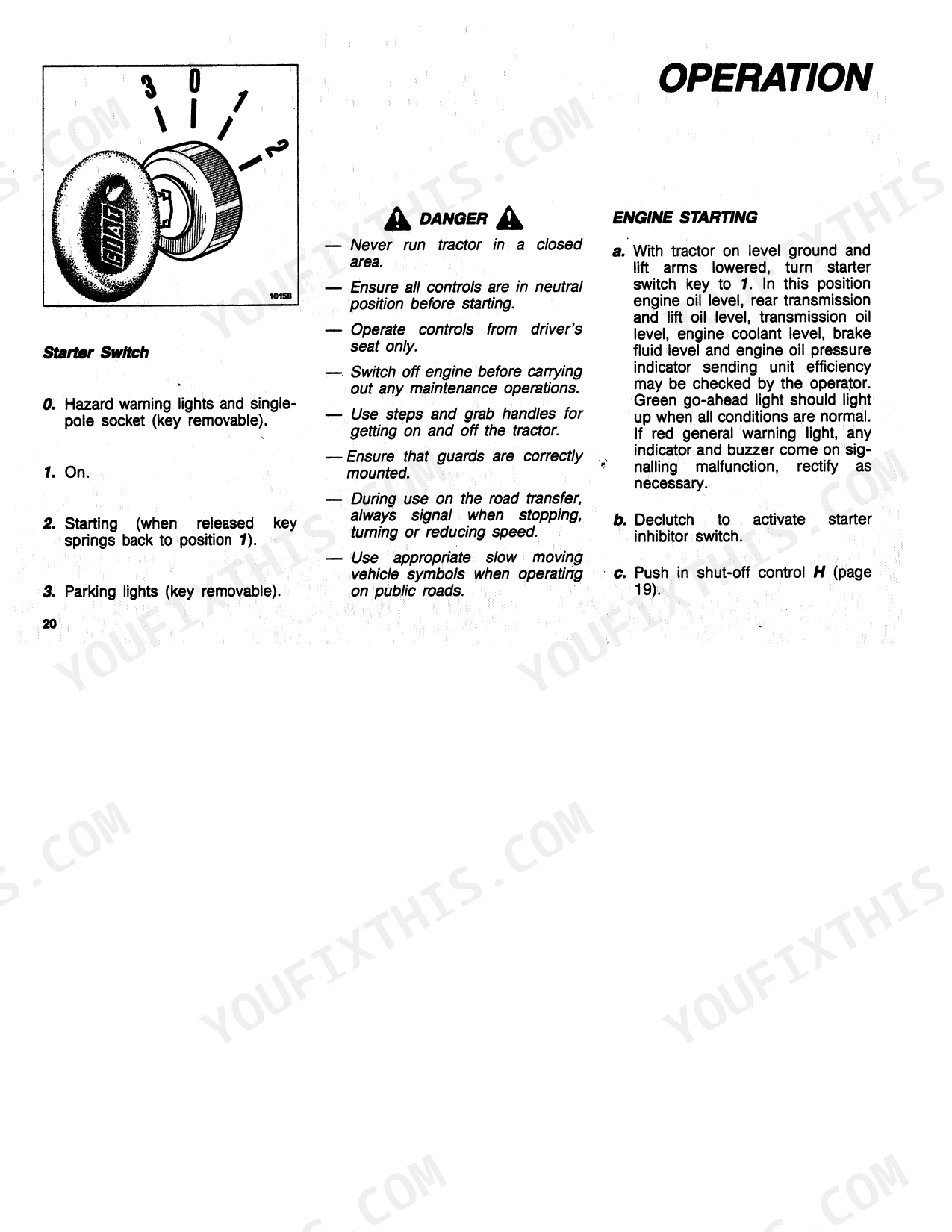

| Operation | 20-30 | Engine Starting, Transmission and Splitter, Power Take-Off |
| Guide to Lift Operation | 31-49 | Hydraulic Lift, Implement Attachment |
| Servicing Schedule | 50-55 | Maintenance Schedule |
| Electrical System | 56-58 | Battery Maintenance |
| Wiring Diagram | 59 | |
| Specification | 60-93 | Four-Wheel Drive Version, Twenty-Four Speed Version, Reverser Version, Twin Tyre Version, Heated and Ventilated Cab Version, Air Conditioned Cab Version |
| Tractor Storage | 94 | |
| Servicing Chart | 97-105 | Transmission, Lift, Steering, Front Axle, Fuel Filter, Brake Fluid Reservoir |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front track extension beam clamp bolts 1 and 2 torque | 220 N-m | p. 44 |
| Front track clamp bolt 3 torque | 59 N-m | p. 44 |
| Total cooling system capacity | 28.5 L (about 6.2 gal) | p. 86 |
| Engine Oil Change Interval | 200 hours | p. 7 |
| Engine Valve Clearance (Inlet) | 0.30 mm | p. 52 |
| Engine Valve Clearance (Exhaust) | 0.50 mm | p. 52 |
| Fuel Injector Release Pressure | 191 to 201 bar | p. 52 |
| Cooling System Capacity | 28.5 L | p. 86 |
| 160-90 Turbo | ||
| Operating Weight (160-90) | 6,190 kg | p. 62 |
| Max. Operating Weight (160-90) | 8,700 kg | p. 49 |
| 180-90 Turbo | ||
| Operating Weight (180-90) | 6,330 kg | p. 62 |
| Max. Operating Weight (180-90) | 9,000 kg | p. 49 |
Fiat 160-90 Turbo, 180-90 Turbo Common Problems This Manual Covers
Fiat 160-90 Turbo hydraulic lift slow to raise, implement drops under load
Check transmission oil level first; the lift shares that sump and low oil starves the pump. Review draft and position control setup in the lift guide starting on page 31. System relief is set at 170 bar (page 66); a constant relief squeal under light load points to low oil or a plugged filter.
Manual Section: Guide to Lift Operation p. 31Temperature gauge climbing into the red during heavy tillage, coolant boiling from overflow
Shut the engine down and let it cool before opening the radiator cap. Check coolant level and top up; total system capacity is 28.5 L (page 86). Clean chaff and dust from the radiator core with compressed air, blowing from the engine side. If the gauge still climbs, suspect a stuck thermostat and have it tested.
Manual Section: Cooling System Troubleshooting p. 86Engine losing power under load with black exhaust smoke, top speed down
Check the air cleaner first; a plugged element chokes the turbo and dumps black smoke. Service the fuel filters on the intervals shown in the servicing chart starting on page 97. Change engine oil every 200 hours to protect the turbo bearings, and confirm you are drawing clean fuel from a sealed tank.
Manual Section: Servicing Chart p. 97Front end feels light and steering wanders on the road with implement raised
Add front ballast before roading heavy mounted equipment; each front axle inner weight is 48 kg (page 49). Keep total weight within the maximum operating weight limit for your model, listed in the lift guide. Check front tyre pressures while you are there, and slow down on rough lanes until the front end plants.
Manual Section: Guide to Lift Operation p. 49Frequently Asked Questions
What are the torque specifications for the Fiat 180-90 Turbo wheel nuts?
When tightening the nuts on the spiral adjustment wheels, the torque should be gradually increased to 245 N-m (25 kgm or 180 ft lb). This should be done by tightening diagonally, starting from the bottom, in half-turn increments. p. 48
What is the correct valve clearance for the Fiat 160-90 Turbo, 180-90 Turbo Tractor engine?
The engine valve clearance is 0.30 mm (0.012 in) for the inlet and 0.50 mm (0.020 in) for the exhaust. p. 64
What is the total cooling system capacity for the Fiat 160-90 Turbo, 180-90 Turbo tractor?
The total cooling system capacity is 28.5 liters or approximately 6.2 gallons. p. 86
How often should the tractor oil be changed?
The tractor oil should be changed every 200 hours of operation. p. 7
What is the correct fan belt deflection specification for the Fiat 160-90 Turbo, 180-90 Turbo tractor?
The fan belt deflection should be 10 to 15 mm (1/2 in) when applying a 118 N (12 kg or 26 lb) load. p. 52
What exactly do I receive with this Fiat 160-90 Turbo Operator Manual?
Delivery is instant: a 105-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this Fiat 160-90 Turbo manual print-friendly?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
