All 88 pages of this Fiat 45-66 Operator Manual (OEM #603.64.190.00R2) are built for the tractor operator, not the bench mechanic: starting procedures, PTO operation, hydraulic lift setup, and every safety precaution for the 45-66 and 45-66 DT. Inside: operation covering engine cold-starts, implement attachment for moldboard plows and harrows, and hydraulically controlled tow hook use. You also get the complete wiring diagram with cable color codes, a structured maintenance schedule at 50, 200, and 400-hour intervals, fluid capacities across every system, and dedicated variant chapters for the DT four-wheel drive, 20-speed creeper, and reverser. Torque front wheel nuts to 147 N·m (108 ft lb); rear disc-to-hub screws go to 255 N·m (188 ft lb). No more digging through forum posts for basic specs. Bookmarked and keyword-searchable; pull it up on your tablet at the machine and start turning wrenches.
What's Inside This Fiat 45-66, 45-66 DT Operator Manual

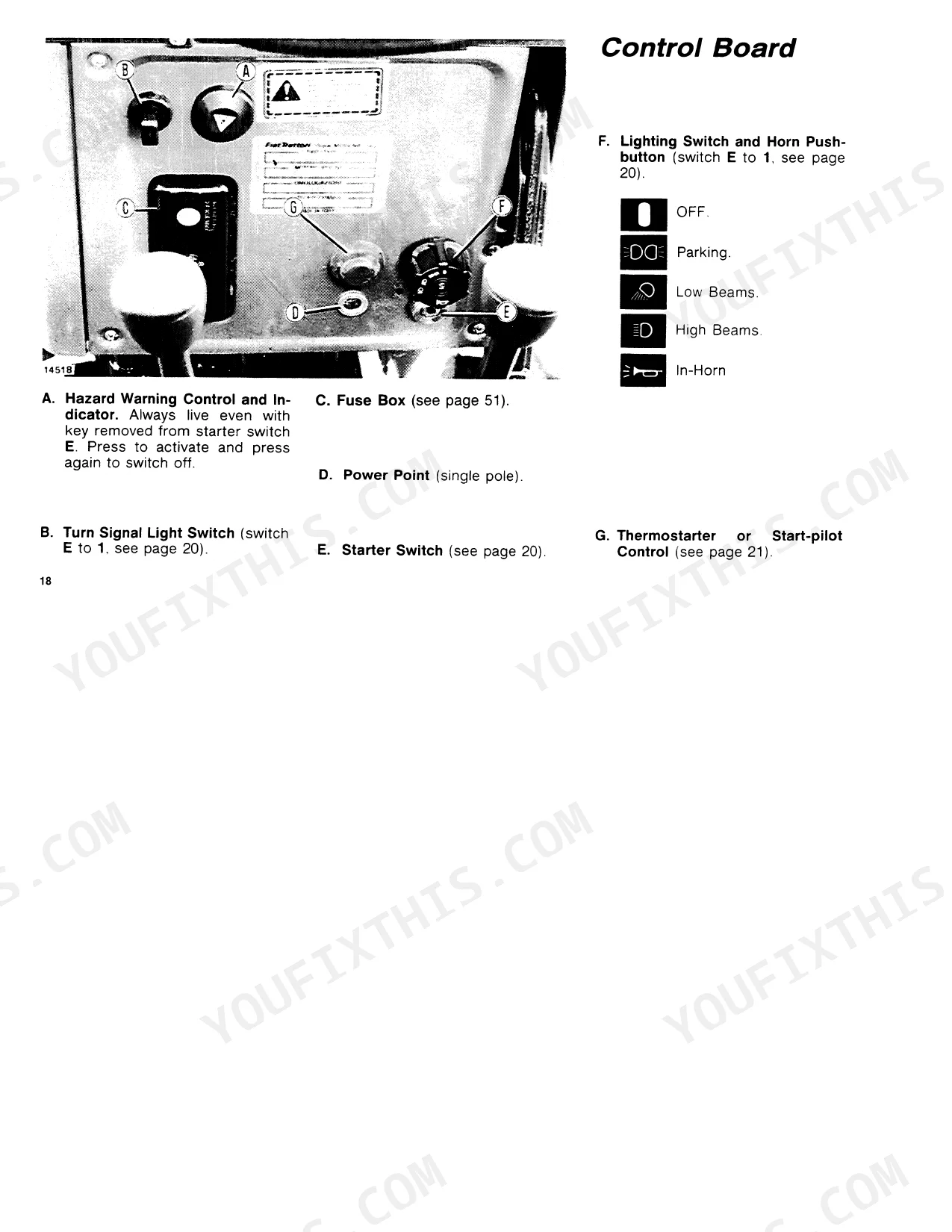

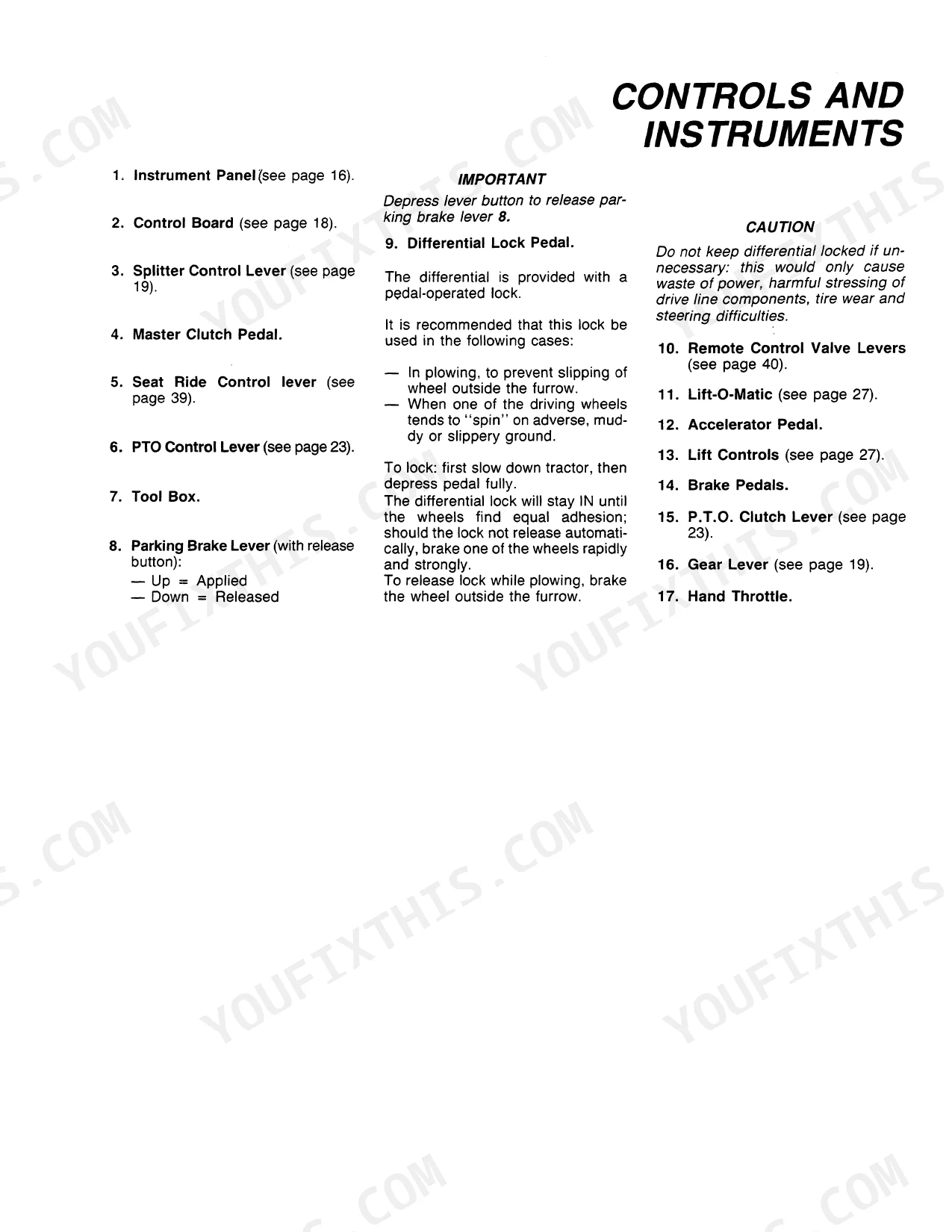

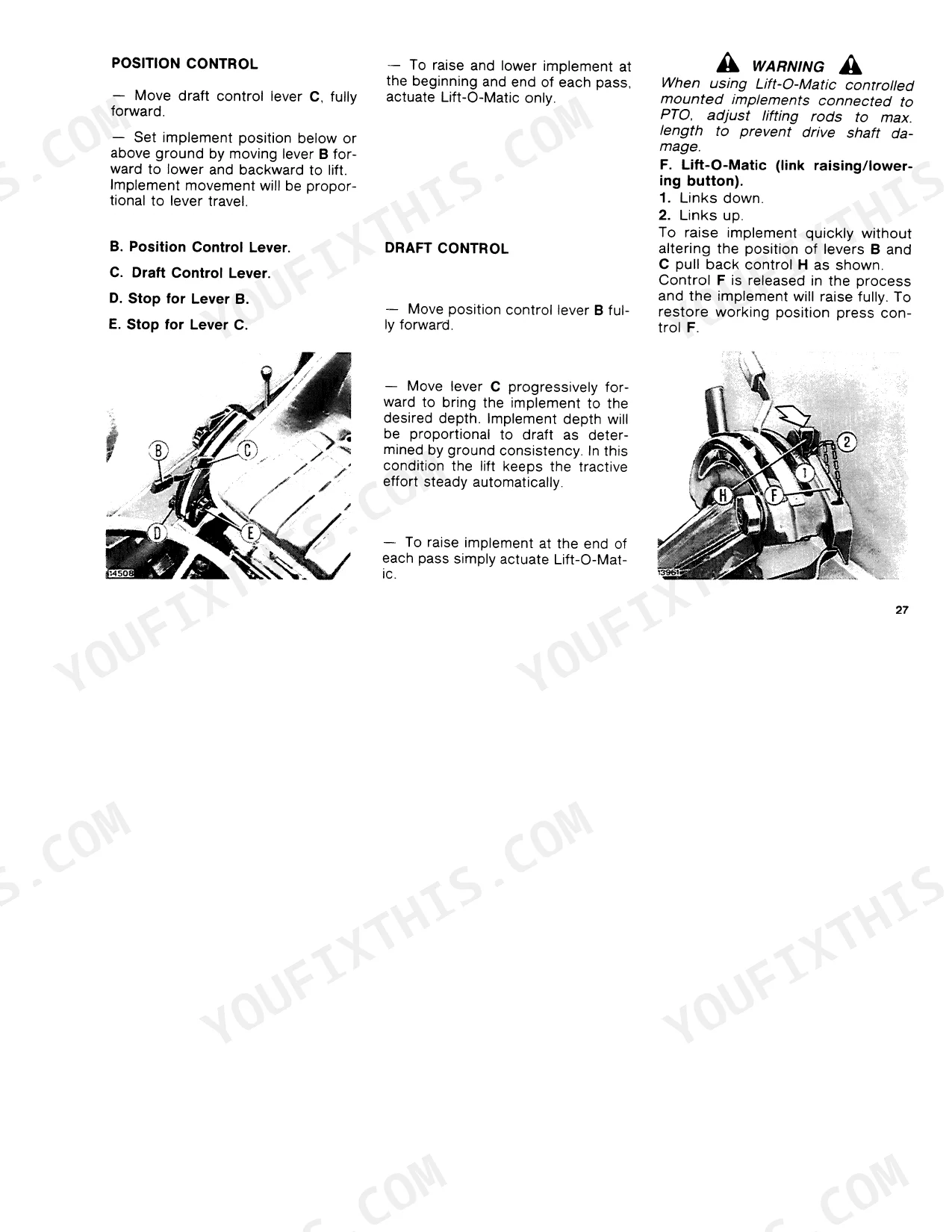

| System | Pages | Key Topics |
|---|---|---|
| Service | 6-7 | Spare Parts |
| Panelling and Cab Maintenance | 8 | Weathering Protection, High Corrosion Resistant Steel Panellings, Painting Systems, Hardening Plastic Protective Coatings, Waxy Products, Paintwork Touchups |
| Identification Data | 9 | Tractor Data Plate, Engine Type and Number, Frame Type and Number |
| Controls and Instruments | 17-21 | Instrument Panel, Control Board, Splitter Control Lever, Master Clutch Pedal, Seat Ride Control Lever, PTO Control Lever, Tool Box, Parking Brake Lever |
| Operation | 22-49 | Starting and Stopping, Power Take-Off, Relative Ground Speed P.T.O., Hydraulic Lift, Lower Link Stroke, Towing Attachments |
| Maintenance | 50-51 | Cav Pump Engine, Fuel System Bleeding, Bosch Pump Engine |
| Electrical System | 52-54 | Starting Engine with Flat Battery or Without Battery, Battery, Fuses, Headlamp Alignment |
| Maintenance Schedule | 55-58 | Adjustments (Master Clutch Pedal Free Travel, Brakes Pedal Free Travel, Parking Brake Control, Fan Belt - Deflection, Master Clutch Outer Release Lever Pin Free Travel, Service and Parking Brakes, Engine Valves - Clearance, Fuel Injectors - Release Pressure, Starter) |
| Specifications | 59-63 | Weights, Speeds, Dimensions, Engine, Transmission, Hydraulic Lift |
| 45-66 Dt Four Wheel Drive | 64-68 | Foreword, Dimensions, Tractor Weight, Front Wheel Drive, Steering, Front Track Adjustment, Front Tracks |
| Speed Version | 69 | Creeper, Creeper Applied, To Engage Creeper, Tractor Speeds, With Engine at Governed Speed, Operating Weight |
| Reverser Version | 70 | Reverser Applied, Reverser Released, To Change Direction of Travel, Specification, Tractor Speeds |
| Dt-Tractor No-Spin Version | 71-73 | Printed in Italy, Copyright by Fiatgeotech S.p.A. |
| Running-In/ Flexible Maintenance | 85-87 | Flexible Maintenance |
| Wiring Diagram | 88 | Headlamps, Battery, Alternator, Fuses, Multiple Gauge, Cable Color Code |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel nuts torque | 147 N.m, 30 kgm or 108 ft lb | p. 44 |
| Rear wheel disc to hub screws torque | 255 Nm - 26 kgm or 188 ft lb | p. 46 |
| Master clutch pedal free travel | 25 mm (1 in) | p. 55 |
| Master clutch outer release lever pin free travel | 4,5 mm (0.18 in) | p. 55 |
| Engine oil filter tightening instruction | tighten by hand through a further 3/4 turn | p. 86 |
| Lift filter tightening instruction | hand tighten through a further 3/4 turn | p. 86 |
| Fan belt deflection | 10 to 11 mm or 1/2 in applying a 78 to 98 N, 8 to 10 kg or 18 to 22 lb load | p. 55 |
| Engine Valves - Intake Clearance | 0.25 mm | p. 55 |
| Engine Valves - Exhaust Clearance | 0.35 mm | p. 55 |
| Fuel Injector Release Pressure | 230 to 238 bar | p. 55 |
| Engine Oil Capacity (Engine and filter) | 7.3 L | p. 86 |
| Cooling System Capacity | 14 L | p. 79 |
Fiat 45-66, 45-66 DT Common Problems This Manual Covers
Fiat 45-66 tractor clutch slipping under load or hard shifting into gear during field work p. 55
Check the master clutch pedal free travel adjustment on page 55. Measure the pedal play and adjust the linkage to maintain exactly 25 mm (1 in) of free travel. Test the shifting operation to confirm smooth engagement before returning to service.
Manual Section: Maintenance ScheduleFront-wheel drive driveline clicking noises or very difficult engagement during heavy field operation p. 67
Inspect the front-wheel drive components if operating a DT model. Torque the front wheel disc to rim nuts to the wheel-nut torque specified on page 67. Verify the linkage is clean and free of packed mud or debris.
Manual Section: 45-66 Dt Four Wheel DriveEngine temperature gauge reading high or continuous squealing noise from the front accessory drive p. 55
Inspect the cooling system components and check fan belt tension on page 55. Apply load to the belt and verify deflection is strictly between 10 to 11 mm. Drain and refill the cooling system with exactly 14 L of fresh coolant.
Manual Section: Maintenance ScheduleEngine cranking excessively without starting or sputtering after running out of diesel fuel completely p. 50
Bleed air from the fuel lines using the procedure on page 50. Loosen the injector fittings and crank the engine until fuel flows without bubbles.
Manual Section: MaintenanceFrequently Asked Questions
What are the torque specs for FIAT 45-66 wheel bolts?
For the front wheels, the wheel nuts are torqued at 147 N.m, which is 30 kgm or 108 ft lb. For the rear wheels, the wheel disc to hub screws require 255 Nm (26 kgm or 188 ft lb) and the wheel disc to rim screws require 235 Nm (25 kgm or 180 ft lb).
What are the replacement specifications for clutch?
The clutch type is a dry, twin plate, 10 inch unit. For maintenance, the master clutch pedal free travel should be 25 mm (1 in), and the outer release lever pin free travel should be 4.5 mm (0.18 in).
What format is this manual in?
This is a 88-page searchable PDF ready for immediate download. Works on any device — pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this Fiat 45-66, 45-66 DT manual?
Yes — the manual includes a complete wiring diagram on page 88, plus a cab-version detail on page 80, showing the electrical system with cable color codes for the tractor's lights, fuses, battery, and gauges. This is an operator-level wiring diagram; full bench-repair electrical coverage is in the separate service manual.
