Every job a Fiat crawler does in a season comes back to the 67 pages of this Fiat 70-65, 80-65 operator manual PDF, factory publication 603.64.074.00, running from the data plate to the servicing chart inside the back cover. The wiring diagram traces headlamps, alternator, starter, and turn signal flasher circuit by circuit, so a dead gauge stops being guesswork under your dash. Controls, PTO operation, and a lift guide for mouldboard plows, harrows, and sub-soilers fill the middle of the book, backed by a servicing schedule that walks the master clutch, steering clutches, brakes, and tracks. Refill the sump with 6.7 liters of oil, and have your injectors set to release between 230 and 238 bar. A plowing afternoon stalls over one missing capacity figure. Print the pages for the job at hand, let them take grease on the bench, and keep the crawler where it earns, in the field.
What's Inside This Fiat 70-65, 80-65 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 10-12 | Authorized Shops, Repair Work, Overhaul Work, Skilled Servicemen |
| Tractor Identification Data | 13 | Frame Type, Frame Number, Tractor Data Plate, Engine Type, Engine Number |
| Safety Precautions | 14-20 | General Safety, Tractor Starting, Operation Safety |

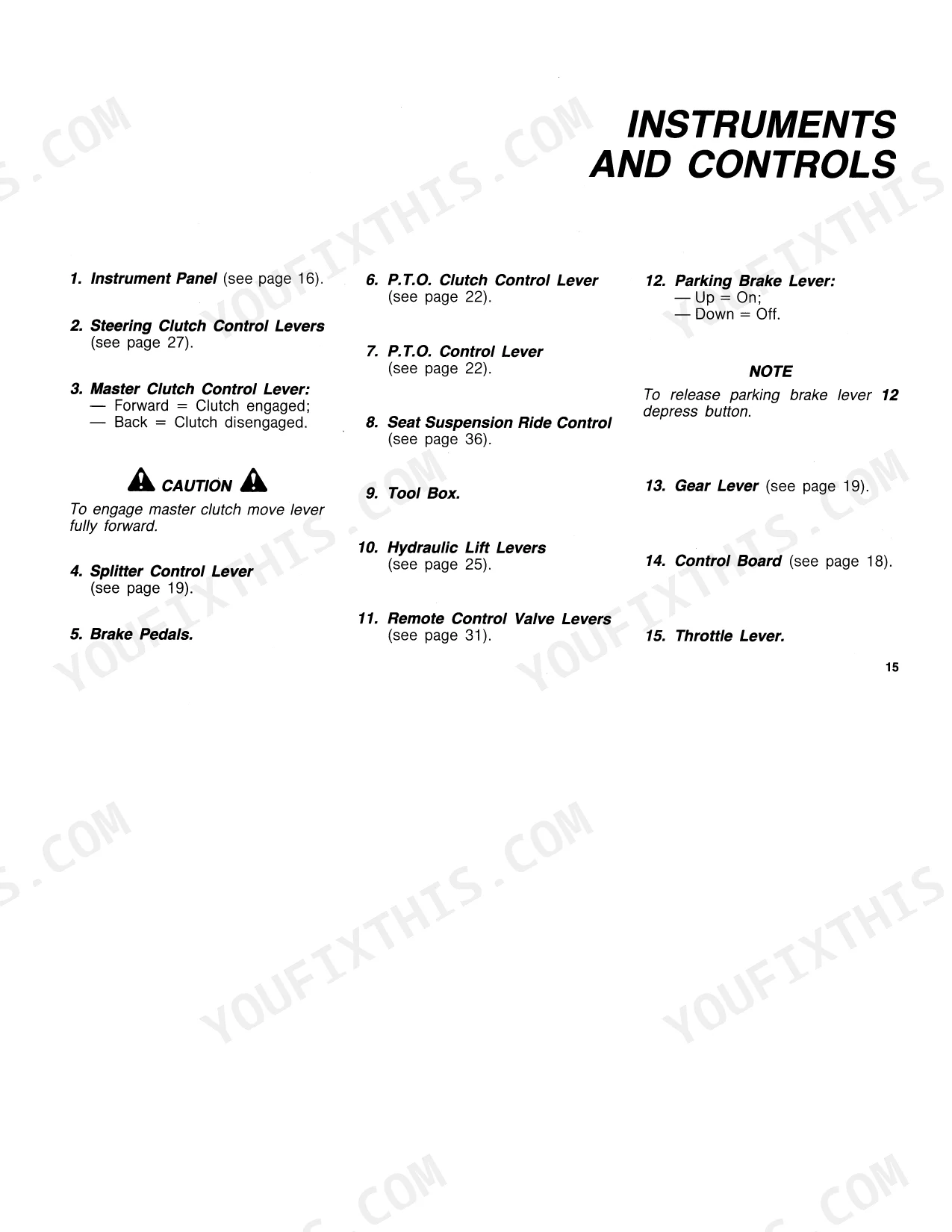

| Controls and Instruments | 21-25 | Instrument Panel, Control Board |

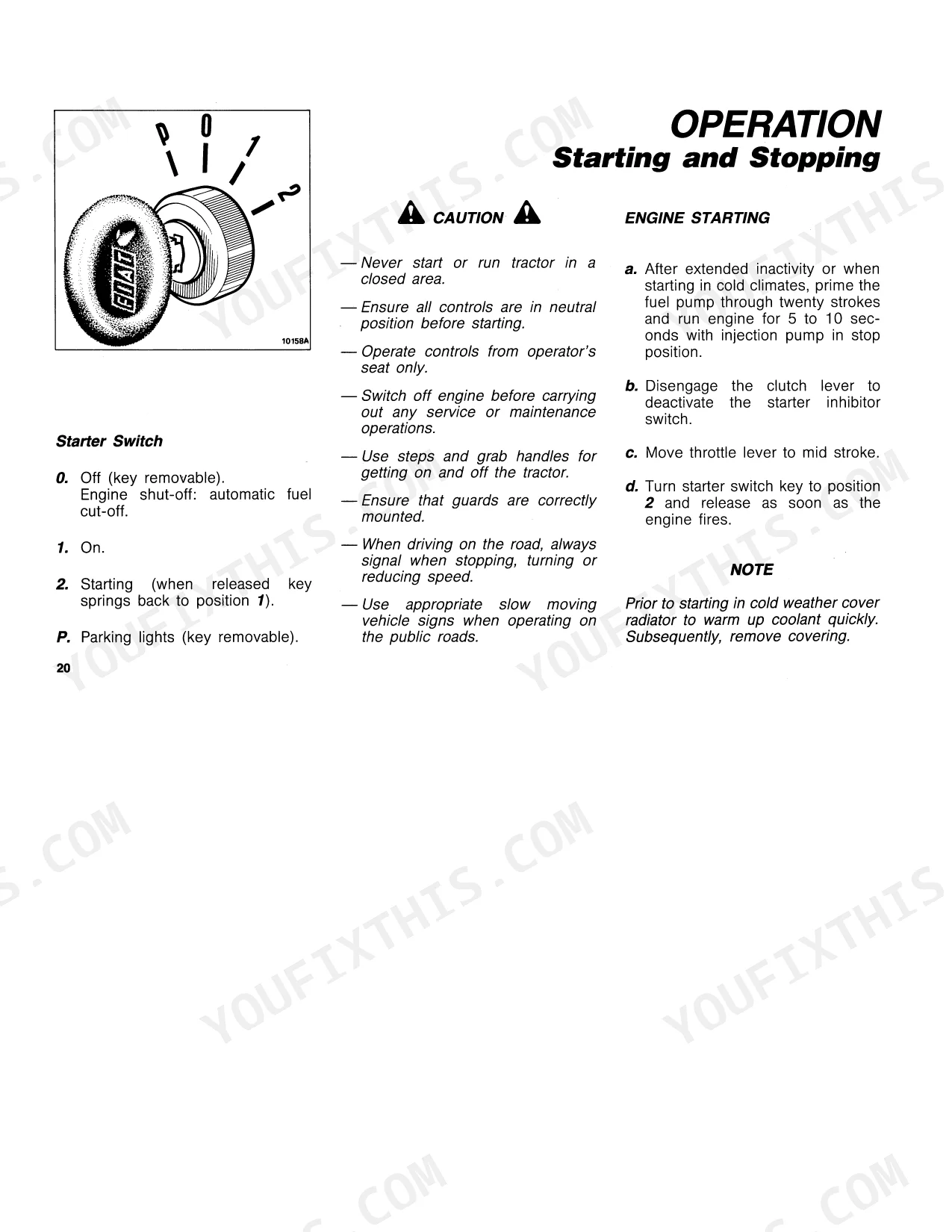

| Operation | 26-37 | Starting and Stopping, Power Take-Off |
| Guide to Lift Operation | 38-42 | Mouldboard Plows, Disc Plows, Harrows, Sub-Soilers, Ditchers, Cultivators |

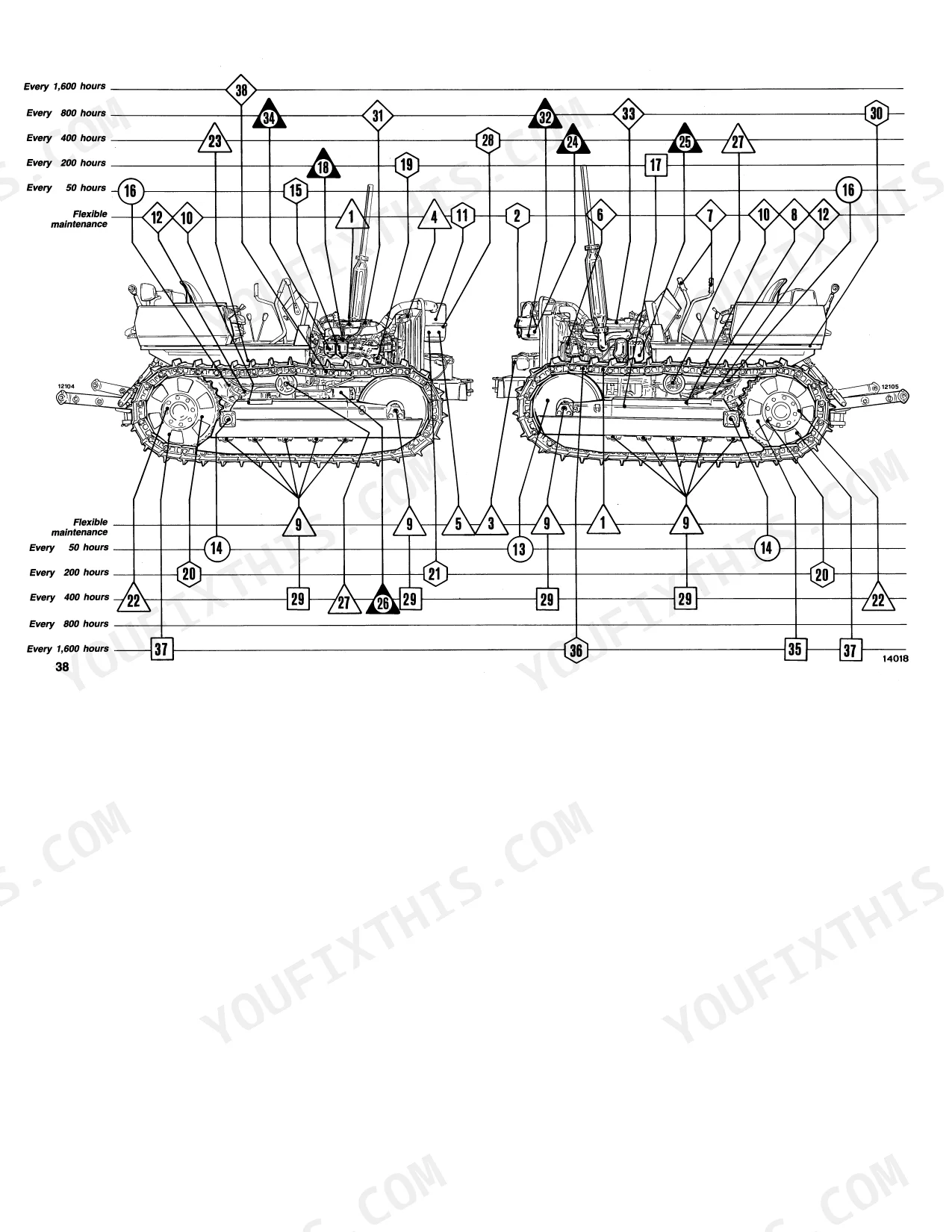

| Servicing Schedule | 43-47 | Fan Belt, Master Clutch, Steering Clutches, P.T.O. Clutch, Tracks, Brakes |
| Electrical System | 48-50 | Battery, Electrolyte, Hydrometer, Alternator, Regulator |

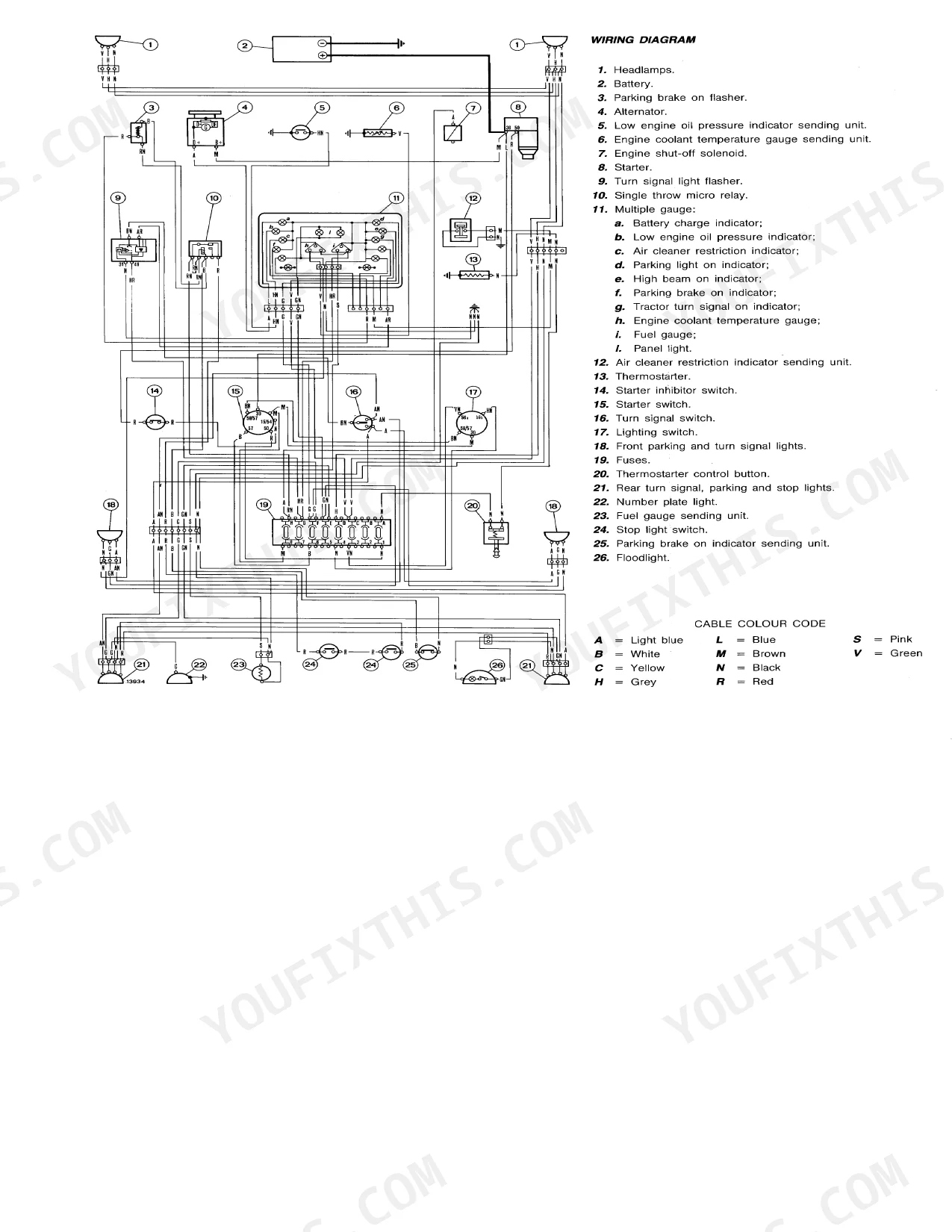

| Wiring Diagram | 51-53 | Headlamps, Battery, Alternator, Starter, Turn Signal Light Flasher, Multiple Gauge |

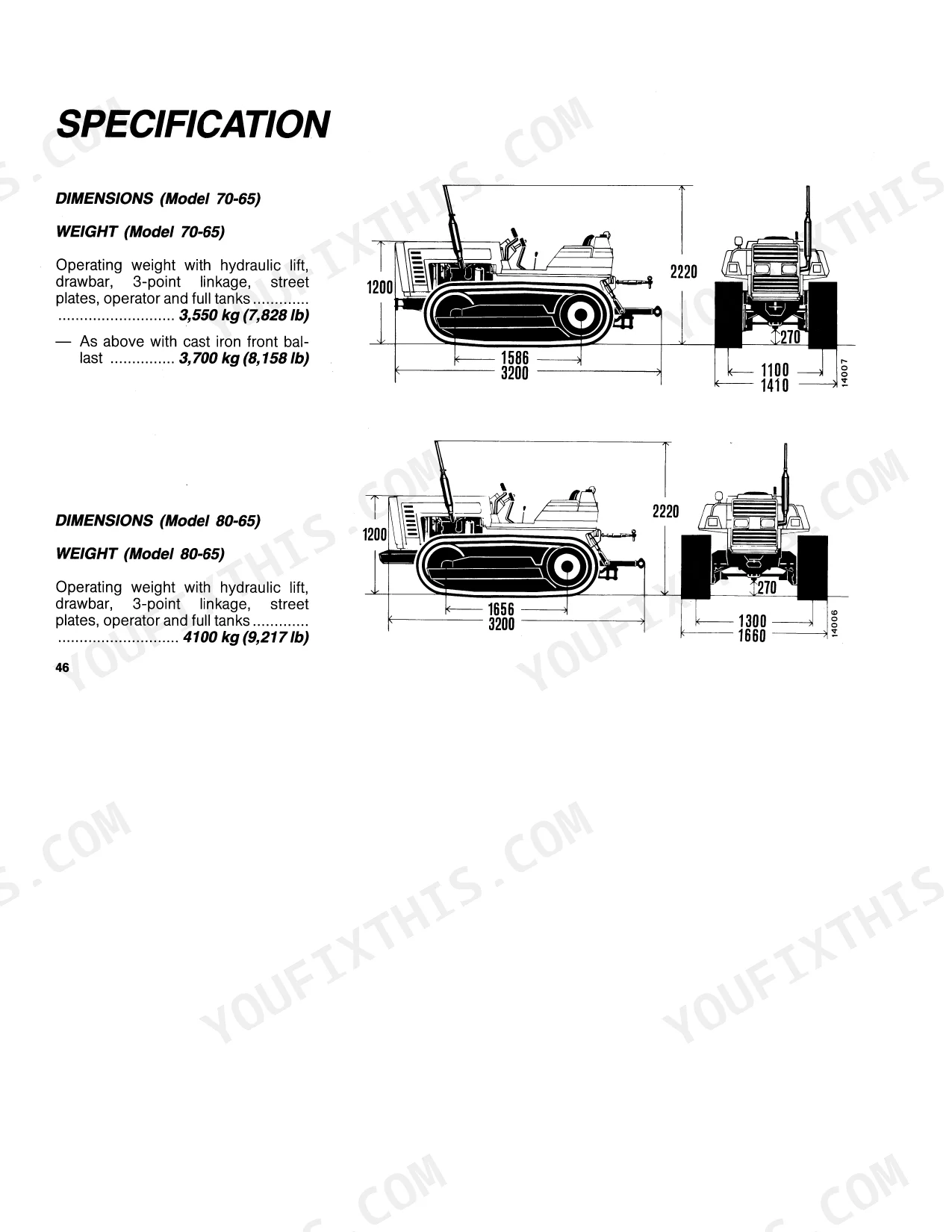

| Specification | 54-58 | Engine Specifications, Fuel System Specifications |
| Speed Version | 59 | - |
| Reverser Version | 60 | |
| Mountain Version | 61 | Tracks, Dimensions |
| Tractor Storage | 62 | |
| Servicing Chart | 65-67 | Engine Sump, Air Cleaner, Battery, Radiator, Fuel Injectors, Fuel Filters |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Injector Release Pressure | 230 to 238 bar | p. 43 |
| Hydraulic pump relief valve setting | 186 bar | p. 57 |
| Starter output | 3.5 kW | p. 58 |
| Engine Oil Capacity (Sump) | 6.7L | p. 65 |
| Coolant Capacity | 13L | p. 65 |
| Fuel Tank Capacity | 75L | p. 65 |
| Intake Valve Clearance (Hot or Cold) | 0.25 mm | p. 55 |
| 70-65 | ||
| Engine Power (DGM/DIN) | 70 metric HP | p. 55 |
| Operating Weight | 3,550 kg | p. 54 |
| 80-65 | ||
| Engine Power (DGM/DIN) | 80 metric HP | p. 55 |
| Operating Weight | 4,100 kg | p. 54 |
Fiat 70-65, 80-65 Common Problems This Manual Covers
Fiat 70-65 hydraulic lift slow and noisy, three-point hitch shudders under load
Check the transmission and hydraulic oil level, then change the hydraulic filter per the maintenance schedule on page 43. Refill with clean oil only. If the lift stays slow and noisy with fresh oil and a new filter, have your dealer check the pump; the relief valve setting is 186 bar on page 57.
Manual Section: Servicing Schedule p. 43Engine cranks slowly on cold mornings, starter clicks or turns over then dies
Check battery electrolyte level and state of charge with a hydrometer as shown on page 48. Clean and tighten both cable terminals; the 3.5 kW starter pulls heavy current through corroded connections. In cold weather use the thermostarter procedure on page 27 and rest the starter between attempts.
Manual Section: Electrical System p. 48Engine temperature gauge climbs into the red during heavy fieldwork, coolant boils over
Check coolant level when the engine is cool and top up; the system holds 13 L per the servicing chart on page 65. Inspect the fan belt and adjust until deflection measures 10 to 11 mm as scheduled on page 43. Blow chaff and dust out of the radiator core before the next pass.
Manual Section: Servicing Schedule p. 43Tracks slap and drift loose after hours of dry ground work, sag looks excessive
Park on level ground and measure sag at the midpoint of the top track run. Adjust until sag reads 20 to 30 mm as listed in the maintenance schedule on page 43. Recheck after the first few hours back at work; loose tracks wear pins and rollers fast and steal field time during harvest.
Manual Section: Servicing Schedule p. 43Engine surges or dies after running the fuel tank dry in the field
Fill the tank; it holds 75 L and running it dry pulls air into the lines. Bleed the fuel system at the filter and pump vent screws until fuel runs free of bubbles, following the pump procedure on page 47. Carry a spare fuel filter during harvest so a plugged element never stalls you mid-field.
Manual Section: Fuel System Bleeding p. 47Frequently Asked Questions
What is the correct torque for the splined PTO extension nuts on the Fiat 70-65 and 80-65?
The nuts for the splined extensions on the 540 and 1000 RPM power take-off must be tightened to a torque of 162 Nm, 16.5 kgm, or 110 ft lb. p. 29
What are the engine valve clearance specifications for the 70-65 and 80-65 tractors?
The normal valve clearance for both intake and exhaust valves, whether hot or cold, is 0.25 mm (0.010 in) for intake and 0.35 mm (0.014 in) for exhaust. p. 55
What is the required fan belt deflection for the Fiat 70-65 and 80-65 tractors?
The fan belt should have a deflection of 10 to 11 mm (1/2 in) when applying a force of 78 to 98 N (8 to 10 kg or 18 to 22 lb). p. 43
How often should the engine oil be changed on the Fiat 70-65 and 80-65 tractors?
The engine oil should be changed every 200 hours of operation as part of the regular servicing schedule. p. 44
What is the fuel injection release pressure for the 70-65 and 80-65 tractors?
The fuel injector release pressure is between 230 and 238 bar (235 to 243 kg/cm² or 3,336 to 3,452 psi). p. 43
What do I get after purchasing this Fiat 70-65 manual?
Straight to your device: 67 pages of searchable Operator Manual, downloadable the moment payment goes through.
Can I print just the pages I need from this Fiat 70-65 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
