Set the position control lever wrong and a mounted plow either digs in or rides out of the ground. The Guide to Lift Operation is the longest chapter in this Fiat 70-90 and 80-90 operator manual: top link mounting holes, draft and position control, gauge wheels, and check link settings, explained the way the factory intended them to be used.
The rest of the 114 pages cover the controls and instruments, engine starting, the transmission and splitter, the servicing schedule, the electrical system, and full specifications, in English under Fiat publication 603.64.164.00R. Dedicated chapters handle the 70-90 DT and 80-90 DT front axle, the splitter-reverser, the no-spin differential, the 40 kph version, and all three cab variants.
A guessed oil grade or a misread lever is how a weekend job turns into a dealer visit. Download the PDF, print the pages you need, and get the tractor back in the field before the weather turns.
What's Inside This Fiat 70-90, 80-90 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 4-7 | Authorized Shops, Repair, Overhaul, Service Assistance |
| Tractor Storage | 8 | Engine Protection, Battery Storage, Axle Propping, Tire Pressure, Fuel Tank |
| Tractor Identification Data | 9 | Frame Type, Frame Number, Engine Type, Engine Number, Tractor Data Plate |
| Safety Precautions | 10-15 | Safety Alert Sign, Safety Decals, Protective Devices, PTO Shielding, Fire Extinguisher |

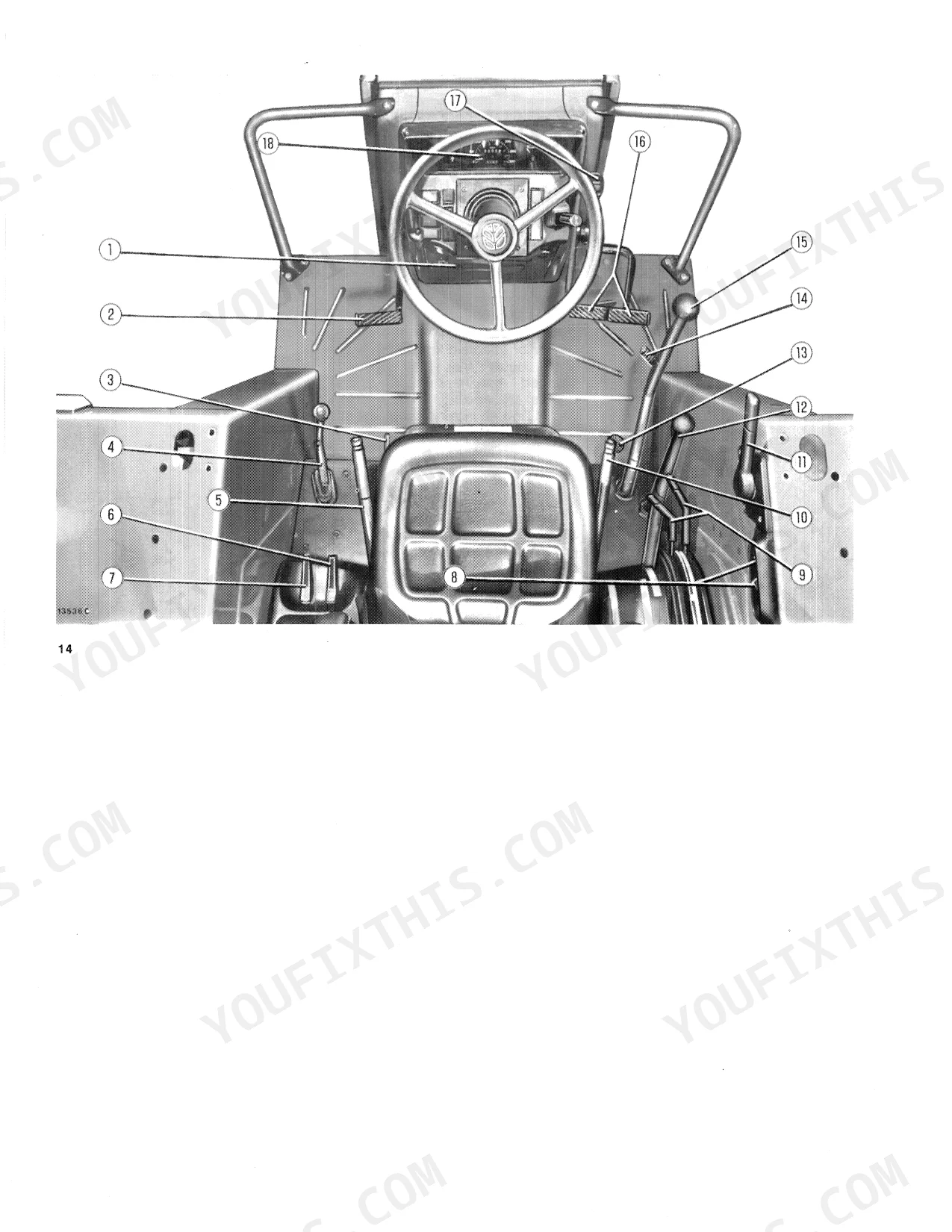

| Controls and Instruments | 16-21 | Control Board, Master Clutch Lever, Reverser Lever, Throttle Lever, Gear Lever, Brake Pedals |

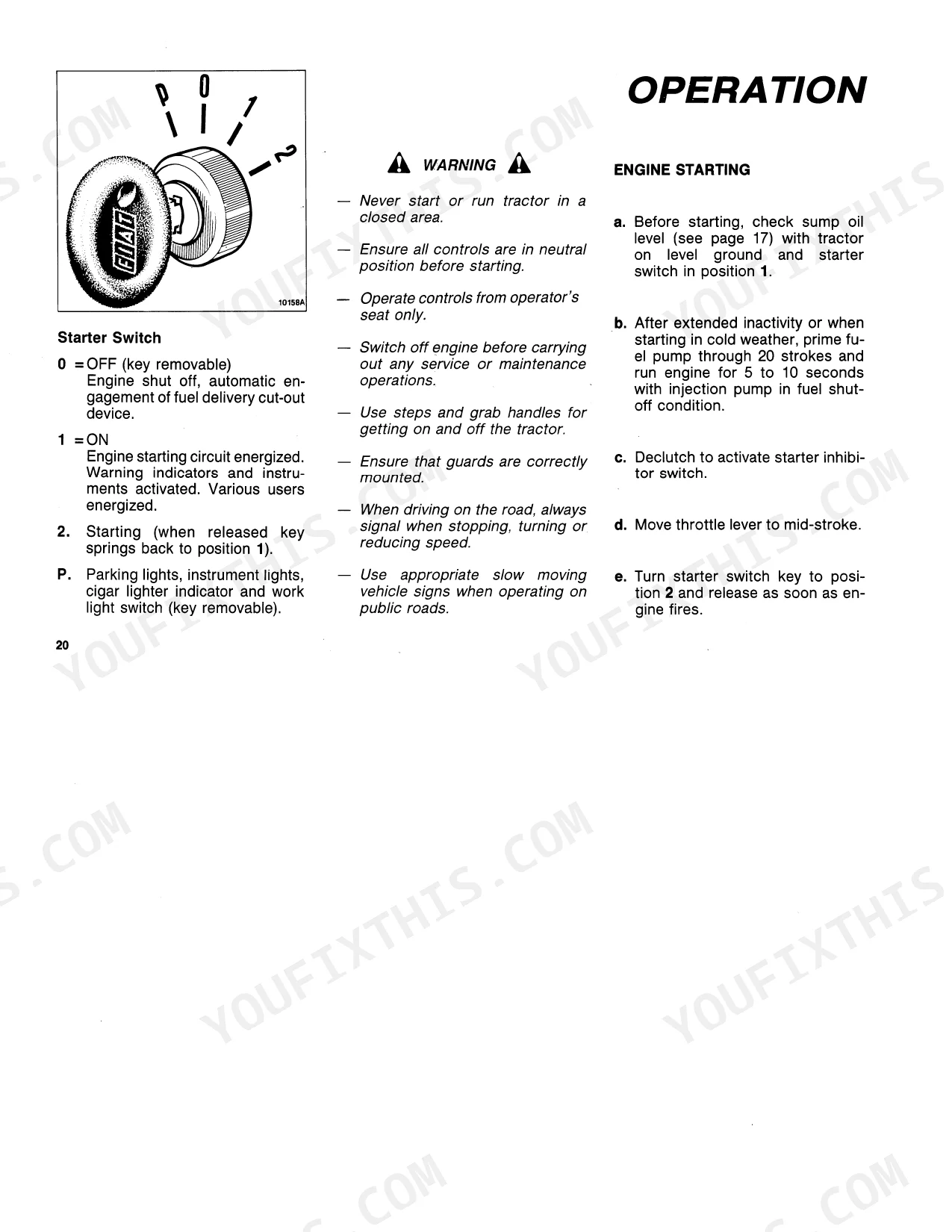

| Operation | 22-32 | Engine Starting, Starting and Stopping, Transmission and Splitter, Power Take-Off, Hydraulic Lift |
| Guide to Lift Operation | 33-52 | Top Link Mounting Holes, Draft Control, Position Control, Gauge Wheels, Check Link Position, Remote Control Valves, Tracks, Ballasting, Towing |
| Maintenance and Servicing Schedule | 53-61 | Seat Adjustment, Fuel System Bleeding, Brake System Bleeding, Adjustments, Cleaning, Cooling System, Panelling and Cab Maintenance |
| Electrical System | 62-63 | Battery, Alternator, Fuse Box, Starter |
| Differential Lock | 64 | Engagement, Release |
| Specifications | 65-70 | Dimensions, Speeds, Valve Gear, Cooling System, Wheels and Tires, Seat Suspension |
| 70-90 DT and 80-90 DT Four-Wheel Drive Version | 71-76 | Live Front Axle, Weights, Front Wheel Drive Operation, Front Track Adjustment, Steering Angle |
| Creeper and Synchromesh Reverser Version | 77-78 | Synchromesh Reverser, Creeper, Lever Positions, Speeds at Full Load |
| No-Spin Version | 79-81 | Locked-Differential Behaviour, Disengagement on Turns, Straight-Line Operation, Servicing Caution |
| Kph Version (DT Models) | 82-86 | Transmission Use, Creeper and Reverser Speeds, Front Axle Brake Circuit |
| Heated and Ventilated Comfort Cab Version | 87-92 | Doors, Windshield Washer, Ventilation, Heating, Cab-Version Wiring Diagram |
| Heated and Ventilated Supercomfort Cab Version | 93-100 | Windshield Washer, Side Windows, Ventilation, Heating, Super De-Luxe Seat, Cab-Version Wiring Diagram |
| Air Conditioned Supercomfort Cab Version | 101-108 | Safety Precautions, Controls, Operation, Instructions for Use, Routine Checks |
| Servicing Chart | 110 | Running-In, Compressor Drive Belts, Air Cleaner, Coolant Expansion Tank, Inspection Intervals |
| Wiring Diagram | 111 | Alternator, Battery, Fuel Gauge Sending Unit, Differential Lock Indicator, PTO Indicator, Rear Lights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rated output | 26.5 litre/min | p. 69 |
| Release pressure | 230 to 238 bar | p. 57 |
| Engine Oil Change Interval | 200 hours | p. 58 |
| Engine Valve Clearance (Inlet) | 0.25 mm | p. 57 |
| Engine Valve Clearance (Exhaust) | 0.35 mm | p. 57 |
| Hydraulic Pump Output | 33.6 liter/min | p. 68 |
| Hydraulic Relief Valve Setting | 186 bar | p. 68 |
| Battery Capacity | 110 Ah | p. 70 |
| 70-90 | ||
| Engine Displacement (70-90) | 3613 cc | p. 66 |
| Max Output (70-90) | 70 HP | p. 66 |
| 80-90 | ||
| Engine Displacement (80-90) | 3908 cc | p. 66 |
| Max Output (80-90) | 80 HP | p. 66 |
Fiat 70-90, 80-90 Common Problems This Manual Covers
Lift will not raise or hold
Mixing up draft control and position control, or hanging the top link in the wrong mounting hole, makes the three-point hitch drop under load or refuse to respond. The lift chapter walks through both control modes, check link position, and gauge wheel setup so the implement runs where you set it.
Manual Section: Guide to Lift Operation p. 33Hard starting and fuel starvation
Dirty fuel filters and a neglected air cleaner are the usual reasons one of these tractors cranks long and runs rough. The servicing schedule lays out when to change the fuel filters, air cleaner, engine sump oil, and transmission oil instead of guessing by feel.
Manual Section: Servicing Schedule p. 57Battery flat, alternator not charging
A dead battery on a frosty morning is often a charging fault or a blown fuse, not the battery itself. The electrical chapter covers the battery, alternator, starter, and fuse box so you can trace the circuit before buying parts.
Manual Section: Electrical System p. 62Front axle noise on DT models
The live front axle on the 70-90 DT and 80-90 DT will growl or bind when the drive shaft, differential, or final drives run low on attention. This chapter is specific to the four wheel drive versions, including the steering.
Manual Section: Dt and 80-90 Dt Tractors p. 71Reverser baulks when changing direction
Forcing the shuttle between forward and reverse before the tractor has settled chews up the synchromesh reverser. The splitter-reverser chapter explains the lever positions, the creeper, and how drive reversals are meant to be made.
Manual Section: Splitter-Reverser Version p. 77Cab heater cold, wipers dead
On the Comfort cab, a heater fan that stops or a wiper that quits mid-rain usually comes down to the cab electrics and controls covered here, alongside the windshield washer and interior lamp.
Manual Section: Heated and Ventilated Comfort Cab Version p. 87Trouble after months of winter storage
Park the tractor wrong in November and you inherit a sulfated battery, flat-spotted tires, and a corroded engine in March. The storage section covers engine protection, battery storage, axle propping, tire pressure, and the fuel tank.
Manual Section: Tractor Storage p. 8Frequently Asked Questions
Which tractors does this manual cover?
The Fiat 70-90 and 80-90, including the 70-90 DT and 80-90 DT four wheel drive versions. Separate chapters cover the splitter-reverser, no-spin, and 40 kph versions plus the Comfort, Supercomfort, and air conditioned Supercomfort cabs.
Does it include a wiring diagram?
Yes. The Wiring Diagram at the back traces the alternator, battery, fuel gauge, wiper motor, heater, and work lights, and the Electrical System section covers the battery, alternator, fuse box, and starter. p. 111
What routine maintenance does it cover?
The Servicing Schedule covers the engine sump, transmission oil, fuel filters, air cleaner, and front axle oil, and a separate Servicing Chart adds the power steering, fuel sedimenter, lift linkage, and hydraulic brakes. p. 57
Does it explain the DT front axle?
Yes. The chapter on the 70-90 DT and 80-90 DT covers the live front axle, drive shaft, differential, final drives, and steering, which is exactly where the four wheel drive models differ from the two wheel drive tractors. p. 71
How quickly can I access this Fiat 70-90 manual after buying?
You download the Operator Manual yourself: 114 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Am I free to print this Fiat 70-90 Operator Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
