Position control, draft control, PTO engagement, gearbox variants, servicing intervals: the systems a Fiat 70-66 or 80-66 owner actually touches are what this 89 page operator manual works through, from the instrument panel to the three-point hitch. Publication 603.64.065.00R3 covers both models along with the DT four wheel drive, 20-Speed, Reverser, No-Spin, and heated cab versions, built around the 8045.05 and 8045.06 engines.
Guessing on a tractor this age gets expensive fast. A clutch run without free travel becomes a split-tractor job, and a lift worked in the wrong control mode can bend a check link before you notice. The Servicing Schedule lists the free travel, deflection, and clearance figures that keep those jobs honest.
It arrives as a PDF download, so you can print the pages the job needs, take them to the bench, and let them get greasy while the weather window holds.
What's Inside This Fiat 70-66, 80-66 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 5-8 | Authorized Shops, Repair Work, Overhaul Work, Spare Parts |
| Tractor Identification Data | 9 | Tractor Data Plate, Engine Type, Engine Number |

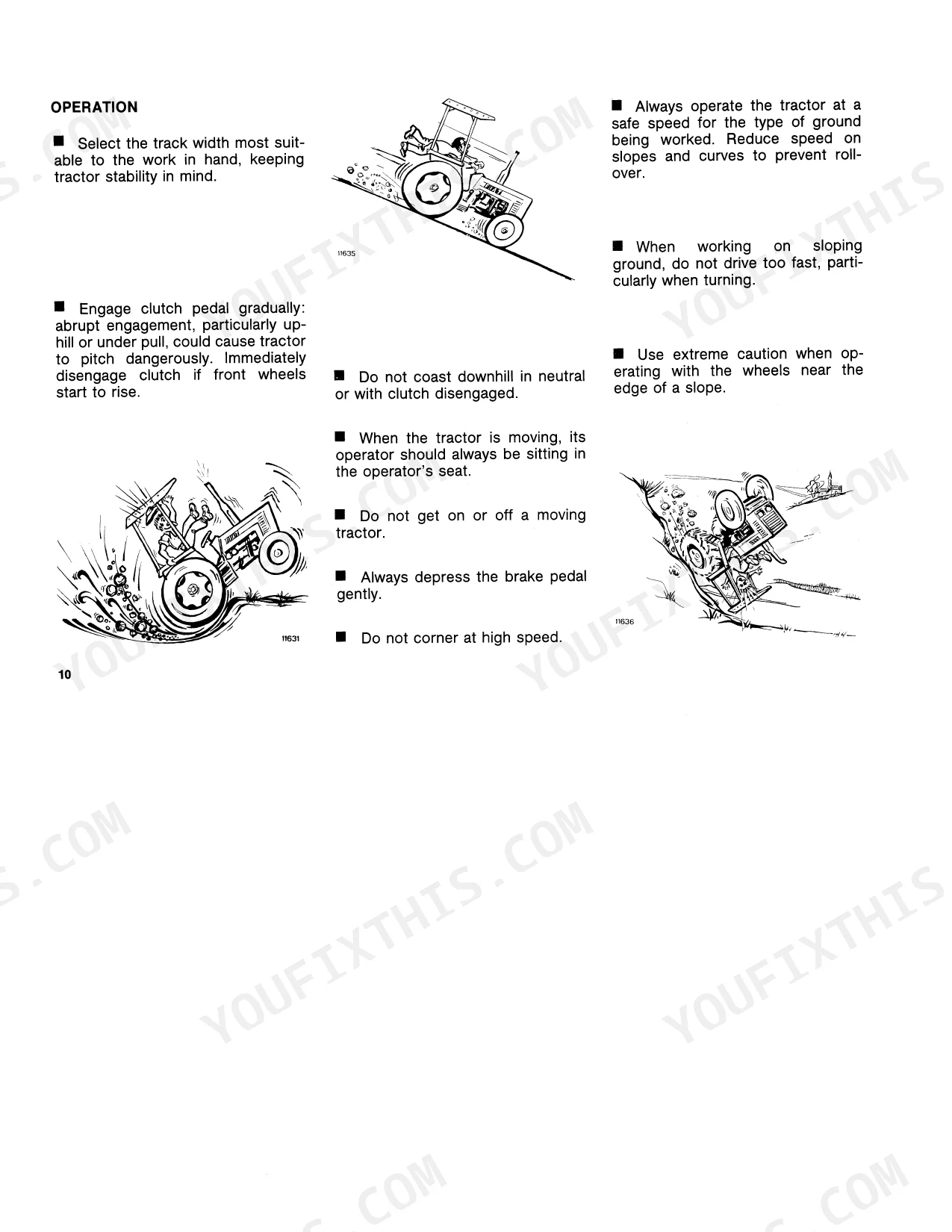

| Safety Precautions | 10-16 | General Safety, Tractor Starting, Track Width, PTO Guarding |

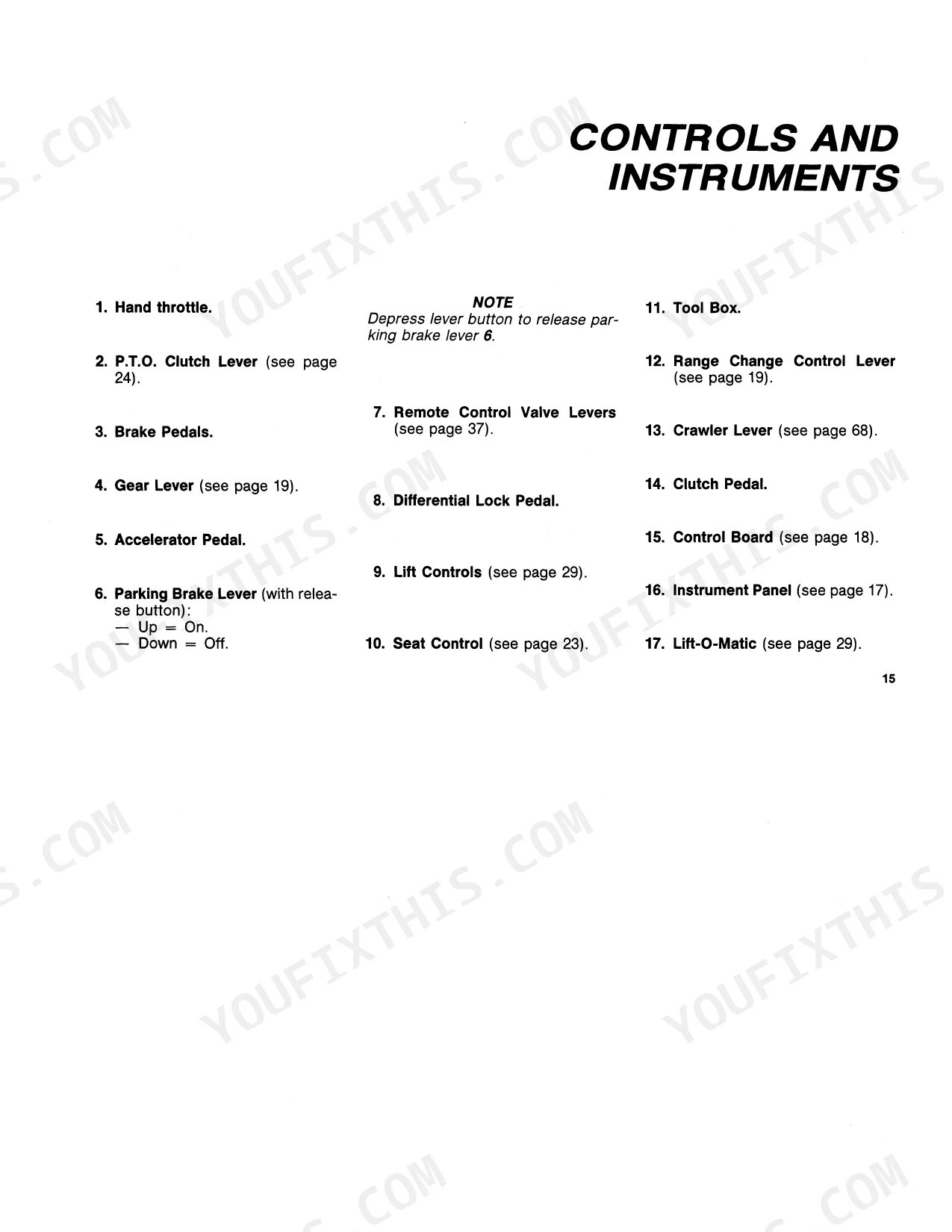

| Controls and Instruments | 17-21 | Instrument Panel, Battery Charge Indicator, Starter Switch, Transmission and Splitter |
| Operation | 22-32 | Engine Starting and Stopping, Cold-Weather Starting, Seat Adjustment, Power Take-Off, Hydraulic Lift |
| Guide to Lift Operation | 33-49 | Position Control, Combined Draft and Position Control, Implement Attachment, Remote Control Valves, Front and Rear Tracks, Ballasting, Towing |

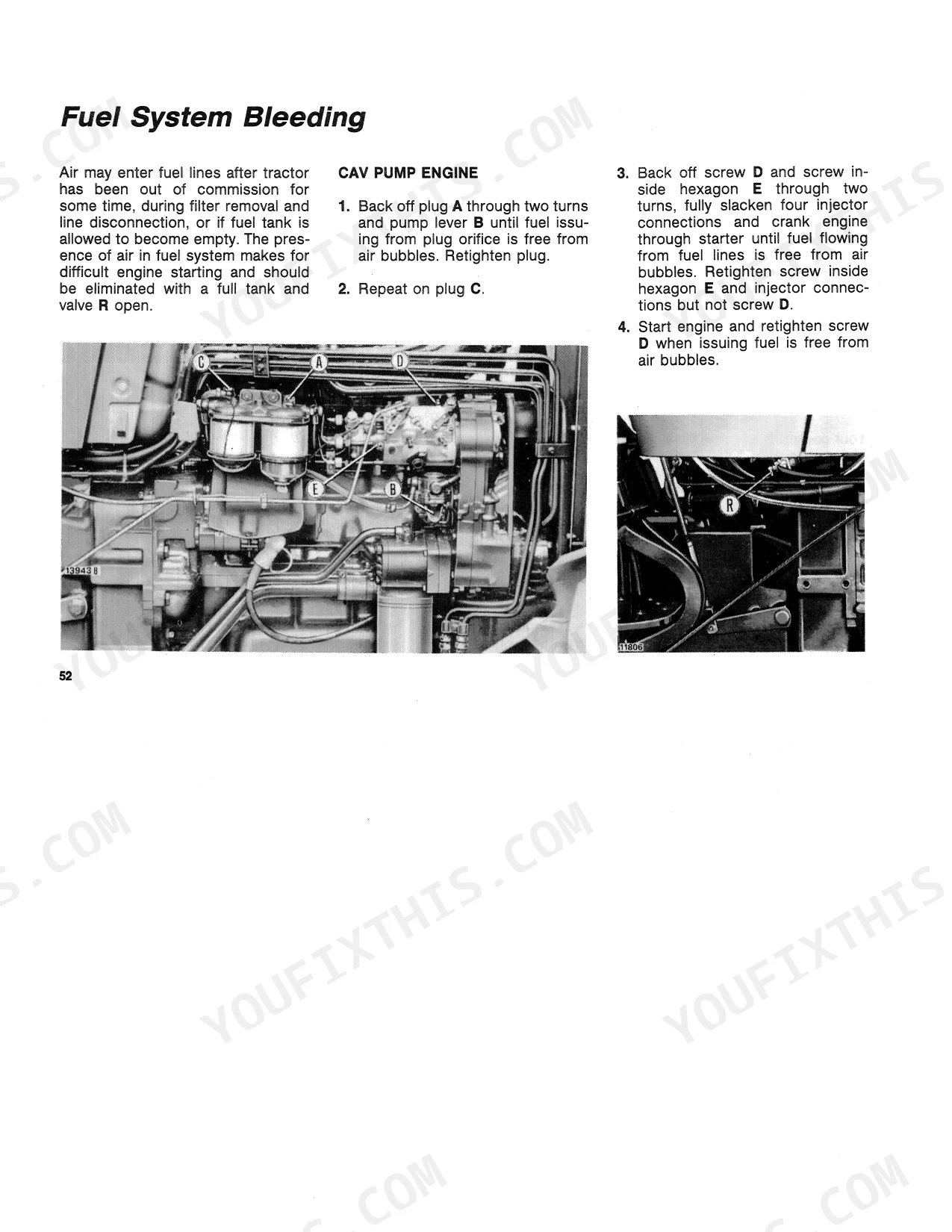

| Servicing Schedule | 50-55 | Maintenance Schedule, Cleaning, Cooling System, Fuel System Bleeding |
| Electrical System | 56-58 | Battery, Fuses, Auxiliary-Battery Starting |
| Specification | 59-64 | Dimensions and Weights, Speeds, Engine Data, Cooling System, Wheels and Tires, Service Brake |
| 70-66 DT and 80-66 DT Four Wheel Drive | 65-69 | Live Front Axle, Turning Radius, Front Wheel Drive Operation, Front Track Adjustment |
| Speed Version | 70-71 | Pinion Drive Creeper Gear, Forward Gear Range, Reverse Ratios, Speeds at Full Load |
| Reverser Version | 72-73 | Reverser Lever, Forward and Reverse Travel, Servicing Caution |
| No-Spin Version | 74-75 | Locked-Differential Behaviour, Disengagement on Turns, Straight-Line Operation |
| Heated and Ventilated Cab Version | 76-82 | Doors, Tilting Windshield, Windshield Washer, Ventilation, Heating, Cab-Version Wiring Diagram |
| Storage and Variants | 83-84 | Extended Storage, Engine Protection, Variants and Accessories |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nuts torque | 294 N·m | p. 38 |
| Maximum lateral swing of lower links | 120 mm | p. 33 |
| Front track clamp bolts 1 and 2 torque | 220 N·m | p. 38 |
| Front track clamp bolt 3 torque | 39 N·m | p. 38 |
| Brakes - pedal free travel | 45 mm (1.77 in) | p. 50 |
| Master clutch - pedal free travel | 25 mm (1 in) | p. 48 |
| P.T.O. clutch - withdrawal lever pin free travel | 4.5 mm (0.18 in) | p. 50 |
| Battery voltage | 12V | p. 62 |
| Starter output | 3.5 kW | p. 64 |
| Engine Valve Clearance (Intake) | 0.25 mm | p. 50 |
| Engine Valve Clearance (Exhaust) | 0.35 mm | p. 50 |
| Fuel Injector Release Pressure | 230 to 238 bar | p. 50 |
Fiat 70-66, 80-66 Common Problems This Manual Covers
Hitch will not lift or drops
A lift that hunts, stalls under load, or lets the implement sag is often the operator fighting the control mode rather than a failed pump. The Guide to Lift Operation walks position control and combined draft and position control step by step, plus check link adjustment so lower link swing stays within limits.
Manual Section: Guide to Lift Operation p. 31PTO clutch drags after disengagement
If the shaft keeps creeping with the lever out, the withdrawal linkage has usually lost its free travel. The Servicing Schedule gives the PTO clutch withdrawal lever pin free travel of 4.5 mm and the interval for checking it before the implement season starts.
Manual Section: Servicing Schedule p. 50Hard starting on cold mornings
These tractors are fussy about the starting drill, and skipping it flattens batteries and washes bores. The Operation section covers engine starting and stopping in order, along with control board layout so you know what every lever and switch is doing before the key turns.
Manual Section: Operation p. 20Battery flat or charging trouble
A tractor that sits between seasons comes back with a dead battery more often than a dead starter. The Electrical System section covers the battery itself, and the joined wiring diagram lets you chase a charging or lighting fault instead of swapping parts until something changes.
Manual Section: Electrical System p. 54Front tire scrub on DT models
Running the front wheel drive engaged on hard ground, or a front track set wrong for the rears, chews tires and loads the front axle. The DT section covers front wheel drive operation, front track adjustment, and the correct front and rear tire pairings.
Manual Section: Dt and 80-66 Dt Tractors p. 63Differential behaves oddly in turns
No-Spin equipped tractors ratchet and bark in tight headland turns, and owners who do not expect it start pulling axles. The No-Spin Version section explains how the dog clutch rings and splined sleeves work, what noise is normal, and how the unit affects traction and wheel travel.
Manual Section: No-Spin Version p. 71Frequently Asked Questions
Which tractors does this operator manual cover?
The Fiat 70-66 and 80-66, including the 70-66 DT and 80-66 DT four wheel drive models (their own section, pages 65-69), the 20-Speed, Reverser and No-Spin versions and the heated and ventilated cab version. The full list of variants the book covers is printed on page 84. Engine types covered are the 8045.05 and 8045.06 families.
Does it include a wiring diagram?
Partly, and it is worth knowing exactly what you get. The cab-version wiring diagram with its numbered component legend is on page 82, and the Electrical System section (pages 56-58) covers the battery, fuses and auxiliary-battery starting. The MAIN wiring diagram was issued as a separate sheet joined to the original manual, and page 86 of this copy prints 'Wiring Diagram - Not Available' alongside 'Servicing Chart - Not Available', so those two sheets are not in this file. p. 54
What maintenance specs does the Fiat 70-66, 80-66 Servicing Schedule give?

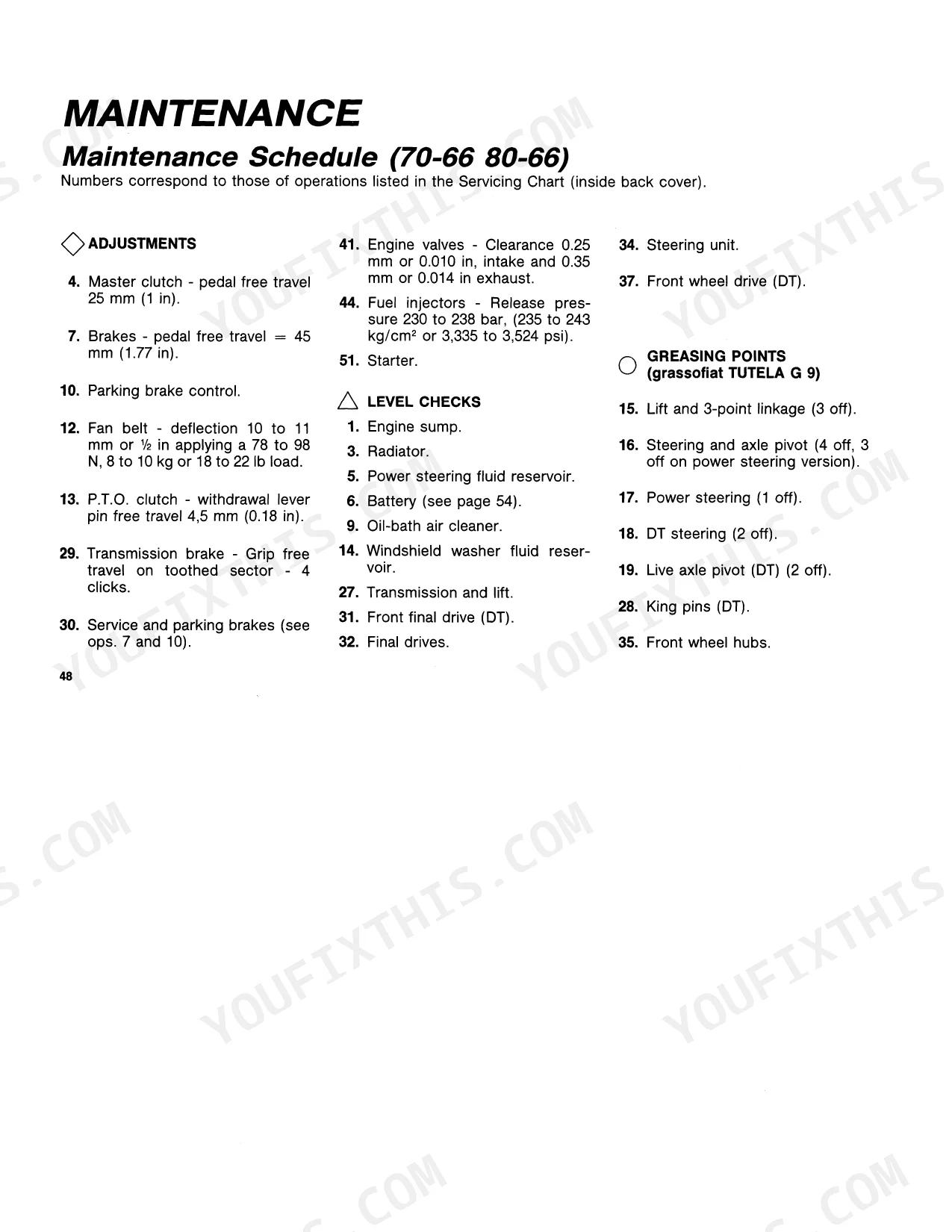

The Fiat 70-66 and 80-66 Servicing Schedule on page 50 lists the working figures: valve clearance 0.25 mm intake and 0.35 mm exhaust, master clutch pedal free travel 25 mm, brake pedal free travel 45 mm, fan belt deflection 10 to 11 mm under a 78 to 98 N load, and P.T.O. clutch withdrawal lever pin free travel 4.5 mm. p. 50
Does it cover the four wheel drive DT models?
Yes. Pages 65-69 are a dedicated 70-66 DT / 80-66 DT four wheel drive section covering the live front axle, turning radius, front wheel drive operation and front track adjustment, with the DT tire sizes and operating weights in the specification on page 66. p. 63
How quickly can I access this Fiat 70-66 manual after buying?
You download the Operator Manual yourself: 89 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Am I able to print pages from this Fiat 70-66 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
