What's inside: three FiatAllis books bound into one 1,235-page file for the FX480, FX480LC crawler excavator - the volumes dealers sold separately. Pages 1-196 are the Operation and Maintenance manual (introduction, operation, inspection and servicing, repair work and the annex). Pages 197-515 are the illustrated Parts Manual: undercarriage, hydraulic and fuel tanks, swings, counter balance, engine, travel and slewing gear, swing brake, hydraulic system, heater, greasing system, electrical system and sheet metal. Pages 516-1235 are the Service Manual - the FiatAllis Technical Handbook - running its numbered sections from How To Use and Specifications through General, Superstructure, Diesel Boxes, Undercarriage, Front-End Attachments, Hydraulic System, Electrical System and Equipment to the EDS operating instructions, fittings, pipes and hoses, welding for maintenance and repair, and the sealing, protective, checking and cleaning agents. On diagrams, precisely: the Technical Handbook explains circuits and refers to them by component number, and it carries sectional views of the hydraulic components and the electrical procedures - including emergency operation of the proportional valve when the electronic regulator fails - but it does not print drawn wiring or hydraulic schematic sheets.
What's Inside This FiatAllis FX480, FX480LC Manual
| System | Pages | Key Topics |
|---|---|---|

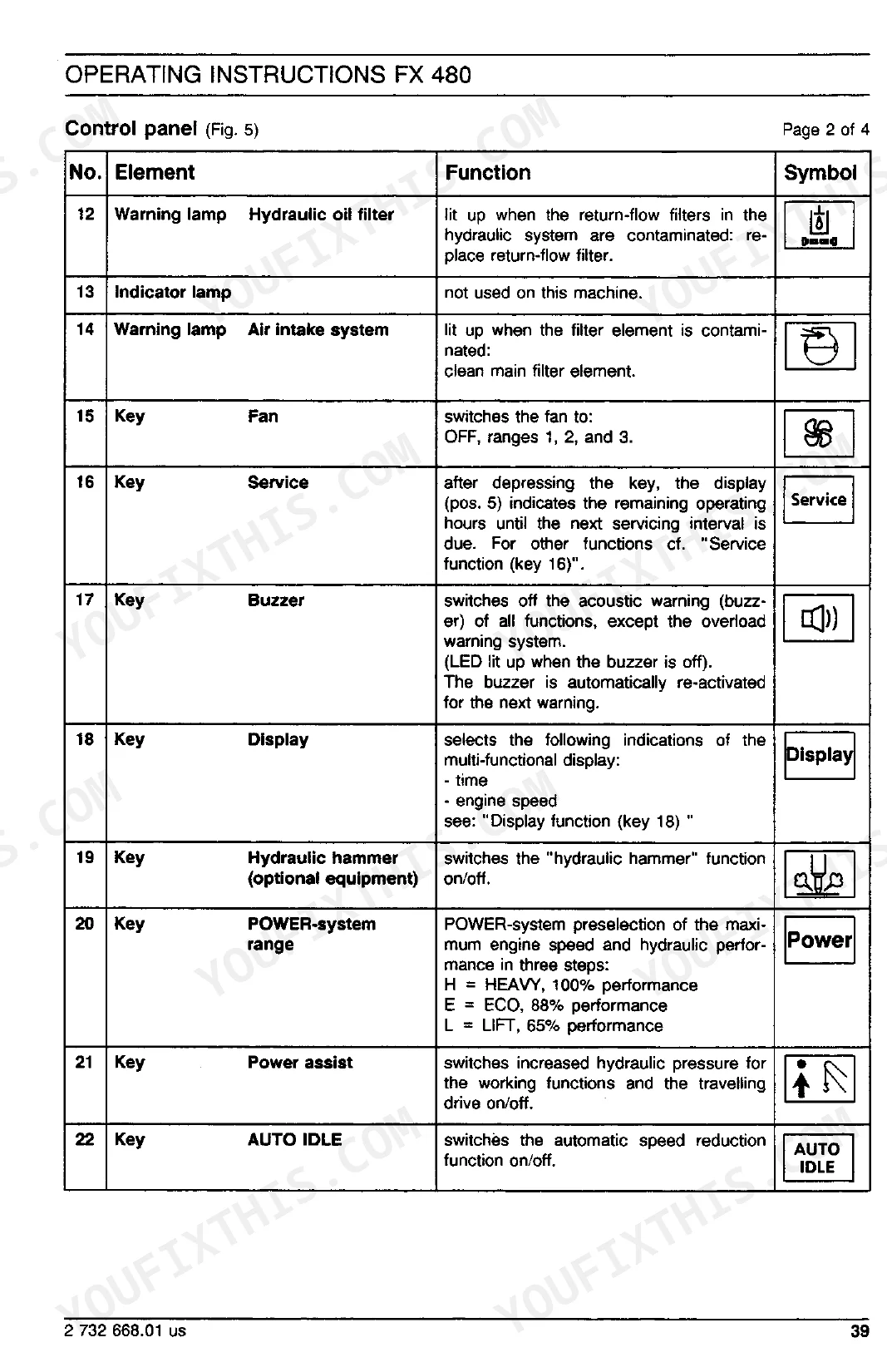

| Operation & Maintenance | 1-196 | Introduction, Operation, Inspection and Servicing, Repair Work, Annex |
| Parts Manual - FX 480LC | 197-369 | Undercarriage, Superstructure, Track & Related Parts, Fuel & Hydraulic Tank, Swivel Connection, Counterweight |
| Parts Manual - Heater | 370-515 | Greasing System, Electrical System, Sheet Metal & Covers, Implement, Decal, Tools |
| Service Manual - 01 - Foreware / Safety Instructions | 516-737 | Foreware / Safety Instructions, Service Data, Tools, Undercarriage, Superstructure, Diesel Boxes |
| Service Manual - 08 - Hydraulic System | 738-1006 | Hydraulic System, Electrical System |
| Service Manual - 10 - Equipment | 1007-1235 | Equipment, EDS Operating Instructions, Fittings, Pipes and Hoses, Welding for Maintenance and Repair, Sealing, Protective, Checking and Cleaning Agents |
FiatAllis FX480, FX480LC Common Problems This Manual Covers
Machine derates or behaves oddly under load and you suspect the load limit governor or speed control rather than the pump.
Start with Section 09 Electrical System and the electrical components listing, which gives the current path, machine location and part number for the load limit governor, electronic speed control and speed sensor, then use Section 11 EDS Operating Instructions to check the system through the diagnostic connector before condemning hydraulics.
Manual Section: Service Manual - 09 Electrical System / 11 EDS Operating Instructions p. 399Weak or slow hydraulics on travel or dig functions, and no baseline figures to test against.
Section 08 Hydraulic System covers the circuit and components, and Section 02 Service Data holds the specification values to measure against. Between the two you can test pressures, compare to spec and isolate whether the fault is pump, relief or a single circuit instead of swapping parts blind.
Manual Section: Service Manual - 02 Service Data / 08 Hydraulic SystemWorn track components, loose track or undercarriage noise on an FX480LC and no way to identify what to order.
The Service Manual Section 04 Undercarriage gives the inspection and repair procedures, while the Parts Manual undercarriage and track and related parts groups supply exploded views with part numbers so you can measure wear, decide what stays, and order exactly what needs replacing.
Manual Section: Service Manual - 04 Undercarriage / Parts Manual - Track & Related PartsLeaking fittings, hoses or swivel connection dripping hydraulic oil onto the undercarriage.
Section 12 Fittings, Pipes and Hoses covers routing and connection practice for the hydraulic lines, the Parts Manual swivel connection group identifies seal and component part numbers, and Section 14 lists the approved sealing agents so the repair holds instead of weeping again in a month.
Manual Section: Service Manual - 12 Fittings, Pipes and Hoses / 14 Sealing Agents p. 738Frequently Asked Questions
Does this set cover the hydraulic system in enough depth to rebuild pumps and trace pressure problems?

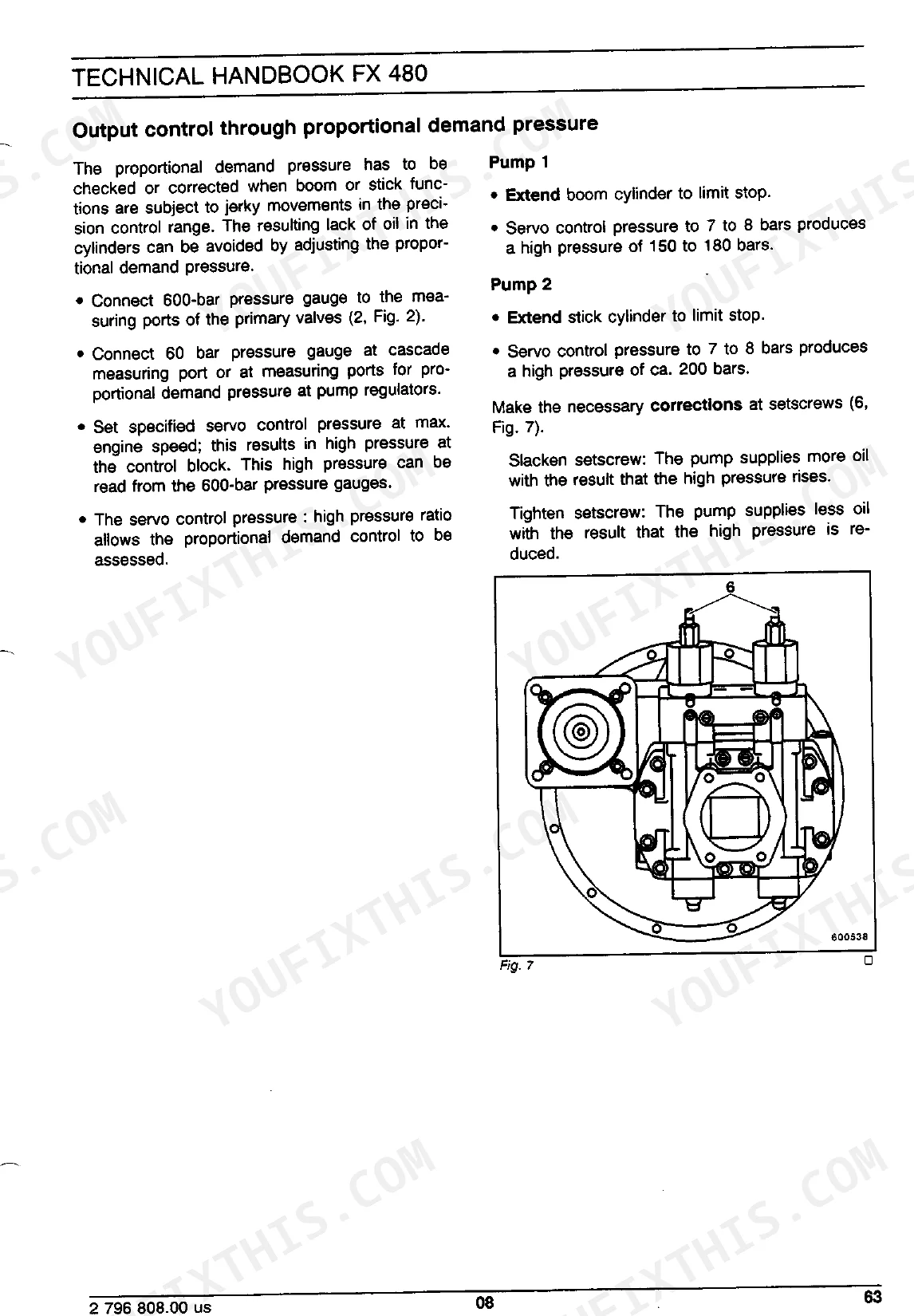

Yes. Section 08 of the Service Manual is the hydraulic system section of the FiatAllis Technical Handbook, and it sits next to Section 02 Service Data for the pressure and flow figures you check against. The Parts Manual adds the fuel and hydraulic tank group and the swivel connection with part numbers, so you can identify what you found worn once the covers are off. p. 738
The machine has electronic controls. Is the electrical side actually documented or is it just a wiring picture?

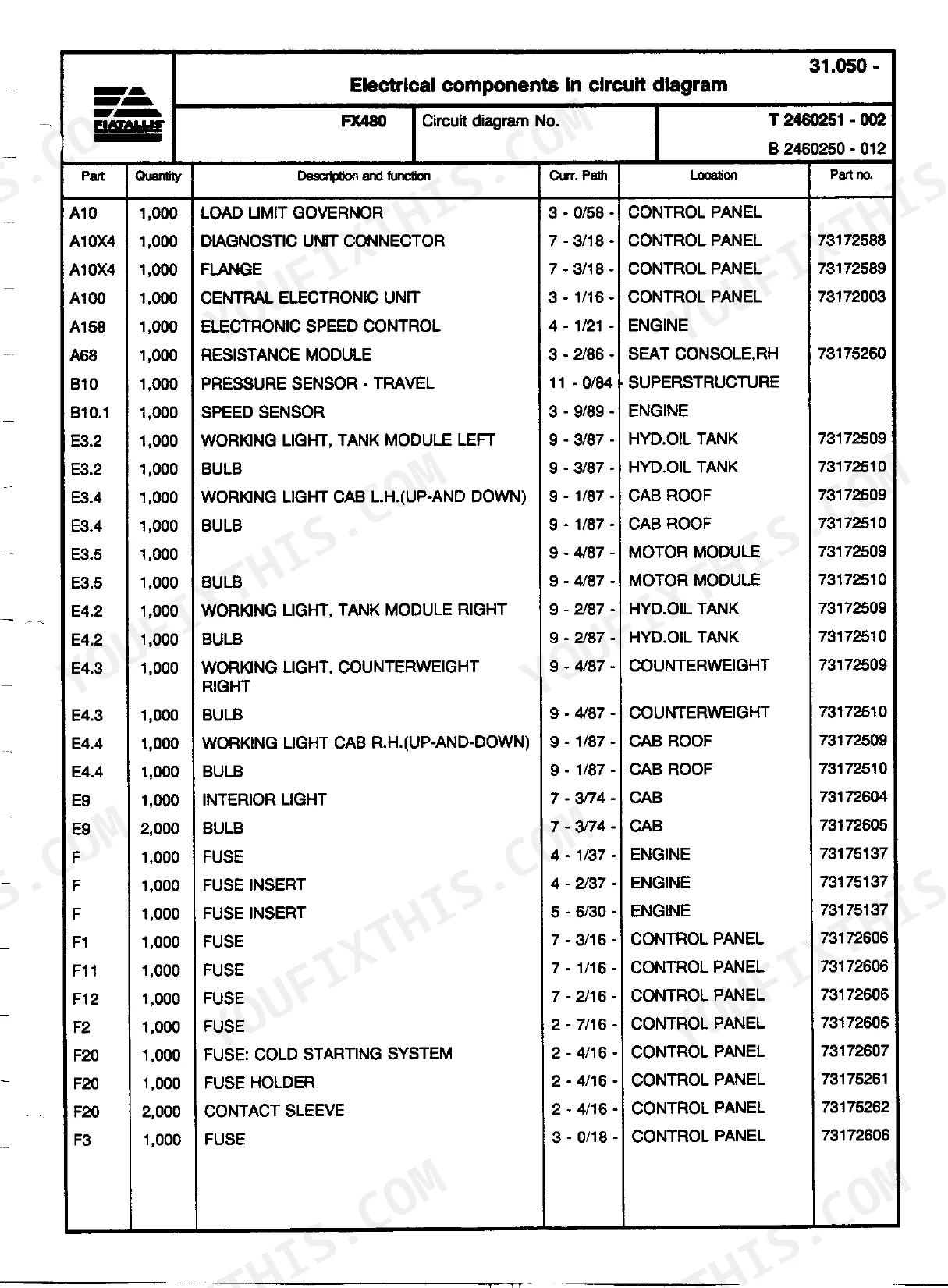

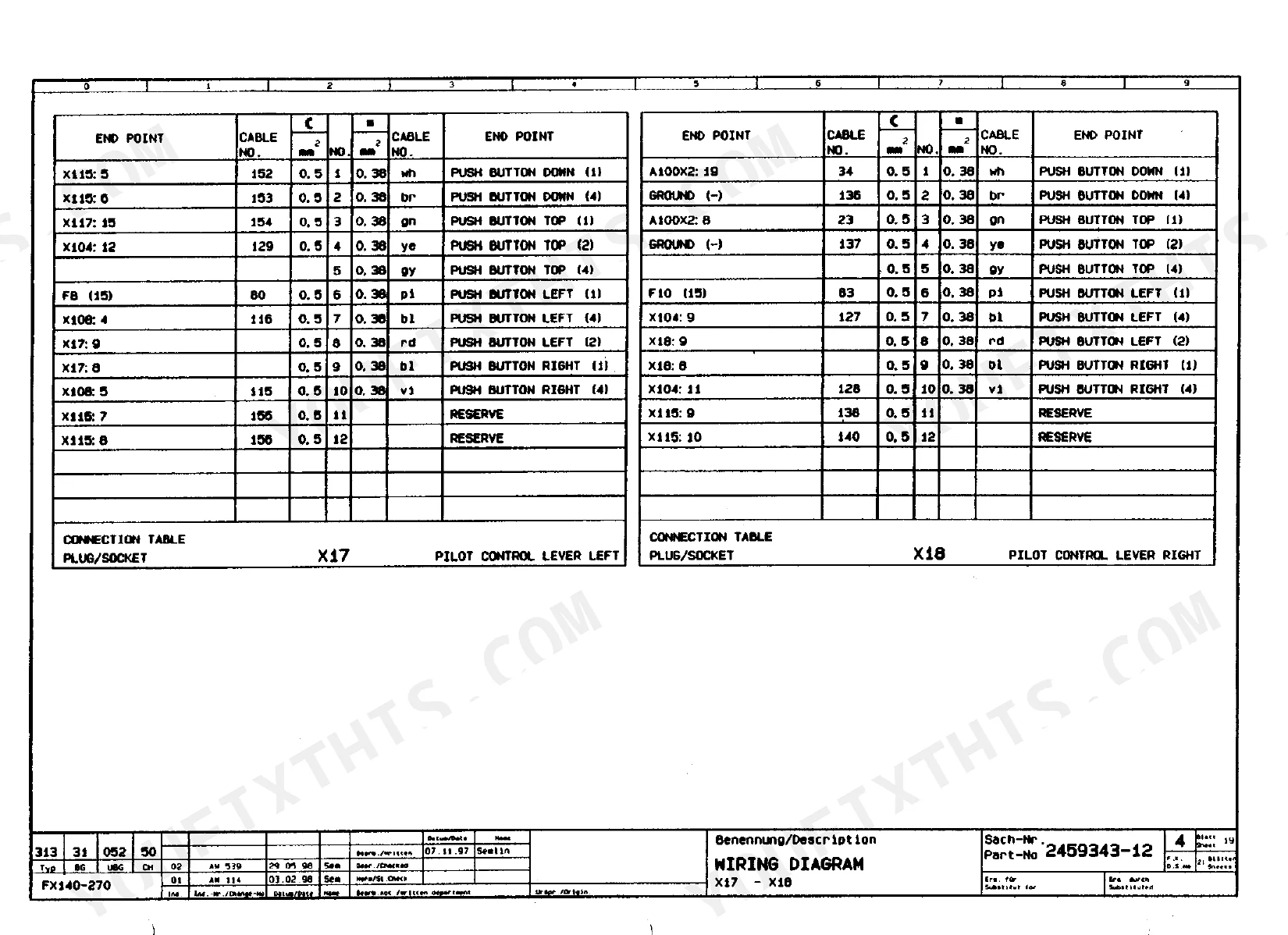

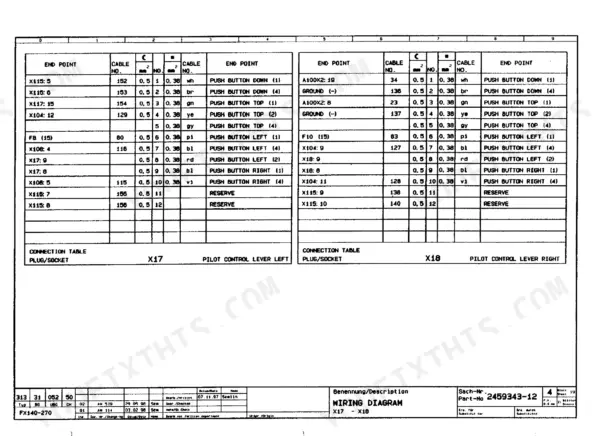

It is documented properly. Section 09 covers the electrical system, and the circuit diagram pages list every electrical component with its current path reference into the diagram, its location on the machine and its part number: load limit governor, central electronic unit, electronic speed control, diagnostic unit connector, travel pressure sensor, speed sensor, resistance module, working lights by position, fuses by circuit and the cold-starting system fuse. You can go from a dead circuit to a specific component on the machine. p. 399
What is EDS and does the manual explain how to use it?

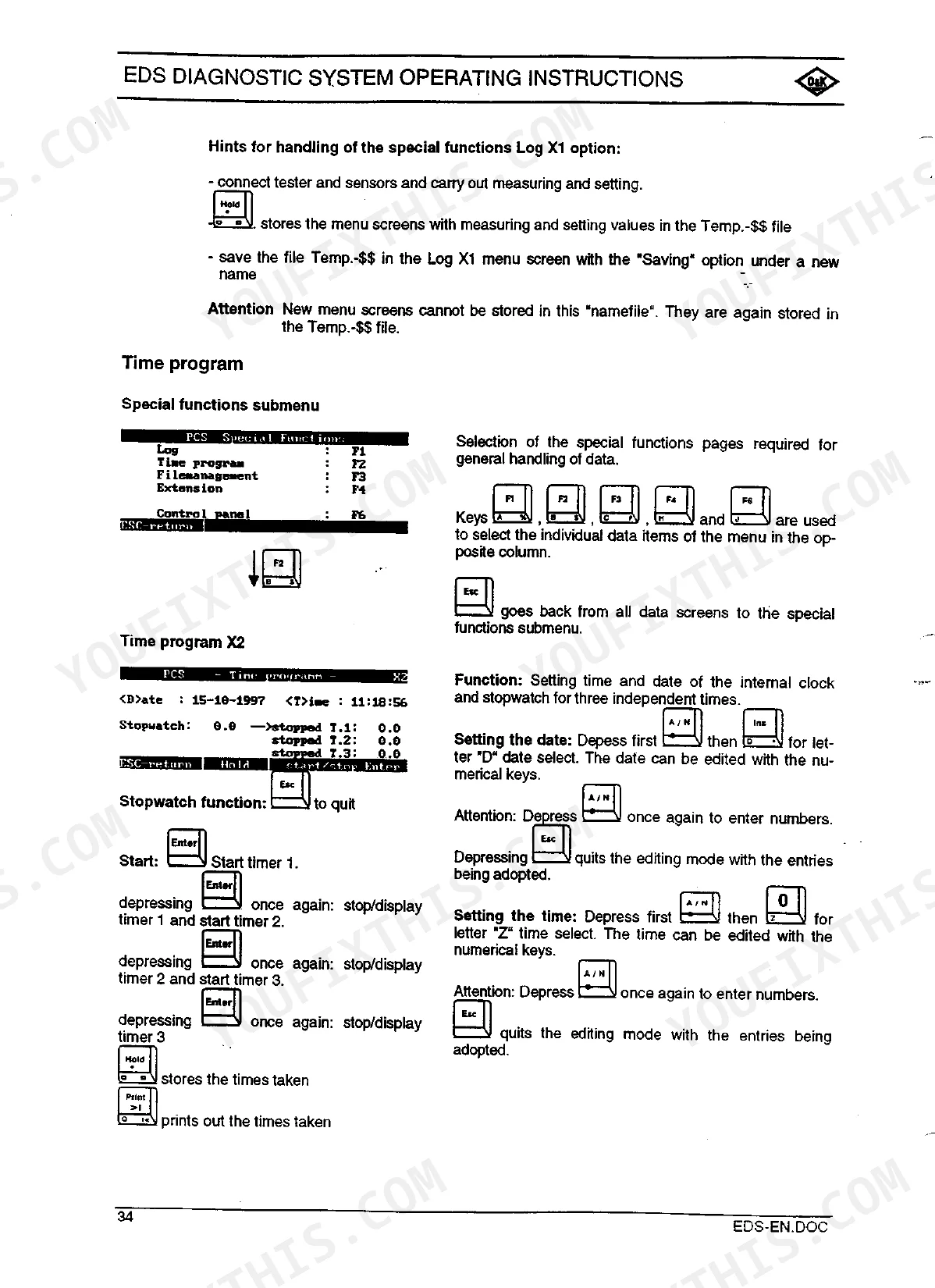

EDS is the electronic diagnostic side of the FX480 control system, and Section 11 of the Service Manual is the EDS Operating Instructions. It walks through working with the system via the diagnostic unit connector rather than guessing at the central electronic unit with a test lamp. For a machine of this vintage, having the factory instructions for the electronics is the difference between fixing it and parking it. p. 1007
Can I look up part numbers for undercarriage and track components?
Yes. The FX480LC Parts Manual has dedicated groups for the undercarriage and for track and related parts, with exploded illustrations keyed to part numbers. Superstructure, counterweight, swivel connection, greasing system, sheet metal and covers, implement and even decals and tools each get their own group, so ordering from a dealer or matching aftermarket parts is a lookup, not a phone call with guesses.
Is welding on the frame or attachment covered, or do I risk cracking it worse?
Section 13, Welding for Maintenance and Repair, gives the factory procedure for weld repairs on this machine. That matters on a crawler excavator where boom, stick and frame cracks are a fact of life. Section 14 backs it up with the approved sealing, protective, checking and cleaning agents so you use what FiatAllis specified rather than whatever is on the shelf. p. 1007
