Ease the choke lever forward on a Ford 140 and you find out fast whether the Kohler K321S under the hood has been getting the care it deserves. This 28 page operator manual, Ford publication 42014010, walks the owner of this hydrostatic lawn and garden tractor through every control on the machine, from the Electro Lift and electric clutch to the single point implement hitch.
Inside are the factory routines that keep an old 140 running: daily and weekly inspection lists, crankcase oil and battery service, traction drive belt and clutch-brake adjustment, hydrostatic control linkage settings, and the full procedure for putting the tractor into storage and waking it up again in spring.
The PDF carries nine bookmarks, so you can jump from the specifications table to the belt adjustment steps in a couple of clicks instead of thumbing greasy pages in the barn.
What's Inside This Ford 140 Operator Manual

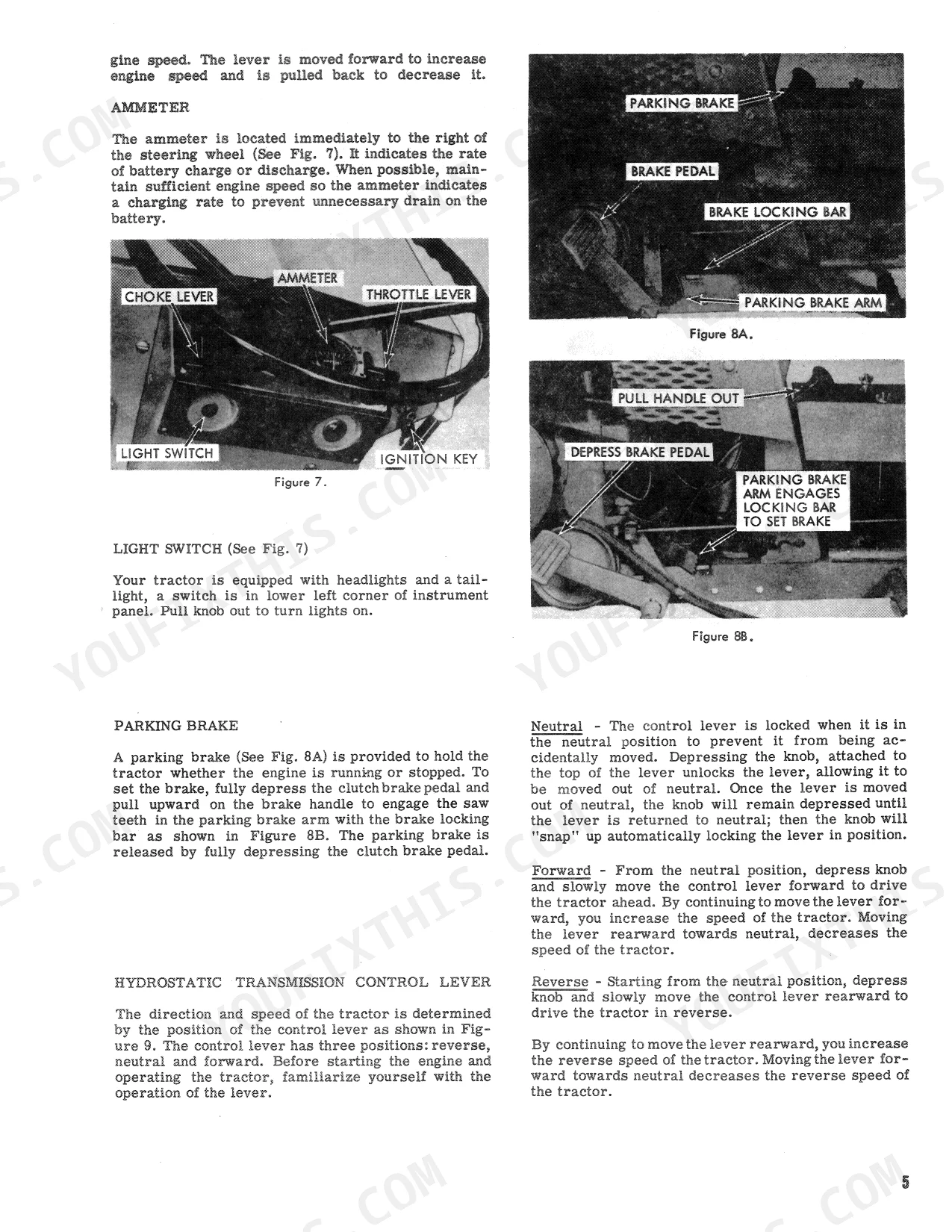

| System | Pages | Key Topics |
|---|---|---|
| General Information | 5-8 | Power Plant, Drive Train (Hydrostatic Transmission), Clutch - Brake Pedal, Seat and Tool Compartment, Single Point Implement Hitch, Raising the Hood, Ignition Keys and Lock |
| Operating Instructions | 9-11 | Operating Safety Instructions, Preparing Tractor for Operation, Weight for Added Traction |
| Maintenance and Lubrication | 12-14 | Daily Inspection, Weekly Inspection, Hydrostatic Transmission, Engine Crankcase Oil, Lubricating Tractor, Lubricating Throttle and Choke Control Cables, Servicing the Battery |
| Adjustments | 15-18 | Foot Rest Adjustment, Traction Drive Belt and Clutch-Brake Assembly, Steering Wheel Free-Play Adjustment, Hydrostatic Transmission Control Lever Linkage Adjustment |
| Tractor Storage | 19-20 | Starting the Engine After Storage |
| Safety Tips | 21 | Controls, Clutches, Gasoline Containers, Safety Devices, Carburetor, Battery Cables |
| Some Setups for Upsets | 22 | Speed, Traffic, Slopes, Obstacles, Mud, Ditches |
| Specifications | 23 | Hydrostatic Transmission, Traction Clutch, Engine, Steering Gear, Electro Lift, Hitch |
| Assembly Instructions | 24-28 | Rear Wheels, Installing the Steering Wheel, Installing the Battery, Pre-Operating Instructions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Weights | 20 pounds each | p. 10 |
| Rear Wheel Weights | 53 pounds each | p. 10 |
| Hydrostatic transmission control lever linkage adjustment torque | 12 foot pounds | p. 15 |
| Engine Crankcase Oil Capacity | 2 quarts | p. 13 |
| Standard Front Tire Pressure | 12 psi | p. 15 |
| Standard Rear Tire Pressure | 12 psi | p. 15 |
| Traction Drive Belt Dimension A | 1-7/8 to 2-1/8 inches | p. 15 |
| Traction Drive Belt Dimension B | 1 to 1-1/4 inches | p. 16 |
| Hydrostatic Transmission Control Lever Linkage Torque | 12 foot pounds | p. 17 |
Ford 140 Common Problems This Manual Covers
Traction drive belt slips under load
A stretched or misadjusted traction drive belt lets the 140 lose forward drive on grades or with an implement down. The manual gives the adjustment procedure for the belt and clutch-brake assembly, including the checked dimensions for idler position.
Manual Section: Adjustments p. 15Tractor creeps with control lever in neutral
When the hydrostatic control lever linkage drifts out of adjustment, the tractor inches forward or backward at what should be a dead stop. The linkage adjustment procedure, including the specified screw torque, is covered step by step.
Manual Section: Adjustments p. 15Hard starting after winter storage
A 140 that sat all winter with stale fuel and a soft battery often refuses to catch in spring. The storage section covers both putting the tractor away properly and the correct sequence for starting the engine after storage.
Manual Section: Tractor Storage p. 19Engine stalls when choke is pushed in
Stiff or gummed throttle and choke control cables make the Kohler stumble during warmup and die when the choke comes off. The maintenance section shows how to lubricate both control cables so they move freely.
Manual Section: Maintenance and Lubrication p. 12Battery runs down or cables corrode
Corroded terminals and a neglected battery are a common reason an otherwise healthy 140 clicks instead of cranks. Battery servicing is part of the scheduled maintenance routine laid out in this manual.
Manual Section: Maintenance and Lubrication p. 12Rear wheels spin on slopes
With a heavy implement or wet turf, the drive wheels break loose before the engine runs out of power. The operating section covers adding wheel weights for traction, with the factory weight figures for front and rear wheels.
Manual Section: Operating Instructions p. 9Frequently Asked Questions
Which tractor and engine does this manual cover?
It covers the Ford 140 lawn and garden tractor with the Kohler K321S engine and hydrostatic transmission. It is the factory operator manual, Ford publication 42014010, and includes the tractor's controls, maintenance schedule, adjustments, storage procedure, and assembly instructions.
Does it explain how to adjust the traction drive belt?

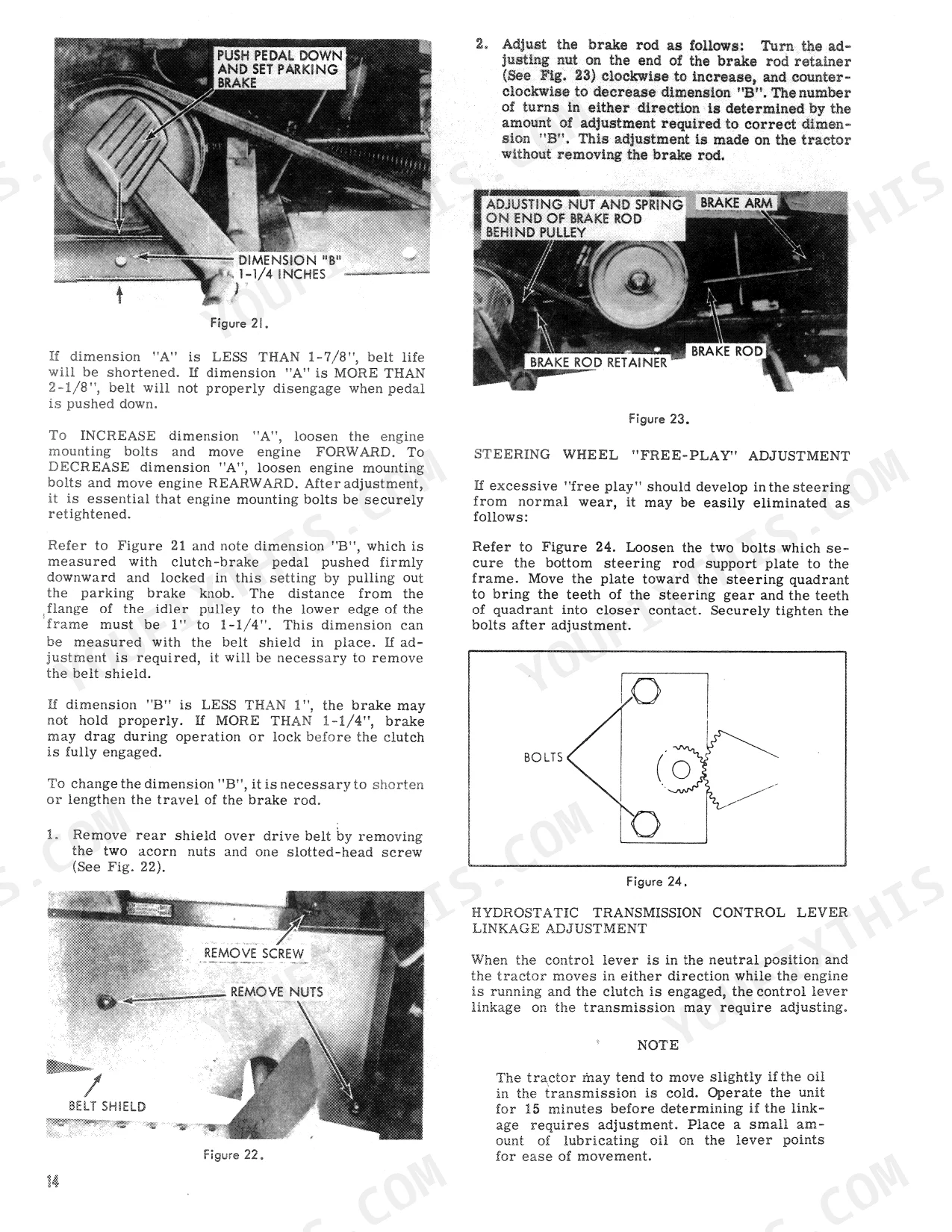

Yes. The Adjustments section walks through the traction drive belt and clutch-brake assembly adjustment, steering wheel free-play, hydrostatic control lever linkage adjustment, and traction drive belt replacement, with the specific dimensions to check as you go. p. 15
What routine maintenance does the manual cover?

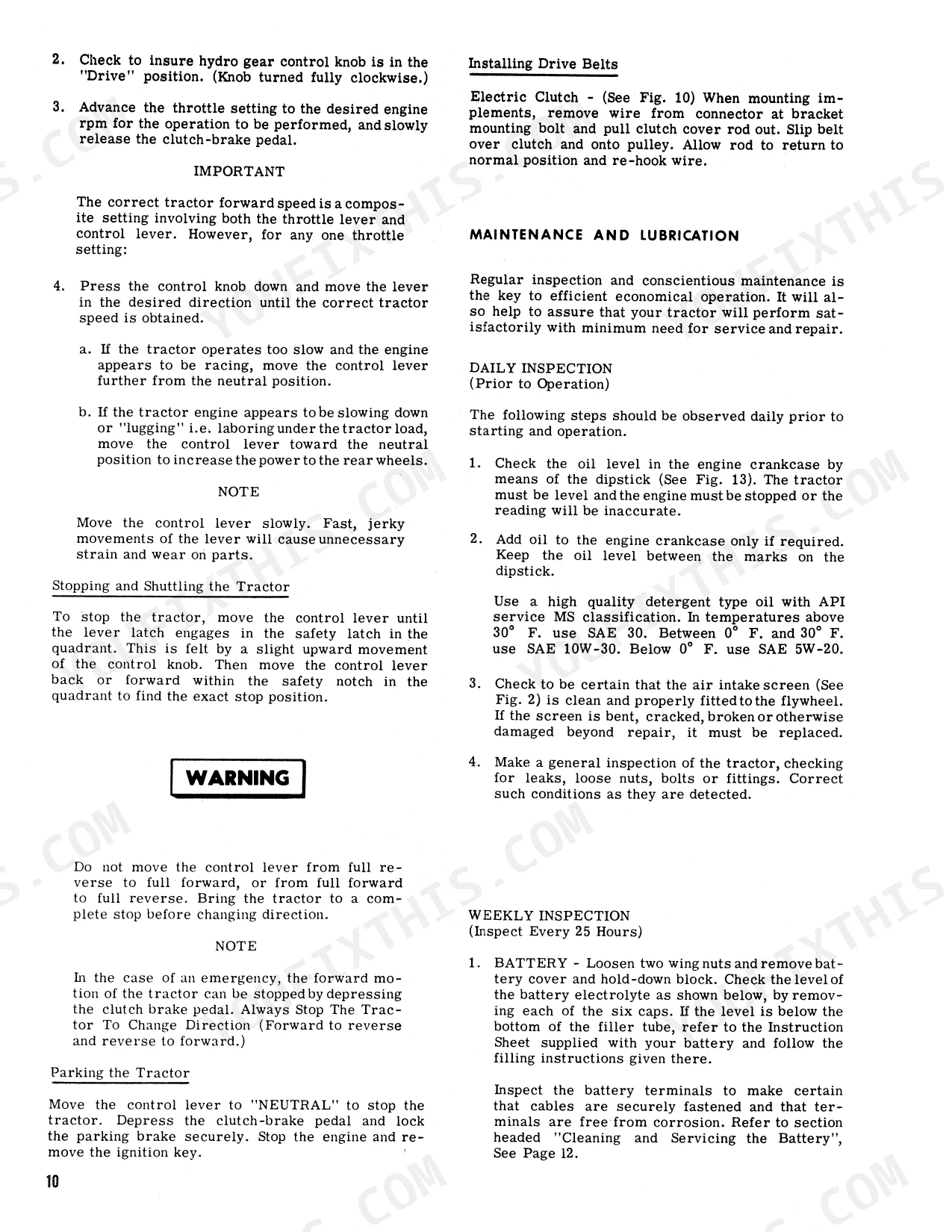

The Maintenance and Lubrication section covers daily and weekly inspections, hydrostatic transmission checks, engine crankcase oil (2 quart capacity), chassis lubrication, throttle and choke cable lubrication, battery service, and tire maintenance. p. 12
Is this Ford 140 manual a PDF I download?
A single searchable PDF file of 28 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is this Ford 140 manual print-friendly?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Ford 140 manual have electrical schematics?
The Operator Manual carries one electrical wiring diagram for the Ford 140, on page 20. It is a complete pictorial diagram of the machine: battery, starter-solenoid, ignition switch, ammeter, lift switch and the headlight and clutch connectors, with a numbered parts legend.
