The hour meter on a Ford 1620 rolls past 100 and the question is always the same: which oil, how much, and what else is due while the tractor is already in the shop. This operator manual answers that in its Lubrication and Maintenance section, with separate service charts for two-wheel drive and four-wheel drive models, fuel and lubricant procedures, and storage prep.
It covers the Ford 1620 compact tractor with hydrostatic transmission, serial prefix UJ. Across its 67 pages you get controls and instruments, break-in and starting procedures, operating the transmission, four-wheel drive, PTO and differential lock, wheel tread settings, ballast, tire pressures, and a Specifications chapter with figures like the 800 to 900 rpm low idle and 540 rpm rear PTO speed.
It is a PDF download, ready for a shop laptop or a printed copy under the seat, so the answer is in hand before the weather window closes.
What's Inside This Ford 1620 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| International Symbols | 5 | Engine Speed, Engine Water Temperature, Air Filter, Parking Brake, Differential Lock, Power Take-Off |
| Safety Precautions | 6-7 | The Tractor |

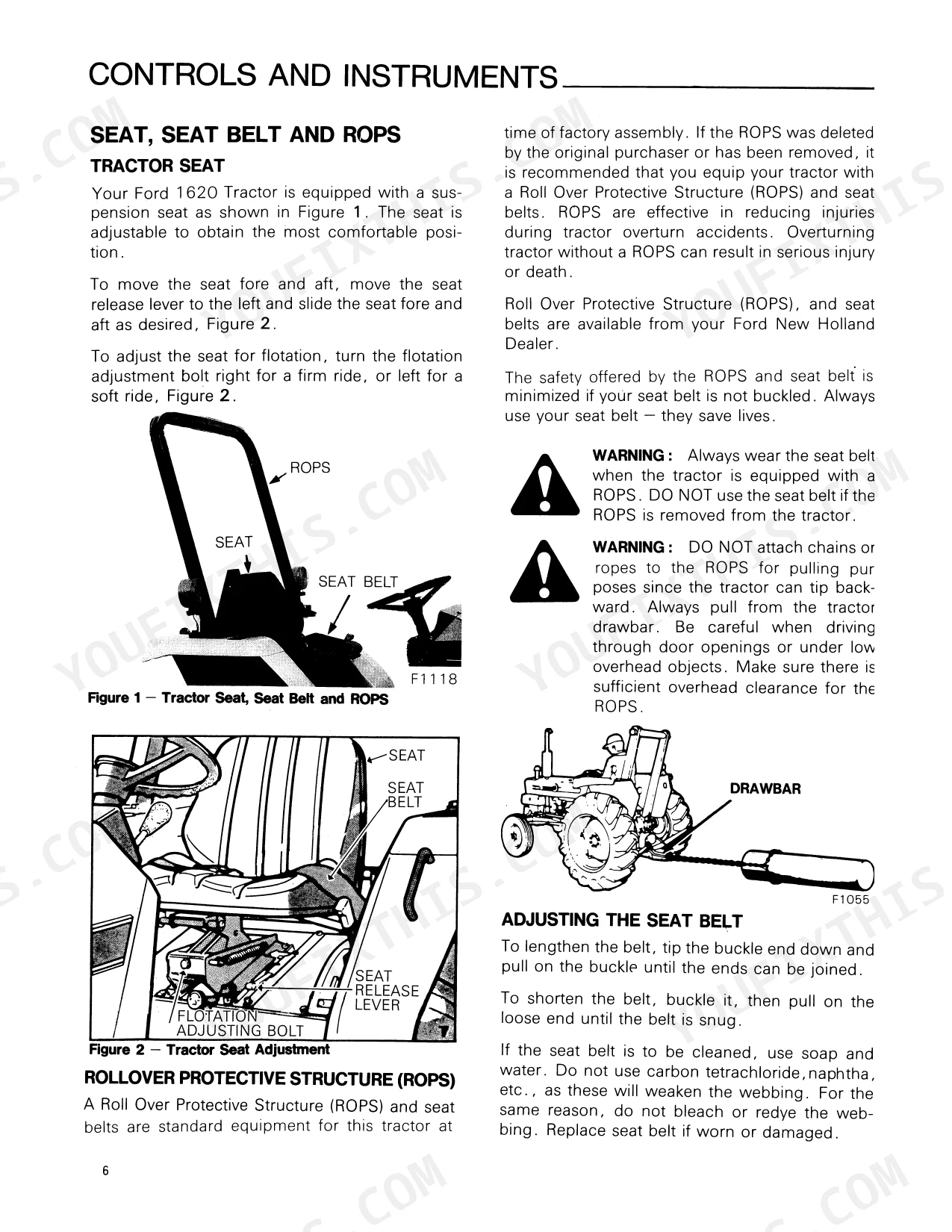

| Controls and Instruments | 8-14 | Seat, Seat Belt and ROPS, Lighting, Instrument Panel, Throttle Controls, Brake Controls, Differential Controls, Hydrostatic Transmission Controls |

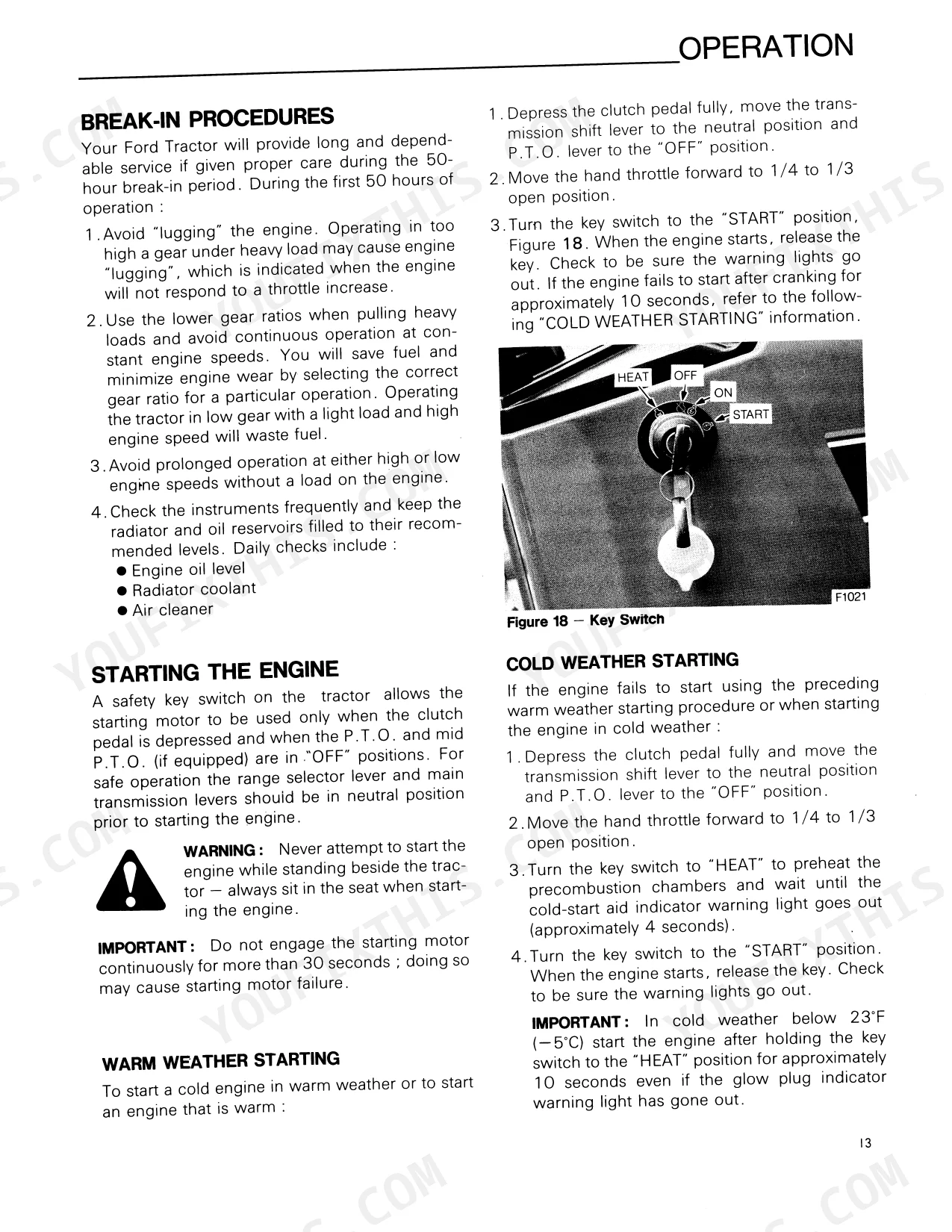

| Operation | 15-28 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Transmission, Four-Wheel Drive and PTO, Towing the Tractor, Operating the Differential Lock |

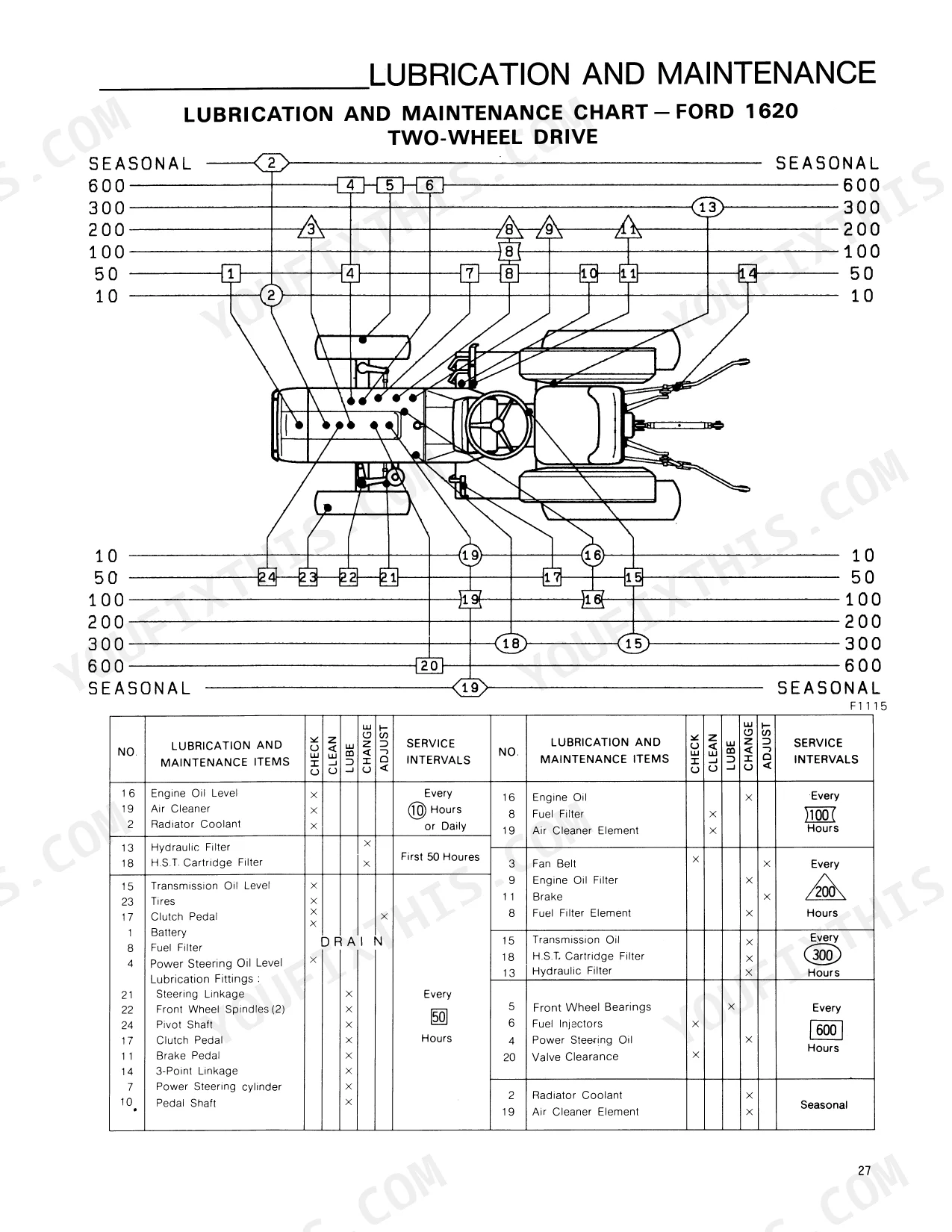

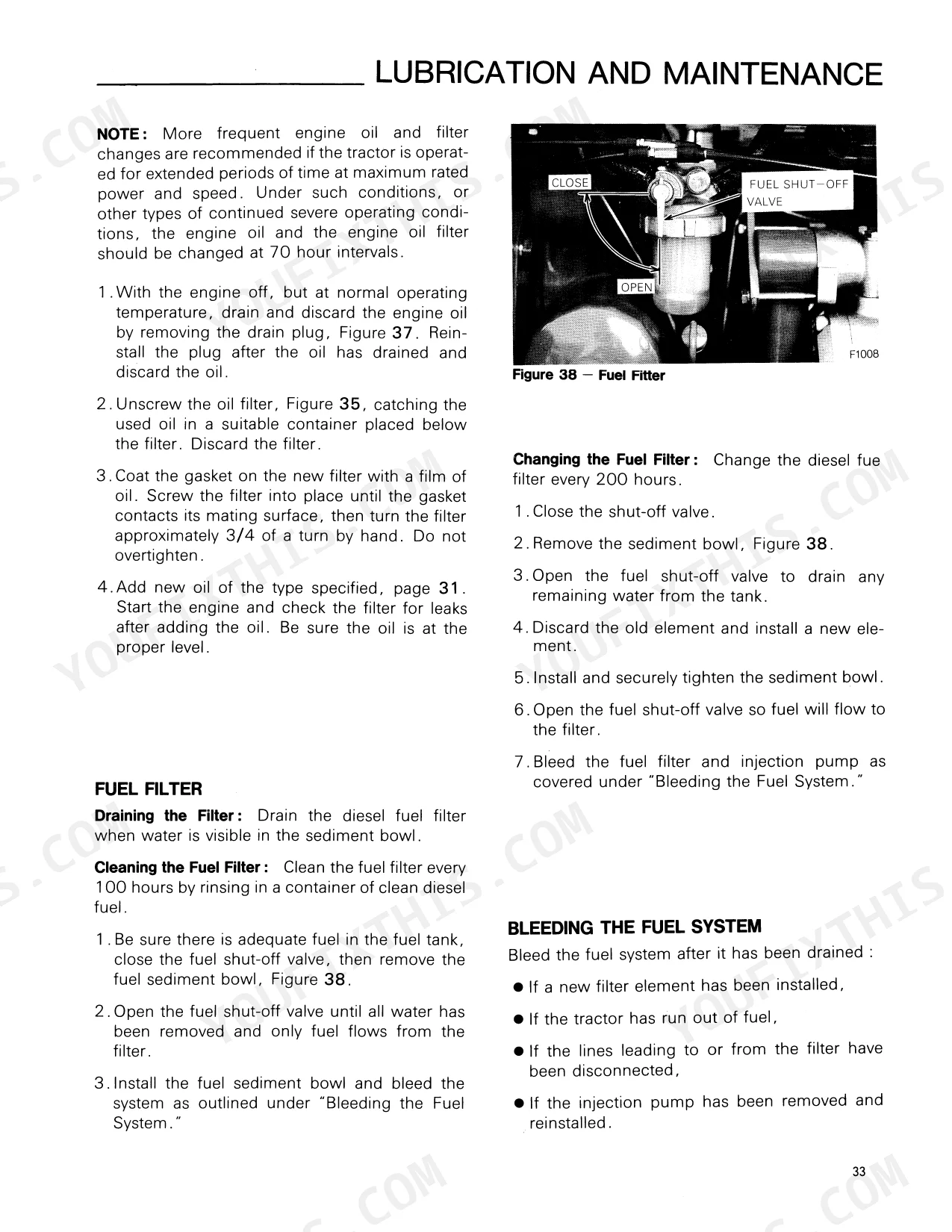

| Lubrication and Maintenance | 29-52 | Lubrication and Maintenance Chart (Two-Wheel Drive, Four-Wheel Drive), Fuel and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |
| Specifications | 53-56 | Engine, Cooling System, Electrical System, Fuel System, Hydraulic Lift System, Steering |
| Safety Decals | 57-58 | PTO Warning, Starting and Operating Warning, Jump Start Warning, Rotating Fan Warning, Danger-Explosive/Acid-Poison |
| Instruction Decals | 59-62 | Range Selector Lever, Speed Set Control, PTO Control Lever, Differential Lock, Hydraulic Manifold Operation, Remote Control Valve |
| Predelivery and 50-Hour Service | 63-65 | Inoperative Service Checks, Operative Service Checks, Safety Items Checks, Performance Service Checks |
| Owner Assistance | 66-67 | Dealership Contact, Branch Office Contact, Consumer Services Department |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Water Pump Belt Deflection | 7/16 to 9/16 inch (10-15 mm) | p. 52 |
| Clutch Pedal Free-Travel | 3/4-1-3/16 in. (19-30 mm) | p. 52 |
| Battery Rating | 12-volt, 70 amp. Hour | p. 52 |
| Radiator Cap Pressure | 13 psi (.9 bar) | p. 52 |
| Thermostat Start to Open | 160°F (71°C) | p. 52 |
| Engine Oil Change Interval | 100 hours | p. 34 |
| Hydraulic System Oil Change Interval | 300 hours | p. 37 |
| Engine Idle Speed | 800-900 rpm | p. 54 |
| Standard Rear PTO Speed | 540 rpm | p. 18 |
| Maximum Engine Speed | 2750-2800 rpm | p. 42 |
| Valve Clearance (Intake/Exhaust) | 0.008 in. | p. 54 |
| Front Wheel Bearing Repack Interval | 600 hours | p. 47 |
Ford 1620 Common Problems This Manual Covers
Power fades climbing hills under load
A common owner complaint on the 1620 is the hydrostatic drive losing forward push on grades while the engine bogs. Tired hydraulic oil and a neglected filter are the first things to rule out, and the manual lays out the 300 hour hydraulic service alongside the rest of the maintenance schedule.
Manual Section: Lubrication and Maintenance p. 29Hard starting on cold mornings
A diesel that cranks but will not light usually comes down to procedure before parts. The manual walks through the correct starting sequence, throttle setting, and cold weather steps so you are not cooking the starter at dawn.
Manual Section: Operation p. 15Four-wheel drive will not engage
Owners report front drive that grinds going in or refuses to release. The manual covers when and how to engage four-wheel drive, which conditions call for it, and how to shift out cleanly.
Manual Section: Operation p. 15Differential lock sticks engaged
Locking the rear axle in soft ground and then feeling it hang up on the turn is a classic small-tractor moment. The manual identifies the differential lock control and its proper use so you can free it without abusing the driveline.
Manual Section: Controls and Instruments p. 8Engine runs hot in summer work
Mowing in July will find any weakness in the cooling system. The manual's Specifications section lists the factory cooling system data, including thermostat and radiator cap figures, so you can test parts against real numbers instead of guessing whether they still work.
Manual Section: Specifications p. 53Front wheel bearings run dry
Loader work and washdowns are hard on front hubs, and a dry bearing announces itself with a growl you feel in the steering. The manual sets a 600 hour repack interval and gives the service procedure to go with it.
Manual Section: Lubrication and Maintenance p. 29Frequently Asked Questions
Which tractor does this manual cover?
The Ford 1620 compact tractor with hydrostatic transmission, serial prefix UJ. All 67 pages cover this model, including both two-wheel drive and four-wheel drive versions, from controls and operation through lubrication, maintenance, and specifications.
Does it give real service intervals, not guesses?
Yes. The Lubrication and Maintenance section sets the engine oil change at 100 hours, hydraulic system oil at 300 hours, and front wheel bearing repacks at 600 hours, with separate charts for two-wheel and four-wheel drive tractors. p. 29
Are engine and tune-up specifications included?
The Specifications section covers the engine, cooling system, electrical system, fuel system, hydraulic lift, and steering. It includes figures like the 800 to 900 rpm low idle and 0.008 inch valve clearance, which beats trusting a number somebody remembered on a forum. p. 53
Do I get instant access to this Ford 1620 Operator Manual?
Straight to your device: 67 pages of searchable Operator Manual, downloadable the moment payment goes through.
Am I free to print this Ford 1620 Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
