Looking for a Ford 1520 service manual PDF that also handles its siblings? This 594-page factory service manual (OEM #40132030) covers the Ford 1320, 1520, 1620, 1715, and 1720 compact diesel tractors, one book for the whole family. Inside: full wiring diagrams, factory troubleshooting charts, torque tables, and page after page of exploded views. You get step-by-step overhaul procedures for the engine, injection pump, clutches, hydraulics, power steering, and every transmission fitted to these frames, from the 9x3 gearbox to the hydrostatic and 12x12 shuttle units. Pull the head bolts down to 65.1-68.7 lbs. ft. (88-94 Nm) and set fan belt deflection at 0.200 in. (5 mm). No more guessing from faded decals and forum threads. Bookmarked, with a real text layer: search any spec from your phone in the shop and get back to work.
What's Inside This Ford 1715 Manual

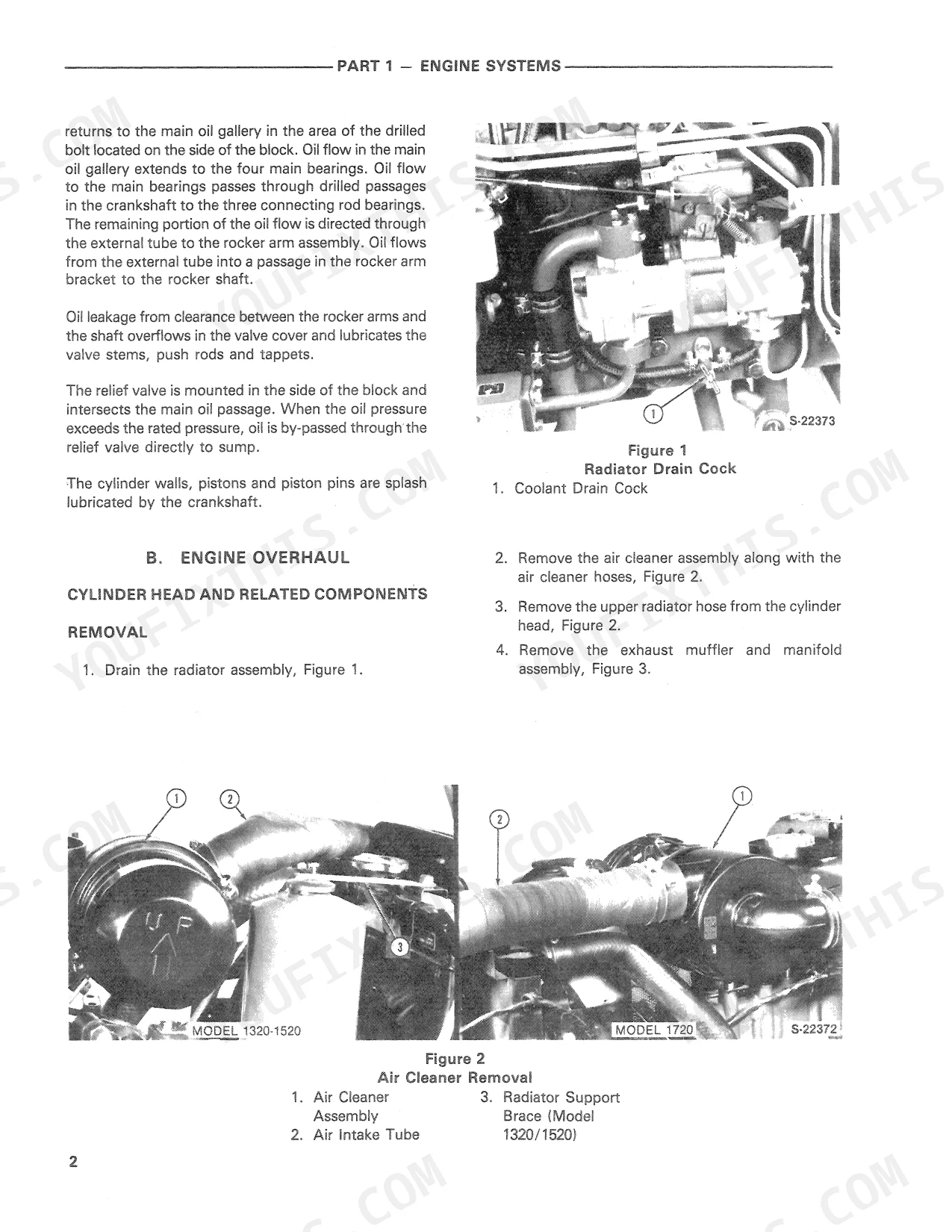

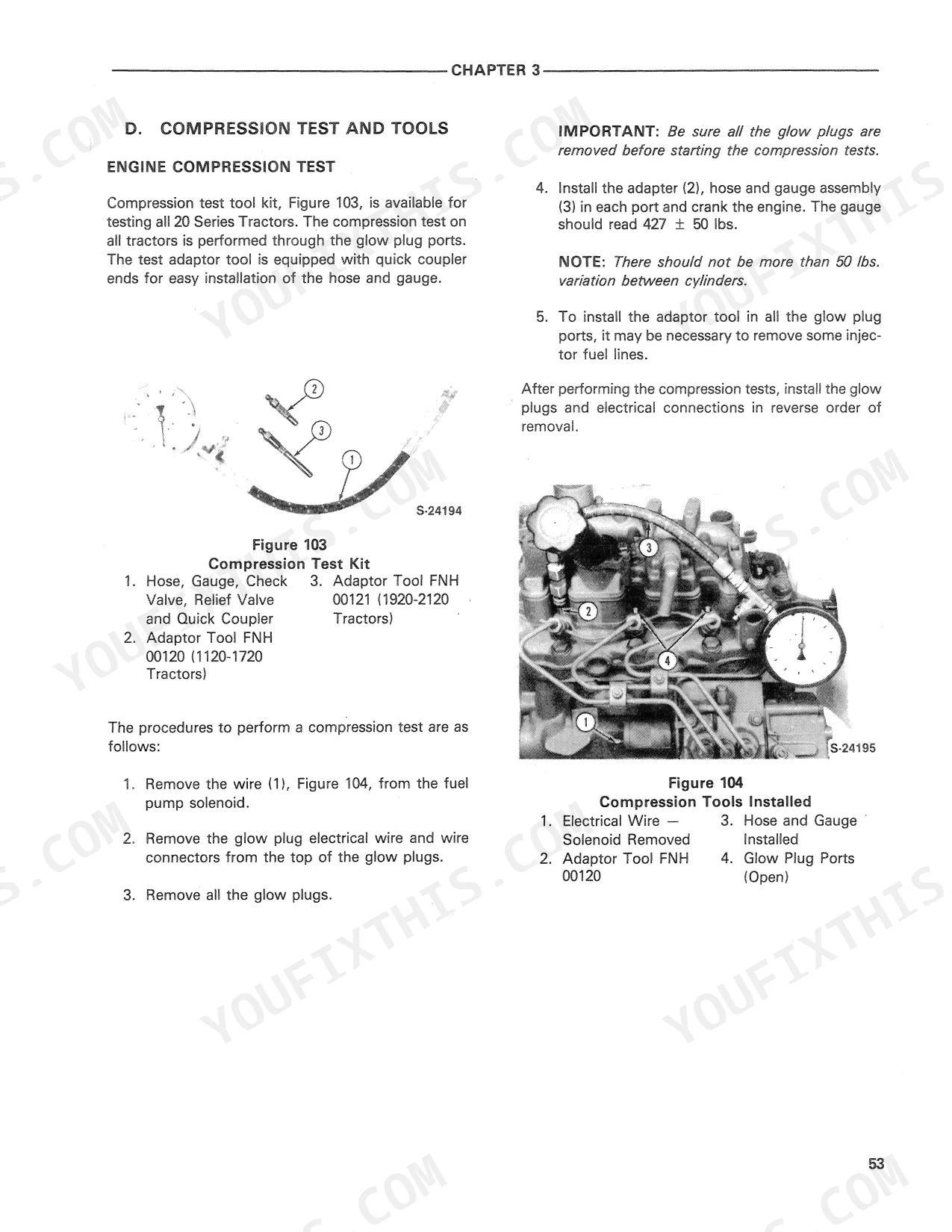

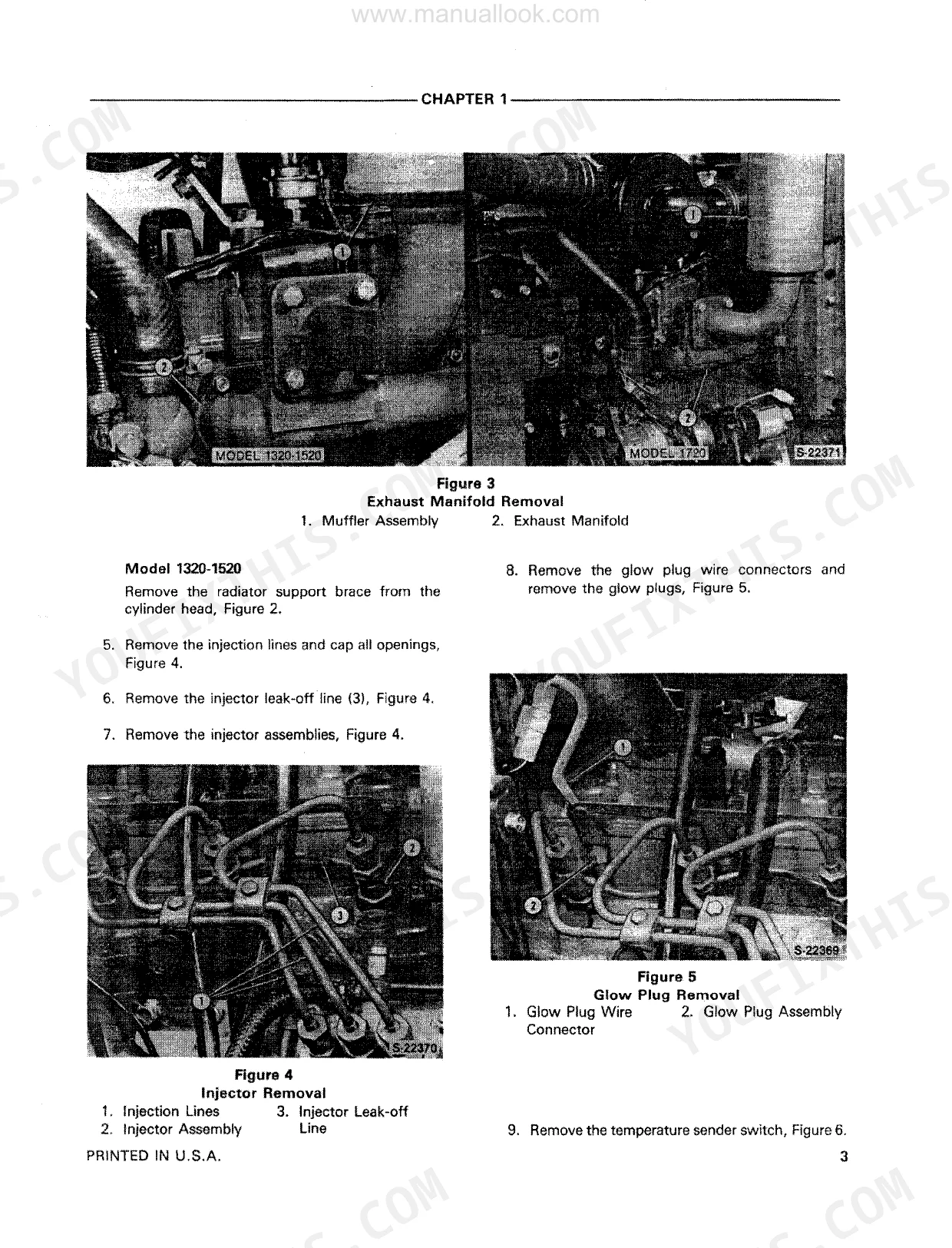

| System | Pages | Key Topics |
|---|---|---|
| Engine Systems | 11-66 | Cylinder Head, Valve Train Components, Cylinder Block Assembly, Piston and Connecting Rods, Lubrication System, Cooling System |
| Fuel System | 67-88 | Injection Pump, Pumping Elements, Delivery Valves, Injectors, Fuel Gauge Sender, Fuel Injection Pump Specifications |

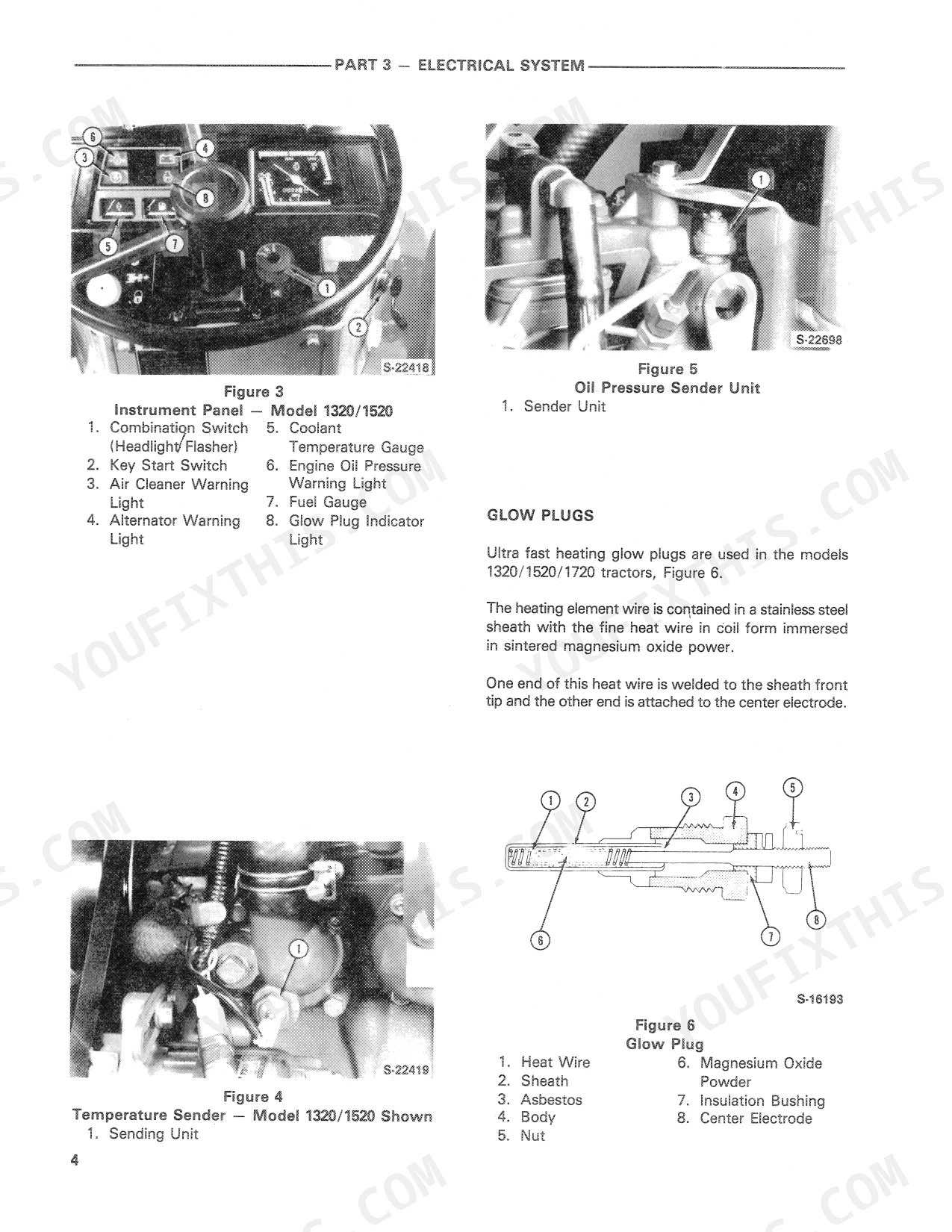

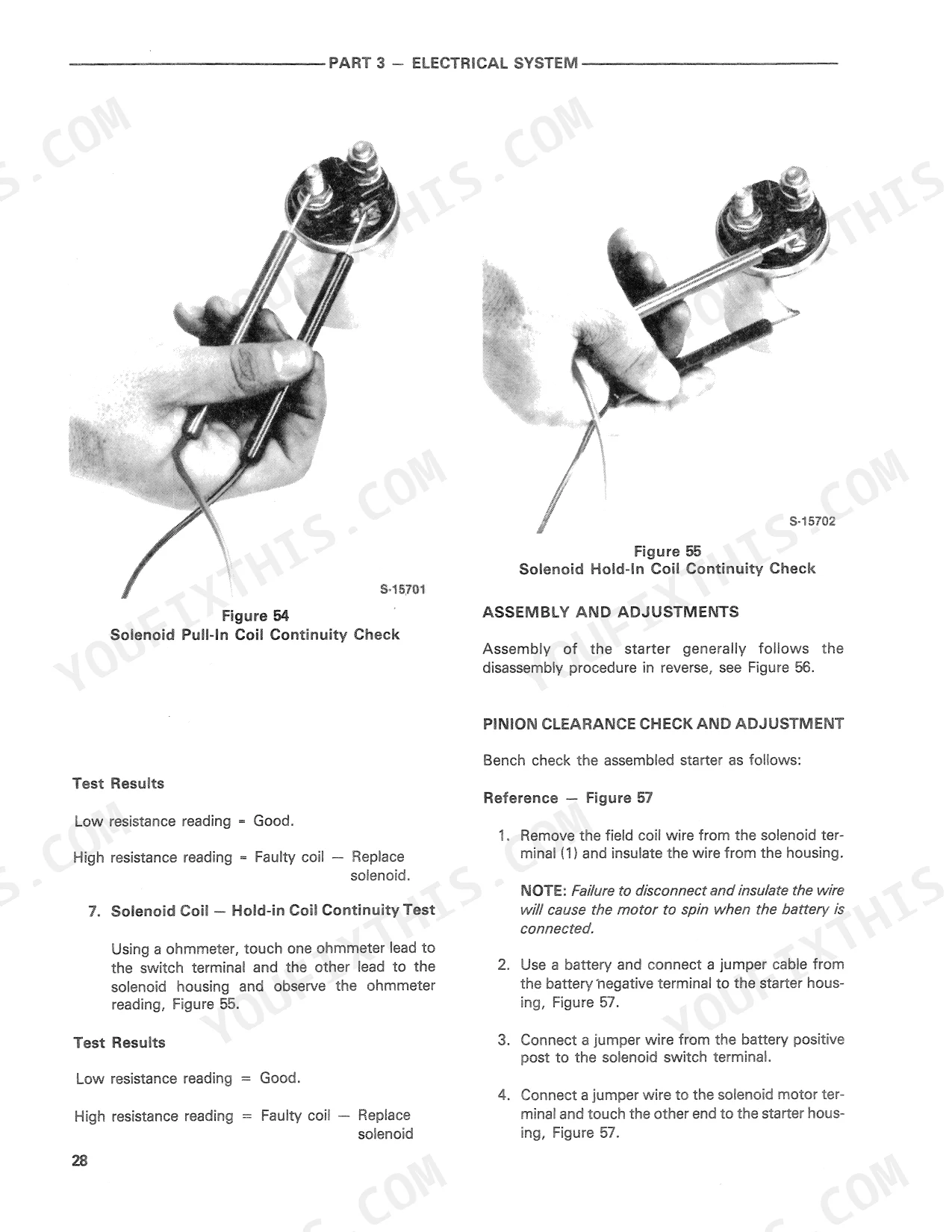

| Electrical System | 89-146 | Wiring, Switches, Battery, Starting Systems, Charging System, Engine Fuel Stop Solenoid |
| Clutches | 147-170 | Single Clutch, Double Clutch, Clutch Pilot Bearing, Clutch Release Bearing, Clutch Linkage Components |

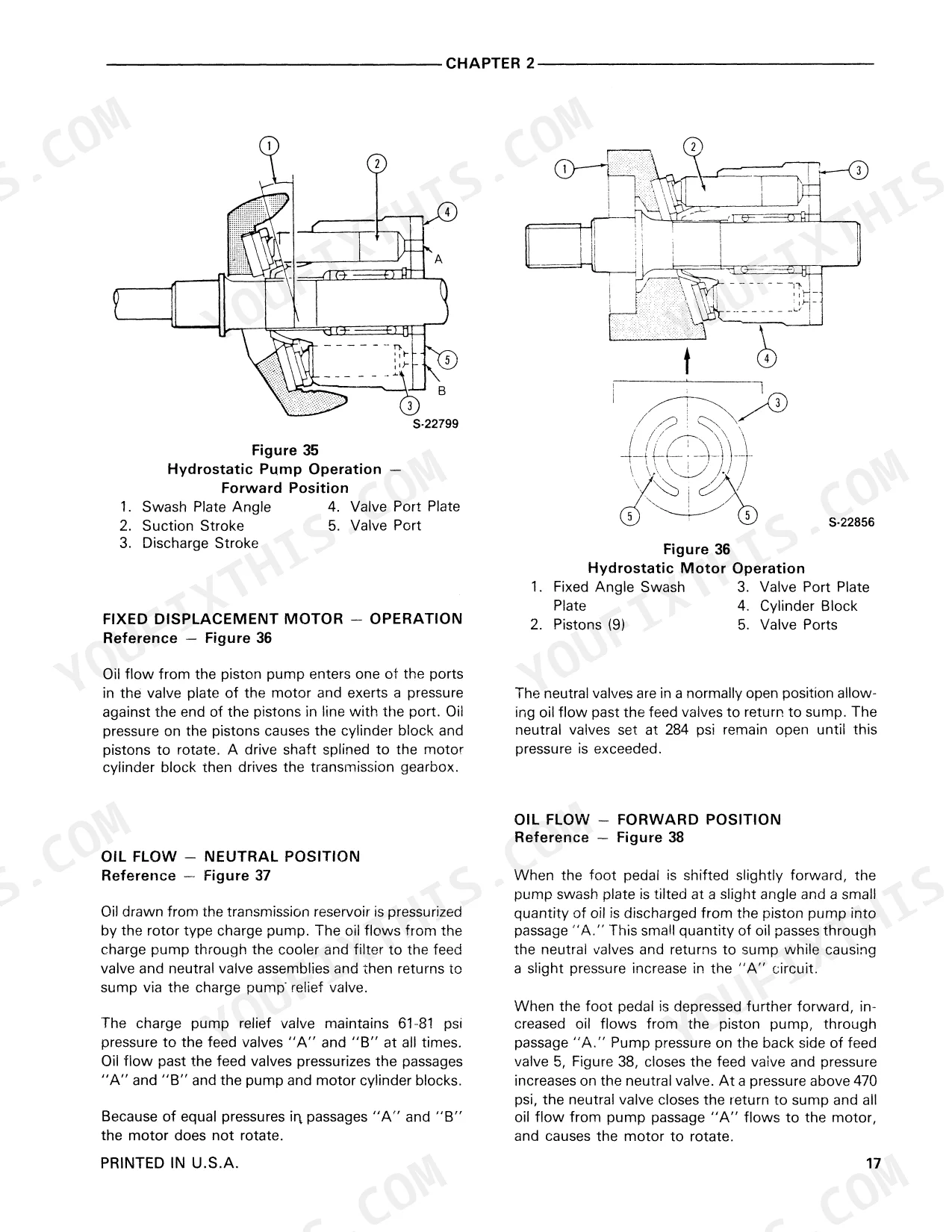

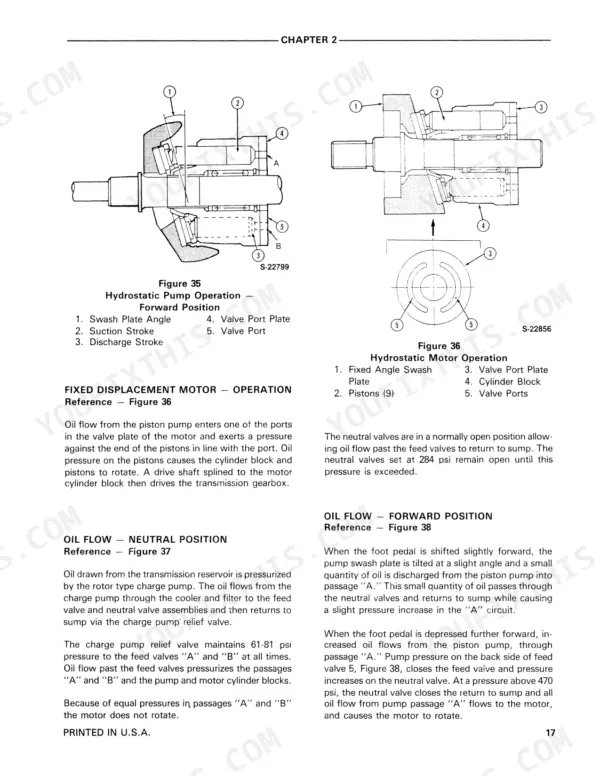

| Transmission Systems | 171-262 | 9 X 3 Gear Transmission, Hydrostatic Transmission, Hydrostatic Transmission Gearbox, Non-Synchromesh 12 X 4 Gear Transmission, Synchromesh 12 X 12 Shuttle Transmission |
| Power Take-Off Systems | 263-282 | Transmission Drive Power Take-Off, Live Power Take-Off, Mid-Mount Power Take-Off, Power Take-Off Output Shaft, Power Take-Off Center Countershaft, One-Way Clutch |
| Differentail, Rear Axle and Brakes | 283-306 | Differential Assembly, Differential Lock, Rear Axle, Brakes, Final Pinion, Differential Ring Gear |

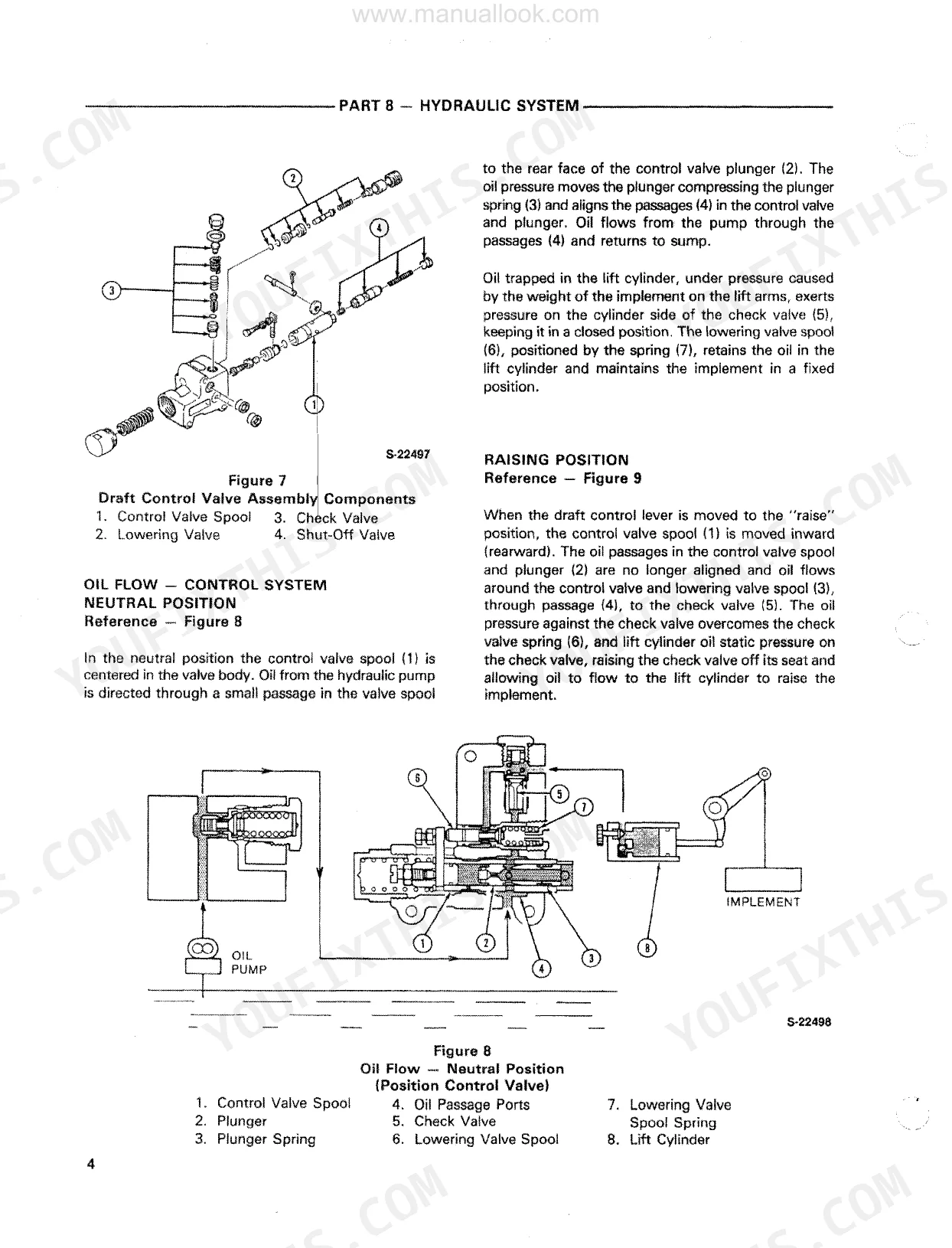

| Hydraulic System | 307-352 | Hydraulic System Circuits, Hydraulic Pump, Filter, Remote Valve, Control Valve Assembly, Lift Cylinder Assembly |
| Steering System | 353-376 | Power Steering Pump, Power Steering Cylinder, Control Valve, Steering Column, Steering Linkage, Manual Steering System |
| Front Axle and Related Parts | 377-402 | Front Axle, Spindle, Wheel Hub, Bevel Gear, Differential Assembly, Gear Reduction Drop Box |
| Wheels and Tires | 403-414 | Tread Setting, Weight Limitations, Lug Nut Torque, Tire Inflation |
| Separating the Tractor | 415-436 | Contents, Engine Systems, Fuel System, Electrical Specifications, Clutches, Transmission Specifications, Power Take-Off Systems, Differential - Rear Axle and Brakes Specifications |
| Supplement, 1320, 1520, 1720 Specifications | 437-486 | Engine Systems, Fuel System, Electrical Specifications, Clutches, Transmission Specifications, Power Take-Off Systems, Differential, Rear Axle and Brakes, Hydraulic System, Steering Systems, Front Axle and Related Parts, Wheels and Tires, Separating the Tractor |
| Supplement, 1620 and 1715 Systems | 487-567 | Engine System, Fuel System, Electrical System, Clutch System, Transmission System, Power Take-Off System, Differential, Rear Axle and Brake Systems, Hydraulic System, Steering Systems, Front Axle and Related Parts, Wheels and Tires, Separating the Tractor |
| Supplement, Hydraulic System (Publications 40132030 and 40192020) | 568-594 | Hydraulic System |

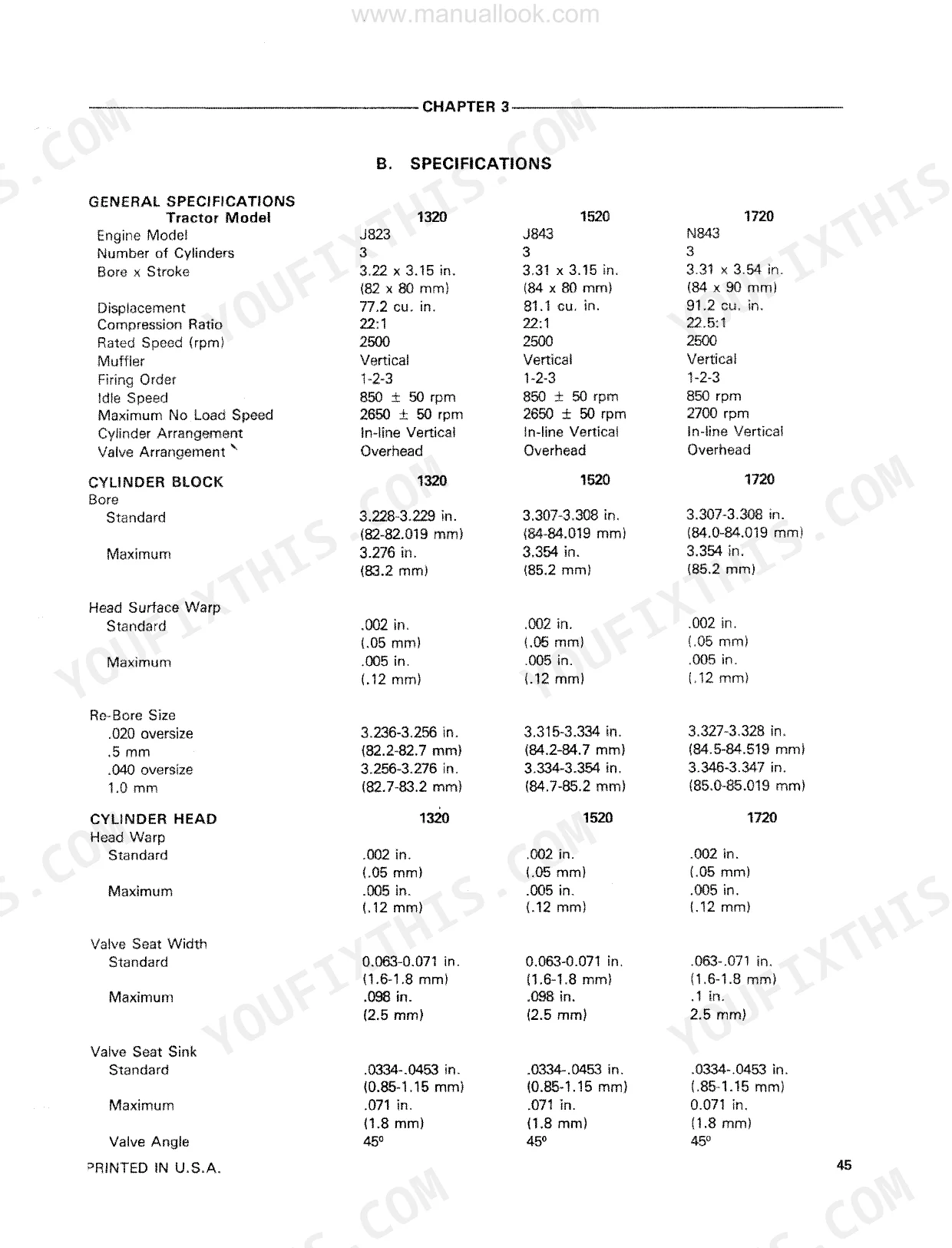

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

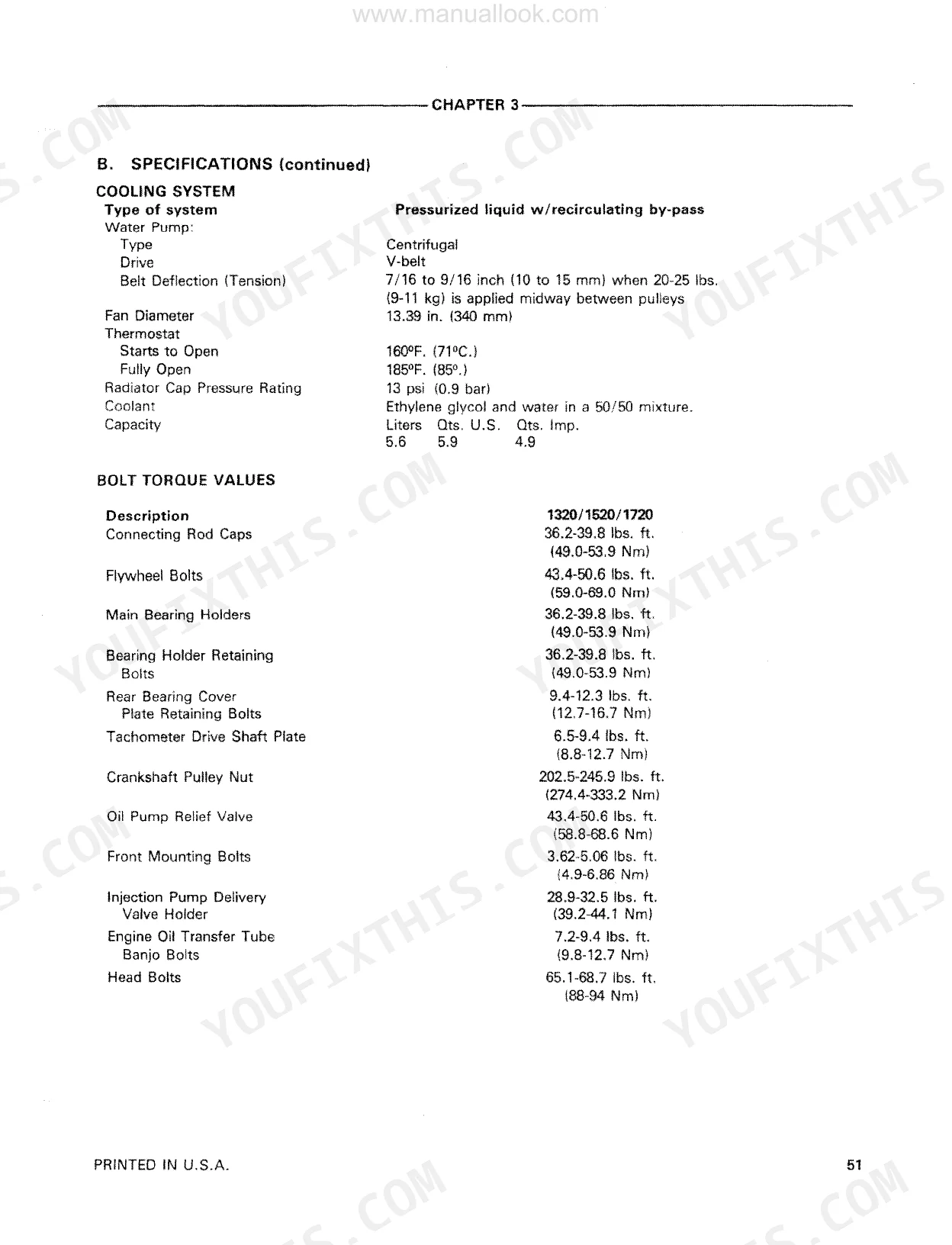

| Belt Deflection | 0.200 in. (5 mm) | p. 51 |
| Connecting Rod Caps | 36.2-39.8 lbs. ft. (49.0-53.9 Nm) | p. 63 |
| Flywheel Bolts | 43.4-50.6 lbs. ft. (59.0-69.0 Nm) | p. 63 |
| Radiator Cap Pressure Rating | 13 psi (0.9 bar) | p. 63 |
| Injector Assembly Torque | 43-51 lbs. ft. (59-69 Nm) | p. 86 |
| Injection Pressure (Model 1320-1520) | 1706 psi (120 kg/cm²) | p. 86 |
| Delivery Valve Holder Torque (Model 1720) | 28.9-32.5 lbs. ft. (39.2-44.1 Nm) | p. 86 |
| Injection Pump Timing (Model 1320-1520) | 20-21° | p. 86 |
| Bearing Holder Retaining Bolts (M10) | 36.2-39.8 lbs. ft. (49.0-53.9 Nm) | p. 446 |
| Rear Bearing Cover Plate Retaining Bolts | 9.4-12.3 lbs. ft. (12.7-16.7 Nm) | p. 446 |

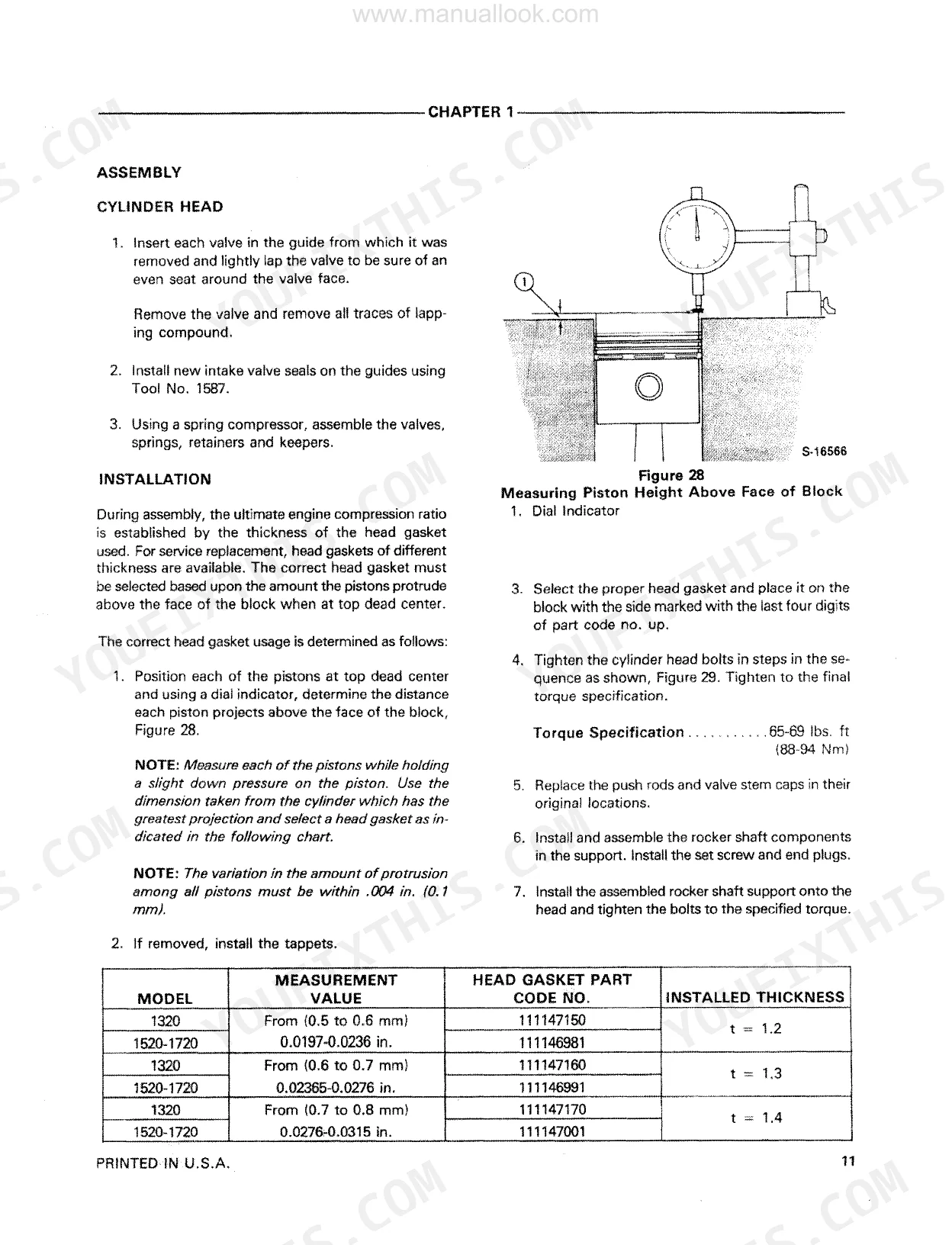

| Engine Head Bolt Torque | 65-69 lbs. ft. | p. 23 |
| Valve Clearance (Cold) | 0.008 in. | p. 24 |

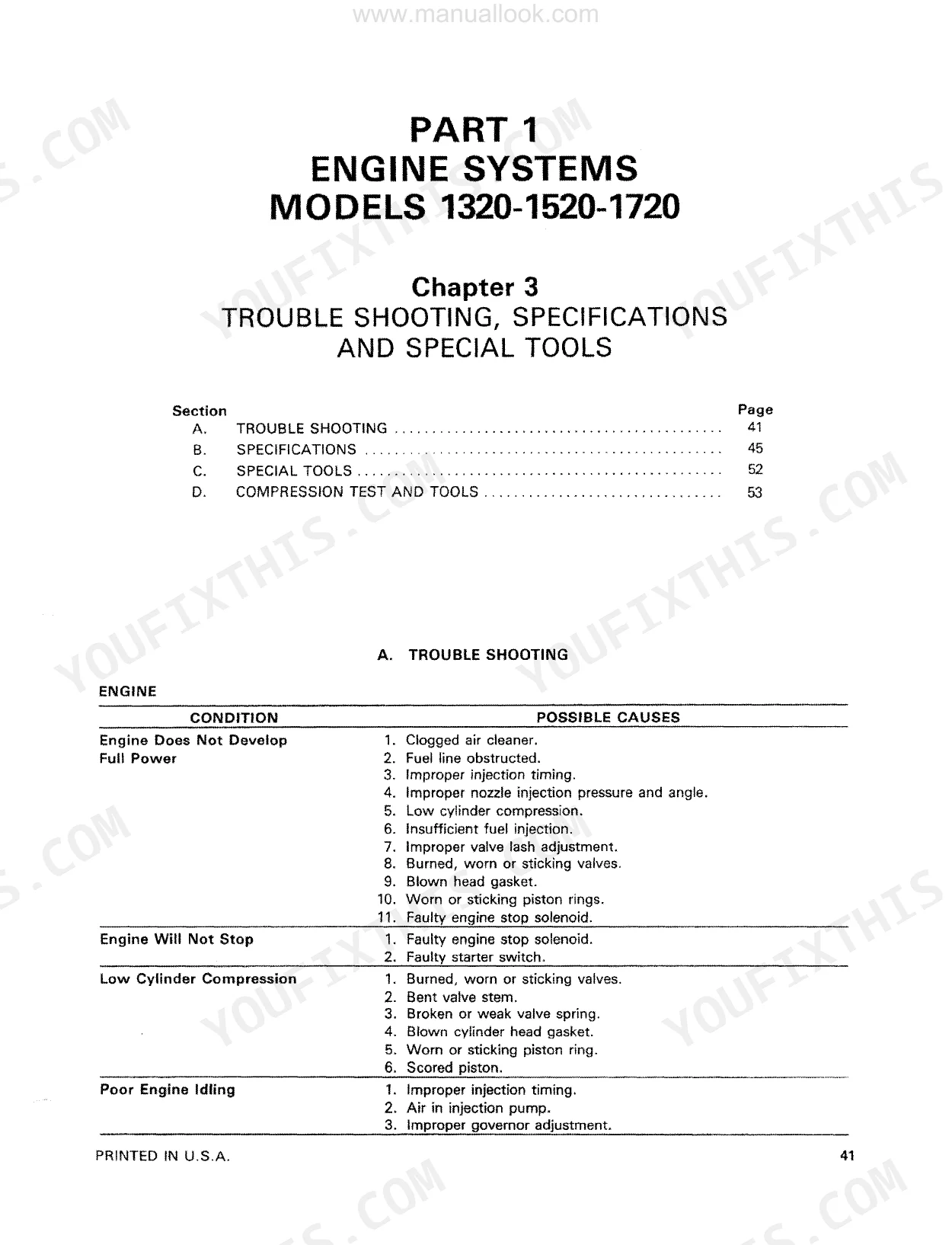

Ford 1715 Common Problems This Manual Covers
Three-point hitch lifts slowly or won't lift, hydraulics groan and chatter at the pump
Check hydraulic oil level and inspect the suction pipe and fittings for air leaks; a milky, foamy filter bowl means the pump is pulling air. Replace the suction line O-rings and pump shaft seal, then torque the hydraulic pump bolts to 16-20 lbs. ft. (22-28 Nm) per page 351. Change the filter while you are in there.
Manual Section: Hydraulic System TroubleshootingBattery goes dead overnight, charge indicator lamp stays on with engine running
Test battery voltage and load-test it before blaming the alternator. Run the engine at rated speed and measure charging output; the alternator should produce 35 amps, spec on page 145. Clean and tighten the ground straps between engine and frame. Trace the indicator lamp circuit with the wiring diagram if output tests good.
Manual Section: Electrical System Troubleshooting p. 145Frequently Asked Questions
What is the torque specification for the cylinder head bolts on a Ford 1620 tractor?
The cylinder head bolts on the Ford 1620 tractor should be tightened to a torque specification of 65.1-68.7 lbs. ft. (88-94 Nm). p. 446
How do you fix ford 1720 diesel cranks but won't start after sitting, no fuel at injectors?
Open the fuel cock and bleed air at the filter and injection pump before condemning parts. Replace the fuel filter element if flow is weak. Pull the injectors and pop-test them; opening pressure on the 1720 is 2150 psi per page 81. Torque the injectors to 43-51 lbs. ft. on reinstall. p. 81

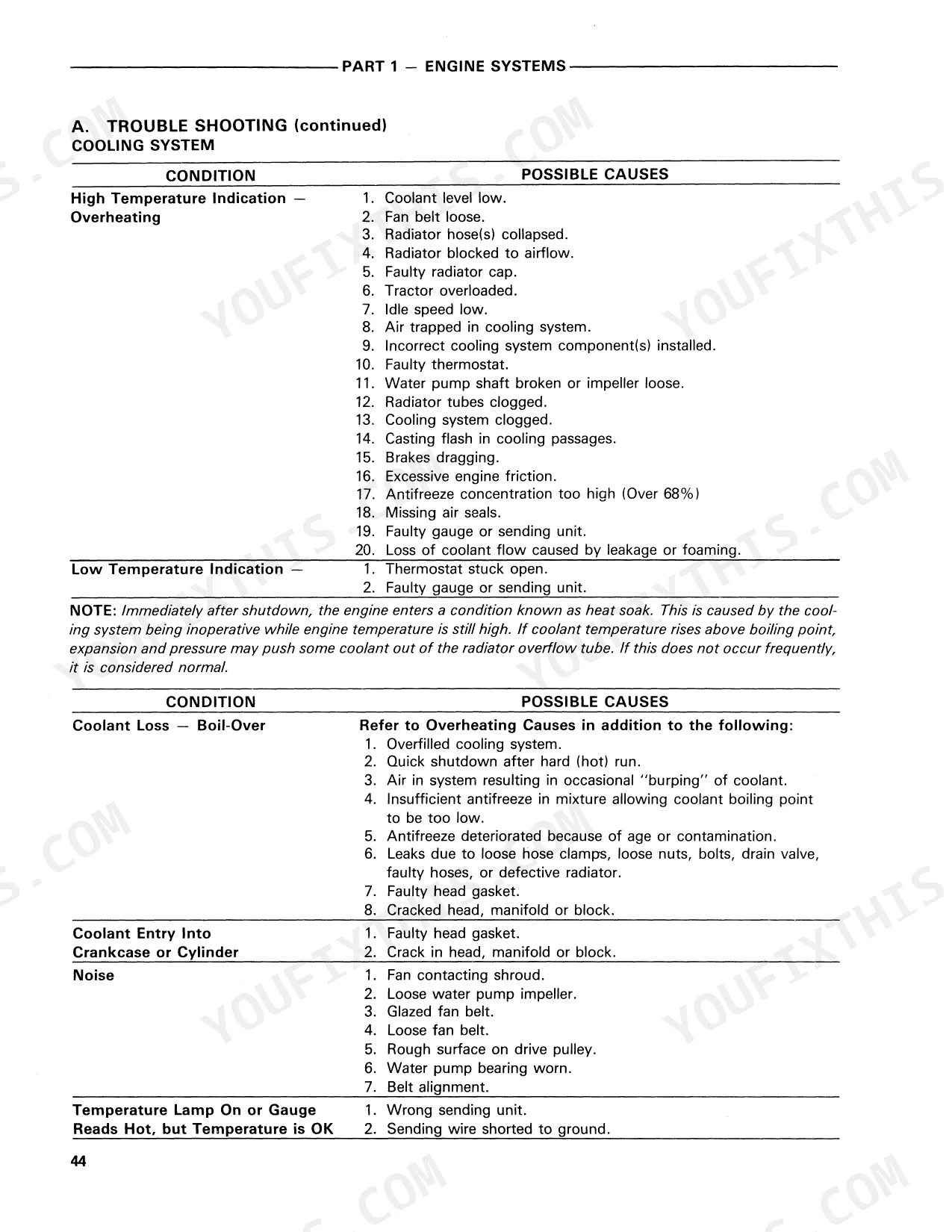

How do you fix engine overheats under load, coolant pushing out of overflow, temperature gauge in red?

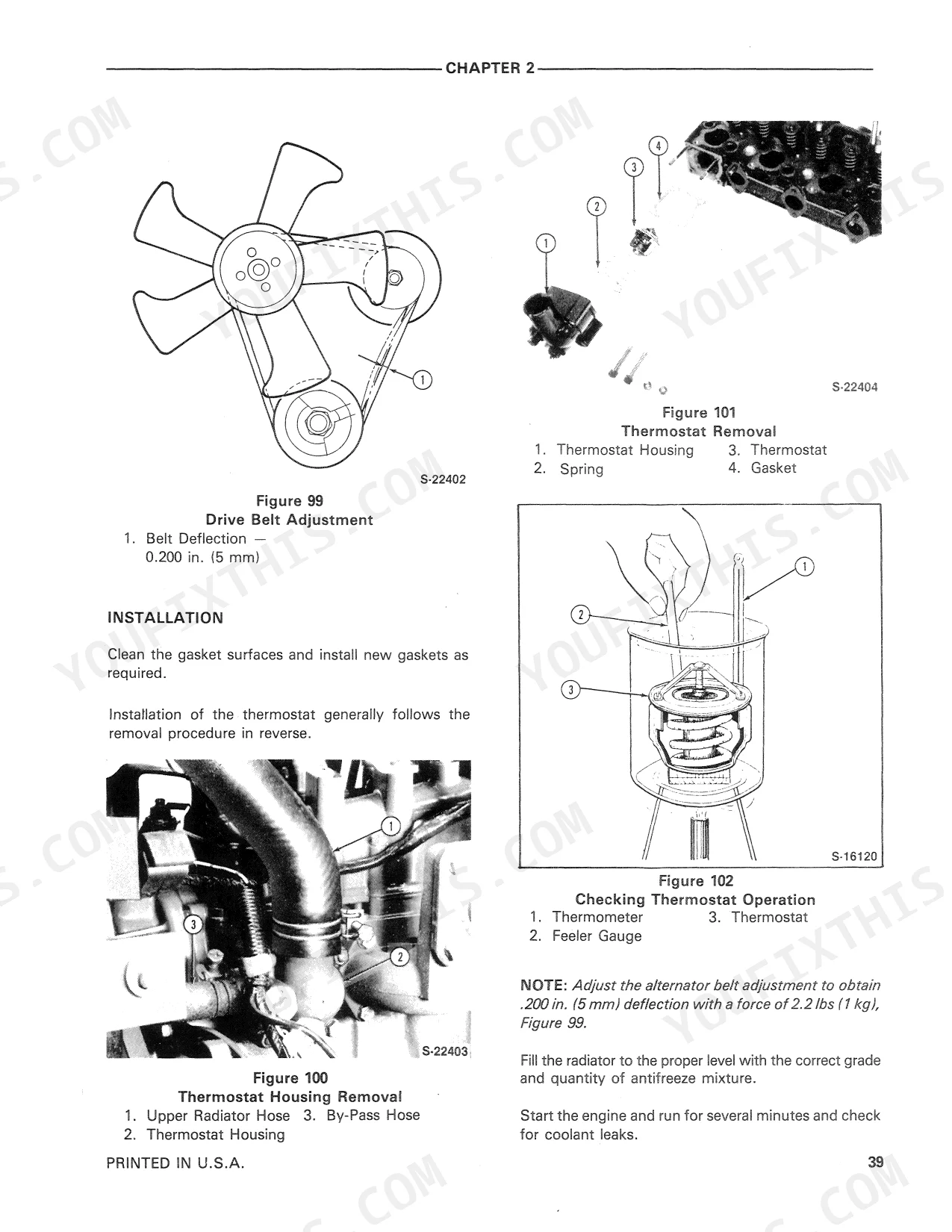

Check coolant level cold; the system holds 5.6 liters. Pressure-test the radiator cap, it should hold 13 psi before venting. Inspect the fan belt and adjust until deflection measures 0.200 inch (5 mm) at mid-span, covered on page 51. Flush the radiator core if the fins are packed with chaff. p. 51
How do you fix engine starts then dies after a few seconds, stalls randomly under load?
Drain the fuel tank sump and sediment bowl to clear water and dirt, then replace the filter element and bleed the lines out to each injector. Test supply at the injection pump; oil flowing pressure should read 2.8 psi (0.2 kg/cm²) per page 87. Verify the fuel stop solenoid holds in the run position. p. 87
How will I receive this Ford 1320 & variants Service Manual?
Immediate download of the complete 594-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this Ford 1320 & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

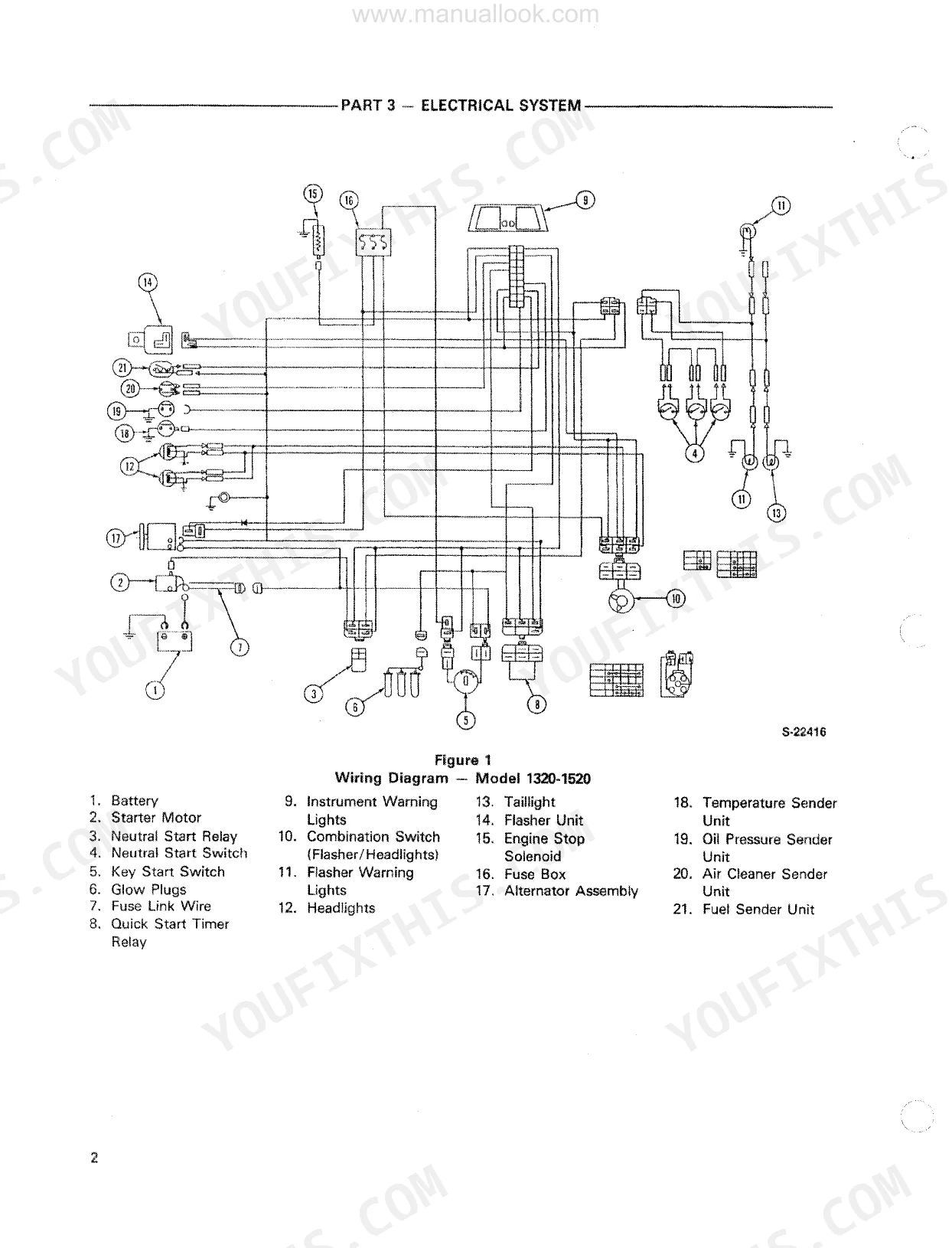

Are there wiring harness diagrams in this Ford 1320 & variants manual?
Included. The Ford 1320 & variants Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
