Ford needed only 68 pages to cover the 1715 tractor, and this Ford 1715 owner's manual PDF (OEM ID 42171510) is that exact book, the same operator manual that rode in the seat pocket. Maintenance charts for both two wheel drive and four wheel drive builds fill the longest stretch of it, backed by fuel and lubricant service procedures, break-in steps, hydraulic lift and PTO operation, wheel tread settings, and ballast tables. Specifications pages carry capacities, engine data, and the instrument panel symbols, so you can read a warning light without phoning the dealer. Change engine oil every 100 hours, replace the hydraulic filter at 300, and hold clutch pedal free travel between 3/4 and 1-3/16 inches (19 to 30 mm). Every hour it sits parked is mowing weather wasted. Pay once, download the bookmarked, text searchable file, and it is yours for as long as you own the 1715.
What's Inside This Ford 1715 Manual
| System | Pages | Key Topics |
|---|---|---|
| International Symbols | 5 | Engine Speed, Engine Water Temperature, Air Filter, Engine Oil Pressure, Hazard Warning, Differential Lock |
| Safety Precautions | 6-7 | The Tractor |
| Controls and Instruments | 8-14 | Seat, Seat Belt and ROPS, Lighting, Instrument Panel, Throttle Controls, Brake Controls, Differential Controls, Transmission and PTO Controls |
| Operation | 15-27 | Break-In Procedures, Starting the Engine, Stopping the Engine, Operating the Transmission, Four-Wheel Drive and PTO, Towing the Tractor, Operating the Differential Lock |

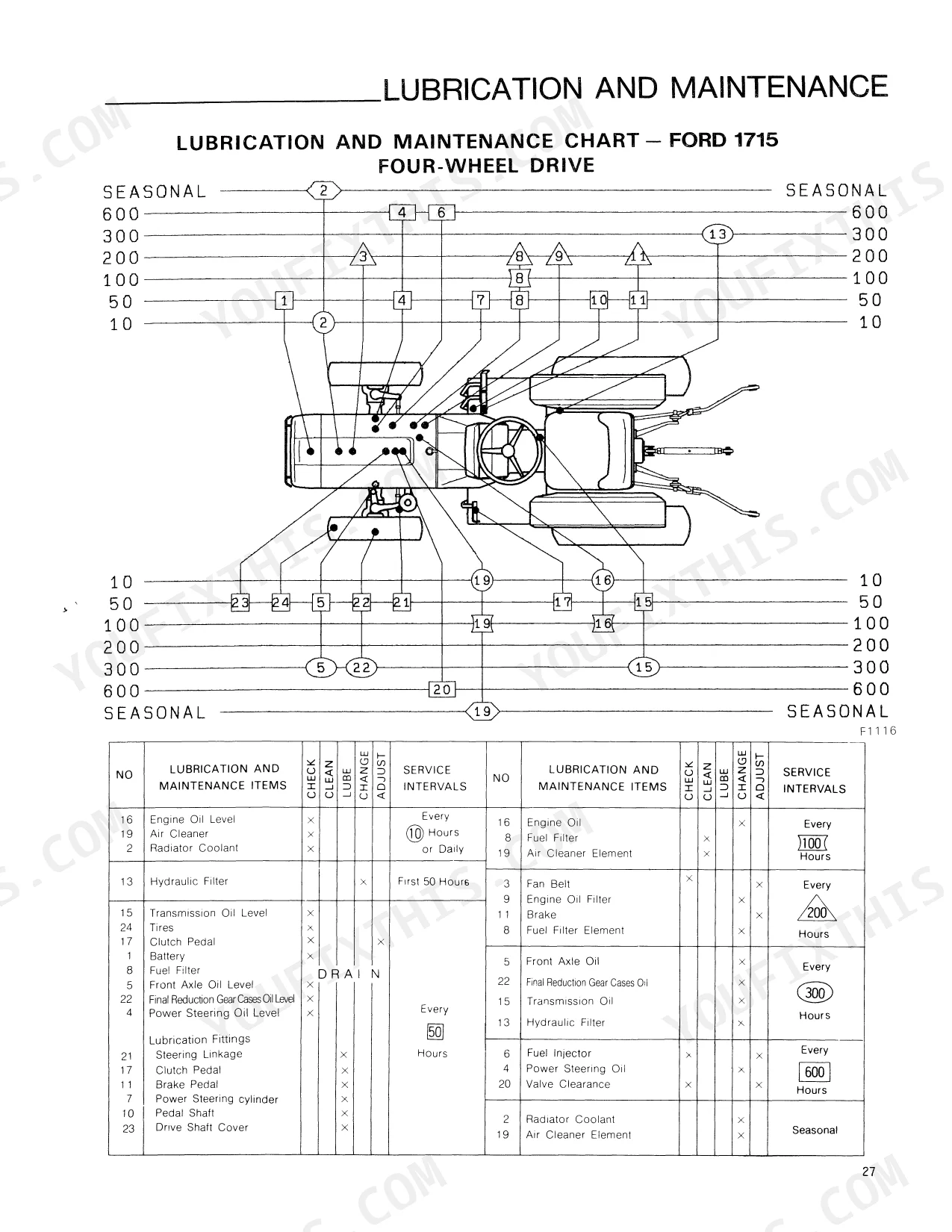

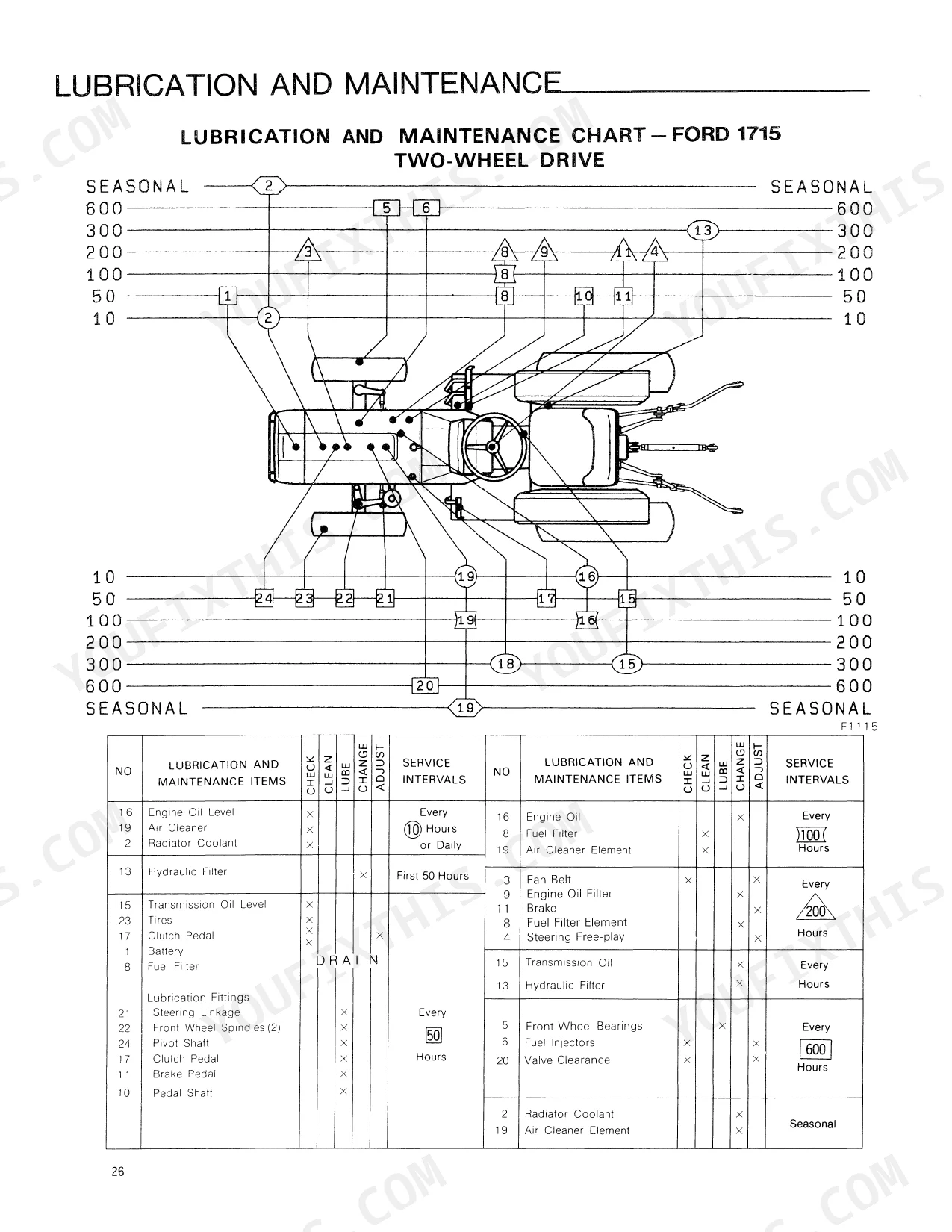

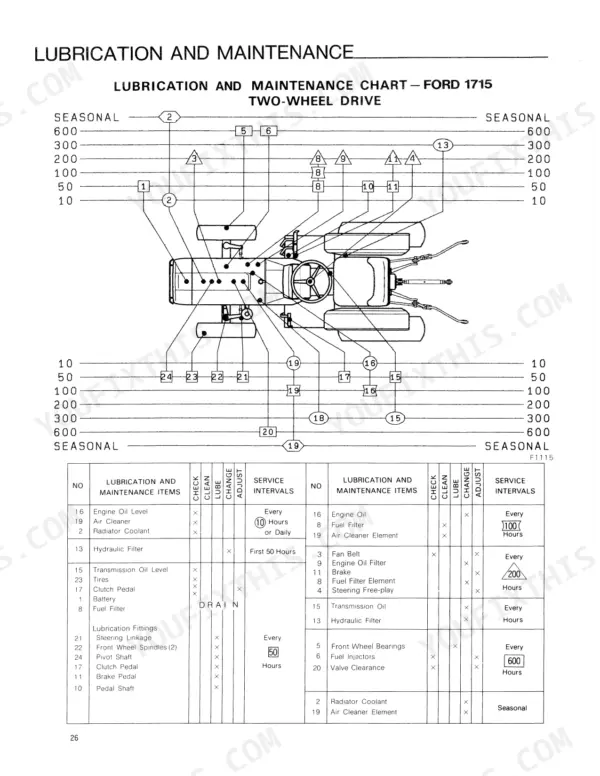

| Lubrication and Maintenance | 28-49 | Lubrication and Maintenance Chart (Two-Wheel Drive, Four-Wheel Drive), Fuel and Lubricants, Fuel and Lubricant Service Procedures, Tractor Storage |

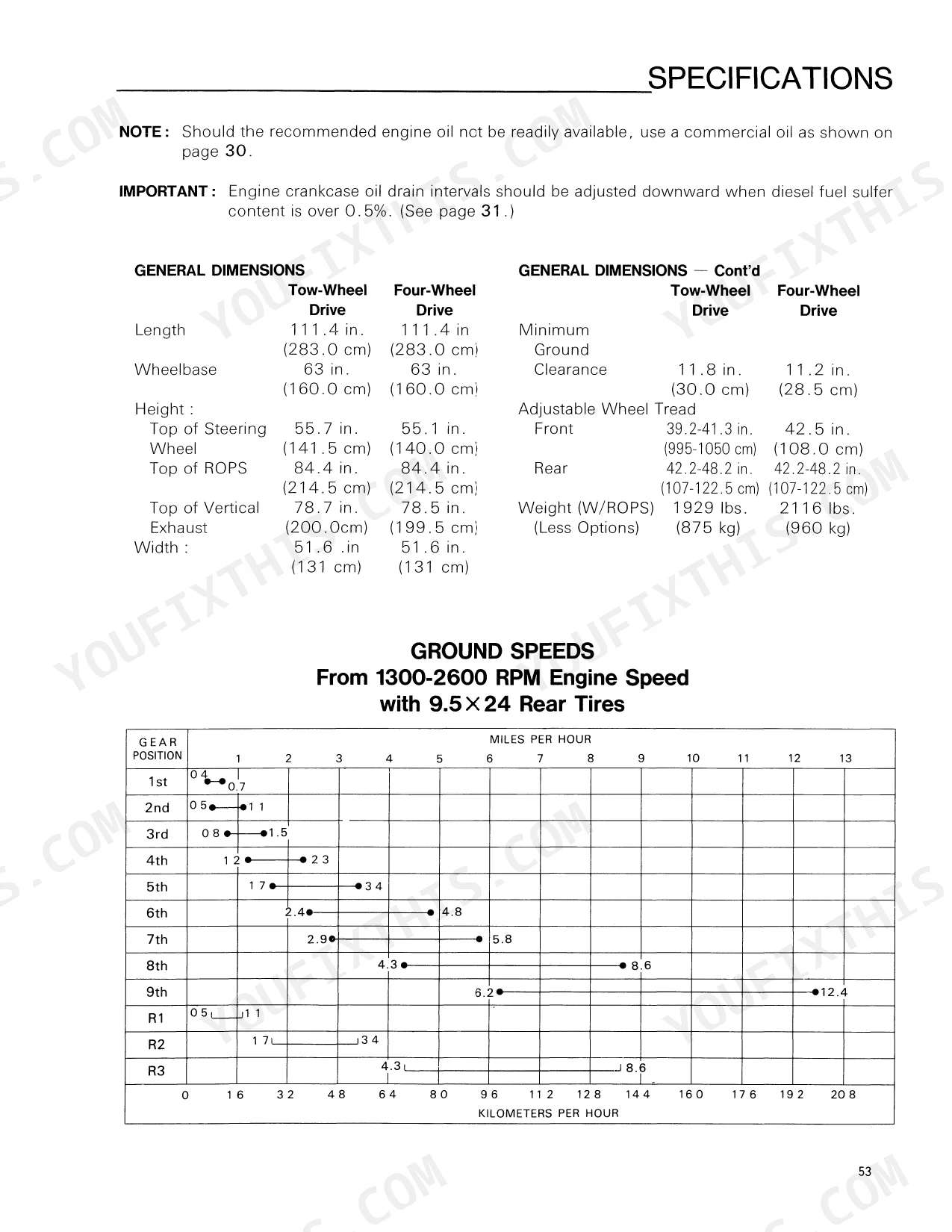

| Specifications | 50-53 | Engine, Capacities, Cooling System, Electrical System, Fuel System, Clutch |
| Safety Decals | 54-55 | Drawbar, PTO Shield, Starting Motor, Battery, R.H. Fender, L.H. Fender |
| Instruction Decals | 56-62 | P.T.O. Control Lever, Main Shift Lever, Range Selector Lever, Differential Lock, Starter Switch, Ground Speed Diagram |
| Predelivery and 50-Hour Service | 63-66 | Tire Pressure, Air Cleaner Element, Radiator Coolant Level, Fan Belt Tension, Battery Cleanliness, Hydraulic Lift Control |
| Owner Assistance | 67-68 | Dealership Service Department, Branch Office, Service Department, Service Publications Catalog |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| P.T.O. driven equipment maximum engine speed | 2419 rpm | p. 11 |
| Standard rear P.T.O. speed | 540 ± 10 rpm | p. 17 |
| Clutch pedal free travel | 3/4 - 1-3/16 inches (19-30 mm) | p. 47 |
| Engine Oil Change Interval | 100 hours | p. 33 |
| Engine Oil Filter Change Interval | 200 hours | p. 33 |
| Transmission/Rear Axle Oil Change Interval | 300 hours | p. 36 |
| Power Steering Oil Change Interval | 600 hours | p. 37 |
| Hydraulic System Oil Filter Change Interval | 300 hours | p. 38 |
| Engine Low Idle Speed | 800-900 rpm | p. 53 |
| Rear Axle and Transmission Oil Capacity | 22 Liters | p. 53 |
| Front Wheel Bolt Torque (2WD) | 43-54 lbs. ft. | p. 54 |
Ford 1715 Common Problems This Manual Covers
Ford 1715 clutch stuck to flywheel after winter storage, pedal moves but clutch won't disengage
Check clutch pedal free travel first; the manual calls for 3/4 to 1-3/16 inches (19-30 mm), covered on page 47. If free travel is correct and the clutch still drags, the disc has likely rusted to the flywheel from sitting. Have your dealer free it, then store the tractor with the pedal blocked down.
Manual Section: Clutch Pedal Adjustment p. 47Loader hydraulics weak, three-point hitch only lifts at full throttle, sputters under load
Check the transmission and hydraulic oil level with the tractor on level ground; the shared sump holds 22 liters and low oil pulls air into the pump. Top up per the procedure on page 36, then replace the hydraulic oil filter if it has more than 300 hours on it. Retest lift at low idle.
Manual Section: Transmission, Rear Axle, and Hydraulic System Oil p. 36PTO shaft won't turn implement at speed, mower bogs down when throttle is set
Verify the PTO lever is fully engaged and set engine speed so the rear shaft turns 540 rpm; the procedure on page 15 shows the correct lever positions. Do not exceed 2419 rpm engine speed with PTO-driven equipment, per the warning on page 17. If the shaft still stalls, check clutch pedal free travel before blaming the implement.
Manual Section: Operation p. 15Engine cranks but won't start after running out of fuel or changing the filter

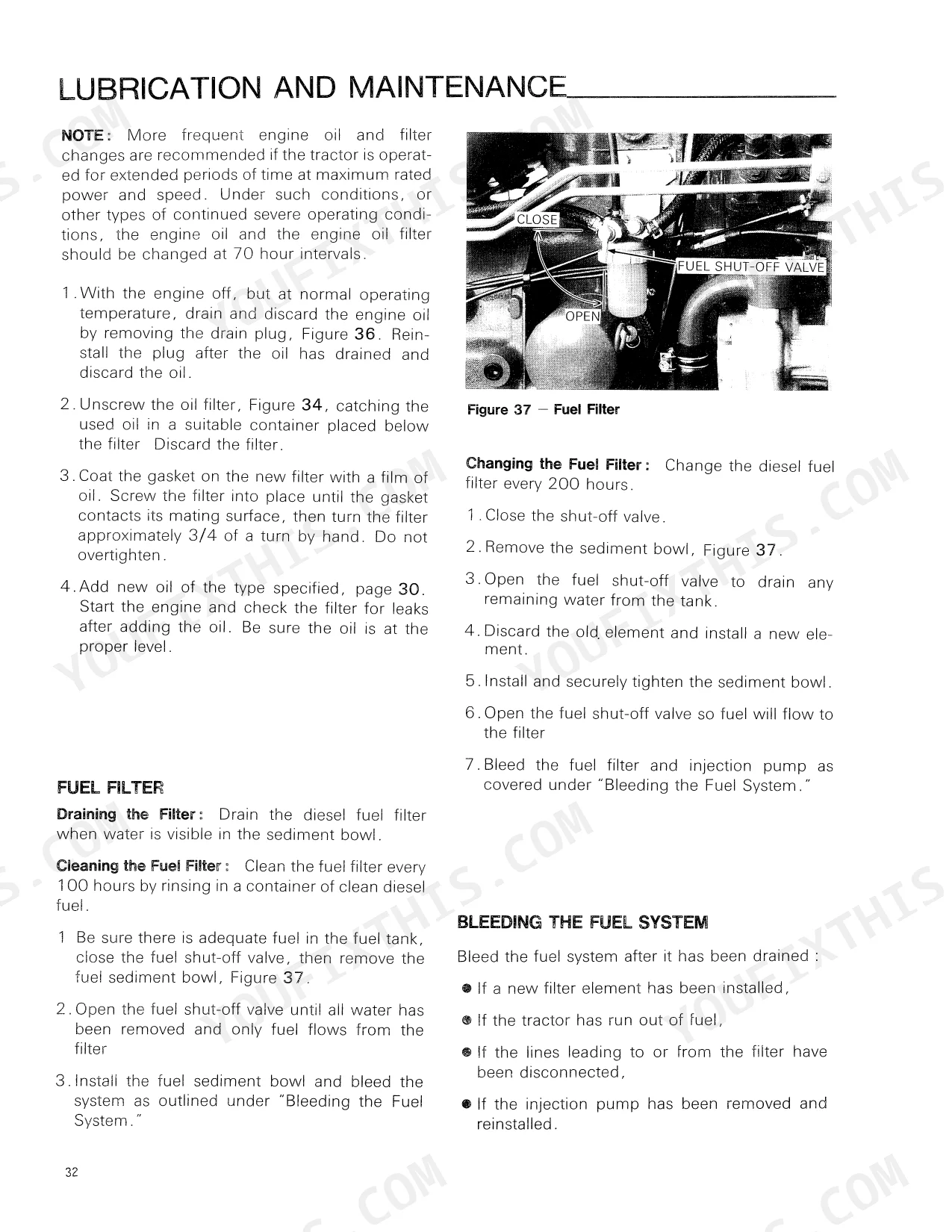

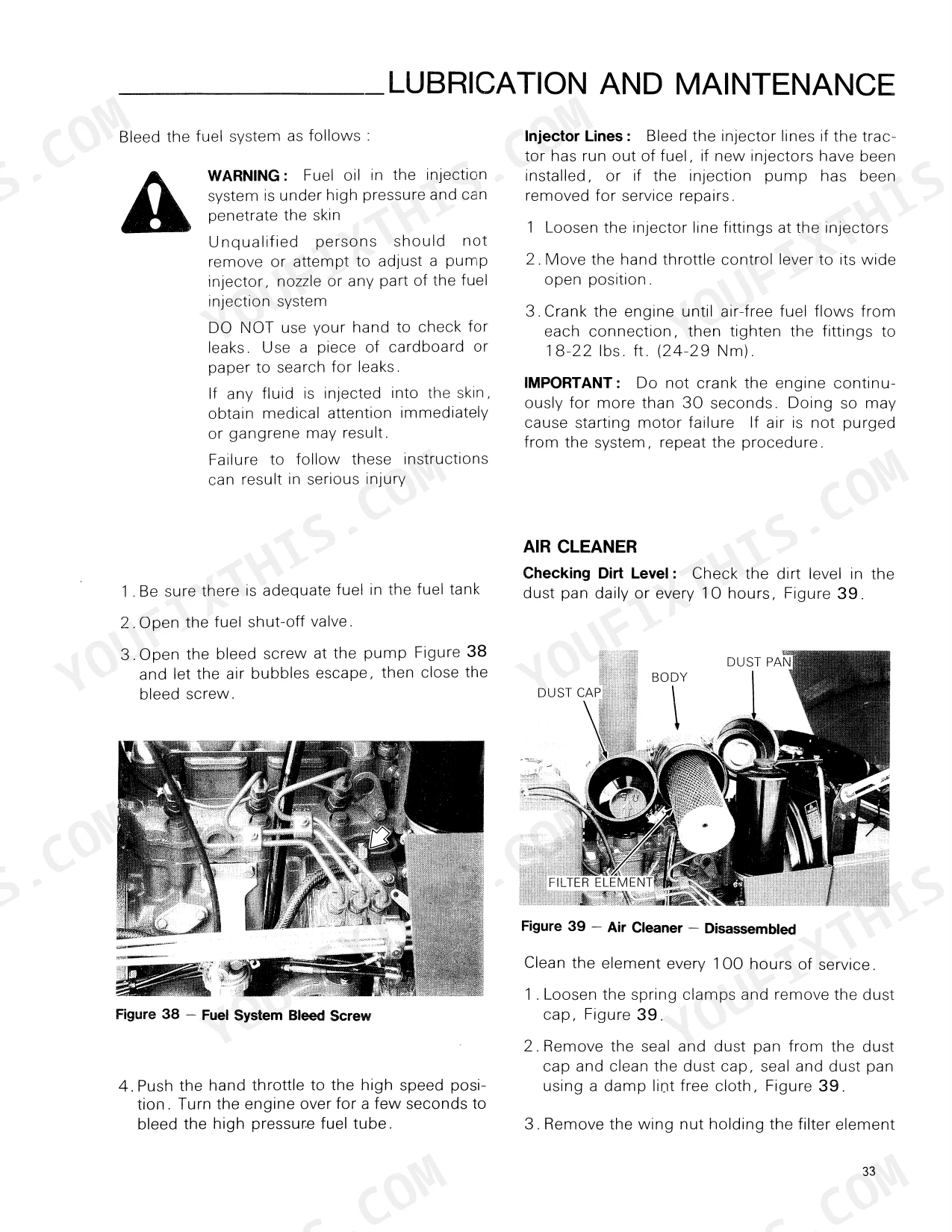

Bleed air from the fuel system following the sequence on page 34: loosen the filter vent, work the lift pump until fuel runs clear of bubbles, then bleed the injection pump and injector lines. Once it fires, let it settle at the 800 to 900 rpm low idle before loading it. Keep the tank full between jobs.
Manual Section: Fuel System Bleeding p. 34Dash lights come on but starter clicks or cranks slowly, battery reads good
Clean and tighten both battery cable ends and the ground strap at the frame; corrosion there mimics a dead battery even with a full charge. Check the starter switch and safety start connections next. If you must jump it, follow the jumper cable procedure on page 15. Make battery cleanliness part of every 50 hour service.
Manual Section: Engine Starting Troubleshooting p. 15Frequently Asked Questions
What are the torque specifications for the wheel bolts on the Ford 1715?
For the front wheels, the disc-to-hub bolts should be torqued to 43-54 lbs. ft. (58-73 N.m) for two-wheel drive models, or 69-87 lbs. ft. (93-117 N.m) for four-wheel drive models. The rear wheel disc-to-axle bolts should be torqued to 137-159 lbs. ft. (186-215 N.m). p. 54
What is the correct valve clearance for the Ford 1715 engine?
The valve clearance for both the intake and exhaust valves should be set to 0.008 inches (0.2 mm) with the engine cold. p. 42
What is the recommended engine oil change interval for the Ford 1715?
The engine oil should be changed every 100 hours of operation. The engine oil filter should be changed every 200 hours. p. 33
What is the rear axle and transmission oil capacity on a Ford 1715 tractor?
The rear axle and transmission system, which includes the hydraulics, has a total capacity of 23.3 U.S. quarts (22 liters). p. 53
How do I adjust the fan belt tension on the Ford 1715?
The fan belt should deflect 7/16 to 9/16 inch (10 to 15 mm) when 20 to 25 pounds (9 to 11 kg) of thumb pressure is applied midway between the pulleys. To adjust, loosen the alternator mounting bolts and pry the alternator away from the engine. p. 40
Is this Ford 1715 manual a download or a disc?
Straight to your device: 68 pages of searchable Owner's Manual, downloadable the moment payment goes through.
Are there any print restrictions on this Ford 1715 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
