The Ford 5530, 6530 operator manual PDF (OEM ID 42553020, 142 pages) covers these two high clearance tractors, including front and rear track width adjustment. The lubrication and maintenance section ties every 10, 50, 200, 400, and 800 hour service to a chart you can follow down the row. Transmission, PTO, three-point linkage, and remote valve operation each get their own walkthrough, and the instrument panel pages decode every gauge and warning light. Set fan belt deflection to 1/2 inch (12.5 mm) under 18 to 22 lb of force, and keep brake pedal free travel equal on both pedals so that it does not exceed 2 inches (51 mm). Print what you need and let those pages get greasy on the bench.
What's Inside This Ford 5530, 6530 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-18 | Tractor, Servicing the Tractor, Operating the Tractor, Driving the Tractor, Operating the PTO, Diesel Fuel, Safety Frame, Safety Decals |
| Introduction | 19-20 | Identification Data, Engine Identification |
| Roll Over Protective Structure | 21 | ROPS Maintenance and Inspection |
| Protective Shielding | 22-24 | Shield Locations, Fan Shield |
| Universal Symbols | 25-26 | Starting Aid, Alternator Charge, Fuel Level, Engine Oil Pressure, Engine Coolant Temperature, Tractor Lights |

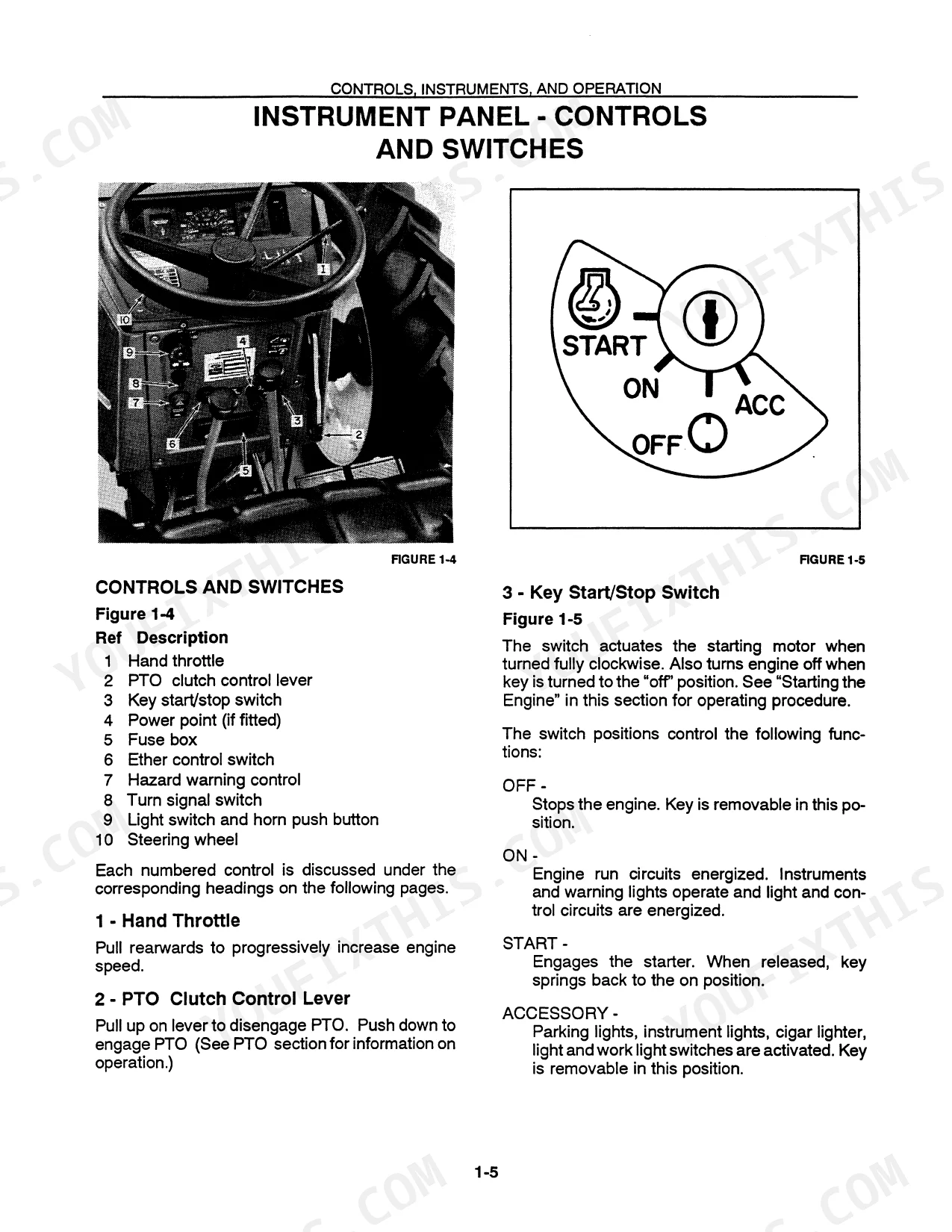

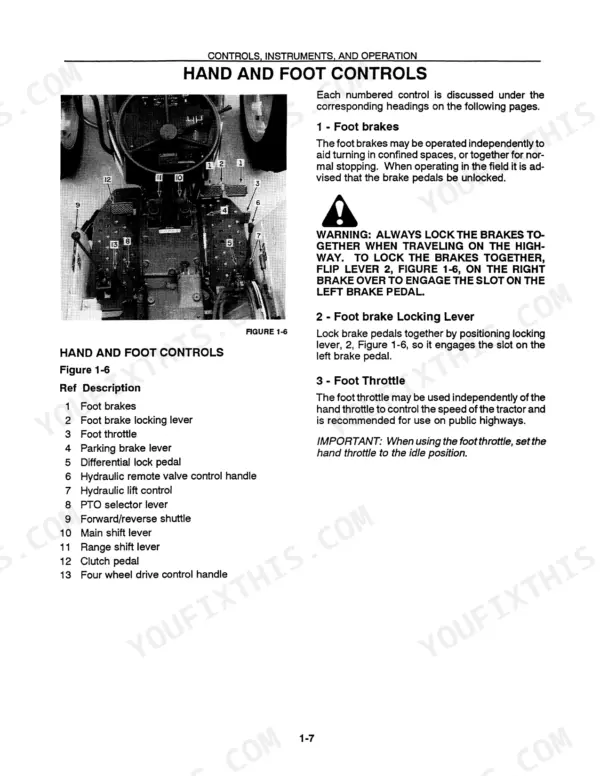

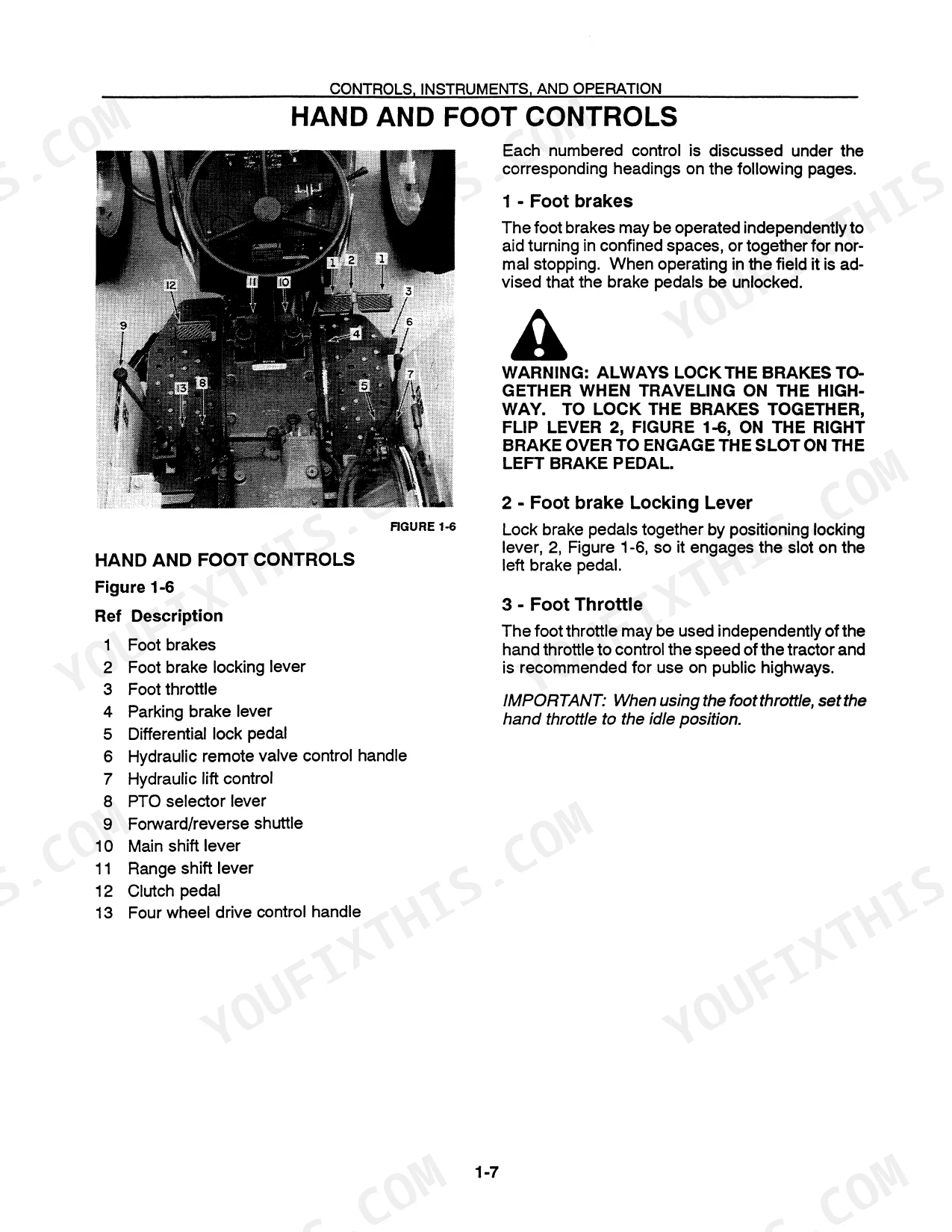

| Controls, Instruments and Operation | 27-82 | Operator’s Seat and Seat Belt, Instrument Panel - Gauges, Warning and Indicator Lights, Instrument Panel - Controls and Switches, Hand and Foot Controls, Transmission Controls |

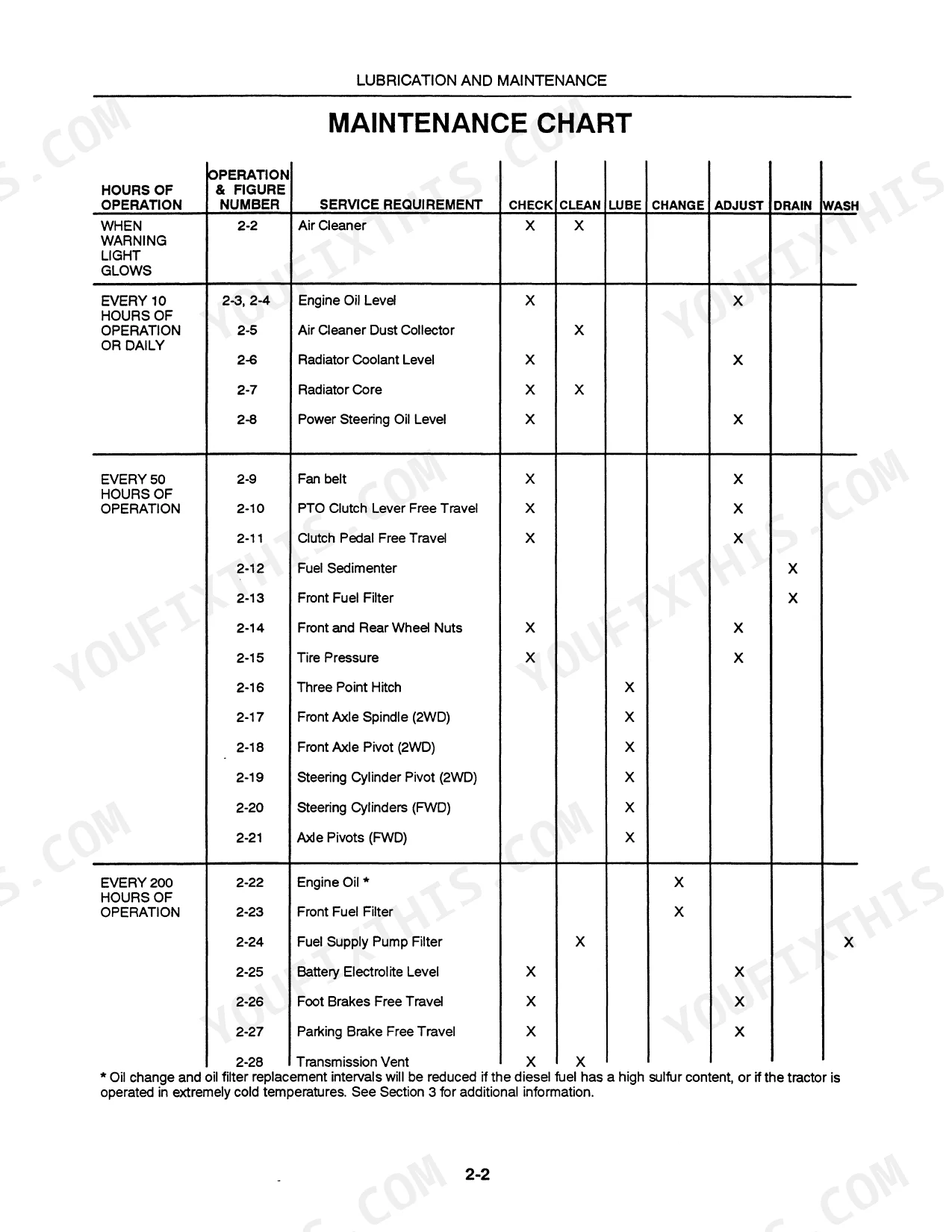

| Lubrication and Maintenance | 83-122 | Maintenance Chart, When Warning Light Glows, Every 10 Hours of Operation, Every 50 Hours of Operation, 200 Hour Service, 400 Hour Service, 800 Hour 12 Month Service |

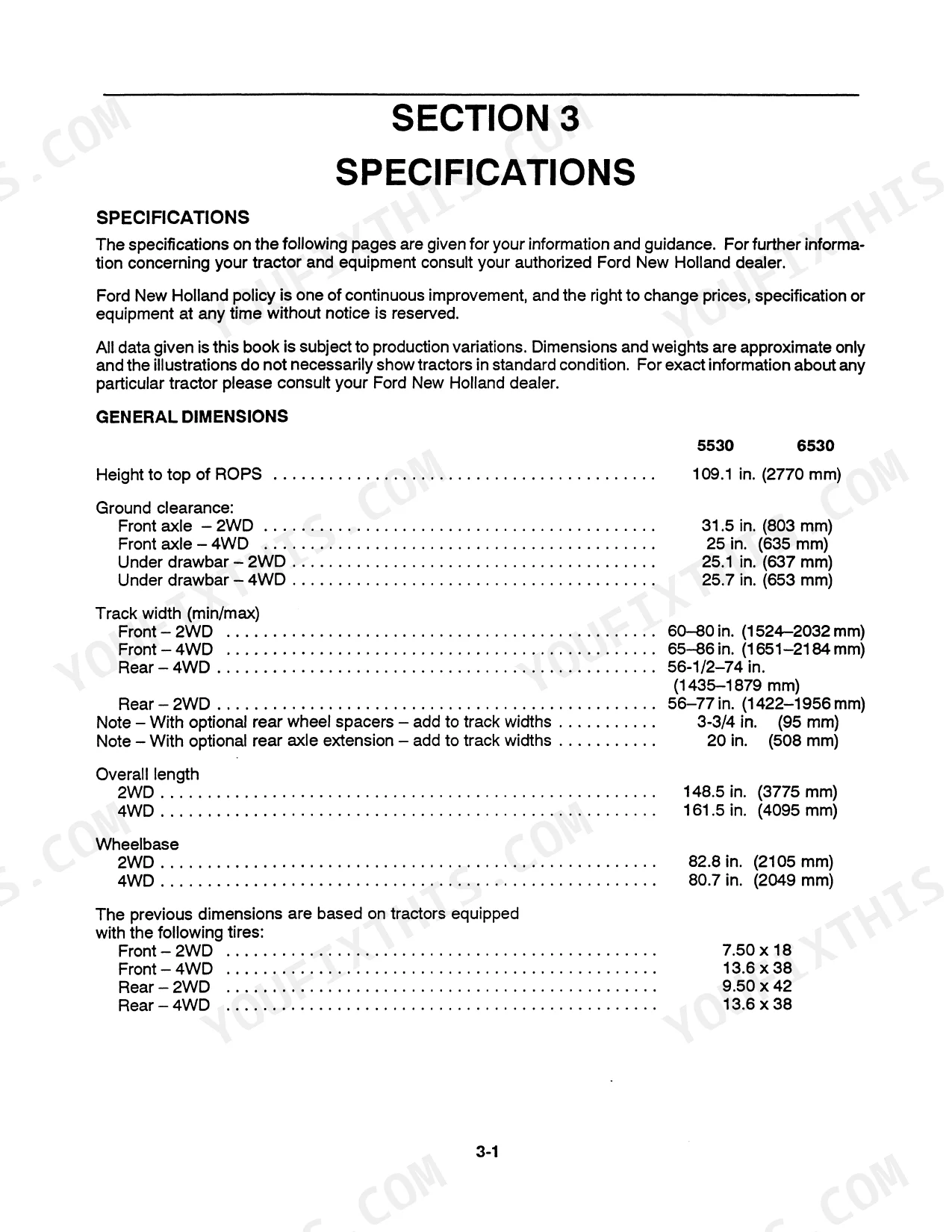

| Specifications | 123-130 | General Dimensions, Engine Specifications, Capacities and Lubricants |
| Delivery Report | 133-136 | Tire Pressure, Air Cleaner, Radiator Coolant, Battery, Engine Oil, Hydraulic System, Fuel Filter, Clutch Pedal |
| First 50-Hour Service | 137-142 | Tire Pressure, Air Cleaner, Fuel Filter, Radiator Coolant, Battery, Engine Oil, Hydraulic System, Final Drive Oil |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fan belt deflection | 1/2 inch (12.5 mm) | p. 92 |
| Fan belt tensioning force | 18 to 22 lb. (8 to 10 kg) | p. 92 |
| Starter motor power | 3.5 kw | p. 125 |
| Brake disc diameter | 6.4 in. (165 mm) | p. 126 |
| Brake pedal free travel (maximum) | 2 in. (51 mm) | p. 101 |
| Engine Idle Speed | 800 RPM | p. 124 |
| Engine Rated Speed | 2500 RPM | p. 124 |
| Intake Valve Clearance (cold) | 0.012 in. (0.30 mm) | p. 124 |
| Exhaust Valve Clearance (cold) | 0.012 in. (0.30 mm) | p. 124 |
| Fuel Tank Capacity | 19.3 Gals. (73 L) | p. 126 |
| Engine Oil Capacity (with filter) | 12 Qts. (11.7 L) | p. 126 |
| Cooling System Capacity | 3.7 Gals. (14 L) | p. 126 |
Ford 5530, 6530 Common Problems This Manual Covers
Ford 5530 three-point hitch will not raise or lifts slowly
Check the hydraulic oil level: it should reach the max mark on the dipstick with the tractor level, the engine shut off, the lift arms lowered and the dipstick plug screwed fully in (page 104). Always check and replenish the hydraulic system oil after remote cylinder equipment has been connected and cycled a few times, since operating with a low oil level may damage the rear axle, transmission and hydraulic system (page 59). For draft control, move the position control lever fully forward and bring the implement to depth with the draft control lever (page 46); for position control, move the draft control lever fully forward and set the implement with the position control lever (page 47).
Manual Section: Hydraulic System Controls p. 104PTO-driven baler plugs or stalls when the PTO is engaged
Do not clean, adjust, unclog or service PTO driven equipment while the tractor engine is running, and for stationary PTO work apply the parking brake and block the rear wheels (page 12). To engage the independent PTO, start the tractor, pull the PTO clutch control up to the disengaged position, wait a few seconds and move the PTO selector lever forward, then depress the release button and gently lower the PTO clutch control (page 41). Engine speed is 2200 RPM for 540 PTO RPM and 2380 RPM for 1000 PTO RPM (page 125).
Manual Section: PTO Operation p. 41Engine cranks slowly and warning lights stay dim on cold mornings before the first start
Check the battery electrolyte level with the engine stopped, the tractor on level ground and the battery cold, and top up to the full mark with distilled or demineralized water, never tap water (page 100). The fan belt should deflect 1/2 in. (12.5 mm) under 18 to 22 lb. (8 to 10 kg) force applied midway between the fan and water pump pulleys; to adjust, loosen the nuts and move the alternator (page 92). Do not crank the engine for more than 15 seconds at a time, wait at least one minute between attempts and make no more than six attempts to preserve battery charge (page 78).
Manual Section: Lubrication and Maintenance p. 92Engine runs hot pulling a cultivator through heavy ground
With the engine cold, check that the coolant level is 1-1/4 in. (82 mm) from the top of the filler (page 90). Clean the radiator core with compressed air not exceeding 100 PSI (7 bar), blowing from the rear of the radiator to the front (page 91). The cooling system holds 3.7 gal. (14 L) (page 126), and the thermostat starts to open at 174 F (79 C) and is fully open at 200 F (94 C) (page 124).
Manual Section: Cooling System Maintenance p. 91Shuttle lever grinds or shifts hard between forward and reverse

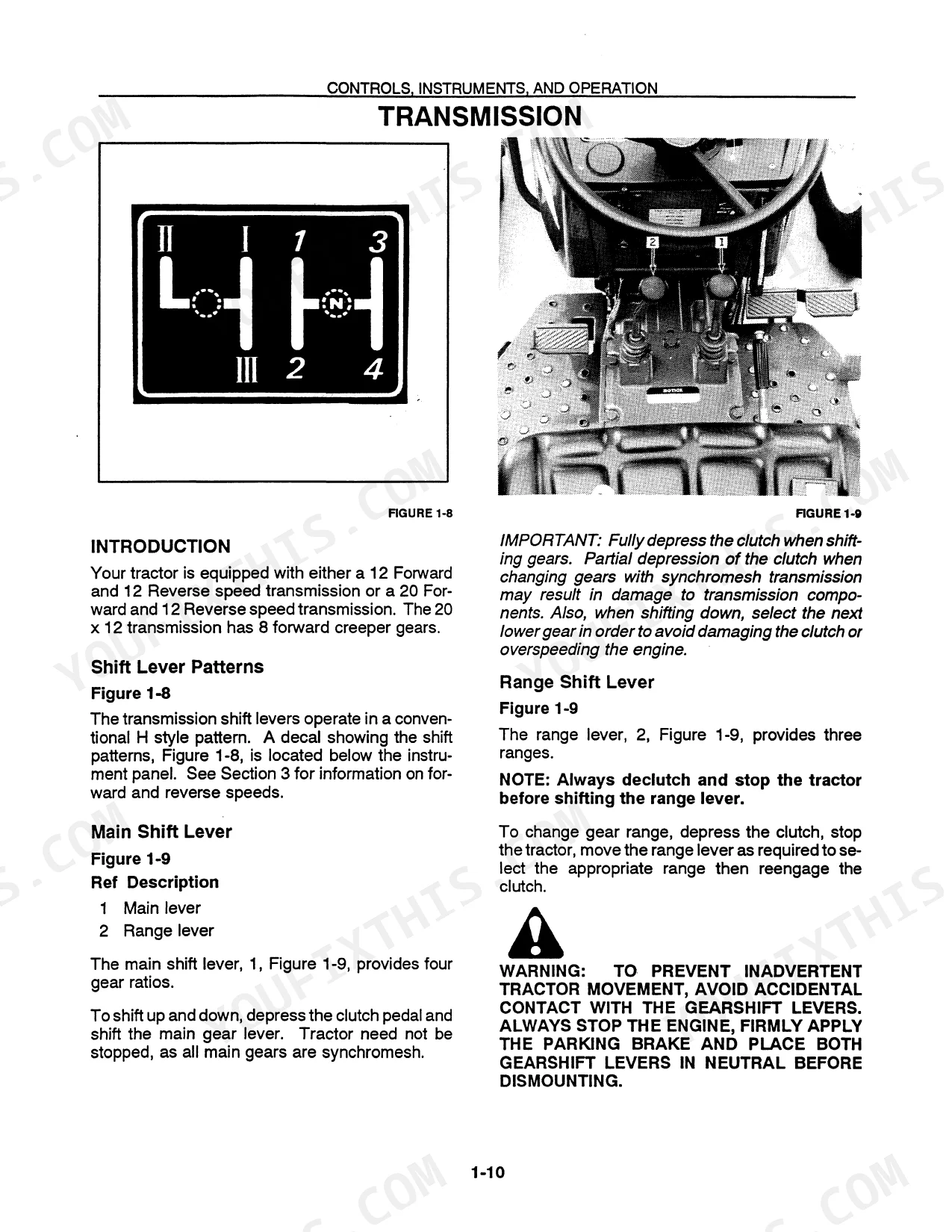

Always declutch and stop the tractor before shifting the shuttle lever: move it all the way forward for forward and all the way to the rear for reverse (page 37); the 20 x 12 shuttle and creeper lever is operated the same way (page 38). The range lever also needs the clutch depressed and the tractor stopped before changing range (page 36). Avoid resting your foot on the clutch pedal, which leads to early clutch failure (page 35).
Manual Section: Transmission and Clutch p. 37Foot brakes feel spongy and pedal travel gets longer through the season
Check that brake free travel is equal for both pedals and does not exceed 2 in. (51 mm); adjust starting with the right brake, with both rear tires blocked and the parking brake released, then check the parking brake adjustment (page 101). The parking brake operates on the foot brake linkage (page 126). Lock the brakes together and use warning lights and the SMV emblem when driving on roads (page 16).
Manual Section: Brake Adjustment p. 101Frequently Asked Questions
What is the front disc to hub torque on four wheel drive the Ford 5530 and 6530 high clearance tractors?
For a 4WD tractor with 38-inch steel disc wheels, the torque specification for the front disc to hub bolts is 191 ft. lbs. (260 N-m). p. 63
How is the hydraulic oil filter replaced on the Ford 5530 and 6530 high clearance tractors?
The hydraulic system filter should be replaced during the 400-hour service. When installing the new filter, oil the seal and hand-tighten until it seats, then tighten an additional 3/4 turn. p. 103
What is the engine valve clearance on the Ford 5530 and 6530 high clearance tractors?
The correct valve clearance for both intake and exhaust valves is 0.012 inches (0.30 mm) when the engine is cold. p. 109
What is the front axle bolt torque on the Ford 5530 and 6530 high clearance tractors?
When adjusting the front axle track width, the axle bolts must be replaced and torqued to 163 ft. lb. (220 N-m). p. 61
How often should the engine oil be changed on the Ford 5530 and 6530 high clearance tractors?
The normal engine oil change interval is 200 hours, though this may be reduced if the diesel fuel has a high sulfur content or if the tractor is operated in extremely cold temperatures. p. 128
What do I get after purchasing this Ford 5530, 6530 manual?
All 142 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print just the pages I need from this Ford 5530, 6530 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
