Everything the factory wanted owners to know about running, adjusting, and storing a hydrostatic garden tractor fits in 44 pages, and this Ford LGT 14H and LGT 18H operator manual PDF for tractor models 9607434 and 9607435 (OEM 42641420) reproduces the whole book. Separate wiring diagrams for the 14 and 18 horsepower machines sit beside the safety interlock checks, and the maintenance chapter lays out daily, 25, 50, and 100 hour schedules. Your hydrostatic drive, brake cable, and electric PTO clutch each get an adjustment procedure, and a troubleshooting chart traces starting, charging, and traction drive complaints to a cause. Hold electrolyte a quarter to a half inch above the battery plates, then slow charge at 4 to 6 amps. A dead battery job stalls fast without that charging rate. Print whatever pages the work calls for and let them take the grease; the bookmarked, text searchable file stays clean for next winter's storage checklist.
What's Inside This Ford LGT 14H, LGT 18H, 9607434, 9607435 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 4-5 | Tractor, Fuel Usage Safety, Tractor Operation, Mower Operation, Servicing, Maintenance |

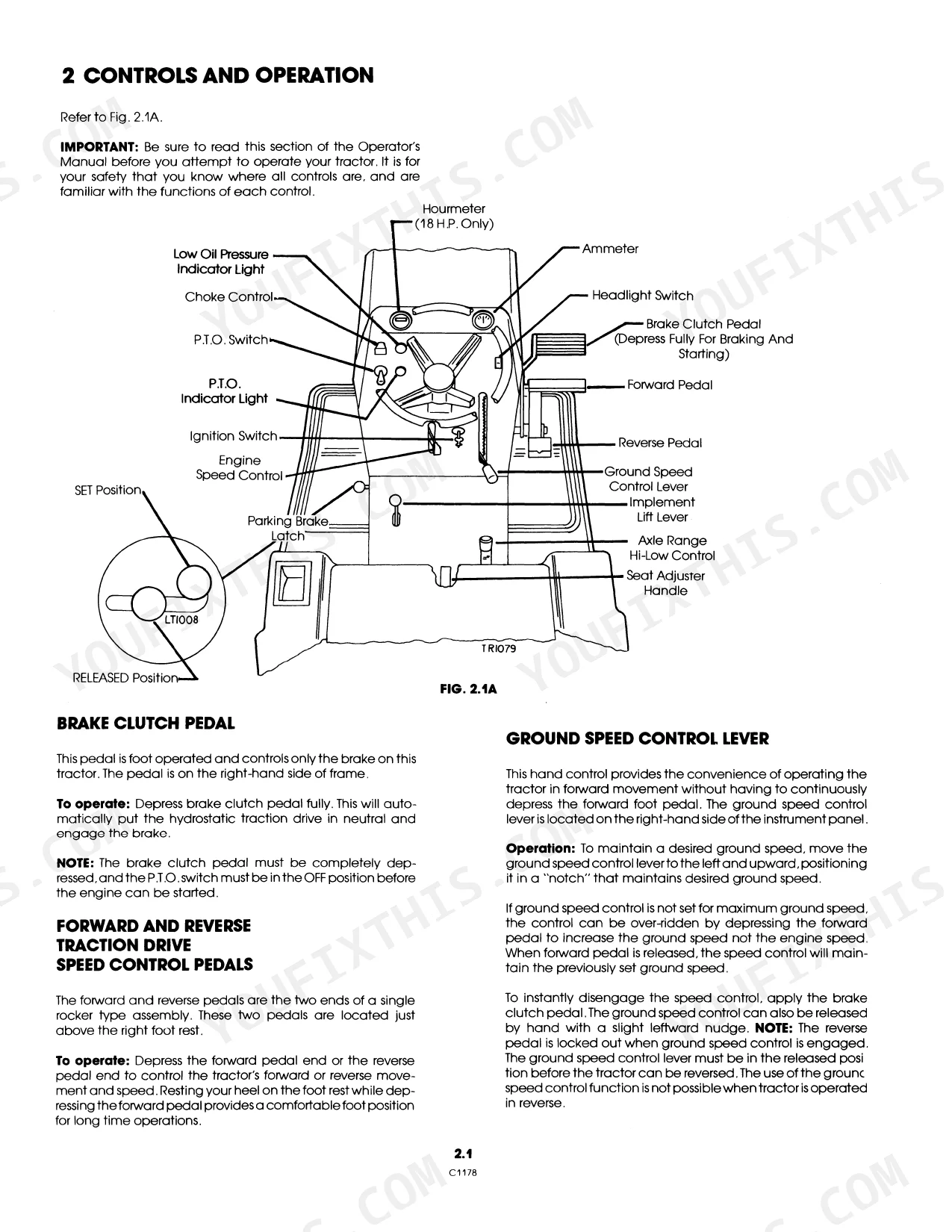

| Controls and Operation | 6-8 | Brake Clutch Pedal |
| Trial Run | 9 | Before Starting, Starting, Operating, Stopping Engine, Transmission Overheating |

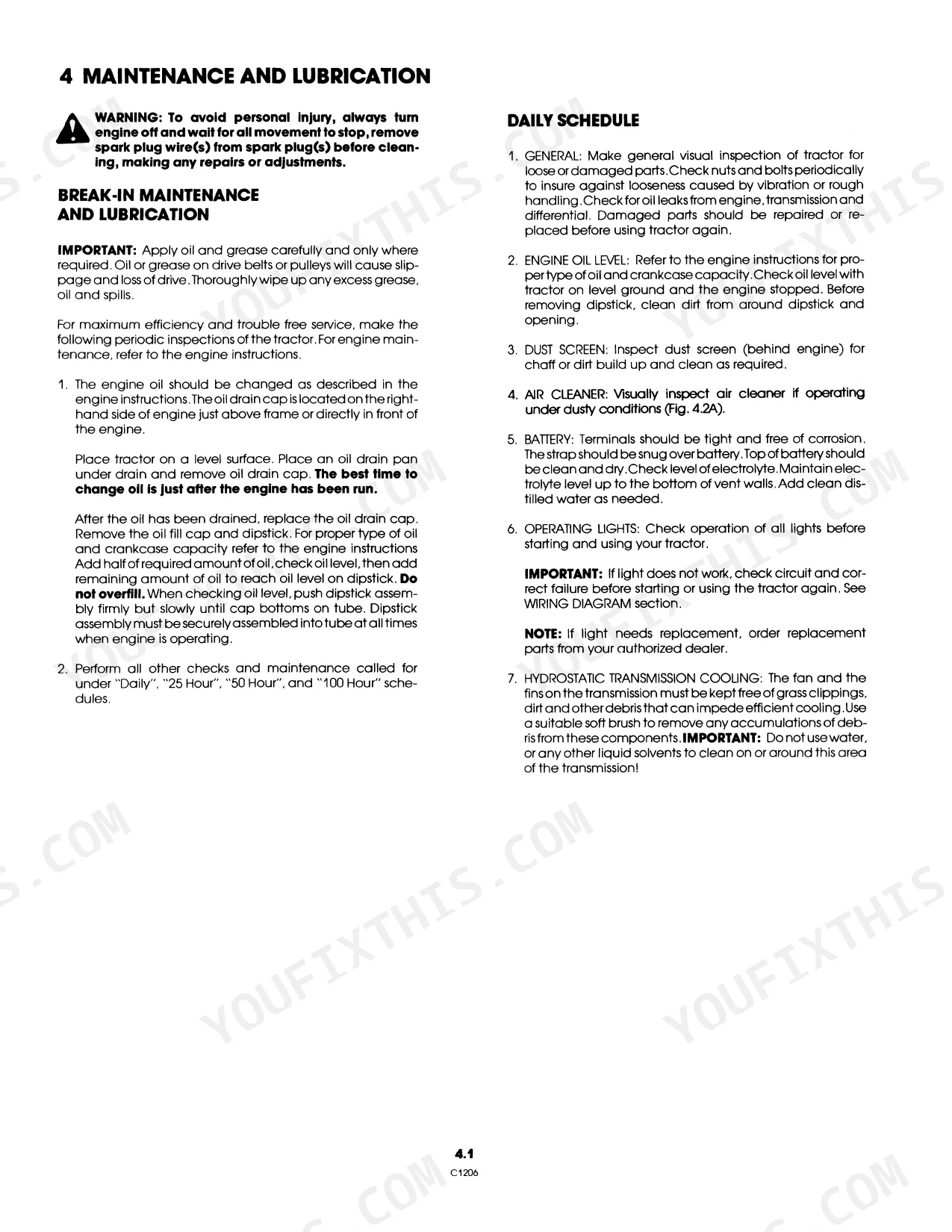

| Maintenance and Lubrication | 10-12 | Break-In Maintenance and Lubrication, Daily Schedule, 25 Hour Schedule, 50 Hour Schedule, 100 Hour Schedule |

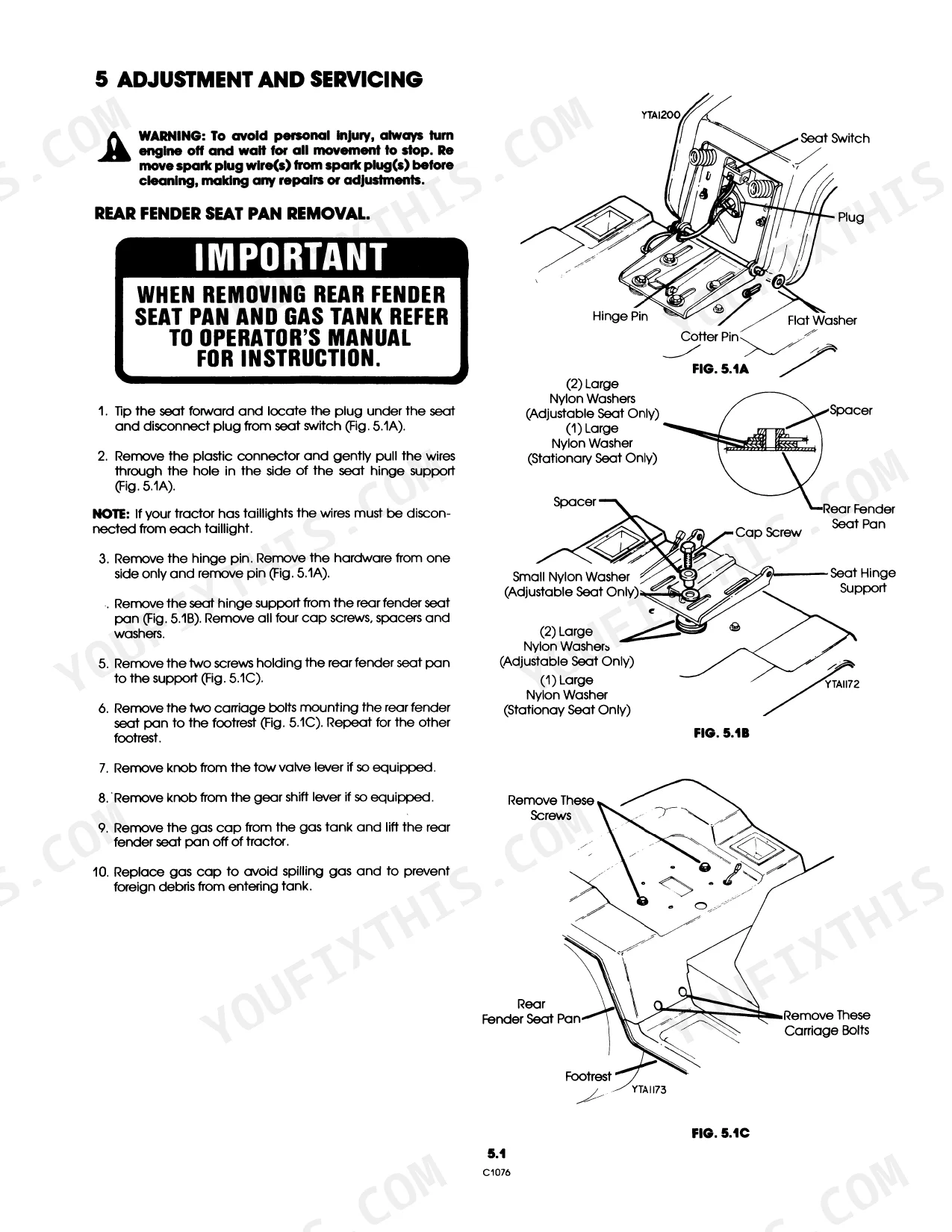

| Adjustment and Servicing | 13-17 | Rear Fender Seat Pan Removal, Gas Tank Removal, Hydrostatic Drive Adjustment, Brake Cable, Brake Pad, Electric P.T.O. Clutch |
| Electrical System | 18 | Battery-Electrolyte Level, Cleaning the Battery, Fuse, Safety Interlock System, Battery - Jump Starting |
| Storage | 19 | |

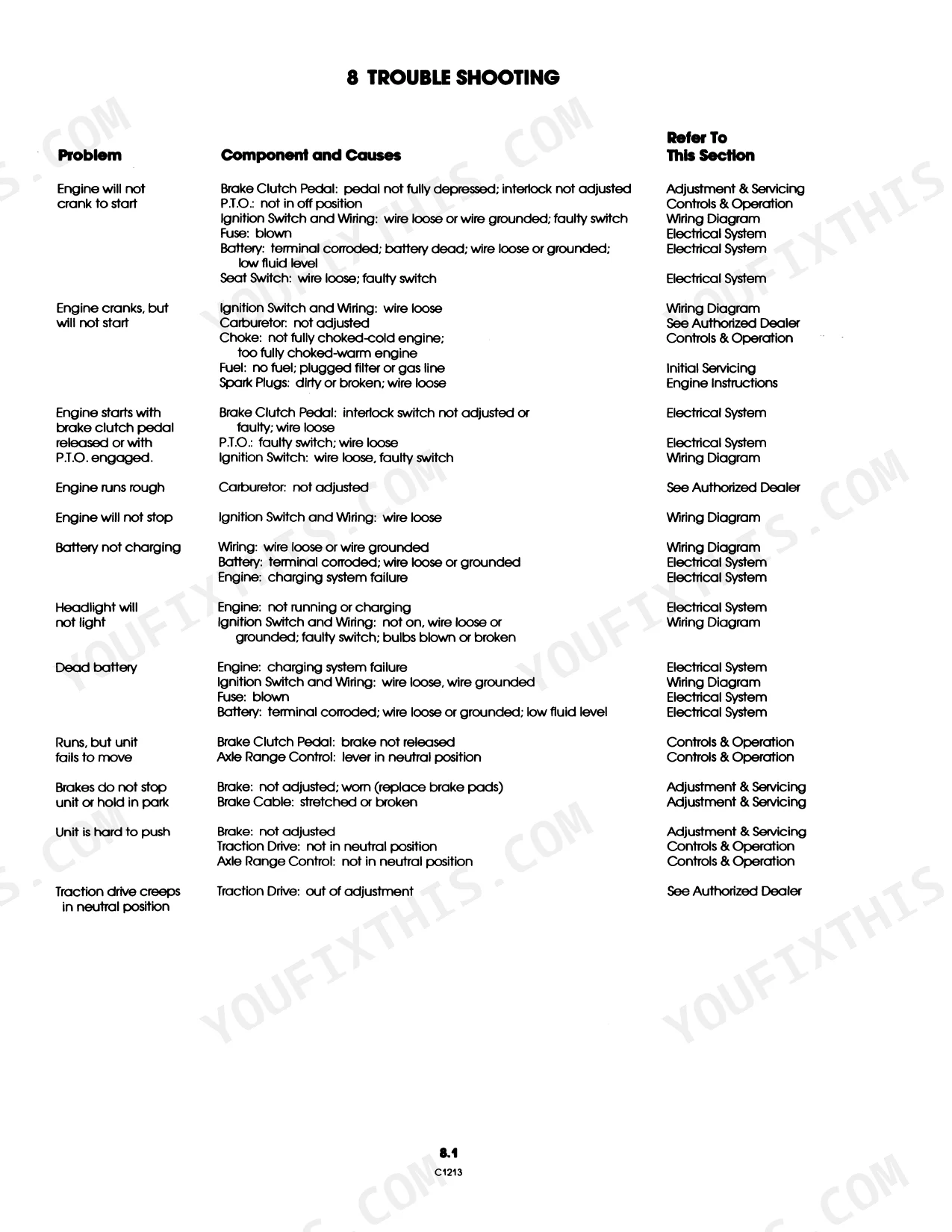

| Trouble Shooting | 20 | Battery Charging, Brakes, Axle Range Control |
| Wiring Diagrams | 21-22 | H.P. Only |
| Set-Up and Assembly | 23-27 | Hardware Bag Contents, Battery, Steering Wheel, Seat, Initial Servicing |
| Replacement Decals | 28-29 | Safety, Standard |
| Optional Accessories | 30 | Rotary Tiller, Snow Thrower, Front Blade, Lawn Sweepers, Utility Dump Carts, All Weather Cab |
| Engine Information | 31-42 | Fuel, Oil, Ignition System, Cooling System, Air Cleaner, Carburetor |
| Owner Assistance | 43-44 | Dealership Contact, Branch Office, Consumer Services Department |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Electrolyte level | 1/4 inch to 1/2 inch above battery plates | p. 18 |
| Battery charging current | 4-6 amp. | p. 24 |
| Solenoid torque | 40-50 in./lbs. | p. 22 |
| Ignition module air gap | 0.008-0.012 inches | p. 40 |
| Model M14 | ||
| Spark plug torque | 18-22 ft./lbs. | p. 40 |
| Model M18 | ||
| Spark plug torque | 10-15 ft./lbs. | p. 40 |
| 14 H.P. | ||
| Spark Plug Gap | 0.035 in. | p. 40 |
Ford LGT 14H, LGT 18H, 9607434, 9607435 Common Problems This Manual Covers
Engine misfires under load, runs rough at full throttle, hard to restart hot
Remove the spark plugs and inspect for fouling. On the 14 H.P. engine, gap new plugs to 0.035 in. per the specs on page 40 and torque them to 18-22 ft./lbs. as shown on page 37. While the shrouding is off, check the ignition module air gap; 0.008 to 0.012 inches is correct on all models. Page 39 covers remaining engine performance problems.
Manual Section: Engine Information p. 40Frequently Asked Questions
How do I adjust the electric P.T.O. clutch on my Ford LGT 18H?
To adjust the clutch, use the supplied .012" feeler gauge. Insert the gauge through the access slot and check for resistance. If the gap is too wide, turn the lock nut clockwise; if too narrow, turn it counterclockwise. On the 18 H.P. model, you must first remove the lower exhaust deflector by removing the six machine screws. p. 17
How do I get a Ford LGT 14H or LGT 18H to crank after winter storage?
Check the engine starting entries in the troubleshooting chart on page 20 first. Pull the battery caps and verify electrolyte sits 1/4 to 1/2 inch above the plates, topping up with distilled water per page 18. Clean both terminals, then slow charge at 4 to 6 amps for 6 hours as described on page 24. p. 18
Why does the hydrostatic drive on the Ford LGT 14H or LGT 18H slip, or the tractor creep in neutral?
During extreme or continuous work in very warm weather the transmission may slip because the oil in it is too hot: let the tractor idle for a short time or shut the engine off and allow the transmission to cool (page 9), since using it while slipping can seriously damage the transmission. If the tractor creeps in neutral, the traction drive is out of adjustment per the trouble shooting chart on page 20; see your authorized dealer. p. 20
Why does the electric P.T.O. clutch on the Ford LGT 14H or LGT 18H engage poorly or keep running when switched off?
The electric P.T.O. clutch needs adjustment when it fails to positively engage the attachment (gap too wide) or the attachment does not stop after the clutch is turned off (gap too narrow). With the switch off and the engine cool, insert the .012 in. feeler gauge through each access slot and set a slight, equal resistance at all slots (page 17). Also check the P.T.O. switch and its wiring for a faulty switch or loose wire (page 20). p. 17
Is this Ford LGT 14H Operator Manual a digital download?
A 44-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is printing allowed for this Ford LGT 14H Operator Manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.

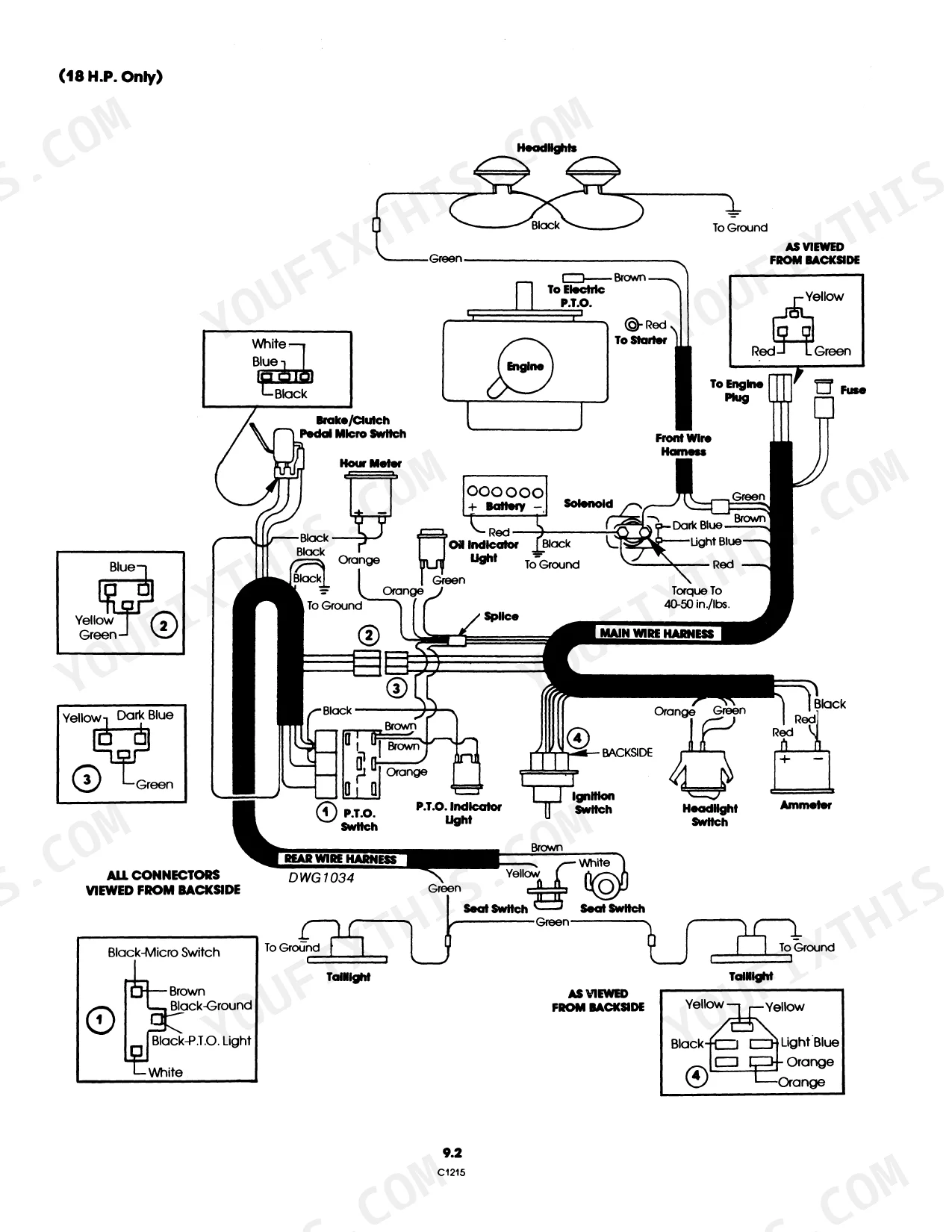

Does this Ford LGT 14H Operator Manual have electrical diagrams?
A wiring diagram for the Ford LGT 14H, LGT 18H, 9607434, 9607435 electrical system is included. See page 21 for an example.
