Tracking down parts for a 1990-1994 New Holland 4830 or 5030? This 591-page New Holland 4830, 5030 parts catalog PDF gives you every exploded view and factory part number for both tractors. Inside: full breakdowns of the synchronized 8x8 and 16x8 transmissions, the DPS rotary injection pump, front axle and FWD transfer case, hydraulic lift and remote control valves, plus complete cab, electrical, and sheet metal sections. You get exact factory numbers, right down to the E8NN3A244AA power steering motor breakdown and the 13-inch clutch assembly, with a metric-to-inch hardware table for substitutions. Match every bolt, bearing, and gasket before you call the dealer counter. No more squinting at a worn casting hoping the number is right. Bookmarked and keyword searchable; jump straight to any figure, pull the part number, and place the order.
What's Inside This Ford New Holland 4830, 5030 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank & Related Parts, Auxiliary, W/Cab, Fuel Pump Assembly, DPS Rotary Fuel Injection, Upper Half, Lower Half, Fuel Sedimenter & Filter Assembly, Fuel Injector Assembly, Fuel Lines & Related Parts, Air Cleaner Assembly, Dry, Oil Bath Type, Fuel Primer Assembly, Harness, Transmission & Auxiliary Fuel Tank | |
| Cooling System | Radiator & Related Parts, Water Pump & Related Parts, Radiator Shell & Related Parts | |
| Engine | Pump Assembly & Related Parts, Engine Mounted, Cylinder Block, Head & Related Parts, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Oil Pump & Oil Pan, Pistons & Connecting Rods, Gasket Kits, Oil Coolers, Hydraulic & Transmission, Engine Oil Cooler, Oil Cooler, Modine, Engine Covers, Lubrication Equipment, Engine Coolant Heater Kit | |
| Electrical System | Rear Wiring, W/crown Fenders, Nh-E, W/wide Fenders, Insert Headlamp Assembly, Headlamp, Side Mounted, Headlamp Assy., Fender Mounted, Nh-Na, Lamp Assembly, Rear Stop & Turn Signal, Emergency Warning, Rear Lamp Asse4mbly, Stop & Flasher, W/Cab, Rear Lamp Assembly, Side & Flasher, Side Turn Signal, Mounting, License Plate, Side & Turn Signal, Battery & Battery Support, Alternator Assembly, 55 & 75 Amp, L/Cab, W/8 X 2; W/Cab, W/8 X 2, W/8 X 8, W/16 X 8, 45 Amp, W/8 X 2 Nh-Na | |
| Clutch & Transmission | Transmission Handbrake, L/Cab, W/4wd, Synchronized Transmission, W/8 X 8, W/16 X 8, W/Cab, Rear Cover, W/synchronized Transmission, Front Cover, Front Housing, Valve Housing & Valve, Pipeline, Input Shaft & Gears, W/synchronized Transmission W/8 X 8, Clutch Input Shaft, PTO Shaft & Gears, Low & Back Gears, Back Idle Shaft, W/8 X | |
| PTO | Rear Axle Center Housing, W/8 X 2, L/fwd, W/ipto, PTO Cover, 2 Speed Shiftable, W/8 X 8, W/16 X 8, Nh, PTO Cover & Related Parts, PTO Shift Control, 2-Speed Shiftable, W/2wd, Ipto Control Lever & Related Parts, W/Cab, PTO Handle Assembly, Ipto Handle Assembly & Related Parts, PTO Guard, Hinged, Detachable | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Round Disc, Square Disc, Rear Wheel Weight, Pressed Steel Disc, Brakes, 3 & 4 Plate, Brake Controls & Related Parts, W/Cab, Brake Controls, L/Cab, Trailer Brakes, Nh-E, Rear Axle Center Housing, Rear Axle Final Drive Differential, Rear Axle & Related Parts, Final Drive, Rear, Ring Gear & Pinion, Differential Lock Controls | |

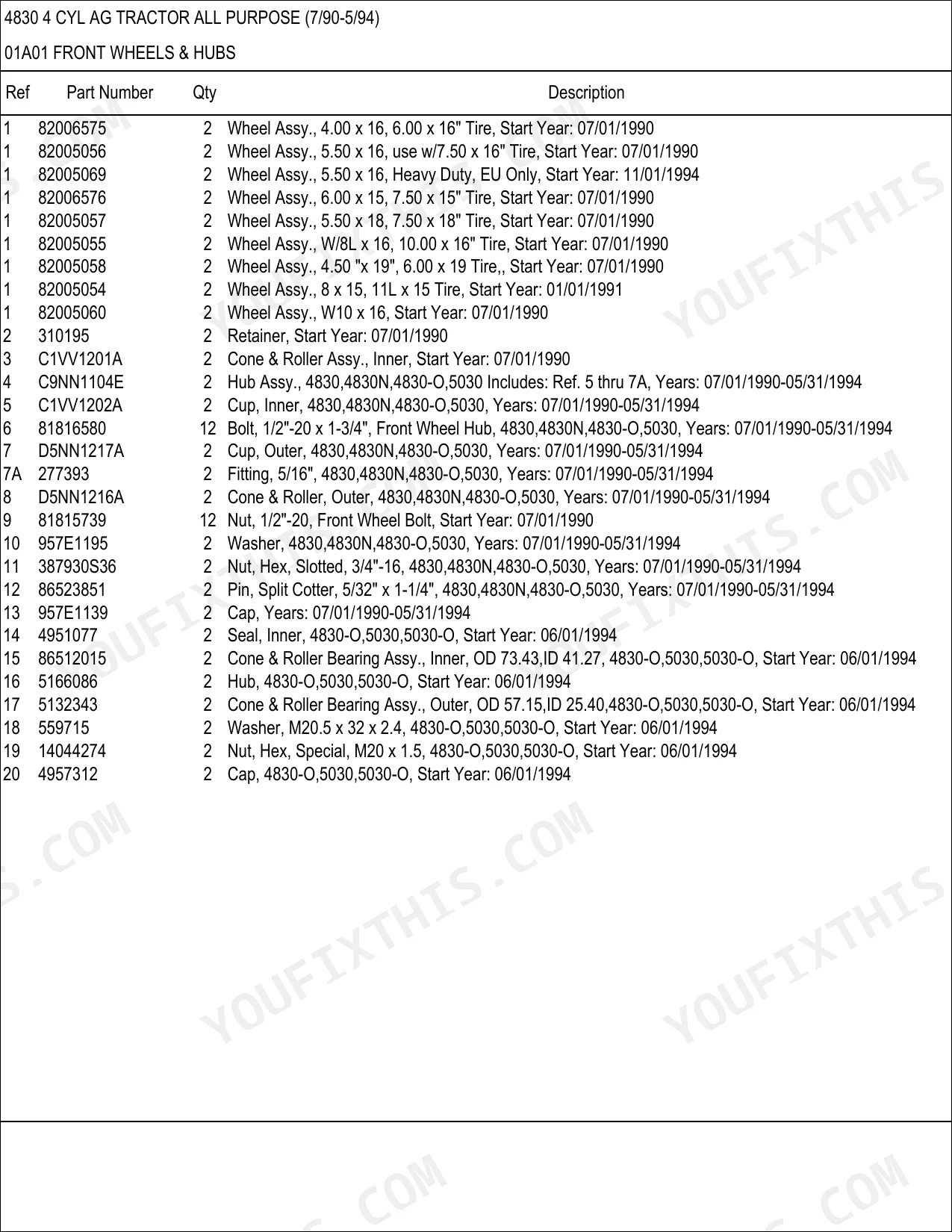

| Front Axle & Steering | Front Wheels & Hubs, Front Wheel Assembly, W/FWD, Front Axle, Steering & Related Parts, Front Axle Assembly, Steering Gear Assembly, Manual, Power, Single Drop Arm, Steering Column, L/Cab, Tilt, W/Cab, Power Steering Pump & Reservoir, Power Steering Cylinder Nhna, Power Steering Motor, E8nn3a244aa & E9nn3a244ba Breakdown, Axle Supports, Housings, Steering Cylinder & Related Parts, Axle Assembly, Front Transfer Case, W/4wd, Transfer Case & Controls, Steering Gear Cover | |
| Hydraulics & 3-Point Hitch | Auxiliary Service Control Valve, Auxiliary Service Control Pipe & Coupler, Lift & Draft Control, W/Cab, L/Cab, Hydraulic Lift Control, Flow Control Valve, Filter & Related Parts, Flow Control Valve Components, Hydraulic Manifold, L/flow Control Valve, Lift Arms & Shafts, Lift Cover, Lift Cylinder & Related Parts, Lift Linkage, Remote Control Valve Assembly, Single Spool, Double Spool, Remote Control Valve, Coupler & Hoses, Deluxe | |
| Loader, Backhoe & Attachments | Stabilizer Assembly | |

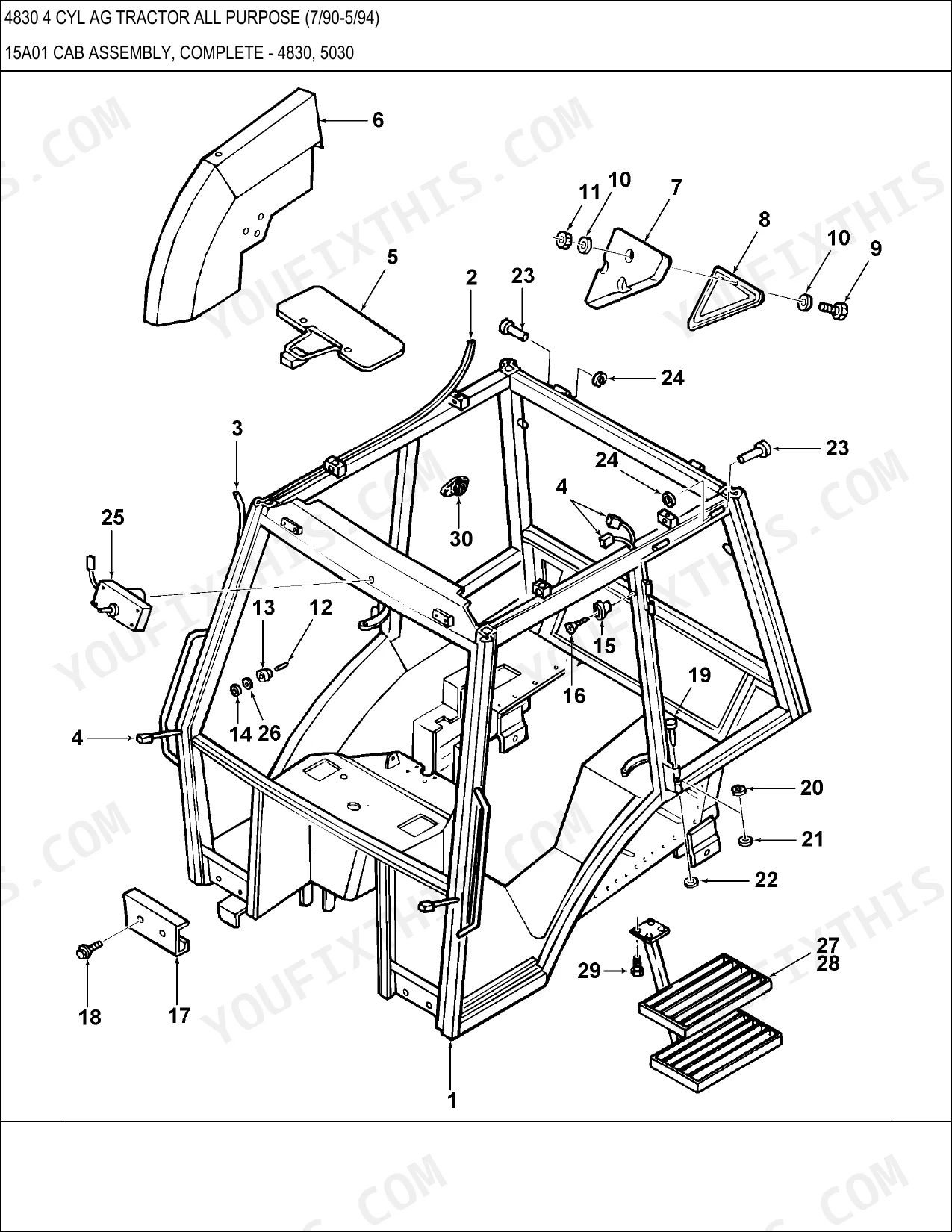

| Body & Operator Station | Box Assembly, Lift Leveling, L/in Cab, Lift Leveling Box Assembly, W/in Cab, Attaching Parts, 3RD & 4TH Deluxe Remote, L/Cab, W/Cab, Water Filter, Throttle Controls, Electrical System, LH, Trailer Sockets, 7 Pole, Nh-E, Trailer & Auxiliary Sockets, Seat Assembly, Air Suspension, Bostrom, Economy, Grammer, Crown Fenders, Platform & Related Parts | |
| Decals & Accessories | Tool Box & Related Parts, Tool Kit | |
| Other Components | Power Adjustable Wheel, W/lcg, 28", 30" & 38", Weights, Front End, 30" & 34", Nhna, 38", Axle Shaft & Planetary Assemblies, Ring Gear Pinion & Differential Assembly, Drive Shaft & Shield Assembly, Waterproof Drive Shaft, Lift Leveling Box Assembly, Nh-E, Transport Lock, Hpl, Sweden, Lift Assist Ram, Manifold & Exhaust System, Diesel Cold Start, Starting Motor Assembly |
Ford New Holland 4830, 5030 Common Problems This Manual Covers

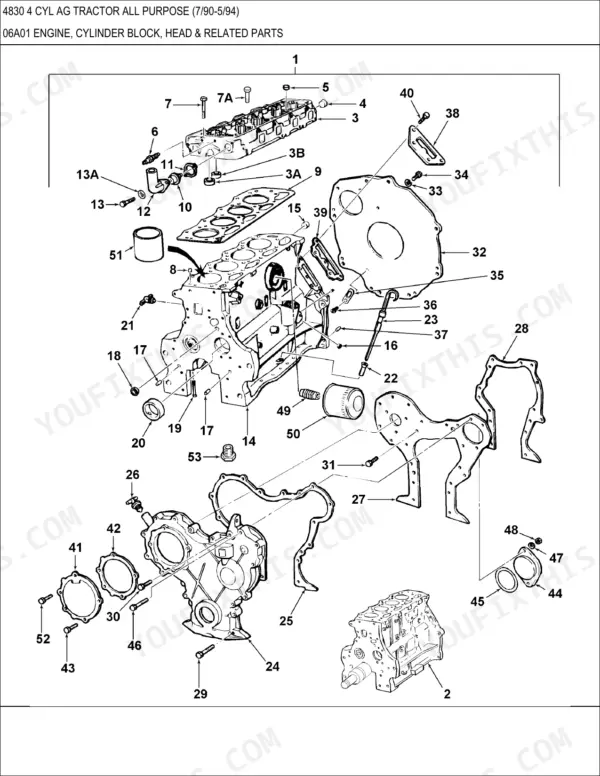

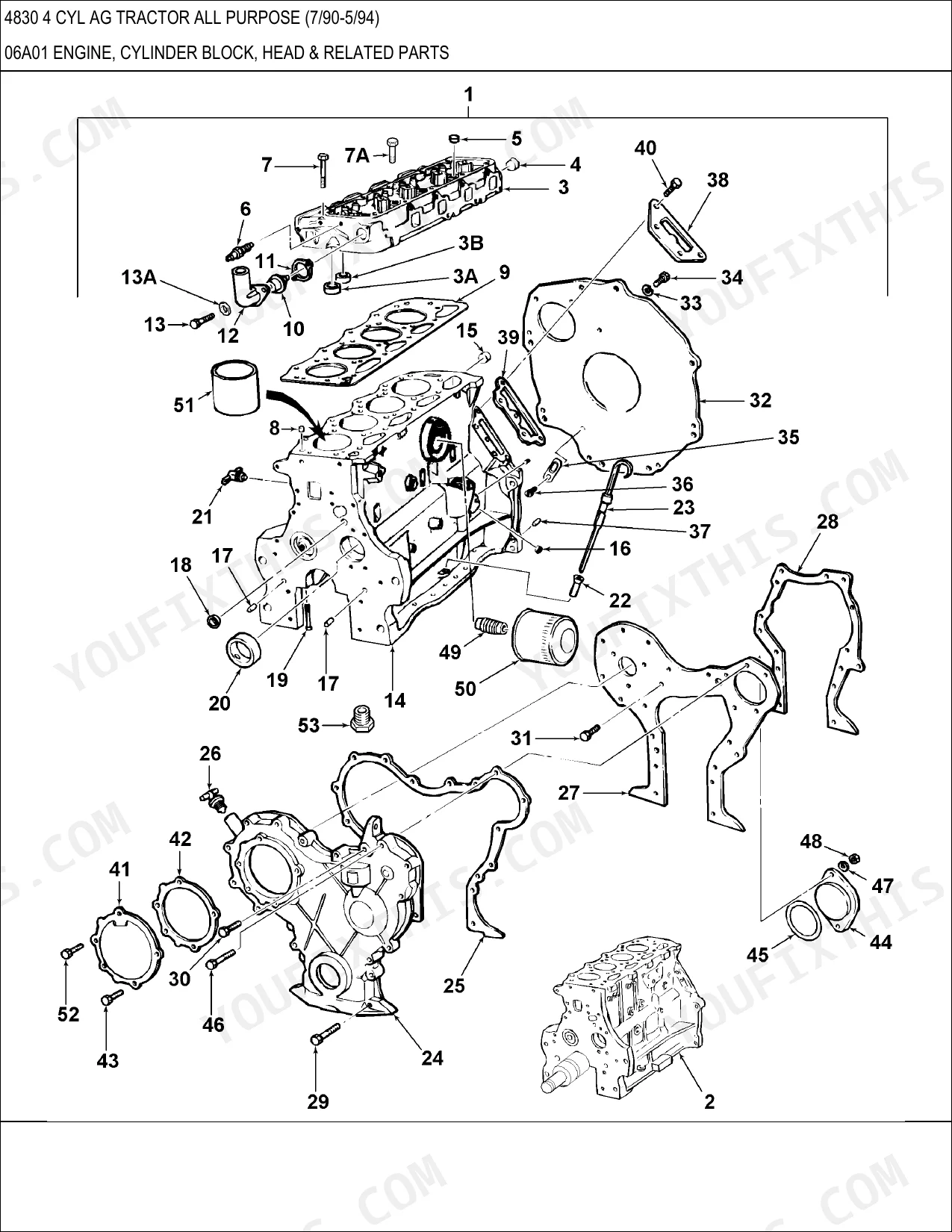

New Holland 4830, 5030 cylinder head bolt part numbers hard to match on older engines
Check the engine parts diagram and trace each callout to the parts number list. Measure bolt shank length in millimeters to the nearest 0.5 mm before ordering, then confirm the callout applies to your model and serial number range, not the other tractor covered.
Manual Section: Engine, Cylinder Block, Head & Related PartsNeed correct synchronizer ring part number, gearshift exploded view callouts hard to read
Open the drivetrain parts diagram and follow the gearshift callout numbers to the synchronizer ring entry. Measure the ring outside diameter with calipers, recording to 0.1 mm, and note it on your parts request so the dealer can confirm fit for your serial number range.
Manual Section: Synchronized TransmissionMetric bolt sizes in the parts list don't match the inch sockets in the shop
Measure the screw diameter and length in millimeters with calipers, then convert with the metric to inches table starting on page 590. Record readings to the nearest 0.5 mm before matching sockets or ordering hardware. Keep a printed copy of the table at the bench for quick substitution checks.
Manual Section: General Infomation - Metric to Inches p. 590Abbreviation codes in the parts list columns are unclear when ordering hardware
Check the abbreviations section starting on page 576 and match each column code against the hardware terminology and measurement unit entries. Write the full description on your parts request instead of the code. Measure any questionable fastener in millimeters, within 0.5 mm, so the dealer can cross-check the callout.
Manual Section: General Infomation - Abbreviations p. 576Can't locate the right exploded view figure for an assembly anywhere in the PDF
Check the figure search instructions on page 1 and use the Adobe Acrobat search feature to jump straight to a figure number. Type the assembly name, note the figure number from the figure list index, then match callouts to the parts number list. Measure worn parts in millimeters, within 0.5 mm, before ordering.
Manual Section: How to Use Figure Search p. 1Frequently Asked Questions
What is the part number for the engine oil filter on the New Holland 4830 tractor?
The part number for the engine oil filter on the New Holland 4830 tractor is 86546614. For the NH-E model, the part number is 87800068. p. 200
What is the part number for the fuel filter element on the New Holland 4830 tractor?
The fuel filter element for the New Holland 4830 tractor is part number 86570171, which is 4.3 inches in length. A 2-3/4 inch kit is also available under part number 83937061. p. 352
What is the part number for the alternator belt on the New Holland 4830 tractor?
The alternator belt for the New Holland 4830 tractor is part number 626657, which measures 1/2 inch by 55.26 inches. p. 418
How quickly can I access this New Holland 4830, 5030 manual after buying?
You get a 591-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland 4830, 5030 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
