Every part number for your 1992-1998 New Holland 5030 and 7310 Quick Attach farm tractor lives in this 682-page parts catalog PDF. You get exploded-view figures for the whole machine: front axle and steering, transmission and PTO, hydraulic lift controls, engine and fuel system, brakes, wheels and weights, cooling, electrical, cab, plus a full section for the 5030/7310 QA loader mounting and mainframe. Each figure ties every component to its factory part number and cross-reference, so you can identify a worn synchronizer hub or a cracked lift arm bushing and order the right piece the first time. A metric-to-inches conversion chart and a trilingual abbreviations key round out the back pages. Tired of squinting at a corroded casting number while the dealer counter guy guesses? Bookmarked with a built-in figure-search index; jump to the assembly, match the part, place the order.
What's Inside This Ford New Holland 5030 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank & Related Parts, Fuel Pump Assembly, Fuel Sedimenter & Filter Assembly, Fuel Injector Assembly, Fuel Lines & Related Parts, Air Cleaner Assembly, Fuel Primer Assembly | |
| Cooling System | Radiator & Related Parts, Water Pump & Related Parts, Radiator Shell & Related Parts | |
| Engine | Crankshaft, Camshaft, Oil Pump & Oil Pan, Pistons & Connecting Rods, Gasket Kits, Oil Coolers, Engine Oil Cooler, Lubrication Equipment | |
| Electrical System | Harness, Insert Headlamp Assembly, Headlamp Assy., Lamp Assembly, Rear Lamp Asse4Mbly, Rear Lamp Assembly, Battery & Battery Support, Alternator Assembly, Plow Lamp, Hourmeter Assembly, Cigar Lighter Assembly, Oil Pressure Gauge, Voltmeter Assembly | |
| Clutch & Transmission | Transmission Handbrake, Synchronized Transmission, Shift Levers, Transmission Assembly, Ipto Clutch & Related Parts, PTO Clutch Valves, Clutch Assembly, Main Shift Levers, Shuttle Control, Shuttle Shift Control, Transmission Shift Control, Creeper Gear Kit | |
| PTO | PTO Shaft & Gears, PTO Cover, PTO Cover & Related Parts, PTO Shift Control, Ipto Control Lever & Related Parts, PTO Handle Assembly, Ipto Handle Assembly & Related Parts, PTO Guard | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Rear Wheel Weight, Brakes, Brake Controls & Related Parts, Brake Controls, Trailer Brakes, Rear Axle Center Housing, Rear Axle Final Drive Differential, Rear Axle & Related Parts, Final Drive, Differential Lock Controls | |
| Front Axle & Steering | Front Wheels & Hubs, Front Wheel Assembly, Front Axle, Front Axle Assembly, Steering Gear Assembly, Steering Column, Power Steering Pump & Reservoir, Power Steering Cylinder, Power Steering Motor, Steering Gear Cover | |
| Hydraulics & 3-Point Hitch | Auxiliary Service Control Valve, Auxiliary Service Control Pipe & Coupler, Lift & Draft Control, Hydraulic Lift Control, Flow Control Valve, Flow Control Valve Components, Hydraulic Manifold, Lift Arms & Shafts, Lift Cover, Lift Cylinder & Related Parts, Lift Linkage, Remote Control Valve Assembly, Remote Control Valve, Coupler Assembly, Unload Valve, Unload Valve & Tubing | |

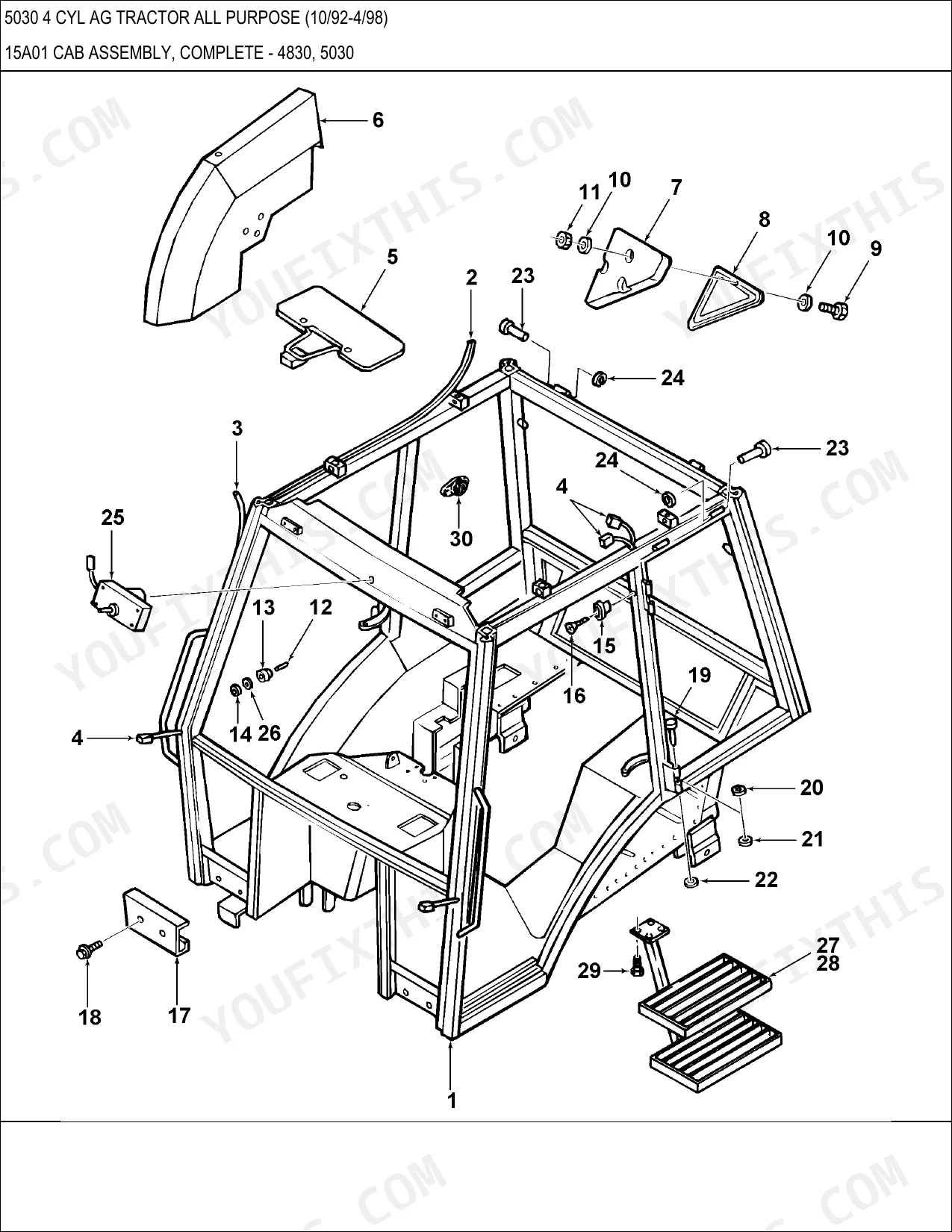

| Body & Operator Station | Rear Cover, Front Cover, Seat Assembly, Engine Covers, Crown Fenders, Flat Top Fenders, Flat Top Fenders & Platforms, Front Fenders, Rear Fenders, Cab Assembly, Fenders, Floor Mats & Related Parts, Cab Mounting Parts, Rollbar Frame Assembly, ROPS | |
| Decals & Accessories | Tool Box & Related Parts, Tool Kit | |
| Other Components | Power Adjustable Wheel, Weights, Axle Supports, Axle Assembly, Axle Shaft & Planetary Assemblies, Ring Gear Pinion & Differential Assembly, Drive Shaft & Shield Assembly, Front Transfer Case, Transfer Case & Controls, Waterproof Drive Shaft, Box Assembly, Lift Leveling Box Assembly, Transport Lock, Lift Assist Ram, Handles, Manifold & Tubes |
Ford New Holland 5030 Common Problems This Manual Covers

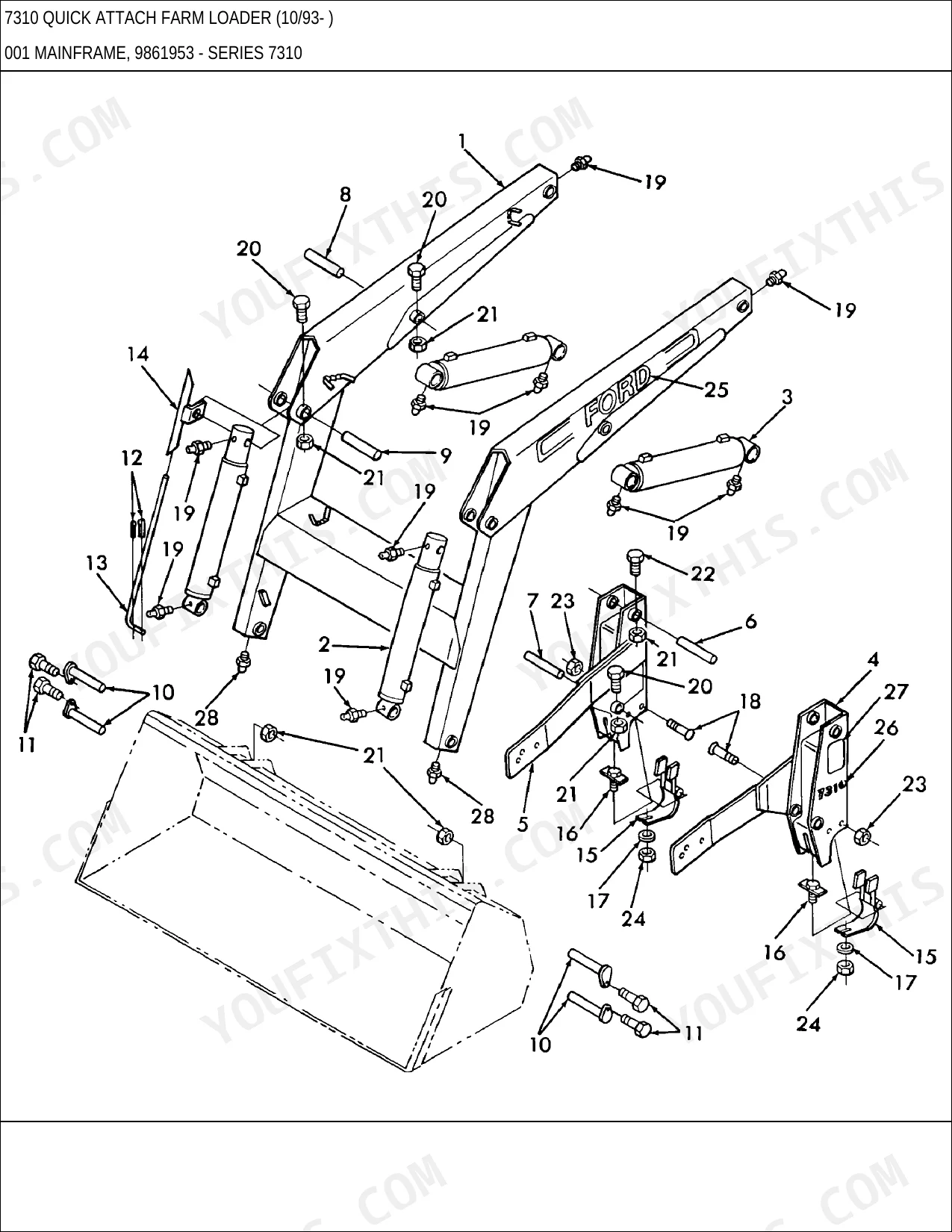

New Holland 5030 quick attach loader boom pivot pins worn, need part numbers for pins and bushings
Pull up the boom and attachment exploded view on page 573 and match each pin to its callout number in the parts list. Verify your serial number against the listed range before ordering. Measure the removed pin diameter and length in millimeters, then double-check sizing with the metric to inches table on page 681.
Manual Section: 5030 Loader 7310 Qa p. 573Power steering pump leaking at the shaft, can't match the seal kit to the pump assembly
Check the casting number stamped on the pump body first. Then open the Front Axle and Steering section starting on page 38 and find the power steering pump exploded view. Match your casting number to the correct pump assembly and order the seal kit shown for it. Measure the shaft diameter in millimeters if two kits look close.

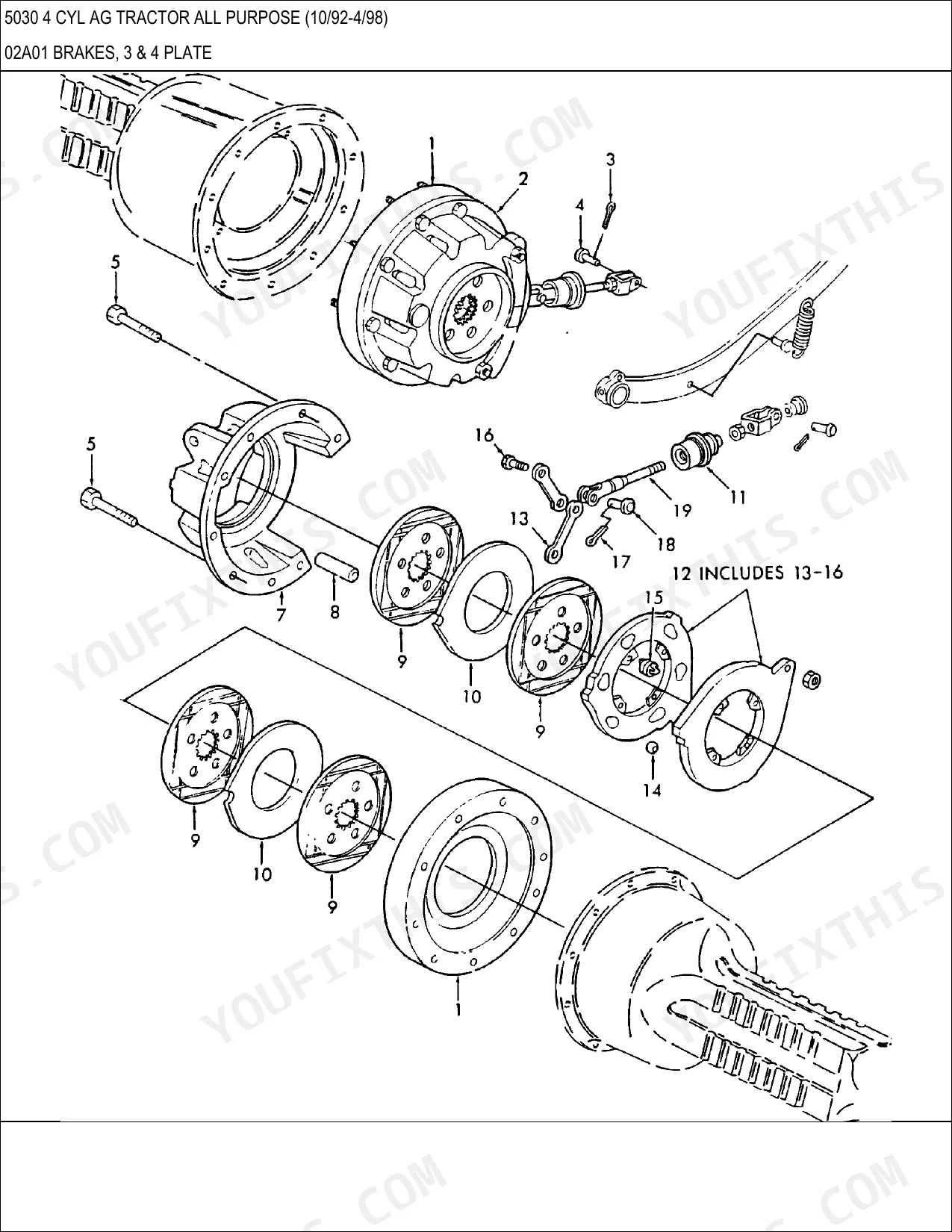

Manual Section: Front Axle and Steering p. 38Brake pedal stays down, need part numbers for the return spring and pedal linkage bushings
Check the chassis parts diagram on page 8 to locate the brake pedal group, then read the callout numbers off the parts number list on page 9. Measure the old spring's free length in millimeters to confirm you pulled the right one. Order the spring, clevis pins, and bushings together; they wear as a set.

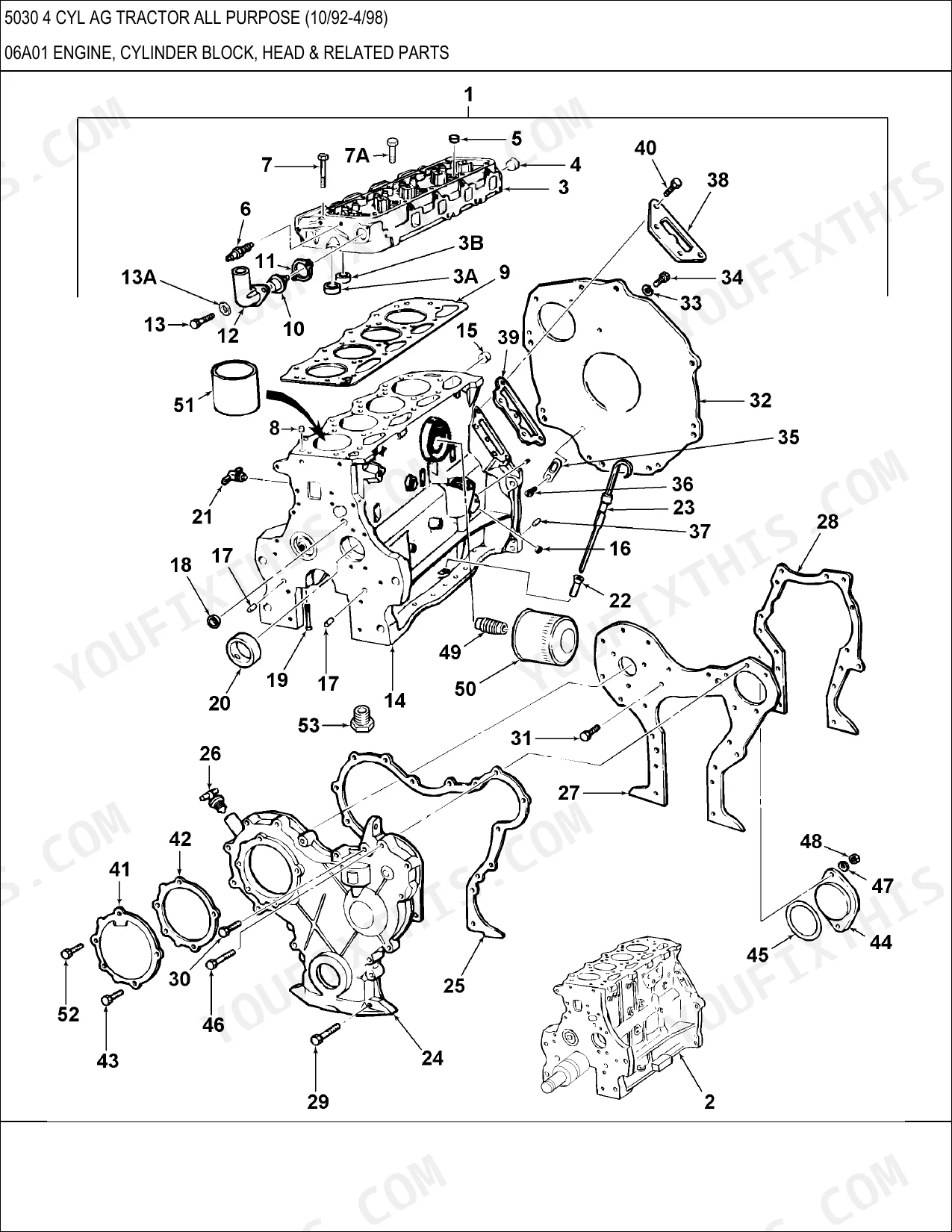

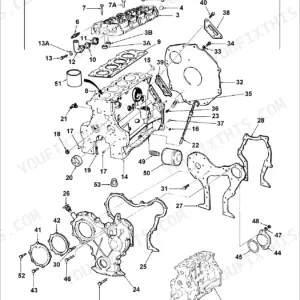

Manual Section: Wheels, Weights, and Brakes p. 9Cylinder head gasket kit contents unclear, last order arrived missing the valve cover and manifold gaskets
Check the engine parts diagram on page 199 and note every gasket callout for the head, valve cover, and manifolds. Compare that list against the gasket kit contents shown in the Engine and Fuel System section starting on page 187 before ordering. Verify head bolt lengths in millimeters too; the list separates bolts by length.
Manual Section: Engine and Fuel System p. 199Third and fourth gear synchronizer rings look identical, can't tell which part number fits which gear
Remove both rings and compare them against the synchronized transmission exploded view starting on page 216. The parts list splits the rings by callout number even when they look alike on the bench. Measure each ring's inside diameter in millimeters and match it to its gear cone, then confirm the serial number range before ordering.
Manual Section: Transmission Gears and Shifters p. 216Frequently Asked Questions

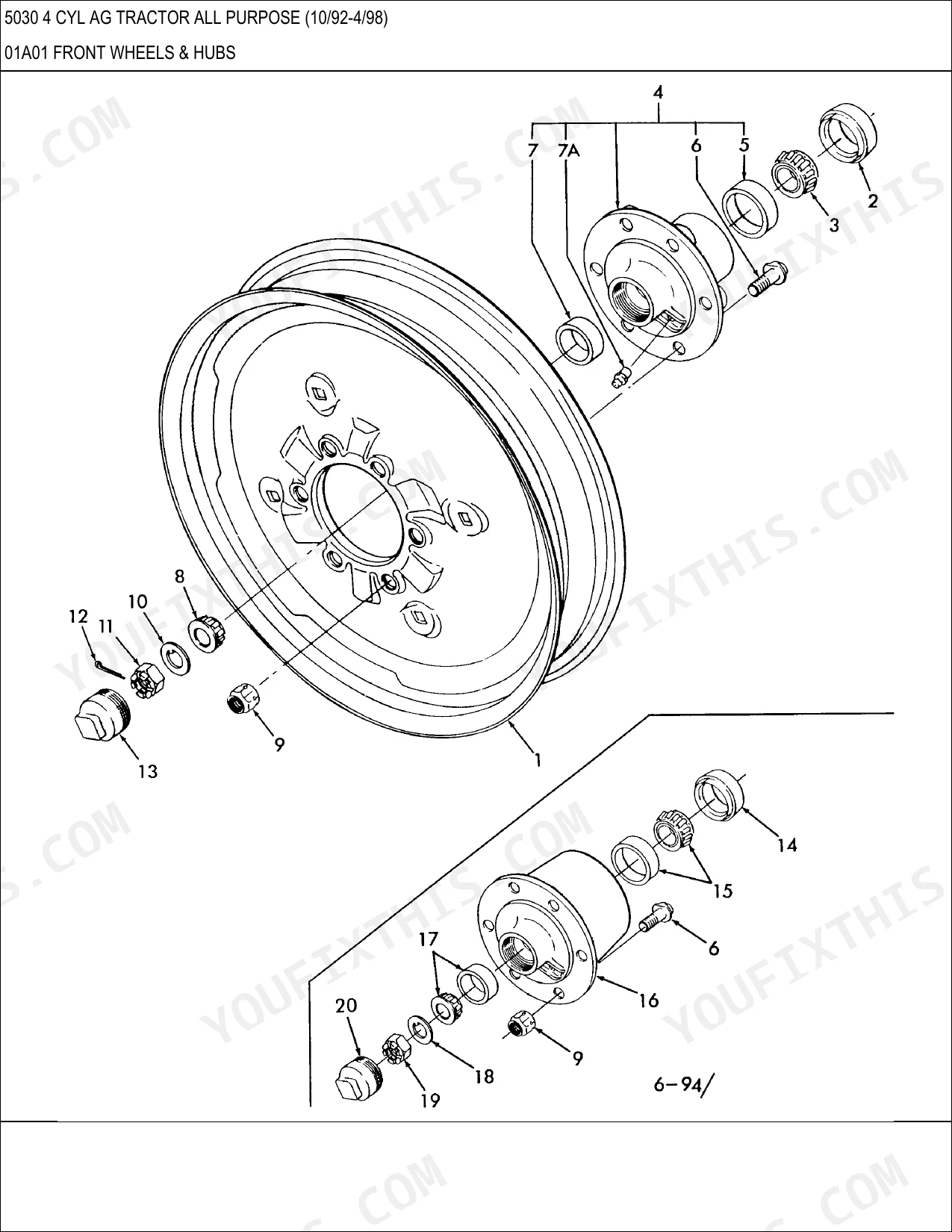

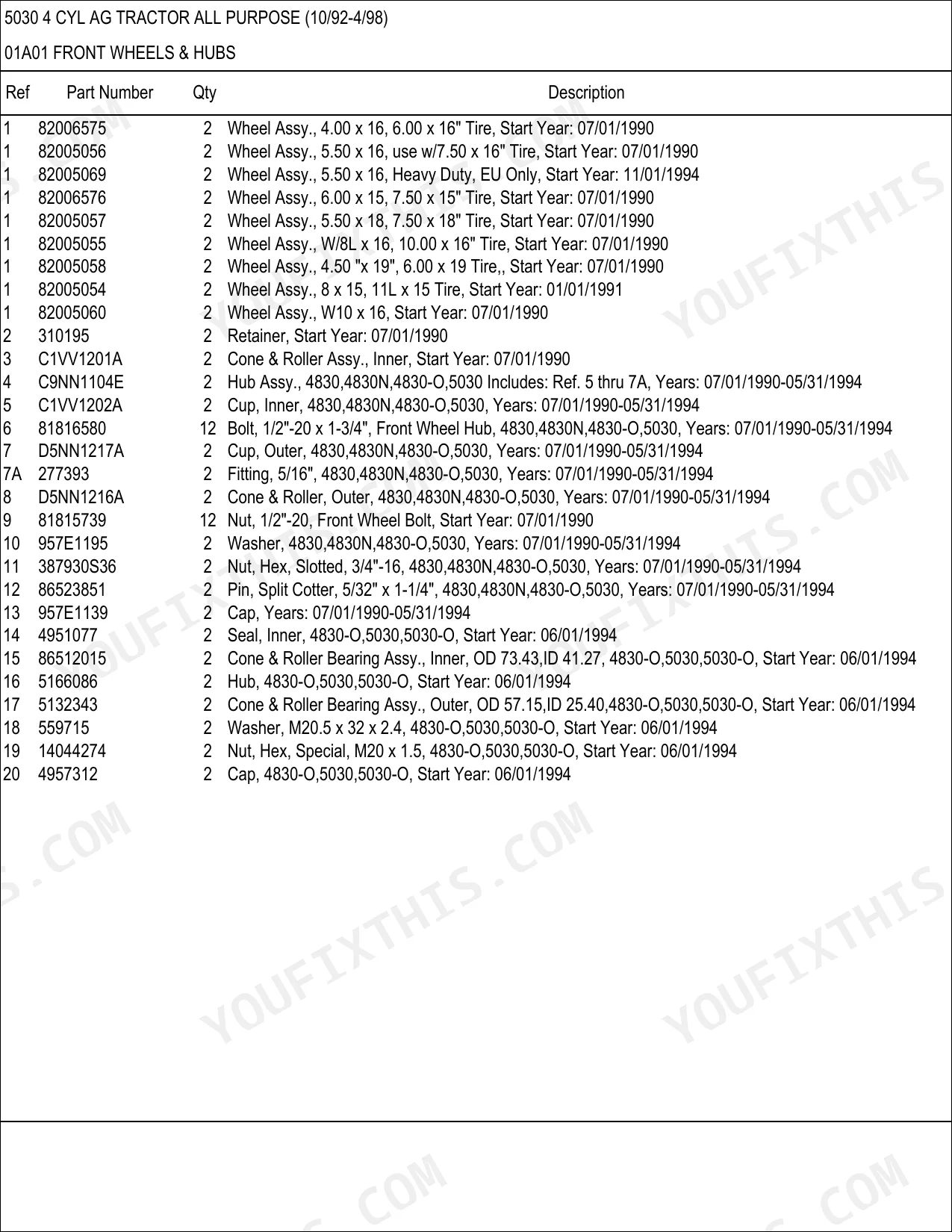

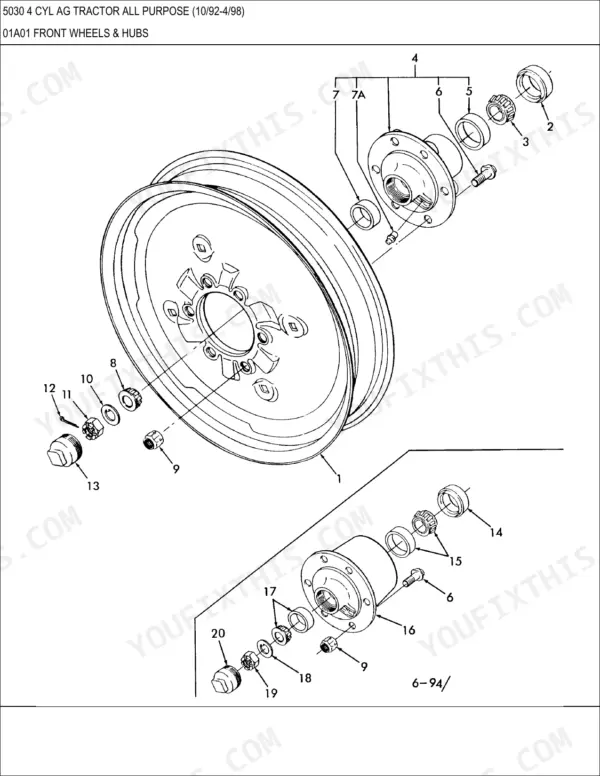

What is the torque specification for the front wheel hub bolts on the New Holland 5030 tractor?
The front wheel hub bolts (Ref 6) for the 4830, 4830N, 4830-O, and 5030 models are specified as 1/2"-20 x 1-3/4" bolts. There are 12 of these bolts used in the assembly. p. 9
What is the torque specification for the rear wheel nuts on the New Holland 5030 tractor?
The rear wheel nuts (Ref 7) for the 5030 tractor are specified as M18 size, part number 87DB1120A1A. p. 13
What is the correct oil filter part number for the New Holland 5030 engine?
The correct engine oil filter for the 5030 tractor is part number 86546614. For the NH-E model, the part number is 87800068. p. 201
What is the specification for the alternator belt on the New Holland 5030 tractor?
The alternator belt for the 5030 tractor is a 1/2" x 55.26" belt, part number 626657. p. 411
What is the specification for the engine oil pan gasket on the New Holland 5030?
The engine oil pan gasket for the 5030 tractor is part number 87802061. p. 209
What format is this New Holland 5030, 7310 Quick Attach Farm manual in?
Instant PDF download. You get the full 682-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this New Holland 5030, 7310 Quick Attach Farm manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
