Need the exact factory replacement numbers for your 1990-1993 Ford Agricultural Tractor? This 891-page Ford New Holland 8530 parts catalog pdf breaks down every component for the 8530, 8630, 8730, TW5, TW15, 7810, 5640, TS90, and related variants. Inside, you get highly detailed exploded views mapping out the entire chassis, engine, and drivetrain assemblies. Open to the front wheel assembly or fuel injection pump sections to find clear component identification alongside precise factory part numbers and cross-references. Verify correct electrical components with ratings like the 30 Amp main fuse assembly or a 7.5 Amp circuit fuse, and confirm fluid orders with exact SAE 30 engine oil part numbers in 1-quart to 55-gallon sizes. Stop wasting time explaining what you need to the parts counter. Download this bookmarked file, search by keyword to grab the exact number, and order the right part the first time.
What's Inside This Ford New Holland 8530, 8630, 8730, 8830 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank Assembly & Related Parts, Fuel Sedimenter & Filter Assembly, Fuel Injection Pump, Fuel Injector Assembly, Fuel Pump Assembly, Diesel Cold Start, Engine Coolant Immersion Heater, Air Cleaner & Related Parts, Throttle Controls 7810 L/Cab, Diesel Fuel Primer Assembly | |
| Cooling System | Radiator, Oil Cooler & Related Parts, Water Pump, Pulley & Related Parts, Bracket Assembly & Thermostat Housing, Water Filter, Radiator Overflow Container | |

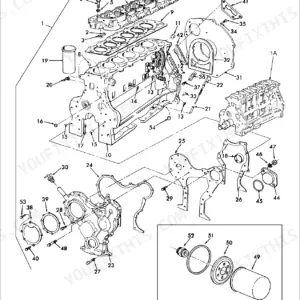

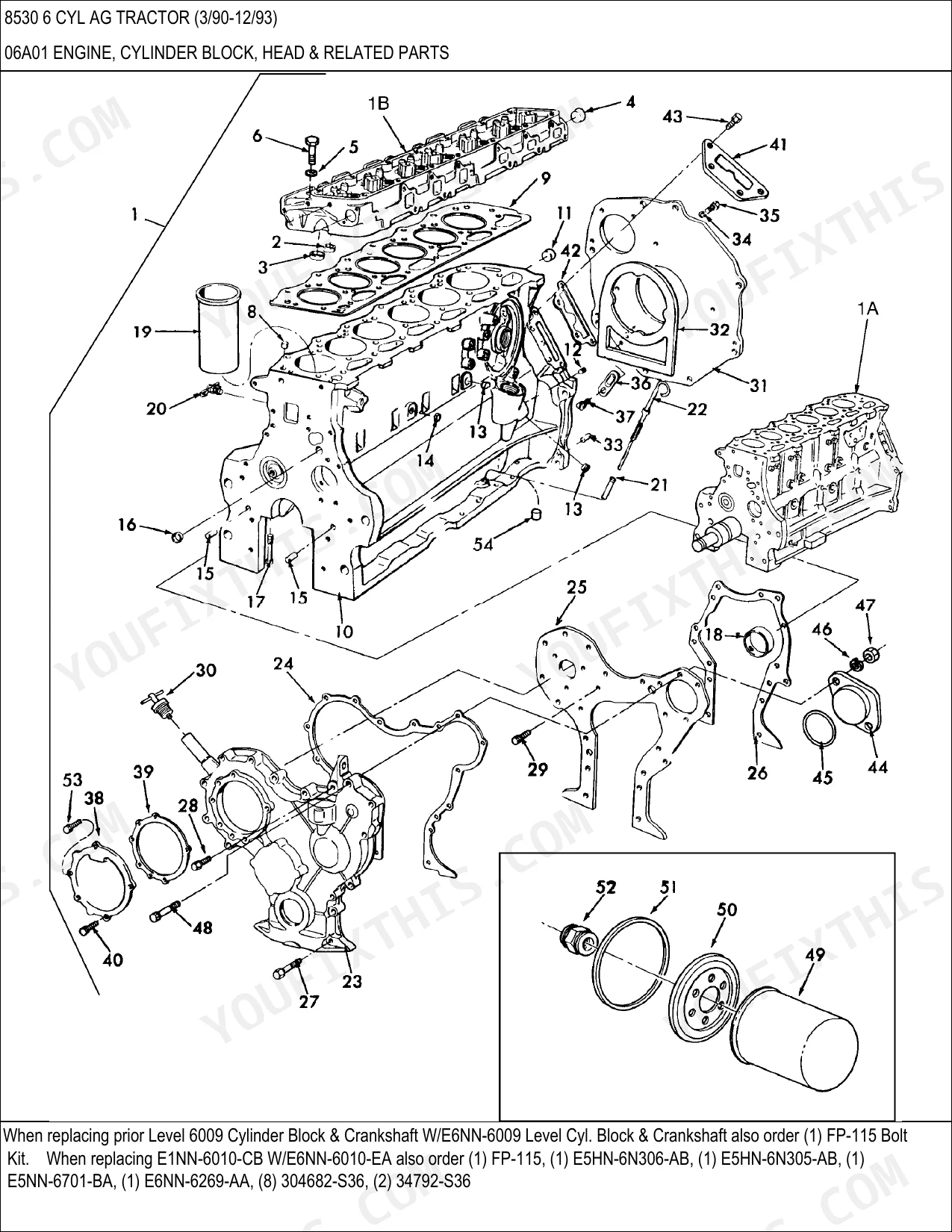

| Engine | Cylinder Block, Head & Related Parts, Engine Block, Kit, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Pistons & Connecting Rods, Oil Pump, Oil Pan & Related Parts, Manifold & Exhaust System, Gasket Overhaul Kit | |
| Electrical System | L.H., U.S., R.H., Nh-E, Including 7810, Us, RH, LH, Headlamp Assembly, Rear Lamps, Parking Lamps, Lamp Assembly, Emergency Warning, Side Flasher, Stop & Turn, License Plate, Implement Lamp Assembly, Lamp, Front & Rear, Work, Alternator, 72 Amp, Starting Motor Assembly, Diesel, Battery, Tray & Step Assembly, Buzzer, Handbrake, Socket Assembly, Trailer, Stop & Tail Lights, Tail Lights, Instrument Cluster Assembly & Related Parts, Field Monitor, Factory Installed Option, Hourmeter Assembly, Electric | |

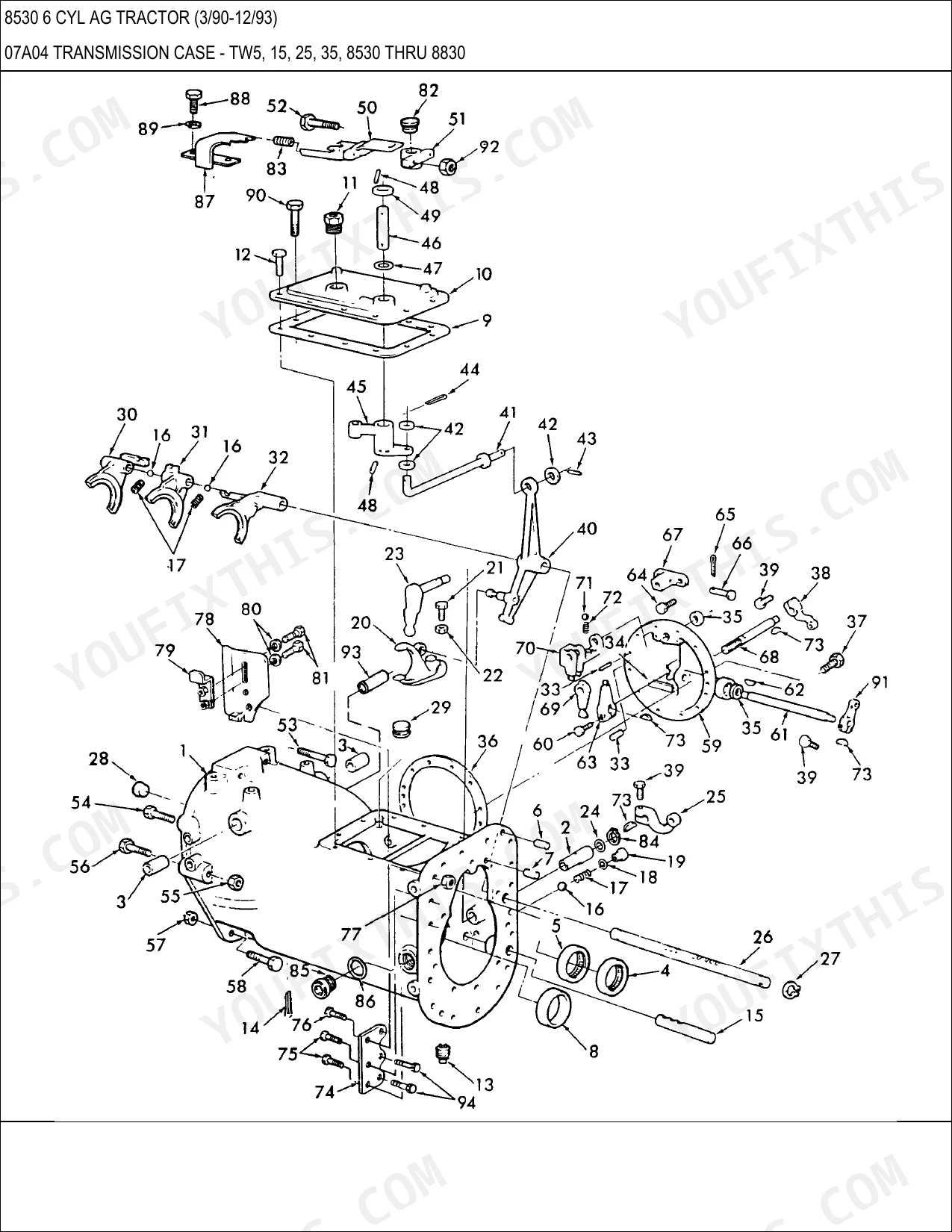

| Clutch & Transmission | Transmission Case, Transmission Control, Oil Pump Control Valve & Tubes, Transmission Dual Power, PTO Clutch, Valve, Shaft & Related Parts, PTO Clutch Controls, Independent PTO Clutch Linkage, PTO Guard Kit, Clutch Controls, Transmission Oil Cooling System, Creeper Gears, Torque Limiter & Related Parts, Transmission Housings & Related Parts, 18 X 9 Powershift, Clutch Assembly & Charge Pump, Speed Clutch Assemblies, Range Clutch Assemblies, Range Clutch Assembly, Forward 2, Control Valve Assembly, Transmission Shift Control, Transmission Gearshift Lever, Transmission Driveline Control Tubes, Transmission Assembly, 18 X 9, 30 & 40 Kph Creeper | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Power Adjustable Rear Wheels, Rear Wheels, Power Adjust & Manual Adjust Rear Wheels, Pressed Steel Wheel Assembly, Rear Wheel, Rear Wheel Weights, Manual Adjust Rear Wheel Weights, Brake Lines, Transmission Handbrake Lever, Transfer Gear Handbrake, Brake Controls, Brake Tubes & Fittings, Hydraulic Trailer Brakes, Rear Axle, Differential & Related Parts, Center Housing, Differential Lock & Related Parts, Oil Tubes & Fittings, Differential Center Housing | |

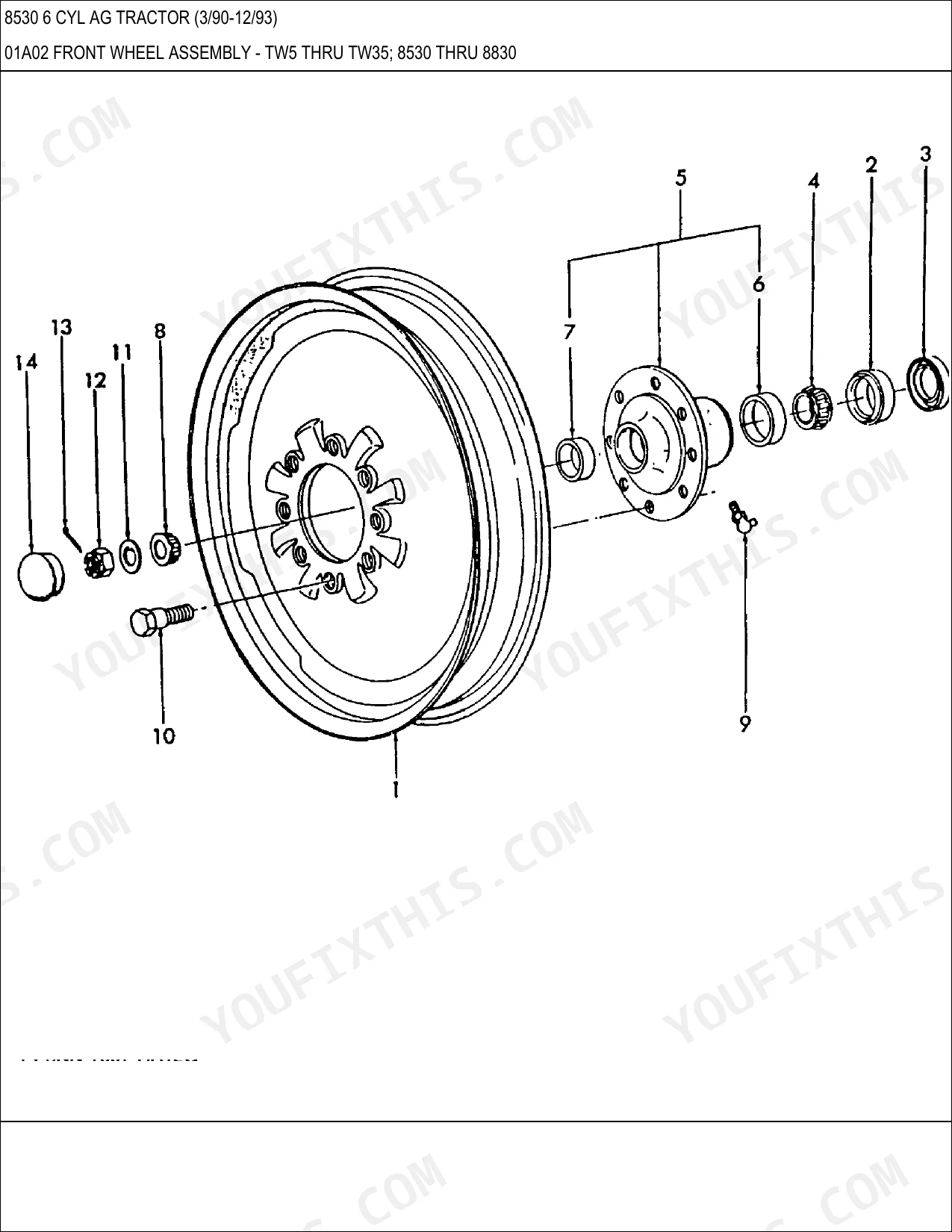

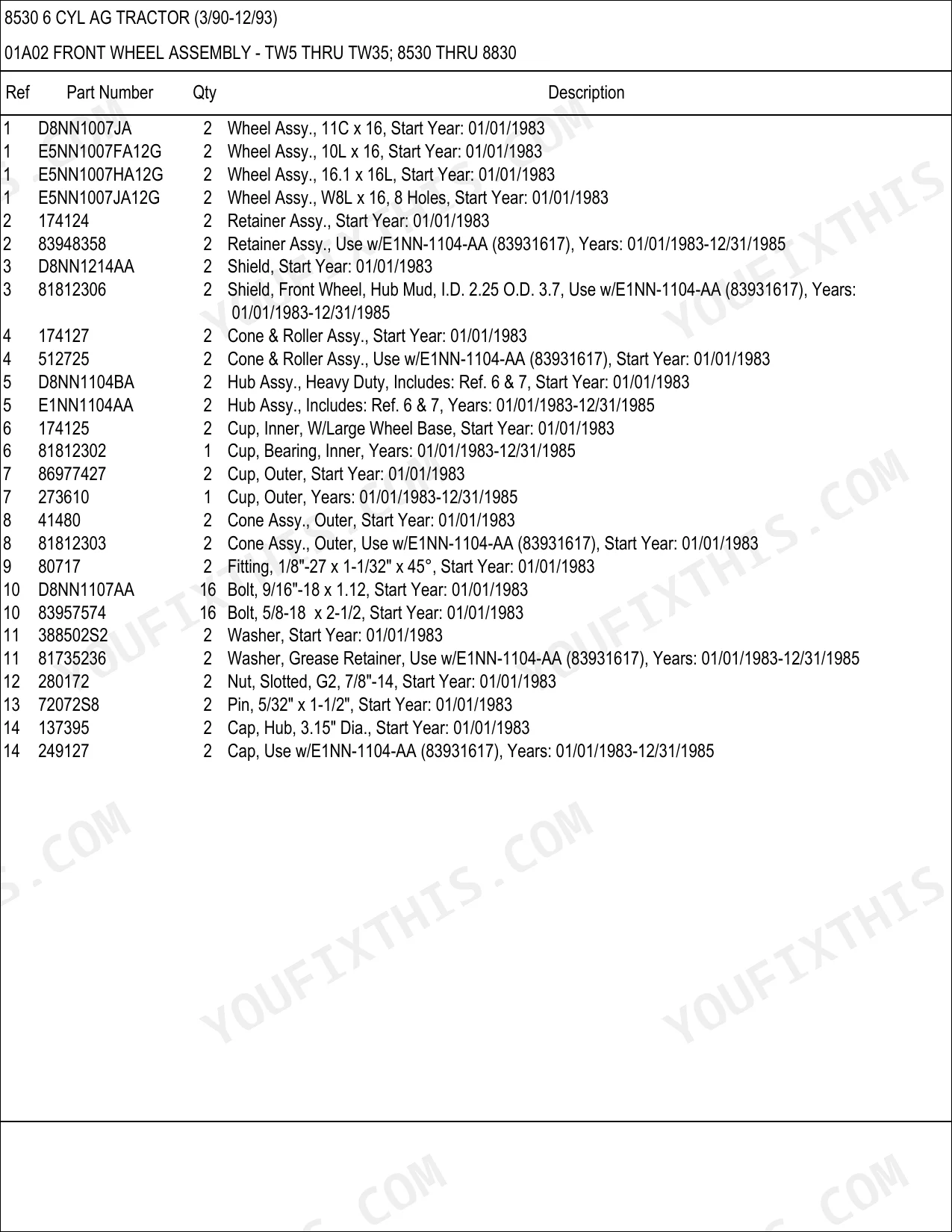

| Front Axle & Steering | Front Wheel Assembly, Front Wheel, Piece Rim, Front Wheels, Front Wheel Weights, Steering System, Adjustable Front Axle & Related Parts, Steering Column Assembly, Steering Column Flange Assembly, Steering Motor, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly & End Assemblies, R.H. Front Axle & Differential Parts, Front Axle, Hub, Spindle & Planet Gear, FWD Power Steering Cylinder, Front Axle Transfer Case, Shield Assembly, Transfer Case, Axle Assembly, Dana Axle, Steering Housing, Carrier Assembly, Planetary Drive, Transfer Case Assembly | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cylinder, Lower Lift Torsion Bar System, Hydraulic Lift, Draft & Flow Controls, Handles, Hydraulic Lift Linkage, Swinging Drawbars, Hydraulic Remote Valves & Related Parts, Deluxe Remote Control Valve, Kit, Remote Cylinder Circuit Check, Quick-Hitch Linkage & Related Parts, Remote Control Unload Valve Assembly, Hydraulic Lift Assist Ram, Lift & Draft Control, Cover & Valve Assembly, Tubes & Filters, Pump & Pump Cover, Hydraulic Lift Cover & Related Parts, Cylinder, Hydraulic Lift Lock, Coupling Assembly, Remote Control | |

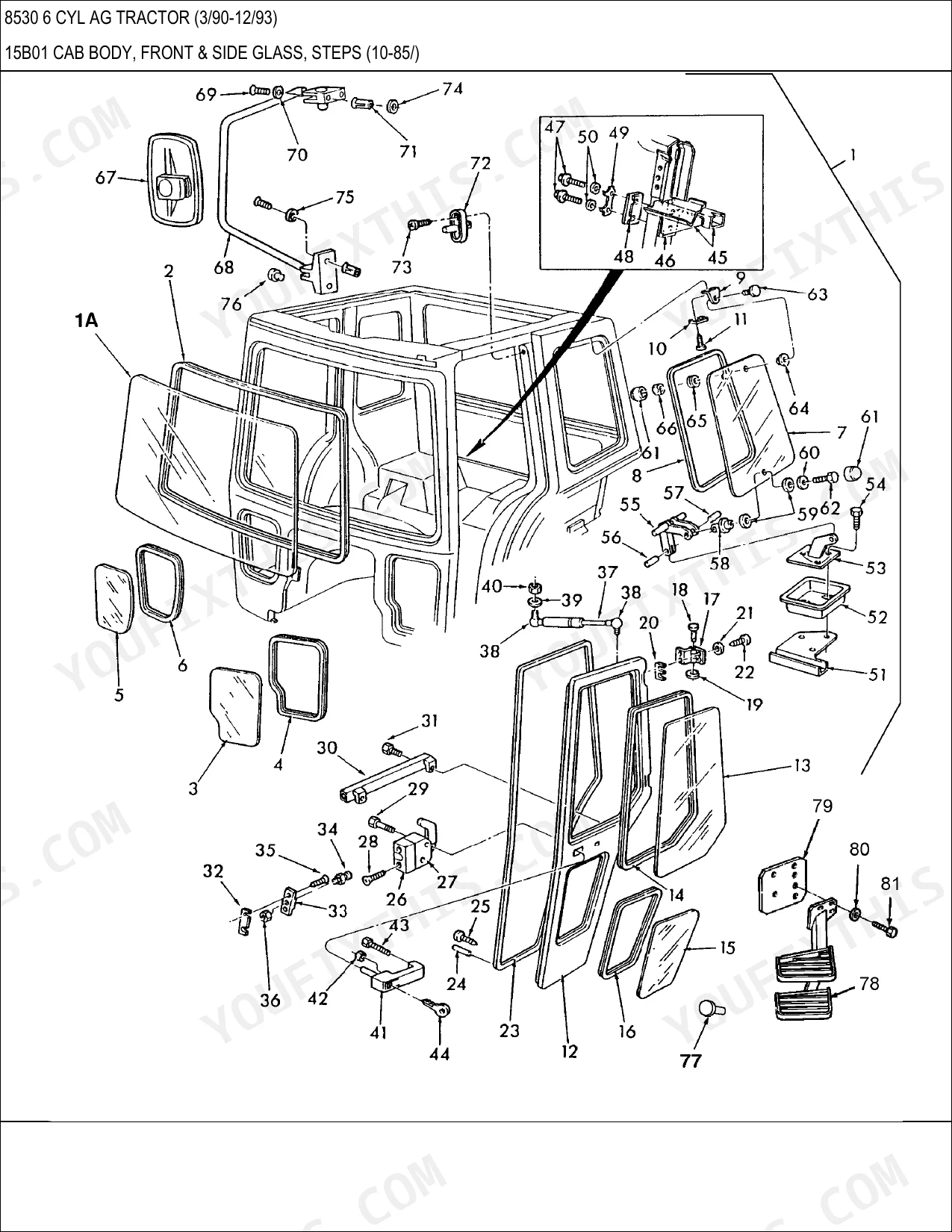

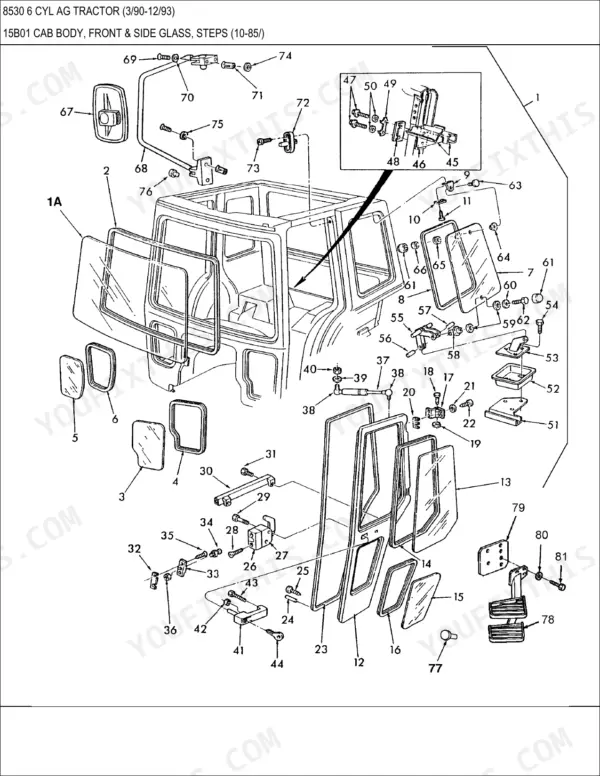

| Body & Operator Station | Tractor Seat Assembly, Seat Assembly, Bostrom, Suspension, Bostrom 10 Digit Serial No., Seat Assembly Suspension, Grammer Ds85, Air Suspension, Seat Suspension Assembly, Air, Rear Flat Top Fenders, Rear Mud Fenders, Platform & Control Console, Hood Panels, Grille & Related Parts, Reflectors, Front Fenders, Compressor, Condenser & Related Parts, Safety Frame, Seat Belt & Rollbar, Cab Body, Front & Side Glass, Steps, Roof Assembly, Roof, L/Hatch, Upper Rear Window, Rear Windows Fto-E, Interior Trim, Cab Underbody, Cab Mounting & Insulation, Cab Mountings, Air Conditioning & Heater Hoses, Heater & Air Conditioner Evaporator & Dehydrator, Windshield Washer, Canopy Assembly, Post, Air Conditioner | |
| Decals & Accessories | Model Identification Decals, Instruction Decals, Shift Pattern & Control Console Decals, Lubrication Equipment, Oil, Kit, Tools, Safety Equipment, Hydraulic Remote Control Cylinder Assembly, Rear Tow Hooks, Radio & Related Parts, Engine Coolant Heater Kits | |
| Other Components | Front End Wafer Weights, Hydraulic Pump Assembly, Engine Mounted, Engine Mounted Pump & Tubing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse Assy., 30 Amp. | 30 Amp | p. 310 |
| Fuse Assy. rating | 7.5 Amp. | p. 316 |
| Engine Oil, 1 Quart, SAE 30 | 1 Quart | p. 491 |
| Engine Oil, 2.5 Gallon, SAE 30 | 2.5 Gallon | p. 491 |
| Engine Oil, 55 Gallon, SAE 30 | 55 Gallon | p. 491 |
| Brake Fluid | 1 Liter | p. 491 |
Ford New Holland 8530, 8630, 8730, 8830 Common Problems This Manual Covers
Ford New Holland 8530 air seat suspension compressor refuses to turn on and blows the electrical panel fuse.
Inspect the cab electrical diagram on page 310 to locate the suspension circuit components. Order a new 30 Amp fuse assembly using the listed part number. Cross-reference the exploded view index to ensure you get the exact OEM match for your specific tractor serial number.
Manual Section: 8530 p. 310Engine oil pan gasket leaks heavily down the block after reaching normal operating temperature.
Review the engine parts diagram to find the specific oil pan gasket part number. Order a 1 Quart bottle of SAE 30 engine oil from page 491 to top off the system after replacing the gasket. Verify the hardware list for required mounting bolts.
Manual Section: 8530Tractor handbrake lever feels spongy and trailer brake hydraulic lines leak at the rear couplers.
Search the chassis parts diagram on page 12 for the exact replacement hydraulic line fittings. Purchase a 1 Liter bottle of approved brake fluid as listed on page 491 to bleed the system. Match the transfer gear handbrake part numbers to your specific tractor configuration.
Manual Section: 8530 p. 12Air conditioning compressor clutch fails to engage and the blower motor pushes warm air.
Check the cab and interior parts diagram for the exact compressor switch part number. Identify the correct 25 Amp fuse required for the blower circuit on page 327. Order the corresponding electrical harness connectors listed in the parts index to complete the repair.
Manual Section: 8530Frequently Asked Questions
What is the replacement part number for the transmission oil filter element on the 8530 tractor?
The transmission oil filter element for the 8530 tractor is part number 86546610, which is a mounted horizontal filter. p. 156
What is the correct replacement part number for the engine oil filter on the 8530 tractor?
The engine oil filter for the 8530 tractor is part number 86546615. p. 173
What is the part number for the 72 Amp alternator regulator on the 8530 tractor?
The regulator assembly for the 72 Amp alternator on the 8530 tractor is part number E4NN10316BA. p. 316
What is the part number for the fuel filter element on the 8530 tractor?
The fuel filter element for the 8530 tractor is part number D8NN9176AA. p. 279
How quickly can I access this Ford New Holland 8530 & variants manual after buying?
You get a 891-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Ford New Holland 8530 & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
