Tracking down the right components for your 2001 New Holland 8970A 6 CYL AG tractor is simple with this 469-page New Holland 8970A parts catalog PDF. You get incredibly detailed exploded views covering the entire powershift transmission, MegaFlow hydraulic pumps, and cab assemblies. Open to any subsystem to find exact OEM part numbers, hardware dimensions, and complete component breakdowns for every inch of your machine. Verify you are ordering the exact 600 Watt engine heater kit or confirm the 86 LB rear wheel weights match your specific axle setup before calling the dealer. Stop wasting shop hours waiting for wrong shipments to arrive. This bookmarked file is completely text-searchable; search by keyword or component name, find the exact part number, and get your tractor back in the dirt.
What's Inside This New Holland 8970A, 8970A 6 CYL AG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank, Upper Fuel Tank, Fuel System W/ "P" Injection Pump, Air Cleaner, Filter & Primer | |
| Cooling System | Brake Cooling, Radiator, Water Pump & Thermostat Housing, Fan Belt | |
| Engine | Piston Pump, Crankshaft, Camshaft, Oil Pump & Oil Pan, Oil Cooler, Piston & Connecting Rod, Gasket Kits | |
| Electrical System | Harness, Potentiometer, Front Worklamps, Worklamps, Flasher Lamp, Lamp, Front Headlamps & Horn, Front Headlamps | |
| Clutch & Transmission | Front Wheel Drive Clutch, Transmission Housing, Input Shaft & Clutches, Speed Clutch, Directional Clutch, Shift Lever Control, PTO Clutch, PTO Clutch Housing | |
| PTO | PTO Drive Gears & Output Shaft, PTO Valve, Hydraulic & PTO Decals | |
| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheels (Dual Wheels), Rear Wheel Weights, Brake Pedals, Brake Tubing, Brake Master Cylinder, Parking Brake, Parking Brake Controls | |
| Front Axle & Steering | Front Wheels, Front Axle, Tie Rod & Steering Linkage, Steering Cylinder, Swivel Housing & Steering Cylinder, Tie Rod, Steering Hydraulics, Steering Motor | |
| Hydraulics & 3-Point Hitch | Priority Valve, Standard Hydraulic Pump Drive, Megaflow Hydraulic Pump Drive, Gear Pump, Standard Hydraulics, Megaflow Hydraulics, Lift Cylinder Hydraulics, Lift Arms | |
| Body & Operator Station | Seat Cushions, Seat Swivel, Seat Suspension, Hood, Front Fenders, Rear Fenders, Cab, Floor Covers | |
| Decals & Accessories | Tool Box, Decals, French (Canada) Warning Decals, Dealer Installed Accessories | |
| Other Components | Front Weights, Axle Housing, Bevel Gear/Pinion Set, Differential, Double Joint, Wheel Hub & Reduction Gear, Drive Shafts & Shields, High Pressure Components |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Weight, Rear Wheel | 86 LB | p. 15 |
| Weight, Front, Gray | 90 LB | p. 17 |
| Heater, Engine | 600 Watt | p. 429 |
New Holland 8970A, 8970A 6 CYL AG Common Problems This Manual Covers
New Holland 8970A 6 CYL AG tractor dashboard displays warning lights and needs exact transmission sensor part numbers

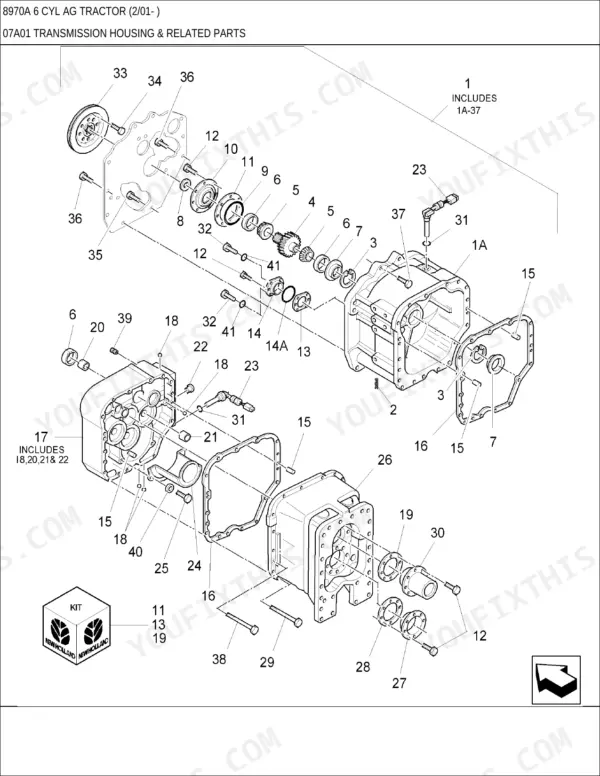

Inspect the Drivetrain Parts Diagram. Identify the correct temperature sensor and relief valve part numbers for the transmission housing. If outfitting for cold weather, cross-reference the 600 Watt block heater components listed separately to ensure you order the complete assembly.
Manual Section: Transmission Housing & Related PartsUnable to locate the correct steering cylinder seal repair kit part numbers for a leaking front axle
Check the steering cylinder exploded view to find the exact seal repair kit part numbers. Review the components list to see if the rod or barrel also requires replacement. Confirm your required front ballast matches the 90 LB gray front weight specifications on page 17.
Manual Section: Steering Cylinder (2WD) p. 17Missing the factory component part list for the block heater and radiator hoses after a coolant leak
Inspect the radiator and fan shroud exploded view. Identify the upper and lower coolant hose part numbers. Check the optional equipment breakdown on page 429 to find the 600 Watt engine heater assembly and its required O-ring seals for proper cold weather operation.
Manual Section: Radiator & Related Parts p. 429Cannot identify the correct brake caliper assembly and rear wheel weight part numbers for poor stopping performance
Examine the parking brake parts breakdown to find the correct caliper and pad replacement numbers. Cross-reference the rear axle assembly on page 15 to locate the 450 LB rear wheel weight casting numbers for additional ballast. Order new mounting hardware if the original bolts are stretched.
Manual Section: Parking Brake p. 15Frequently Asked Questions
What are the recommended service intervals for the tractor?
The tractor requires routine maintenance every 10 hours or daily, and more comprehensive service every 50 hours. For the 50-hour interval, you must lubricate all fittings, the MFWD drive shaft, and the hydraulic lift linkage. Additionally, you should check the fuel system and the front and rear wheel nuts for proper torque. p. 414
What are the specifications for the cylinder head bolts?
According to the manual, the 19 cylinder head bolts (part number 87802206) are 9/16"-12 x 130mm. Torque specifications are not provided in this parts catalog. p. 182
What is the correct oil filter part number for the engine?
The correct engine oil filter part number is 86605897. For NH-E models, the part number is 81879134. p. 182
What is the part number for the air cleaner outer element?
The part number for the outer air cleaner element is 9846494. p. 267
What format is this New Holland 8970A manual in?
Immediate download of the complete 469-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this New Holland 8970A manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Reviews
There are no reviews yet.
