Need factory-level documentation for your Fpt F5 series engine? This 236-page Fpt F5 Series Service Manual (OEM #84496807) covers every variant across the F5DFL413 and F5HFL413 family, making it the Fpt f5 series service manual pdf used on real shop floors. Inside: full engine teardown and rebuild procedures from crankcase and cylinder heads through crankshaft, connecting rods, valve drive, fuel injection, turbocharger, EGR exhaust treatment, and lubrication. The electrical systems section covers engine control, cold start aid, and alternator circuits, backed by wiring diagrams throughout. Set the thermostat opening temperature to 80°C (176°F) and torque your injection pump mounting nuts to 25 N·m (18 lb ft). Both specs are pulled straight from factory data, not forum guesses. Your machine is down. Bookmarked and keyword-searchable; jump to any section, find the number, and get back to work.
What's Inside This Fpt F5DFL413 series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4-15 | Foreword - Ecology and the Environment, Safety Rules, Basic Instructions - Important Notice Regarding Equipment Servicing, Basic Instructions - Shop and Assembly |

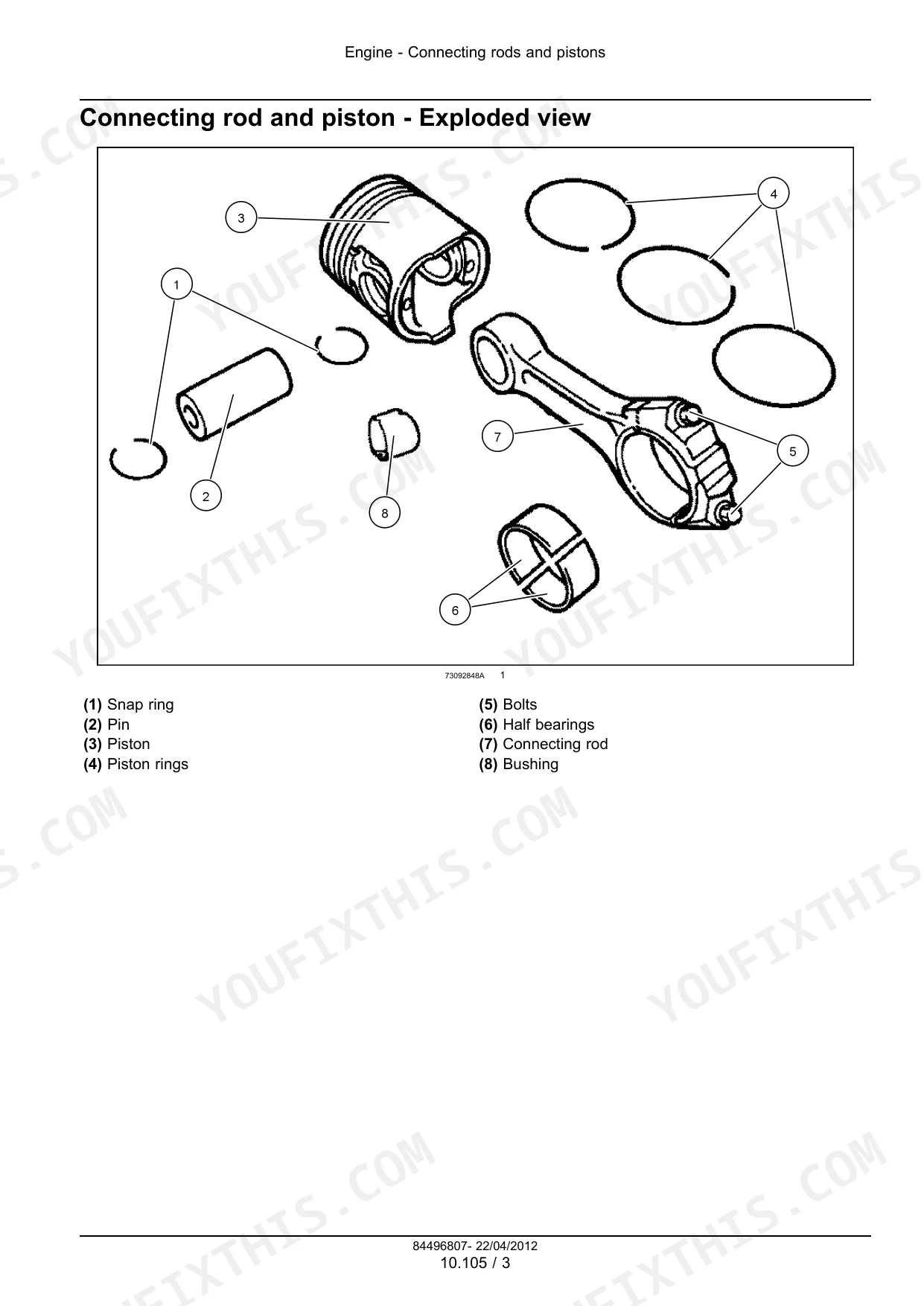

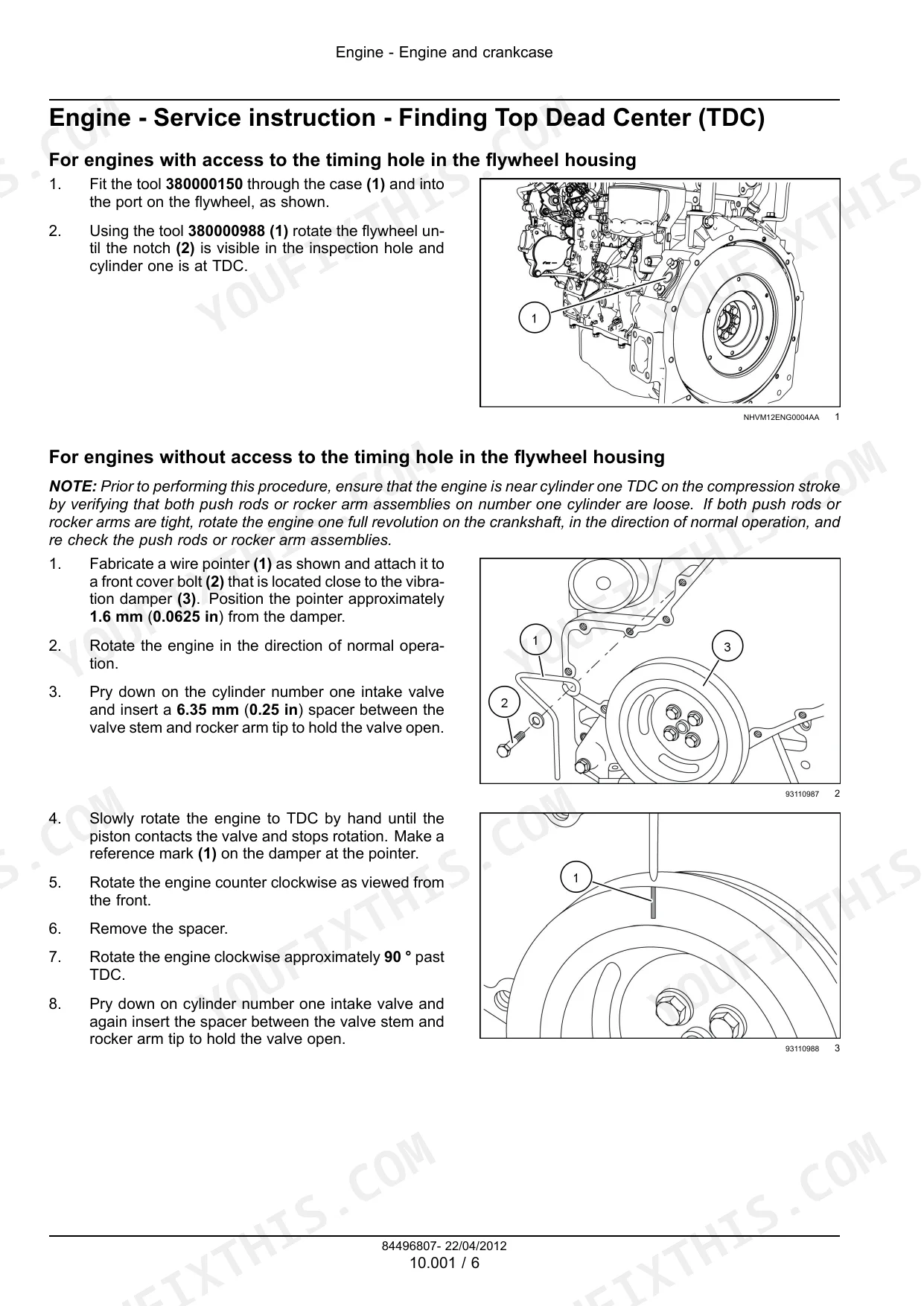

| Engine - 10 | 16-201 | Engine and Crankcase, Cylinder Heads, Pan and Covers, Crankshaft and Flywheel, Connecting Rods and Pistons, Valve Drive and Gears, Fuel Filters, Fuel Injection System |
| Electrical Systems - 55 | 202-234 | Engine Cooling System, Engine Oil System, Engine Intake and Exhaust System, Engine Control System, Engine Starting System, Cold Start Aid, Alternator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Injection pump mounting nuts torque | 25 N·m (18 lb ft) | p. 118 |
| Coolant thermostat opening temperature | 80 °C (176 °F) | p. 166 |
| Thermostat housing bolts torque | 20 - 30 N·m (15 - 22 lb ft) | p. 170 |
| Lower radiator tube flange bolts and support bracket bolt torque | 25 N·m (18 lb ft) | p. 180 |
| Oil pressure sensor contact closure with decreasing pressure | 0.2 bar (3 psi) | p. 209 |

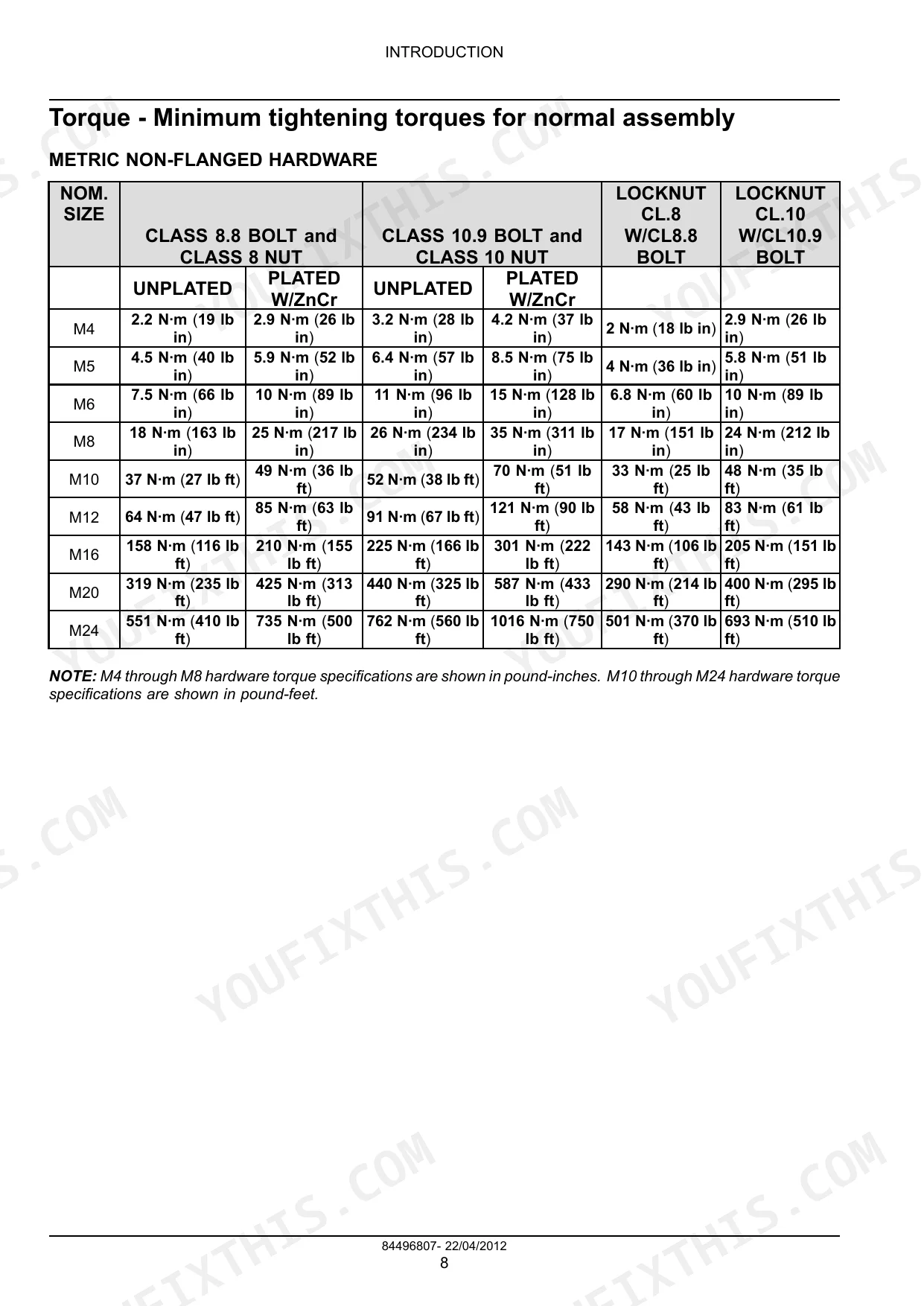

| Metric Non-Flanged Hardware Torque (M4, Class 8.8, Unplated) | 2.2 N·m (19 lb in) | p. 10 |
| Metric Non-Flanged Hardware Torque (M10, Class 10.9, Plated W/ZnCr) | 70 N·m (51 lb ft) | p. 10 |

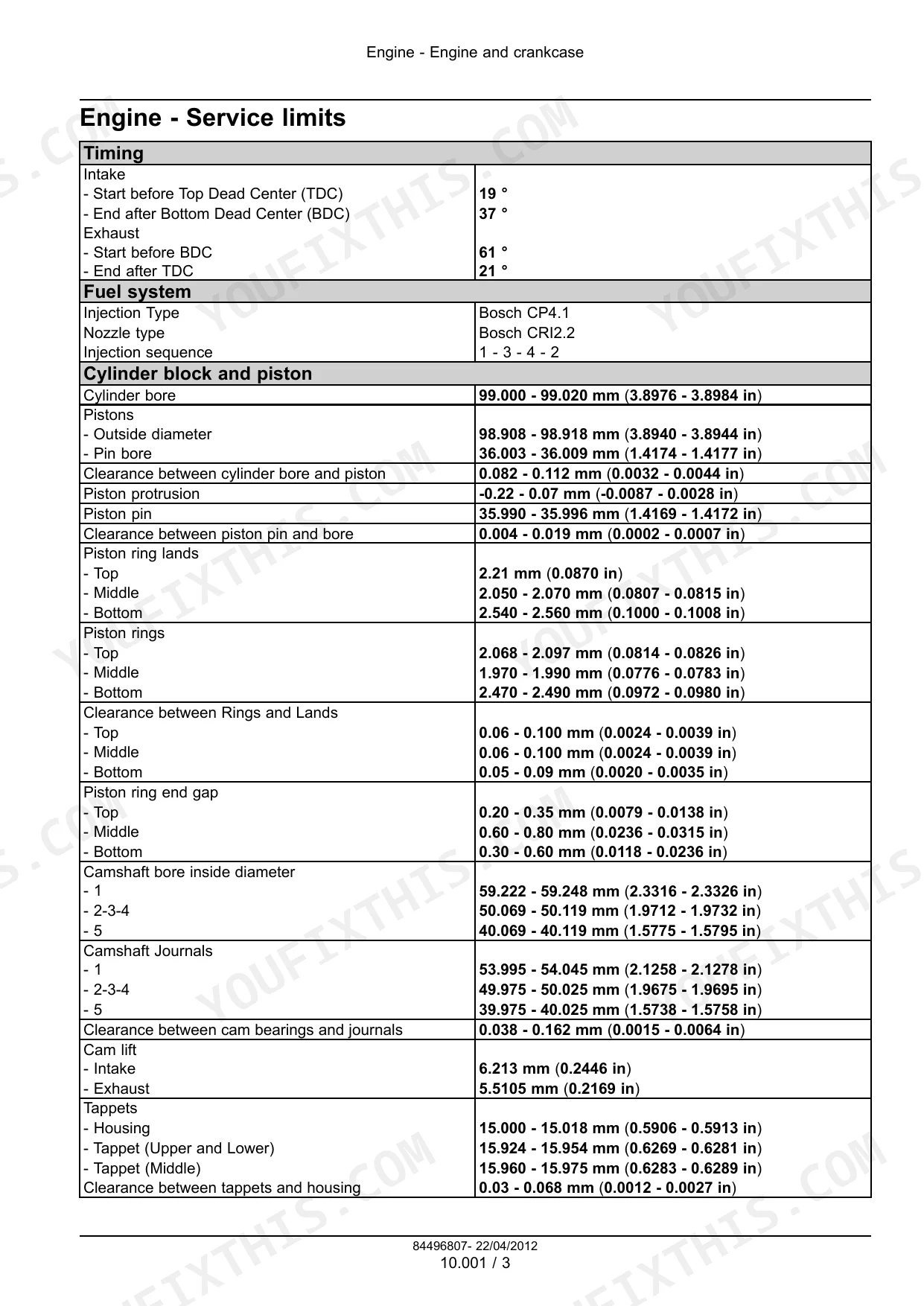

| Cylinder bore diameter | 99.000 mm | p. 21 |
| Piston outside diameter | 98.908 mm | p. 21 |
| Clearance between cylinder bore and piston | 0.082 - 0.112 mm | p. 21 |
| Valve stem diameter (Intake/Exhaust) | 7.985 mm | p. 22 |
| Valve spring free height | 44.6 mm (1.756 in) | p. 46 |
Fpt F5DFL413 series Common Problems This Manual Covers
FPT F5DFL/F5HFL413 engine fails to start, cranks but no combustion in cold conditions p. 225
Check glow plugs first: each should reach 850 °C in under 5 seconds (page 225). If heat-up time exceeds spec, replace the faulty plug. Next, bleed air from the fuel system per the procedure. Verify battery terminals are clean and tight; a weak battery cannot sustain the 3 kW (4 Hp) starter output needed for cold cranking.
Manual Section: Electrical Systems - 55Engine overheating alarm active, coolant temperature climbing above normal operating range
Remove the thermostat and test it in hot water: it must begin opening at 80 °C (176 °F). Replace if stuck closed. Inspect all coolant circuit fittings for seepage; retorque lower radiator tube flange bolts to 25 N·m (18 lb ft) per page 180. Refill coolant and run the engine to verify temperature stabilizes.
Manual Section: Engine - 10Low oil pressure alarm triggered repeatedly, warning light stays on at idle p. 209
Verify the oil pressure sensor closes contact at 0.2 bar (3 psi) per page 209. If sensor checks out, check oil level and condition. Measure main journal clearances on using plastic gauge against the nominal journal diameter of 76.182 mm (page 22). Excessive clearance confirms bearing wear — plan for overhaul before continued operation.
Manual Section: Engine - 10Air filter restriction indicator shows red, power loss in dusty work environments
Remove and inspect the air aspiration filter. Clean or replace it based on restriction indicator reading and element condition. Check the filter housing seals for cracks that allow unfiltered air bypass. After reinstallation, reset the restriction indicator and monitor for recurrence — in high-dust environments, shorten the service interval below the standard schedule shown in the Intake and Exhaust section.
Manual Section: Electrical Systems - 55Engine shuts down unexpectedly during operation, restarts fine after a few minutes
Inspect the fuel system for air ingestion first: bleed the system per and check all fuel line connections for micro-leaks. Verify fuel tank reserve is adequate; this engine control system triggers shutdown on low reserve. If shutdown correlates with heat soak, remove and test the thermostat — a thermostat that sticks partially open can cause intermittent thermal protection shutdowns.
Manual Section: Engine - 10Injector replacement done but engine runs rough, smoke on acceleration after new injectors installed
After fitting new injectors, program the IMA codes for each injector using the Electronic Service Tool (EST) per the procedure. Skipping this step leaves the ECU using default fueling maps that do not match the new injector flow characteristics. Torque injection pump mounting nuts to 25 N·m (18 lb ft) per page 118, then road-test to confirm smooth fueling across the RPM range.
Manual Section: Engine - 10Frequently Asked Questions
What error codes indicate alternator recharge failure or low oil pressure on FPT engines?
The manual specifies the oil pressure sensor thresholds for contact closure with decreasing pressure at 0.2 bar (3 psi) and contact opening with increasing pressure at 0.9 bar (13 psi). However, specific error codes indicating alternator recharge failure or low oil pressure are not provided in the document.
How to reset FPT engine error codes using Jaltest diagnostic tool
To reset ECU data for the common rail pressure relief valve, connect the Electronic Service Tool (EST) and configure it for your machine. Press the “CONFIGURE” button (1), then select “REPLACEMENT OF THE RAIL PRESSURE RELIEF VALVE (PRV) - RESET ECU DATA” function (2). Finally, press the “RESET” button (3) and follow the on-screen prompts. For fuel injectors, IMA codes can be configured using the EST by selecting “Engine Injector Code Configuration” (2), retrieving current data, entering the new IMA code (4), and saving data to the controller.
What are the replacement specifications for Fuel pump[2][5]?

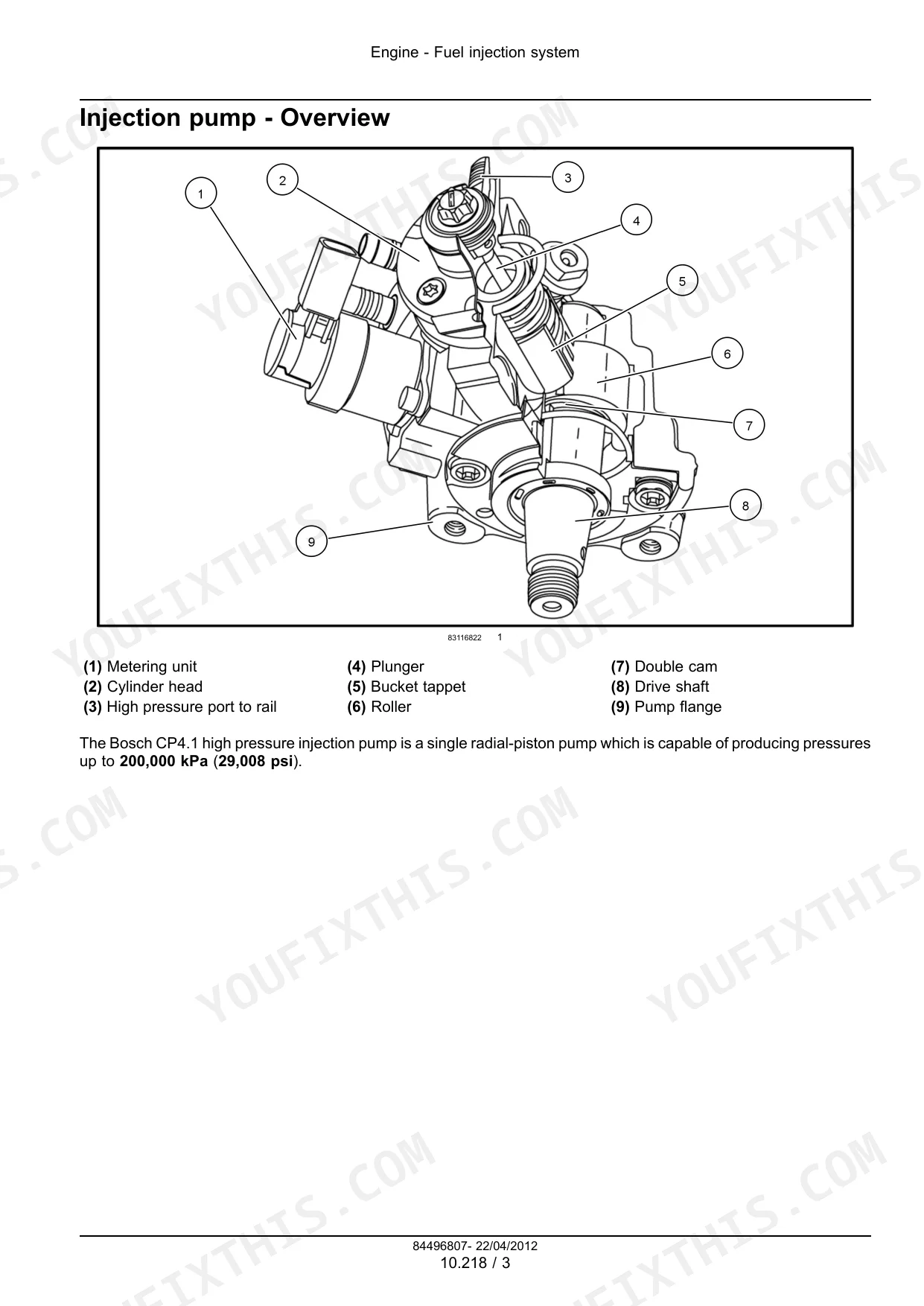

The Bosch CP4.1 high pressure injection pump is capable of producing pressures up to 200,000 kPa (29,008 psi). When installing the injection pump, torque the nuts (3) to 25 N·m (18 lb ft).
How do you fix FPT F5DFL/F5HFL413 engine fails to start, cranks but no combustion in cold conditions?
Check glow plugs first: each should reach 850 °C in under 5 seconds (page 225). If heat-up time exceeds spec, replace the faulty plug. Next, bleed air from the fuel system per the procedure. Verify battery terminals are clean and tight; a weak battery cannot sustain the 3 kW (4 Hp) starter output needed for cold cranking.
Is this Service Manual a digital download?
A 236-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Fpt F5 Series manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
