Getting the right sprocket, bearing or shear bolt ordered first time is what 80 pages of Gehl Form No. 907504 buy you: the Gehl 309, 312, 315, 322 parts catalog PDF for four manure spreader models. Exploded views break down the input shaft, auger drive, expeller drive, gate and liners, hydraulic cylinders and hitch shields, so each flangette, idler sprocket and bronze bushing sits beside its part number. PTO drivelines take a generous share of the book, Weasler and Walterscheid listed separately, while axle and hub pages split single, tandem and 309 setups, and a numerical index traces any part number back to its assembly. Check your tractor end first: the 1000 RPM Walterscheid driveline takes a 1 3/8-21 spline yoke, and the 540 RPM shaft gets its own breakdown. A guessed cross kit means pulling the shaft twice. Bookmarked and text-searchable, this PDF is bought once and stays yours for the life of the spreader.
What's Inside This Gehl Scavenger II Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Decal Locations | 4-5 | SMV Decal, Jack Storage Position, Red Reflector Strip, Rotating Auger Danger, Lubrication Symbol, Rotating Component Danger |

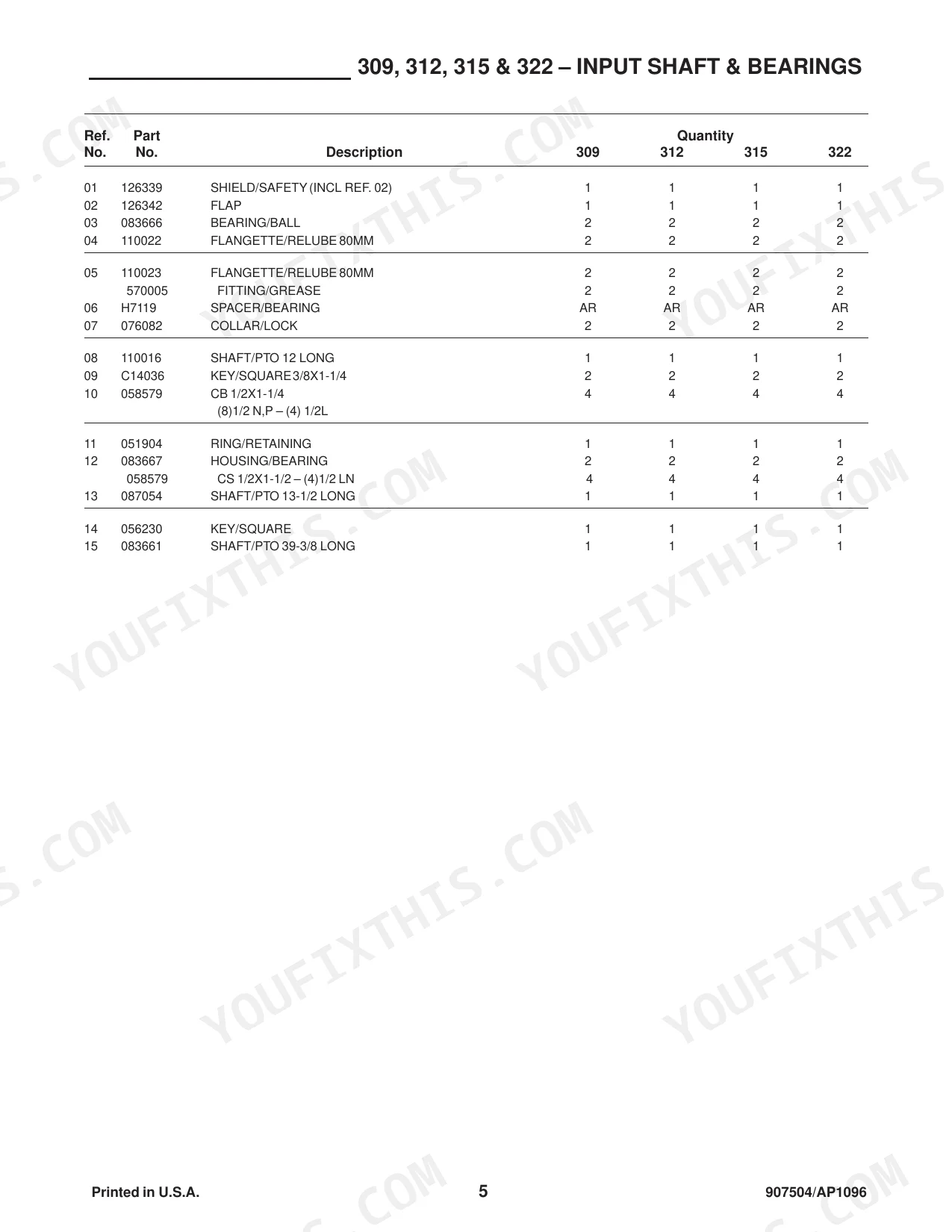

| Input Shaft & Bearings | 6-7 | Shield, Flap, Ball Bearing, Flangette, Grease Fitting, Bearing Spacer, Lock Collar, PTO Shaft |
| Auger Drive | 8-13 | Extension Spring, Idler Shaft, Set Collar, Idler Sprocket, Bronze Bushing, Roller Chain, Plain Connector, Jackshaft Hub |
| Expeller & Expeller Drive | 14-15 | Shear Flange, Bronze Bushing, Shear Bolt Kit, Idler Arm, Bearing Collar, Housing, Ball Bearing, Expeller Plate |
| Gate, Pan, Auger Slides & Liners | 16-17 | Gate Rod, Gate Assembly, Rubber Wiper, Wiper Retainer, Side Pan, Expeller Reel Pan, Rear Plate, Rear Liner |
| Hydraulics | 18-21 | Cylinder Clamp, Adjustable Elbow, O-Ring, Gate Cylinder, Cylinder Pin, Hair Pin, Auger Cylinder, Hose |
| Hitch, Jack & Drive Shields | 22-25 | Hinge Pin, Spring Pin, Shield Assembly, Hinge Rod, Expeller Drive Guard, Metal Latch, Shear Bolt Holder, Manual Pouch |
| Universal PTO Drive - Weasler | 26-29 | Tractor Joint, Plastic Guard, Spring Lock Yoke, Spring Lock Kit, Cross Repair Kit, CV Center Housing, Shaft Yoke, Bearing Retainer |
| Universal PTO Drive - 540 RPM Walterscheid | 30-31 | Joint/Universal Tractor, Yoke/Inboard, Spring Pin, Profile/Inner Oval Ga, Shield Cone & Brg/Cv Assy, Safety Chain |
| Universal PTO Drive - 1000 RPM Walterscheid | 32-33 | Joint/Universal Tractor, Yoke/1 3/8-21 Spline Assy, Kit/Cross & Bearing, Yoke/Double, Grease Zerk, Tube/Inner Shield Rnd |
| Universal PTO Drive with Shear Device - 540 RPM Weasler | 34-35 | PTO Tractor Half W/Shield, Slide Lock Yoke Ass'y, Pawl Repair Kit, Cross Kit, Yoke/Shear, PTO Shaft W/Shear Flange |
| Axles, Wheels & Hubs (Without Brakes) - 309 | 36-37 | 3″ Outside Diameter Axle, Spindle (Weld-In), Hub/Assy, Cap/Hub, Seal/Oil, Cone/Bearing, Cup/Bearing, Spindle/Assy |
| Single Axle, Wheels & Hubs (Without Brakes) - 312 | 38-39 | 2-3/4″ Outside Diameter Axle, Wheel W11C-16.1, Hub/Assy, Cap/Hub, Seal/Oil, Cone/Bearing, Cup/Bearing, Spindle/Assy |
| Tandem Axles, Wheels & Hubs (Without Brakes) | 40-49 | Hub/Assy, Cap/Hub, Seal/Oil, Cone/Bearing, Cup/Bearing, Axle/Tandem Assy |
| Components | 50-55 | Jacks, Augers, Auger Cylinders, Gate Cylinders, Hydraulic Lid Cylinders |
| Accessories | 56-69 | Hydraulic Brakes, Hydraulic Lid, Splash Guards, Side Rails, Safety Chains, Transport Lighting Kits |
| Standard Hardware Torque Specifications | 79-80 | Unified National Thread, Grade 2 Fasteners, Grade 5 Fasteners, Grade 8 Fasteners, Attaching Hardware Table |
Gehl Scavenger II Common Problems This Manual Covers
Gehl 309, 312, 315, 322 manure spreader auger drive shear bolt replacement, can't find the right part number

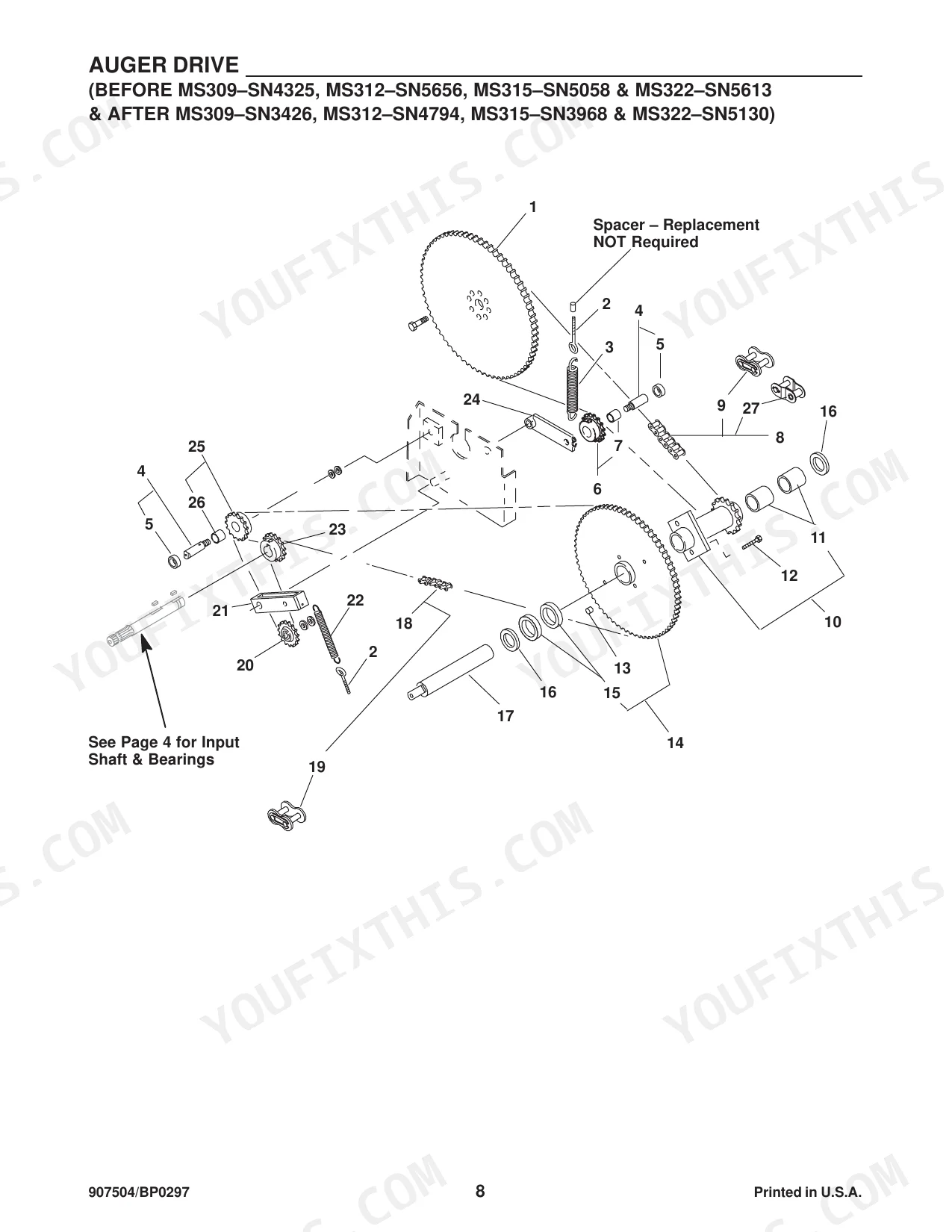

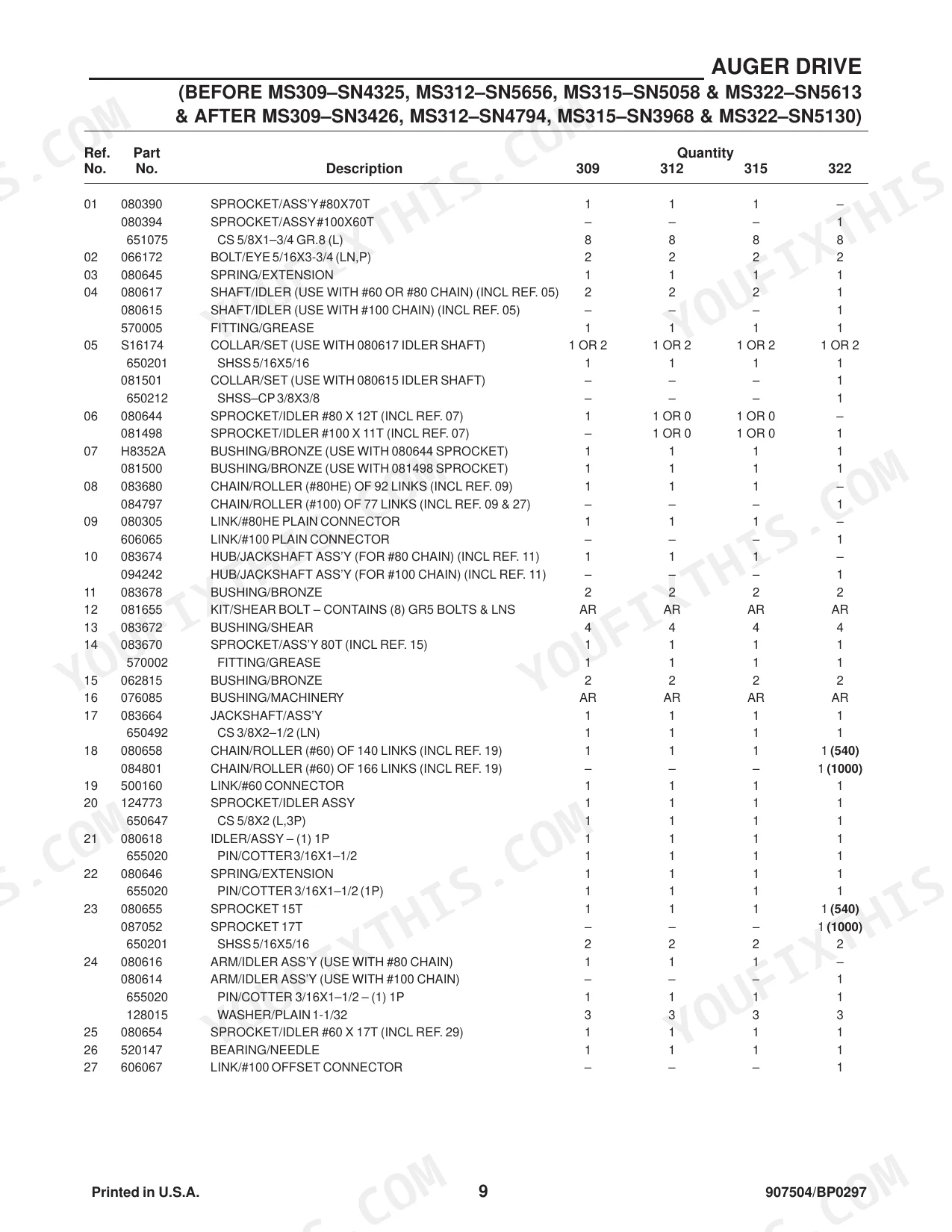

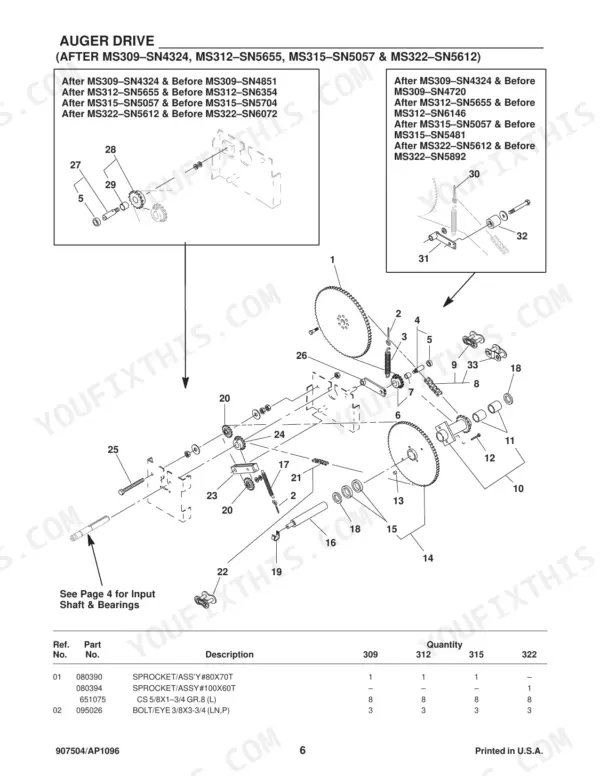

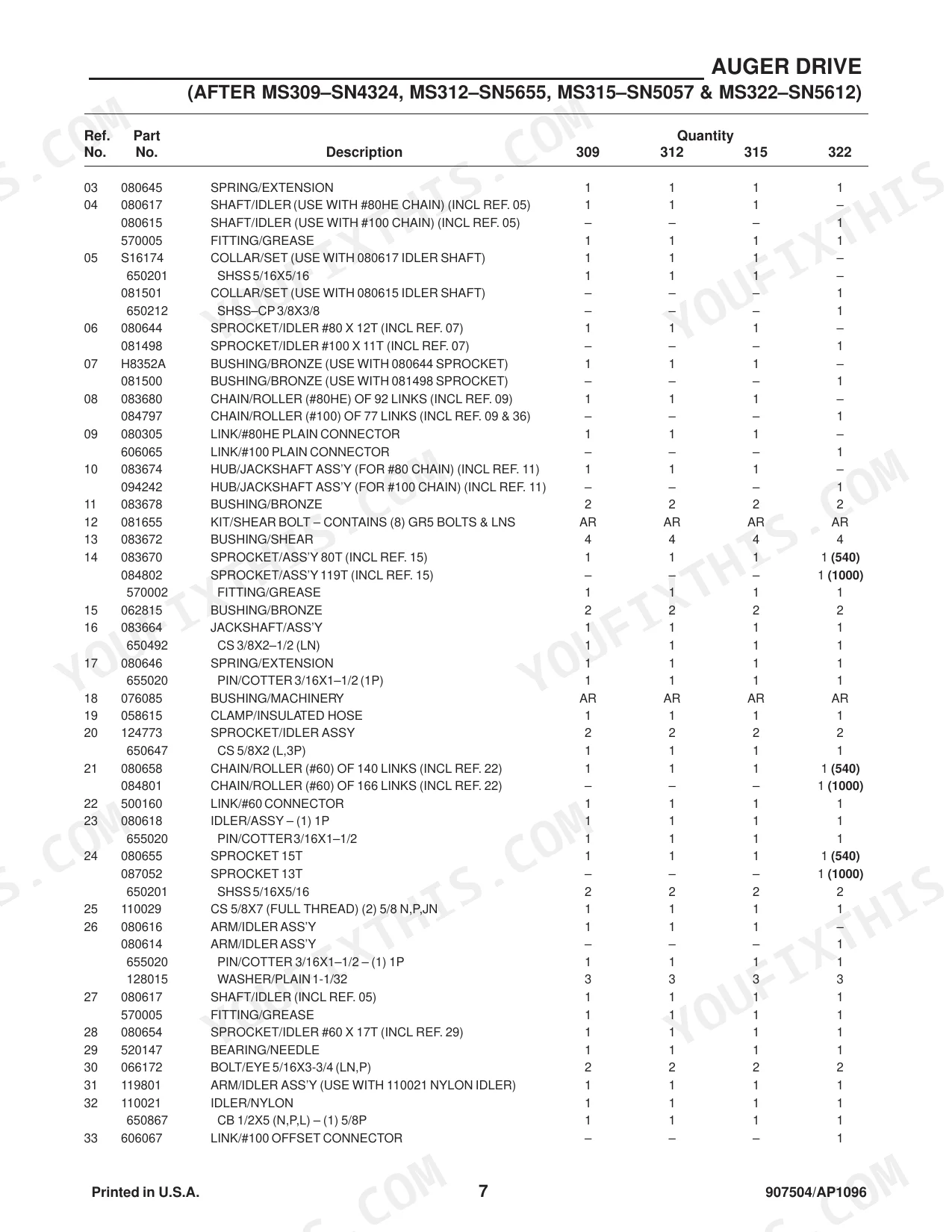

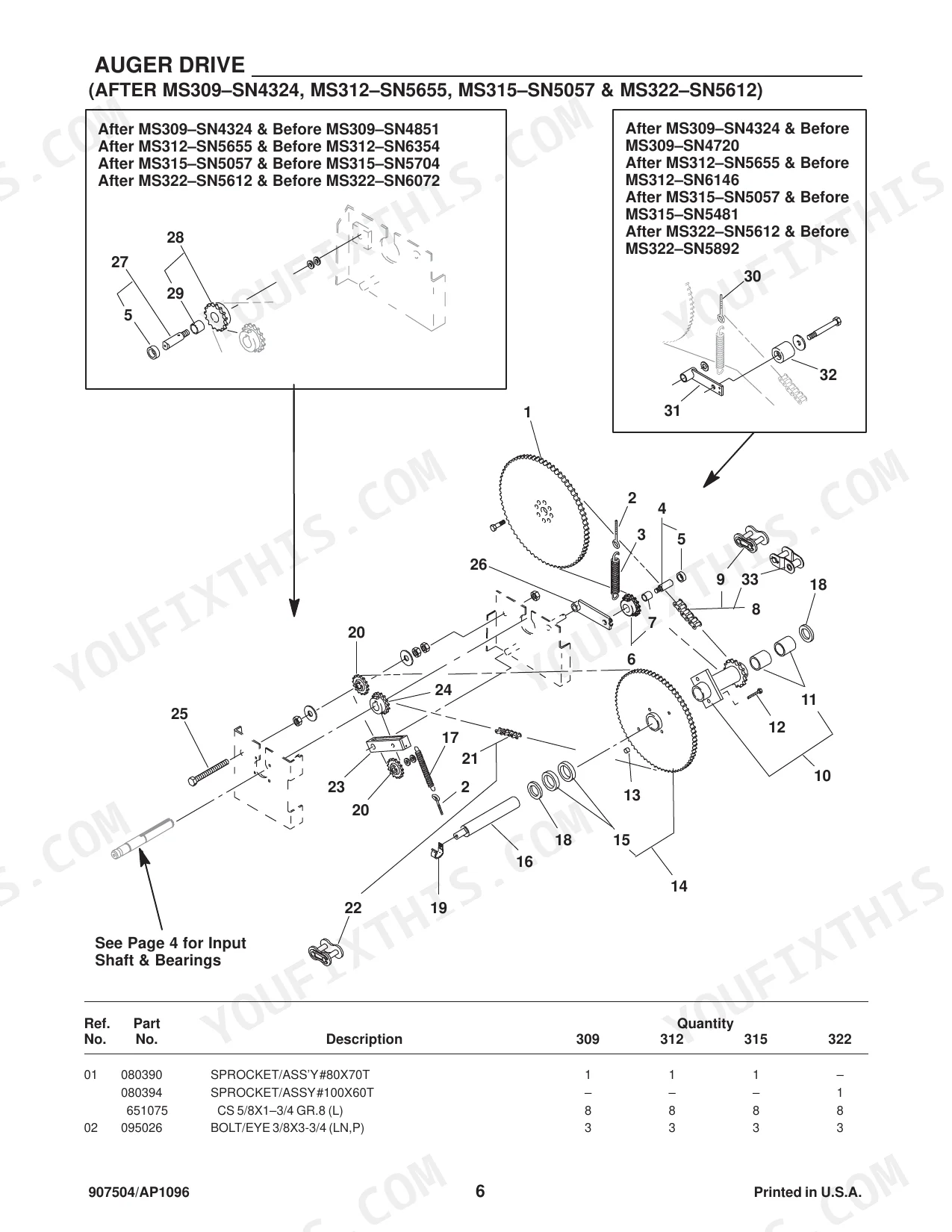

Check the auger drive chassis diagram on page 8 to locate the shear bolt, roller chain, idler sprocket and bronze bushing positions. Match each callout number to the parts number list on page 9, then confirm the sprocket and chain against your model before ordering. Pull the extension spring and idler shaft numbers while you're there.
Manual Section: Auger Drive p. 8Can't identify expeller drive shear bolt kit and shear flange part numbers for reorder
Check the Expeller & Expeller Drive exploded view on page 14 to find the shear flange, shear bolt kit, idler arm and bearing collar callouts. Verify the bronze bushing and ball bearing numbers at the same time. Restock the shear bolt holder too; it is listed with the hitch and drive shields on page 22.
Manual Section: Expeller & Expeller Drive p. 14Leaking gate cylinder or auger cylinder hose, need matching hose, O-ring and adjustable elbow part numbers
Check the Hydraulics parts diagrams on page 18 and trace the leaking hose from the gate or auger cylinder. Match the hose, O-ring and adjustable elbow callouts to the parts list, and pull the cylinder pin, hair pin and cylinder clamp numbers if the cylinder comes off. Auger and gate cylinder breakdowns are under Components on page 50.
Manual Section: Hydraulics p. 18Can't tell which Weasler universal PTO drive cross kit fits the spreader driveline
Open the Universal PTO Drive - Weasler drawing on page 26 and match the cross kit, yoke and shield callouts to the parts list on page 27. Check the cross kit against that one drawing only before ordering.
Manual Section: Universal PTO Drive - Weasler p. 26Need wheel hub seal (SEAL/OIL), bearing cone and cup part numbers for 309, 312 or tandem axle spreader
Check the axle section that matches your machine: page 36 for the 309, page 38 for the 312 single axle, and page 40 for tandem axles. Verify the hub assembly, hub cap, hub seal (SEAL/OIL), bearing cone and bearing cup callouts there. Brake-equipped units use the Hydraulic Brakes listings under Accessories on page 56.
Manual Section: Axles, Wheels & Hubs p. 36Input shaft ball bearing or flangette worn, need bearing, lock collar and seal part numbers

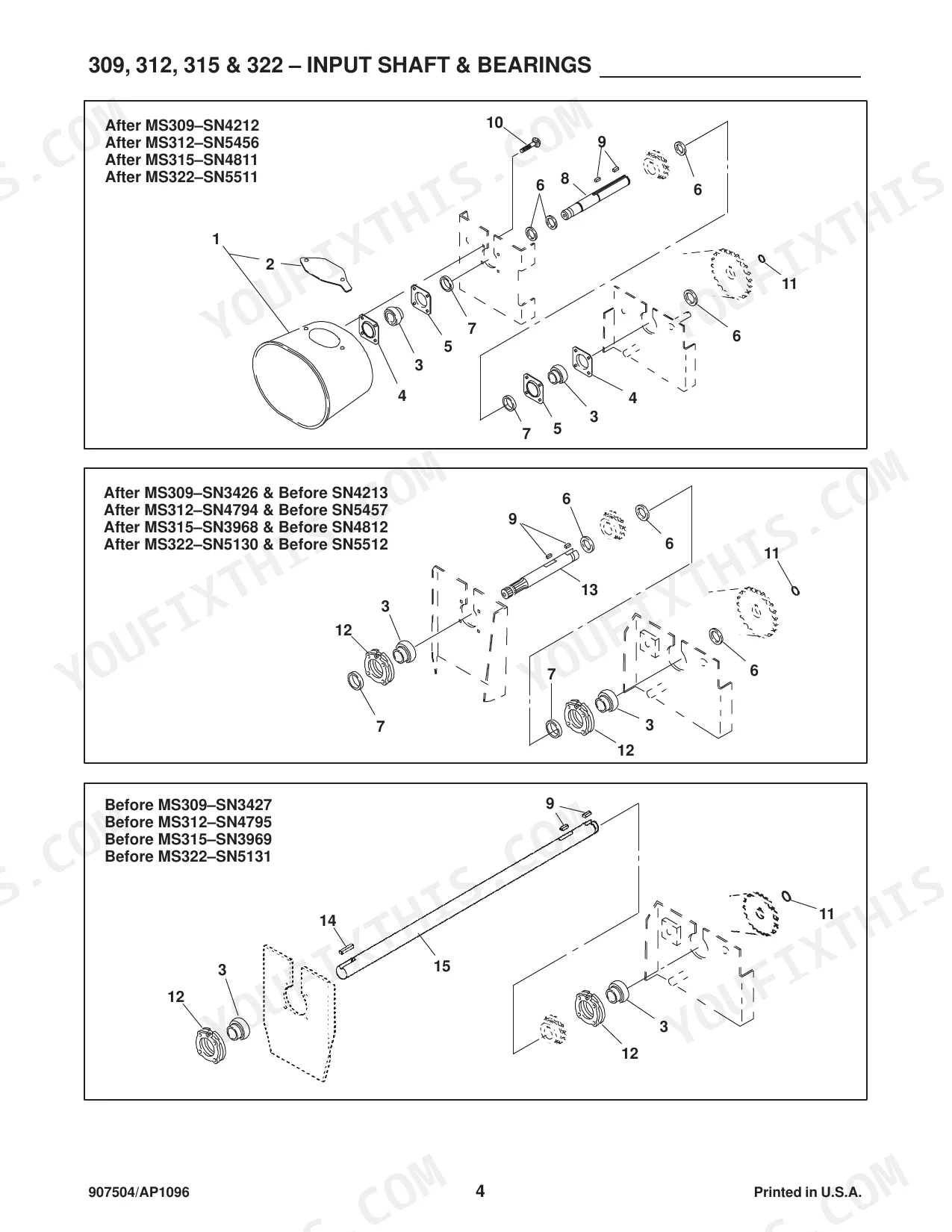

Check the Input Shaft & Bearings diagram on page 6 to locate the ball bearing, flangette, lock collar, bearing spacer and grease fitting. Match each callout to the parts number list on page 7 and order the spacer and lock collar along with the bearing. Pull the shield and flap numbers there too if they are damaged.
Manual Section: Input Shaft & Bearings p. 6Frequently Asked Questions
What are the replacement specifications for universal-drive components and universal joints on the Gehl Scavenger II?
Replacement parts for the Weasler universal PTO drive include specific kits such as the 141779 cross repair kit for CAT 3 joints. For Walterscheid 540 RPM PTO drives, the 086916 kit is used for cross and bearing replacement on 309 and 312 models. p. 27
What is the torque specification for a 1/2-13 Grade 5 bolt on the Gehl Scavenger II?
For a 1/2-13 Grade 5 bolt, the dry torque specification is 75 Lb-Ft, and the lubed torque specification is 55 Lb-Ft. p. 79
What is the part number for the SMV decal on the Gehl Scavenger II manure spreader?
The part number for the SMV (Slow Moving Vehicle) decal is 047272. p. 4
How many teeth are on the standard expeller reel for a 309 model?
The standard expeller reel for the 309 model uses 9 teeth, with part number 080233. p. 15
What do I get after purchasing this Gehl 309 manual?
A single searchable PDF file of 80 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is this Gehl 309 Parts Catalog printable?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
