Which part fits which machine in the Gehl HL series is settled by this 64-page Gehl HL4500 parts catalog PDF, Form No. 902578, which covers four skid steer loader variants in one book. Each engine gets its own exploded views: the air-cooled Wisconsin in the HL4300, Ford gasoline in the HL4500, Ford LP gas in the HL4700 and the Perkins diesel in the HL4600. Hydraulics take up a large share of the pages, breaking down both piston pumps, the gear pump and the Columbus and Lantex lift and tilt cylinders so you can confirm which cylinder brand your loader carries before you order. Trace the drive chain and axle sprocket on the axle and drive pages, then run any part number backward through the numerical index to find its assembly. A guessed part number parks the loader for days. Bookmarks in this text-searchable file reach the load arms or the T-bar controls in a click or two.
What's Inside This Gehl HL4300, HL4500, HL4600, HL4700 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2-3 | Service Parts Ordering, Model and Serial Number Location, Right and Left Orientation, Tire Replacement Policy, Hardware Identification |
| Decal Locations | 4-7 | Warning Decals, Safety Rules, Decal Application, Decal Set Number, Paint Ordering |
| Main Frame | 8-11 | Seat Support, Counterweight, Fuel Tank, Floor Panel, Seat Belt, Cab Stop Bracket |
| Axle & Drive | 12-13 | Axle, Axle Sprocket, Jack Shaft, Drive Chain, Emergency Brake, Bearing Housing, Hydraulic Motor |
| Console & Controls | 14-15 | T-Bar Control Lever, Throttle, Pump Control Rod, Pump Pivot Arm, Shut-Off Cable, Friction Bar |
| Load Arms | 16-17 | Lift Arm, Tri-Link, Attachment Bar, Hydraulic Cylinder, Hydraulic Solenoid, Lift Arm Stop |
| Hydraulic Cylinders, Pumps, Motor & Valve | 18-24 | Columbus Lift Cylinders, Columbus Tilt Cylinder, Lantex Lift Cylinders, Lantex Tilt Cylinder, Piston Pump - Front, Piston Pump - Rear, Gear Pump, Hydraulic Motor |
| Engines, Electrical & Hydraulic Systems | 25-47 | HL4300 Electrical System, HL4300 Engine, HL4300 Hydraulic System, HL4500 Engine, HL4700 Engine, HL4500 & HL4700 Hydraulic System, HL4500 & HL4700 Electrical System |
| Accessories | 48-55 | Overhead Guard All Weather Enclosure, Front Hydraulic Kit, Rear Hydraulic Kit, Light Kit, HL4500 Deicing Kit, Scarifier, Drawbar |
| Optional Attachments | 56-58 | Utility Buckets, Light Material Bucket, Fertilizer Bucket, Produce Bucket, Manure Fork, Cement Bucket, Bucket Teeth, Pallet Fork |
| Standard Hardware Torque Specification | 63-64 | SAE Grade 2 Hardware, SAE Grade 5 Hardware, SAE Grade 8 Hardware, Attaching Hardware Table |
Gehl HL4300, HL4500, HL4600, HL4700 Common Problems This Manual Covers
Gehl HL4300 through HL4700 lift or tilt cylinder seal kit hard to match between Columbus and Lantex cylinders
Confirm whether your machine carries Columbus or Lantex lift and tilt cylinders before ordering anything. Open the Columbus cylinder exploded view on page 18 and match each component and seal kit to its callout. For Lantex cylinders, use the separate Lantex breakdown in the same section, then record the part number with your model and serial number.
Manual Section: Hydraulic Cylinders, Pumps, Motor & Valve p. 18Piston pump seal kit and relief valve parts confused between front and rear pump assemblies
Identify which pump you are working on first, because the front and rear piston pumps have separate parts breakdowns. Use the front piston pump exploded view on page 20 to match the pump assembly, seal kits and relief valve components by callout. For the rear pump, use the rear pump breakdown in the same section before ordering.
Manual Section: Hydraulic Cylinders, Pumps, Motor & Valve p. 20Lift/tilt valve spool, detent or relief valve component not identified in loader valve breakdown
Find the Lift/Tilt Valve Service breakdown in the hydraulic cylinders, pumps, motor and valve section. Match the spool, detent and relief valve components to their callouts on the exploded view. Order individual components instead of the full valve assembly when the parts list shows them separately, and give model and serial number with the order.
Manual Section: Lift/Tilt Valve ServiceDrive chain, axle sprocket or jack shaft replacement part number unknown for axle and drive rebuild
Pull up the Axle & Drive exploded view and match the axle, axle sprocket, jack shaft, drive chain and bearing housing to their callouts. Read the numbers from the parts list on page 13. Check the hydraulic motor and emergency brake listings in the same section, and look up mounting hardware torque in the SAE grade table on page 63.
Manual Section: Axle & Drive p. 13T-bar control lever, pump control rod or pump pivot arm parts hard to identify
Use the Console & Controls exploded view to match the T-bar control lever, pump control rod, pump pivot arm, throttle and shut-off cable to their callouts. Read the part numbers from the parts list on page 15. Order the friction bar from the same list if it needs replacing, and quote model and serial number.
Manual Section: Console & Controls p. 15Engine, electrical or hydraulic system part number differs by model and serial number

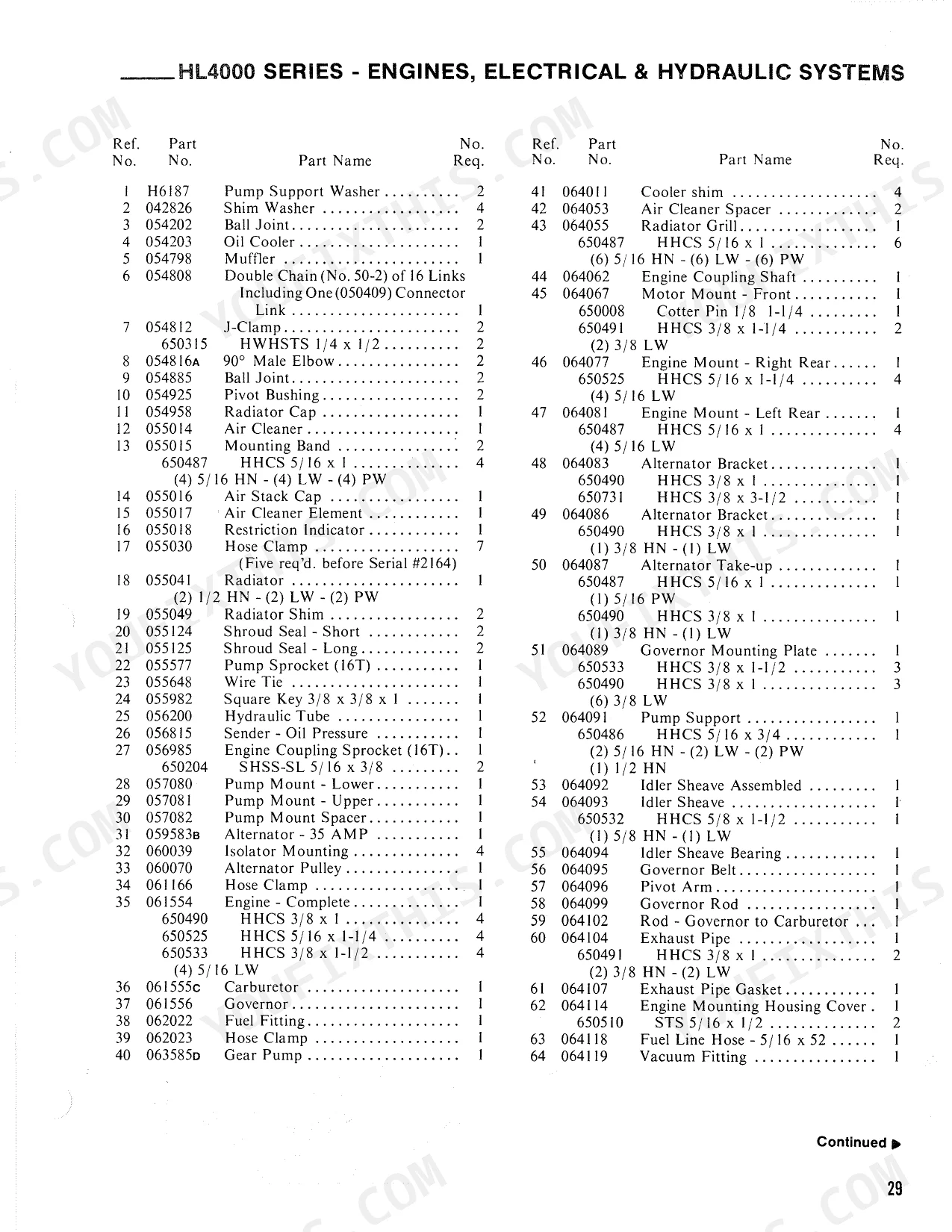

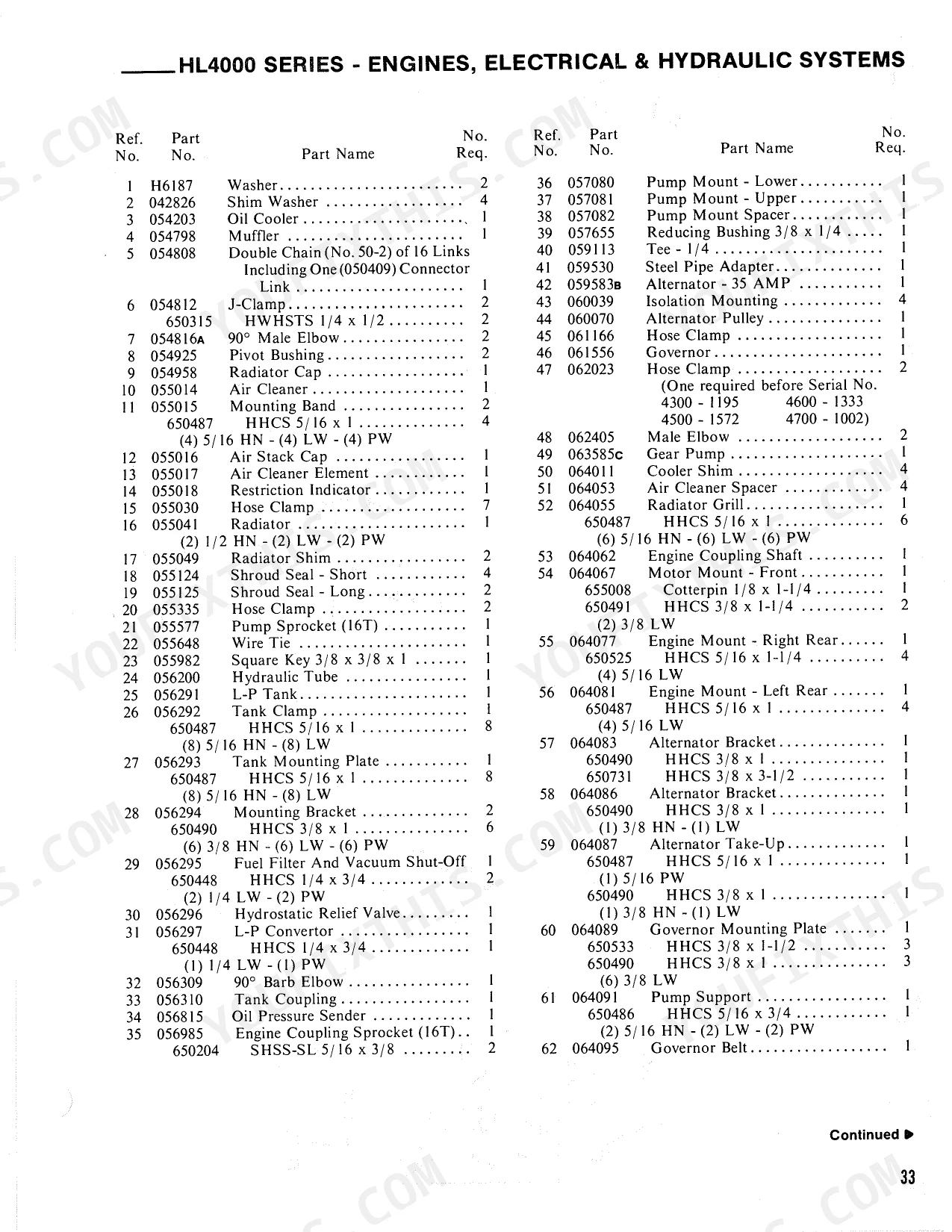

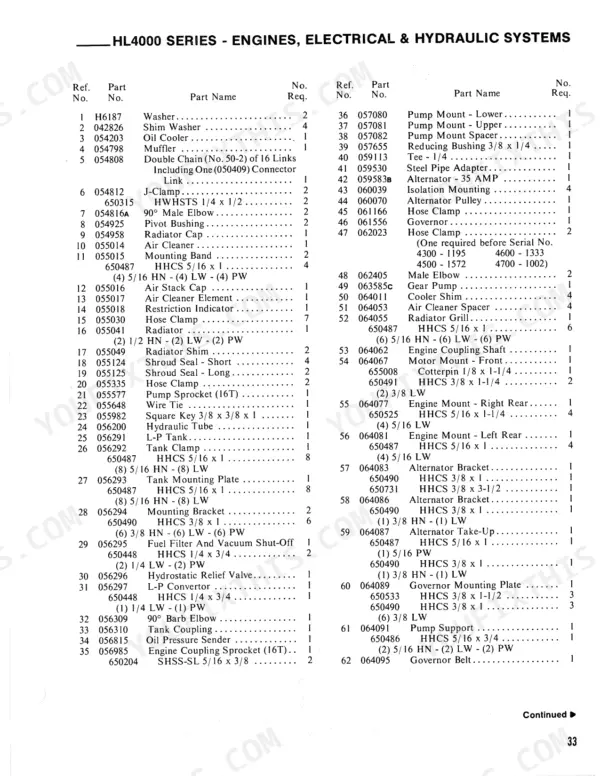

Find your model and serial number using the location guide in the Introduction on page 2 before you open the parts pages. Then use the matching breakdown. The HL4300 engine, electrical and hydraulic system pages are separate from the HL4500 and HL4700 groups, which start on page 25. Give model, serial number, part number and description when ordering.
Manual Section: Engines, Electrical & Hydraulic Systems p. 25Frequently Asked Questions
What is the hydraulic oil filter part number for the Gehl HL4300, HL4500, HL4600 and HL4700?
The hydraulic oil filter is part number 066778; to order the filter element alone, specify part 066799. Machines built before serial #1049 use oil filter 063458 instead (filter element 063459). p. 29
What is the torque specification for a 1/2-13 Grade 5 bolt on the Gehl HL4000 series?
For a 1/2-13 Grade 5 bolt, the dry torque specification is 75 Ft. Lbs. and the lubricated torque specification is 55 Ft. Lbs. p. 63
What is the correct paint to use for refinishing the Gehl HL4000 series?
You can order one gallon of Blaze Paint (part 901225) or Maize Paint (part 901226). Spray paint is also available in 12 oz. cans as part 610239 (Blaze) or 610240 (Maize). p. 6

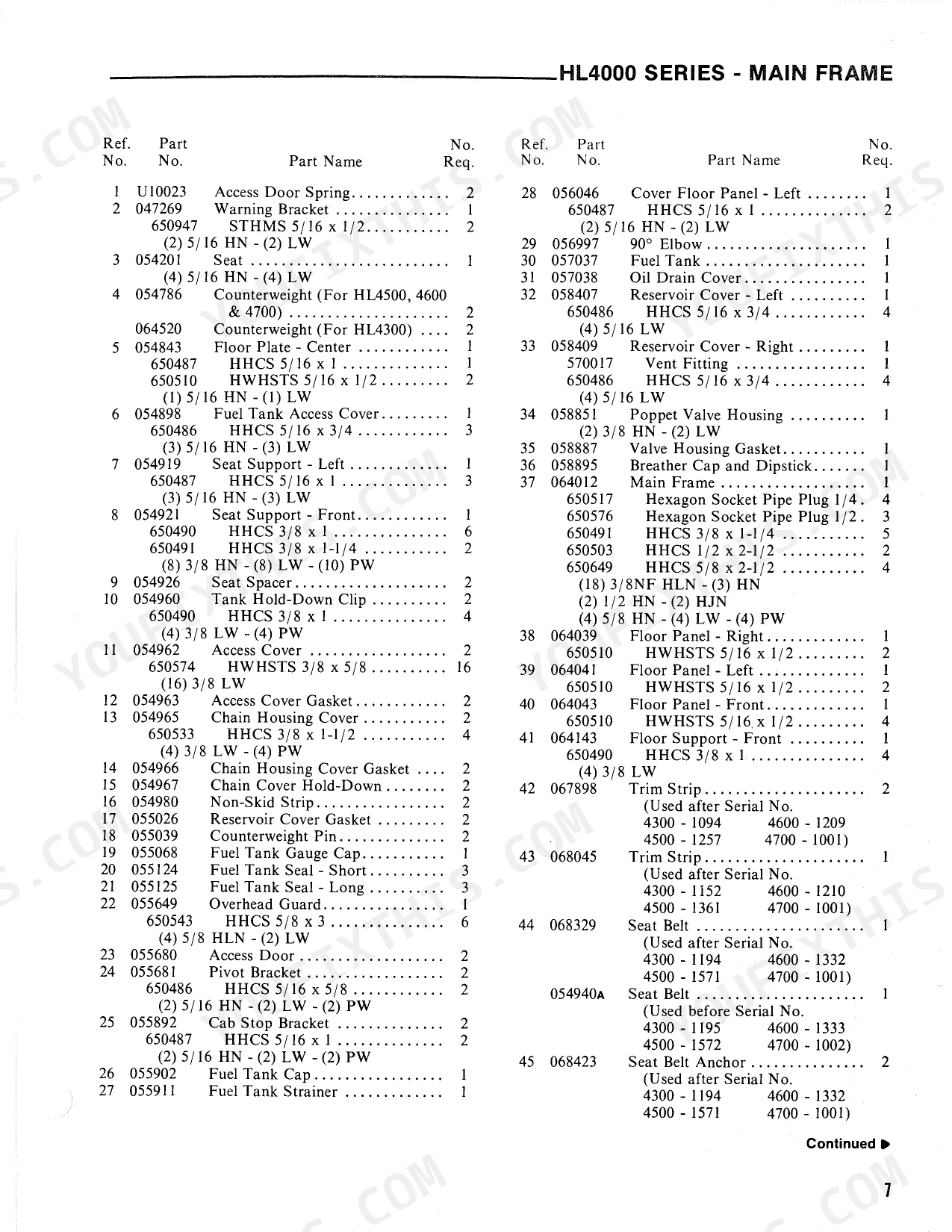

What is the part number for the fuel tank cap on the Gehl HL4000 series?
The fuel tank cap for the HL4000 series is part number 055902. p. 9
What is the seat belt part number for the Gehl HL4300-HL4700?
Seat belt 068329 is used after serial 4300-1194, 4500-1571, 4600-1332 and 4700-1001. Earlier machines use seat belt 054940. p. 9
Will this Gehl HL4300 Parts Catalog download right away?
Instant PDF download. You get the full 64-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I free to print this Gehl HL4300 Parts Catalog?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
