The Gehl SL3510, SL3610 parts catalog PDF fixes that: 104 pages under OEM ID 904914 covering both skid loader variants. Exploded views break the chassis, axles and drive chains, lift arm and Rapid Tach quick-lock, hydrostatic pumps and drive motors, gas and diesel engines and radiators into numbered callouts, with option kits from the grapple fork to auxiliary front hydraulics in the same book. A numerical index works backward from a stamped number to where it fits. Before you order, confirm whether your machine runs the 1000 PSI or 1200 PSI relief valve. Bookmarked sections and a searchable text layer help you order the right part the first time.
What's Inside This Gehl SL3510, SL3610 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | |
| Decal Locations | 4-5 | Decal Application, Safety Decals, Decal Kit, Paint Notice, Location Photographs |

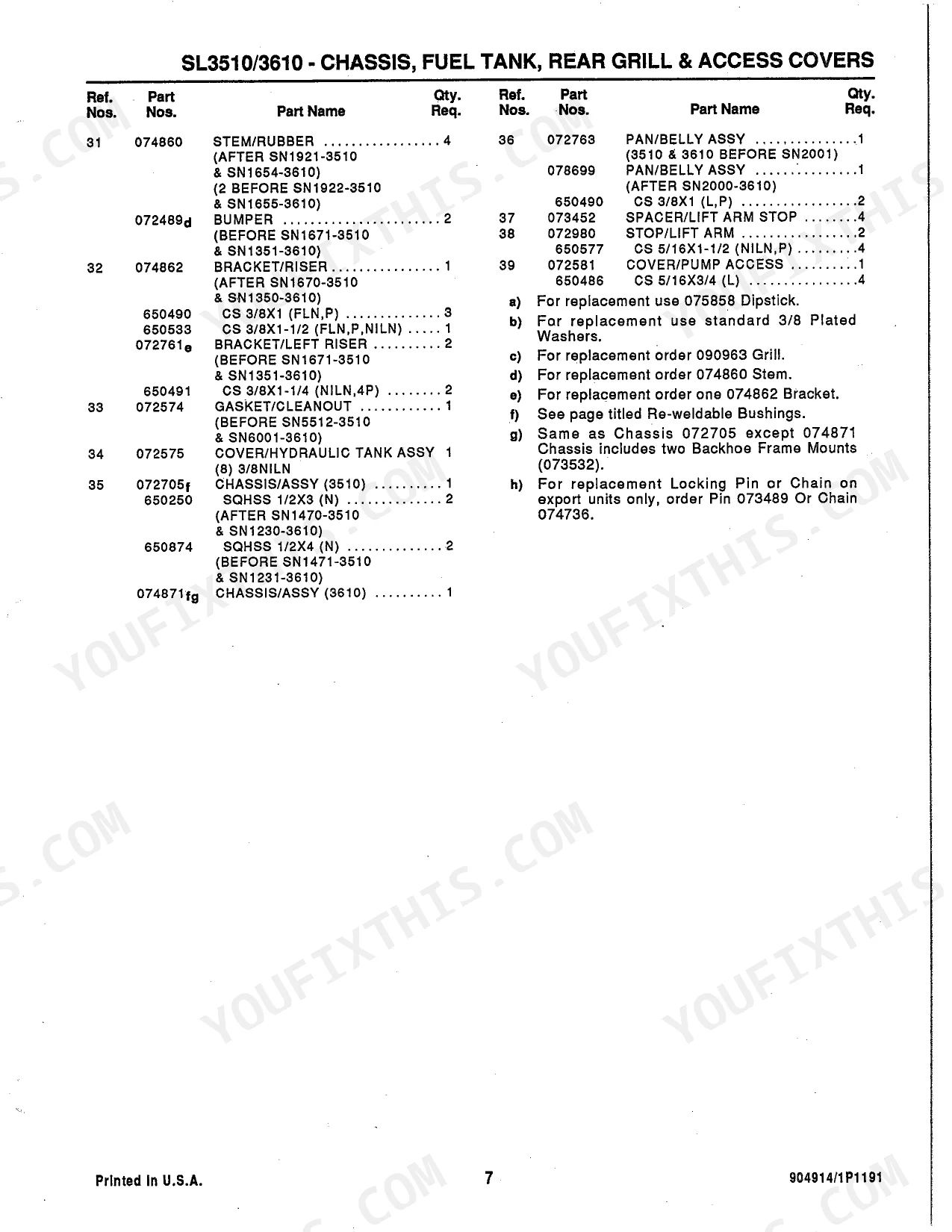

| Chassis, Fuel Tank, Rear Grill & Access Covers | 6-13 | Overhead Guard, Seat & Engine Access Cover |
| Axles & Drive Chains | 14-15 | Wheel Sets, Axle Assembly, Seal, Hub, Bearing, Sprocket, Drive Chain, Take-Up Plate |
| Instrument Panel, Wiring & Battery | 16-21 | Instrument Panel, Wiring Harness, Battery, Fuse Holder, Hourmeter, Ignition Switch, Glow Plug Indicator |
| Lift/Tilt Control Lever, Throttle & Linkages | 22-23 | Lift-Tilt Lever, Throttle Lever, Control Rod, Valve Linkage, Spool Actuator, Pivot Bearing |
| Traction Control Lever & Linkages | 24-25 | Traction Lever, Pump Arm Stop, Pump Linkage, Friction Pad, Rod End, Pump Control Rod |
| Hand Brake & Motor Mounting Plates | 26-27 | Caliper Link, Brake Disc, Brake Cable, Motor Mounting Plate, Brake Lever, Motor Mount |

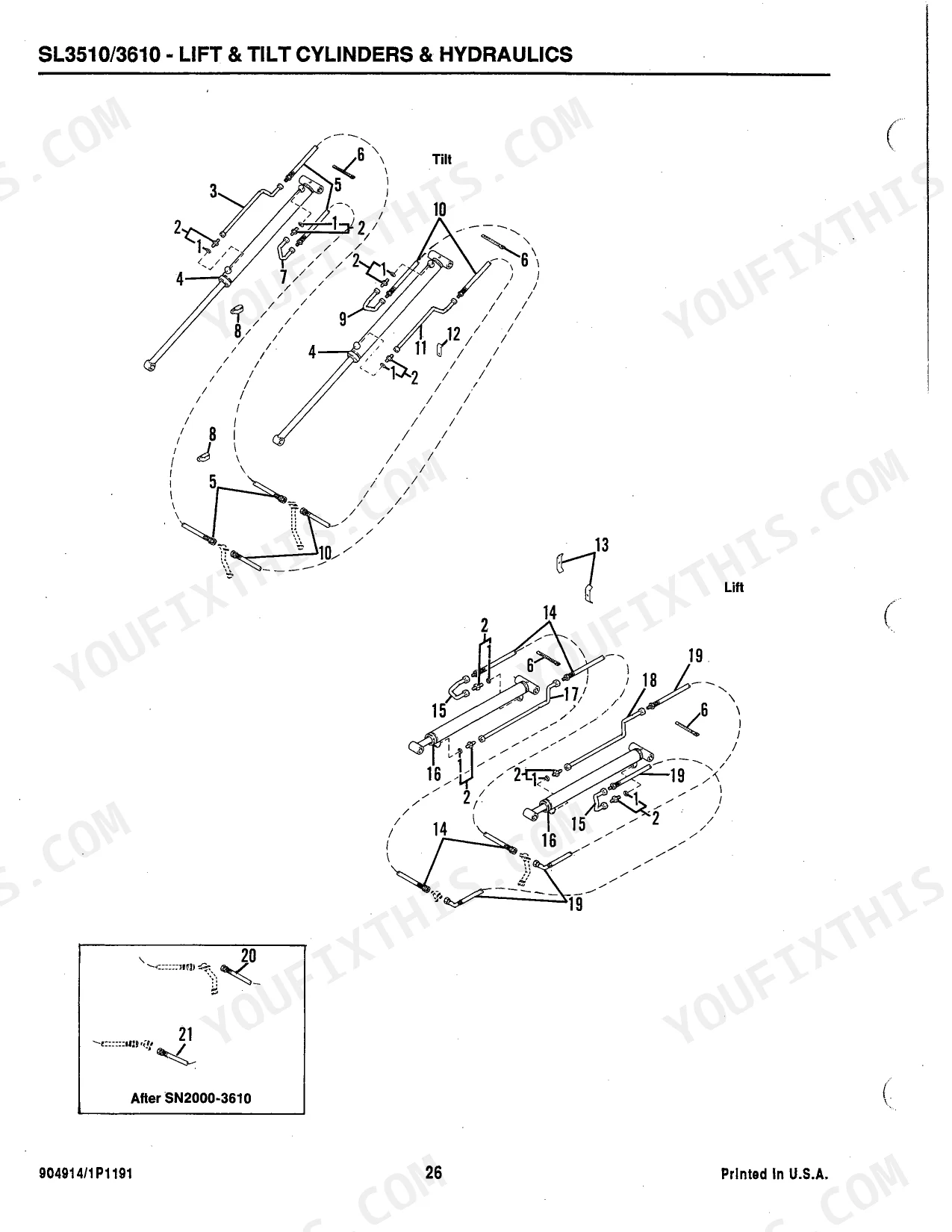

| Lift & Tilt Cylinders & Hydraulics | 28-29 | Tilt Cylinder, Lift Cylinder, Hydraulic Tube, Hydraulic Hose, Fitting, Relief Valve, Main Control Valve |
| Lift Arm & Quick-Lock Mechanism | 30-31 | Lift Arm, Riser, Lift Cylinder, Rapid Tach, Cam Assembly, Handle |
| Hydrostatic System | 32-37 | Pump, Piston, Motor, Hydraulic Hose, Tee Fitting, Elbow Fitting |
| Hydraulics System | 38-39 | Strainer, Filter, Relief Valve, Solenoid Valve, Control Valve, Gear Pump |
| Gas Engine | 40-47 | Cable, Choke, Mounting, Resistor, Throttle Linkage, Governor, Starter |
| Diesel Engine | 48-51 | Pedestal, Isolator, Throttle Linkage, Fuel Shutoff, Starter, Engine Mount |
| Muffler, Air Cleaner & Alternator | 52-57 | Muffler, Exhaust Pipe, Air Cleaner, Alternator, Regulator, Fan |
| Radiator | 58-63 | Shroud, Hose, Fan Shroud, Drain Cock, Mounting Bracket |
| Radiators | 64-67 | Shroud, Radiator, Hose, Fan Shroud, Drain Cock, Mounting Bracket |
| Hydraulic Pumps, Motors, Valves & Cylinders | 68-75 | Columbus Tilt Cylinder, Columbus Lift Cylinder, Webster Gear Pump, PSI Relief Valve, Columbus Grapple Cylinder, Main Control Valve, Left Side Drive Piston Pumps |
| Options & Accessories | 76-91 | Work & Warning Light Packages (Hydraulic Oil Heater Kit, Horn Kit), Overhead Guard Enclosure, Grapple Fork, Buckets (Manure Fork), Dirt & Rock Teeth Kit, Drawbar Kit |
| Re-Weldable Bushings, Plug Nuts & Tie-Downs | 92 | Bushings, Plug Nuts, Tie-Down Hooks |
| Torque Specifications & Attaching Hardware Tables | 103-104 | Standard Machine Hardware, Bolt Size, Torque Values, Attaching Hardware Table |
Gehl SL3510, SL3610 Common Problems This Manual Covers
Gehl SL3510/SL3610 hydrostatic drive motor replacement part number unclear, two different motors listed by serial
Check your serial number first, then open the Hydrostatic System breakdown on page 33. Order MOTOR/HYDRAULIC 076484 for machines after SN1921-3510 and SN1654-3610; earlier units take MOTOR/DRIVE-ASM'D 061164. Add two 054783 motor gaskets. Per the page note, reinstall the motor with the arrows pointing up and the drain port toward top of center.

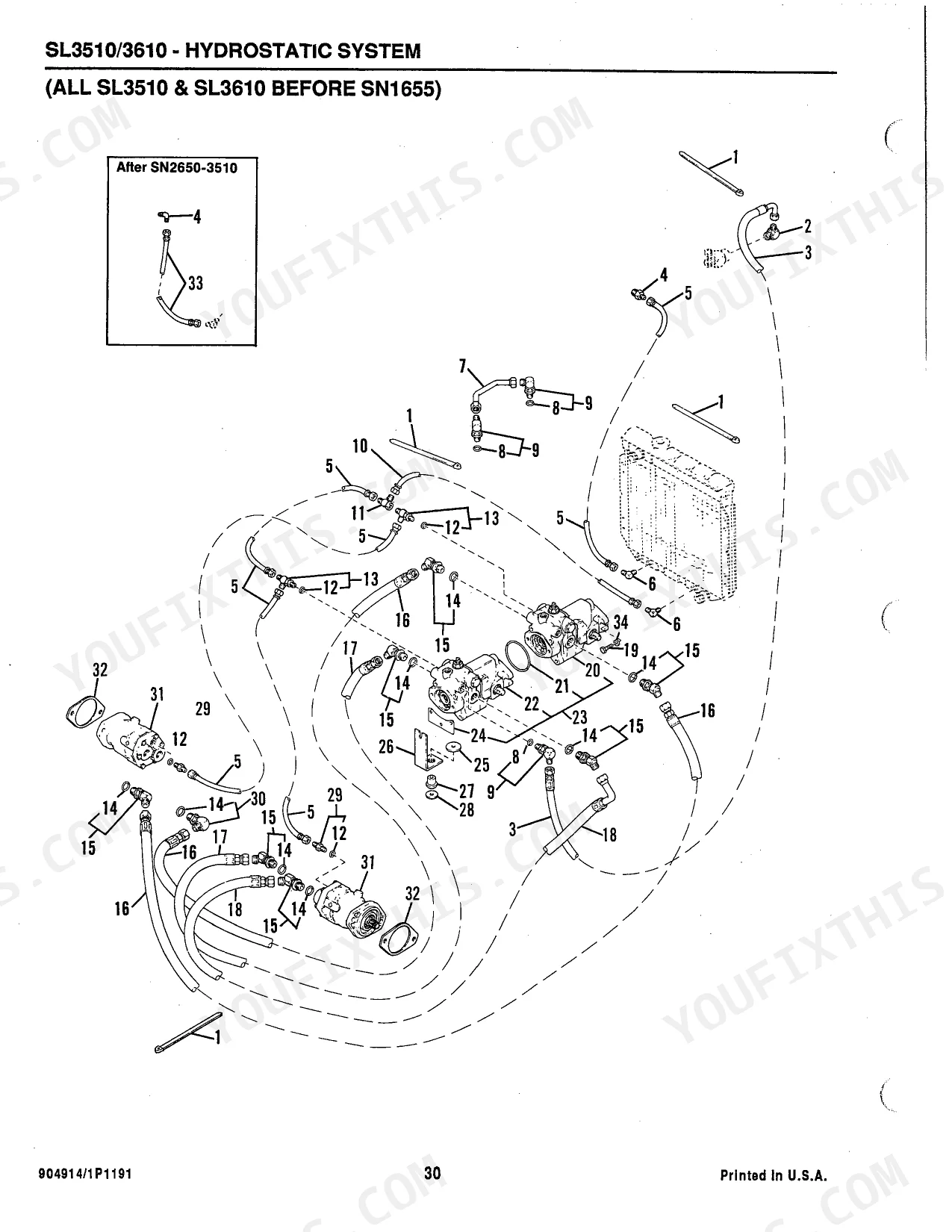

Manual Section: Hydrostatic System p. 33Hydrostatic piston pump front and rear part numbers changed, can't tell which tandem pump fits

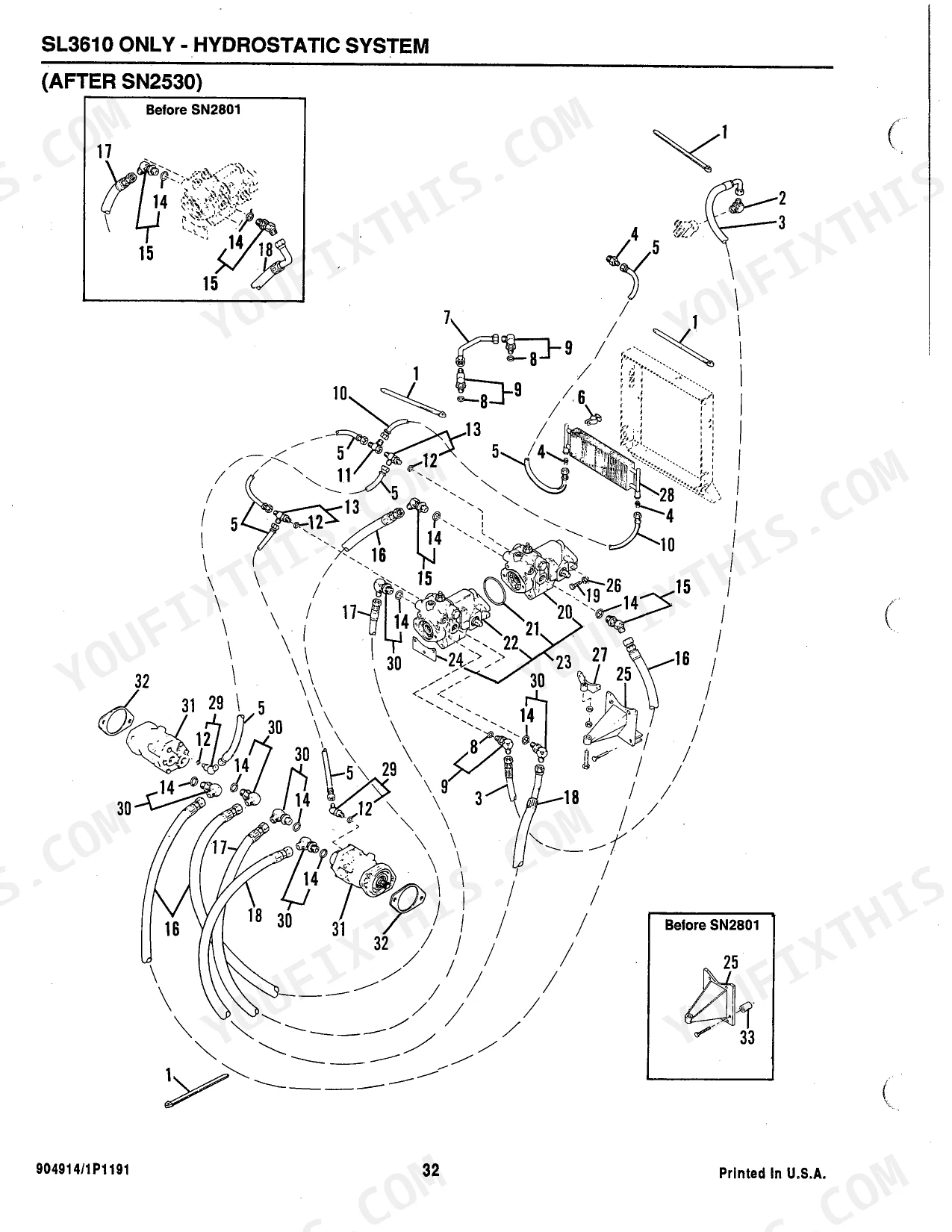

Verify your serial number against the Hydrostatic System list on page 33. SL3510 units after SN2710 take rear pump 087041, front pump 087040 and tandem assembly 083694. Earlier SL3510 units list 069740, 069742 and 072194. On SL3610 machines after SN2530, use the separate SL3610 breakdown on page 35, where the pump serial break falls at SN3450-3610.
Manual Section: Hydrostatic System p. 33Instrument panel wiring harness and fuse part numbers don't match the machine's serial range

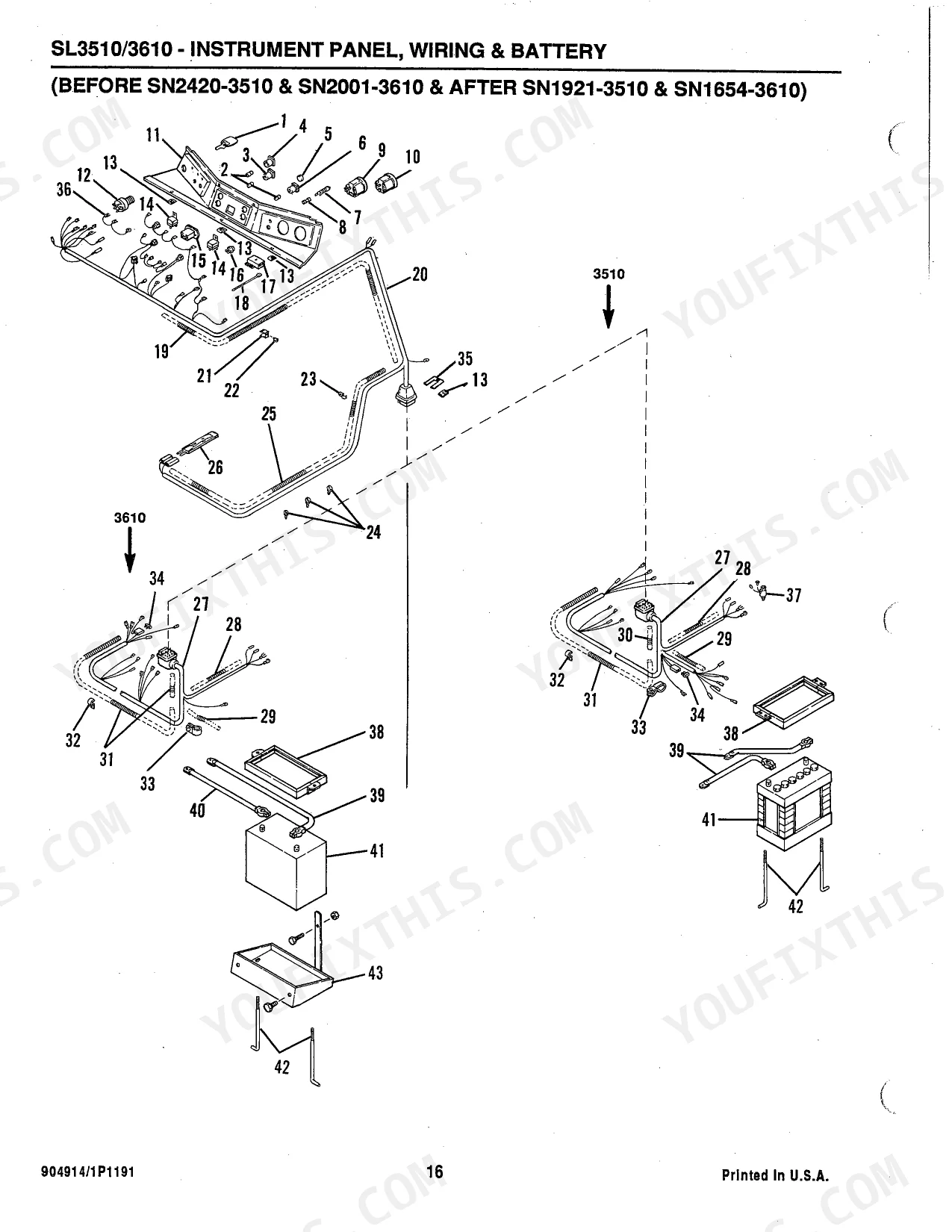

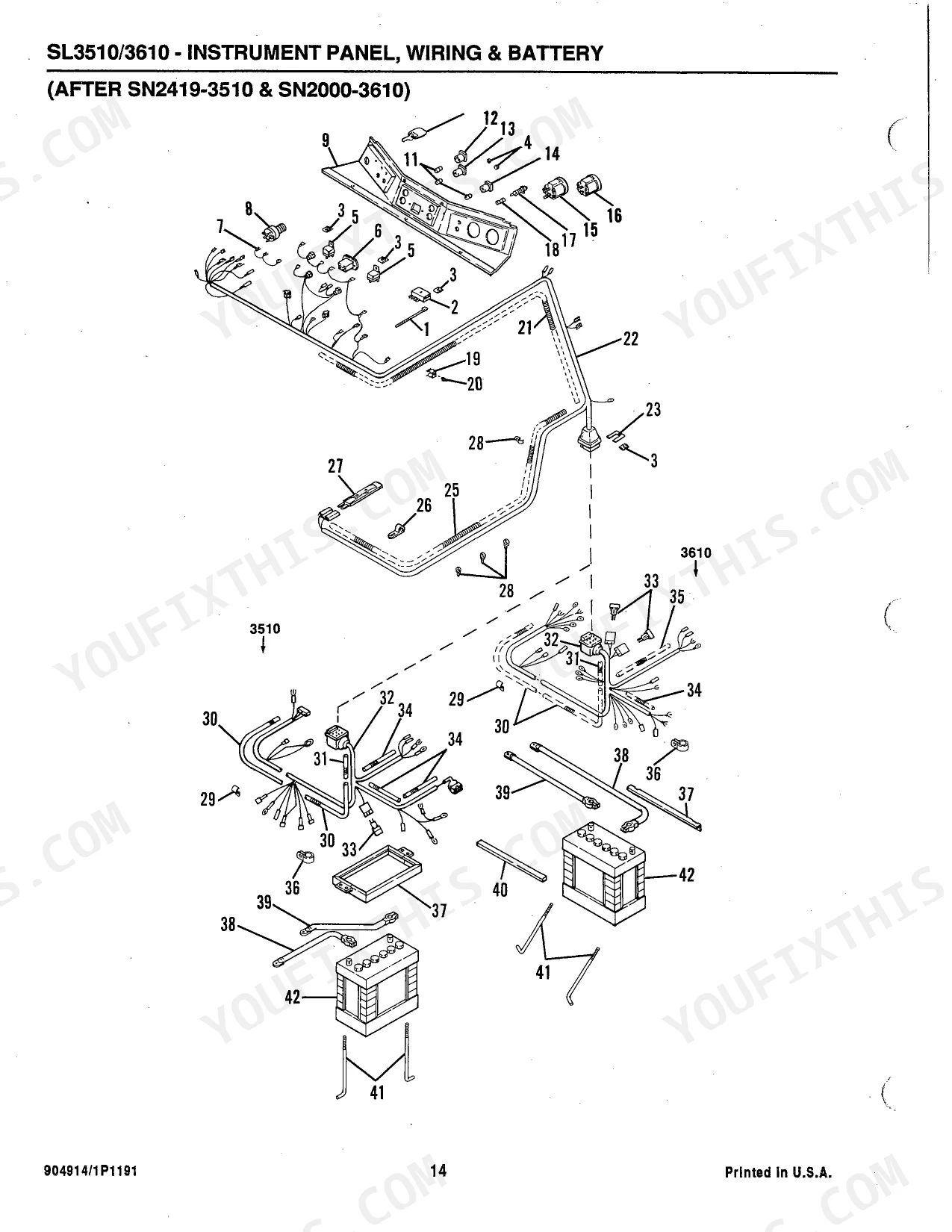

Check the model and serial number location in the Introduction on page 2, then pick the matching wiring breakdown: page 17 for units after SN2419-3510 and SN2000-3610, page 19 for the middle range, and page 21 for units before SN1922-3510 and SN1655-3610. All three list the 20 ampere ferrule fuse as 071149 and the replacement key as 073694.
Manual Section: Instrument Panel, Wiring & Battery p. 17Drive chain, axle bearing, hub or sprocket part number needed for chain case rebuild
Inspect the Axles & Drive Chains exploded view on page 14 and match the seal, hub, bearing, sprocket, drive chain and take-up plate by reference number. On export units only, order secondary drive chain 080873, which is 78 (#60HE) links including the connector link, per page 15. That same page warns: do NOT use 045581 valve on wheels without valve stem protectors.
Manual Section: Axles & Drive Chains p. 14Hydraulic tank strainer and filter part numbers needed, plus relief and solenoid valve identification
Open the Hydraulics System breakdown on page 38 and locate the strainer, filter, relief valve, solenoid valve, control valve and gear pump by reference number in the illustration. Read each part number from the list beside it before ordering. For Webster gear pump and PSI relief valve service parts, check the Hydraulic Pumps, Motors, Valves & Cylinders section on page 68.
Manual Section: Hydraulics System p. 38Rapid Tach quick-lock cam assembly or handle part number needed for the lift arm
Check the Lift Arm & Quick-Lock Mechanism exploded view on page 30. Identify the Rapid Tach cam assembly, handle, riser and lift cylinder by reference number, then pull the part number from the matching parts list. For lift cylinder service parts, go to the Columbus lift cylinder breakdown in the Hydraulic Pumps, Motors, Valves & Cylinders section on page 68.
Manual Section: Lift Arm & Quick-Lock Mechanism p. 30Frequently Asked Questions

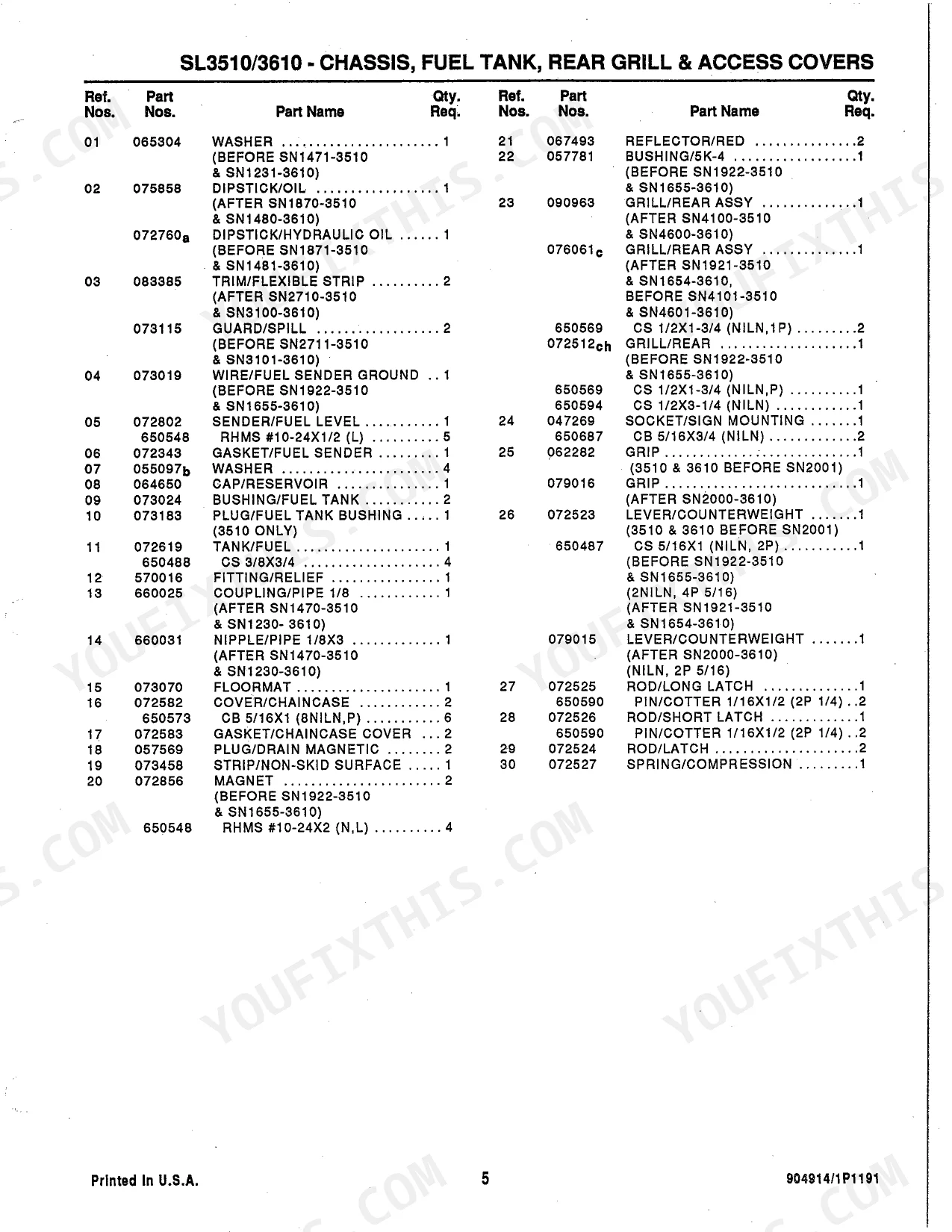

What is the part number for the WASHER in this manual?
Page 7 lists part number 065304 for the WASHER. p. 7
What is the part number for the SWITCH in this manual?
Page 11 lists part number 078731 for the SWITCH. p. 11
What is the part number for the HUB/WHEEL in this manual?
Page 15 lists part number 076025 for the HUB/WHEEL. p. 15
What is the part number for the BUZZER in this manual?
Page 17 lists part number 079196 for the BUZZER. p. 17
What is the part number for the GRIP in this manual?
Page 23 lists part number 062282 for the GRIP. p. 23
Is this Gehl SL3510 manual a PDF I download?
Delivery is instant: a 104-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Am I free to print this Gehl SL3510 Parts Catalog?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
