Gehl's 62-page parts catalog, Form No. 908006, breaks the 1470 and RB1470 variable chamber round baler down into its numbered components, from drawbar and hitchjack to rear gate. Exploded views in this Gehl RB1470 parts catalog PDF tag each part on the pickup, roller drives, upper belts, gate hydraulics, Total Density Control and twine tie mechanism, with part numbers you can quote when ordering. Options are broken out too, including the 1000 RPM conversion kit, auto-electric twine tie and crowder wheel kit. A sprocket and roller part number guide plus alphabetical and numerical indexes let you trace a number to its assembly. Spec the Total Density Control relief valve at 300 PSI. For a safety chain to tow the baler, the 5 ton capacity rating is the figure to match. The bookmarked pages also print cleanly, giving you a working copy of the implement driveline and shear bolt kit page to mark up.
What's Inside This Gehl 1470, RB1470 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Fastener Abbreviations |
| Decal Locations | 4-7 | General Information, New Decal Application, Safety Precautions, Paint Ordering, Decal Kit Contents |

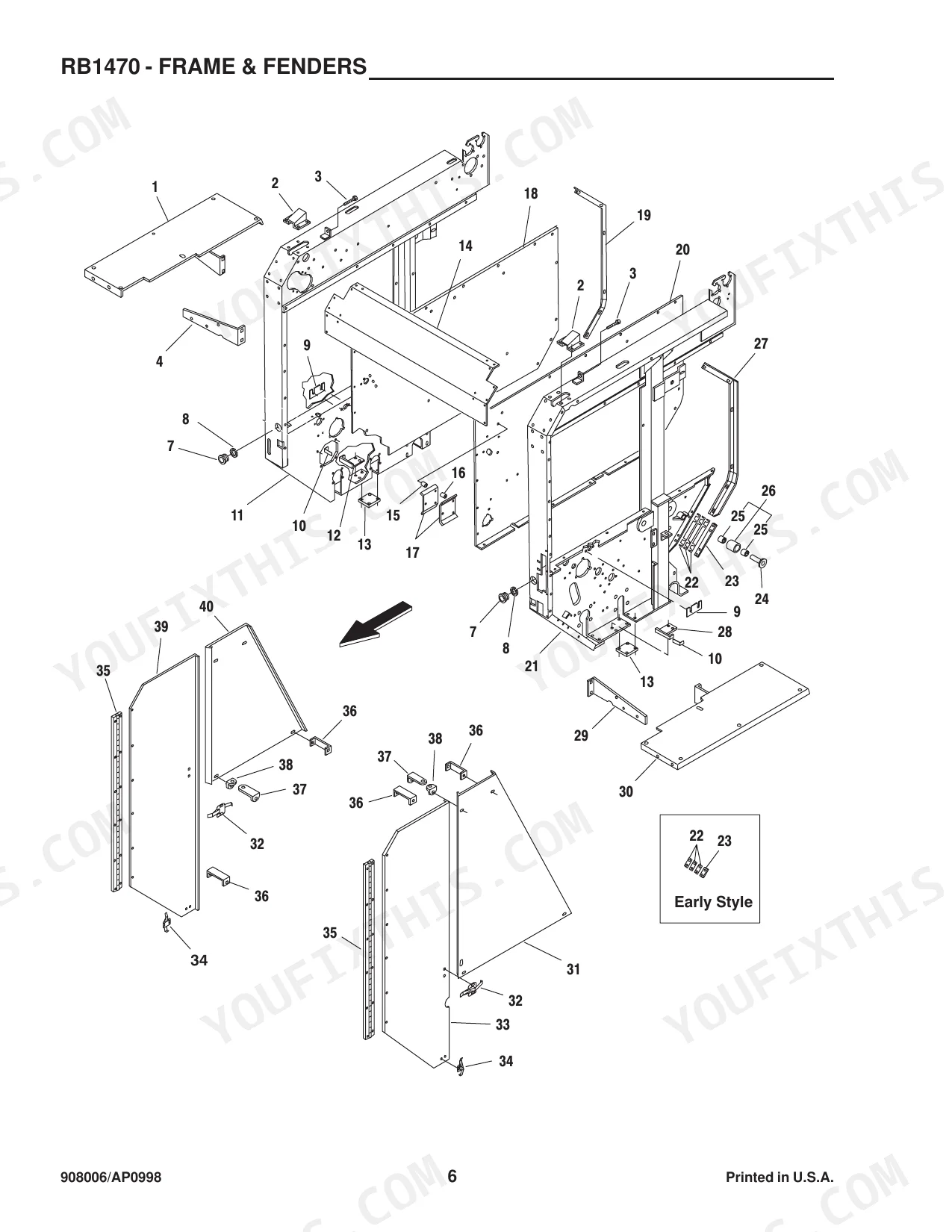

| Frame & Fenders | 8-9 | Fender Assembly, Chain Guard, Twine Box Brace, Twine Guide, Frame Assembly, Latch Hook Bracket, Gate Guide, Stationary Guard |
| Left Twine Box | 10 | Twine Box Cover, Inner Twine Box Side, Twine Box Back |
| Right Twine Box | 11 | Twine Box Cover, Twine Box Back, Twine Box Side |

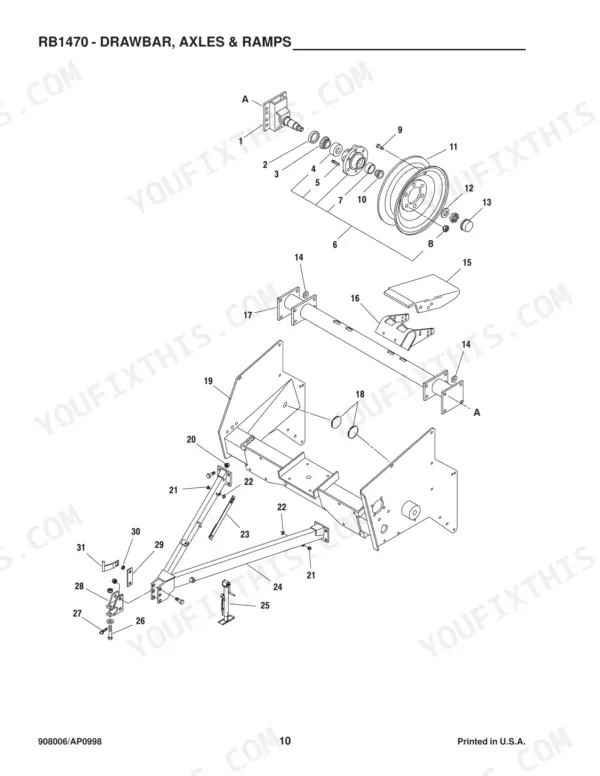

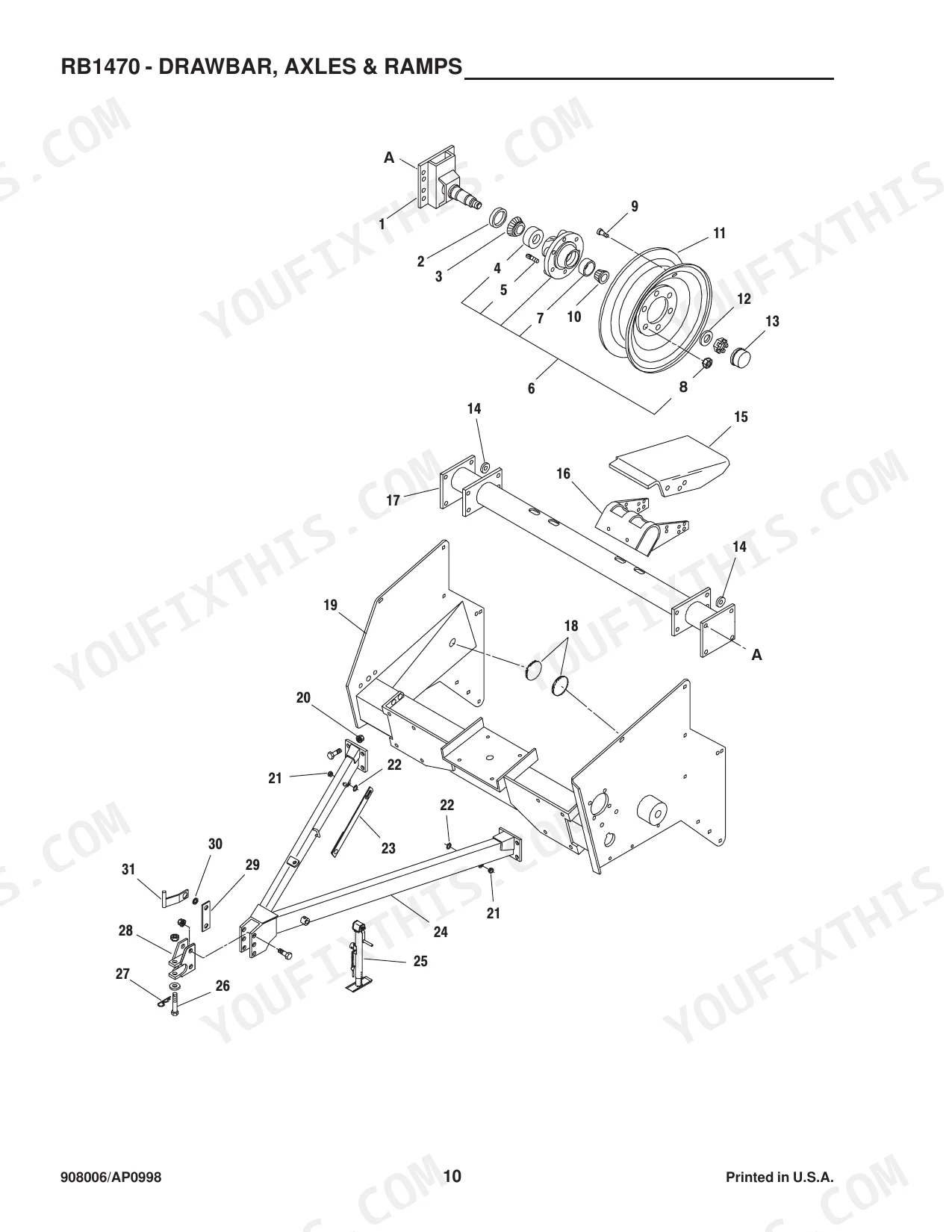

| Drawbar, Axles & Ramps | 12-13 | Axle Assembly, Wheel Bearing, Wheel Hub, Tire Valve, Wheel, Ramp, Ramp Anchor, Hitch |

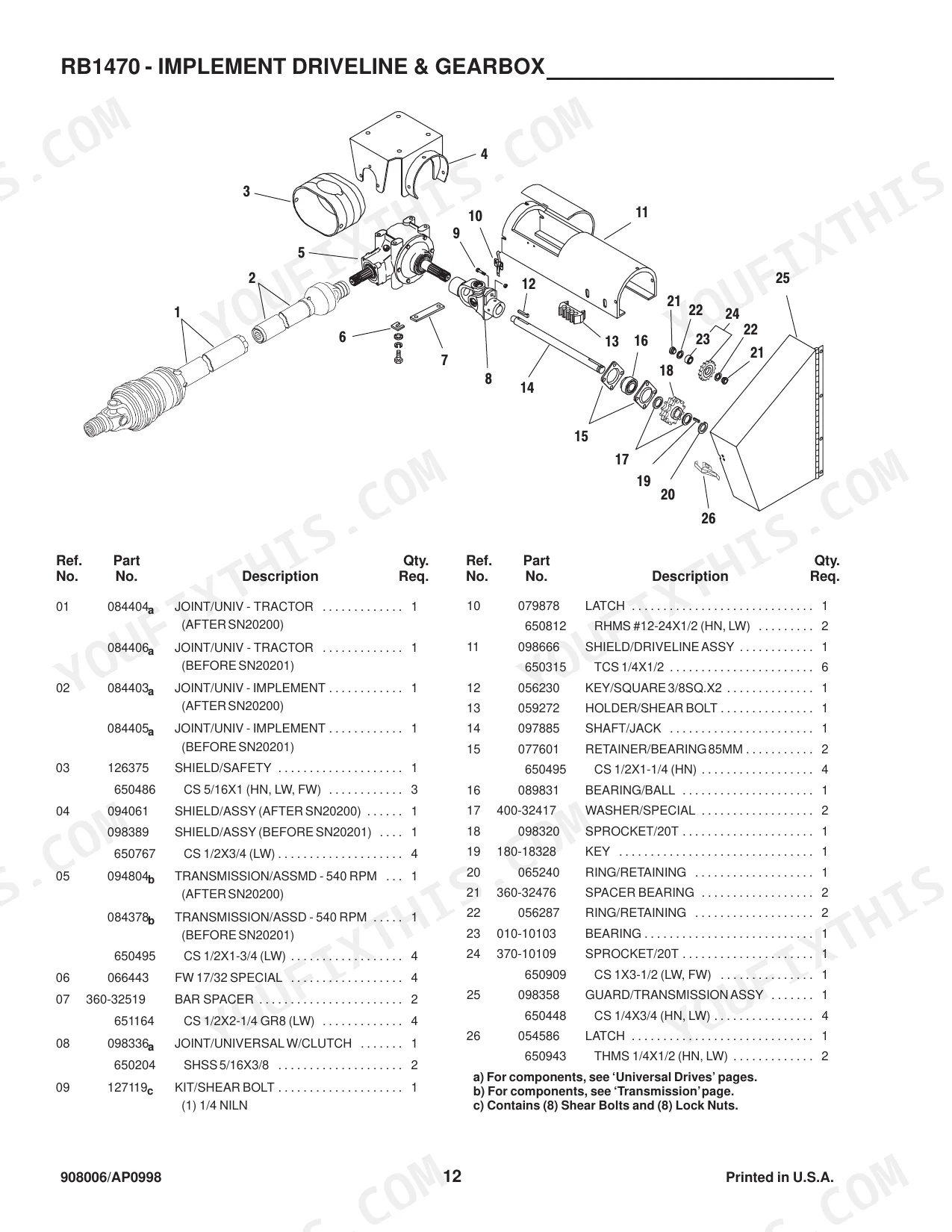

| Implement Driveline & Gearbox | 14 | Tractor Universal Joint, Shear Bolt Kit, Transmission Guard |
| Pickup Lift & Overfill Clutch | 15 | Declutch Assembly, Pickup Lift Bar, Lift Arm Assembly |
| Pickup | 16-17 | Angle, Crowder Assembly, Sheave, Idler, V-Belt, Carrier Assembly |
| Bale Starter & Scraper | 18 | Bearing, Shaft, Roll |
| Shuttle & Bale Size Indicator | 19 | Shuttle Assembly, Chain, Indicator |
| Roller Drives | 20-21 | Washer, Sprocket, Collar, Chain, Idler Bracket, Spring |
| Upper Belts, Rollers & Related Components | 22-23 | Collar, Retainer, Bearing, Guide, Belt, Roller |
| Lower Rollers | 24-25 | Mount, Spring, Bushing, Bearing, Housing, Deflector |

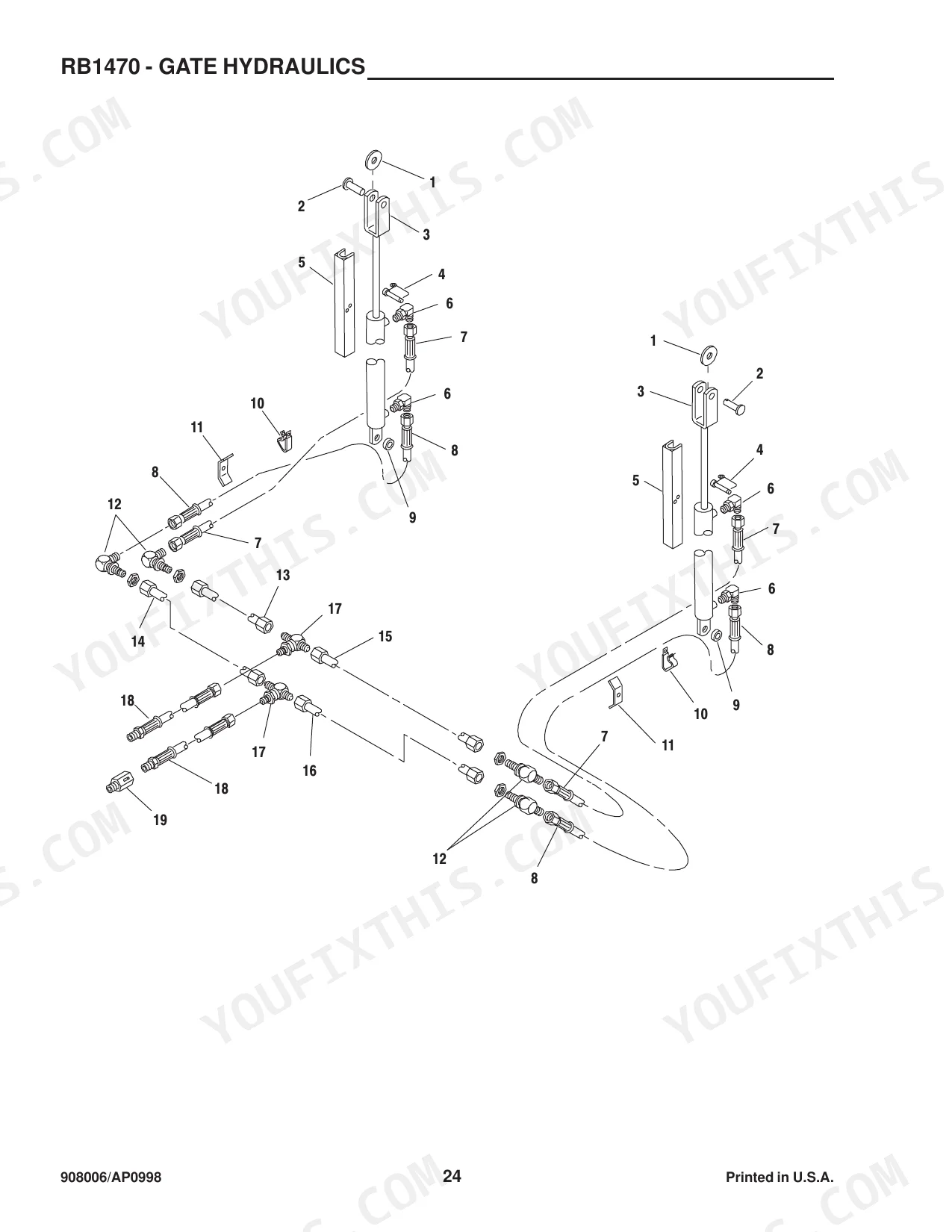

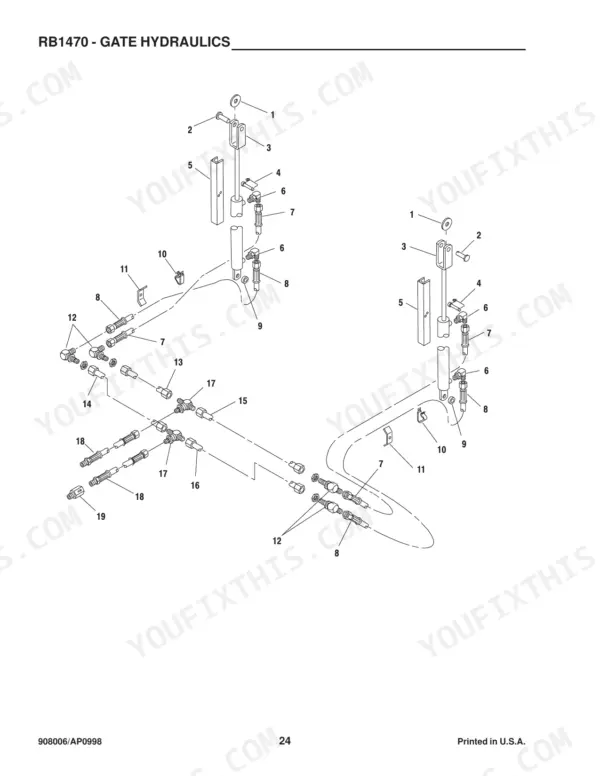

| Gate Hydraulics | 26-27 | Washer, Pin Assembly, Cylinder, Lock, Elbow, Hose |
| Rear Gate | 28-29 | Guide, Belt, Pin, Bearing, Spacer, Rod |

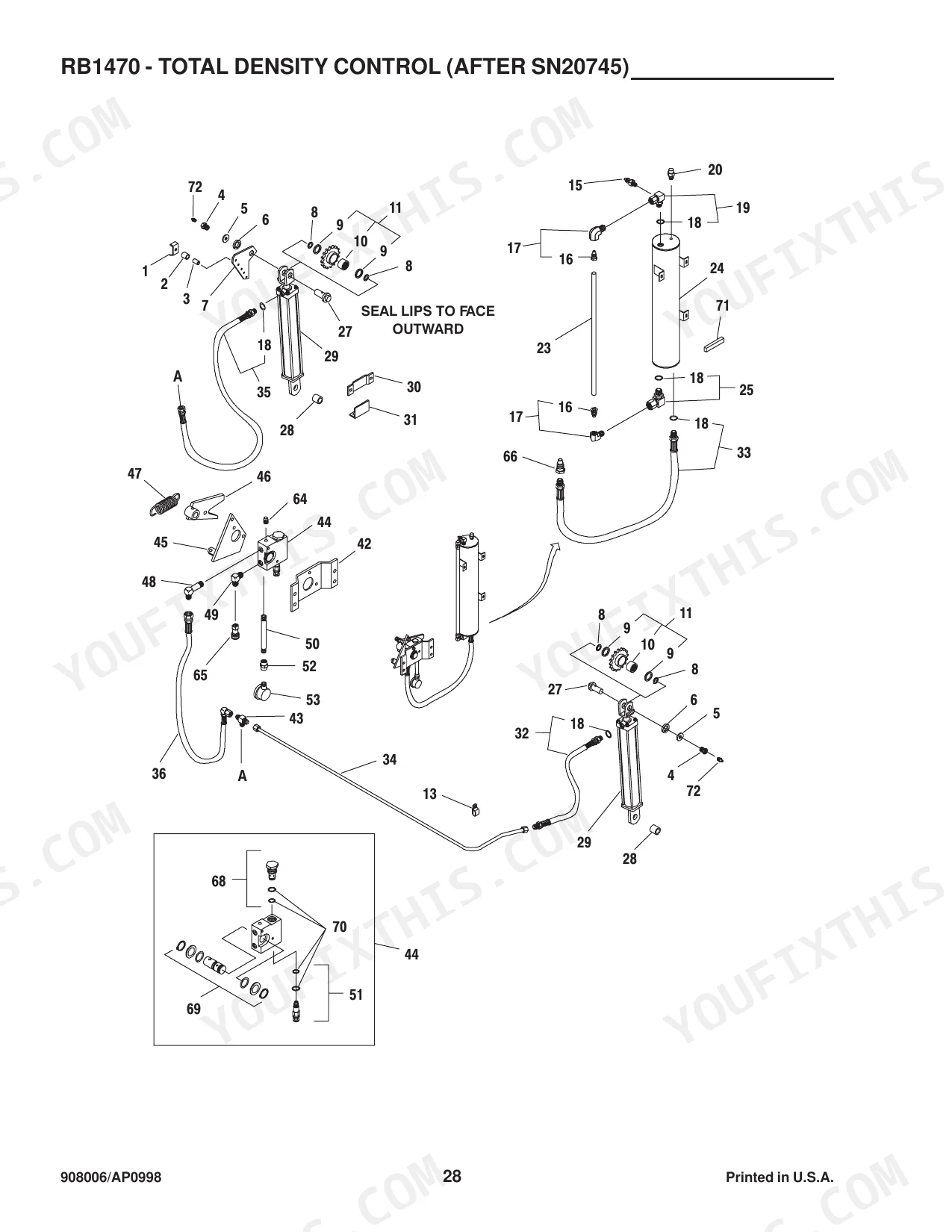

| Total Density Control | 30-33 | Valve Tank, Sleeve, Elbow, O-Ring, Relief Valve, Manifold |
| Cross Frame & Twine Tie Mechanism | 34-35 | Shield, Rod End, Trip Assembly, Spring Torsion, Cutoff Frame, Actuator Mount |

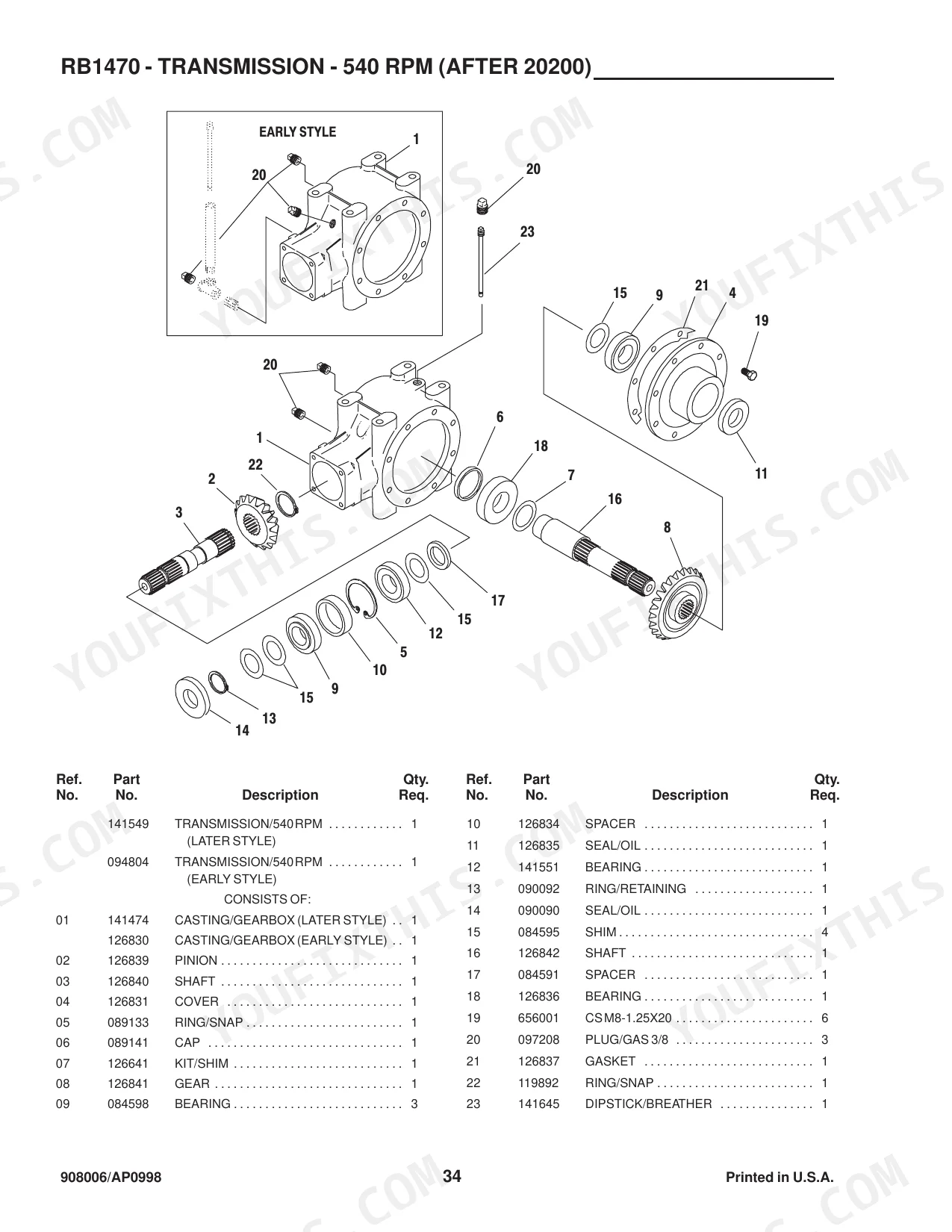

| Transmissions | 36-37 | Casting Gearbox, Pinion, Shaft, Cover, Snap Ring, Gear |

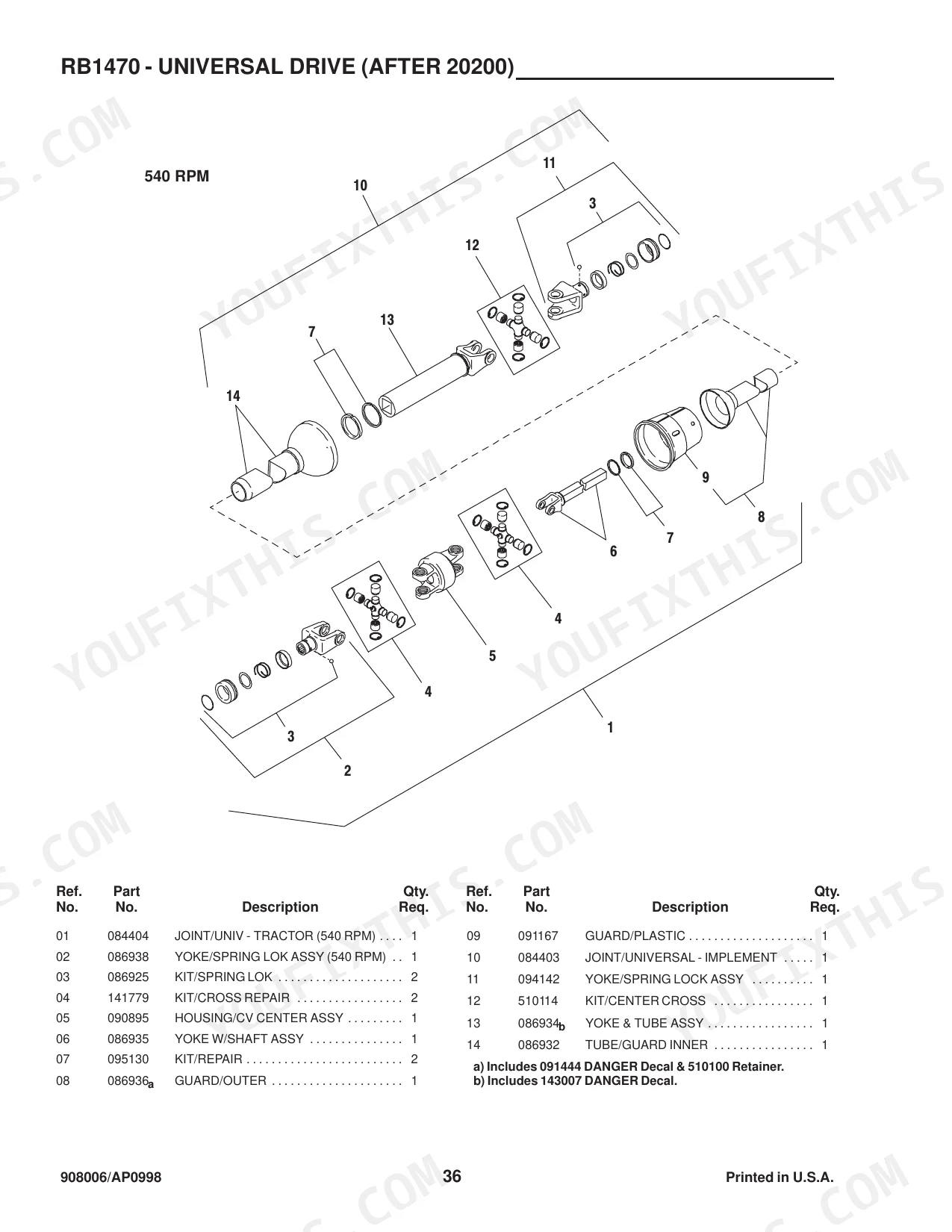

| Universal Drives | 38-39 | Joint Universal, Slide Lock Assembly, Slide Lok, Center Joint, Housing, Yoke Shaft Assembly |
| Hitchjacks | 40-41 | Jack Handle, Pin and Chain, Bearing, Gear, Support Plate, Cap Tube |
| TDC Cylinder | 42 | Rod Assembly |
| Options & Accessories | 43-52 | Actuator, RPM Conversion Kit & Universal Drive, Manual-Electric Twine Tie Control Kit, Control Box, Auto-Electric Twine Tie, Crowder Wheel Kit, Stripper Assembly Kit |
| Sprocket & Roller Part Number Guide | 53 | Shuttle Rollers |
| Standard Hardware Torque Specifications | 61-62 | Unified National Thread, Metric Course Thread, Grade 2, Grade 5, Grade 8, Grade 12.9 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Relief Pressure | 300 PSI | p. 31 |
| Safety Tow Chain Capacity | 5 Ton | p. 52 |
Gehl 1470, RB1470 Common Problems This Manual Covers
Gehl RB1470 round baler driveline shear bolt keeps shearing, need the correct shear bolt kit part number
Order shear bolt kit 127119 from the Implement Driveline & Gearbox list on page 14; it holds eight shear bolts and eight lock nuts. Check shear bolt holder 059272 too. Confirm your serial number first: the tractor universal joint is 084404 after SN20200 and 084406 before SN20201. Disconnect the PTO before reaching into the driveline, as the 093458 WARNING decal on page 4 states.
Manual Section: Implement Driveline & Gearbox p. 14Gate hydraulic cylinder or hose leaking oil, need the seal kit and hose part numbers
Check the Gate Hydraulics diagram on page 26 and its parts list. The 2X15-1/8 gate cylinder is 087403 (two required), and its seal kit orders as 066551. Match hoses by length: 087396 is 90 in, 087397 is 72 in, and 087400 is 100 in. Stay clear of the gate while tracing hoses, per the 093460 DANGER decal on page 4.
Manual Section: Gate Hydraulics p. 26Total density control relief valve or pressure gauge failed, need part numbers for balers after SN20745
Verify your serial number is after SN20745, then use the Total Density Control list on page 31. Relief valve 127189 is rated 300 PSI, the gauge is 070777, the check valve is 094190, the manifold is 094189, and the seal kits are 094193 and 094192. Reservoir assembly is 118713 with magnet 071558; the 093459 WARNING Reservoir Contamination decal on page 4 applies when you open it.
Manual Section: Total Density Control p. 31TDC density cylinder leaking oil, need the seal kit and internal component breakdown
Check the Total Density Control list on page 31 for cylinder assembly 127115 (two required), then turn to the TDC Cylinder breakdown on page 42. That page identifies the seal kit, piston, rod assembly, cap rod, cap anchor and tube. Order the seal kit by the reference number shown there, and verify your baler is after SN20745 before ordering.
Manual Section: TDC Cylinder p. 42Belt tracking roller or bale starter roller worn out, can't identify the matching roller part number
Check the Sprocket & Roller Part Number Guide on page 51. It sorts shuttle rollers, rear rollers, the bale starter roller, bale positioning roller, belt tracking roller and gate roller assembly. Then cross-reference bearings, collars and retainers on Upper Belts, Rollers & Related Components (page 22), or bearings and housings on Lower Rollers (page 24), before ordering.
Manual Section: Sprocket & Roller Part Number Guide p. 51Safety decals faded after repainting the baler, need the decal set and paint part numbers
Order decal set 115577 for the RB1470 from the Decal Locations chapter on page 4, and circle each decal against the location photos before refinishing. Paint is 906315 (one gal. AG Red) and 902872 (one qt. Light Grey). Order 143007 DANGER Shield Missing separately, since it is not in the kit. Replacement striping is 126757 (10 ft roll).
Manual Section: Decal Locations p. 4Frequently Asked Questions
What is the part number for the FENDER/ASSY RT in this manual?
Page 9 lists part number 084671 for the FENDER/ASSY RT. p. 9
What is the part number for the COVER/TWINE BOX ASSY LT in this manual?
Page 10 lists part number 087600 for the COVER/TWINE BOX ASSY LT. p. 10
What is the part number for the AXLE/ADJ ASSY in this manual?
Page 13 lists part number 084682 for the AXLE/ADJ ASSY. p. 13
What is the part number for the SHIELD/SAFETY in this manual?
Page 14 lists part number 126375 for the SHIELD/SAFETY. p. 14
What is the part number for the SPACER/PIVOT in this manual?
Page 15 lists part number 066540 for the SPACER/PIVOT. p. 15
How will I receive this Gehl 1470 Parts Catalog?
Straight to your device: 62 pages of searchable Parts Catalog, downloadable the moment payment goes through.
Can I print pages of this Gehl 1470 manual for my own shop?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
