![Hitachi EX200-5 (Japanese Domestic Version) Repair Manual [Excavator]](https://youfixthis.com/wp-content/uploads/2014/12/2019-12-01_15-43-27-300x300.jpg)
Part of the Hitachi Repair Manuals.
This is the factory repair set for the Hitachi EX-5 series mid-to-large excavators: EX220-5, EX300-5, EX300LC-5, EX330LC-5, EX350H-5, EX350LCH-5, EX370-5 and EX370HD-5, built 1998-2004. It combines the Technical Manual (system operation, performance standards, troubleshooting) with the Workshop Manual (teardown and rebuild of every major component). You get pump device, control valve, swing and travel device service, boom/arm/bucket and cylinder work, undercarriage repair, and a full ISUZU 6SD1 engine section from removal through rebuild. The performance test chapter gives the actual numbers - 258 L/min per main pump, 31.4 MPa main relief, 34.3 MPa on power boost - so you can measure a tired machine against factory spec instead of guessing.
What's Inside This Hitachi EX220-5, EX300-5, EX300LC-5, EX330LC-5, EX350H-5, EX350LCH-5, EX370-5, EX370HD-5 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General and Specifications | 40-59 | Machine and Engine Specifications, Capacities, Component Weights, And Serial Numbers |
| System Operation | 60-97 | Control System, Hydraulic System, And Electrical System Operation |
| Component Operation | 98-181 | Pump Device, Control Valve, Swing Device, And Travel Device Operation |

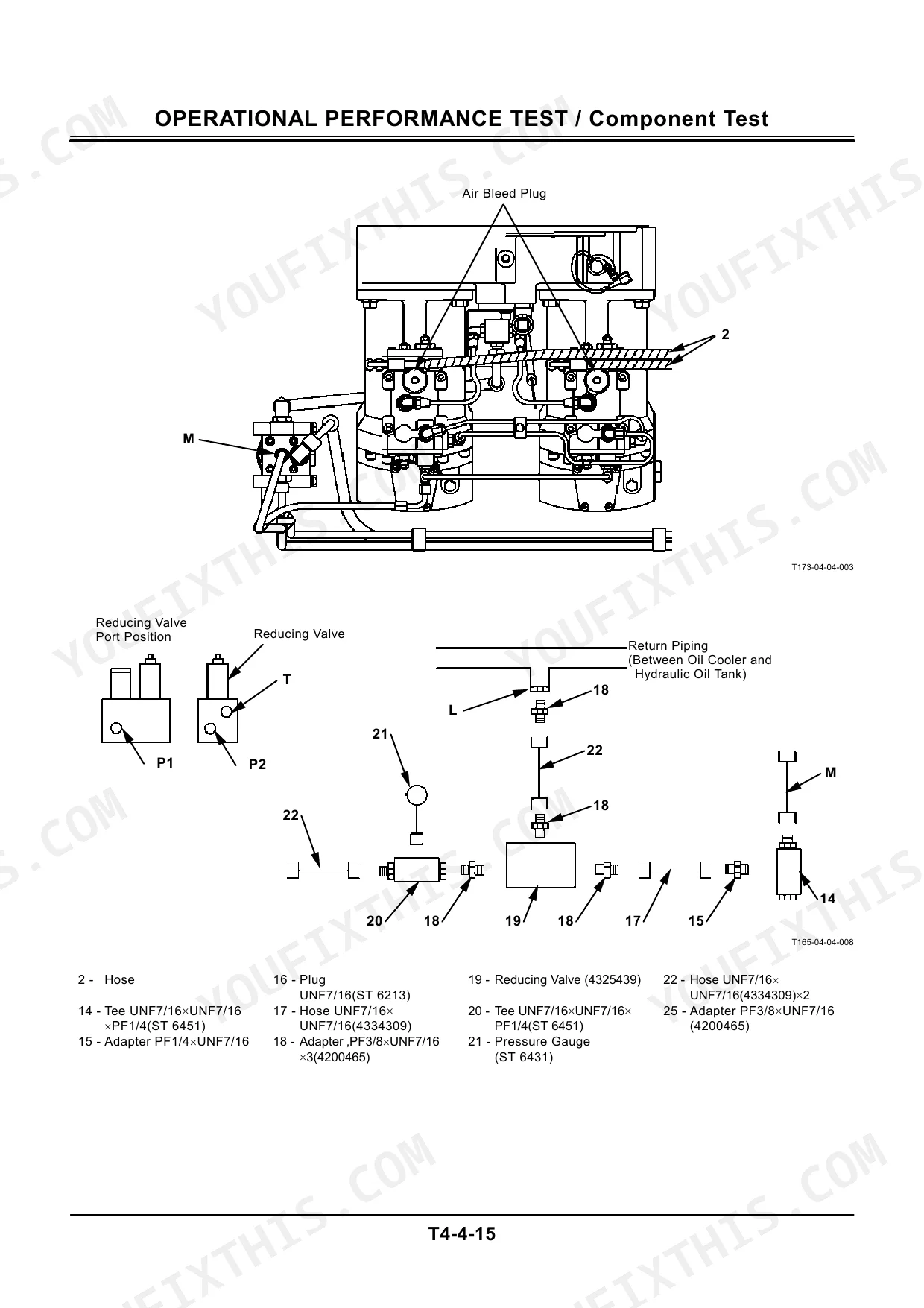

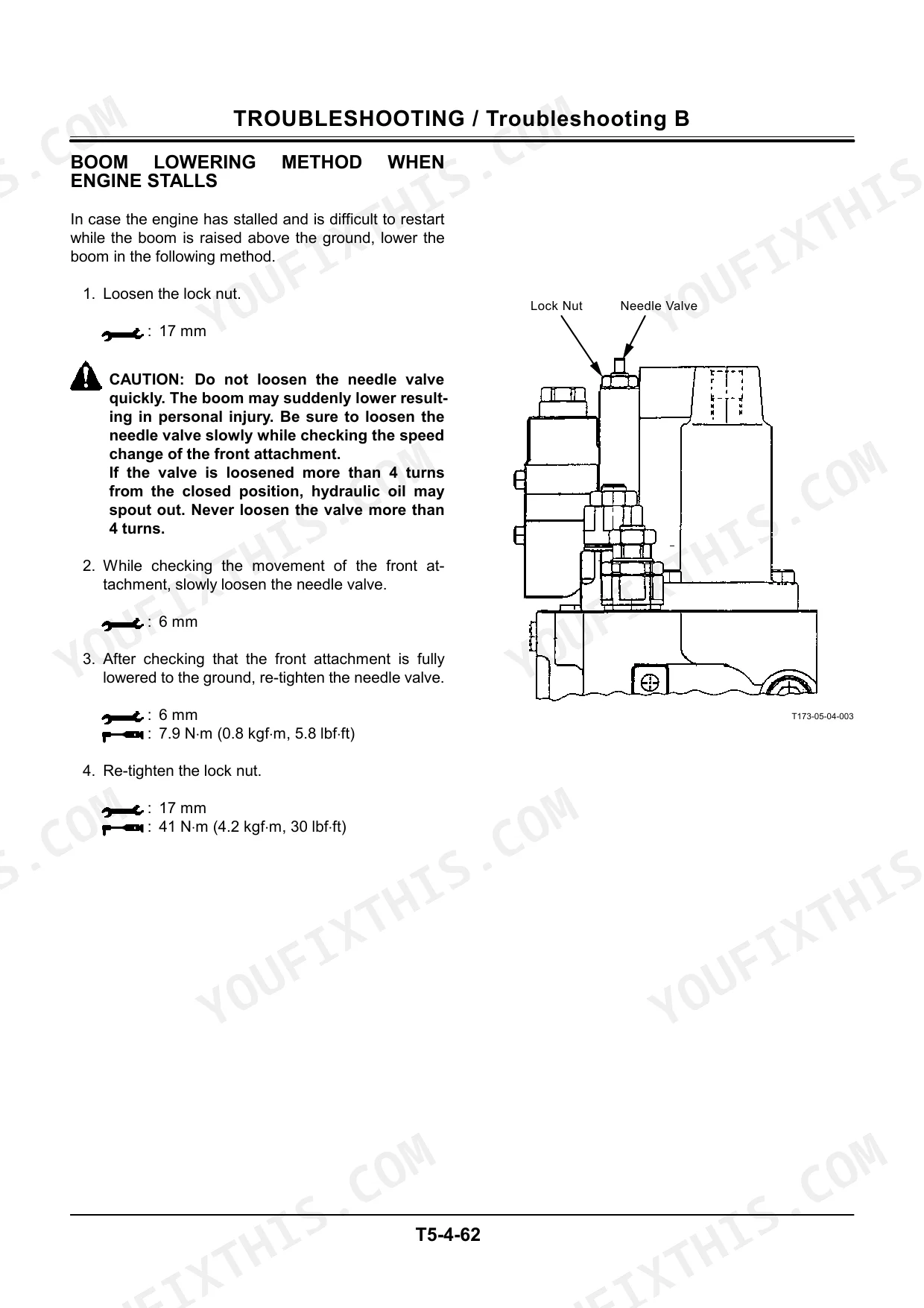

| Operational Performance Test | 182-239 | Engine Speed and Power Checks, Main Pump Flow, Relief and Cracking Pressure Tests, Cylinder Cycle Times and travel/swing Speed Standards |
| Troubleshooting | 240-379 | Symptom-Based Fault Diagnosis for Engine, Hydraulic, Swing, Travel and Electrical Circuits, With Performance Test Values and Probable-Cause Charts |
| Workshop General Information | 380-393 | Repair Instructions, Tightening Torques, And Maintenance Standards |
| Upperstructure | 394-571 | Pump Device, Control Valve, Swing Device, And Cylinder Removal and Repair |
| Undercarriage | 572-731 | Travel Device, Track Adjuster, And Center Joint Service |
| Front Attachment | 732-767 | Boom, Arm, Bucket, And Cylinder Service |
| Engine | 768-976 | Isuzu 6SD1 Engine Removal, Teardown, And Rebuild |

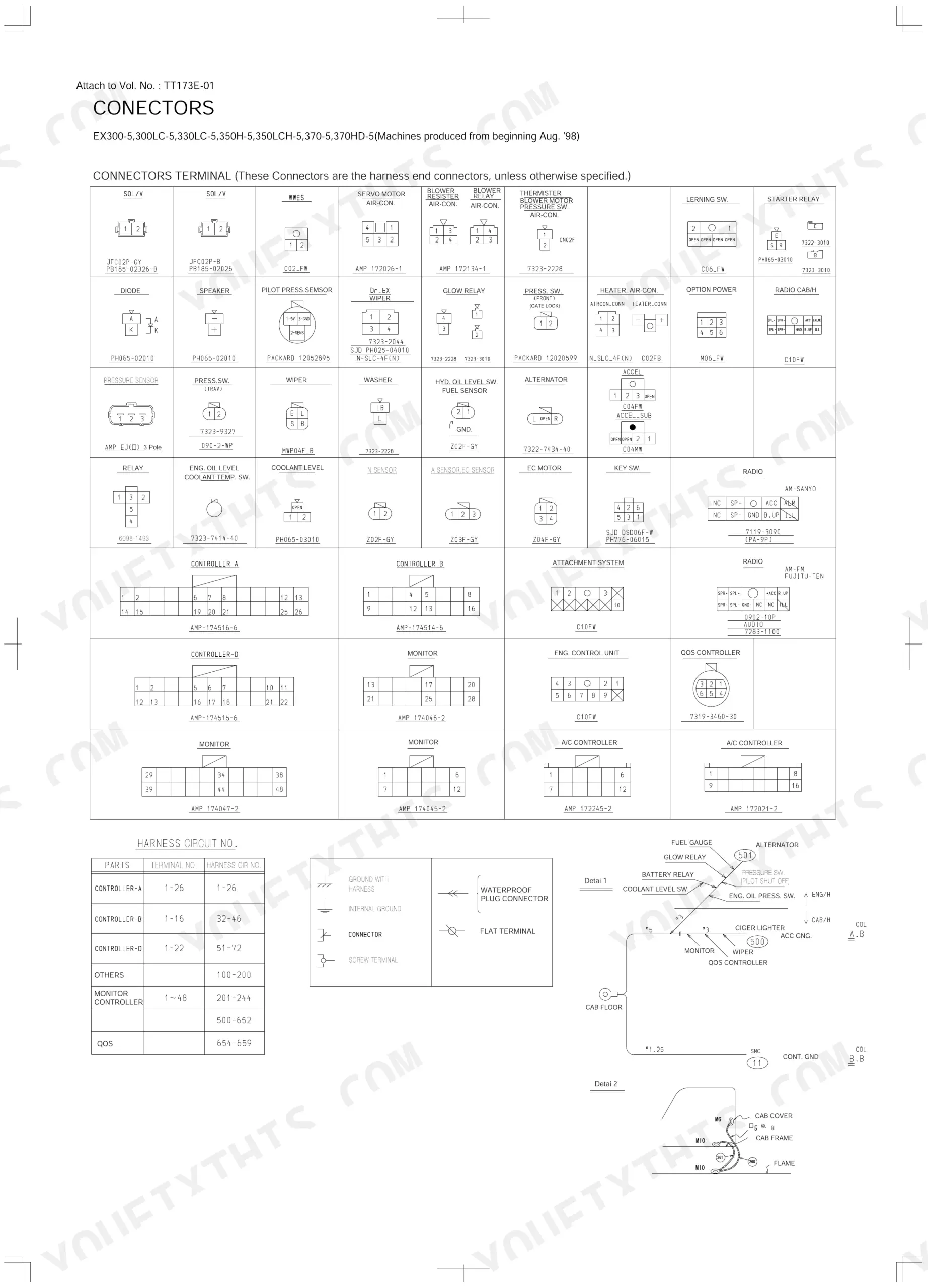

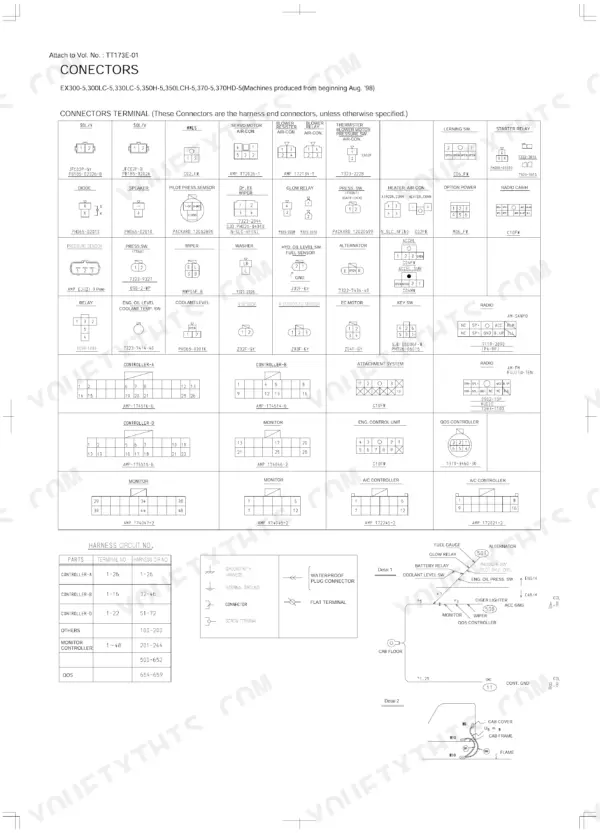

| Supplement | 977-1007 | Supplementary Specifications, Wiring References and Revisions for Later-Production Ex-5 Machines |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| EX300-5, EX300LC-5, EX330LC-5, EX350H-5, EX350LCH-5, EX370-5, EX370HD-5 | ||
| Rated Power | 169 kW (230 PS) at 1900 min-1 | p. 42 |
| ISUZU B-6SD1TQA-01 Engine | ||
| Rated Power | 169.2 kW (230 PS) at 1900 min-1 | p. 48 |
| HP Mode Power | 176.5 kW (240 PS) at 2000 min-1 | p. 48 |
| System Pressure (Engine Injection) | 19.6 MPa (200 kgf/cm², 2844 psi) | p. 49 |
| System Pressure (Cylinder Compression) | 2.8 MPa (29 kgf/cm², 412 psi) | p. 49 |
| EX300-5, EX300LC-5, EX330LC-5 | ||
| HP Mode Power | 177 kW (240 PS) at 2000 min-1 | p. 42 |
| All models | ||
| Coolant Capacity (Radiator) | 18 L (4.8 US gal) | p. 51 |
| Coolant Capacity (Oil Cooler) | 11.1 L (2.9 US gal) | p. 51 |
| Hydraulic Pump Flow (Main Pump) | 258±3 L/min (76.9 US gpm)×2 | p. 51 |
| Hydraulic Pump Flow (Pilot Pump) | 31.9 L/min (8.4 US gpm) | p. 51 |
| System Pressure (Radiator Air-tight testing) | 68.6 kPa (0.7 kgf/cm², 10 psi) | p. 51 |
| System Pressure (Radiator Cap opening) | 49 kPa (0.5 kgf/cm², 7 psi) | p. 51 |
| System Pressure (Oil Cooler) | 981 kPa (10 kgf/cm², 14 psi) | p. 51 |
| System Pressure (Control Valve Main Relief - Normal) | 31.4 MPa (320 kgf/cm², 1550 psi) | p. 51 |
| System Pressure (Control Valve Main Relief - Power Boost) | 34.3 MPa (350 kgf/cm², 4977 psi) | p. 51 |
| System Pressure (Control Valve Overload Relief - Boom raise/lower, Arm roll-in, Bucket roll-in) | 33.3 MPa (340 kgf/cm², 4835 psi) | p. 51 |
| System Pressure (Control Valve Overload Relief - Arm roll-out, Bucket roll-out) | 35.3 MPa (360 kgf/cm², 5120 psi) | p. 51 |
| System Pressure (Swing Brake Valve Relief) | 28.4 MPa (290 kgf/cm², 4125 psi) | p. 51 |
| System Pressure (Swing Parking Brake Cracking) | 2.45 MPa (25 kgf/cm², 356 psi) | p. 52 |
| System Pressure (Oil Cooler Bypass Check Valve Cracking) | 392 kPa (4 kgf/cm², 57 psi) at 5 L/min (1.3 US gpm) | p. 52 |
| Transmission Number of Speeds | 2 speeds (fast/slow) | p. 42 |
| Track Shoe Width | 600 mm (24 in) (Grouser shoe) | p. 42 |
| EX300-5, EX300LC-5, EX330LC-5, EX350H-5, EX350LCH-5 | ||
| System Pressure (Travel Brake Valve Relief) | 34.8 MPa (355 kgf/cm², 5048 psi) | p. 52 |
| System Pressure (Travel Parking Brake Cracking) | 0.95 to 1.02 MPa (9.7 to 10.4 kgf/cm², 138 to 148 psi) | p. 52 |
| Overall Width (Excluding Rear-View Mirrors) | 3190 mm (10 ft 6 in) | p. 42 |
| EX370HD-5 | ||
| System Pressure (Travel Brake Valve Relief) | 36.8 MPa (375 kgf/cm², 5330 psi) | p. 52 |
| System Pressure (Travel Parking Brake Cracking) | 1.66 MPa (17 kgf/cm², 242 psi) | p. 52 |
| EX370-5, EX370HD-5 | ||
| Overall Width (Excluding Rear-View Mirrors) | 3580 mm (11 ft 9 in) | p. 44 |
| Operating Weight | 36000 kg (79370 lb) | p. 44 |
| Basic Machine Weight | 28100 kg (61950 lb) | p. 44 |
| EX300-5, EX300LC-5, EX330LC-5 (3.2 m Standard Arm) | ||
| Overall Height (Transport) | 3230 mm (10 ft 7 in) | p. 45 |
| EX370-5, EX370HD-5 (3.2 m Standard Arm) | ||
| Overall Height (Transport) | 3340 mm (11 ft) | p. 47 |
| EX300-5 | ||
| Operating Weight | 31000 kg (68340 lb) | p. 42 |
| Basic Machine Dry Weight | 23600 kg (52030 lb) | p. 42 |
| EX300LC-5, EX330LC-5 | ||
| Operating Weight | 31500 kg (63450 lb) | p. 42 |
| Basic Machine Dry Weight | 24100 kg (53130 lb) | p. 42 |
| EX350H-5 | ||
| Operating Weight | 32600 kg (71900 lb) | p. 43 |
| Basic Machine Weight | 24800 kg (54700 lb) | p. 43 |
| EX350LCH-5 | ||
| Operating Weight | 33200 kg (73200 lb) | p. 43 |
| Basic Machine Weight | 25400 kg (56000 lb) | p. 43 |
Hitachi EX220-5, EX300-5, EX300LC-5, EX330LC-5, EX350H-5, EX350LCH-5, EX370-5, EX370HD-5 Common Problems This Manual Covers
Weak digging force or main pump suspected worn after high hours
Run the pump flow and main relief checks in the Operational Performance Test section against the 258 L/min and 31.4 MPa (34.3 MPa power boost) standards, then follow the Upperstructure chapter for pump device removal, disassembly and part inspection if flow is actually down.
Manual Section: Operational Performance Test / UpperstructureEngine overheating during heavy work
The Engine and Troubleshooting sections give the radiator air-tight test (68.6 kPa), cap opening pressure check (49 kPa), thermostat and water pump inspection, so you can prove which cooling component failed before replacing anything on a hot, hard-to-reach package.
Manual Section: Engine / TroubleshootingMachine tracks off line or one side travels weak
Use the travel performance and mistrack tests in Operational Performance Test to isolate the weak side, then the Undercarriage section for travel device teardown, center joint seal replacement and track adjuster service - center joint seals are a frequent culprit on EX-5 machines.
Manual Section: Operational Performance Test / UndercarriageSwing drifts on a slope or groans when stopping

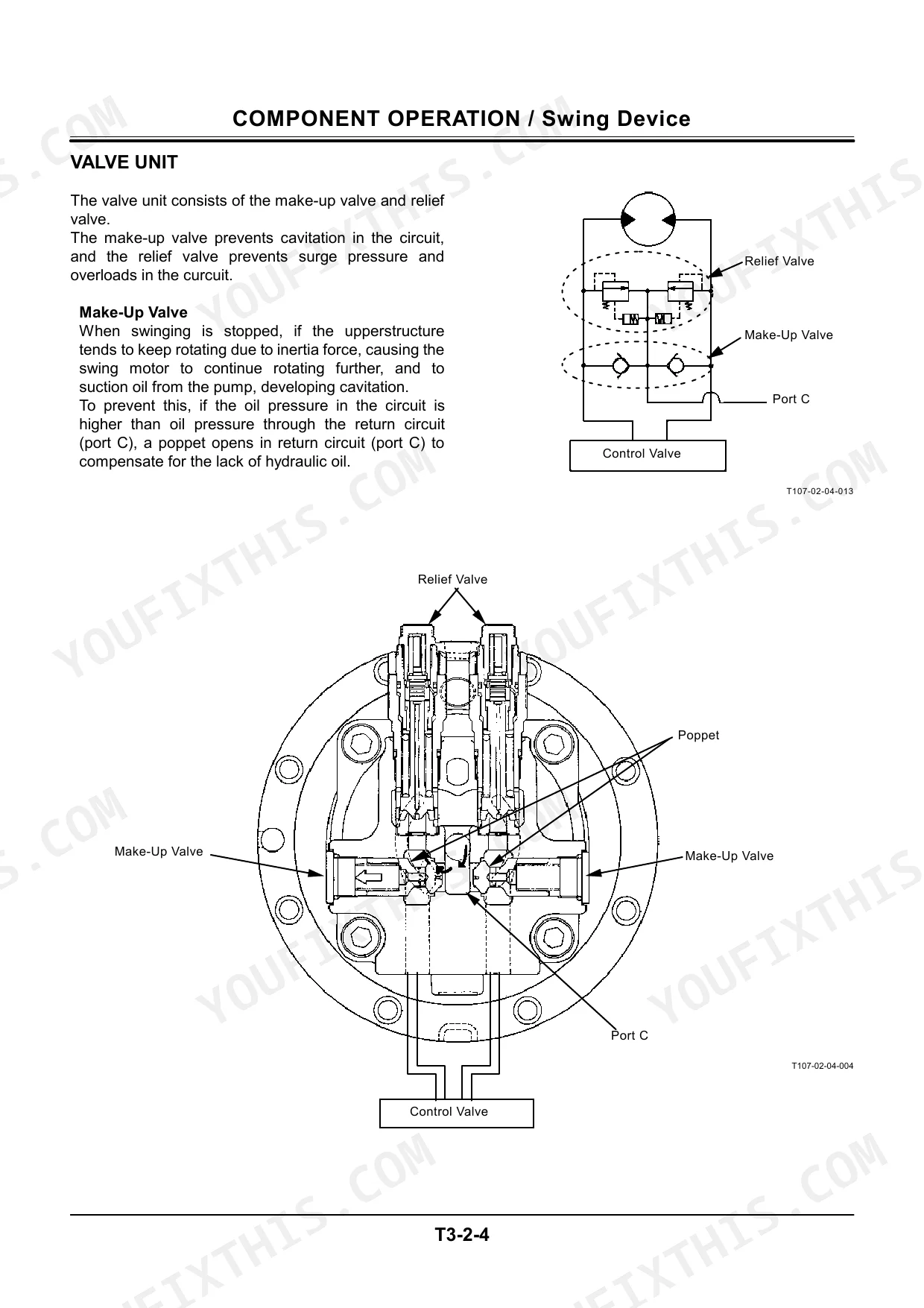

Component Operation explains how the swing brake valve (28.4 MPa relief) and parking brake work, and the Upperstructure chapter covers swing device removal, reduction gear teardown and maintenance standards for bearings and brake parts, so you can tell valve trouble from mechanical wear.
Manual Section: Component Operation / UpperstructureFrequently Asked Questions
My EX300LC-5 has lost power in the boom and arm and moves jerky under load. Will this manual help me find out if the main pump is worn before I spend money on one?
Yes, and do the test before buying anything. The Operational Performance Test section gives the factory pump delivery standard - 258 L/min per main pump - plus the procedures to measure flow and relief pressures on the machine. Compare your readings to spec: if flow is down, the Upperstructure section covers pump device removal and disassembly; if pressures are off, Troubleshooting walks you through the control valve and regulator side first. Plenty of 'bad pumps' turn out to be a relief valve or pilot problem.
Does it cover the ISUZU 6SD1 engine, or just point me to a separate engine manual?
The engine section is in here: removal and installation, teardown, inspection and rebuild of the 6SD1, with the working numbers you need - 2.8 MPa cylinder compression standard, injection pressure of 19.6 MPa, valve and head work. For a machine this age, the common jobs are head gaskets, injectors and cooling system, and all of that is covered without buying a second book.
The machine overheats when digging hard. Where do I start?
Start with the cooling system checks in the Engine and Troubleshooting sections rather than throwing parts at it. The manual gives the radiator air-tight test pressure (68.6 kPa) and cap opening pressure (49 kPa), thermostat and water pump inspection, and coolant capacities (18 L radiator, 11.1 L oil cooler). On these machines a partially clogged radiator core or a lazy cap fails those simple tests fast. Also remember hydraulic heat feeds the same cooling package - the performance test section helps rule out a relief valve dumping oil over relief all day.
Can I reseal my own boom and arm cylinders with this?
Yes. The Front Attachment section covers boom, arm and bucket cylinder removal, disassembly, seal replacement and reassembly, with maintenance standards so you can check rod and tube condition while it is apart. Cylinder seal kits are one of the most common jobs on 20-plus-year-old EX-5 machines, and doing it yourself is a fraction of a shop rebuild - just check the rod for chrome damage first or the new seals will not last.
Does it include tightening torques and service limits, or just procedures?
Both. The Workshop General Information section carries the tightening torque tables and general repair instructions, and each component chapter (swing device, travel device, control valve, cylinders) includes maintenance standards - the wear limits that tell you whether a part goes back in or gets replaced. That is the difference between a factory manual and a parts-swapping guess.
