Part of the Hitachi Repair Manuals.

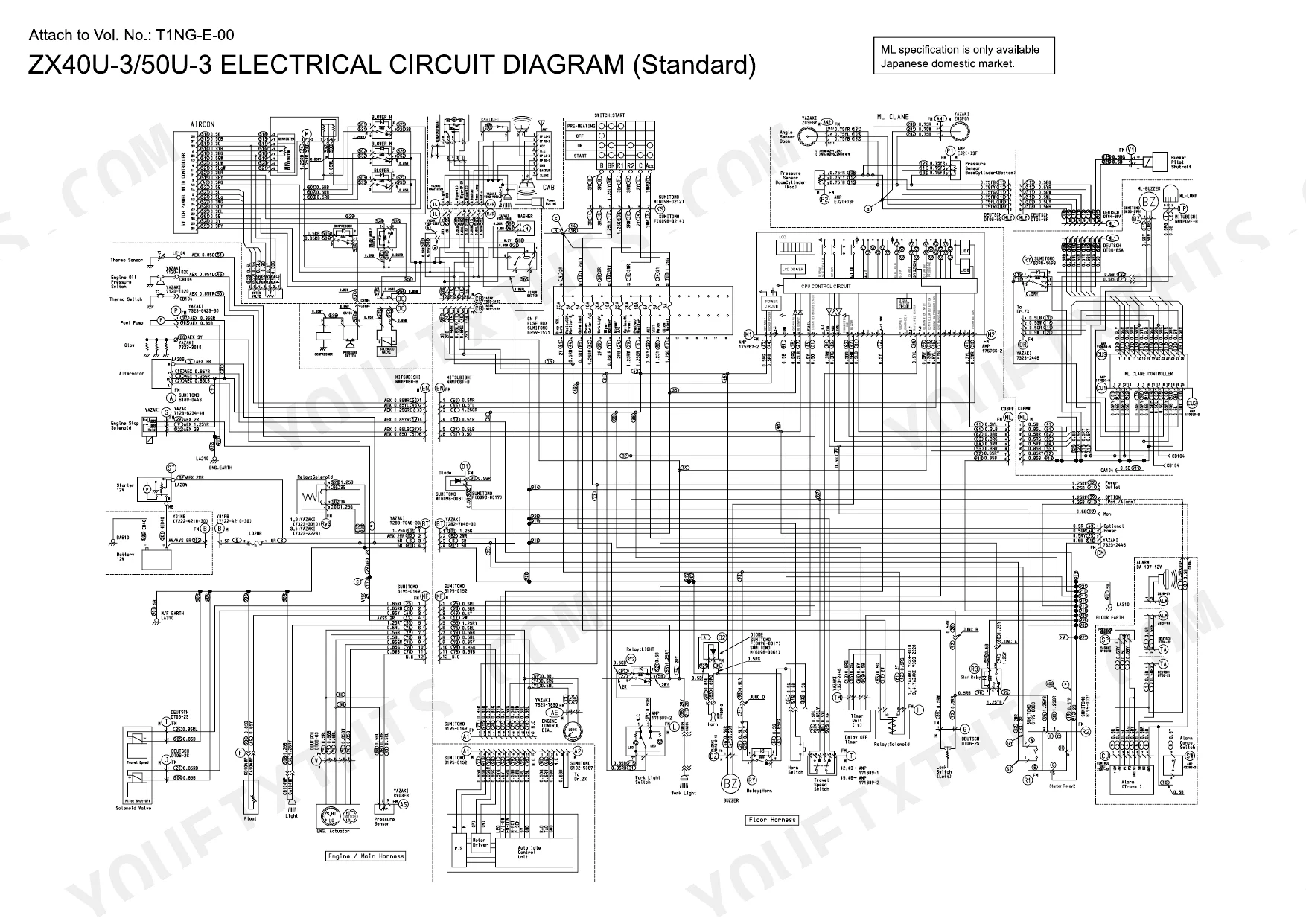

Wrenching on your Hitachi ZX40U-3? This 375-page Technical Manual (OEM #T1NG-E-00) covers the ZX 40U-3, 40U-3F, 50U-3, and 50U-3F hydraulic excavators, with sister models ZX27U-3, 30U-3, and 35U-3 sharing the same core systems. You get factory wiring diagrams for every key-switch circuit, hydraulic schematics tracing the pilot and main circuits, and a full troubleshooting section organized by error code, symptom, and monitor fault. Performance test standards pin down travel speed, swing drift, cylinder cycle times, and pump P-Q curves. Set the main relief valve to 24.5 MPa (3,550 PSI) and pilot pressure to 4.1 MPa; those numbers come straight from Hitachi, not a forum thread. No more chasing electrical gremlins with a test light and a hunch. The PDF is bookmarked with a live text layer: search any spec, jump to any circuit, get back in the seat.
What's Inside This Hitachi ZX40U-3 / ZX50U-3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | To the Reader, Additional References, Manual Composition, Page Number |
| Safety | 5-36 | Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Inspect Machine |

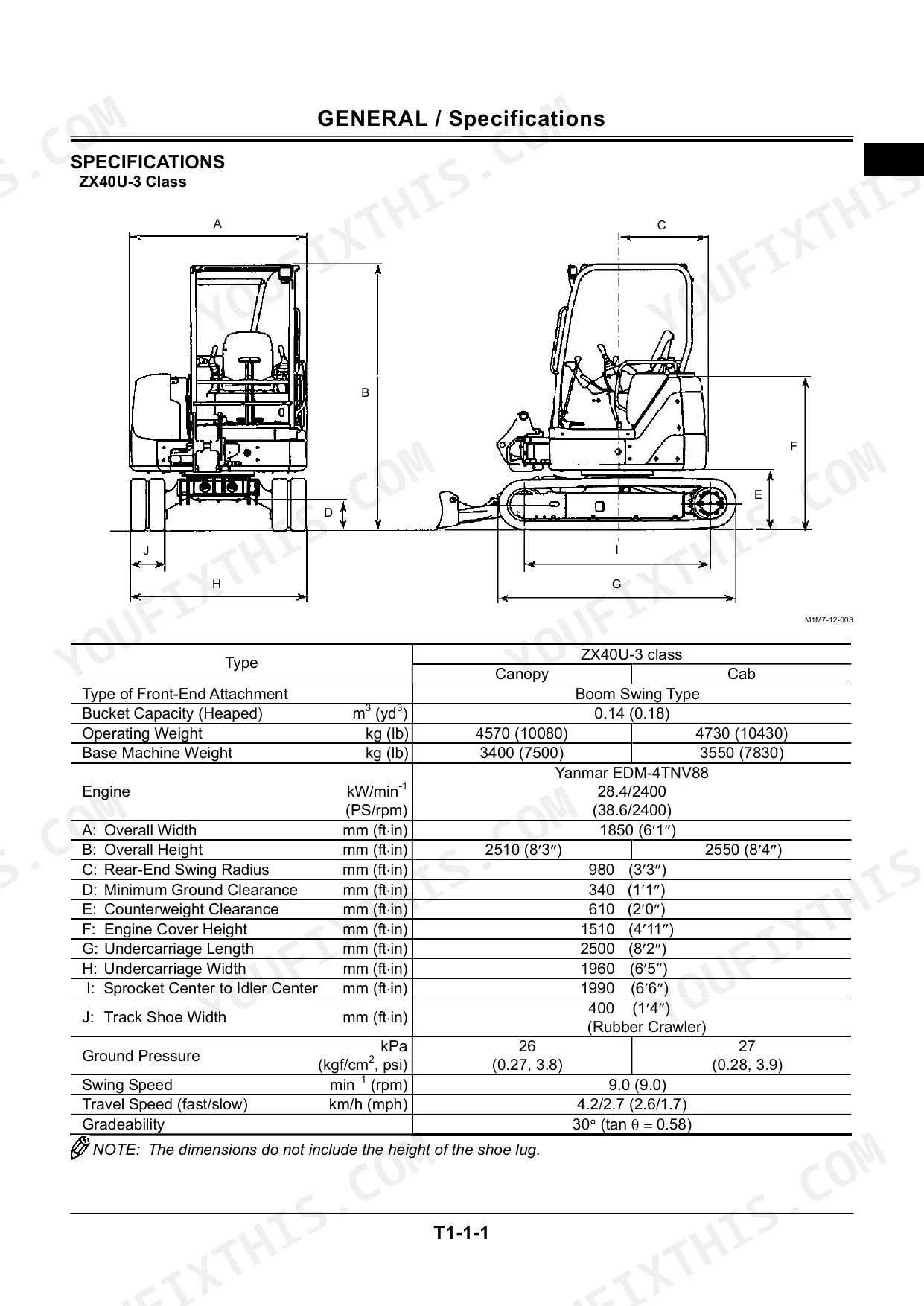

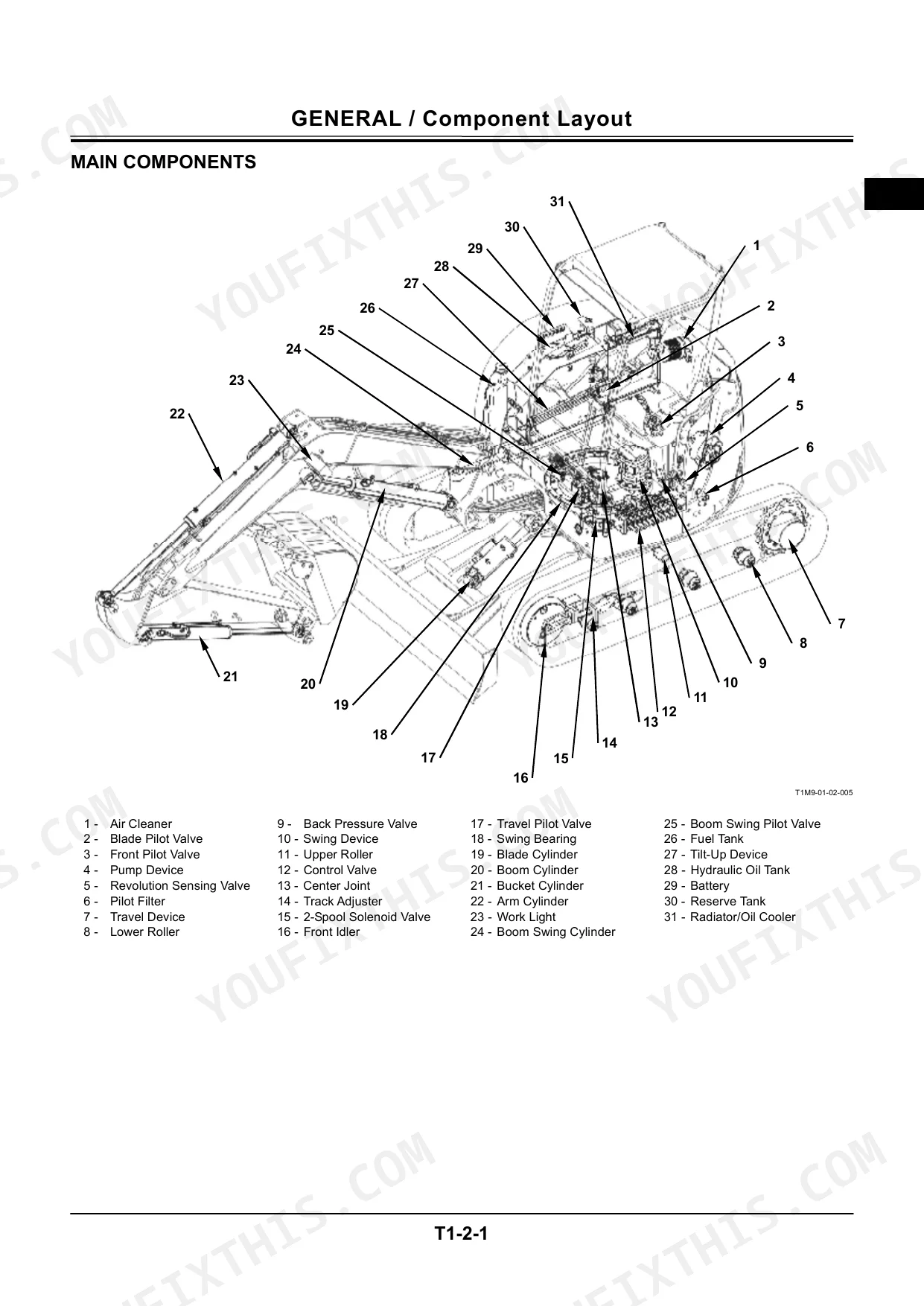

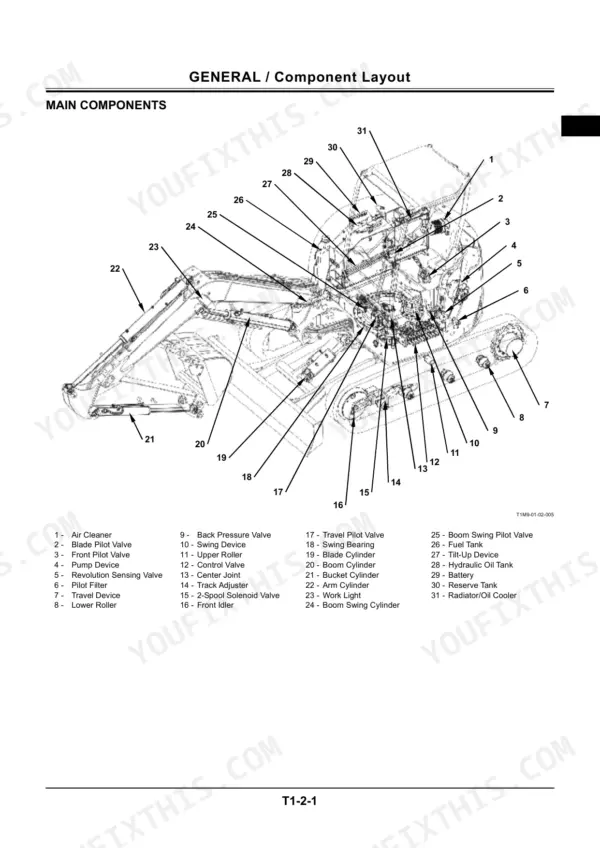

| General | 39-64 | Specifications, Working Ranges, Component Layout, Engine, Hydraulic Component, Electrical Component |

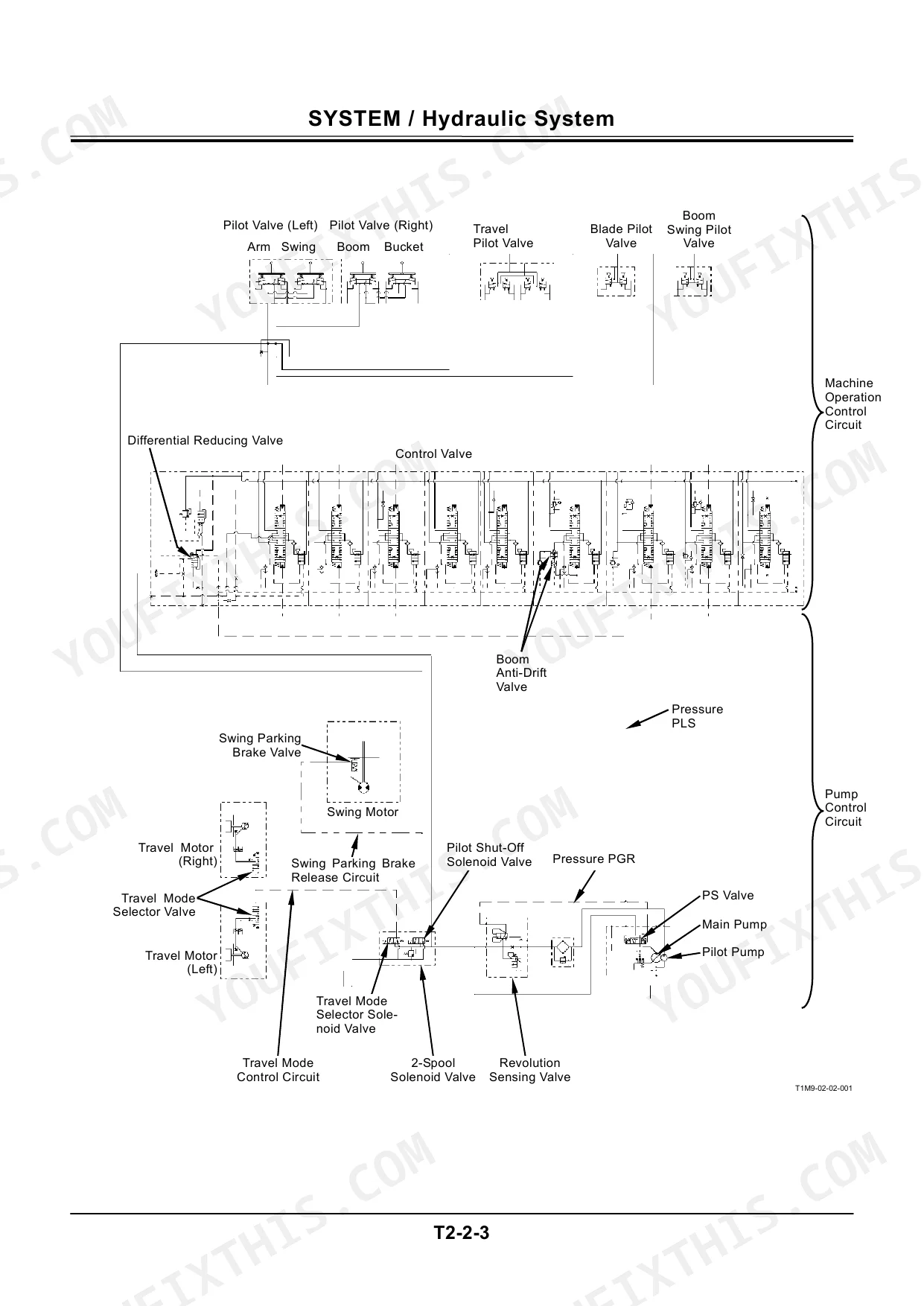

| System | 65-118 | Control System, Engine Control, Pump Control, Hydraulic System, Pilot Circuit, Electrical System |
| Component Operation | 119-212 | Pump Device, Revolution Sensing Valve, Swing Device, Control Valve, Pilot Valve, Travel Device |

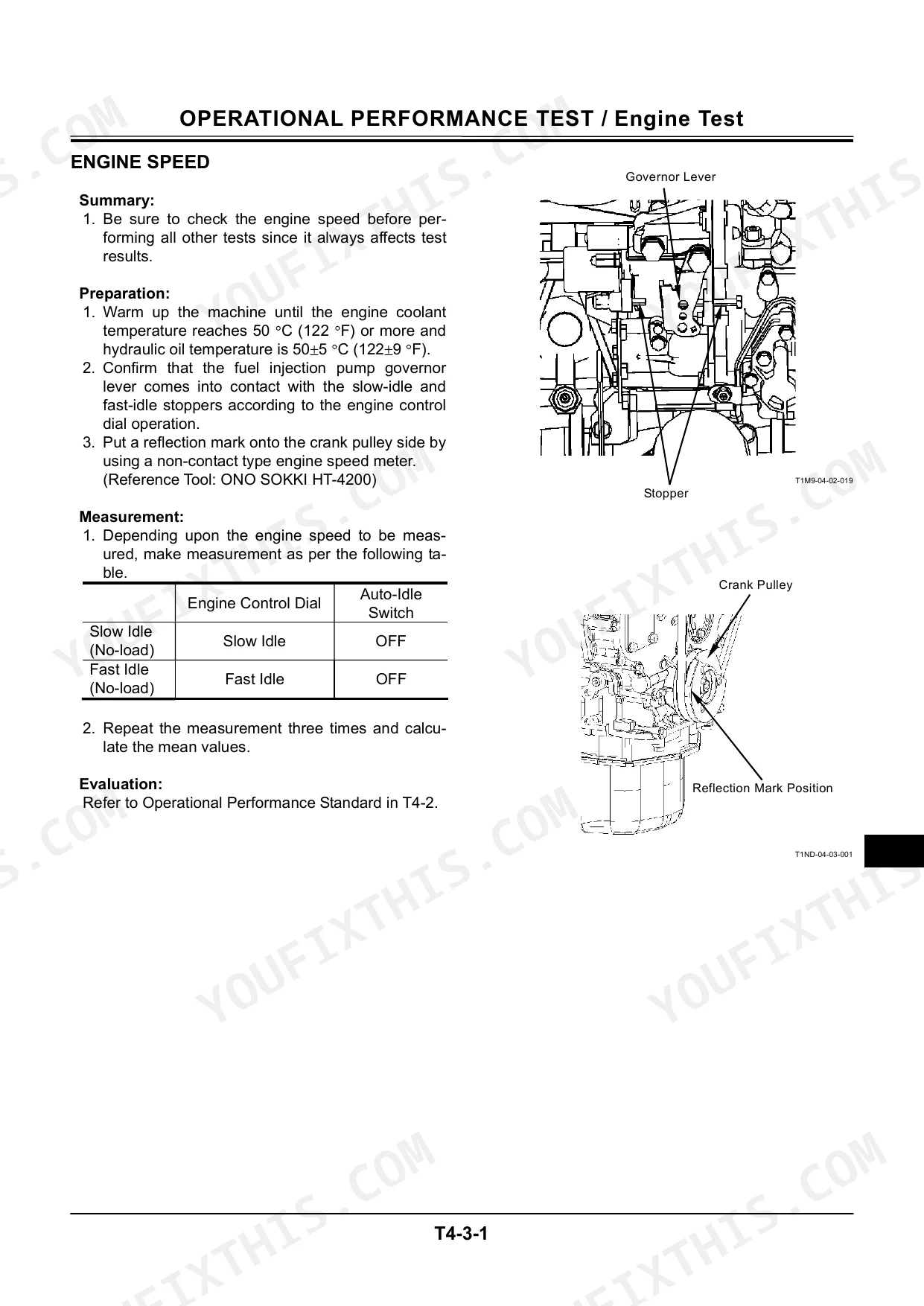

| Operational Performance Test | 213-270 | Engine Test, Excavator Test, Component Test, Governor Adjustment |

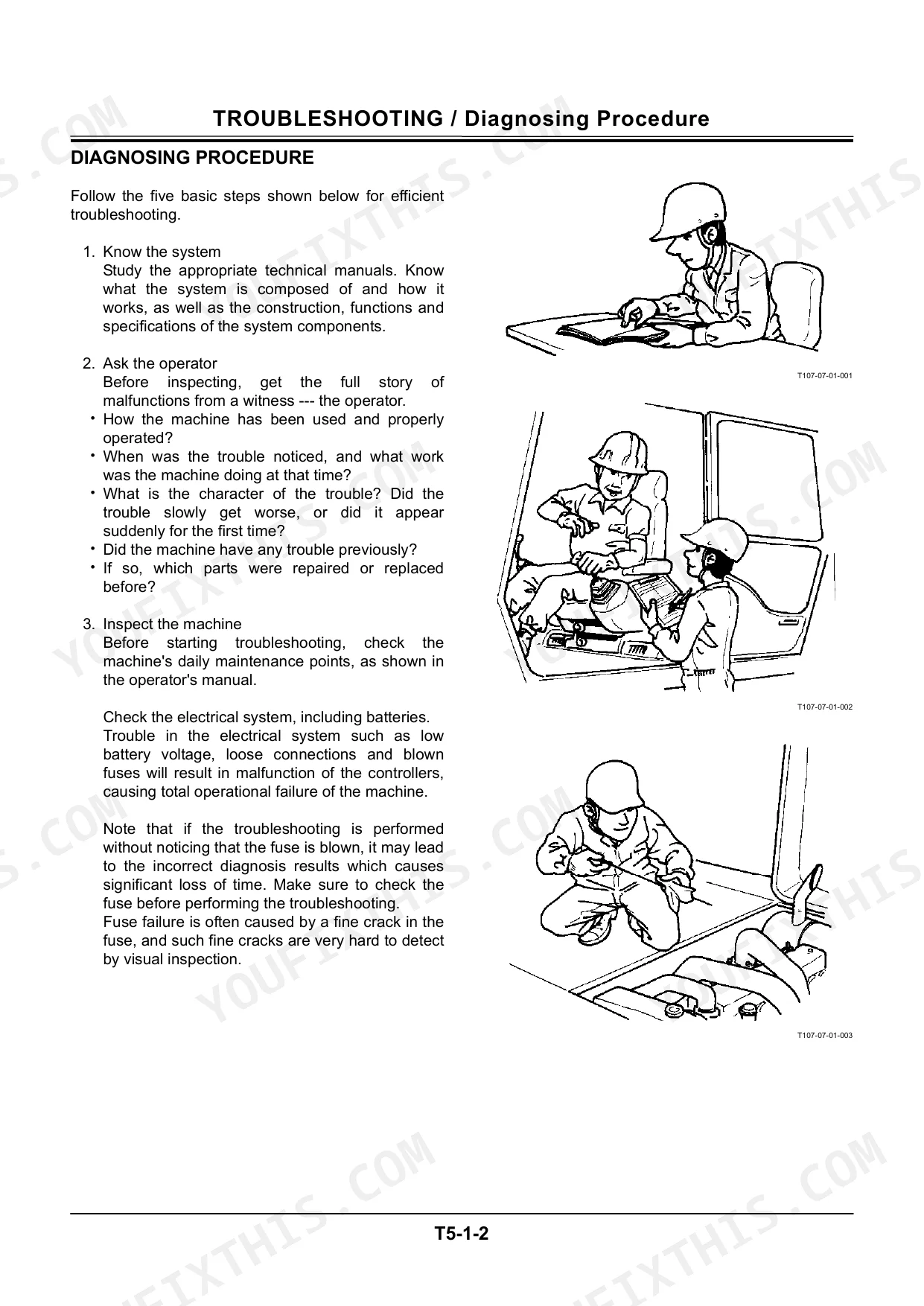

| Troubleshooting | 271-375 | Diagnosing Procedure, Troubleshooting a, Troubleshooting B, Troubleshooting C, Electrical System Inspection |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main Relief Set-Pressure | 24.5 MPa (250 kgf/cm2, 3550 psi) | p. 58 |
| Relief Set Pressure | 4.1 ± 0.2 MPa (42 ± 2 kgf/cm2, 595 ± 29 psi) | p. 60 |
| Thermostat Cracking temp. | 71 °C (160 °F) | p. 53 |
| Thermostat Full open temp. | 85 °C (185 °F) | p. 53 |
| Back pressure valve constant pressure | 0.3 MPa (3.06 kgf/cm², 43.5 psi) | p. 203 |
| Main Relief Valve Set Pressure (Main Pumps P1) | 25.3 ± 1.0 MPa (258 ± 10 kgf/cm², 3670 ± 145 psi) | p. 219 |
| Pilot relief valve tightening torque | 15 to 20 N·m | p. 249 |
| Swing relief valve tightening torque | 15.7 ± 0.1 N·m | p. 253 |
| Swing motor drain hose connection torque | 39 N·m (4 kgf·m, 29 lbf·ft) | p. 256 |
| Travel motor drain hose connection torque | 44 N·m (4.5 kgf·m, 32.5 lbf·ft) | p. 258 |
| Operating Weight (Canopy) | 4570 kg | p. 41 |
| Operating Weight (Cab) | 4730 kg | p. 41 |
Hitachi ZX40U-3 / ZX50U-3 Common Problems This Manual Covers
Hitachi ZX50U-3 hydraulic power weak in all functions, boom and arm slow under load
Check hydraulic oil level and inspect the suction filter for restriction first. Test main relief pressure against the 25.3 ± 1.0 MPa (3670 ± 145 psi) P1 pump spec on page 219. If pressure reads low, adjust or replace the main relief valve and torque it to 34 to 39 N·m per page 252.
Manual Section: All Actuator System Troubleshooting p. 219Boom and bucket cylinders lack breakout force and drift down slowly under a loaded bucket
Test pilot pressure first; spec is 4.1 ± 0.2 MPa (595 ± 29 psi) on page 60. If pilot pressure checks good, inspect cylinder packing for internal leakage by watching for drift with levers in neutral. Replace seal kits on leaking cylinders, and torque the pilot relief valve to 15 to 20 N·m per page 249.
Manual Section: Troubleshooting p. 60Swing motion jerky and weak, upper structure stalls when swinging uphill on a slope
Measure swing relief pressure; spec is 21.6 ± 1.0 MPa (3130 ± 145 psi) on page 219. Check hydraulic oil level and condition before adjusting anything. If pressure checks good, inspect swing motor seals for internal leakage, retighten the drain hose connection to 39 N·m (29 lbf·ft) per page 256, and secure the relief lock nut to 15.7 N·m per page 253.
Manual Section: Swing System Troubleshooting p. 253Engine coolant temperature climbs into the red zone during continuous digging in warm weather
Check coolant level and blow debris out of the radiator fins with compressed air. Test the thermostat in heated water: it must start opening at 71 °C (160 °F) and reach full open at 85 °C (185 °F), per page 53. Replace it if it stays closed, then refill the radiator with 3.14 L of coolant and inspect the cap seal.
Manual Section: General p. 53Engine cranks slowly or will not start when temperature drops below freezing overnight
Load-test the 55 Ah battery listed on page 57 and clean both cable terminals before condemning the starter. Verify the glow plug relay clicks and the air heater draws current during pre-heat. Check the starter relay and fuse box connections, and confirm the fuel pump runs when the key switches on.
Manual Section: Engine Starting Difficulty at Low Temperature p. 57Frequently Asked Questions
What is the standard valve clearance for the engine?
The standard valve clearance for both inlet and exhaust valves is 0.15 to 0.25 mm when the engine is cold. p. 217
What is the compression pressure for the engine?
The engine compression pressure is 3.43 ± 0.1 MPa (35 ± 1 kgf/cm², 500 ± 14.5 psi) after engine warm-up. p. 217
What is the torque specification for tightening the lock nut on the main relief valve?
When tightening the lock nut on the main relief valve after adjustment, use a torque of 34 to 39 N·m (3.5 to 4 kgf·m, 25 to 29 lbf·ft). p. 252
What is the capacity of the radiator and oil cooler?
The radiator capacity is approximately 3.14 L (3.32 US qt), and the oil cooler capacity is approximately 1.43 L (1.51 US qt). p. 57
How much refrigerant should be charged into the air conditioner?
The required refrigerant quantity for the air conditioner is 550 ± 50 g. p. 332
What format is this Hitachi ZX40U-3 & variants manual in?
A 375-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Hitachi ZX40U-3 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
