Battery use, charging and maintenance, covering the external and built-in chargers, battery storage, emergency treatment and replacement of the storage battery, is the most technical ground covered in the 20-page Hyster T3.0UTS operator manual PDF (OEM ID 4279854) for the stand drive electric tow tractor. Around it, the document lays out intended use and the nameplate capacity limit, then the major components: display, steering, braking, operation control, keyswitch, emergency power off and charger connection wire. Main technical parameters list rated traction weight, maximum drawbar pull, driving motor power (1.2 kW) and battery capacity, followed by safe operation norms and the inspection, driving and after-operation routine. Expect 24V at 20-30A from the charger. When your pre-operation inspection reaches the brake, confirm clearance sits between 0.2mm and 0.8mm. Before you order a replacement battery or charger, check the 170 kg (375 lb) battery weight and charger output in the bookmarked battery section; the text layer is searchable too.
What's Inside This Hyster T3.0UTS Operator Manual

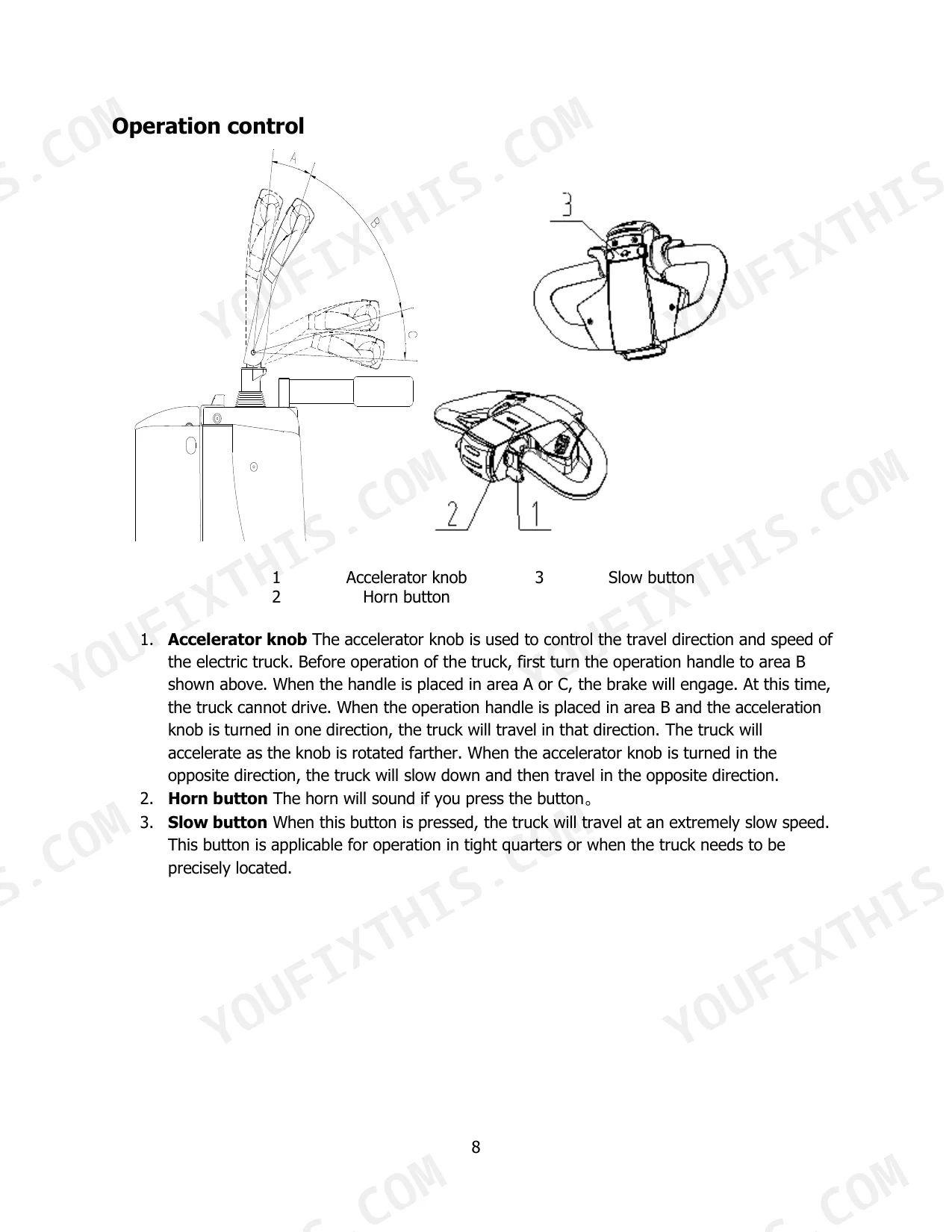

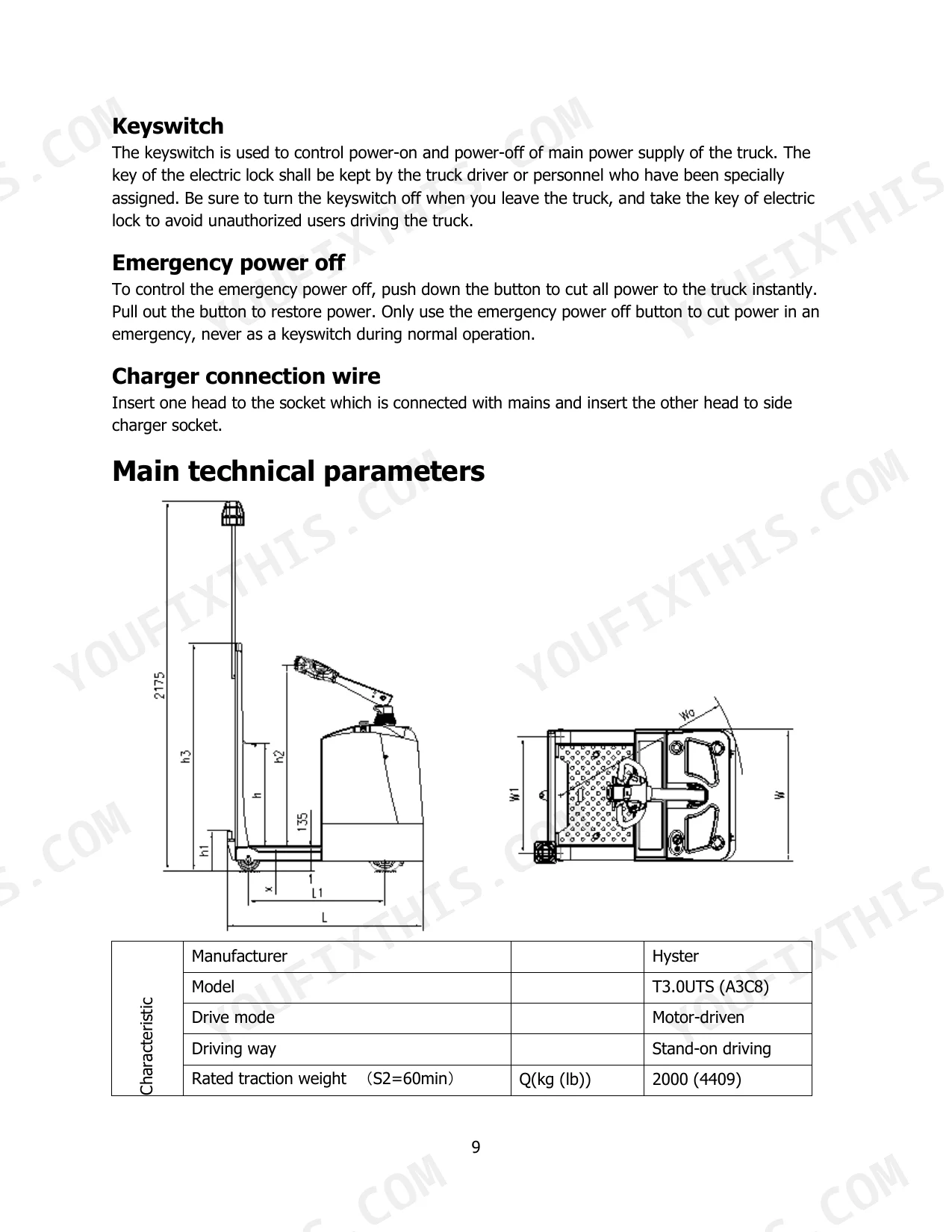

| System | Pages | Key Topics |
|---|---|---|
| Foreword | 3 | Description of Symbols, Safety Specification for Industrial Vehicles |
| Intended Use | 4 | Ground Conveying Equipment, Transport Goods, Capacity Limit, Equipment Nameplate, Load Graphic Drawing |
| Unit Description | 5 | Specified Use, Operating Environment |
| Major Components | 6-8 | Display, Steering System, Braking, Operation Control, Keyswitch, Emergency Power Off, Charger Connection Wire |
| Main Technical Parameters | 9-10 | Rated Traction Weight, Maximum Drawbar Pull, Driving Motor Power, Battery Voltage, Battery Capacity, Traveling Brake |
| Operation | 11-13 | Rules for Safe Operation (Safety Operation: Norms, Specification) |

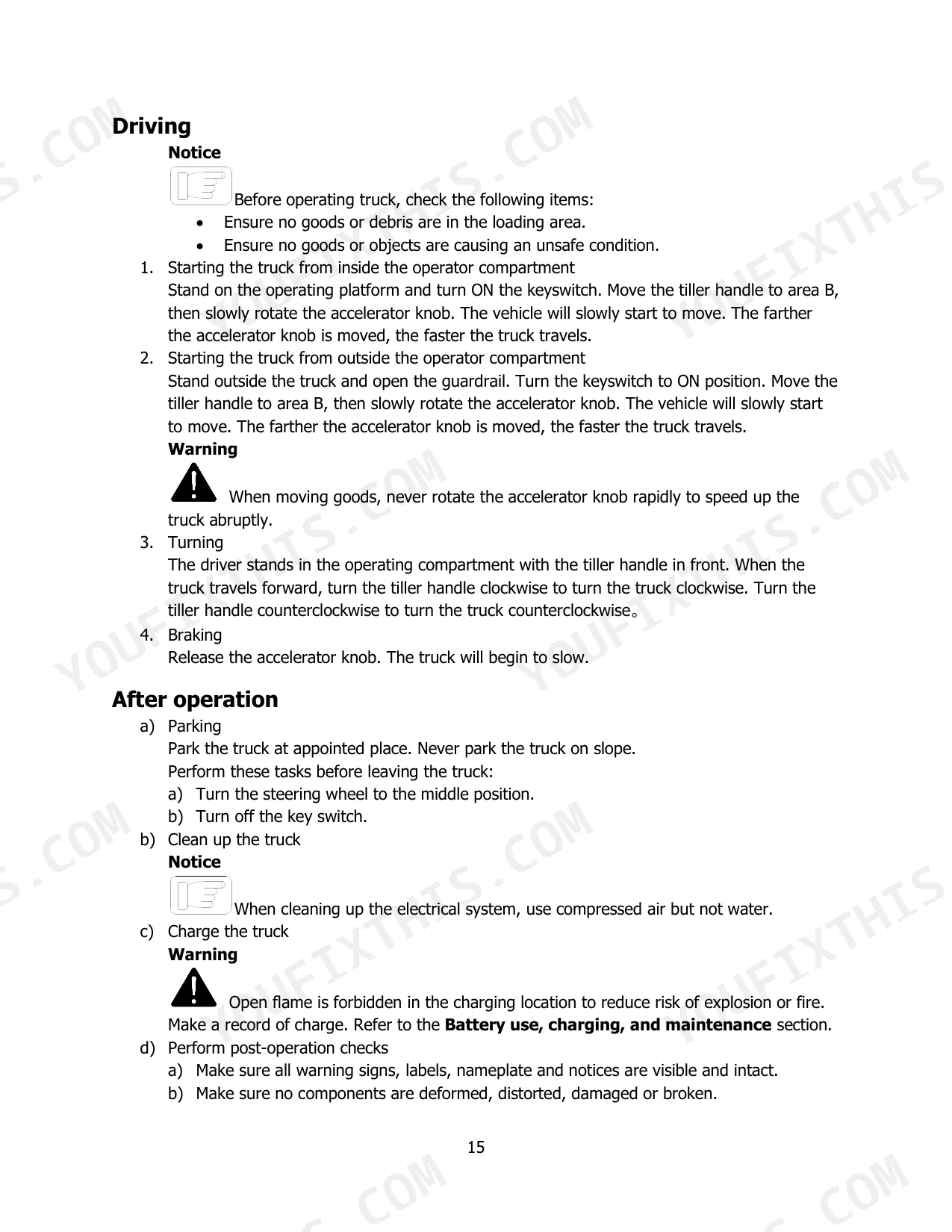

| Driving and Operation | 14-15 | Inspection Before Operation, Driving, After Operation |
| Battery Use, Charging, and Maintenance | 16-20 | Charging with the External Charger, Charging with a Built-In Charger, Battery Storage, Emergency Treatment, Charger, Storage Battery |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Weight | 170 kg (375 lb) | p. 10 |
| Charger output voltage | 24V | p. 18 |
| Charger output current | 20-30A | p. 18 |
| Driving motor power | 1.2 kW | p. 10 |
| Brake clearance | 0.2mm to 0.8mm | p. 14 |
| Rated traction weight | 2000 kg | p. 9 |
| Self weight (with battery) | 520 kg | p. 10 |
| Battery voltage/rated capacity | 24V/210Ah | p. 10 |
| Turning radius | 1070 mm | p. 10 |
| Traveling speed (laden/unladen) | 7/7.1 km/h | p. 10 |
Hyster T3.0UTS Common Problems This Manual Covers
Hyster T3.0UTS brake makes no noise when tiller handle moves between area A and B

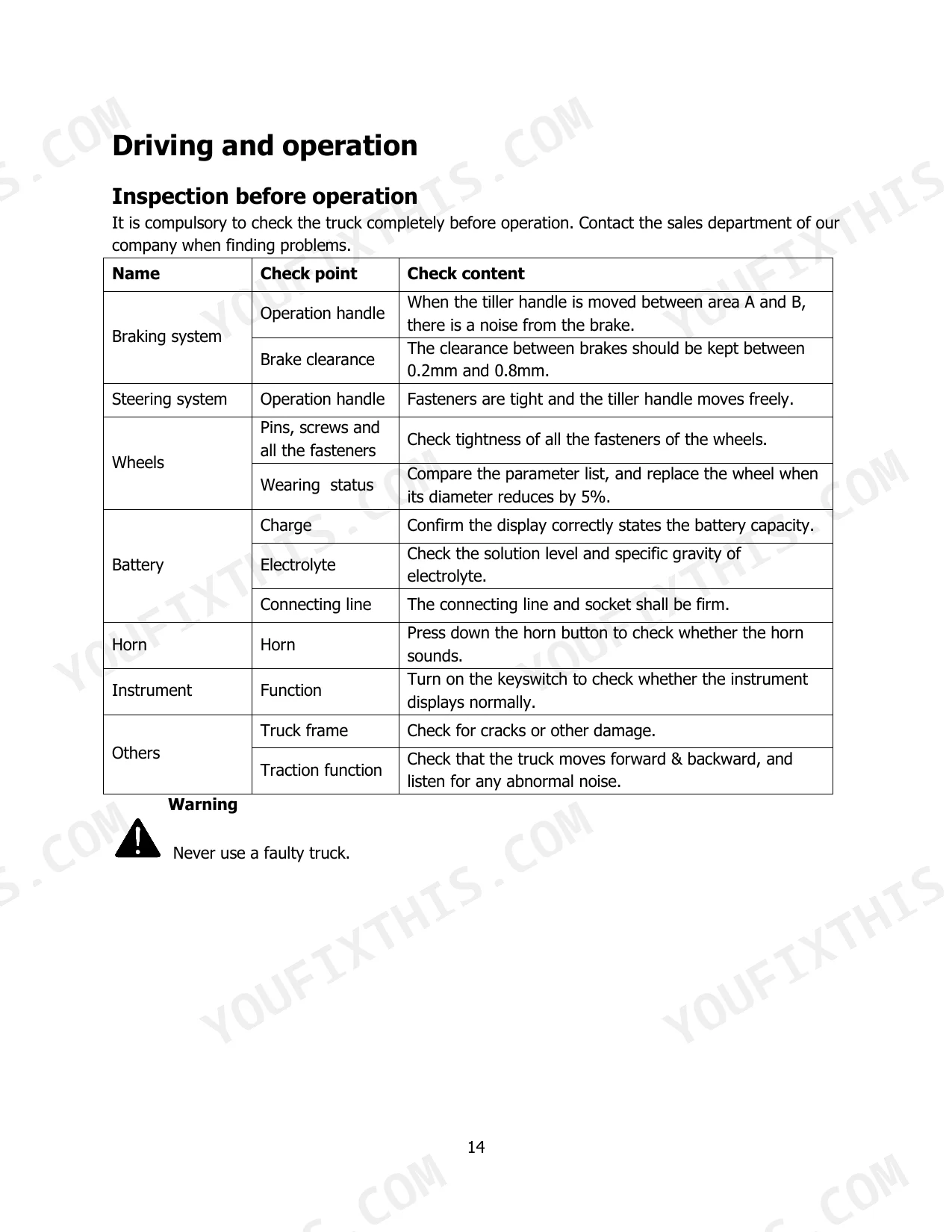

Check the brake during the pre-operation inspection on page 14. Moving the tiller handle between area A and B should produce a brake noise. Measure the brake clearance and confirm it sits between 0.2mm and 0.8mm. If the brake stays silent or the clearance is out of range, park the truck and contact the sales department. The manual says never use a faulty truck.
Manual Section: Inspection before operation p. 14Instrument display not showing correct battery capacity after turning on the keyswitch
Turn on the keyswitch and confirm the instrument displays normally and shows battery capacity correctly, per the inspection list on page 14. Check that the battery connecting line and socket are firm. Then check electrolyte solution level and specific gravity. If the display still reads wrong, do not run the truck. Contact the sales department, because the manual forbids using a faulty truck.
Manual Section: Inspection before operation p. 14Truck makes abnormal noise when moving forward and backward during traction function check
Check traction function on page 14 by driving forward and backward while listening for abnormal noise. Check tightness of all wheel pins, screws and fasteners. Compare wheel diameter against the parameter list and replace the wheel once its diameter has reduced by 5%. If the noise continues, stop using the truck and contact the sales department. The manual says never use a faulty truck.
Manual Section: Inspection before operation p. 14Battery not charging with external charger connected to the truck charging socket

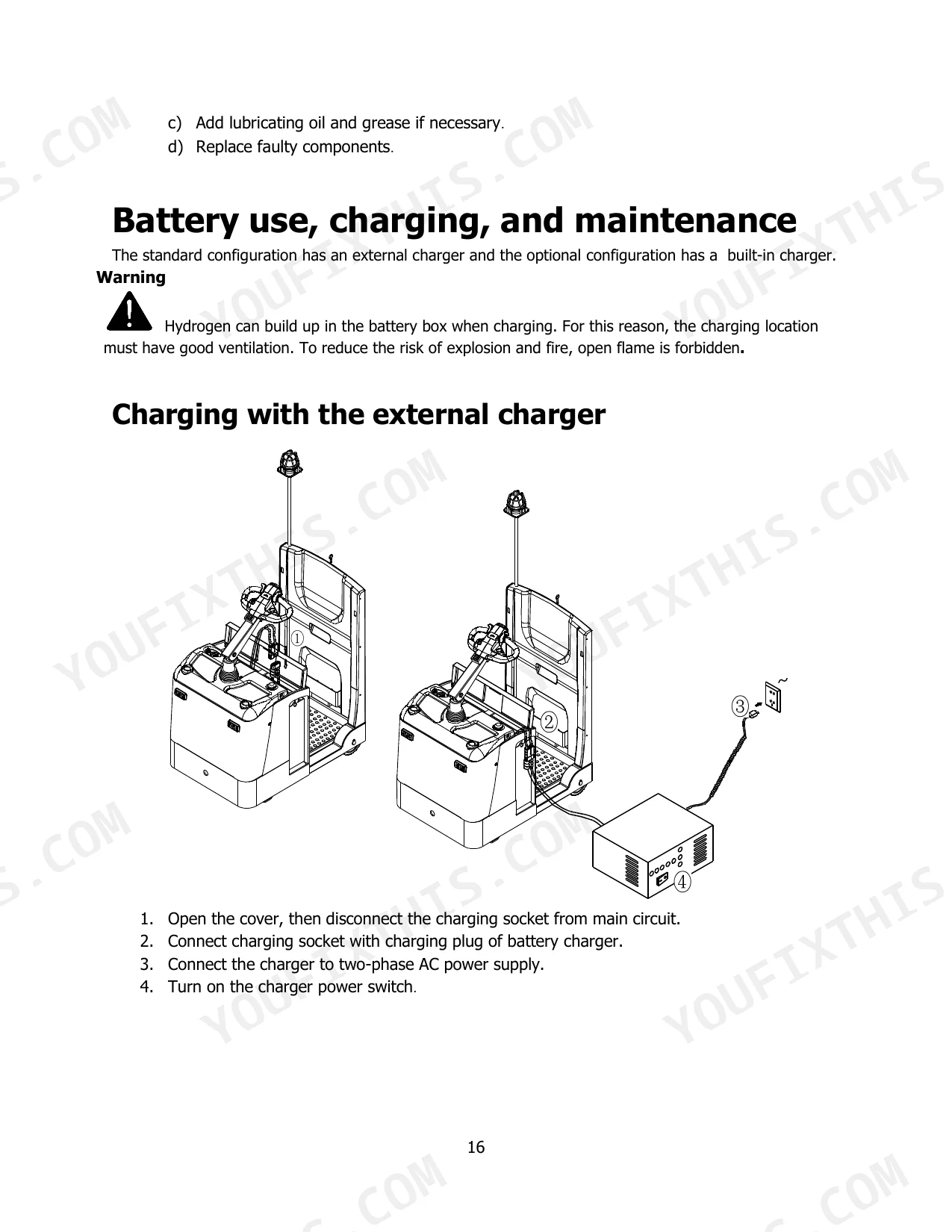

Open the cover and disconnect the charging socket from the main circuit before connecting it to the charger plug. Then connect the charger to a two-phase AC supply and turn on the charger power switch, following page 16. Verify that a full automatic charger delivers 24V output at 20-30A (page 18). Charge only in a well-ventilated area with no open flame, because hydrogen builds up in the battery box during charging (page 16).
Manual Section: Charging with the external charger p. 16Spare storage battery losing charge while sitting unused in the warehouse for weeks
Store the battery in a clean, dry, ventilated warehouse between 5 and 40°C (41 to 104°F), out of direct sunlight and at least 2m (6.5 ft) from any heat source, per page 17. Charge it every month in a ventilated spot with no open flame (page 16). Keep metal debris out of it, never invert it or stack weight on it, and note that the valid storage period is 2 years.
Manual Section: Battery storage p. 17Storage battery will not release from the side of the truck during battery replacement
Open the side door of the storage battery and remove it, then pull the battery socket connector down from the truck, following page 18. Turn up the handle of the battery locking mechanism to loosen the battery before pulling it out sideways. Handle the battery carefully when lifting and moving it, and use a special cart or a hoisting method to reduce the risk of injury or battery damage.
Manual Section: Replacement of storage battery p. 18Frequently Asked Questions
How do I charge or replace the Hyster T3.0UTS battery?
To charge, connect the charging socket to the charger and plug into a two-phase AC power supply. To replace, open the side door, disconnect the socket, turn up the locking mechanism handle, and pull the 240kg (530 lb) battery out using a special cart or hoist. Warning: Hydrogen can build up during charging, so ensure good ventilation and avoid open flames. p. 18
What are the replacement specifications for the traction battery on the Hyster T3.0UTS?
The traction battery has a rated capacity of 210Ah at 24V. The battery pack weighs 170 kg (375 lb) and has dimensions of 750mm x 170mm x 534mm (29.5in x 6.7in x 21in). p. 10
What are the requirements for the battery charger?
If using a full automatic type charger, it must have an output voltage of 24V and an output current of 20-30A. If using a semi-automatic or manually adjustable charger, follow the specific maintenance requirements outlined in the manual. p. 18
What is the required brake clearance for the electromagnetic brake on the Hyster T3.0UTS?
The clearance between the electromagnetic brakes must be maintained between 0.2mm and 0.8mm to ensure proper operation. p. 14
When should the wheels be replaced?
The wheels should be inspected for tightness and wear. You must replace the wheel when its diameter reduces by 5% compared to the original parameter list. p. 14
Will this Hyster T3.0UTS Operator Manual download right away?
You get a 20-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Hyster T3.0UTS Operator Manual?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
