All 203 pages of this International 434 Tractor Service Manual (OEM #SM25) focus on one machine: the International 434, covering both diesel and petrol variants across 14 system groups from cooling to speed amplifier. Inside: wiring diagrams for the complete electrical and instruments group, page after page of torque tables, clearance specs, and high-quality exploded views across every major assembly. Procedures run through engine clutch teardown, differential service, PTO shaft rebuild, disc brake assembly, hydraulic pump, and the speed amplifier unique to this 434. Torque your drive bevel gear retaining bolts to 78-88 lb ft; set clutch pedal hardware to 35-40 lb ft. Factory numbers, not forum guesses. Bookmarked by all 14 sections, this PDF opens on any device so you can walk straight to the tractor with the right spec.
What's Inside This International 434 TRACTOR, International 434 Tractor, McCormick International 434 Diesel and Petrol Tractor Manual
| System | Pages | Key Topics |
|---|---|---|
| Group 1 - General | 4-9 | Serial Numbers, Diesel Fuel Injection Equipment, Engine, Service Tools, Service Parts, Electrical, Hydraulic, Pins and Bushes |

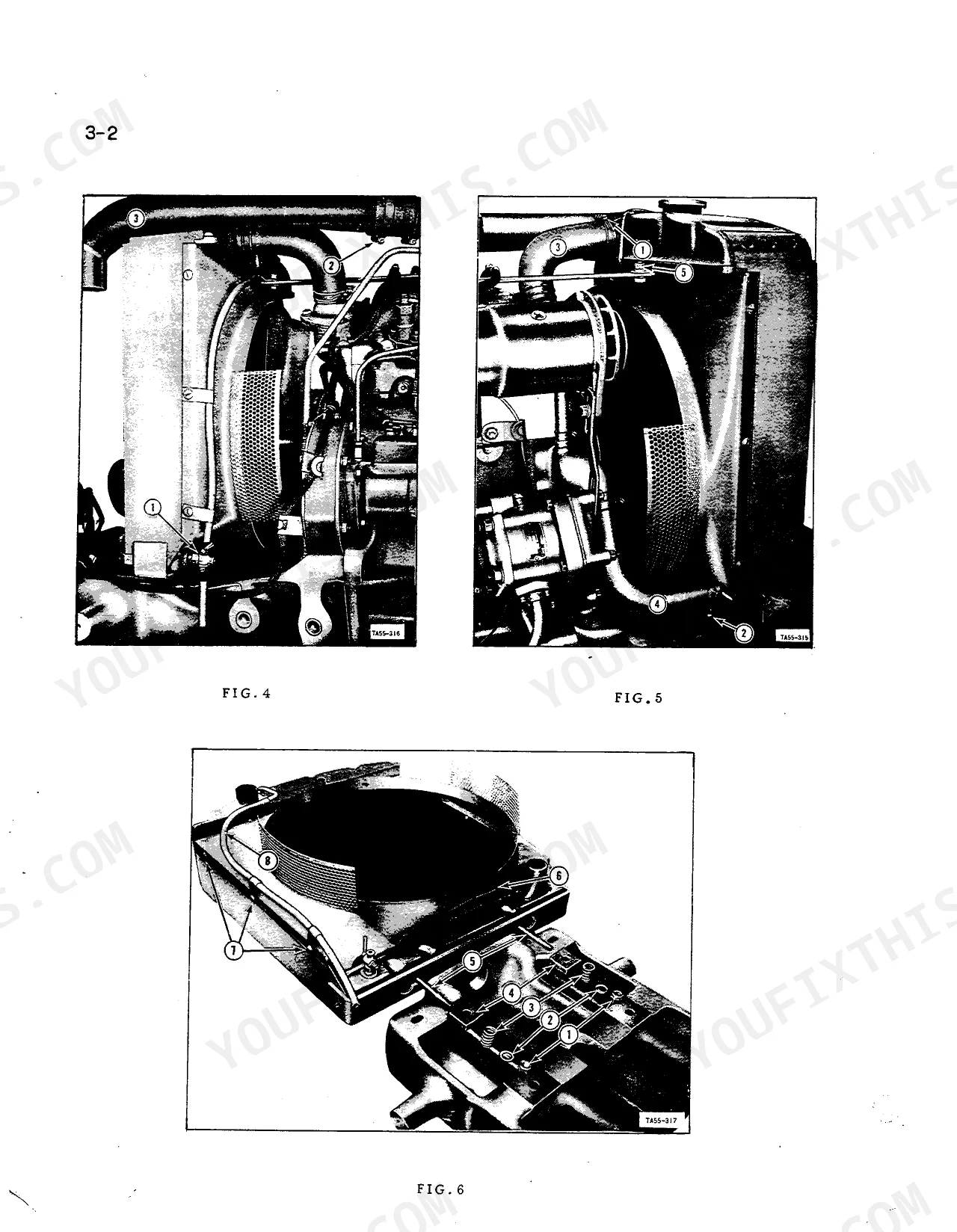

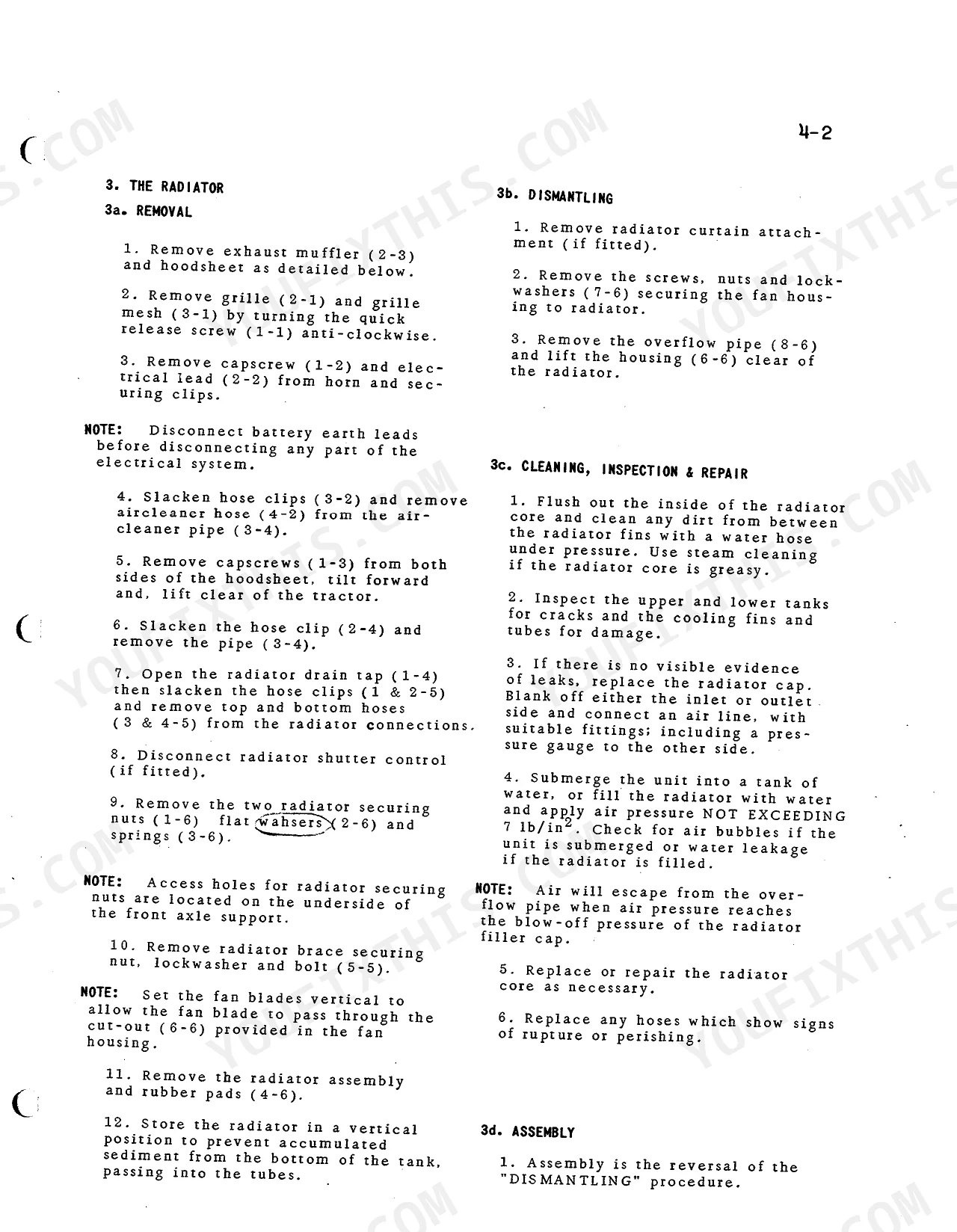

| Group 2 - Cooling System | 10-15 | Radiator, Fan, Thermostat, Cooling System |
| Group 3 - Fuel System | 16-25 | Fuel Tank, Fuel Filter, Fuel Lift Pump, Fuel Injection Pump, Injectors |
| Group 4 - Engine | 26-33 | Engine, Diesel, Petrol, Crankcase, Air Cleaner, Valve, Spark Plug, Distributor |

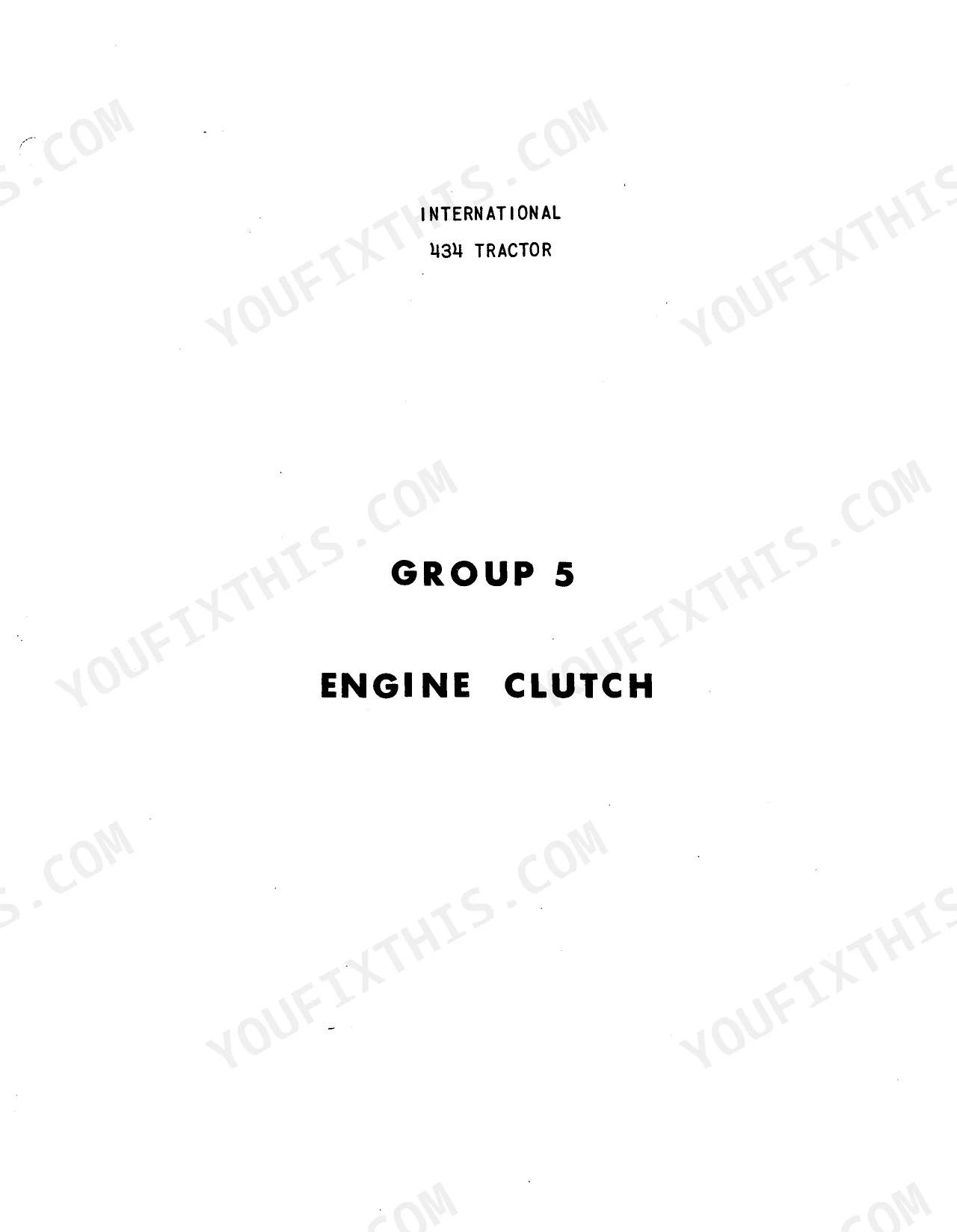

| Group 5 - Engine Clutch | 34-51 | Single Plate Clutch, Heavy Duty Clutch, Dual Drive Clutch, Engine Clutch, Clutch Housing, Release Mechanism, Release Bearing |
| Group 6 - Electrical & Instruments | 52-63 | Battery, Regulator, Starting Motor, Generator, Glow Plugs, Instrument Panel, Head Lamps, Side Lamps |

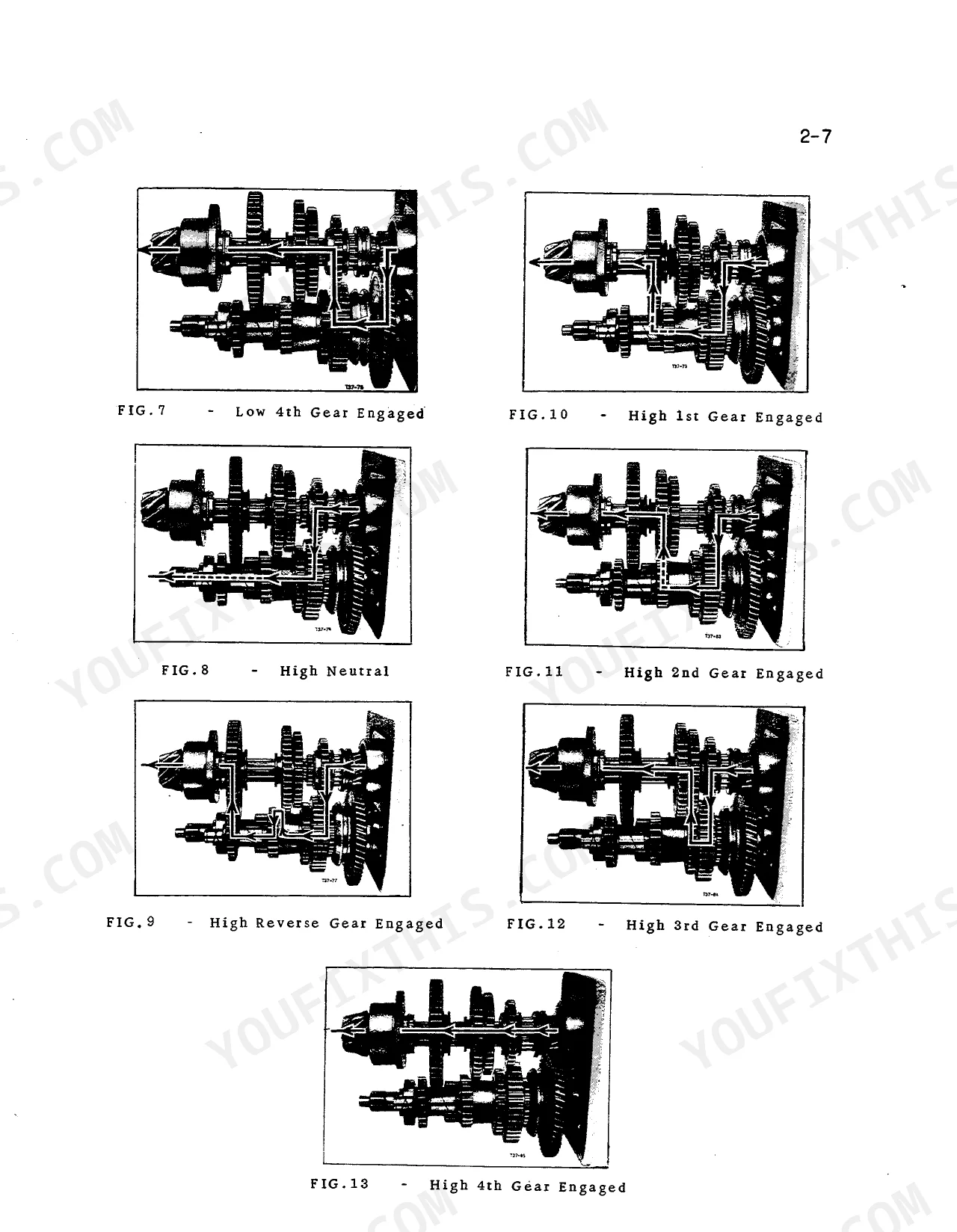

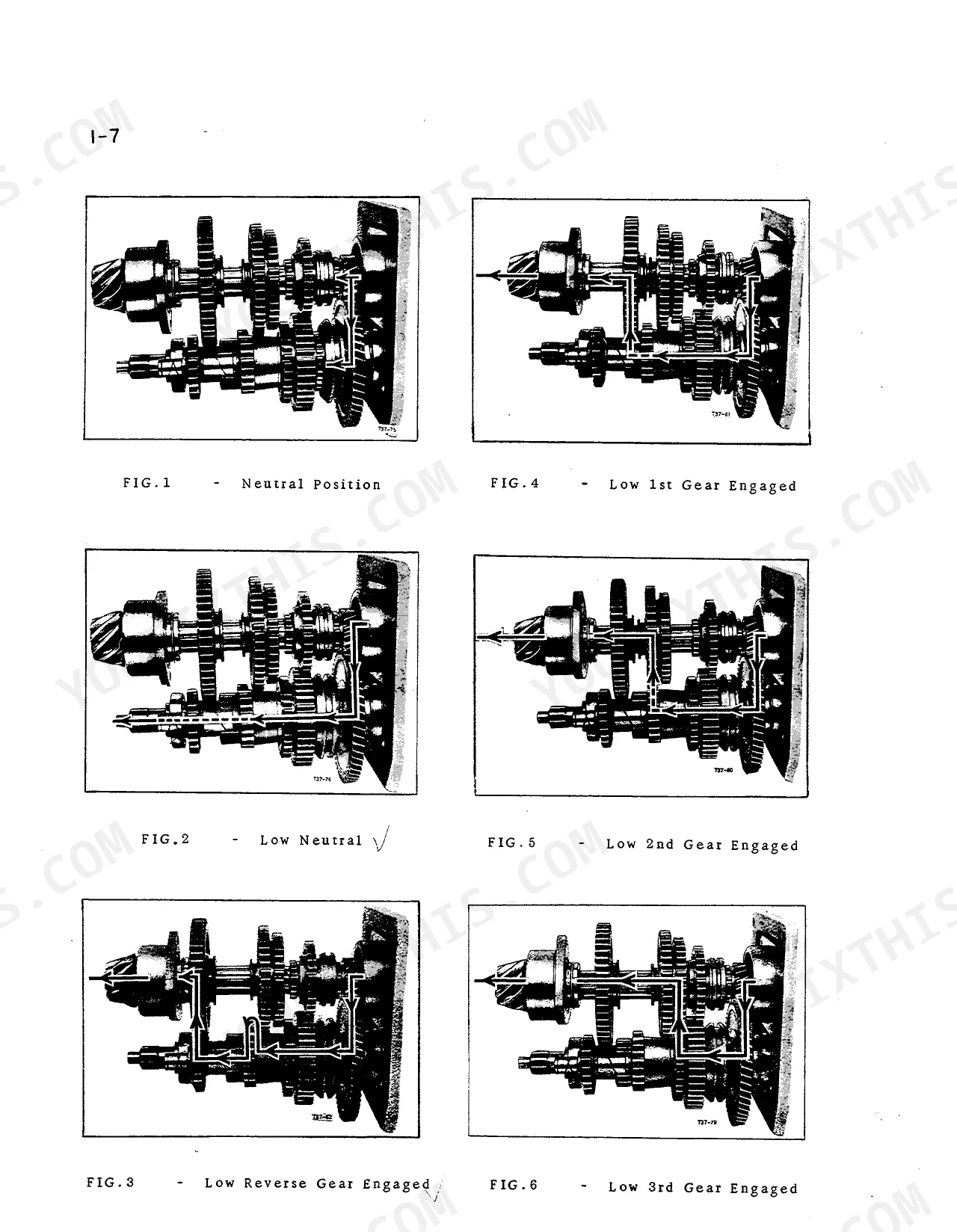

| Group 7 - Transmission | 64-95 | Transmission, Transmission Driving Shaft, Transmission Spline Shaft, Transmission Countershaft, Gearbox Shifter Housing, Reverse Idler, Forward-Reverse Gearbox, Forward-Reverse Shifter Connecting Shaft |
| Group 8 - Differential | 96-107 | Differential, Bull Pinions, Differential Lock, Bull Pinion Shaft Bearing Cage, Bevel Gear Drive |
| Group 9 - Axle & Wheels | 108-125 | Front Axle, Rear Axle, Front Wheels, Hubs, Steering Knuckles, Tie Rod |
| Group 10 - Steering | 126-135 | Steering Box, Hydraulic Steering Booster, Rockershaft, Tie Rod, Drag Link |
| Group 11 - Brakes | 136-149 | Brake Cross Shaft, Brake Assembly, Parking Brake Lever, Disc Brake, Brake Shoes |
| Group 12 - Hydraulics | 150-159 | Hydraulic Pump, Control Valve, Rockshaft, Steering Booster, Relief Valve, Dual Hydraulic Pump |
| Group 13 - Power Take-Off | 160-183 | P.T.O. Shaft, C.R.P. |
| Group 14 - Speed Amplifier | 184-203 | Speed Amplifier, Oil Filter, Hydraulic Pump, Hydraulic Brake Band Cylinder, Clutch Shaft Bearings, Free Wheel |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Radiator Capacity | 2-1/4 Imperial Gallons | p. 12 |
| Clutch Pedal Bolts Torque | 35-40 lb ft | p. 37 |
| Battery Ampere Hours | 84 | p. 54 |
| Steering Wheel Nut Torque | 30-35 lb ft | p. 54 |
| Drive Bevel Gear Retaining Bolts Torque | 78-88 lb ft | p. 98 |
| Front Wheel Nuts Torque | 50-60 lb ft | p. 110 |
International 434 TRACTOR, International 434 Tractor, McCormick International 434 Diesel and Petrol Tractor Common Problems This Manual Covers
International 434 tractor stuck shifting, only 1st gear and reverse engage in both H and L ranges p. 64
Split the tractor and remove the transmission per Group 7 - Transmission on page 64. Inspect all selector forks for wear, bending, or breakage; check detent springs and balls for collapse. Review torque specifications on page 66 before reassembly; tighten clutch pedal bolts to 35-40 lb ft (page 37) when closing up the split.
Manual Section: Group 7 - TransmissionEngine rattles from front of block at low revs, gets louder on cold start p. 26
Remove the timing gear cover following engine overhaul procedures on page 26. Inspect all timing gears for tooth wear and check backlash; replace gears as a matched set if worn. After reassembly, refill the cooling system; radiator capacity is 2-1/4 Imperial Gallons (page 12), so verify the level is correct before first start.
Manual Section: Group 4 - EngineHydraulic lift raises erratically, won't hold position under load, pressure feels inconsistent p. 150
Inspect the hydraulic pump, control valve, and all high-pressure unions per Group 12 on page 150. Seeping pipe connections often mimic internal pump failure, so check those first. Remove and clean the relief valve if lift pressure is erratic. If housing access requires splitting the tractor, torque clutch pedal bolts to 35-40 lb ft (page 37) on reassembly.
Manual Section: Group 12 - HydraulicsExcessive engine oil consumption with heavy crankcase breathing and blue exhaust smoke p. 26
Measure crankcase blow-by at the breather first; heavy breathing confirms bore glazing. Remove and overhaul the engine per page 26: deglaze or rebore cylinders, then fit new rings. After reinstallation, refill the cooling system before starting; radiator capacity is 2-1/4 Imperial Gallons (page 12). Check oil level daily for the first week to confirm consumption is resolved.
Manual Section: Group 4 - EngineClutch slips under heavy draft load or drags and won't fully disengage after hard field use p. 34
Remove the clutch assembly per page 34 and check clearance specifications against the table there. Inspect the pressure plate for hot spots and the friction disc for wear; check the release bearing too. Torque clutch pedal bolts to 35-40 lb ft (page 37) during reassembly, then confirm correct free pedal travel before returning to service.
Manual Section: Group 5 - Engine ClutchFrequently Asked Questions
What are the torque specs for the main bolts on an International 434 engine?
The manual provides general standard torque data for nuts and bolts, categorized by size and type (Type 2 and Type 4), rather than specific engine main bolts. For example, a 1/4 inch Type 2 bolt has a minimum torque of 9 lb ft and a maximum of 10 lb ft, while a 1-1/4 inch Type 4 bolt has a minimum of 1940 lb ft and a maximum of 2180 lb ft. For specific engine main bolt torque, it is advisable to consult an engine-specific section or a more detailed service bulletin if available.
How do you fix International 434 tractor stuck shifting, only 1st gear and reverse engage in both H and L ranges?
Split the tractor and remove the transmission per Group 7 - Transmission on page 64. Inspect all selector forks for wear, bending, or breakage; check detent springs and balls for collapse. Review torque specifications on page 66 before reassembly; tighten clutch pedal bolts to 35-40 lb ft (page 37) when closing up the split.
How do you fix engine rattles from front of block at low revs, gets louder on cold start?
Remove the timing gear cover following engine overhaul procedures on page 26. Inspect all timing gears for tooth wear and check backlash; replace gears as a matched set if worn. After reassembly, refill the cooling system; radiator capacity is 2-1/4 Imperial Gallons (page 12), so verify the level is correct before first start.
How do you fix hydraulic lift raises erratically, won't hold position under load, pressure feels inconsistent?
Inspect the hydraulic pump, control valve, and all high-pressure unions per Group 12 on page 150. Seeping pipe connections often mimic internal pump failure, so check those first. Remove and clean the relief valve if lift pressure is erratic. If housing access requires splitting the tractor, torque clutch pedal bolts to 35-40 lb ft (page 37) on reassembly.
Is this International 434 Tractor?
Instant PDF download. You get the full 203-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this International 434 Tractor?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this International 434 Tractor?
Included. The International 434 Tractor Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
