How much oil the Iseki TXG23 tractor holds, how often it needs servicing, and how its wiring is laid out are settled in one place: this 81-page Iseki TXG23 operator manual PDF from the factory. Wiring and fuse arrangement diagrams trace the electrical system, and a periodic maintenance schedule with lubrication and fill point charts tells you what gets serviced at each interval, from grease fittings to 4WD front axle oil. Controls and operation take up a large share of the book, from the hydrostatic pedal and differential lock to three-point hitch position control and both PTO shafts, followed by engine and brake troubleshooting. Fill the crankcase with 2.6 liters including the filter, then torque the front wheel bolts to 101.2 to 115.6 ft. lbs. (137.2 to 156.8 Nm). Every afternoon the tractor sits is a mowing window lost. Bookmarks and a text layer take you to the right page fast, so your TXG23 is running again before the weather turns.
What's Inside This Iseki TXG23 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To Our Customer | 1-3 | Safety Instructions, Technical Instructions, Model Types, Name Plate |
| Safety | 4-17 | Making Your Tractor a Safe Vehicle (How to Maintain Safety) |
| Tractor Identification | 18-20 | Major Components, Serial Number |

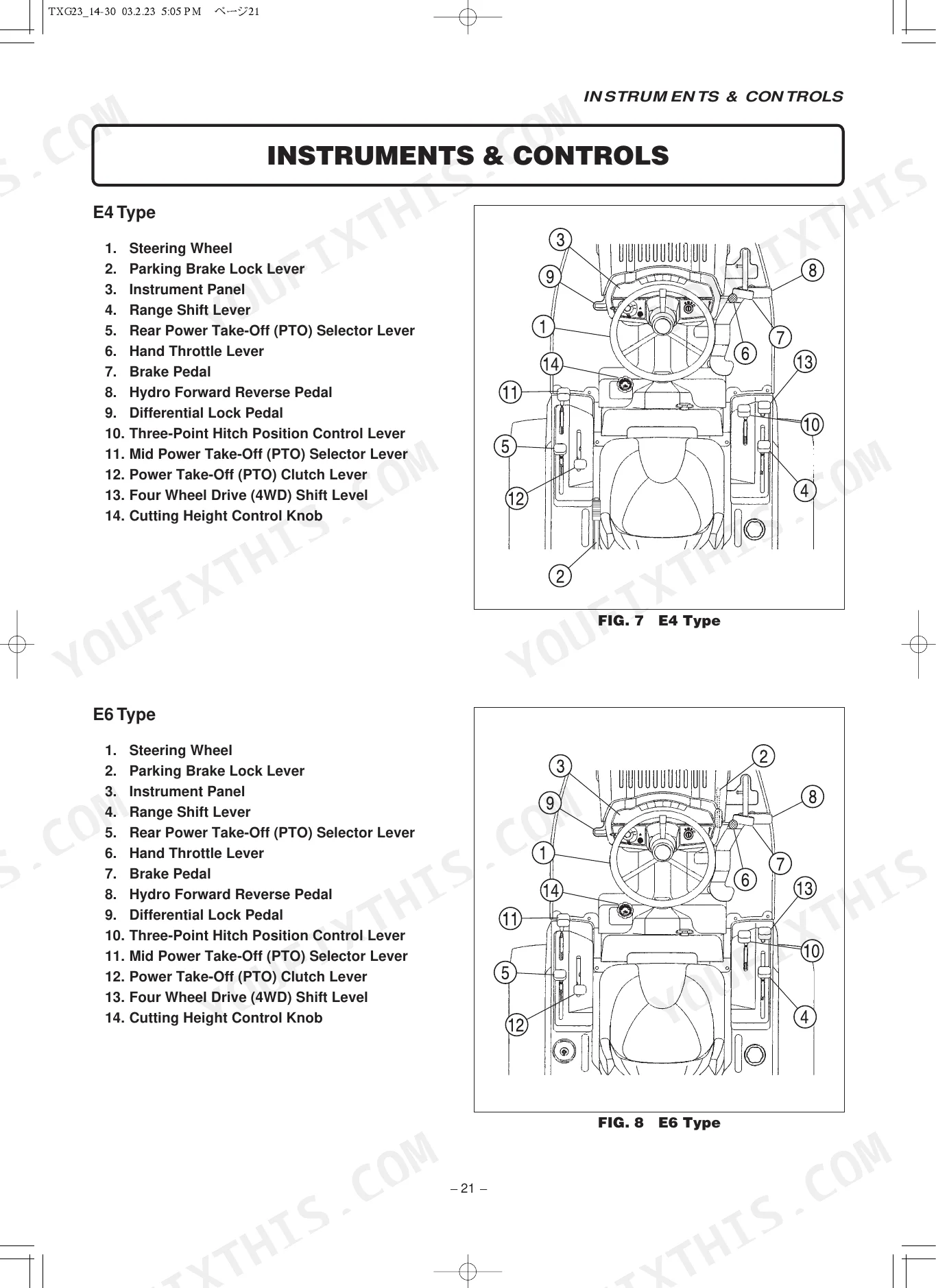

| Instruments & Controls | 21-25 | Instrument Panel, Main Switch (Indicator Light Strip, Hour Meter, Combination Switch, Fuel Gauge) |
| Transmission Shift Lever and Controls | 27-28 | Range Gearshift Lever, Hydrostatic Control Pedal, Rear Axles, Foot Pedal, Four-Wheel Drive Shift Lever, Shift Lever, Front Axle, Drive Line, Front Tires |
| Three-Point Hitch | 29 | Control Lever, Lowering Rate Control Knob, Cutting Height Control Knob |
| Comfort Adjustment | 30 | Seat Adjustment |

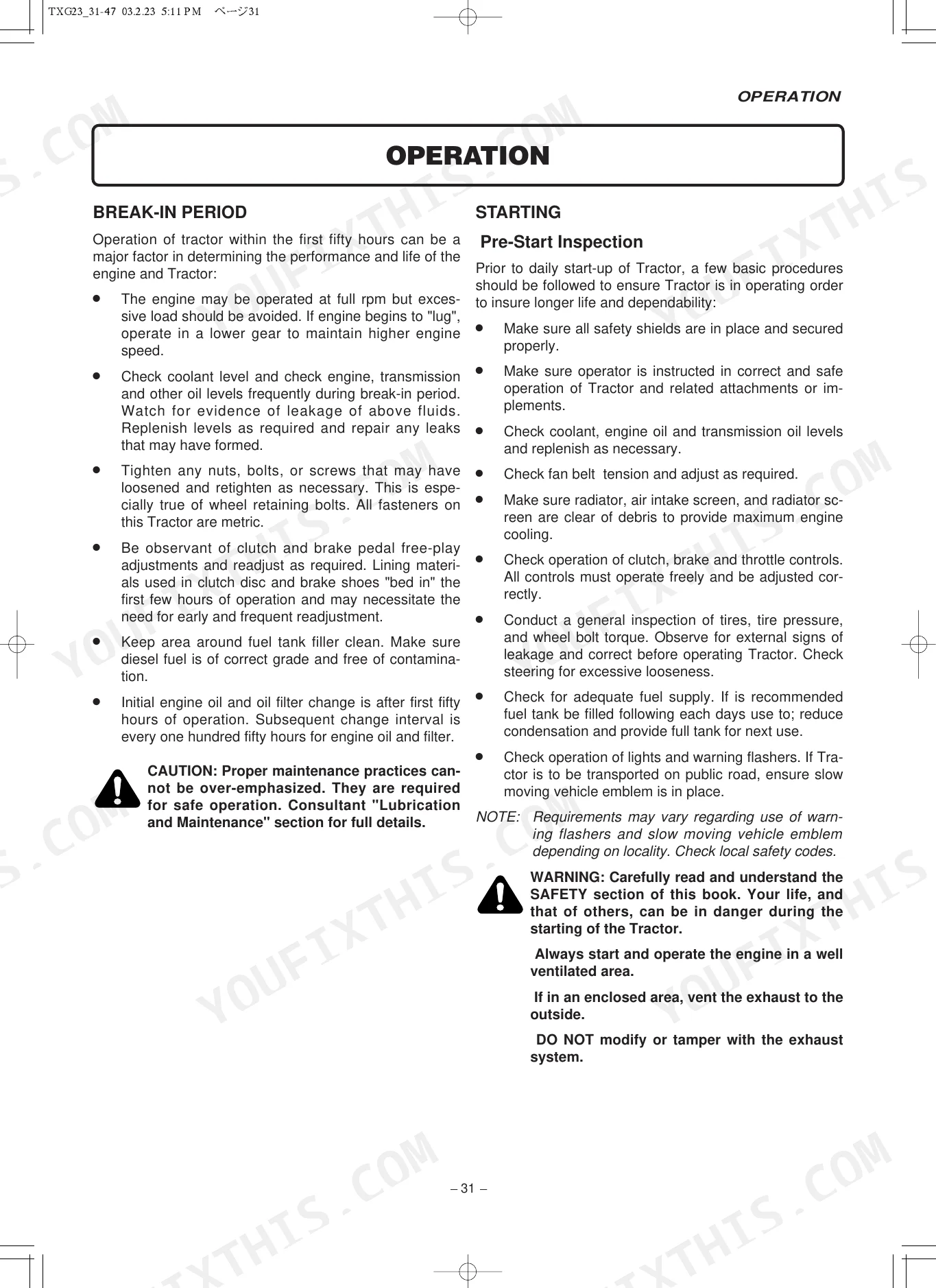

| Operation | 31-34 | Break-In Period, Starting (Pre-Start Inspection, Normal Starting, Restarting Warm Engine, Cold Weather Staring, Warm-Up Period, Operator Observations, Circuit Operation) |
| Ground Speed Selection | 35 | Hydrostatic Transmission |
| Stopping Tractor | 36-37 | Engine Speed, Brake Pedal, Range Shift Lever, Parking Brake, Solenoid Boot, Three-Point Hitch, Differential Lock, Differential Lock Pedal, HST Pedal, Four-Wheel Drive |
| Power Take Off (PTO) | 38-40 | PTO Clutch Lever, Rear PTO Shaft, Mid PTO Shaft, PTO Shields, Rear PTO Selector Lever, Mid PTO Selector Lever |
| Three-Point Hitch (4WD Model) | 41-45 | Hitch Controls, Rear Linkage, Attaching Implements, Using Position Control, Detaching Implements |
| Roll Over Protective Structure (ROPS) | 46 | ROPS, Seat Belts, Bolts |
| External Auxiliary Hydraulics | 47 | Auxiliary Hydraulics, Remote Couplers, Control Levers |

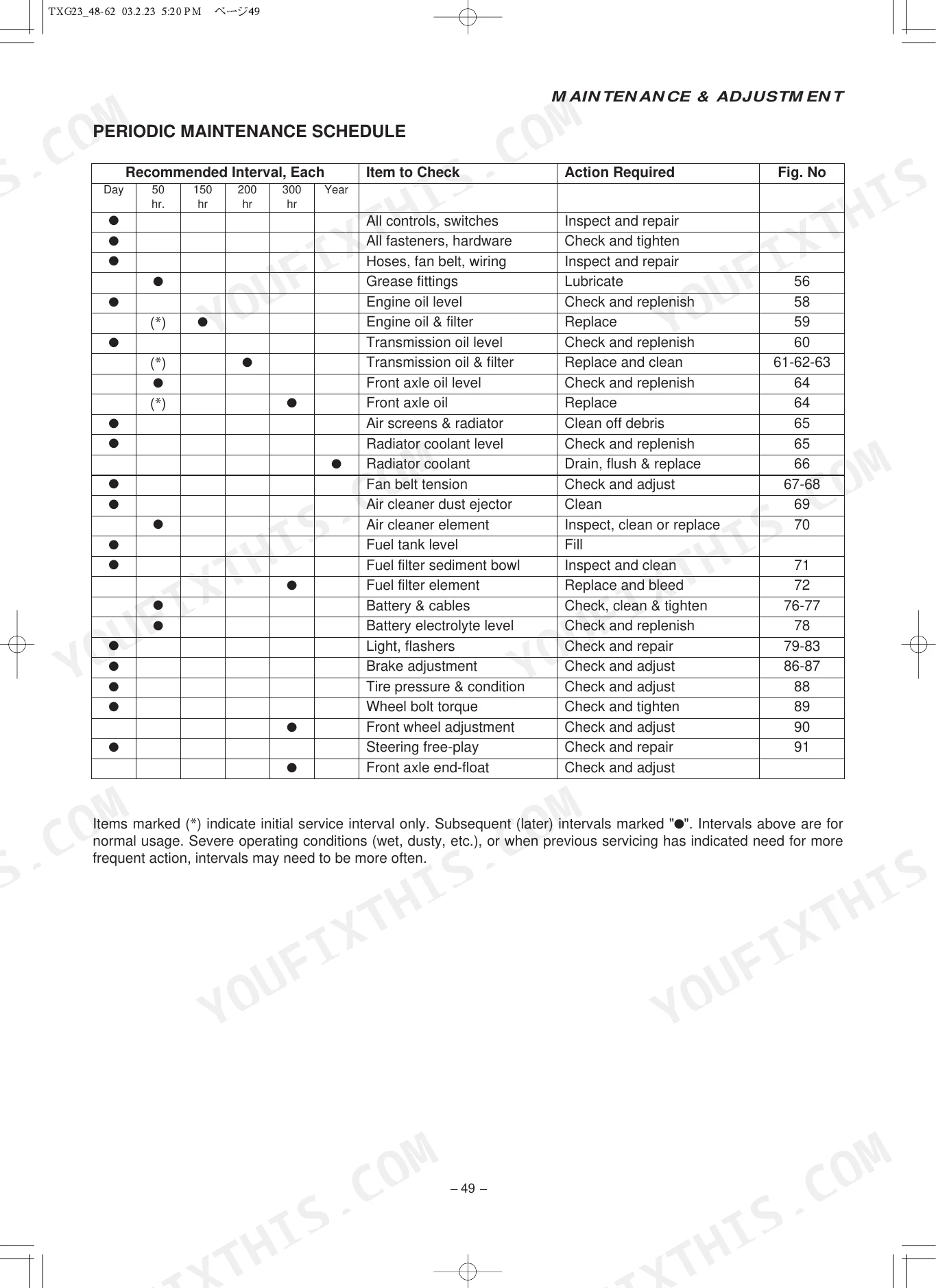

| Maintenance & Adjustment | 48-71 | Lubrications & Capacities, Periodic Maintenance Schedule, Lubrication / Fill Points, Service Access |

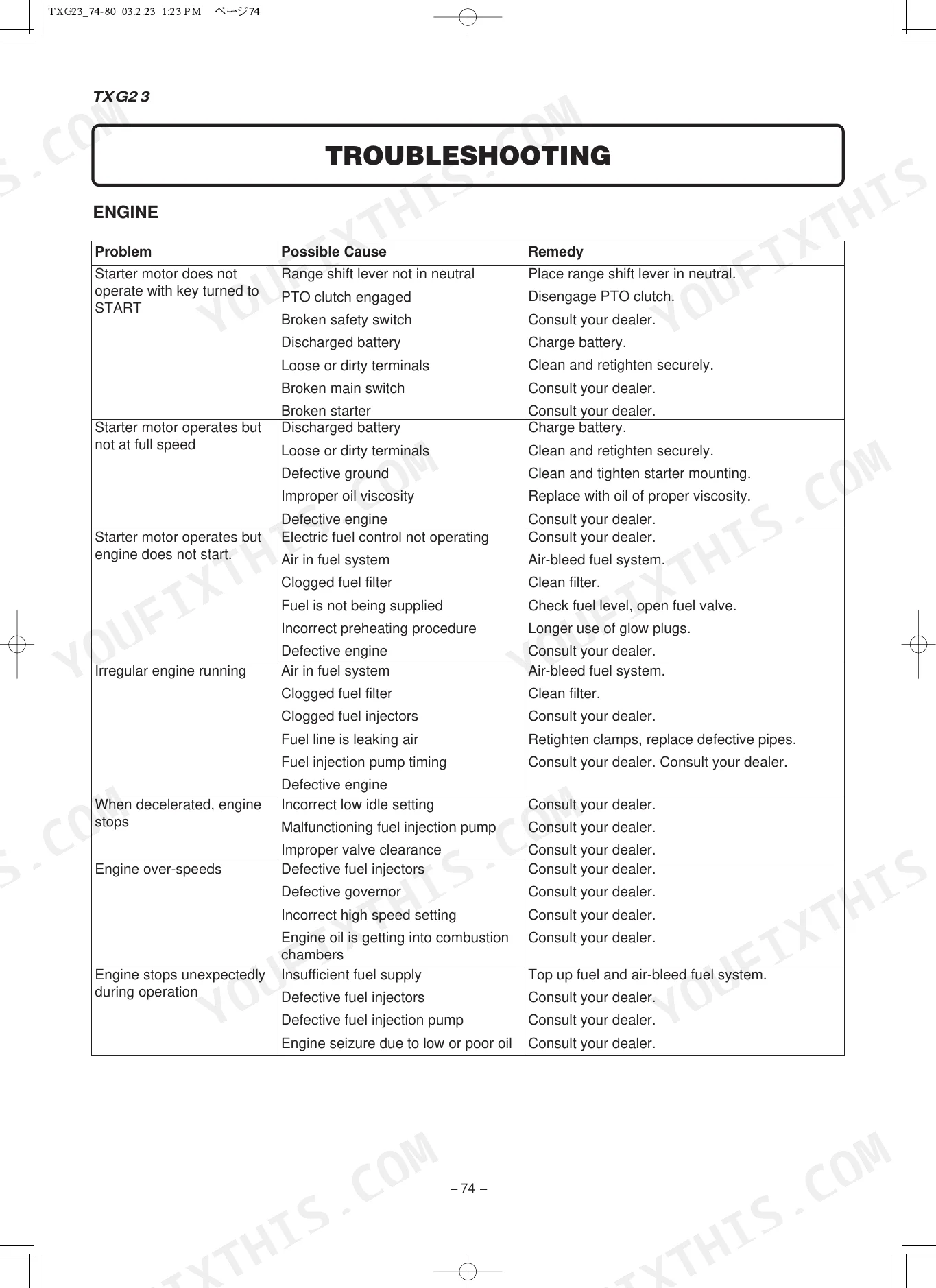

| Troubleshooting | 72-75 | Engine, Brakes, Hydraulic System, Main Hydraulic System Pump, Relief Valve, Steering System, Steering System Pump, Steering Column, Suction Filter, Steering Unit, Pump, Ball Joints, Electrical System |

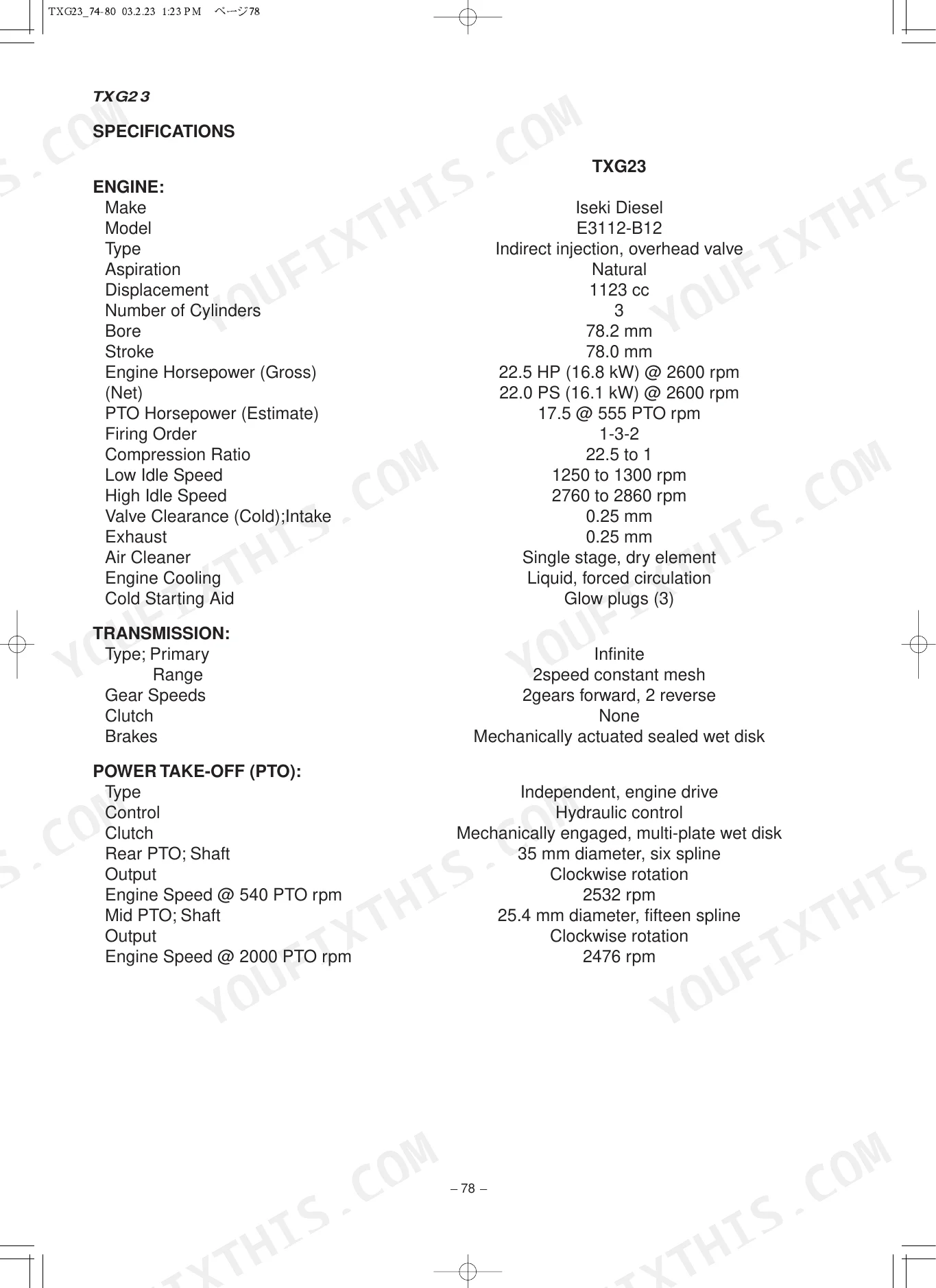

| Specifications | 76-78 | Engine, Transmission, Hydraulics, Electrical System, Capacities, Tread Width Setting, Maximum Axle Loading |
| Assembly & Pre-Delivery | 79-80 | ROPS Frame, Lower Links, Lift Rod, Top Link, Wheel Assembly, Safety Start System |
| Accessories | 81 | Canopy, Implements and Attachments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Bolts | 101.2-115.6 ft. lbs. (137.2-156.8 N. m) | p. 68 |
| Rear Wheel Bolts | 64.3-75.9 ft. lbs. (87.2-102.9 N. m) | p. 68 |
| Engine Oil Capacity (Crankcase and filter) | 2.6 liters | p. 48 |
| Fuel Tank Capacity | 21 liters | p. 48 |
| Transmission & Differential Housing Capacity | 11.0 liters | p. 48 |
| Front Axle Oil Capacity (4-WD) | 4.0 liters | p. 48 |
| Engine Coolant System Capacity | 4.6 liters | p. 48 |
| Front Wheel Bolt Torque | 101.2-115.6 ft-lbs | p. 68 |
| Rear Wheel Bolt Torque | 64.3-75.9 ft-lbs | p. 68 |
| Front Wheel Toe-in | 2 to 6 mm | p. 69 |
| Steering Wheel Free-play | 30 mm | p. 70 |
| Engine Displacement | 1123 cc | p. 76 |
Iseki TXG23 Common Problems This Manual Covers
Iseki TXG23 three-point hitch control lever moved down but the rear linkage will not lower
Check the position control setting on the hitch controls first, following page 29, because it is quick to confirm before you open anything up. Then work the hitch not lowering entry in the hydraulic troubleshooting chart on page 74 one cause at a time, and get the implement back in the ground.
Manual Section: Hydraulic System Troubleshooting p. 74Hydraulic system relief valve blowing, insufficient oil pressure, or oil leaking from hydraulic piping
Inspect every run of hydraulic piping for wet spots and weeping fittings before anything else. Then work through the insufficient oil pressure and relief valve blowing entries in the hydraulic troubleshooting chart on page 74, checking the main hydraulic system pump and relief valve items in the order the chart lists them.
Manual Section: Hydraulic System Troubleshooting p. 74Steering wheel hard to turn or showing excessive free-play before the front wheels respond
Measure steering wheel free-play at the rim and compare it against the 30 mm figure on page 70. Inspect the ball joints and steering unit using the steering troubleshooting entries on page 75. For hard steering, check the suction filter listed in the same section before you suspect the pump.
Manual Section: Steering System Troubleshooting p. 75Engine overheating and running hot during normal operation out in the field
Check the coolant level with the engine cold and top up if it is low; the full cooling system holds 4.6 liters per the capacities table on page 48. Then work the overheating entry in the engine troubleshooting chart on page 72 one cause at a time so you can finish the job before the weather turns.
Manual Section: Engine Troubleshooting p. 72Starter motor will not turn the engine over when the main switch is turned
Check the pre-start inspection and normal starting sequence in the operation section starting on page 31 and confirm you are following them step by step. Then work the starter motor entries in the engine troubleshooting chart on page 72. If you suspect the battery, use the charging checks in the electrical troubleshooting chart on page 75.
Manual Section: Engine Troubleshooting p. 72Brakes not holding well or brake pedal not returning smoothly after release
Check the brakes troubleshooting chart on page 74 and work through the listed causes for poor braking and slow pedal return. Verify the pedal comes all the way back on its own before you drive. Test the parking brake following the stopping section on page 36 before taking the tractor back to the field.
Manual Section: Brakes Troubleshooting p. 74Frequently Asked Questions
What are the torque specifications for the Iseki TXG23 wheel bolts?
The front wheel bolts require a torque of 101.2 to 115.6 ft-lbs (137.2 to 156.8 N.m). The rear wheel bolts require a torque of 64.3 to 75.9 ft-lbs (87.2 to 102.9 N.m). p. 68
What are the fuel filter replacement specs for the Iseki TXG23?
To replace the fuel filter element, turn the fuel valve to the OFF position. Loosen the spanner nut, remove the sediment bowl, and discard the old filter element. Install the new element, ensuring it is pushed upward until seated, then reassemble the sediment bowl with the spring, O-ring, and nut. p. 58
What is the engine oil capacity for the Iseki TXG23?
The engine crankcase capacity, including the filter, is 2.6 liters. p. 48
What is the correct fan belt tension for the Iseki TXG23?
The fan belt is correctly tensioned when there is approximately 13mm of deflection when thumb pressure is exerted at the center of the belt span. p. 56
What is the valve clearance for the Iseki TXG23 engine?
The valve clearance for both the intake and exhaust valves is 0.25 mm when cold. p. 76
How will I receive this Iseki TXG23 Operator Manual?
All 81 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print specific sections of this Iseki TXG23 Operator Manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
