The Kawasaki 65ZV Operator Manual (OEM 93107-00233) walks you through starting, running, loading and servicing the 65ZV wheel loader across 180 pages. Maintenance is the biggest chapter in this Kawasaki 65ZV operator manual PDF. It is laid out by interval, from the daily 10-hour checks through 50, 250, 500, 1000 and 2000-hour service, and ends with recommended lubricants and the coolant specification. The operator's area chapter identifies the loading control lever, auxiliary attachment lever, QUAD switch and reversal fan switch, then explains each instrument panel warning lamp. Troubleshooting charts sort engine, electrical, hydraulic and transmission faults by symptom. Fill the hydraulic tank to 75 L and the transmission to 20 L, and torque the brake line filter to 60 to 80 N-m (44 to 59 ft-lb). A filter change stalls on one forgotten capacity. Your copy is bookmarked and text-searchable, and it goes wherever the loader is working, from the shop bench to the cab on a remote job.
What's Inside This Kawasaki 65ZV Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-31 | Safe Operation, Safe Maintenance, Safety Signs, Safety Devices |

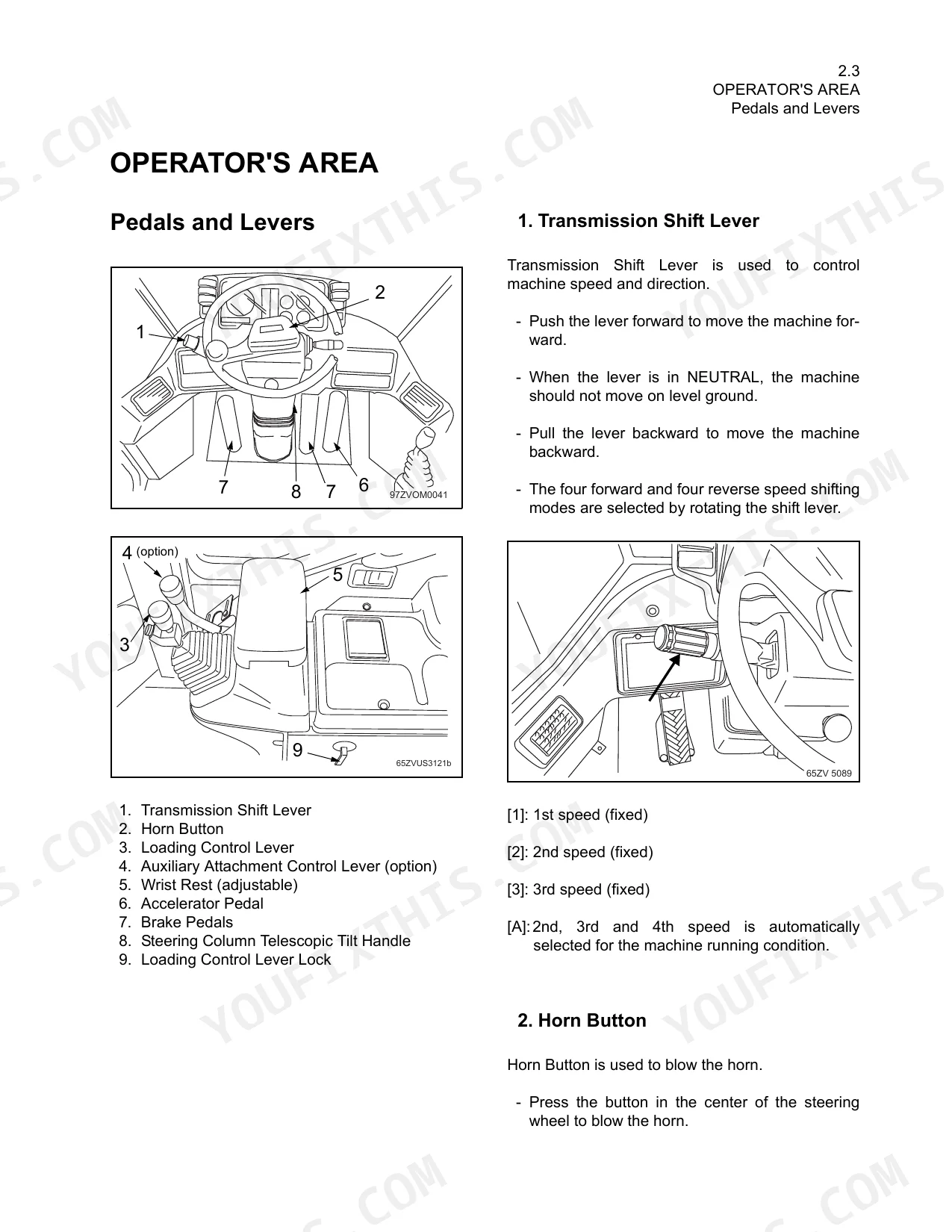

| Component Name/Location and Operator's Area | 32-39 | Component Identification, Transmission Shift Lever, Loading Control Lever, Auxiliary Attachment Control Lever, Wrist Rest, Accelerator Pedal, Brake Pedals |
| Switches and Indicators | 40-54 | Starter Switch, Parking Brake Switch, Light Switches, Wiper Switches, QUAD Switch, Reversal Fan Switch, Instrument Panel Indicators, Warning Lamps |
| Seat and Electrical Protection | 55-58 | Seat Adjustment, Seat Belt, Fuse Boxes, Fusible Link |
| Radio and Climate Control | 59-72 | AM/FM Cassette Radio Operation, Heater and Air Conditioner Controls, Ventilation Modes, Grease Gun Holder |

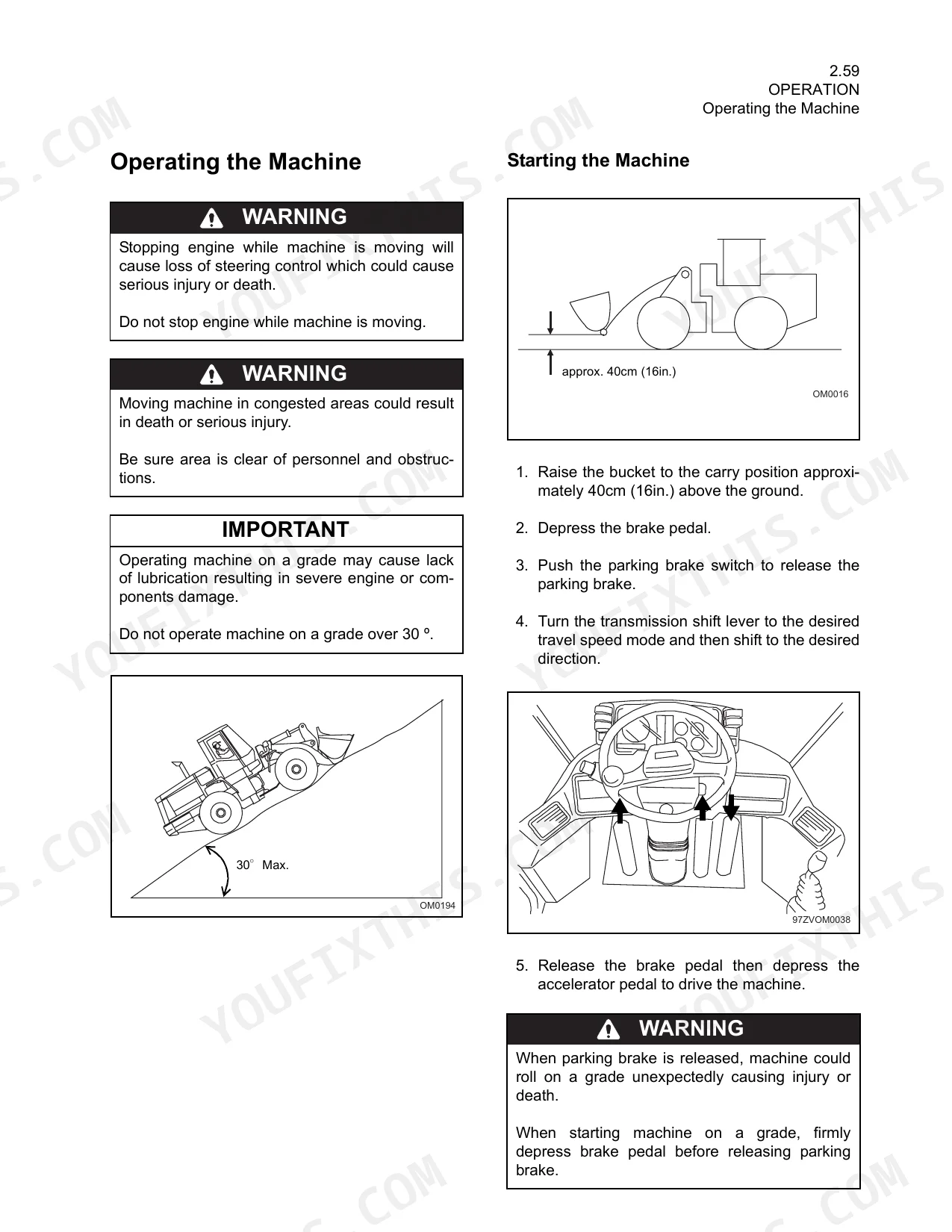

| Operation Procedures | 73-94 | Walk-Around Inspection, Engine Oil Level, Hydraulic Oil Level, Starting the Engine, Cold Start, Stopping the Engine, Parking |
| Operating Techniques | 95-111 | Loading, Excavating, Dozing, Ground Levelling, Carrying, Dumping Into Truck or Hopper, Truck Loading Methods, Long Term Storage |

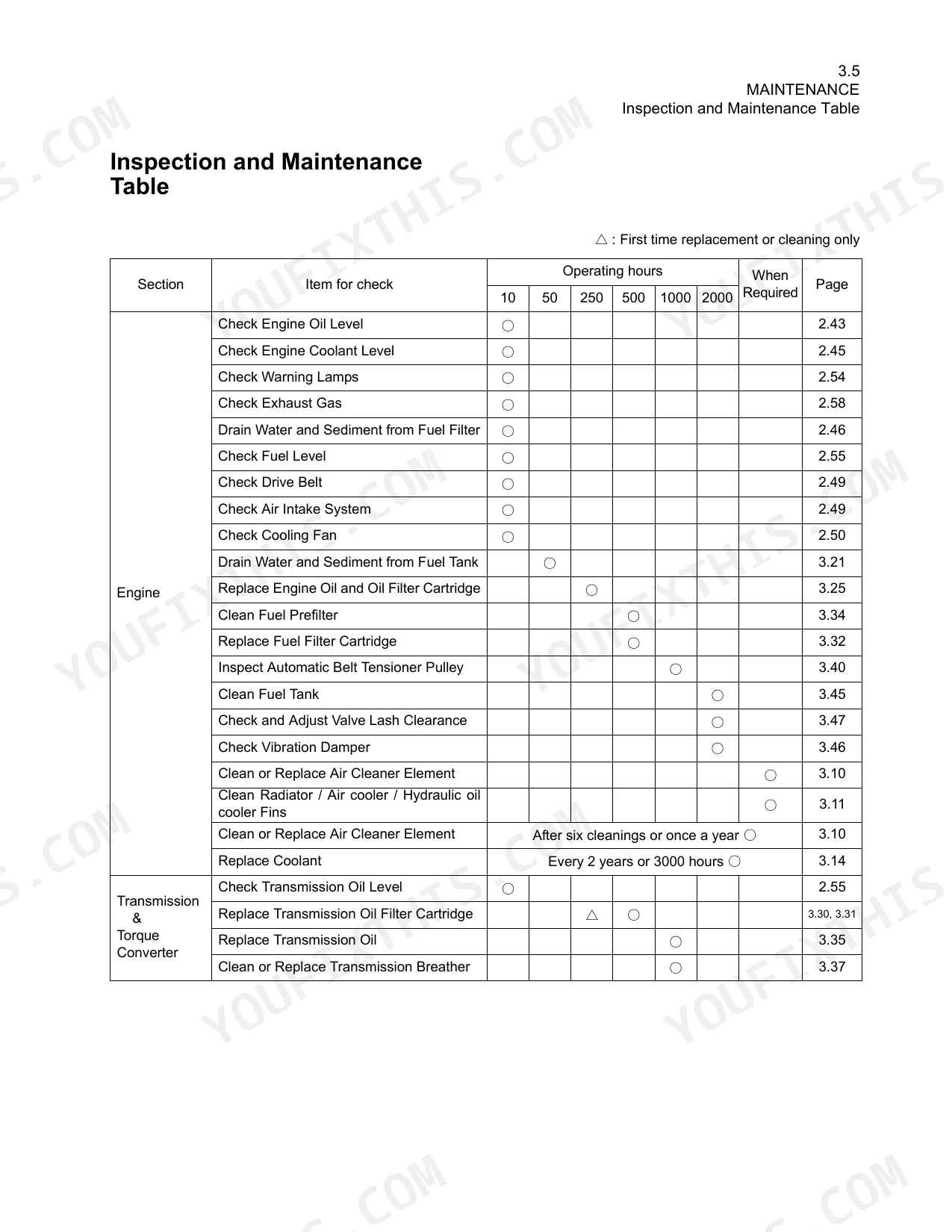

| Maintenance | 112-162 | Serial Number Location, Maintenance Table, When Required Inspection and Maintenance, Every 10 Hours or Daily, Every 50 Hours or 1 Week, Every 250 Hours or 1 Month |

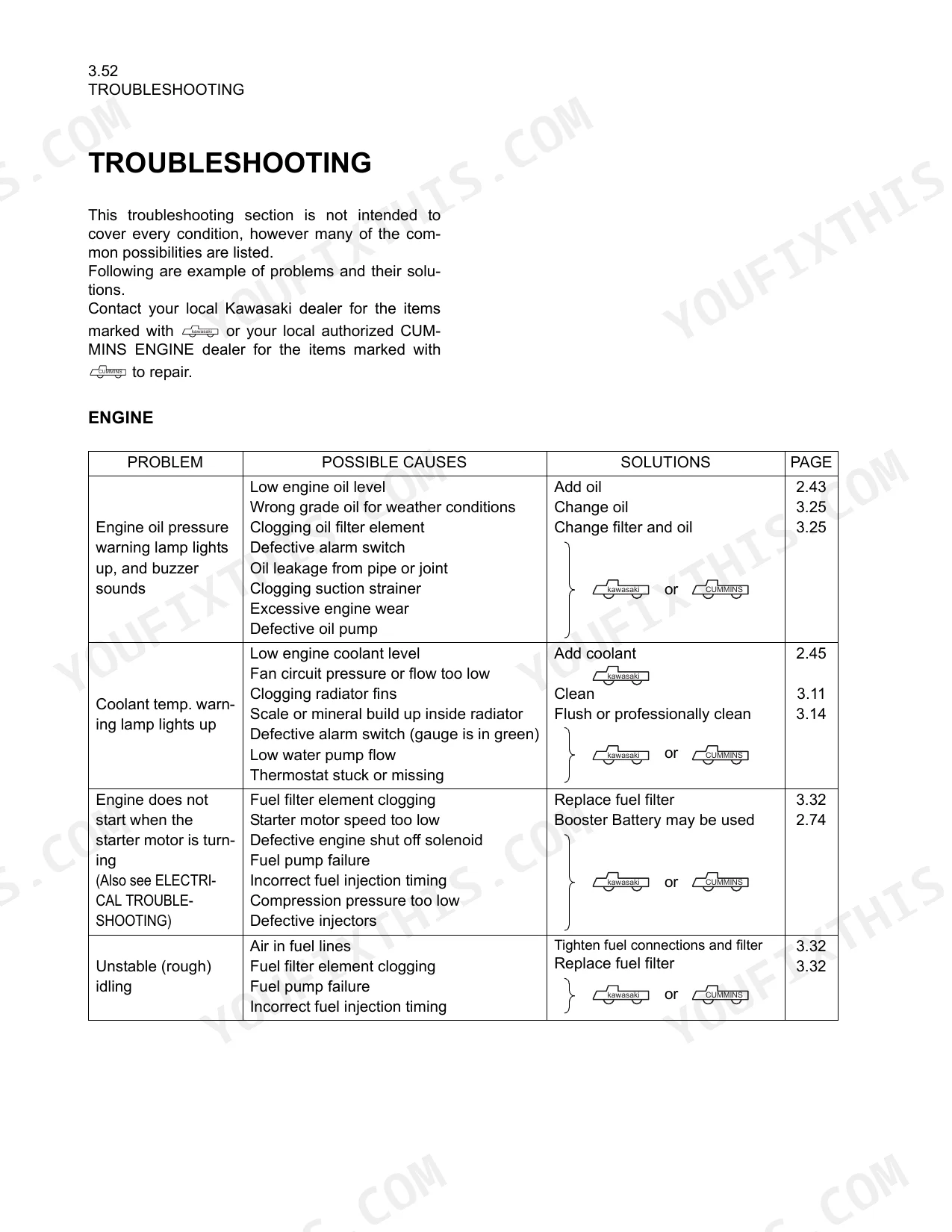

| Troubleshooting | 163-167 | Engine Troubleshooting, Electrical Troubleshooting, Hydraulic Troubleshooting, Torque Converter and Transmission Troubleshooting |

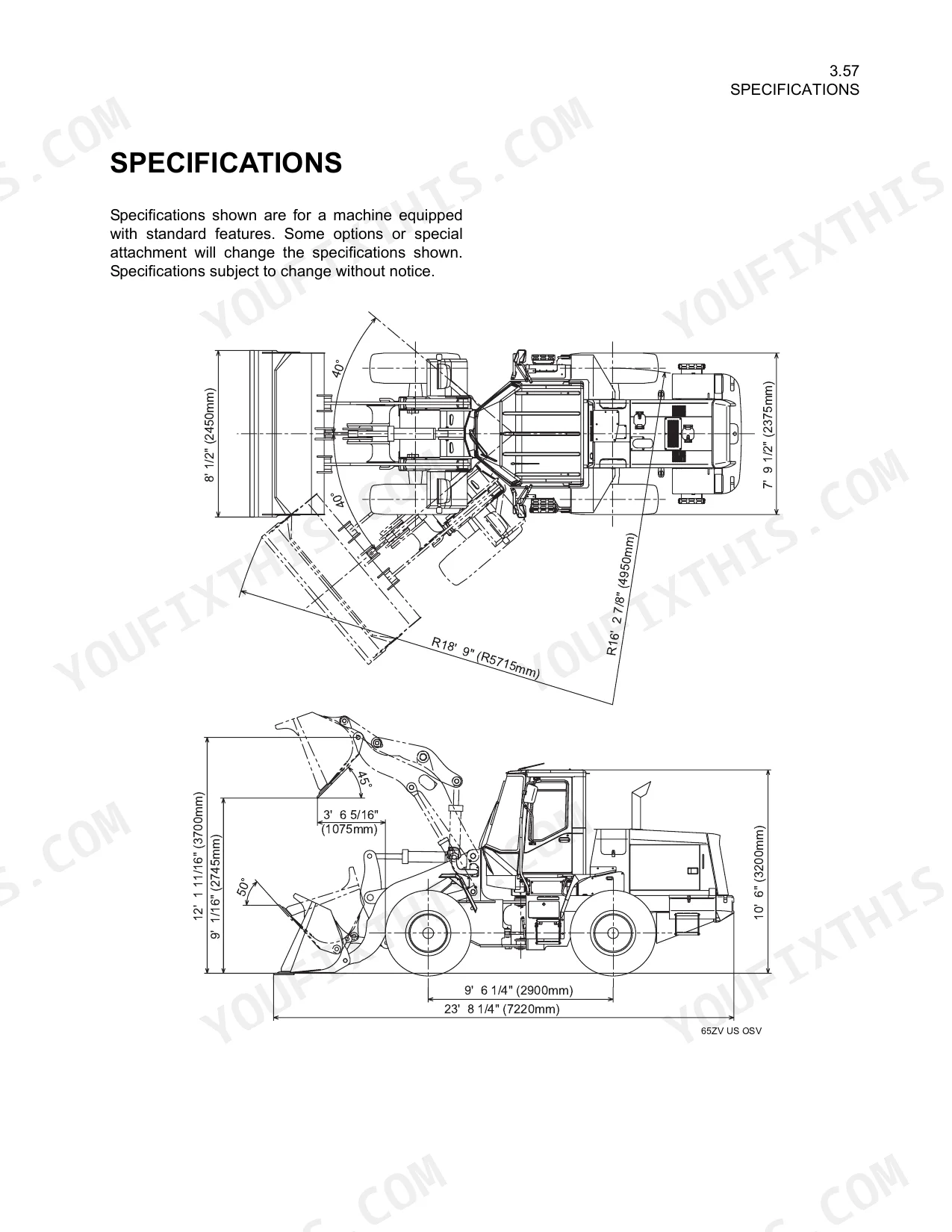

| Specifications | 168-180 | Bucket Capacity, Operating Weight, Engine Model, Engine Displacement, Rated Power, Tire Size, Running Speed |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Brake Line Filter tightening torque | 60 ~ 80 N-m (44 ~ 59 ft-lb) | p. 159 |
| Engine Oil Capacity | 16L | p. 161 |
| Transmission Oil Capacity | 20L | p. 161 |
| Hydraulic Tank Capacity | 75L | p. 161 |
| Differential & Planetary Oil Capacity (Front) | 25L | p. 161 |
| Differential & Planetary Oil Capacity (Rear) | 25L | p. 161 |
| Fuel Tank Capacity | 210L | p. 161 |
| Brake Line Filter Nipple Torque | 60-80 N-m | p. 159 |
| Operating Weight | 10,710 kg | p. 169 |
| Engine Rated Power | 105 kW | p. 169 |
Kawasaki 65ZV Common Problems This Manual Covers
Kawasaki 65ZV wheel loader engine oil pressure warning lamp lit or coolant temperature running high
Stop the engine and identify the lamp using the instrument panel indicators on page 40. Check engine oil level as described in the operation procedures starting on page 73; engine oil capacity is 16L per page 161. Then work through the oil pressure and coolant temperature charts in engine troubleshooting on page 163 before restarting.
Manual Section: Engine Troubleshooting p. 163Starter motor will not crank the engine or charge lamp stays on after startup
Check the fuse boxes and fusible link described on page 55 first. Confirm the starting sequence and cold start steps in the operation procedures from page 73. Then work through the charge lamp and starter motor checks in electrical troubleshooting on page 165, and the engine start chart on page 163.
Manual Section: Electrical Troubleshooting p. 165Steering hard to turn, will not steer, or machine drifts off line while traveling
Check hydraulic oil level during the walk-around in the operation procedures starting on page 73, and top up if it reads low; the hydraulic tank holds 75L per page 161. Then work through the hard steering, will not steer, and steering drift checks in steering troubleshooting on page 165.
Manual Section: Steering Troubleshooting p. 165Boom raises slowly or drifts down, and bucket floats with loading control lever in neutral
Lower the bucket to the ground and check hydraulic oil level per the operation procedures from page 73; tank capacity is 75L on page 161. Check the hydraulic oil return filter following page 148: remove the two bolts with a 17mm wrench and open the filter cover. Then work the hydraulic troubleshooting chart for boom drift.
Manual Section: Hydraulic TroubleshootingParking brake will not hold, brakes drag, or brake pedals feel weak with low brake pressure
Verify the parking brake switch position using the switches and indicators section on page 40. Inspect the brake line filter following page 159, and when reinstalling, tighten the nipple with filter to 60 to 80 N-m (44 to 59 ft-lb). Then work the brake troubleshooting chart for dragging, braking power, and brake pressure.
Manual Section: Brake TroubleshootingEngine running but loader does not move, or torque converter overheats during operation
Confirm the transmission shift lever is in gear and the parking brake switch is released, using the operator controls on page 34 and switches on page 40. Check for oil leakage and verify transmission oil level; capacity is 20L per page 161. Then follow the torque converter and transmission troubleshooting chart for no movement, low power, and overheat.
Manual Section: Torque Converter & Transmission TroubleshootingFrequently Asked Questions
How do I release hydraulic pressure on a Kawasaki 65ZV?
To release hydraulic pressure, stop the engine after lowering the attachment to the ground. Then, move the loading control levers back and forth, turn the steering wheel right and left several times, and turn the hydraulic oil tank cap 1/3 turn counterclockwise. p. 19
What is the engine oil drain plug torque specification for the Kawasaki 65ZV?
The engine oil drain plug should be tightened to a torque of 80 N-m (60 ft-lb). p. 136
What is the torque specification for the wheel bolts on the Kawasaki 65ZV wheel loader?
The wheel bolts must be tightened to 892 N-m (658 ft-lb). p. 138
What is the correct procedure for checking the engine oil level?
Check the oil level using the dipstick, ensuring it remains between the 'H' (high) and 'L' (low) marks. If necessary, add the same brand and viscosity oil through the refill port. p. 74
What is the required torque for the brake line filter nipple on the Kawasaki 65ZV wheel loader?
When installing the nipple with the filter, it should be tightened to a torque of 60 to 80 N-m (44 to 59 ft-lb). p. 159
How will I receive this Kawasaki 65ZV Operator Manual?
You download the Operator Manual yourself: 180 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is this Kawasaki 65ZV Operator Manual printable?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
