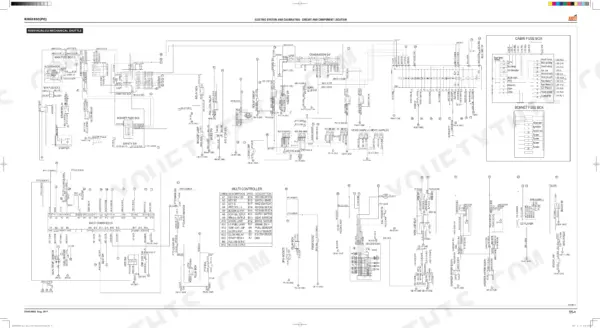

Whether you're servicing the standard C, the power shuttle PC, or a US, AU, or EU variant, this Kioti RX6010C(PC) Workshop Manual PDF (OEM #DH80-W00) returns a 2010-2012 tractor to factory condition. Its 640 pages carry full electrical circuit diagrams with wiring color codes, connector pinout tables, and component locations, alongside hydraulic schematics that trace the MLS load-sensing circuit, gear pump, modulator valve, and joystick valve routing. Step-by-step disassembly and rebuild procedures span every major system, backed by troubleshooting charts for engine, transmission, hydraulics, and electrical faults and exploded views from the cylinder block to the power shuttle controller. Set the main hydraulic relief to 185 kgf/cm² (18.13 MPa); torque the cylinder head screws to 39.2 Nm on the first pass. Specs are bookmarked by system and keyword-searchable, so the answer loads on your tablet in seconds.
What's Inside This Kioti RX6010C(PC) Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 19-42 | Symbols and Abbreviations, Identification Number, Specifications, Driving Speed, Tire Maintenance, Tightening Torque |
| Engine | 43-154 | Engine Identification, Specifications, Operating Principle, Troubleshooting, Measurement and Adjustment |
| Clutch | 155-168 | Specifications, Structure and Function, Troubleshooting, Inspection and Adjustment, Disassembly |
| Transmission | 169-238 | Specifications, Structure and Operating Principle, Inspection and Adjustment, Troubleshooting, Disassembly |
| Rear Axle | 239-266 | Specifications, Structure and Function, Troubleshooting, Inspection and Adjustment, Disassembly |
| Brake | 267-282 | Specifications, Structure and Operating Principle, Troubleshooting, Inspection and Adjustment, Disassembly |
| Front Axle | 283-320 | Specifications, Structure and Operating Principle, Troubleshooting, Inspection and Adjustment, Disassembly |
| Steering System | 321-346 | Specifications and Tightening Torque, Structure and Operating Principle, Troubleshooting, Inspection and Adjustment, Disassembly |
| Hydraulic System | 347-428 | Component Arrangement, Hydraulic Circuit, Gear Pump, Modulator Valve, Joystick Valve, Mls (Mita Load Sensing) Valve |
| Electric System & Calibration | 429-552 | Overall Circuit Diagram, Fuse, Ignition Switch, Alternator, Power Shuttle Controller, Calibration |
| Cabin | 553-588 | Interior Devices, External Devices, Cabin Removal, Door Removal, Cabin Ceiling Plate Removal, Front Upper Work Lamp |
| Air Conditioning & Heater | 589-632 | Cooling Operation, Air Conditioning System, Heater Core, Receiver Drier, Compressor, A/C Controller |
| Index | 633-640 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screws (1st step tightening) | 4.0 kgf-m (39.2 Nm, 28.8 lb-ft) | p. 55 |
| Front wheel bolt/nut | 260 ~ 304 Nm | p. 36 |
| Rear wheel nut | 280 ~ 319 Nm | p. 36 |
| Main relief pressure | 185 kgf/cm² (18.13 MPa 2,631 psi) | p. 348 |
| Steering relief pressure | 145 kgf/cm² (14.21 MPa 1,991 psi) | p. 348 |
| Joystick valve relief set pressure | 180 ~ 190 kgf/cm² | p. 385 |
| Main relief valve (MLS system) tightening torque | 42.1 Nm, 4.3 kgf-m, 31.1 lb-ft | p. 400 |
| Battery capacity | 12 V 100 Ah | p. 431 |
| Hydraulic hose nut (L/R ports) tightening torque | 24.5 Nm, 2.5 kgf-m, 18.0 lbf-ft | p. 349 |
| Hydraulic hose nut (P/T ports) tightening torque | 58.8 Nm, 6.0 kgf-m, 43.2 lbf-ft | p. 349 |
| Hydraulic filter filtering dimension | 4,100 cm² ± 10% | p. 359 |
| Hydraulic filter number of folds | 55 ± 5 | p. 359 |
Kioti RX6010C(PC) Common Problems This Manual Covers
Kioti RX6010C loader won't raise a full bucket, hydraulic pressure feels sluggish at operating temperature p. 356
Measure main system relief pressure first: spec is 185 kgf/cm² (18,130 kPa) per page 356. Reading low? Pull the main relief valve on the MLS block, then torque it to 42.1 Nm on reinstall (page 400). Confirm the joystick valve relief sits at 180 to 190 kgf/cm² (page 385), and check the hydraulic filter for contamination.
Manual Section: Hydraulic System TroubleshootingEngine cranks but won't fire, or turns over too slowly to start in cold weather p. 431
Check battery condition first: spec is 12 V 100 Ah (page 431). Clean and tighten both cable terminals, then test the preheat circuit. With the wiring diagram open, trace the ignition switch and starter relay circuits, measure relay resistance against the diagnostic values, and replace any component out of spec.
Manual Section: Electric System TroubleshootingTransmission grinds during gear changes or leaks fluid from the bellhousing area p. 169
Inspect every transmission seal and mating face to locate the leak; fluid capacities are listed on page 24. For grinding shifts, set clutch pedal free play to 20 to 30 mm (page 156) before suspecting internal damage. If noise survives that adjustment, open the transmission chapter at page 169 and start disassembly diagnostics.
Manual Section: Transmission TroubleshootingEngine Overheating
Verify coolant level: the system holds 9.1 L total (page 24). Pressure-test the radiator; it should hold 1.4 kgf/cm² (137 kPa) without leaking (page 54). Clear debris from the fins, then check thermostat operation and fan belt tension. For the full symptom list, including smoke and oil pressure, work through the troubleshooting flowchart.
Manual Section: Engine TroubleshootingBrakes pull hard to one side or need excessive pedal force to stop p. 268
Remove and measure brake disc thickness on both sides: the minimum is 2.0 mm (page 268), so replace any disc worn to or below that limit. Confirm rear wheel nut torque at 280 to 319 Nm (page 36). Check the friction faces for hydraulic fluid contamination; contaminated pads and discs get replaced, not cleaned.
Manual Section: Brake TroubleshootingFrequently Asked Questions
How to find torque specs for KIOTI RX6010C engine head bolts
Cylinder head bolts tighten in three steps: first to 4.0 kgf-m (39.2 Nm, 28.8 lb-ft), then a further 90° turn, and finally another 80°. For the full procedure, see section 7.7.1, "Cylinder head removal."
What are the replacement specifications for Hydraulic relief/pressure adjustment valve?
Hydraulic main relief pressure runs 185 kgf/cm² (18.13 MPa, 2,631 psi); steering relief sits at 145 kgf/cm² (14.21 MPa, 1,991 psi). The modulator valve (power shuttle) carries a relief set pressure of 17 ~ 19 kgf/cm². When a reading falls outside the standard, adjust or replace the steering unit's relief valve.
What are the replacement specifications for Loader control valve/manifold parts?
Within the loader joystick valve assembly, the main relief valve is set to 185 kgf/cm² (at 41.6 lpm). Should debris lodge in the valve and keep the spool from returning, clean the joystick valve's interior and replace it. The joystick valve coupler relief is set to 180 ~ 190 kgf/cm².
How quickly can I access this Kioti RX6010C(PC) manual after buying?
Checkout delivers a 640-page searchable PDF straight to your device. Open it on a laptop, tablet, or phone and take it right onto the shop floor.
Can I print this Kioti RX6010C(PC) manual?
None at all. The PDF is DRM-free, so print whatever sections you want to carry into the shop. Standard letter or A4 paper works fine.
Can I find hydraulic circuit diagrams in this Kioti RX6010C(PC) manual?

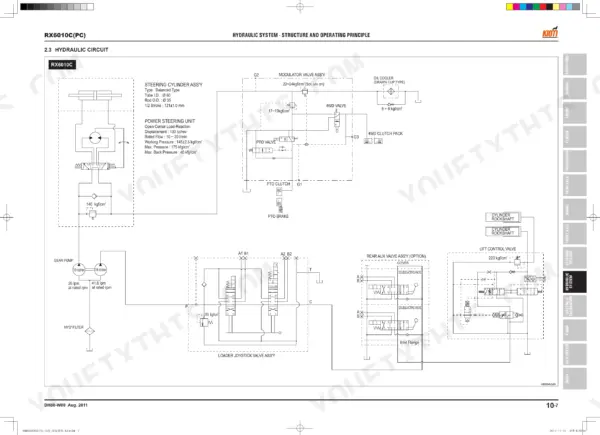

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kioti RX6010C(PC).
